used CNC Turning Machines for sale

Lathe was bought fully reconditioned from a reseller in 1996 and has been used since 2010. Mechanically is in good conditions, NC is to be checked.

turning diameter: 430 mmturning length: 1000 mmcontrol: CNC turning diameter over bed slide: 277 mmspindle passage: 30 mmnumber of spindle speeds: 30 - 2800 U/minx-axis: 240 mmz-axis: 700 mmweight of the machine ca.: 3,0 tdimensions of the machine ca.: 2,5 x 1,9 x 1,9 mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 320 mmturning length: 400 mmcontrol: FANUC 21i-T swing diameter over face slide: 165 mmnumber of spindle speeds: 50-4500 weight of the machine ca.: 3 twww.marcels-maschinen.ch The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

CNC fine lathe Make: PetrolGer Type: TNL Control: Siemens 810T Built: 1991 Equipment and accessories: - Swivel loader system - Small conveyor belt - Charging-unloading gripper - Chip conveyors - Foot lever for clamping and relaxing the collet

Machine Details Stock-No. 1105-03782 Type of machine CNC Lathe - Inclined Bed Type Make BIGLIA Type B 121 S CNC Year of manufacture 1989 Type of control CNC Storage location FRANCE Country of origin other Delivery time at once Freight basis free loaded Technical details turning diameter 520 mm turning length 420 mm control fanuc ot Spindle Bore: 45 mm turning speed range - spindle 4900 rpm Rapid traverse 20/12 m/min tool taper VDI 30 tail stock MK 4 total power requirement 20 kW weight of the machine approx. 3.5 t dimensions of the machine approx. 2900x1800x1800 mm Additional information WITH FANUC OT CONTROL Tailstock 3 Jaw Chuck Chuck Chip Convoyer

Machine Details Stock number 1105-03732 Machine type CNC lathe - inclined bed machine Brand BIGLIA Type B 111 - S Year of construction 1995 Control type CNC Control Fanuc 0-T Storage location FRANCE Country of origin Taiwan Delivery time by arrangement Freight base from location Technical details Turning diameter 180 mm Turning length 280 mm Control Fanuc 0-T Rod passage: 42 mm Speed range - spindle 6000 rpm Feed range - turret / infinitely variable 1 - 12000 mm/min Rapid traverses 20 / 24 m/min Number of tool turrets: 1 piece Tool turret - places: 12 stations Tool holder direct pick-up Tailstock MK 3 Total power requirement 7.5 kW Machine weight ca. 3,2 t Space requirement approx. 2800x1700x1700 mm Accessories 3 - Baking - Lining Complete machine documentation Conveyor Parts catcher Collet device Electronic handwheel Coolant device Tool - Sett ...

turning diameter: 250 mm, Drehlänge: 500 mm, serial number: 5,253, x-motion: 215 mm, z-motion: 510 mm, Accessories included: No, control: GE Fanuc series 18T, toolchanger positions: 12, number of places for driven tools: 4, number of controlled axes: 4, spindle bore: 55 mm, turning speed range: 4,000 rpm, weight approx.: 4,600 kg, Approx. Onsite Dimension. (l x w x h): 2,900 x 1,800 x 2,000 mm

turning diameter: 570 mmturning length: 1000 mmcontrol: Sinumerik 805 Siemensclamping length: ca 1200 mmgreates pass round over bed: 570 mmswing diameter over face slide: 365 mmturning speed range - main spindle: 3 - 2.500 min/-1power capacity - main spindel: 15 / 19 kWspindle bore: 62 mmspindle head: DIN 55027 No. 8diameter of quill: 80 mmtaper of center: MK 5 quill stroke: 190 mmtotal power requirement: 40 kVAweight of the machine ca.: 5,6 tLathe cycle controled- SIEMENS Sinumerik 805 / Simeodrive 611- 4-Jaw Chuck, Handwheel, Covering- Chip Tray & coolant- adjustable feet- approx 20 tool holders2021 Electrics/controls check by BoehringerThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

with CNC control, Fabr. SIEMENS, type: 840, max. 2000 rpm, max. circulation diameter: 640 mm, max. turning diameter: 500 mm, max. turning length: 1300 mm, spindle passage: 60 mm, with three-jaw chuck, Fabr. FORKARDT, diameter: 315 mm, coolant device and quick release system

turning diameter: 290 mmturning length: 850 mmswing diameter: 600 mmcontrol: Siemens type: 840 D mmspindle passage: 103 mmturning speeds: 3000 U/minlive tooling: 3000 U/minrapid travel - grinding spindle: 25 m/mintotal power requirement: 65 kWweight of the machine ca.: 11 tdimensions of the machine ca.: mOffer price without toolsOptionally, the accessories can also be purchased: 106 steel holders for indoor and outdoor use.External machining, 20driven tools(including 10 x angle tools) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 500 mmcentre distance: 3000 mmSiemens control: Sinumerik The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

with CNC control, Fabr. SIEMENS, type: SINUMERIK 840D, drive power: 32 kW, turret with 12 tool positions, max. speed: 2500 rpm, number of axes: 3, max. circulation diameter: 500 mm, max. turning diameter: 500 mm, max. turning length: 1000 mm, C-axis: 360 degrees, spindle passage: 90 mm

Universal CNC lathe BOEHRINGER NG 200 Manufacturer: BOEHRINGER Type [ type]: NG200 CNC double Control unit: Siemens 840D Year of construction[construction year]: 10/2001 Rotating diameter: 290 mm Turning length: 850 mm Control: SIEMENS 840 D Orbital diameter over bed: 600 mm Revolver 1 Revolver 2 Counter spindle Counter headstock Tailstock C-axis Powered tools Automatic machine doors – newly retrofitted Z-axis resolution: 40nm (2nm interpolated) Travel in Z: 740mm Rapid traverse speed in Z: 25 m/min Centering tip SK 30 X-axis resolution: 125nm (8nm interpolated) Travel in Z: 220mm Rapid traverse speed in Z: 25 m/min Distance between main and counter spindle: 1034mm Drive power: 30-72 kW Torque: 662 Nm Speed range max.: 4500 rpm Spindle head: Size 6/8 DIN 55026 Spindle diameter in the front. Bearing [spindle]: 120 mm Chuck diameter: 200-315mm Spindl ...

turning diameter: 140 mmturning length: 170 mmcontrol: Mitsubishi Meldas 635 spindle passage: 42 mm: 140 mmturning speed range - grinding spindle: 80 ~ 8.000 U/mindrive capacity - spindle motor: 11 / 7,5 kW: 0,001 °spindle bore: 55 mmA-Axis: turning speed range - spindle: 60 ~ 6.000 U/mindrive capacity - spindle motor: 3,7 / 2,2 kW: 42 mm: 2 posturret (x-stations): 12 : 2 x 12 pos: 45 ~ 4.500 min -1Turning Speed of the Rolls: 1 kWrapid traverse X-axis: I 24 m/minrapid traverse X-axis: II 18 m/minrapid traverse X-axis: III 20 m/minrapid traverse Z-axis: 24 m/mintotal power requirement: 14 kWweight of the machine ca.: 3,3 tdimensions of the machine ca.: 2,4 x 1,6 x 2,0 m- CNC control Mitsubishi Meldas 635LCC- Collet holder for main spindle- Pick-up spindle- Collet chuck holder for pick-up spindle- Pick-up spindle indexing- 2 12-position turrets with driven tools (VDI 20)- Warning light ( ...

CNC lathe BOLEY type BE 42 - Bi-spindle / twin-turret TECHNICAL SPECIFICATIONS: CN Type: MITSUBISHI Meldas 635LCC X1 axis stroke: 170 [mm] Z1 axis stroke: 200 [mm] X2 axis stroke: 110 [mm] Z2 axis stroke: 395 [mm] X3 axis stroke: 110 [mm] Z3 axis stroke: 170 [mm] Y-axis stroke: -/+ 40 [mm] Tool holder type: VDI 20 Spindle for clamping clamps: Size 48 DIN 6343 Spindle passage diameter: 42 [mm] Mini speed. Pin: 80 [rpm] Maximum speed. Pin: 8000 [rpm] C-axis indexing accuracy: 0.001 [°] Pin power: 7.5 [kW] Counter-spindle passage diameter: 42 [mm] Mini speed. Counter spindle: 60 [rpm] Maximum speed. Counter spindle: 6000 [rpm] C-axis indexing accuracy counter-spindle: 0.001 [°] Counter spindle power: 2.2 [kW] Maximum diameter. Machinable: 140 [mm] Number of positions - Upper turret: 12 Number of motorized positions - Upper turret: 12 Maximum speed. rotating to ...

automatic workpiece loader - max bar length: 720 mm - max dia: 65 mm Previously used on Mazak CNC lathe

two pieces of Budapesti EEN400 lathes In terms of price, our idea is 9,000.00€ per machine. Accessories would also be there, but this would still have to be checked carefully.

Inv. Num. : 6719 Type: MICROCUT SAB LT-52 Producer: Buffalo Created: 2019 Parameters: Control system: Siemens Maximum turning length: 460 mm Maximum turning diameter: 210 mm Maximum turning diameter over bed: 500 mm Maximum spindle speed: 5000 1/min Maximum turning diameter over support: 220 mm Maximum length of travel in the X-axis: 215 mm Maximum feed rate in the Z-axis: 520 mm Length: 3330 mm Width: 1821 mm Height: 1930 mm Weight: 3200 kg Equipment: Chuck Conveyor Top

- X: 1050 mm - Y: 920 mm - Z: 110 mm - table size: 1000 x 1000 mm - speed range: 18.000 rpm - taper fixture: SK 25 - tool changer: 6-station - max. workpiece dimension: Ø 65 mm, hight 65 mm - control: Bosch CC 120 - total power: 12 kW - weight of machine: 900 kg - space requirement (W x D x H): 1,7 x 1,9 x 2,0 m Details milling motor power 4 kW vacuum pump 25 m³ / h very good condition, immediately ready for use servo motors in the axes has run less than single-shift accessories 6 units with collets 14 collets vacuum pump suction with 4 m suction hose machine feet documentation tool presetting device with depth gauge PAV Vario

Ref.No.00806 Name of the lathe Manufacturer: Böhringer Model VDF DUE 560 Year of construction 2005 Control Heidenhain Manualplus 4110 Swing Above the bed 570mm Over the long face slide 365mm In the bed recess 600mm Reliable workpiece weight for normal main spindle Without the use of sticks 500kg For a setting vise 630kg With two setting vices 800kg Main spindle speeds number 24 With normal main spindle 11.2... 2240 min-1 Step jump 1.25 Commuting Face slider 345mm Upper slider 125mm The tailstock quill 190mm Dimensions Tip height over flat track 280mm Electric drive 15 kW Repair A casting was broken in half, customer has repaired it himself with his own means, so that it works perfectly again Condition under power technically ok Documentation In German - Paper-bound Submission date expected August / September 2024

Chevalier FCL-26120 Ø 660 x 3000 mmSwing over bed: 660 mm Swing over cross-slide: 400 mm Distance centre tot centre: 3000 mm Max longitudinal travel Z-axis: 2980 mm Max cross travel X-axis: 450 mm Dia of spindle bore: 105 mm Power on the spindle: 11/15,5 kW Number of speeds: 27 > 2250 rpm Command: Fagor Total power needed: 20 kVa Length: 5330 mm Width: 2190 mm Height: 2100 mm Weight: 5,6 ton

Machine Details Stock number 1105-03844 Machine type CNC lathe Make CINCINNATI Type HAWK TC 150 Year of construction 1998 Control type CNC Storage location FRANCE Country of origin UK Delivery time IMMEDIATELY Freight Base EX WORK Technical details Turning length 400 mm Turning diameter over bed 300 mm Turning diameter above the paddling carriage 250 mm Speed range 5500 rpm Passage 51 mm Information Control FANUC 21 T TURNING LENGTH 4000 MMM SPINDLE 7.5 KW WITH 51 ROD PASSAGE Tool changer: 12-fold / VDI 30 Drive power: 11 KW LINING + TAILSTOCK + CHIP CONVOYE

turning diameter: 360 mmturning length: 400 mmcontrol: Acramatic 2100 total power requirement: kWweight of the machine ca.: 3000 kgdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Gebr. CNC longitudinal lathe Citizen C16-VI, YOC 2004 Control, Fabr. CINCOM MITSUBISHI Meldas 6 axes (X1/Z1/Y1/C1/X2/Z2), Rod Ø max. 16 mm, Turning length max. 200 mm, Main spindle, speed max. 10,000 rpm, C-axis 0.001 degrees, Counter spindle Ø max. 16 mm, Counter spindle speed max. 10,000 rpm, incl. spindle indexing Tool holder for a total of 17 tools (linear tool holder, front hand, rear machining), Parts Conveyor Belt Conveyor Fire extinguishing system Loading magazine IEMCA Genius 118/3200 year 2005 The machine can be viewed by appointment. Subject to changes and errors in the technical data and information as well as prior sale!

CITIZEN CINCOM A20 VIPL CNC lathe built in 2006 ensures the highest precision and efficiency in the production process. During machining, the specially designed bed with its rigid structure and high thermal stability effectively reduces the heat impact, resulting in increased machine life and reliability. All of this, combined with a modular design with a reduced number of parts, makes the CINCOM A20 VIPL CNC lathe ideal for various types of production. Workpieces with a maximum diameter of 20 mm and a length of 135 mm are machined in 7 axes by a powerful main spindle which is synchronised with an AC motor, forming an electrospindle. A bushing driven by a separate AC motor is also synchronised with the machine’s main spindle. The operator’s panel consists of an intuitive FANUC 32i CNC controller, a memory card slot and an electronic wheel located next to the monitor designed to ch ...

CMT Ursus/Emco Ø 500 x 1500 mm CNCSwing over bed: 500 mm Swing over cross-slide: 265 mm Distance centre tot centre: 1500 mm Max longitudinal travel Z-axis: 1500 mm Max cross travel X-axis: 240 mm Dia of spindle bore: 58 mm Power on the spindle: 7,5 kW Number of speeds: 15 > 1500 rpm Command: CMT Weight: 2 ton

Machine Details Stock-No. 1105-03897 Type of machine CNC Lathe Make CMZ Type TL 20 Year of manufacture 2005 Type of control CNC Storage location HAGUENAU FRANCE Country of origin espagne Delivery time immediately Freight basis EX WORK Price Technical details turning diameter 400 mm turning length 692 mm control FANUC 32 i manual guide turning speeds 670 rpm Rapid Traverse 224 m/min Workpiece Weight 600 kg Thread pitch max. 400 mm total power requirement 30 kW Weight of the machine approx. 6 t Additional information 1 disc turret with 12 p osition, , cylinder shaft, 1 tailstock, , hydr. clamping CONTROL FANUC 21ITB

Inv. Num. : 7185 Type: Alpha 1350 XS Producer: Colchester Created: 2008 Parameters: Control system: Fanuc Alpha X Series Maximum turning length: 650 mm Max. turning diameter: 350 mm Maximum turning diameter over bed: 350 mm Spindle diameter: 42 mm Maximum spindle speed: 3500 1/min Length: 2400 mm Width: 1700 mm Height: 1500 mm Weight: 1800 kg Equipment: Owner

General: Control Fanuc Series 20-T Turning length 1,000 mm Working spindle 2,000 rpm Turning diameter 460 mm Spindle bore 76 mm Other equipment and included accessories: Tool holder Parat including 13 pieces of interchangeable cassettes 3-jaw chuck 315 including jaws 3-jaw chuck 300 Various MK sleeves

: 0460 mm: 1500 mm: : 230 mm: 78 mm: 400 mm: 2200 U/min : D1-8 DIN 55029 : 95 mm: 145 mmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: 0 mm: 0 mm: 0330 mm: 1000 mm: : 167 mm: 40 mm: 3000 U/min : DIN 55029 D1-4 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Machine Details Stock-No. 1105-04005 Type of machine CNC Lathe Make COLCHESTER Type TORNADO 300 Year of manufacture 1995 Type of control CNC Storage location HAGUENAU FRANCE Country of origin Great Britain Delivery time immediately Freight basis EX WORK Price Technical details turning diameter 530 mm turning length 500 mm control FANUC OT total power requirement 22 kW weight of the machine approx. 3.3 t Additional information GOOD MACHINE CNC CONTROL FANUC OT Cuck Taikstock VDI 40 Turret 12 P Chip Convoyer echnical information Swing over bed 530 mm Swing over cross-slide 330 mm Distance centre tot centre 500 mm Max longitudinal travel Z-axis 20 m/min Max cross travel X-axis 10 m/min Spindle cone A2-8 Dia of spindle bore 90.5 mm Power on the spindle 22 kW Number of speeds 4000 rpm Command Fanuc Total power needed 53 kVa Length 3500 mm Wid ...

swing dia.: 440 mmmax. turning diameter: 220 mmturning length: 450 mmtravel -x axis: 200 mmcontrol: Fanuc 18i-TB max. helix angle: 60 °spindle bore: 64 mmtool taper: VDI 30 numbers of positions in the tool changer: 12 CNC Lathe | COLCHESTER - TORNADO T6MSequipped with counter spindle and chip conveyor.The machine is in a well-maintained condition.Please refer to further technical details in the attachement of the offer.- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -#Tags: T6 MS | T6-MS | T 6MS | T-6MS | T-6The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

swing dia.: 606 mmmax. turning diameter: 170 mmcontrol: FANUC 31i-A travel -x1 axis: 195 - 205 mmtravel -y1 axis: 80 (+/- 40) mmtravel -z1 axis: 583 mmtravel -x2 axis: 153 - 163 mmspindle bore: 64 mmnumber of spindle speeds: 6.000 U/minAutomatic tool changer with driven tools: 12 Stk. / pcs.tool taper: 30 VDI CNC Lathe | COLCHESTER - TORNADO T8MS Twin TurretThe machine is in good condition.Please refer to further technical details in the attachement of the offer.- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -#Tags: TT-6MS | TT 6MS | TT 6 MS | TT-6The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Control : D.Electron Z 32 Peak height 220 mm Tip width 1000 mm Turning over bed 440 mm Turning diameter via slide 245 mm Travel -Z Axis 750 mm Width of the lathe bed 320 mm Spindle holder CL 6" Spindle bore 62 mm Spindle speeds 0 - 2500 rpm. Rapid speed X/Z 7 m/min Pinien travel by hand 200 mm Pinole diameter 80 mm Pinole holder MK 4

Control : D.Electron Z 32 Peak height 260 mm Tip width 1500 mm Turning over bed 520 mm Turning diameter via slide 310 mm Travel -Z Axle 1250 mm Travel -X-axis 270 mm Width of the lathe bed 400 mm Spindle holder CL 8" Spindle bore 110 mm Spindle speeds 0 - 2000 rpm. Rapid speed X/Z 5 m/min Pinien travel by hand 220 mm Pinole diameter 80 mm Pinole holder MK 5 Total installed power 18 kW (Electronically reduced) Engine hours 1828 h

Control : Heidenhain Peak height 260 mm Tip width 1500 mm Turning over bed 520 mm Turning diameter via slide 310 mm Travel -Z Axle 1250 mm Travel -X-axis 270 mm Width of the lathe bed 400 mm Spindle holder CL 8" Spindle bore 110 mm Spindle speeds 0 - 2000 rpm. Rapid speed X/Z 5 m/min Pinien travel by hand 220 mm Pinole diameter 80 mm Pinole holder MK 5 Total installed power 18 kW (Electronically reduced) Engine hours 1828 h

Control : D.Electron Z 32 Peak height 220 mm Tip width 1000 mm Turning over bed 440 mm Turning diameter via slide 245 mm Travel -Z Axis 750 mm Width of the lathe bed 320 mm Spindle holder CL 6" Spindle bore 62 mm Spindle speeds 0 - 2500 rpm. Rapid speed X/Z 7 m/min Pinien travel by hand 200 mm Pinole diameter 80 mm Pinole holder MK 4

Peak height above bed 210 mm Tip distance 950 mm Permissible diameter on bed 420 mm Permissible diameter on slide 160 mm Head Spindle passage 62 mm Spindle nose ASA 6 - Type 2 Engine Power 10.7 kW Spindle bore 62 mm Speed 0 - 3500 rpm. CNC Control D. Electron Z32

CNC lathe Dainichi DAF 35 – F35/1250 - Built in 1994 - 1st hand and from your own use - Fully functional, energized, ready for demonstration - X-axis travel: 200 mm - Z-axis travel: 1320 mm - Turning diameter: 350 mm - Turning length: 1250 mm - Rapid traverse Z-axis mm/min 15000 - Spindle speeds: 25 – 2500 rpm - Spindle diameter 105 mm - Spindle motor power: 22 kW - Control: Fanuc 0TF - Chip conveyor Z-Type - Kitagawa 12" Hydr. 3-jaw chuck

Manufacturer: DMG Type CTX 510 Year of construction 2004 Control Heidenhain Machine weight approx. 7.5 t Tool holder VDI 40 x-travel 300 mm z-travel 1050 mm Speed range 3500 1/min Turning diameter 465 mm Turning length 1050 mm Chip conveyor: yes Tailstock KM5 Space requirement approx. 6.5 x 3.0 x 2.2 m Circulation diameter 680 mm Tool turrets - places 12 pl. Rod diameter 90 mm

CNC controller: SINUMERIK 810D with ShopTurn Capacity: X-axis travel mm: 300 Z-axis travel mm: 1.050 Turning length mm: 1.050 Max. turning diameter mm: ø 465 Swing over bed mm: ø 680 Swing over cross-slide mm: 465 Bar work capacity mm: ø90 Upper turret: Number of tool slots St .: 12 (6x driven) Speed ​driven tools RPM: 4.000 Main spindle: Speed ​spindle rpm: 3.250 Drive power spindle kW: 33/22 (40%/100% DC) Spindle bore mm: 102,5 Spindle nose: Flat flange (220h5) Maximun torque Nm: 420 (100% DC) Tailstock: Tailstock travel mm: 850 Holder: MK5 Equipment: part catcher Workarea light Foot switch for chuck or collet system Driven tools included Working time hours Spindle 1: 72.059 Rated power kVA: 50 Basic machine dimensions / weight: Length mm: 5.300 Width mm: 2.230 Height mm: 2.010 Weight kg: 8.100

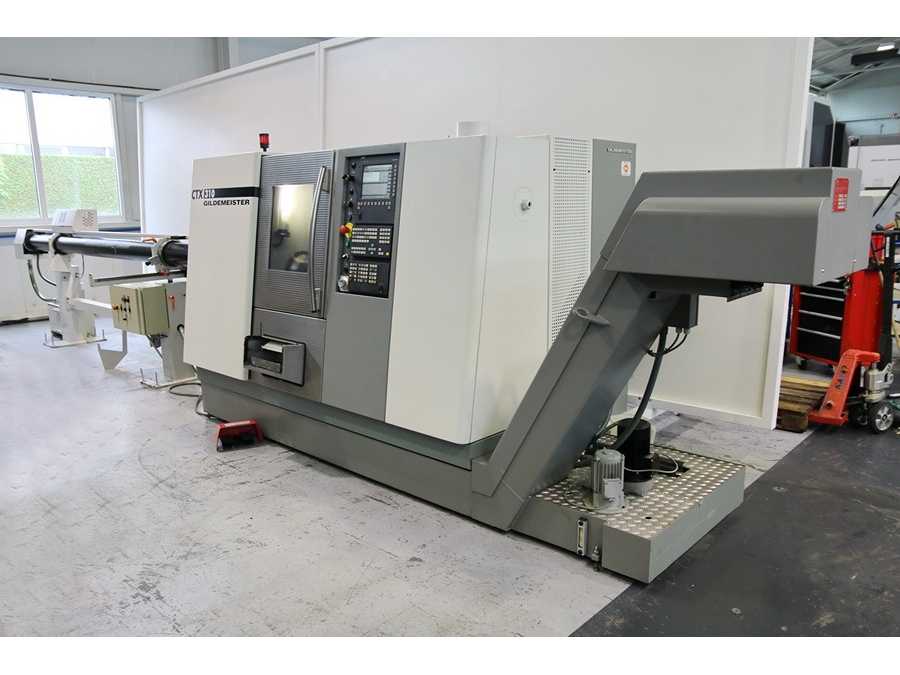

Make: GILDEMEISTER CTX 310 incl. bar feeder Breuning with C-axis and driven tools Manufacturer: DMG GILDEMEISTER CTX 310 Year of construction: 2010 Category: Turning Center Bar feeder: Breuning IRCO DS 4210 Control: Fanuc 0i Z-axis stroke: 160 mm X-axis stroke: 450 mm Turning diameter Max. rotatable diameter: 330 mm Max. rotatable length: 450mm ​ Speed: 5,000 rpm Torque S1: 112 Nm Tool turret: 12 positions Conveyor Cooling lubricant reservoir Pressurized coolant pump: 5 bar On request, including dismantling and loading. Machine documentation, manuals, CE conformity.

Fully functional CNC lathe DMG-Gildemeister CTX 310 V3 Year of construction: 2004 Control Heidenhain EP 4290 with ShopTurn 6.4 incl. tailstock C-axis with tool drive Servorevolver – Electrospindle Partial retrieval clamping device Commissioning: 18.01.2005 End of warranty: 17.07.2006 Spindle hours: 21,163.1 h (as of 30.01.2024) Accessories: -LNS Bar Feeder Hydrobar -Mist extraction ifs industrial filter IFMC 1100, year of manufacture 06/2015 -Chip conveyor Bürener Maschinenfabrik SPE 63/30-200 Z60, built in 2004 -All documentation Tools of the plant are not included in the price. The collet chuck for E173 pliers (without pliers) naturally remains on the machine. The plant has no defects and is currently producing on two shifts. The new plant has a delivery date of 12.07.2024. After delivery of the new machine, this machine is available for collection.  ...

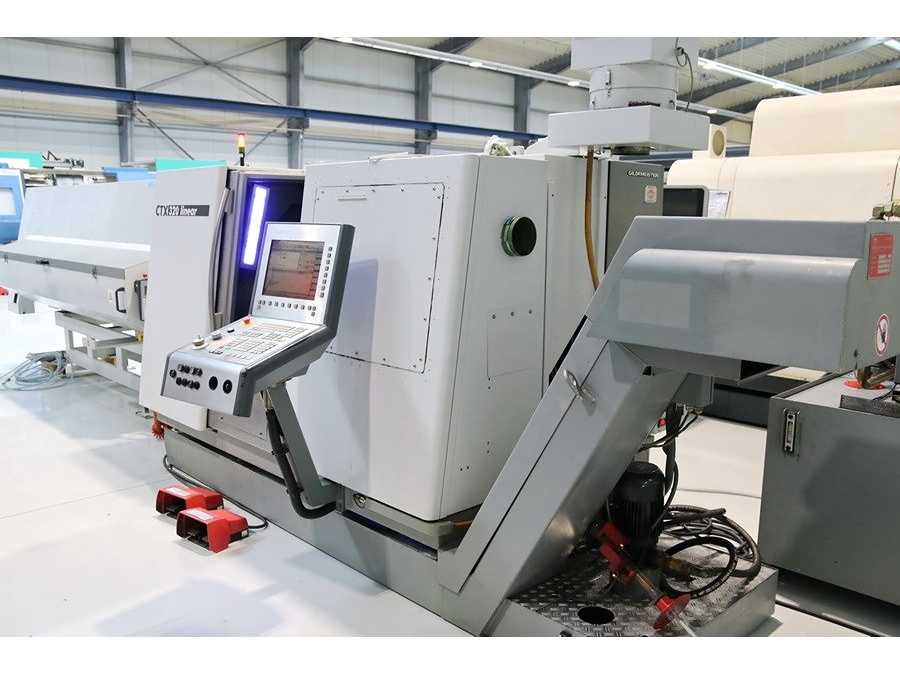

DMG Gildemeister CTX 320 Linear V6 CNC lathe with Y-axis, driven tools and second spindle CNC control Siemens 840D Powerline Turning diameter 240 mm Spindle bore diameter 51 mm Spindle speed 6000 rpm Spindle motor 20/16 kW X-axis travel 141 mm Y-axis travel: 32 mm Z-axis travel 450 mm W-axis travel 380 mm Minimum indexing of the main spindle of the C-axis 0.001° minimum indexing of the C-axis auxiliary spindle 0.001° Number of tools on turret 12 Number of driven tools 12 Spindle speed driven tools 5000 rpm Tool holder DIN 69880-30 If you have any questions about the machine, as well as an appointment for a viewing, please contact us by phone or e-mail.

Machine details Bearing number 1105-03132 Machine type CNC lathe - slantbed machine Made GILDEMEISTER Type CTX 400 Built in 2000 Control type CNC Warehouse FRANCE Country of origin Germany Delivery time SOFORT Freight base from location, free loading truck Technical details Turning diameter 570 mm Turning length 635 mm Control Heidenhain CNC Pilot 4290 Turning diameter over bed slide 420 mm Spindle speeds - infinitely 25-5000 rpm Number of driven tools 6 mm Drive 5 kW Information CNC Heidenhain Pilot 4290 C-axis with 5 FESTE vdi holders 1 3 BAKE FOOD 1 X SPAENEFOERDERER WITH REITSTOCK + LNS STANGEN VORCHUB

Machine Details Stock number 1105-03811 Machine type CNC lathe - inclined bed machine Brand GILDEMEISTER Type CTX 410 Year of construction 2004 Control type CNC Control HEIDENHAIN TURN PLUS Storage location FRANCE Country of origin Germany Delivery time available at short notice Freight Base EX WORK Technical details Turning diameter 320 mm Turning length 600 mm Turning diameter 320 mm Travel - x 260 mm Travel - z 635 mm Orbital diameter 680 mm Orbital diameter via slide 365 mm Spindle bore diameter 87 mm Turret head (x-fold) 12 Main spindle speed heidenhain turn plus 1/min Rapid traverse X + Z - axles 24/30 m/min Drive power - spindle motor 21 kW Control HEIDENHAIN TURN PLUS Power supply 40 kVA Information control HEIDENHAIN TURN PLUS 2 AXIS MACHINE 12-fold turret VDI 30 Spaneforderer

CNC lathe Manufacturer: Gildemeister Type: CTX 410 V3 Year of construction: 2006 Control: Heidenhain IT Circumferential diameter: 505 mm Drive power: 40%/100% ED 28/21 kW Speed range from – to: 25-5000 rpm Weight approx.: 5600 Kg Equipment: Axes: X,Z,C axis Tool carrier: 12-speed turret Tailstock: Yes Quill Stroke Automatic: Yes Quill mounting: MK4 Chip Conveyor: Yes Very good condition. Errors excepted

Machine Details Stock-No. 1105-03934 Type of machine CNC Lathe - Inclined Bed Type Make GILDEMEISTER Type CTX 420 LINEAR Year of manufacture 2002 Type of control CNC Storage location FRANCE Country of origin Germany Delivery time available at short notice Freight basis ex Showroom Technical details turning diameter 320 mm turning length 600 mm turning diameter 320 mm control Siemens 840D Travel -X Axis 260 mm Travel -Z Axis 635 mm swing diameter 680 mm swing diameter over slide rest 365 mm Spindle Bore Diameter 87 mm Turret (X-Stations) 12 MainSpindle Speed 5000 1/min Rapid Traverse X + Z Axis 24/30 m/min drive capacity - spindle motor 21 kW connected load 40 kVA dimensions 4,32 x 1.72 x 1,77 m Additional information CONTROL SIEMENS 840D WITH SHOP TOWER NICE MACHINE WITH LINEARTECHNIK

Machine Details Stock-No. 1105-03998 Type of machine CNC Lathe - Inclined Bed Type Make GILDEMEISTER Type CTX 510 Year of manufacture 2009 Type of control CNC Storage location FRANCE Country of origin Germany Delivery time immediately Freight basis EX WORK Price Technical details turning diameter 465 mm turning length 1150 mm Control Fanuc 32 I greates pass round over bed 680 mm swing diameter over face slide 565 mm turning speed range 3500 1/min Torque max. 750 Nm rapid travel range X 30 / Z 25 m/min spindle 42 / 31 kW turret head 12 pos. VDI 40 SAUTER Spindle Bore 90 mm total power requirement 65 kVA weight of the machine approx. 8.1 t Additional information NICE MACHINE 2 AXIS FANUC 32 3-Jaw-Chuck chipconveyor, TAILSTOCK Accessories: 12 PCS Tools,
