Máquinas electroerosivas AGIE CHARMILLES FORM 400 vP

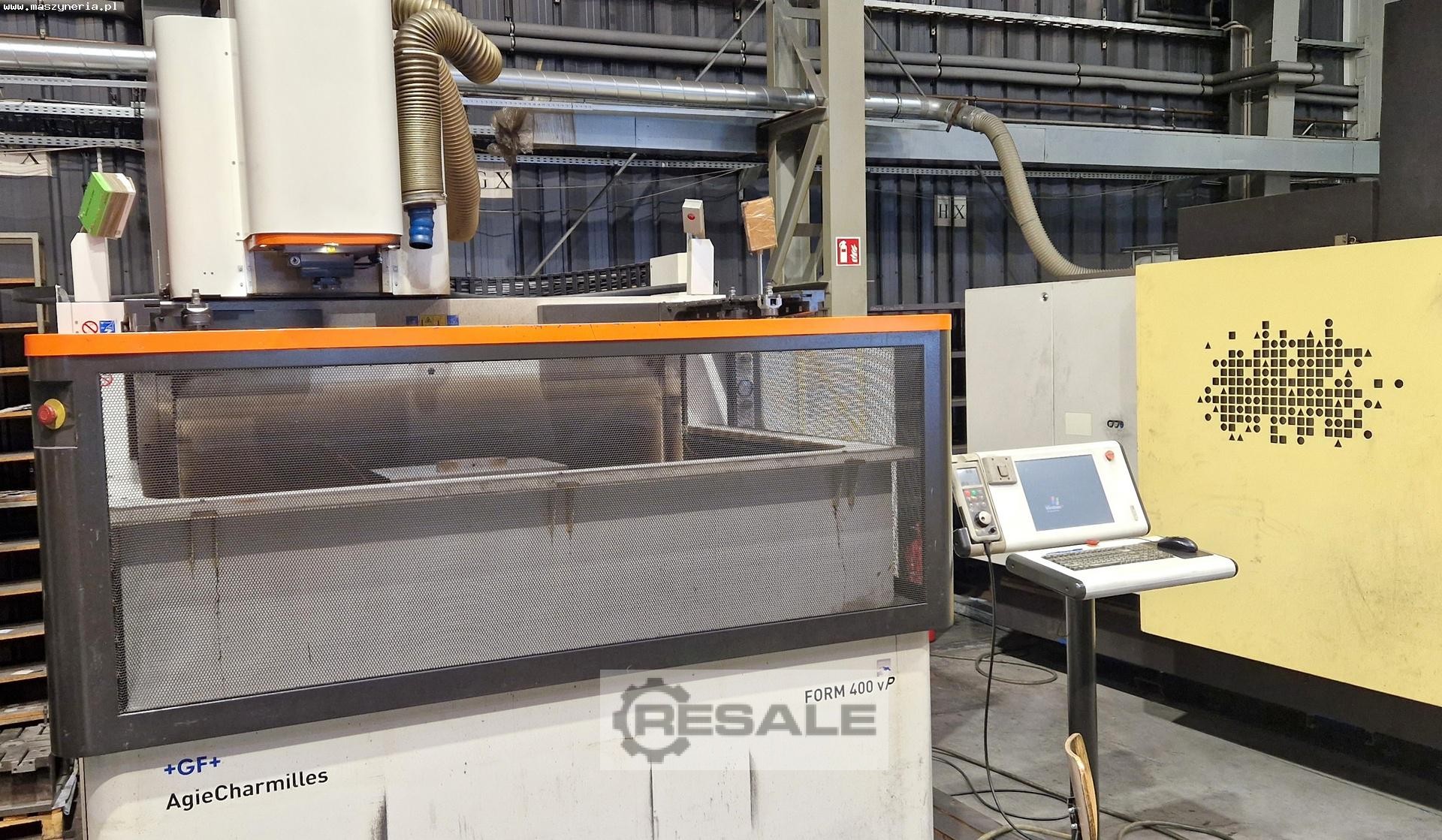

AGIE CHARMILLES FORM 400 vP die-sinking EDM was built in 2012 in Switzerland by Agie Charmilles SA. The machine is used in the production of, among others, precision dies, punches and tools. Workpieces with a maximum weight of 3000 kg are machined by means of electrical erosion, which enables complex shapes to be made in even the hardest materials. Workpieces machined in this way also do not require other secondary processes to be undertaken, such as polishing. Extensive equipment is included in the offer price, consisting of, among others, an intelligent control system, a measuring probe and a special iQ module that minimises electrode wear. The AGIE CHARMILLES FORM sinker EDM weighs 7014 kg.

Technical specifications of the AGIE CHARMILLES FORM 400 vP die-sinking EDM
- number of axes: 4 (X,Y,Z,C)
- feed in the X/Y/Z axis: 900/700/500 mm
- work table dimensions (L x W): 1100 x 900 mm
- work tank internal dimensions (L x W x H): 1814 x 1215 x 700 mm
- maximum workpiece weight: 3000 kg
- maximum electrode weight: 100 kg
- maximum distance from work table surface to holder: 822 mm
- minimum distance from work table surface to holder: 322 mm
- operating hours: 49659 h
- power: 12.3 kVA
- power supply: 3x 400 V; 50 Hz
- dimensions (L x W x H): 2970 x 3100 x 3320 mm
- weight of the AGIE CHARMILLES FORM 400 vP machine: 7014 kg

Equipment of the AGIE CHARMILLES sinker EDM
- CNC control
- software: VISION FORM
- iQ module that minimises the wear of graphite and copper electrodes

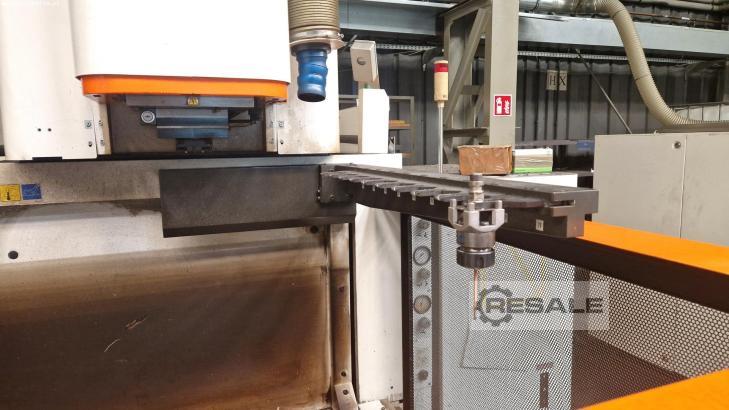

- measuring probe
- C axis

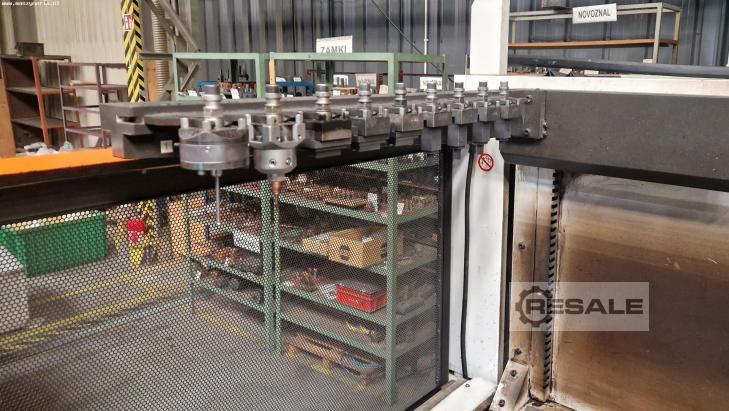

- 10-position electrode changer right
- 10-position electrode changer left

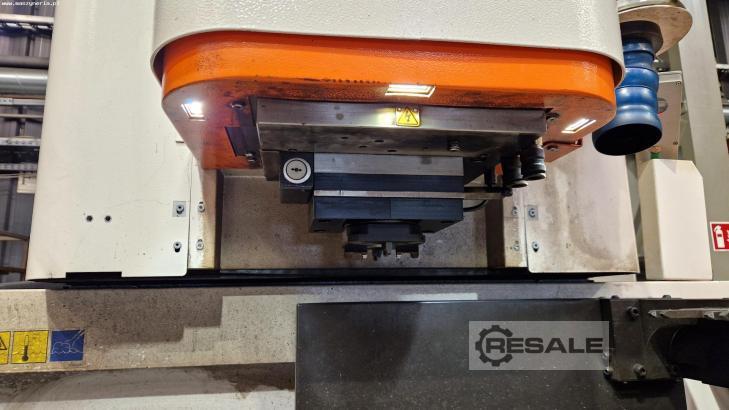

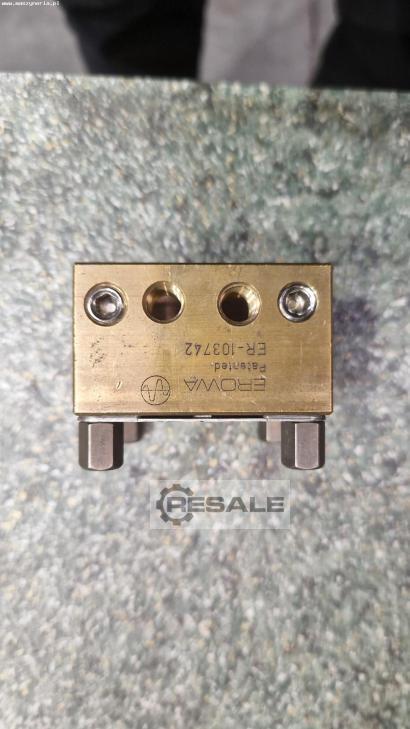

- electrode holder: EROWA IT-S 50
- optical scales in X,Y,Z axis

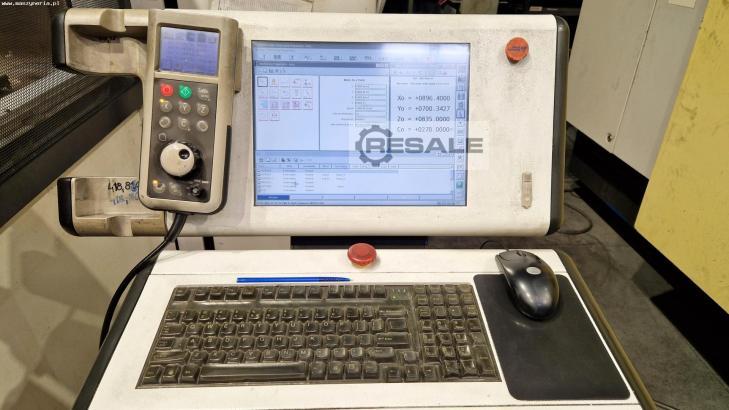

- portable control unit (pendant)
- workspace illumination
seller offer No. resale 168817942
