Máquinas de soplado BBM MASCHINENBAU BBM 2500 CoEx3
máquinas para el procesado de plástico / máquinas para el estiramiento y soplado de moldes / Máquinas de soplado
Fabricante: BBM MASCHINENBAU
Modelo:BBM 2500 CoEx3
Tipo de máquina: Máquinas de soplado
Número de artículo: 170155683
Cantidad: 1
Fecha: 07.09.2026
Año de fabricación: 2019
Ubicación:
Alemania
34497 Korbach
Precio: base para las negociaciones 1,900,000 EUR
Su propuesta de precio:
Máquina en stock:Sí
For sale is a highly automated BBM 2500 CoEx3 extrusion blow molding
line, built in 2019. The plant is in very good technical condition, is
fully functional and immediately available. A tour under power is
possible by appointment.
The plant is designed for the cost-effective production of large-volume HDPE hollow bodies and sophisticated technical blow molded parts. It is a discontinuous 3-layer extrusion blow molding line with a storage head.
Included in the total scope offered:
- Piovan GMS-160 high-performance plastic granulator, built in 2023
- Piovan VM 500 extraction system
- GWK/Technotrans refrigeration system
The listed peripheral components are included in the offer price. If individual components or all accessories are not required, they can be removed from the scope of delivery and taken into account accordingly in the pricing.
Main technical data:
Manufacturer/Model: BBM 2500
Year of Make: 2019

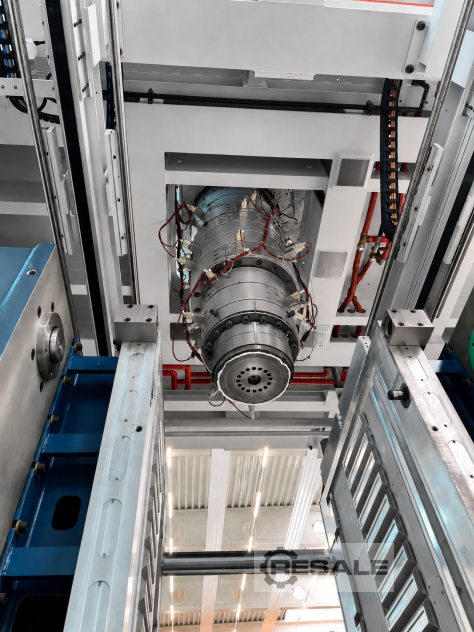

Process: CoEx3 extrusion blow molding with storage head
Material: HDPE
Version: 1 station with 1 CoEx3 blowing head
3 extruders: 1 × 130 mm and 2 × 70 mm
Total output: up to 1,200 kg/h
Storage capacity: 1 × 20 l and 2 × 7.5 l
Electrical wall thickness control
Clamping force: 2,500 kN
Clamping surface: 2,160 × 2,400 mm
Column spacing: 1,500 × 2,400 mm
Opening width: 600–1,500 mm
Electric closing movement
Locking via 6 hydraulic power strokes

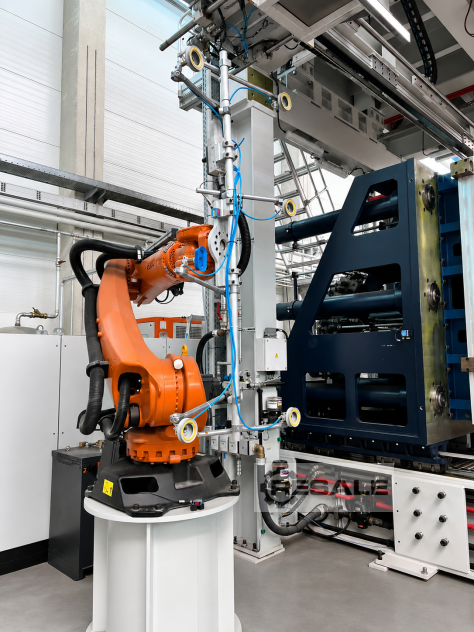

2 integrated KUKA 6-axis robots for removal and handling

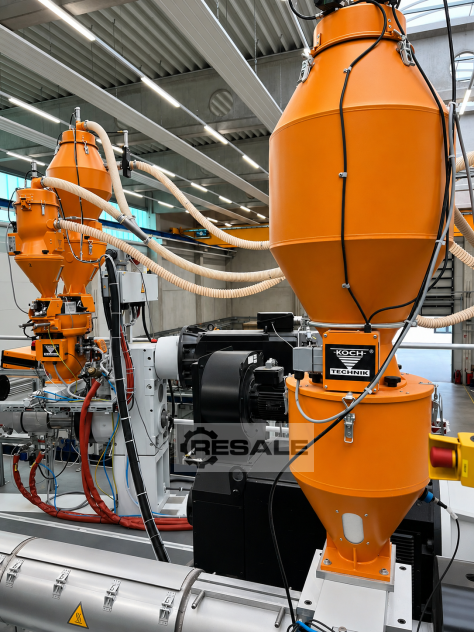

Fully automatic KOCH material supply with gravimetric dosing and mixing
Beckhoff TwinCAT control system with Siemens components and drives
Connected load: 831 kW
Power supply: 400 V, 3 phases/N/PE, 50 Hz
Dimensions: approx. 11,500 × 12,500 × 8,600 mm (L × W × H)
CE documentation and machine manuals available
The plant is particularly suitable for large-volume hollow bodies, technical molded parts, infrastructure products, sanitary parts and industrial containers.
Availability: immediately
Inspection and test run: possible by prior appointment
The plant is designed for the cost-effective production of large-volume HDPE hollow bodies and sophisticated technical blow molded parts. It is a discontinuous 3-layer extrusion blow molding line with a storage head.
Included in the total scope offered:
- Piovan GMS-160 high-performance plastic granulator, built in 2023
- Piovan VM 500 extraction system
- GWK/Technotrans refrigeration system
The listed peripheral components are included in the offer price. If individual components or all accessories are not required, they can be removed from the scope of delivery and taken into account accordingly in the pricing.
Main technical data:
Manufacturer/Model: BBM 2500
Year of Make: 2019
Process: CoEx3 extrusion blow molding with storage head
Material: HDPE
Version: 1 station with 1 CoEx3 blowing head
3 extruders: 1 × 130 mm and 2 × 70 mm
Total output: up to 1,200 kg/h
Storage capacity: 1 × 20 l and 2 × 7.5 l
Electrical wall thickness control
Clamping force: 2,500 kN
Clamping surface: 2,160 × 2,400 mm
Column spacing: 1,500 × 2,400 mm
Opening width: 600–1,500 mm
Electric closing movement
Locking via 6 hydraulic power strokes
2 integrated KUKA 6-axis robots for removal and handling
Fully automatic KOCH material supply with gravimetric dosing and mixing
Beckhoff TwinCAT control system with Siemens components and drives
Connected load: 831 kW
Power supply: 400 V, 3 phases/N/PE, 50 Hz
Dimensions: approx. 11,500 × 12,500 × 8,600 mm (L × W × H)
CE documentation and machine manuals available
The plant is particularly suitable for large-volume hollow bodies, technical molded parts, infrastructure products, sanitary parts and industrial containers.
Availability: immediately
Inspection and test run: possible by prior appointment
