Máquinas de taladro de huecos largos GANNER GANNOMAT Junior 323

Universally applicable frame and slotted hole drilling machine
Especially for window construction and universal use due to pneumatic height adjustment

Duelhole drilling on two planes in one clamping
Motor power 1.5 kW
Start of the motor with practical handle switch

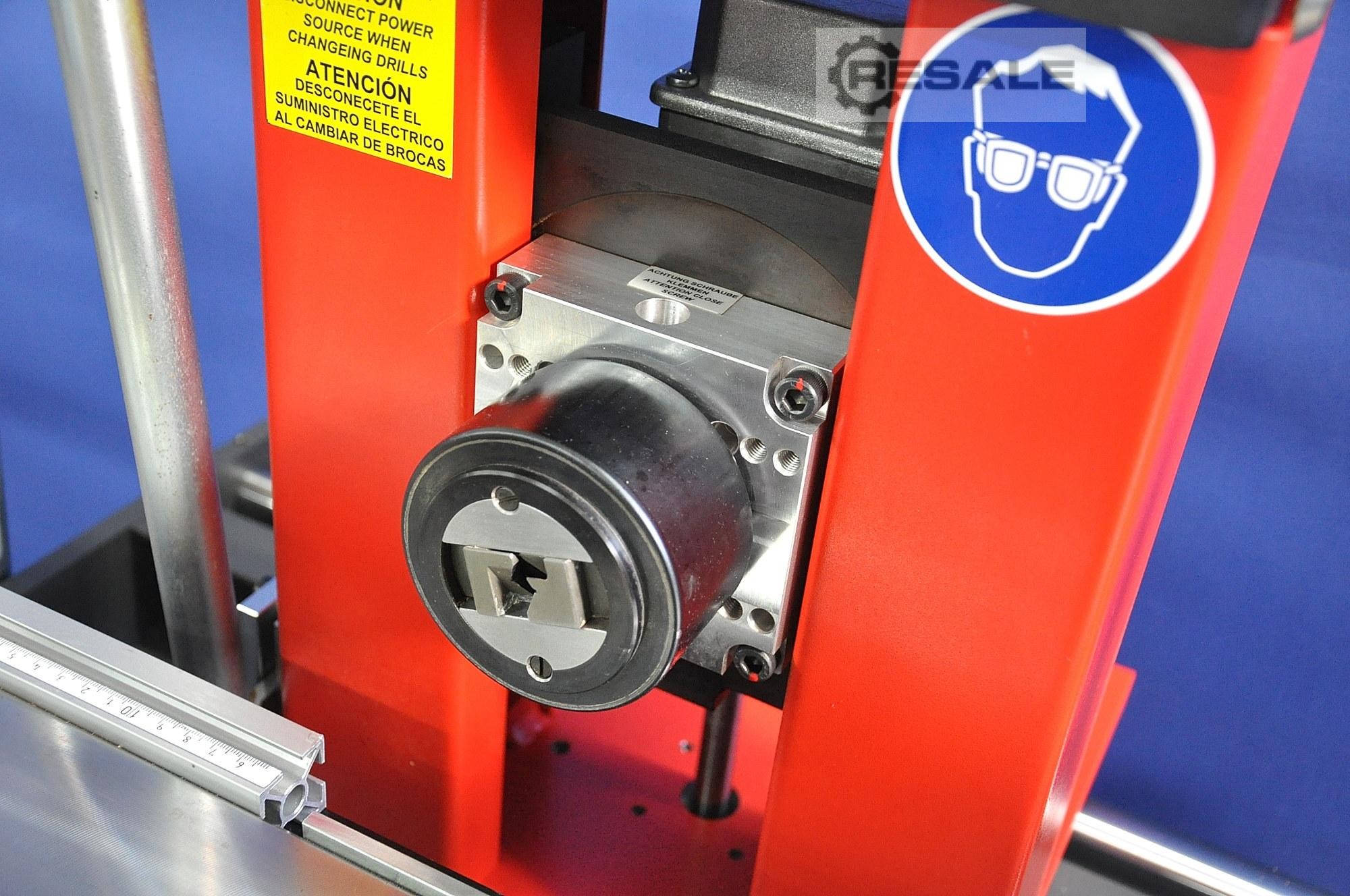

With two-jaw chuck 1 - 20mm from Röhm
Pneumatic adjustment of the processing height, dowels on two levels without changing.

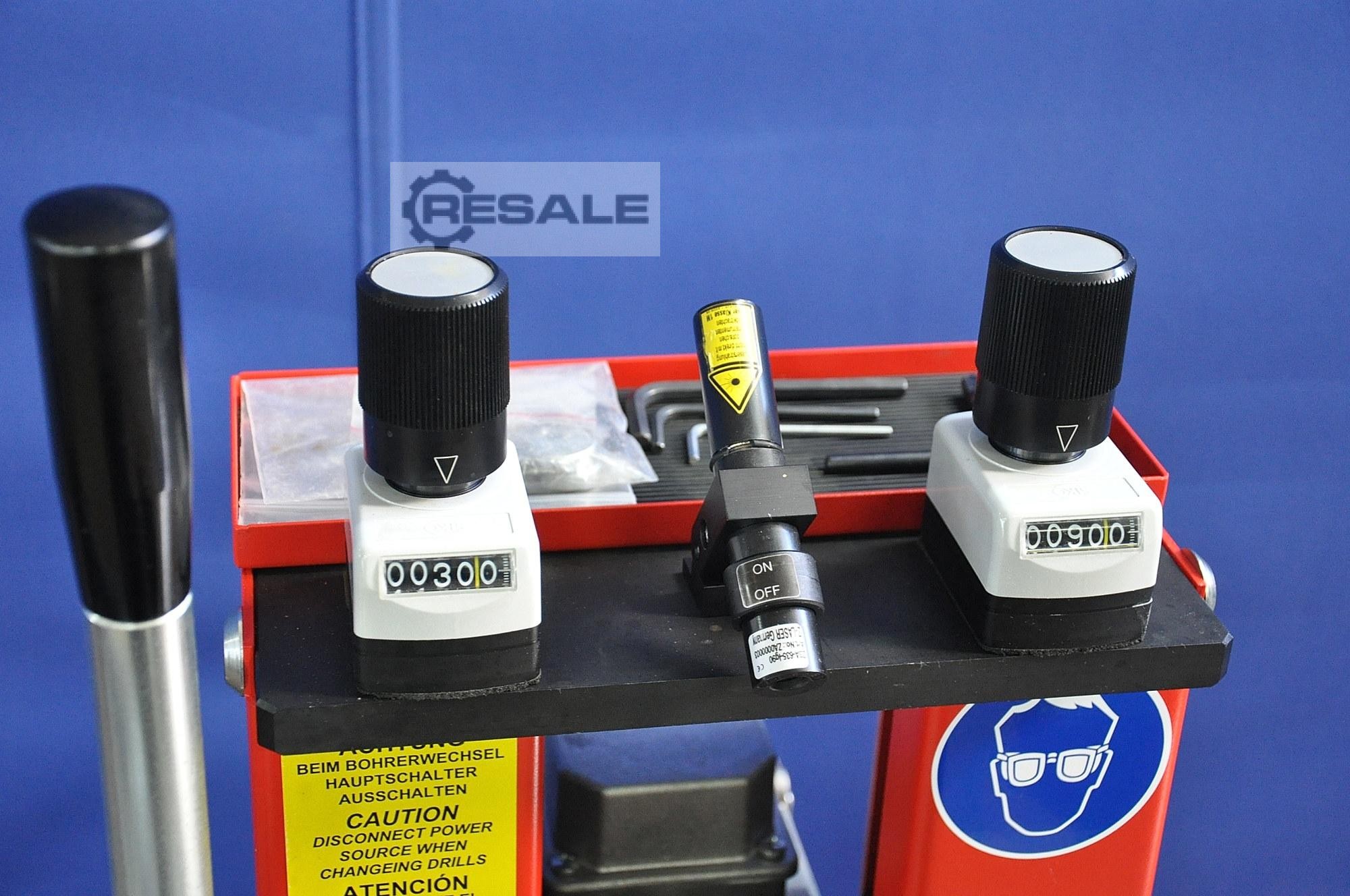

The desired drilling heights can be set for each drilling level with a digital counter,
the changeover then takes place pneumatically from the front
Transverse adjustment 430mm, infinitely variable or in 12mm increments
Maximum height adjustment approx. 100mm above table height
Drilling stroke approx. 150mm
2 pneumatic workpiece clamps
Grid rail for quick adjustment on the side in 12mm grid
Stop for length adjustment in slotted milling
2 swivelling workpiece supports
Special stop system approx. 3.1m long with swivel stops
Removable special stop with centering via lever linkage for different rung widths, transoms, etc.
Suction funnel
Center stop
Side stop
Drill head holder
Laser
Instruction manual
CE mark
Few paint spots dabbed
Almost mint condition, see original photos.

Dimensions approx. 1500 x 900 x 1400mm (LxWxH), weight 300kg.

The machine can be demonstrated on site by appointment. We offer
only machines that are ready for demonstration in our warehouse, see "other offers of this year".
provider".
seller offer No. resale 170345179
