Centros de fresado CNC HAAS VF-6/50HE

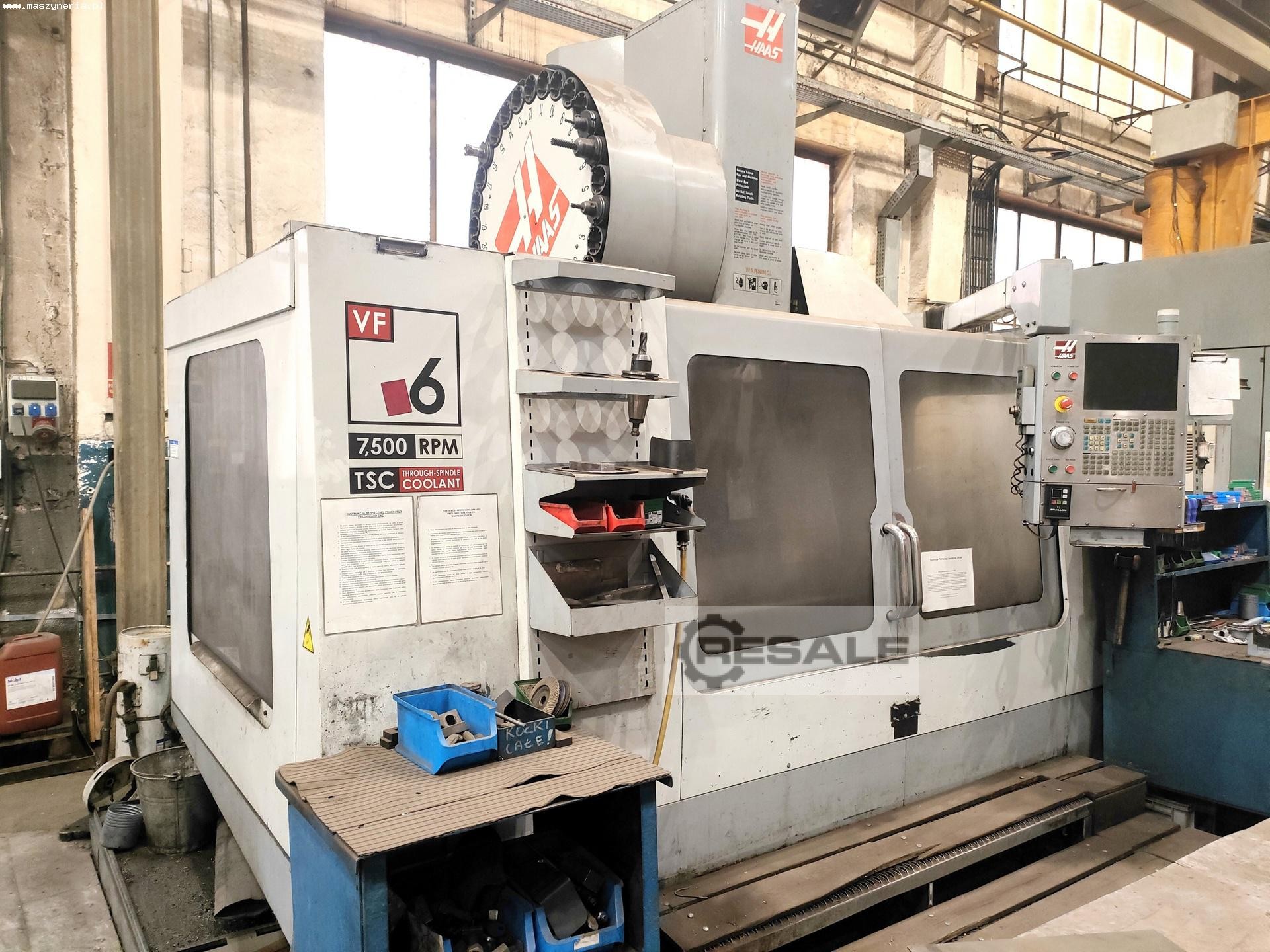

HAAS VF-6/50HE CNC machining center was built in 2007 in the United States by HAAS AUTOMATION, INC. The machine, designed for precision machining of workpieces, is an excellent choice for both unit and series production. The machining process is performed by means of a reliable high-speed spindle and cutting tools taken from a 30-position magazine. The applied through spindle cooling system significantly reduces tool wear and thus extends the overall service life of the machine. The work table, in turn, is equipped with a magnet, thanks to which workpieces are clamped on its surface without the need for special tooling. The HAAS VF-6/50 CNC vertical machining center is controlled by an advanced HAAS CNC control. The control system is distinguished by its intuitive operation and many useful functions.

Technical specifications of the HAAS VF-6/50HE CNC milling machine
- HAAS CNC control based on M6251405 FANUC
- feed in the M6251405 X/Y/Z axis: 1626/813/762 mm
- work table surface (L x W): 1626 x 711 mm

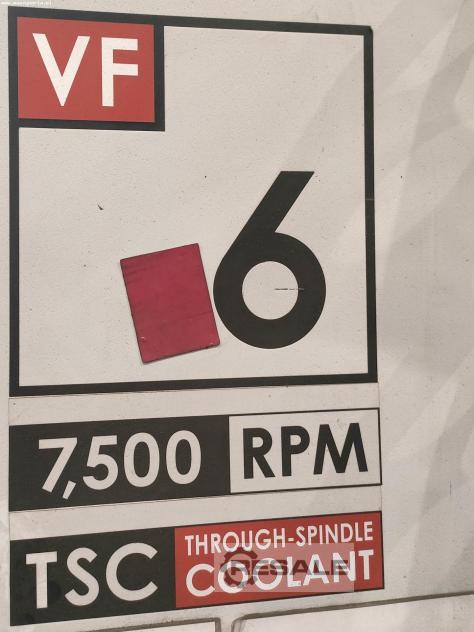

- maximum spindle rotational speed: 7500 rpm
- spindle taper: SK50
- distance from spindle end to work table surface: 127-889 mm

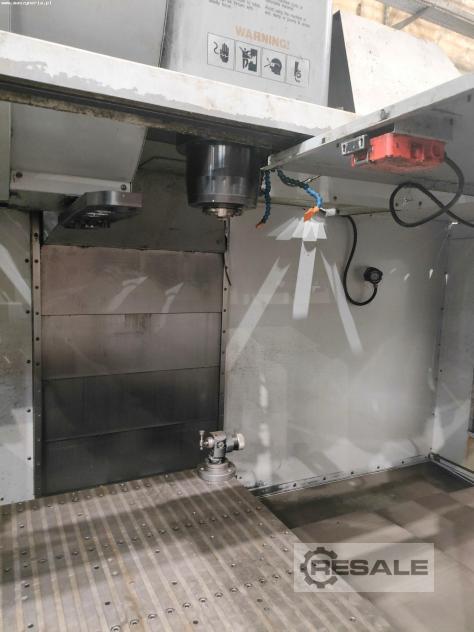

- magnetic work table

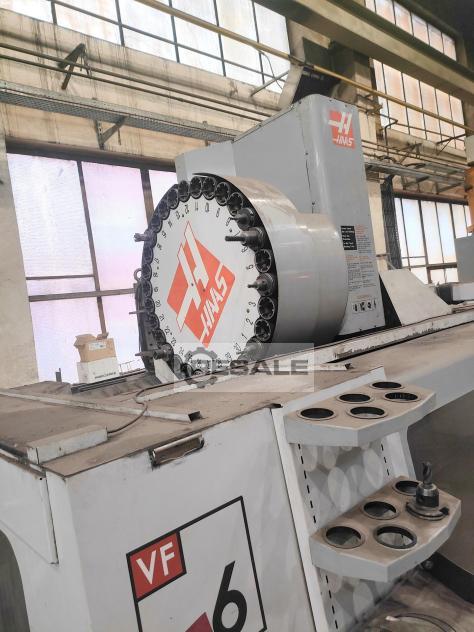

- 30-position tool magazine
- through spindle cooling (Through Spindle Coolant)
- power supply of the HAAS VF-6 machine: 3x 360/480 V; 50/60 Hz
seller offer No. resale 168816138
