Secadoras de banda JINAN HIMAX MACHINERY CO. HM-40KW-A – 40 kW

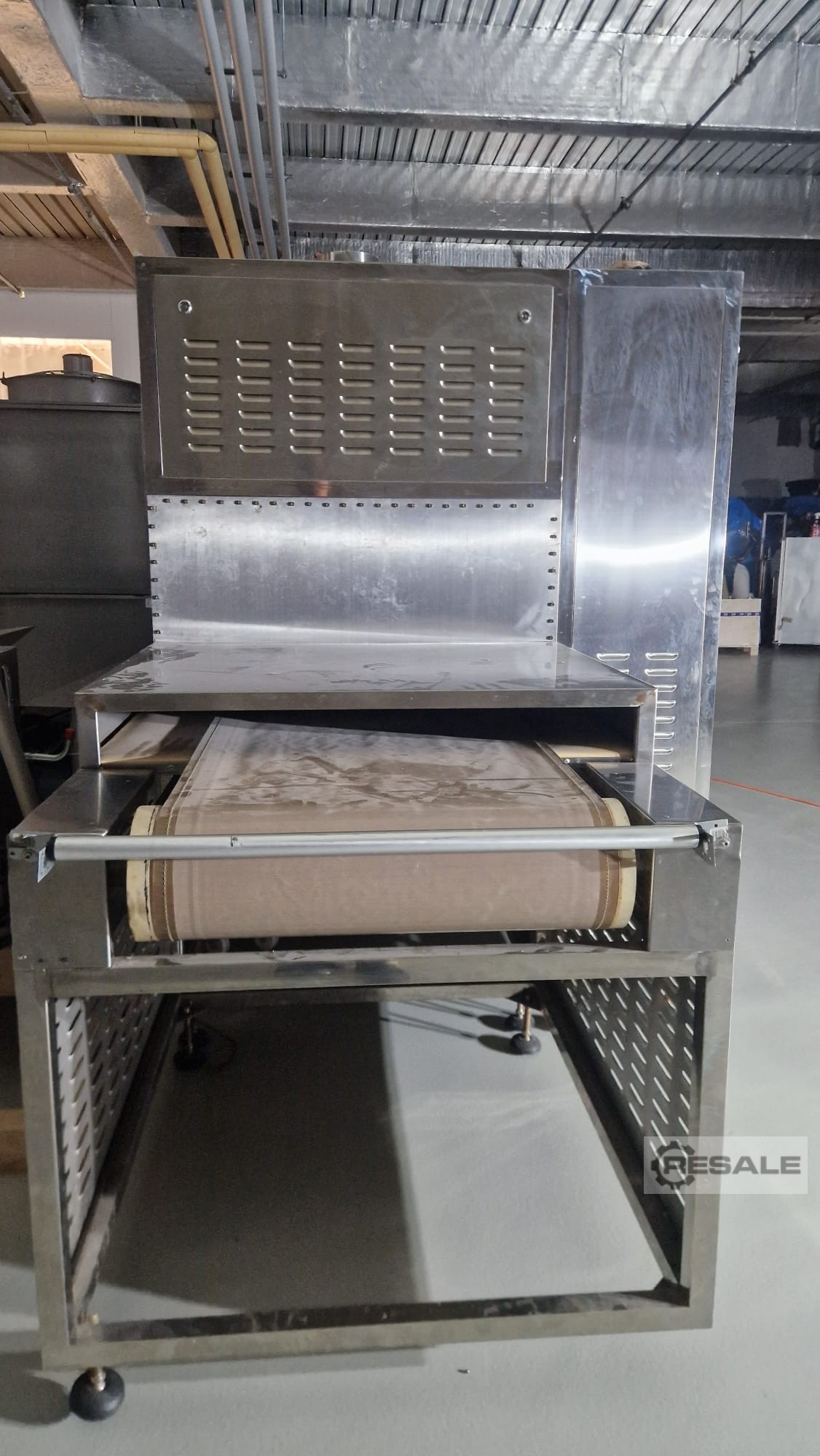

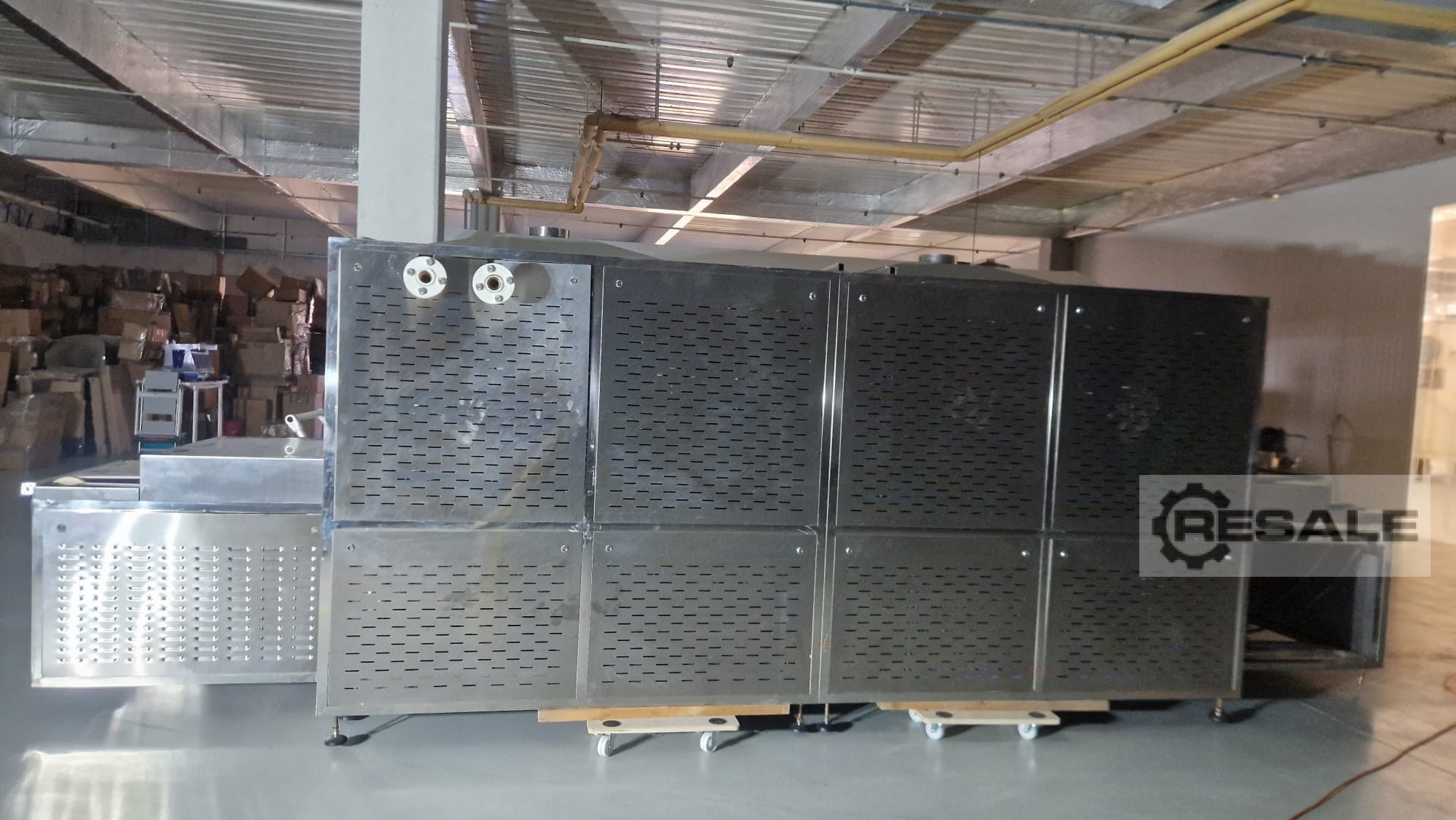

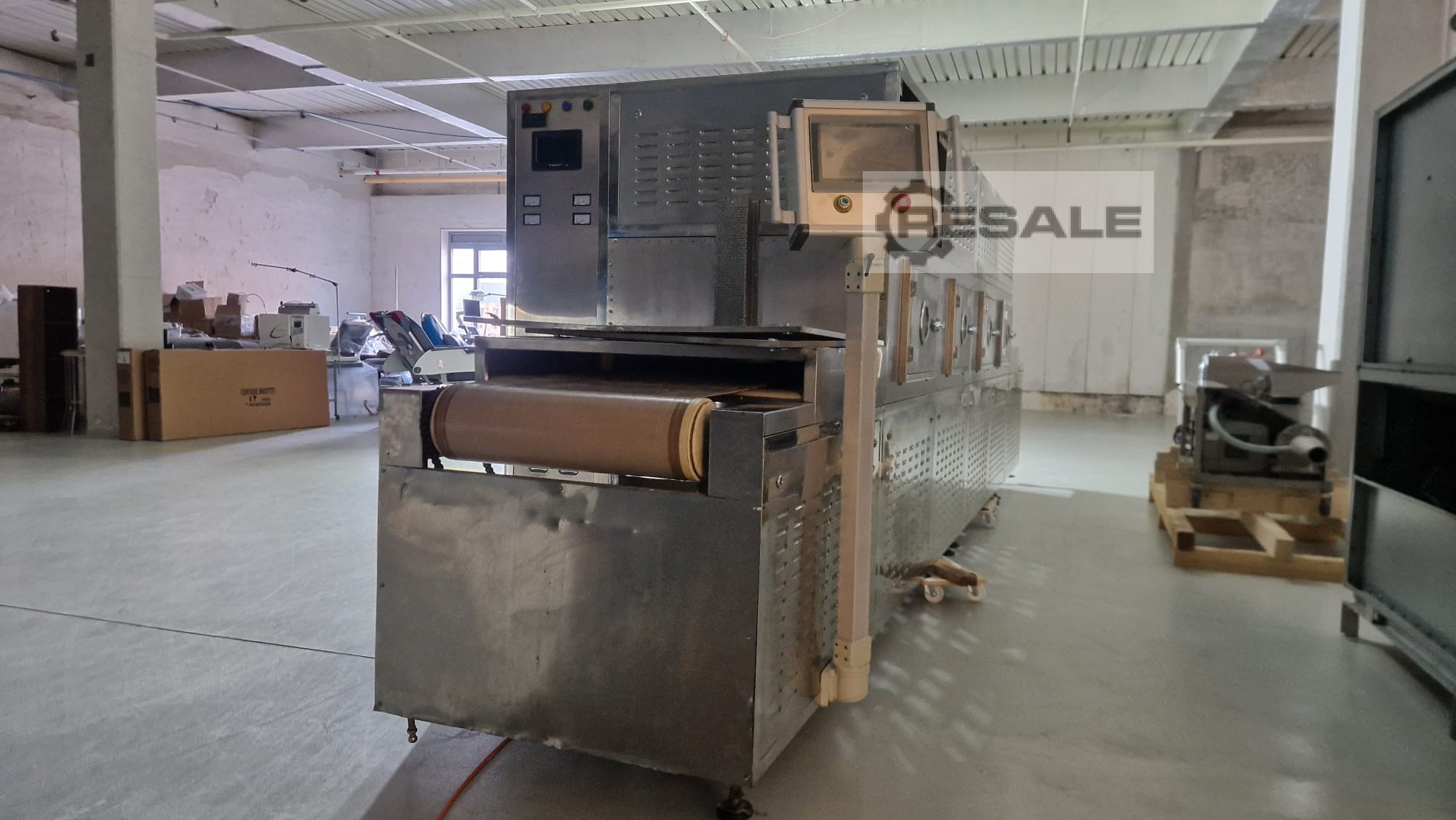

Microwave tunnel conveyor dryer for continuous drying. Adjustable microwave power and belt speed, PLC control with separate control cabinet. Stainless steel construction and food-grade PTFE belt. Machine available in Switzerland (Martigny). Water cooling circuit included. Ventilation system to extract water vapor from the chamber not included.

Technical specifications:

General data

• Model: HM-40KW-A
• Quantity: 1 set
• Frequency: 2450 ± 50 MHz
• Microwave feed: top feed
• Heating chambers: 4

Power / electrical

• Microwave power: 40 kW (adjustable)
• Rated input power: 50 kW
• Power supply: 380 V, three-phase, 50 Hz

Conveyor / belt

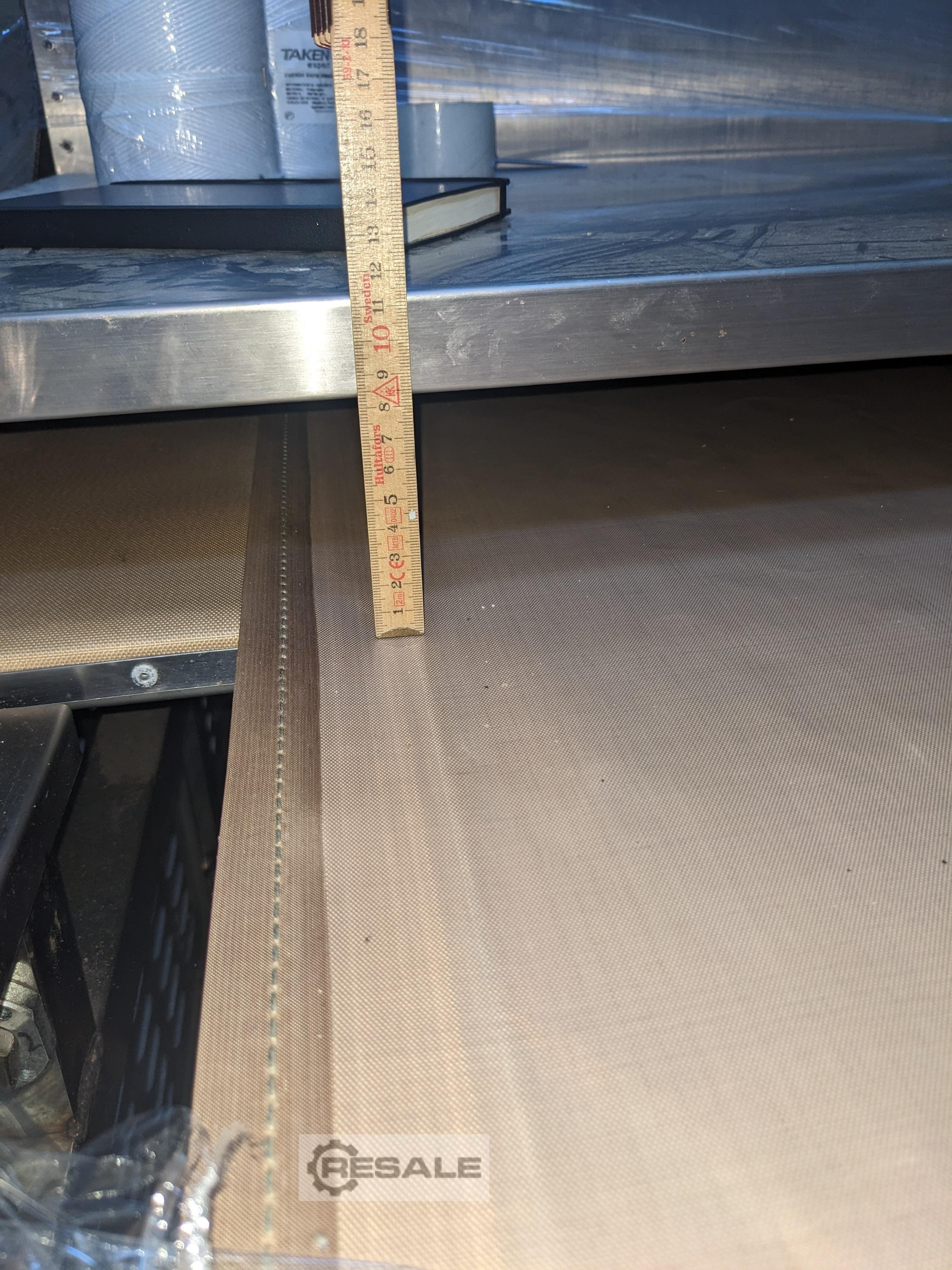

• Belt width: 600 mm
• Belt speed: 0.5 – 7 m/min
• Conveyor motor: 0.75 kW, frequency inverter
• Belt: PTFE food grade (high temperature, fire-resistant, anti-corrosion)
• Conveyor height: 900 – 1500 mm
• Leakage opening (microwave suppressor): H 50 mm; L 600 mm

Cooling

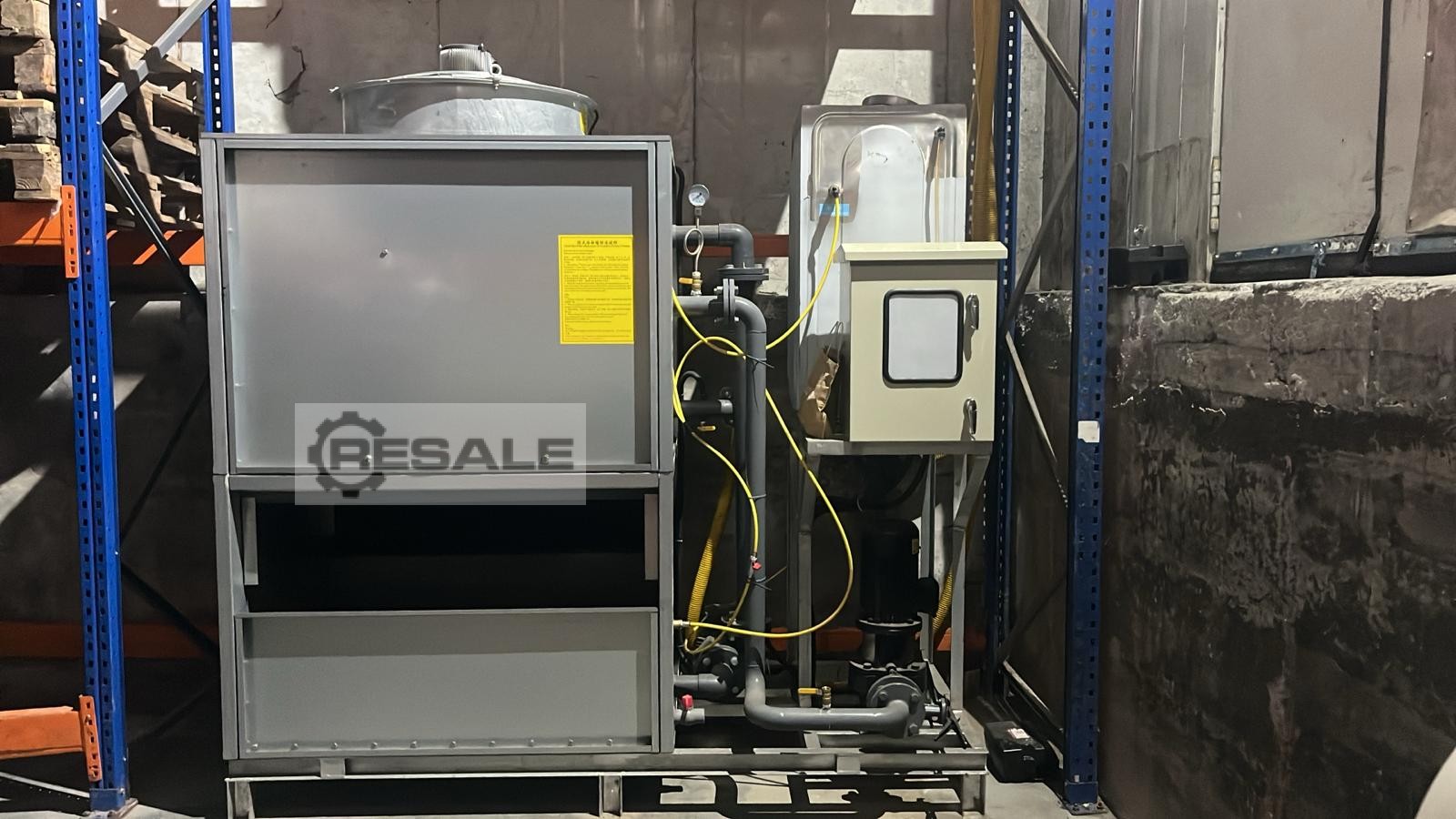

• Magnetron cooling: water-cooled, circuit included

Dimensions / construction

• Machine dimensions (L × W × H): 5500 × 1000 × 2000 mm
• Active microwave zone: 4000 × 600 × 1750 mm
• Construction: SS304, thickness 1.5 mm

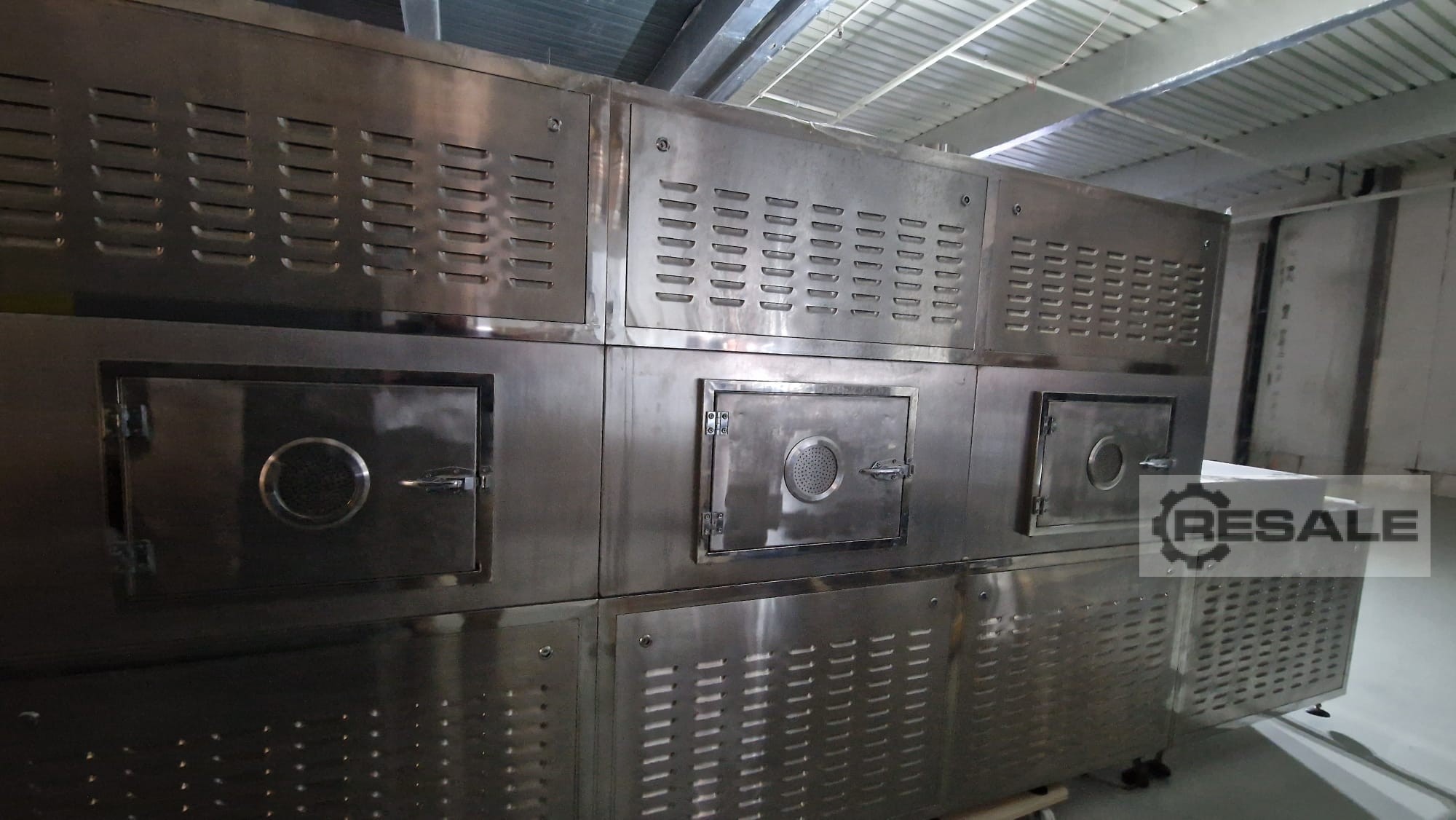

• Windows observation

Control / safety

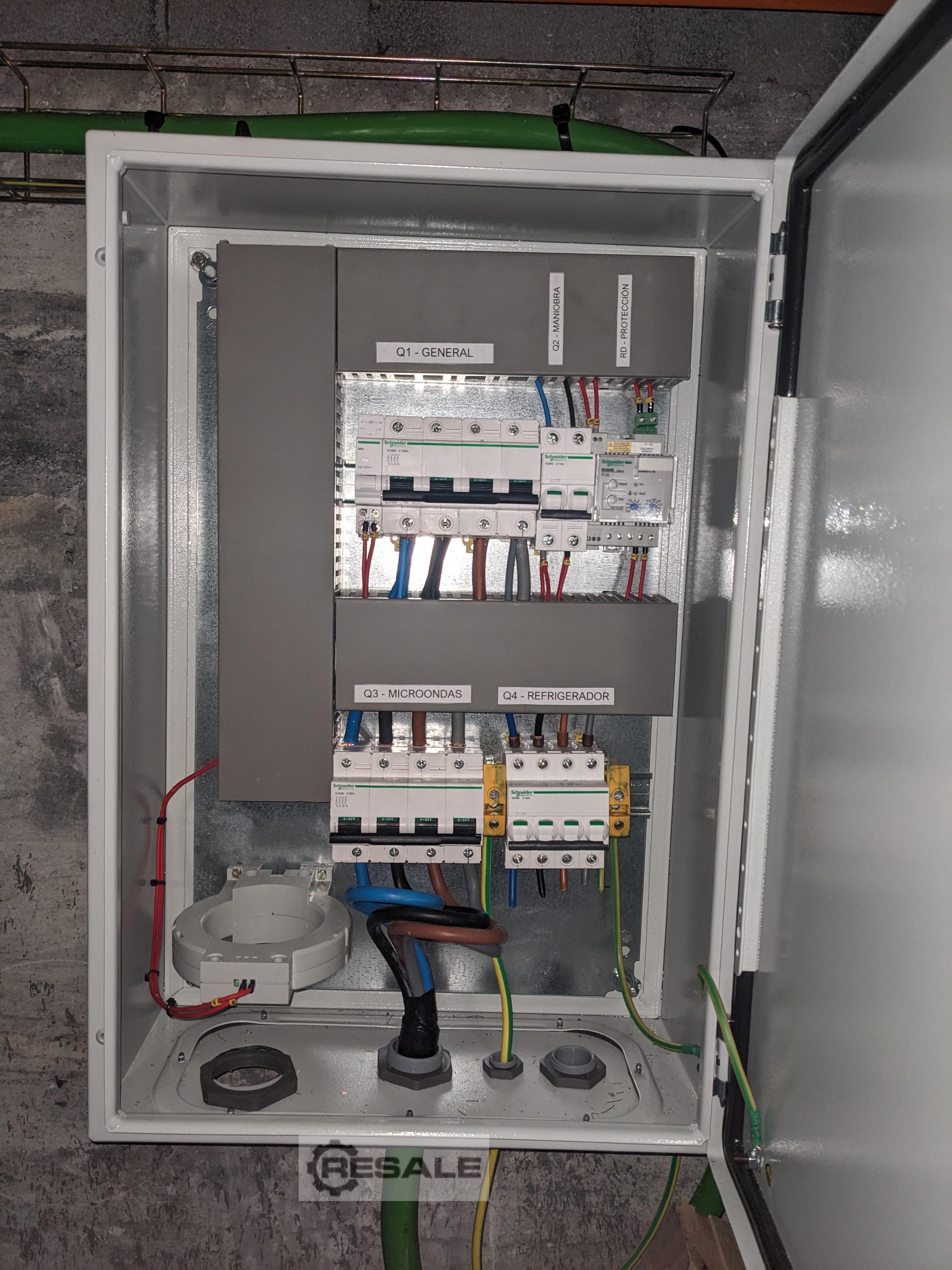

• Control: PLC control screen + separate cabinet
• Temperature measurement: IR non-contact (indicated range 0–350°C, mention up to 0–500°C)
• Safety: automatic stop when door is opened
• Microwave leakage standard: GB 5959.6-2008

Conditions

• Availability: immediate
• Location: Martigny, Switzerland (currently in factory)
• Condition: to be tested
• Visit: on request

Transport costs are borne by the buyer.
seller offer No. resale 169596035
