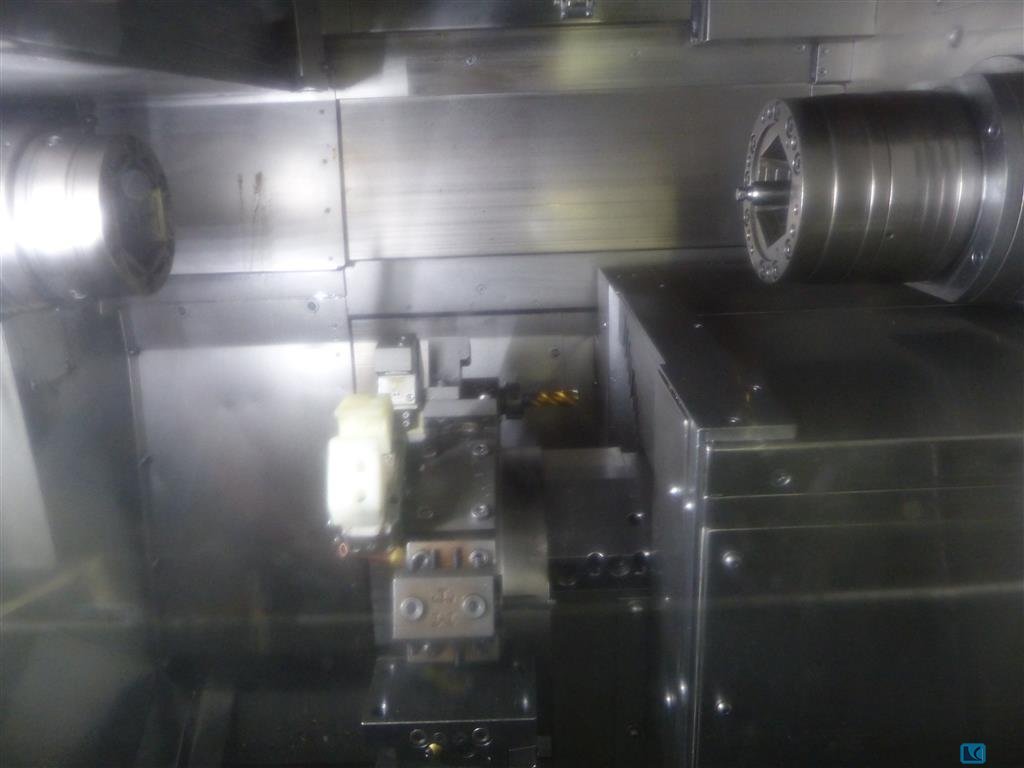

CNC Turning- and Milling Center NAKAMURA TOME WT 100 MM / Robot Loading

turning diameter:190 mm
turning length:503 mm
control: Fanuc 31i - TA
Travel x/z turret 1:135 / 503 mm
Travel x/z turret 2:135 /503 mm
c-axis:Sp. 1 / 2
Spindle 1 RPM:6000 1/min
Spindle 1 Power:11/7,5 kW
Spindle 1 max. bar diameter:42 mm
Spindle 2 RPM:6000 1/min
Spindle 2 power:11/7,5 kW
Turret No.1 stations / rotary tools:12/12
Turret 1 tool RPM:6000 1/min
Turret 1 power rotary tools:7,1 / 2,2 kW
Turret No.2 stations / rotary tools:12/12
Turret 2 tool RPM:6000 1/min
Turret 2 power rotary tools:7,1 / 2,2 kW
total power requirement:53 kVA
weight of the machine ca.:5700 t
dimensions of the machine ca.:2,3 x 1,6 x 1,94 m

High precision cnc turning center, rotary tools and y-axis on upper turret,
Robot loader for shafts.

seller offer No. resale 1070-100720
