Instalaciones de cortadoras láser CNC TRUMPF TruLaser 5030

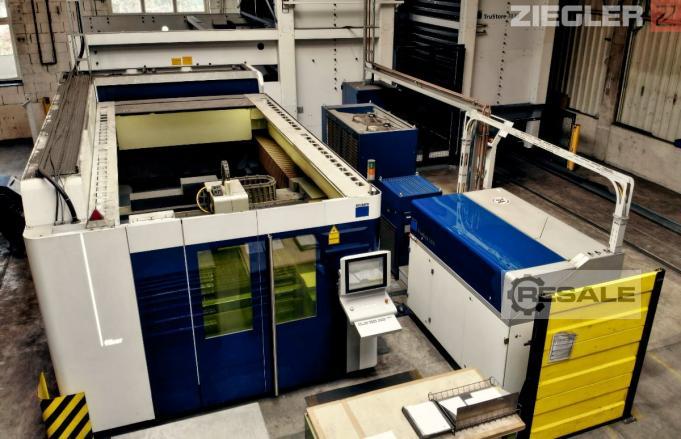

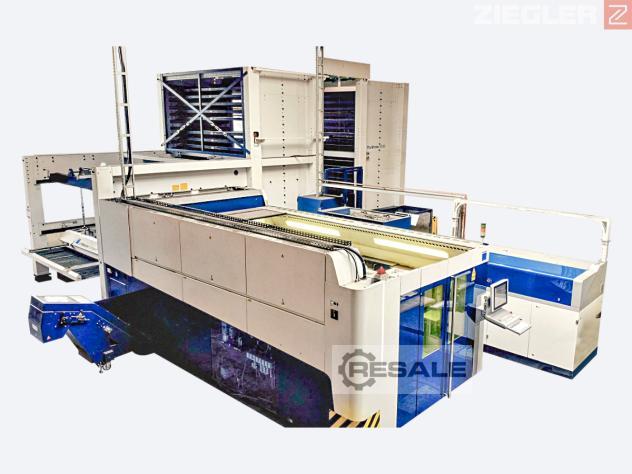

Trumpf TruLaser 5030 with double tower storage system - laser cutting system

- Working area: 3000 x 1500 mm
- Laser power: 5000 W
- incl. LiftMaster Compact & TruStore 3030
- Year of construction 2013

Facilities

- Working area: 3000 x 1500 mm
- Closed machine frame
- Integrated cabinet
- Automatic pallet changer in longitudinal direction
- Torque drive in combination with linear direct drive
- Closed beam guidance via optical cable (LLK)
- Machine cooling unit (water-air)
- Integrated control cabinets with interior lighting
- TruDisk power supply via the machine
- Longitudinal conveyor belt
- Work area lighting
- Position laser diode
- Spraying device
- PierceLine
- FocusLine
- NitroLine
- PlasmaLine
- Automatic nozzle cleaning

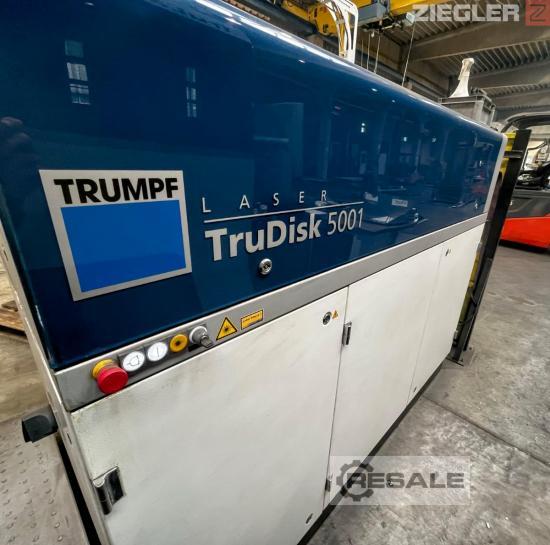

- Trumpf Laser
- LLK according to standard layout (laser right next to the machine)
- Laser cooling unit (water-air)
- Excitation via pump diodes
- Laser power control

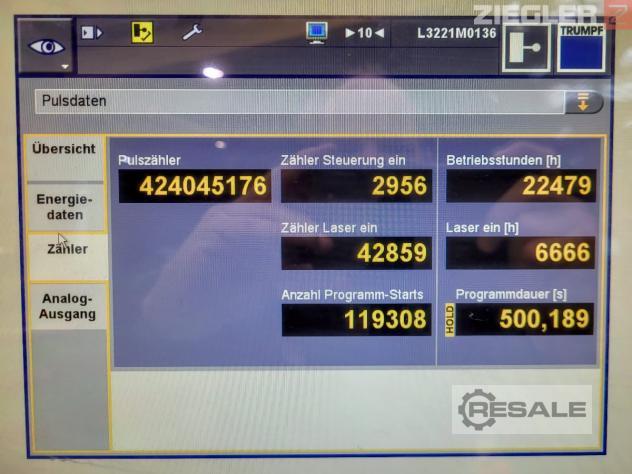

- Logbook function laser

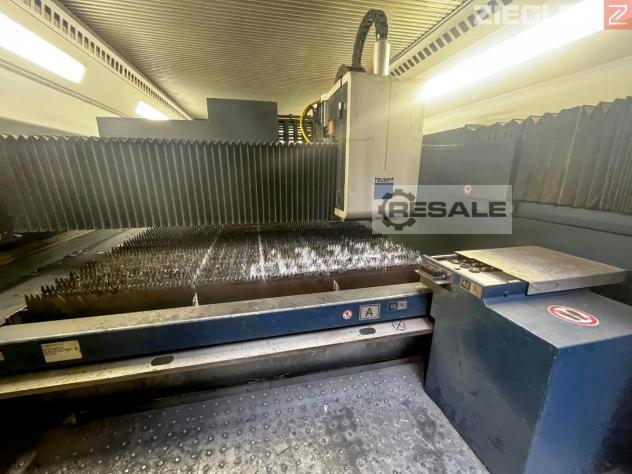

- Cutting unit
- Universal cutting unit with fully adaptive lens system
- Cutting head strategy
- Protective lens against lens contamination
- Condition check of the protective glass
- ControlLine: Height control and sheet metal outer edge detection

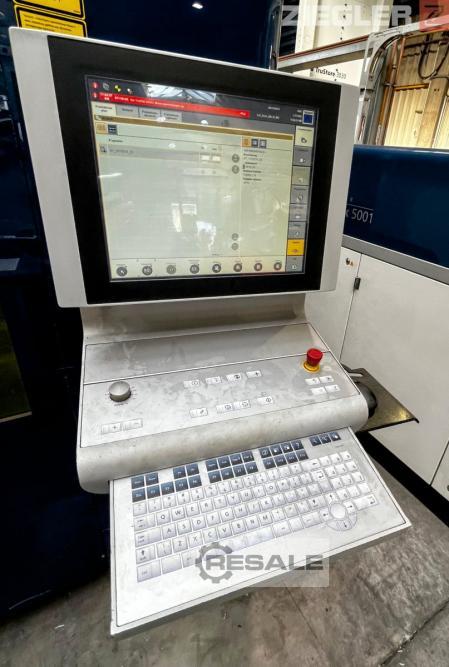

Control

- Simple workshop programming
- Advanced workshop programming
- Fast post-production
- Control system Sinumerik 840D S L
- 17" touch color screen
- Integrated technology data
- Automatic switch-off
- Programmable cutting gas/pressure selection
- FastLine
- FlyLine

Security

- CE marking
- Light barriers
- Multi-chamber extraction system
- Integrated compact dust collector
- Fire alarm system in compact dust collector
- Machine cladding with certified viewing panel / door on the right
- Electric rolling roof

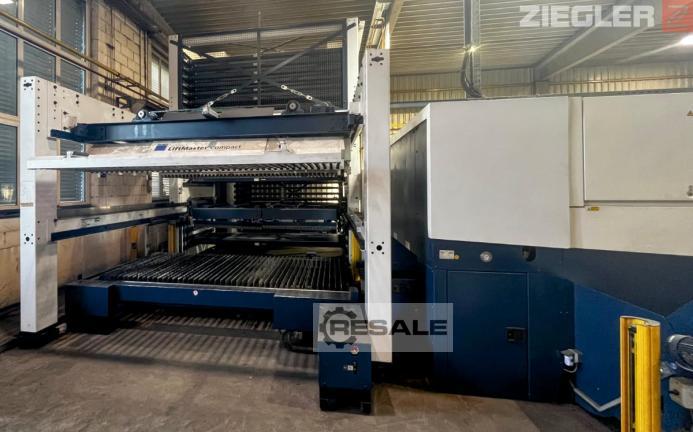

LiftMaster Compact

- Basic unit with Z6237148 synchronous loader, peeling Z6237148 device and sheet thickness gauge, movable removal screen, incl. loading/unpacking station
- Low-scratch, precise unloading (includes stainless steel rake with belt tines, tine spacing 67 mm; up to s= 15 mm)
- Cleaning brush for support strips
- Separation of thin sheet metal for synchronous loaders (0.8 - 2.0 mm)

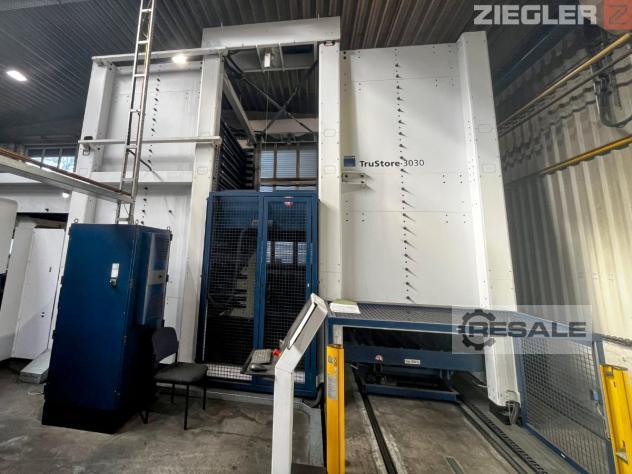

TruStore 3030 Double Tower Storage System

- Basic module 3000 x 1500 mm
- Integration LiftMaster Compact
- Storage compartment extension LiftMaster Compact
- 2 × extension module 1.9 (for max. 9 storage compartments, loading height 90 mm, without pallets, module height 1980 mm)
- Stacker crane
- Extension of storage and retrieval machine for expansion module
- 34 storage compartments 90 mm, incl. pallet
- 10 pallet shelves
seller offer No. resale 200102
