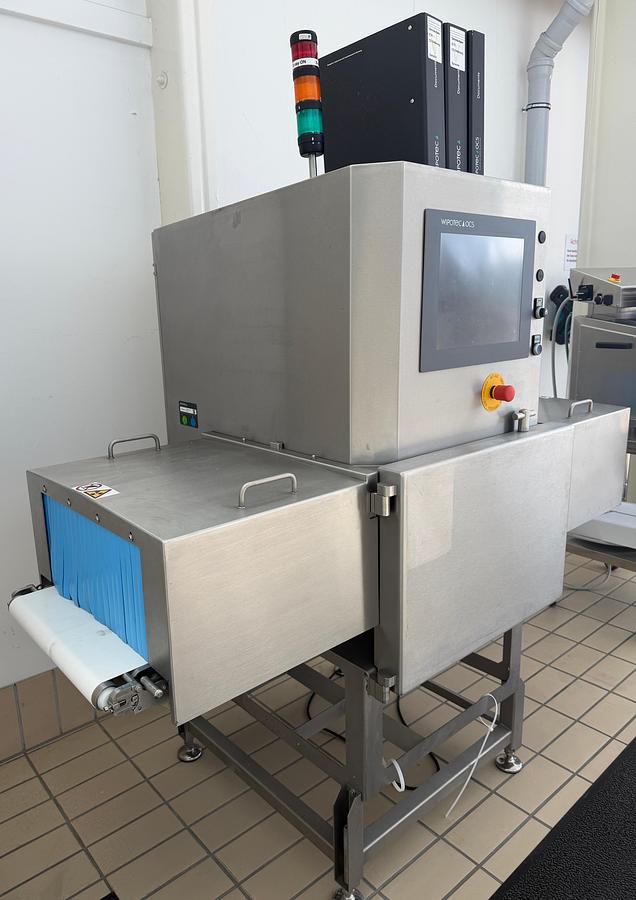

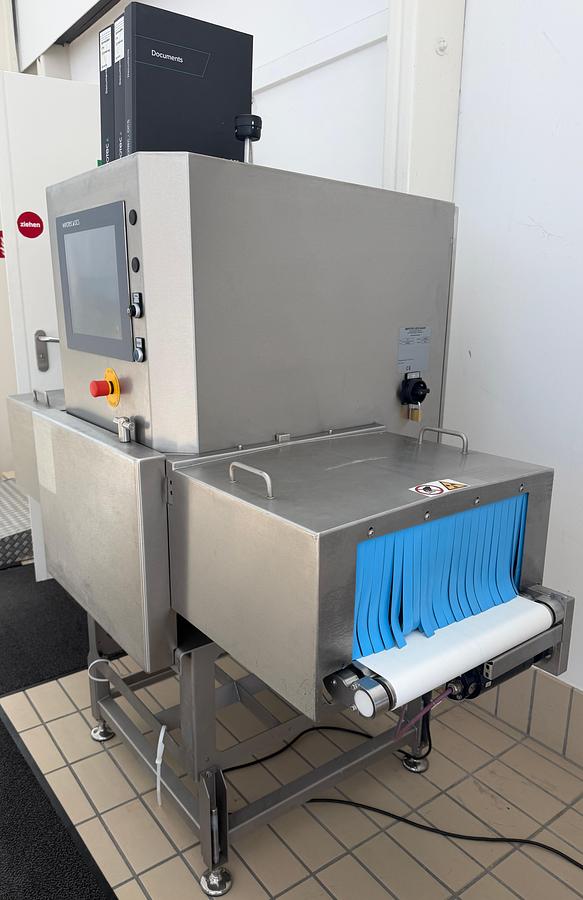

Wipotec X-Ray Inspection System WIPOTEC X-RAY INS... SC-Essential 4000 - 1800

End-of-line X-ray scanner for professional foreign body detection,, Ideal introduction to state-of-the-art X-ray inspection,, easy integration into existing production lines,, comfortable user interface,, easy, fast and thorough cleaning,, Max Product, Height/width: See enclosed beam chart, Running direction: L->R, conveyor belt, height: 850 – 950 mm (adjustment range), Throughput: approx. 100 pcs/min (please contact us before submitting an offer), Degree of protection: IP 65, Sorting: using band-stop, Total length: 1,800mm, Bandwidth: 420 mm, Scan width: 400 mm, VPN access: yes, EKS: Yes, X ray lamp, Monitored yellow: yes, Light red: yes (active with FK detection), Statistics export: yes, Basic machine equipment, a) General machine data, • Industry scanner made of stainless steel with open profile, • Power supply connection:, o 110-230VAC / 50/60Hz / 1Ph I o approx. 2.2 kVA I o approx. 9.5 A, o The system must be secured by a separate circuit with 10A at 230VAC, 16A at 110VAC, Power supply to be connected., • Temperature range: +5 to +35°C, • General protection type: IP 65 (except for the control cabinet door due to cooling), • Applicable safety and machinery directives CE-compliant, b) X-ray technology, • X-ray tube: Industrial high-performance X-ray unit (X-ray tank), • Power: Max. 200 W (80 kV, 3 mA, continuously adjustable), c) Mechanics, • Interlock guards made of stainless steel (consisting of 1 inlet guard and 1 outlet guard, each removable), • Electrical cabinet made of stainless steel I, • Scanner band in stainless steel version, • Tool-less replacement and adjustment of the conveyor belt, • Maximum belt speed 50 m/min, d) Software, • Intuitive Touchscreen operation, • Display of all current relevant production data, • Comprehensive graphical / numerical representations of production data, • Control software in the local language (EU), • High-precision image analysis software UXS (Manufacturer: Wipotec) for detection of foreign objects, • Software system network-capable, • 100 product parameter storage (optional expandable), • Malfunctions/messages in plain text, • QM mode for cyclic system monitoring, e) Electrical, • High-resolution diode detector (resolution 0.4 mm), • 15 color TFT touch HMI, • High-performance IPC for image analysis and HMI control, • Real-time control type SWA for driving the process line, • Maintenance-free electronically commutated DC motor Type I-MOT (manufacturer Wipotec), • Infeed light barrier for product recognition, • Line synchronization I (inputs and outputs potential-free), o Output release for feeder (belts running, release for feeding machine), o Output error (collective error message for control, belts stopped), to input remote start /Automatic (Start/ Stop of the belts via digital input), • Integrated emergency run/off function via hardware switch, Uninterruptible Power Supply (UPS) for power-outage-safe data processing and storage, Production data during system shutdown, • OFF-POWER [X-ray generation, drives] with safety pushbutton in signal colors, • Tower light mounted on the operator column/control cabinet with self-monitoring indication light for, X-ray on, • Safety circuit per Cat. 4, safety switch covertly installed – for safe shutdown of the machine when the hoods or the door are opened, f) Standard documentation, • Spare parts catalog and wiring diagram, • Operating manual in the local language (EU), Cleaning:, According to IEC 60529/DIN 40050, only jet water, not suitable for live steam or high pressure, Safety regulations:, According to the applicable EU directives, i.e., EC Machinery Directive 2006/42/EC, EMC Directive 2014/30/EU
seller offer No. resale UCD0009
