Brocas especiais (109)

Auction-ID: A1-48554-142

Professionele BGU (Bohrgeräte Union) SB 510 SHRV kolomboormachine, uitgevoerd als zware industriële staande boormachine met verstelbare werktafel. Geschikt voor professioneel boorwerk in metaal en voorzien van een robuuste kolomconstructie, meertraps aandrijving en bedieningspaneel aan de voorzijde - de kolomboormachine is werkend - opmerking: de pinole komt na het naar beneden bewegen niet automatisch terug omhoog. Handmatig terugbrengen is mogelijk. Nazicht en/of herstelling van het terugtrekmechanisme wordt aanbevolen - Een heftruck is op locatie beschikbaar om de machine op pallet op de vrachtwagen te laden. Auction-ID: A3-46152-10508

Refrigerant with oil clamps square tubes present Auction-ID: A3-46152-19018

Auction-ID: A7-49302-48

3hp Auction-ID: A1-49382-32

230V - 1200W - 5A Different speeds possible. In good working condition. Auction-ID: A3-46152-6137

230V - 1200W - 5A Different speeds possible. Working condition. Auction-ID: A3-46152-6136

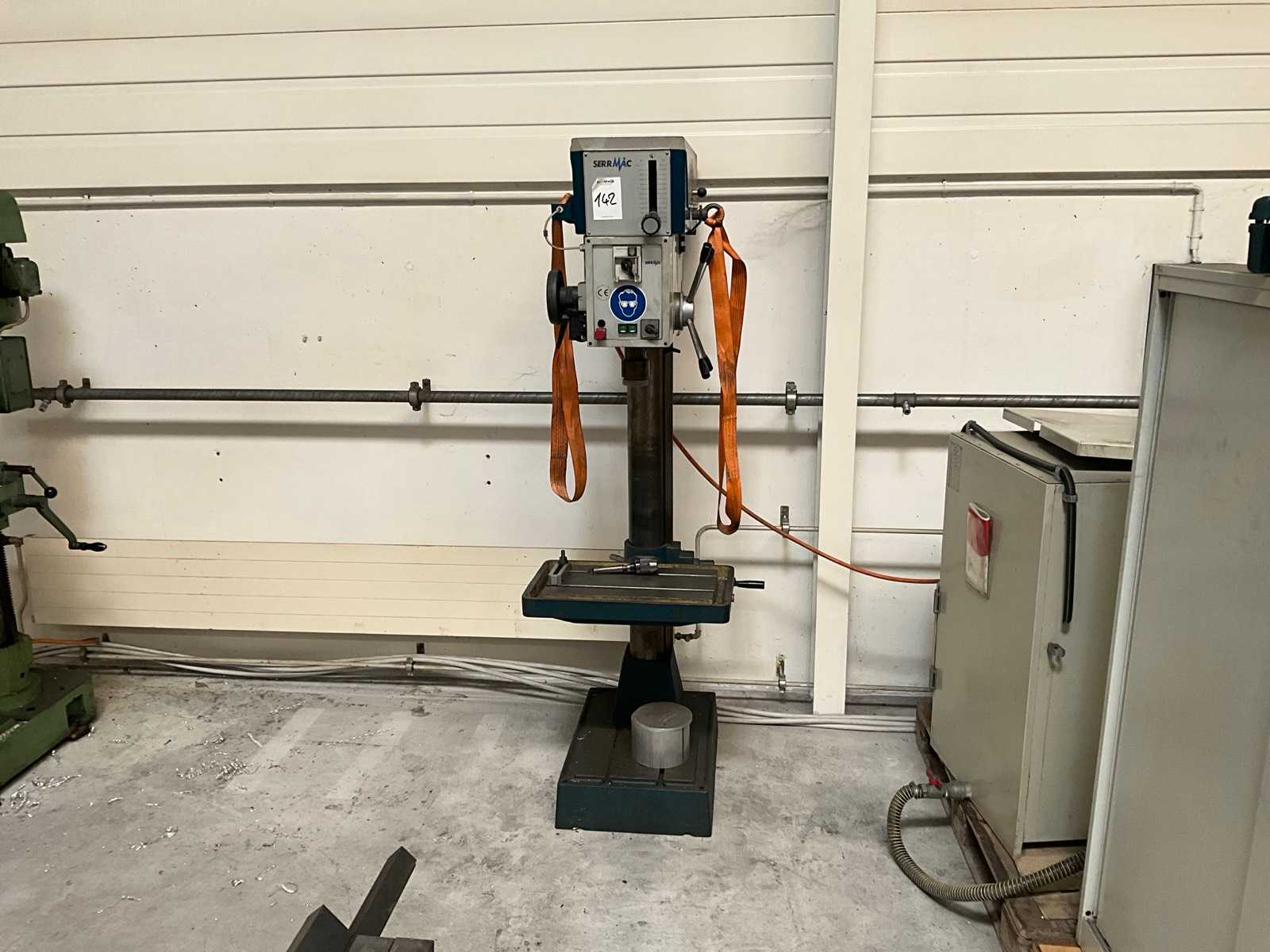

According to photos, weight estimated Auction-ID: A1-48554-143

Machine number: 6233-5Speed: up to 2800 rpmDrilling diameter: up to 40 mmProjection: approx. 907 mmwith two tablesTable dimensions: 780 x 600 mm - with four grooves, as well as a three-jaw chuck, diameter: 400 mmTable 2: 1000 x 540 mm, with four grooves and two vices, one jaw width: 125 mm and 100 mma four-jaw chuck, manufacturer RÖHm, diameter: 200 mm as well as a four-jaw chuck, diameter: 150 mmand a dividing head from the manufacturer HOFMANN, type: VTS 160 with a three-jaw chuck, diameter: 200 mmalso various clamping systems, including KOHN clamping system, jaw width: 120 mm Auction-ID: A7-49089-208

TORO DMF-40 Drill Press/Mill with Cross Table and Tap; Drilling capacity: 32 mm; Drilling depth: 120 mm; Speed: 75-1600 rpm; Table size: 600 x 190 mm; Displacement: X-axis 370 mm Y-axis 190 mm; Weight approx. 370 kg Auction-ID: A1-48979-18

Machine number: 33905Operating voltage: 400 VFrequency: 50 HzRated current: 5 ASpindle speed: from 120 to 2200 rpmDrilling depth: 160 mmTable dimensions: 400 x 300 mmwith two grooves and a vice, jaw width: 70 mm Auction-ID: A7-49089-268

Technical details Manufacturer: Csepel Type: Radial drilling machine Configuration: - Heavy-duty radial arm - Rotating column - Vertically adjustable drilling head - Geared spindle drive - Manual and power spindle feed - Drill chuck installed - Large T-slotted box table - T-slotted base plate - Speed and feed selector gearbox - Mechanical control system Application: - Drilling - Boring - Tapping - Reaming - Machining of large steel workpieces Construction: - Heavy-duty cast-iron frame - Conventional mechanical operation Estimated drilling capacity: Approx. 75 mm in steel Estimated arm reach: Approx. 1750–2000 mm Dimensions: - Length: Approx. 2500 mm - Width: Approx. 1200 mm - Height: Approx. 2900 mm Weight: Approx. 4500 kg Condition: Used Observed condition: - Machine appears substantially complete - Original gearbox and controls installed - Drill chuck fitted - Large cast T-slotted ta ...

Column drill with: - Feed - Variable spindle speed - Coolant pump - Machine light Drilling capacity in steel 32 mm Projection 325 mm Drilling stroke 170 mm Mounting MK 4 MK Table size 570 x 480 mm Feeds 0.1 - 0.16 - 0.25 mm/rev Speed 60 - 1600 rpm Total power requirement 2.9 KW Machine weight approx. 0.65 t Dimensions L x W x H 1.2 x 0.8 x 2.15 m Auction-ID: A7-49782-622

Auction-ID: A1-48474-44

Column drill with: automatic feed Tapping function. Digital depth display 2 Stage Motor Spindle protection Swivel table LED lighting Coolant system Drilling capacity in steel 40 mm Projection 350 mm Drilling stroke 180 mm Spindle mount MK 4 MK Table: 560 x 560 mm Column diameter 140 mm Speed 50 - 1450 rpm Feeds 0.1 - 0.2 mm/rev Total power requirement 1.5 kW Machine weight approx. 580 kg Condition: never used / new (5) Auction-ID: A7-49782-487

Drilling/milling machine with: • Tapping device • Cross table with adjustable guides • Drill quill feed • Manual transmission • SK 40 mount Drilling capacity in steel 40 mm Projection 275 mm Drilling stroke 120 mm Spindle Holder MK 4 Speed range 75 - 3200 rpm Table adjustment transverse 190 mm Table adjustment longitudinal 490 mm Table clamping area 700 x 210 mm Connection voltage 400 V Milling cutter diameter max. 80 mm Total power requirement 1.1/1.5 kW Condition: never used / new (5) Auction-ID: A7-49782-404

Drilling capacity 15mm Table 280 x 240mm Speeds: 450 - 4500rpm Projection 165mm Recordings MK2 Auction-ID: A7-49782-651

Radial drilling machine - Clamping cube 750 x 750 x 500mm - Coolant system - Emergency stop facility Drilling capacity in steel 50 mm Projection 1100 mm Quill stroke 300 mm Tool holder MK 5 Speeds: 22 - 1000 rpm Feeds yes Drilling motor 4.5 kw Total power requirement 7.0 kW Machine weight approx. 3200 kg Dimensions approx. 2.1 x 0.9 x 2.85 m Auction-ID: A7-49782-656

Pneumatic Tapping Machine version with an adjustable angle, Horizontal tapping possible Tapping machine for M3 - M16 threads, Angle adjustable. 6 quick-change chuck with slipper clutch. Thread diameter M3 - M16 Speed infinitely variable 250 rpm. Working pressure 6 - 8 bar Working range max. 1200 mm Weight 22 kg suitable clamping table Lot 224, 254 or 265. Condition: never used / new (5) Auction-ID: A7-49782-520

Gear Drilling Machine Tapping device Left / Right Run Tilt work table. Lighting. 2 electr. Speed levels. Depth stop . Gears run in oil. Packaging Dimensions: 2100 x 400 x 710mm Weight 260Kg Drilling capacity in steel 30 mm Projection 250 mm Drilling stroke 130 mm Spindle mount MK 3 MK Table: 380 x 380 mm Column diameter 98 mm Speed 75 - 3200 rpm Feeds mm/U Total power requirement 1.1 kW Machine weight approx. 220 kg. Dimensions L-W-H 0.5 x 0.6 x 2.05 mm Condition: never used / new (5) Auction-ID: A7-49782-425

RADIAL DRILL SASS mod. TRL 1600 Max. working diameter 90/110 mm Max. spindle/column centre distance 3,020 mm Min. drilling radius 695 mm Max. drilling radius 3.345 mm Min. spindle nose-to-base distance 540 mm Max. distance between spindle nose and base 2.250 mm Spindle - CM 6 110 mm Spindle stroke 550 mm Spindle speed - 24 from 19 to 1.540 RPM Spindle motor power 20 HP Column diameter 650 mm Total weight 15.700 kg Complete with: - Worktop (cube) Auction-ID: A1-48745-25

Drilling and milling machines: digital depth and speed display, 2 gear stages with fine adjustment and variable speed, Includes left-right switch Left and right swivel head Comes with associated tools Drilling capacity in steel 25 mm Projection 170 mm Drilling stroke 50 mm Capacity finger milling machine 16 mm Spindle Holder MK 2 Spindle speeds: 50 - 3000 rpm Table adjustment transverse 280 mm Table adjustment longitudinal 155 mm Table clamping area 500 x 180 mm Connection voltage 230 V max. distance between work table and spindle nose max. 320 mm Total power requirement 0.8 kW Machine weight approx. 150 kg Dimensions approx. 670 x 550 x 910 m Condition: never used / new (5) Auction-ID: A7-49782-414

Quick radials with: - Feed - Tapping device Drilling capacity in steel 32 mm Projection 1230 mm Table surface 1200 x 500 mm Drilling stroke 180 mm Feed - automatic 0.10 - 0.15 - 0.20 mm Speed 45 - 1370 rpm Recording MK 4 Total power requirement 2.7 kW Machine weight approx. 1.8 t Dimensions approx. 2.2 x 1.8 x 2.3 m Auction-ID: A7-49782-405

Drilling and milling machine with Powerful 2-speed engine. Recording MC 3 - B16. Drill chuck 3 - 16 mm. Left/right switch. Spindle protection. Fine tuning. Ejection wedge. Clamping threaded rod for tool Related tools. Drilling capacity in steel 32 mm Projection 200 mm Drilling stroke 70 mm Capacity finger milling machine 16 mm Spindle mount MK3 Spindle speeds: 50 - 3000 rpm Table adjustment transverse 220 mm Table adjustment longitudinal 425 mm Table clamping area 700 x 210 mm Connection voltage Vmax. Distance between work table and spindle nose 470 mm Total power requirement 1.5 kW Machine weight approx. 230 kg Dimensions approx. 0.75 x 1.05 x 1.2 m Condition: never used / new (5) Auction-ID: A7-49782-501

Pneumatic Tapping Machine version with an adjustable angle, Horizontal tapping possible Tapping machines for M3 - M12 threads, Angle adjustable. 6 quick-change chuck with slipper clutch. Thread diameter M3 - M12 metric Speed infinitely variable 400 rpm. Working pressure 6 - 8 bar Working range max. 1100 mm Weight 20 kg suitable clamping table Lot 224, 254 or 265. Condition: never used / new (5) Auction-ID: A7-49782-435

Fast radials with - Tapping device - Table vertical 750 x 620mm - Horizontal table 1200 x 510mm - Emergency stop facility - Documentation Machine No. 445 Drilling capacity in steel 32 mm Projection 950 mm Speed range 51 - 1000 rpm Speed levels 12 Drill spindle Morse taper MK 4 Quill stroke 160 mm Feed range 0.075 x 0.3 mm/min Table surface 1200 x 510 mm Total power requirement 2 kW Machine weight approx. 1.9 t Space requirement approx. 1.8 x 1.2 x 2.25 m Auction-ID: A7-49782-423

Quick radials with: - Feed - Tapping device Drilling capacity in steel 32 mm Projection 1230 mm Table surface 1200 x 500 mm Drilling stroke 180 mm Feed - automatic 0.10 - 0.15 - 0.20 mm Speed 60 - 1800 rpm Recording MK 4 Total power requirement 2.7 kW Machine weight approx. 1.8 t Dimensions approx. 2.2 x 1.8 x 2.3 m Auction-ID: A7-49782-455

Table dimensions: 1100 x 400 mmwith three grooves Throat: approx. 907 mmSpeed: from 35 to 1800 rpm Auction-ID: A7-49089-393

Drilling and milling machine with large table Digital display SINO 3-axis. Digital display quill stroke. 2 speed levels. Left/Right Switch Head swivel left/right 90° Spindle protection. incl. toolbox with various tools Drilling capacity in steel25 mm Projection 175 mm Drilling stroke 50 mm Capacity finger milling machine 16 mm Spindle holder ISO 30 Spindle speeds: 50 - 3000 rpm Table adjustment transverse 380 mm Table adjustment longitudinal 175 mm Table clamping area 700 x 180 mm Connection voltage 230 V max. distance between work table and spindle nose max. 320 mm Total power requirement 0.75 kW Machine weight approx. 130 kg Dimensions approx. 670 x 550 x 910 m Condition: never used / new (5) Auction-ID: A7-49782-458

Equipment: 3-axis digital display Digital depth display Motorized feed for X and Y Left/Right Run Emergency stop Swivelling drill head Spindle protection. Machine Light Tool case with contents Drilling capacity in steel 35 mm Projection 230 mm Drilling stroke 125 mm Spindle holder ISO 40 Spindle speeds 115 - 1750 rpm Table adjustment transverse 375 mm Table adjustment longitudinal 175 mm Table clamping area 1000 x 240 mm Max. distance between work table and spindle nose 120 - 375 mm Connection voltage 400 V Total power requirement 0.85 / 1.5 kW Machine weight approx. 0.95 t Space requirement approx. 1.3 x 1.2 x 2.1 m Condition: never used / new (5) Auction-ID: A7-49782-525

Drilling machine with: Feed 2 gears Left/right rotation Footswitch Coolant Pump Machine Light Drilling capacity in steel 40 mm Projection 345 mm Drilling stroke 200 mm Table clamping area 720 x 560 mm Speed 60 - 765 rpm Feed rate 0.15 - 0.2 - 0.3 - mm/rev Tool holder MK 4 Total power requirement 3.0 kW Machine weight approx. 0.4 t Condition: unchecked (6) Auction-ID: A7-49782-507

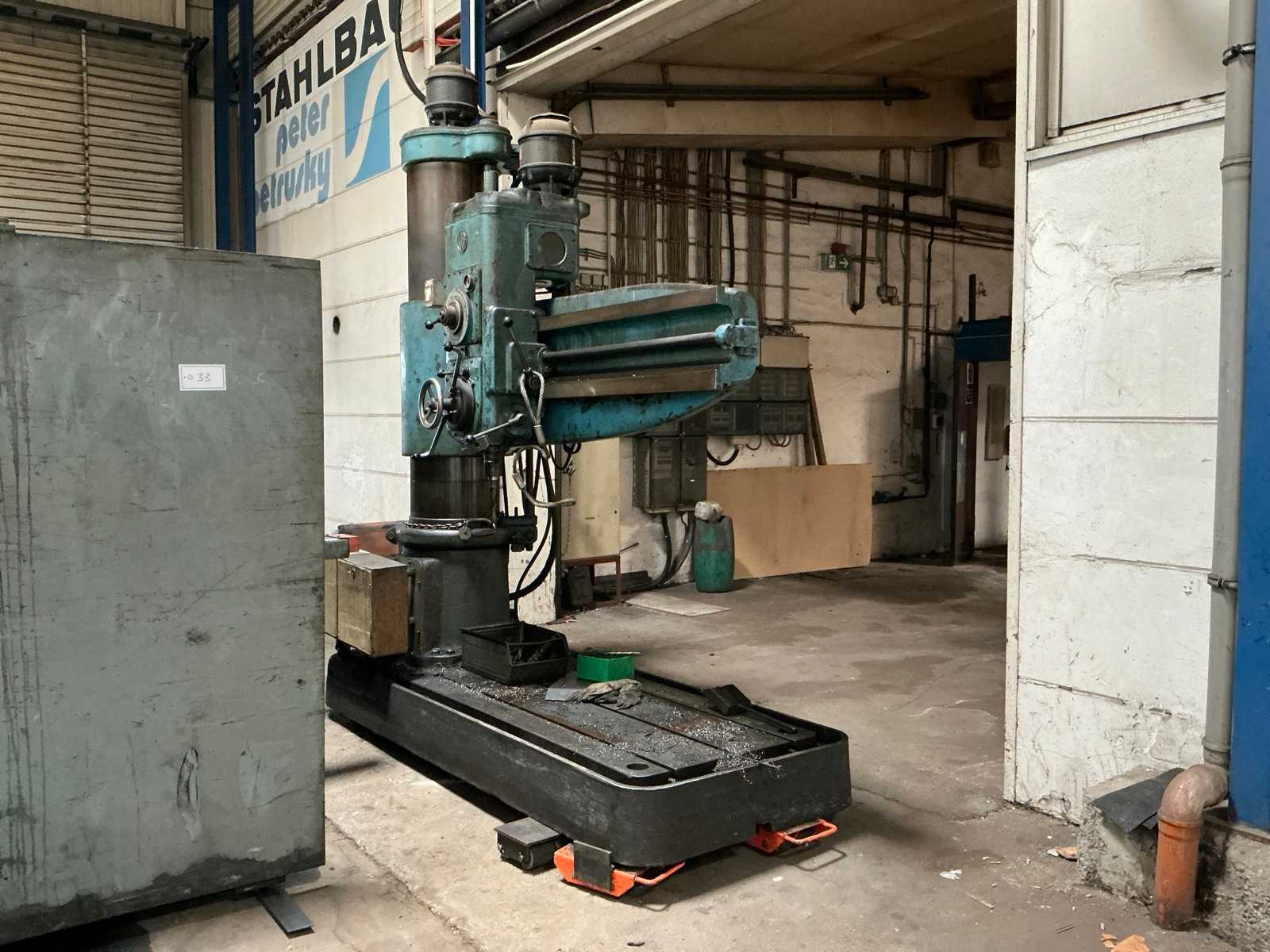

Sale from candelabra/lamp post factory liquidation. CSEPEL RF 2/A radial drilling machine. Conditions: according to the pictures - operational. Missing, damaged parts, untested condition. Unverified quality. Auction-ID: A7-49389-7

Drilling capacity in steel 40 mm Projection 230 mm Drilling stroke 130 mm Mounting MK 4 MK Table size 400 x 315 mm Speed 105 - 1257 rpm Total power requirement 2.55 KW Machine weight approx. 0.32 t Dimensions L x W x H 0.8 x 0.6 x 1.95 m Auction-ID: A7-49782-513

Machine number: 48305083Operating voltage: 400 VFrequency: 50 HzRated current: 3.2 AConnection: 0.9/1.45 kWTable dimensions: 350 x 260 mmSpeed: from 80 to 4000 rpm Auction-ID: A7-49089-480

Radial drilling machine - Clamping cube 750 x 500 x 500mm - Digital display for boom travel - Coolant system - Good condition Drilling capacity in steel 40 mm Projection 1600 mm Drilling capacity in cast iron 60 mm Spindle diameter 85 mm Quill stroke 350 mm Tool holder MK 5 Speeds 24 - 1050 rpm Feeds 0.06 - 1.0 mm/rev Column diameter 345 mm Threading device yes Drilling motor 5.5 kw Total power requirement 7.5 kW Machine weight approx. 4000 kg Dimensions approx. 2.5 x 1.0 x 2.99 m Auction-ID: A7-49782-599

Column drill with: Tapping function. Digital depth display Coolant system 2 Stage Motor Spindle protection Swivel table Swivel drill head LED lighting Packaging Dimensions: 730 x 760 x 188mm Weight 340Kg Drilling capacity in steel 40 mm Projection 300 mm Drilling stroke 120 mm Spindle mount MK 4 MK Table: 500 x 460 mm Column diameter 115 mm Speed 75- 3200 rpm Feeds 0.1 - 0.18 - 0.26 mm/rev Total power requirement 1.5 kW Machine weight approx. 350 kg Dimensions L-W-H 2.2 x 0.8 x 0.7 mm Condition: never used / new (5) Auction-ID: A7-49782-430

Column drill with: ARBO/CE approved protective cover. Quick-release chuck with pin. Tilting work table. Deep stop. Ejection wedge. Drilling capacity in steel 32 mm Projection 200 mm Drilling stroke 120 mm Spindle mount MK 4 MK Table: 290 x 270 mm Column diameter 92 mm Speed 150 - 2450 rpm Total power requirement 1.1 kW Machine weight approx. 95 kg Dimensions L-W-H 0.66 x 0.8 x 1.7 m Condition: never used / new (5) Auction-ID: A7-49782-473

Drilling and milling machine with - Variable spindle speed - Digital depth display - Left/right switch - Cross support - Swivelling spindle head - Feeds via hand crank - Tool case with contents Drilling capacity in steel 13 mm Projection 170 mm Drilling stroke 50 mm Capacity finger milling machine 13 mm Spindle Holder MK 2 Spindle speeds: 50 - 3000 rpm Table adjustment transverse 220 mm Table adjustment longitudinal 160 mm Table clamping area 500 x 140 mm Connection voltage 230 V Total power requirement 0.5 kW Machine weight approx. 0.06 t Space requirement approx. 0.6 x 0.45 x 0.76 m Attention: Machine is without digital display! Condition: never used / new (5) Auction-ID: A7-49782-488

Technical data Manufacturer: GILLARDON Model: GT 16 Configuration Column drill with height-adjustable work table and T-slots. Manual quill delivery. Drilling depth scale available. Speed adjustment available; Machine note: Speeds can only be adjusted while running. Tool holder / drill chuck mounted. Remarks The machine comes from a well-maintained company liquidation and was actively used in ongoing production until the end. Auction-ID: A7-49302-160

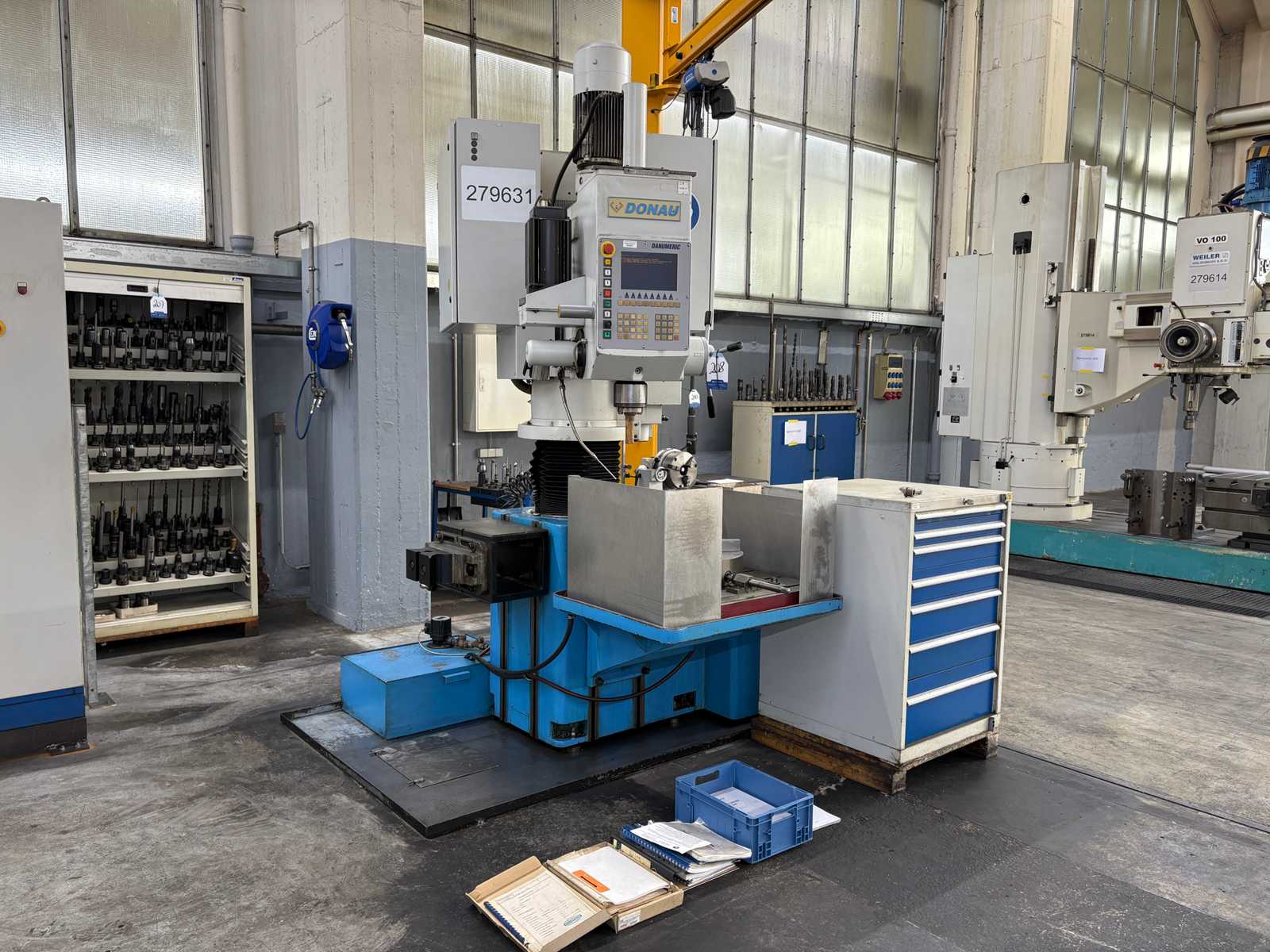

Machine number: 13088094Operating voltage: 380 VFrequency: 50 HzDrilling depth: up to 120 mmControl: HEIDENHAIN TNC 155Table clamping surface: 780 x 230 mmSpindle speed infinitely adjustable: from 50 to 9000 rpmDrive power of the spindle motor: 3.7 kWDrilling capacity in steel: 20 mmDrilling distance of the drill head: 450 mmTravel X-axis: 420 mmTravel Y-axis: 240 mmTravel Z-axis: 120 mmTravel A-axis: +- 30000°Rapid traverse X-axis: 7 m/minFeed X-axis: 7000 mm/minRapid traverse Y-axis: 7 m/minFeed Y-axis: 1 - 7000 mm/minFeed Z-axis: 0.02 - 0.30 mm/revRapid traverse A-axis: 10800°/minFeed: 1 - 10800°/minincl. built-in workshop drawer cabinet with contents of various hand tools, milling cutters, matching tool holders, colletsAttention: the machine is expressly sold as untested!Reference: C.O. - Lot 23 Auction-ID: A7-49056-61

WEBO VARIA 25 Column drilling machine, Drilling machine, Drilling Machine; Voltage: 380 volts; Recording: MK-3; Revolutions: 80 - 1800 rpm; Extension: 350 mm; Drilling depth 170 mm Auction-ID: A1-48979-30

Drilling capacity in steel 25 mm Projection 220 mm Drilling stroke 110 mm Recording MK 3 MK Table size 350 round mm Feeds mm/U Speed 100 - 2080 rpm Connection voltage 400 V Total power requirement 0.9 KW Machine weight approx. 0.2 t Dimensions L x W x H 0.8 x 0.6 x 1.9 m Auction-ID: A7-49782-437

Demonstration machine! Pneumatically driven tapping machine for M3 - M12 threads with: - Stable and flexible working arm. - 6 quick-change chuck with slipper clutch. Documentation in English Thread diameter M3 - M12 mm Speed infinitely variable 400 rpm. Torque 25 Nm Air pressure 6 - 8 bar Working range radius 1000 mm Machine weight approx. 12 kg suitable clamping table Lot 224, 254 or 265. Condition: never used / new (5) Auction-ID: A7-49782-410

Column drill with: automatic feed Tapping function. Digital depth display Coolant system 2 Stage Motor Spindle protection Swivel table Swivel drill head LED lighting Drilling capacity in steel 40 mm Projection 300 mm Drilling stroke 120 mm Spindle mount MK 4 MK Table: 500 x 460 mm Column diameter 115 mm Speed 75- 3200 rpm Feeds 0.1 - 0.18 - 0.26 mm/rev Total power requirement 1.5 kW Condition: never used / new (5) Auction-ID: A7-49782-494

Auction-ID: A1-49382-22

Machine number: 1863Operating voltage: 3 x 400 VFrequency: 50 HzNominal current: 14 AThroat: approx. 500 mmSpeed: from 25 to 3000 rpmTable dimensions: 560 x 480 mm, with three grooves and a three-jaw chuck, diameter: 210 mm Auction-ID: A7-49089-266

Unused exhibition machine with: - Tapping device - Variable spindle speed - Coolant system Drilling capacity in steel 32 mm Projection 265 mm Drilling stroke 150 mm Recording MK 3 MK Table size 390 x 390 mm Speed 100 - 3300 rpm Total power requirement 1.5 KW Machine weight approx. 0.35 t Dimensions L x W x H 0.8 x 0.6 x 1.95 m Auction-ID: A7-49782-436

Column drill with: - Feed via handwheel - Spindle speeds via belt drive Drilling capacity in steel 32 mm Projection 300 mm Drilling stroke 140 mm Recording MK 3 Table size 380 x 360 mm Feeds via handwheel Speed 85 - 1100 rpm Total power requirement 1.3 KW Machine weight approx. 0.27 t Dimensions L x W x H 0.95 x 0.6 x 1.92 m Auction-ID: A7-49782-590

Column drill with: - Variable spindle speed - Digital display for speed - Digital display for drilling depth - Left/right rotation - Incl. vice Drilling capacity in steel 30 mm Projection 275 mm Drilling stroke 100 mm Mounting MK 4 MK Table size 420 x 340 mm Speed 80 - 2000 rpm Total power requirement 0.9 / 1.45 KW Machine weight approx. 0.22 t Dimensions L x W x H 0.85 x 0.6 x 1.9 m Auction-ID: A7-49782-593

Drilling and milling machine with - Variable spindle speed - Cross support - Rotatable spindle head left/right 90° - Feed via hand crank Drilling capacity in steel 16 mm Projection 185 mm Drilling stroke 50 mm Capacity finger tiller 20 mm Spindle Holder MK 2 Spindle speeds 100-1500 / 200-3 rpm Table adjustment transverse 175 mm Table adjustment longitudinal 280 mm Table clamping area 500 x 180 mm Connection voltage 230 V Total power requirement 0.85 kW Machine weight approx. 0.12 t Space requirement approx. 0.86 x 0.6 x 0.9 m Condition: never used / new (5) Auction-ID: A7-49782-504
