Linhas de produção completo (8)

Venjakob ano de fabrico 1999 Spray armas 4 Tinta à base de água e laca e também tinta de tinta UV tinta curando tinta? – Não é possível agora, mas pode ser feito, se mudarmos a bomba, tubos e bicos De reciclagem de tintas - sim É possível aplicar "apostas"? À base de água? – Sim, à base de água As peças de trabalho são empilháveis logo após a saída da linha? (Estão secos para que possam ser empilhados?) – Sim, se usarmos tinta à base de água UV, mas quando se utiliza componentes normais de tinta à base de água ou laca deve ser seca numa prateleira Que tipo de produtos você corre na linha? Que materiais? – MDF, portas à superfície de melamina, componentes etc. e componentes de madeira maciça (principalmente bétula) Quais são as limitações de dimensão para as peças de trabalho? – largura min/máx 20-1200 mm, comprimento min/máx 350-2750 mm, espess ...

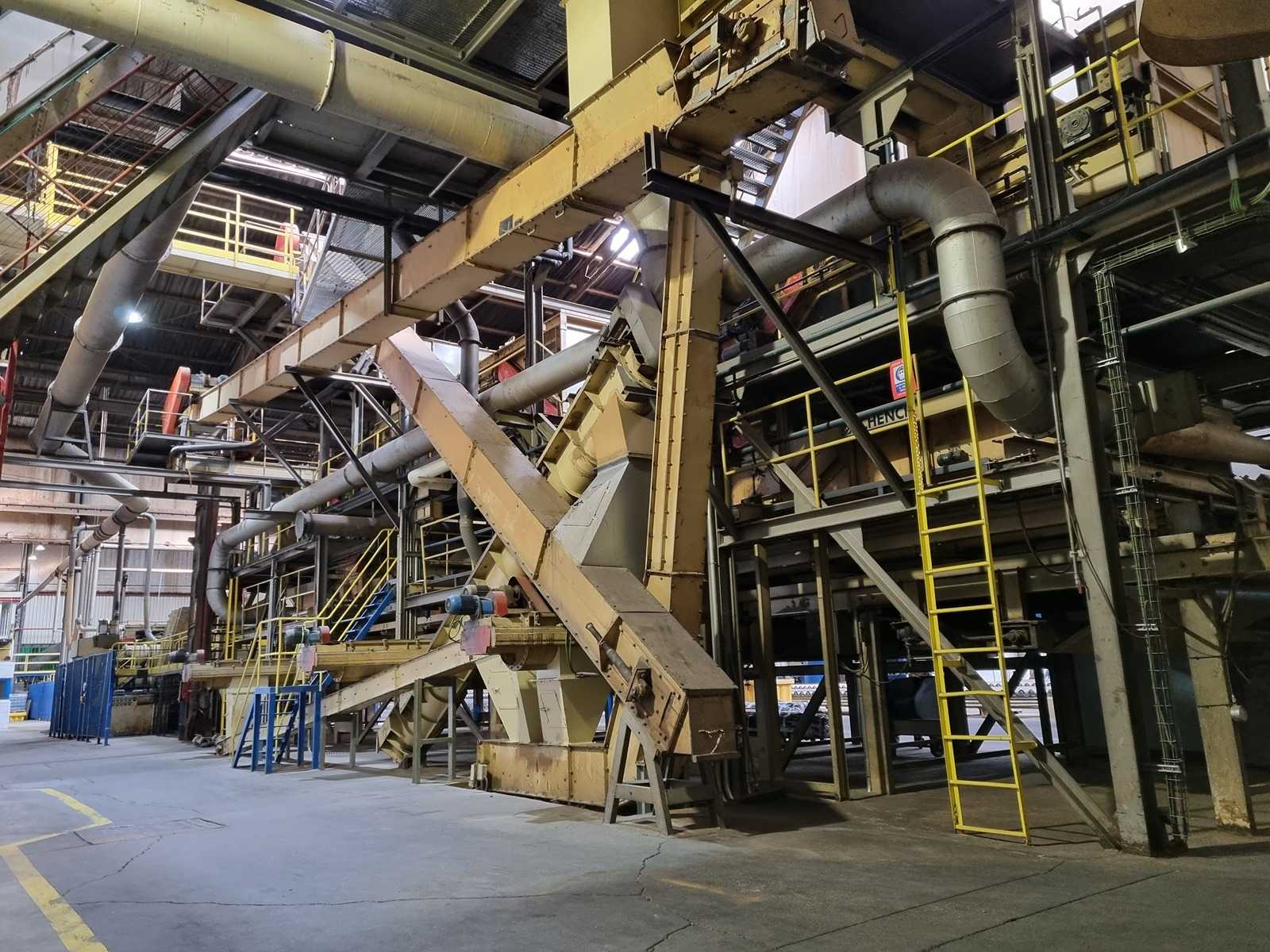

- Forming and pressing line for the production of 3-layer chipboards. - Maximum net dimensions of board 29355 x 2500 mm. - Net thickness of the boards from 4 mm to 40 mm. - Approximate board density 700 kg/m³ (for 16 mm thick board). - Production capacity: 29.40 m³/hour (for 29355 x 2500 x 16 mm boards). - Includes: • Queue preparation and management system. • 2 particle gluers for the different mixtures. • SCHENK forming system: year of manufacture 1988 (updated in 2001), with 3 forming stations (for the top, bottom and infill layers), length 28000 mm. • DIEEFFENBACHER continuous pre-press with cut-off station: year of manufacture 1989 (updated in 2001), maximum pre-pressing speed 350 mm/sec, length 28000 mm. • Acceleration conveyor belt: length 35000 mm. • DIEEFFENBACHER HPOG 80/26.200/35 continuous 2-plate hydraulic press: year of ...

- Includes 2 parallel mounted crimping lines. - Length of the boards from 2440 mm to 2850 mm. - Width of the boards from 1830 mm to 2100 mm. - Thickness of the boards from 3 mm to 40 mm. - Each line consists of: • Automatic panel loading system. • Paper positioning system. • SIEMPELKAMP press: plate dimensions 2950 x 2200 x 150 mm, maximum opening 270 mm, total pressing force 23940 KN, maximum working pressure 320 Bars, working temperature 220° C, heating of the plates with thermal oil, maximum performance 150 pressing/hour. • Edge cleaning unit. • Tilting cooling table. • Intermediate conveyors. • Artificial vision system. - Automatic strapping machine BIELE and final magazine (common to the 2 lines). - Operating conditions of this machine: unchecked. - EX WORKS Sale. Dismantling, disconnection, loading and removal at the  ...

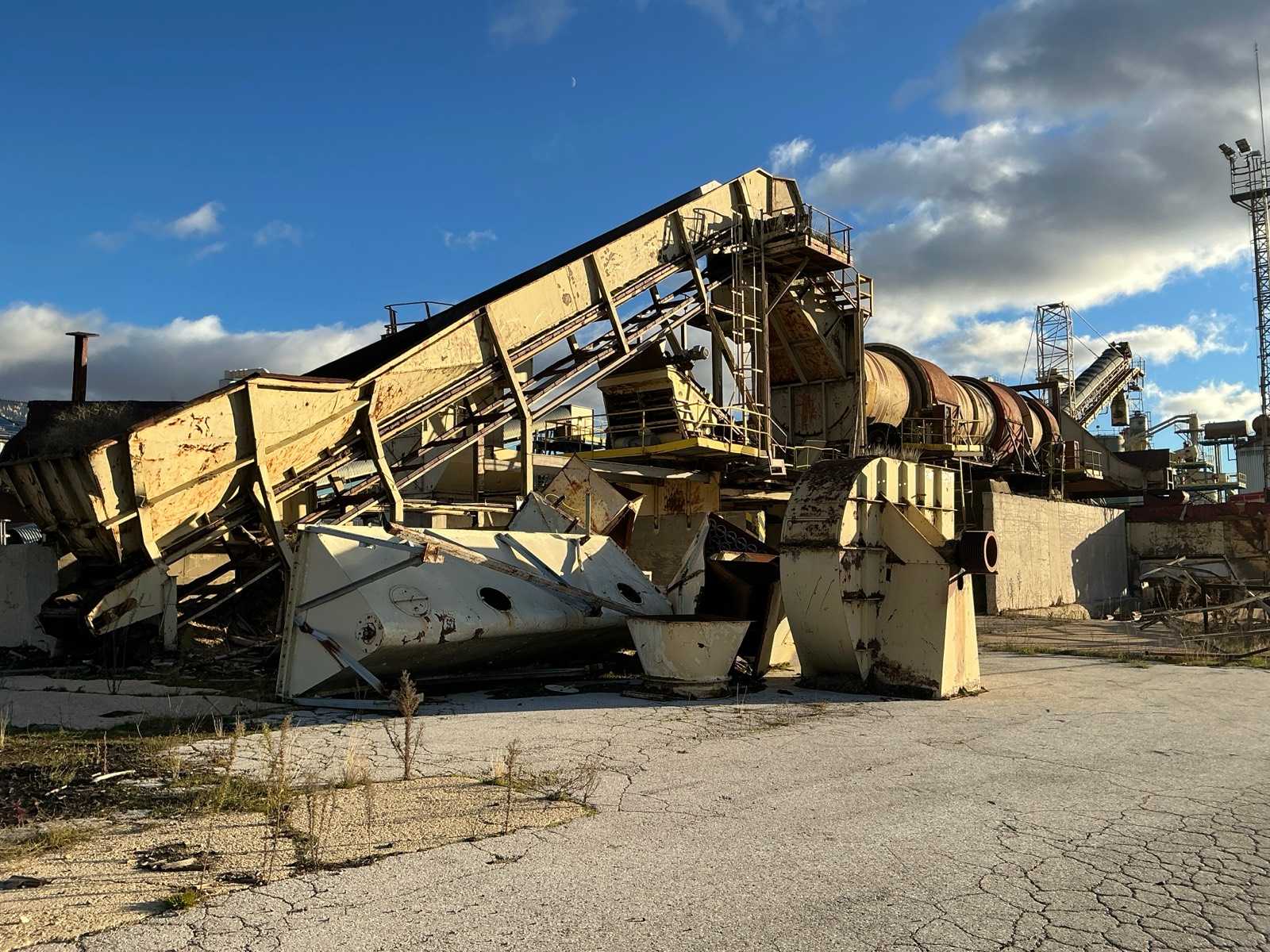

- Rotary drum debarker for wood logs. - Robust construction supported on wheels. - Evacuation of bark through longitudinal grooves in the drum. - Drum length approx. 17000 mm. - Drum diameter approx. 3100 mm. - Includes inclined loading hopper with drag belt. - The outbound conveyor belt is NOT included. - This machine has been stopped since 2018. At the time of the strike it was working properly. - Operating conditions of this machine: unchecked. - EX WORKS Sale. Dismantling, disconnection, loading and removal at the expense of the buyer, who must comply with current regulations on occupational risk prevention, health and safety in industrial work, providing the necessary documentation, insurance and accreditations. Auction-ID: A7-49881-3

Consisting of: infeed roller conveyor, cross transport belt conveyor, driven feed through roller conveyor, two-sided horizontal multi drill aggregate, 2x Gasco dowel vibratory feeder model BV25, feed through driven roller conveyor, 3x vertical multi drill aggregate, belt feed through conveyor table, 3x vertical multi drill aggregate, driven feed through roller conveyor table, 1x Gasco vibratory feeder model BV45-2R, 5-headed glue deposition unit, belt feed through conveyor table, 2x 3-station drawer slide insert units, 1x Gasco vibratory feeder model BV45-2L, 5-headed glue deposition unit, outfeed driven roller conveyor table, 3x 3-door switch cabinet, control desk with monitor, cameras, safety fence and stairs with walking platform. Used floor space approximately 26.000x7000mm Auction-ID: A1-48377-1

Consisting of: belt conveyor in-feed system, 6-level double sided storage, central switch cabinet with Omron touchscreen controller and safety fence. Used floor space approximately 6000x7500mm Auction-ID: A1-48377-20

Consisting of: automatic feed through clamp, infeed roller conveyor and lifting table, 1x Dynma rotating belt conveyor size approximately 2500x700mm, 5x Dynma belt conveyor size approximately 5000x1000mm, 3x cross feed belt conveyor, 1x 2-lane belt conveyor size approximately 3000x1100mm, 1x Dynma roller tilting station, 1x Schmalz vacuum lifting device model Jumbo ergo with column and vacuum pump, central switch cabinet , control panel, safety fence and stair Auction-ID: A1-48377-21

Number of machnines: 4 StControl: Siemens Tool changer: 1 PosPlant Consists of 4 MachinesSoraluce FR 9000ISoraluce RR 9000IISoraluce FP 8000Soraluce PM 6000Workpiece Setup StationsReplacement PalletsAutomatic Tool Supply System (WBG)Automatic Pallet SystemPallet Storage RackThe technical data is provided by the manufacturer or operator and is therefore non-binding. We reserve the right to prior sale, our terms and conditions of business and sale apply exclusively.About UsMore than 400 of our own machines in stockOver 15,000 m² of warehouse space, 70-ton crane capacityMore than 10,000 accessories for your workshopIf you want to sell machines, production lines, or your business,please contact us.Further offers can be found on our website.Viewings are possible by appointment.We look forward to your visit.Your Markus Hirsch TeamThe data for this ad was created with ModulMWS - the software s ...
