Máquinas para rosquear por rolagem (26)

N.º : 8649 Tipo: R16A-II Produtor: TSUGAMI Gerado: Parâmetros: Força de rolamento: 160 kN Diâmetro máximo: 75 mm Comprimento máximo: 150 mm Peso: 2500 kg

ORT RP30 C thread rolling machine 2-roll 30 tons electronic control of pressure (Ton), speed and position. Brushless motors for the rotation of the rollers Possibility to memorize the parameters for the piece., The machine is visible working in our warehouse in Gussago BS. Test possibility Mimu Machine Tools Rolling is a mechanical processing without chip removal that can be performed cold or hot, having as an aim the improvement of the surface finish (therefore the apathetic behavior of the material., Power (Ton): 30, Number of rollers: 2, PLC: YES

Máquina laminadora de roscas UPW 25.1

ORT RP12, 2-roll, 12 ton, Thread rolling machine, The machine is in our warehouse, under power

CAPASIDADE MÁXIMA 63 T, DIÂMETRO ROLAMENTO 110

pressure: tThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

N.º : 7925 Tipo: UPW 25.1 Produtor: VEB Criado: 1988 Parâmetros: Força de rolamento: 25 t Largura do cilindro: 250 mm Diâmetro do eixo: 80 mm Subida: 0.5-5 mm Peso: 2900 kg Equipamento: Régua de suporte Anéis de fronteira Conjunto de cilindros roscados Velocidade do eixo infinitamente ajustável

ORT RP30 MS 2-roll 30 tons, thread rolling, knurling, small gears, 2009 = YOM, Electronic overhaul and electronic retrofit with Siemens PLC (2025) The machine is visible working in our warehouse in Gussago BS. Possibility of proof M i m u Machine Tools, Power (Ton): 30, Number of rollers: 2, PLC: Yes

CAPASIDADE MÁXIMA 20 T

Thread rolling machine ORT RP18 B 2-roll, overhauled, See video The machine is in our warehouse in Gussago BS, under power Test run possible Mimu Machine Tools Italy, Power (Ton): 18, Number of rollers: 2

CNC Thread máquina de enrolar e de queimar engrenagens ESCOFIER P440 CN CNC Siemens Novo 2004 - como novo 2 rolos 2 cabeças em movimento 4000 daN pressão de rolamento diâmetro da peça de trabalho: 100mm max. diâmetro da ferramenta: 180-245mm Swiveling: +/-6°, velocidade para a frente: 0.1-20mm/s, velocidade inversa: 0.1-30mm/s potência motora: 8.6kW Novo: 2004 Condição: como novo

Thread rolling machine, ESCOFIER H20Z, 2-roll, 2 moving heads (in sync), 2 - 20 Ton rolling pressure, workpiece diameter: 75mm max., tool diameter: 140-200 mm, Max plunge width 160 mm, Shafts dia: 69.95, Swivelling: +/-6°,, New: 2003, under power in our warehouse, M i M u machine tools

Fliss bohrer e máquina NC de enrolar roscado. A máquina foi reconstruída em 2019, completando Hardwere, e componentes pneumáticos, e parte da elétrica. A máquina pode ser usada para a produção de tubos em série, pode ser aded Robot para manipular.

pressure: 20 - 300 kNadjustment of rolling slide: 50 mmdiameter of rolling spindle: 120 mmroll spindle height over machine bed: 200 mmControl: SIN 840 taper length of the roll spindle: 200 mmrolling spindle turning speeds: 0 - 50 1/mintorque per rolling spindle: 2700 Nmpower capacity: 2 x 8,4 kWdistance between rolling spindles: min. 271 / max. 368 mmrolling tool outer diameter: max. 300 mmtotal power requirement: 26 kWweight of the machine ca.: 7,1 tdimensions of the machine ca.: 9,70 x 4,50 x 3,80 mCNC machine for gear cold rollingPromot loader cellComplete housingThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Thread rolling machine ORT RP18 B 2-roll, overhauled, LOW PRICE The machine is in our warehouse in Gussago BS, under power Test run possible Mimu Machine Tools Italy, Power (Ton): 18, Number of rollers: 2

pressure: 0,2-40 tmax. workpiece diameter: 70 mmthreading length: 120 mmControl: total power requirement: 29 kWweight of the machine ca.: 9,5 tdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Máquina laminadora de roscas ORT RP18 2-roll Diâmetro dos fusos 69.95mm, Ver vídeo A máquina está em nosso armazém em Gussago BS, sob poder Execução de teste possível Mimu Machine Tools Itália, Potência (tonelada): 18, Número de rolos: 2

Máquina laminadora de roscas ORT RP30U, 2-roll, 30 ton, cabeças giratórias, variador de velocidade, #1331 Sob energia em nosso armazém em Gussago BS. Execução de teste possível M i m u Máquinas-ferramentas Itália A laminagem é um processo mecânico sem remoção de cavacos que pode ser realizado a frio ou a quente, tendo como objetivo a melhoria do acabamento superficial (daí o comportamento de fadiga, Potência (tonelada): 30, número de rolos: 2

ORT RP18B revisado

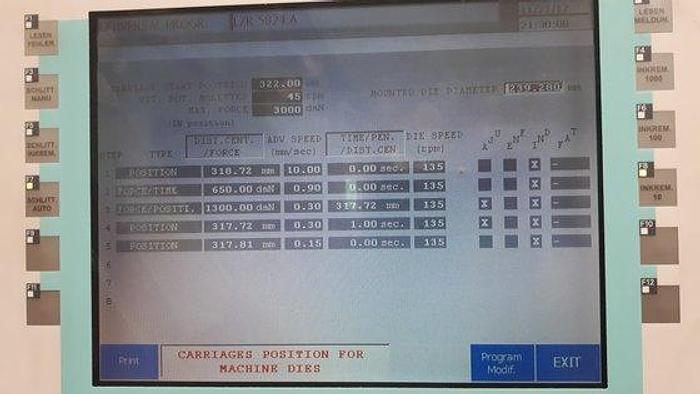

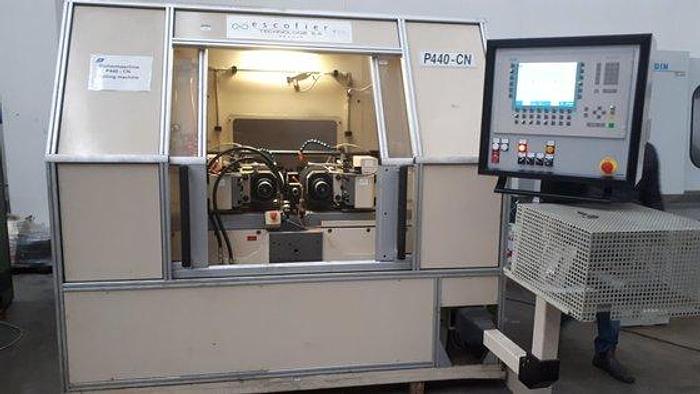

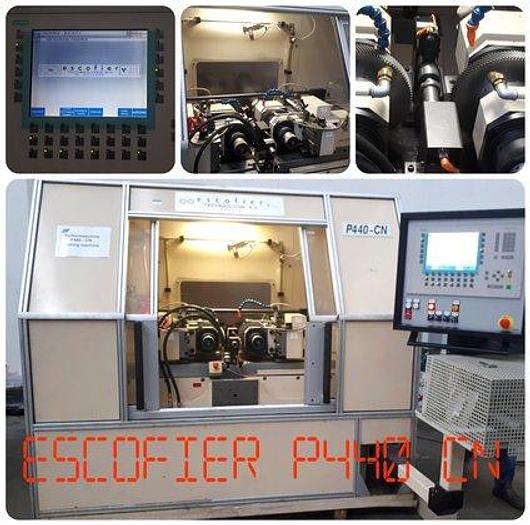

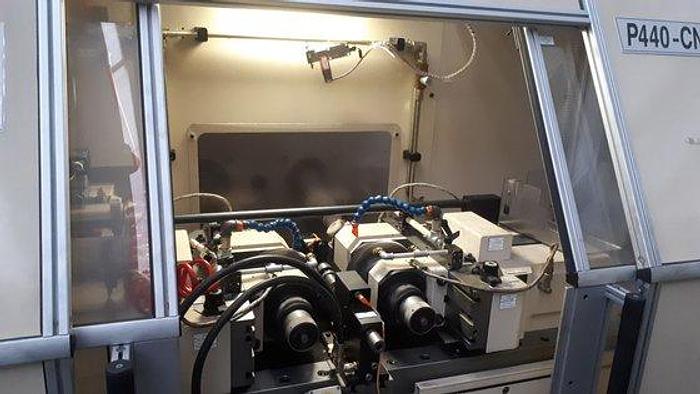

CNC Thread rolling and gear burnishing machine, ESCOFIER P440 CN, CNC Siemens, New 2004 - like new, 2-roll, 2 moving heads, 4000 daN rolling pressure, workpiece diameter: 100mm max., tool diameter: 180-245mm, Swivelling: +/-6°,, forward speed: 0.1-20mm/s, reverse speed: 0.1-30mm/s, motor power: 8.6kW, New: 2004, Condition: like new, under power in our warehouse, Mimu Machine Tools (Italy)

Laminating pressure: 70 Kn, Ø Pieces: 2mm min; 30mm max, Passed: 3mm max, Grooving step: 1.75mm max, Roller width: 50mm max, Ø roller: 73mm min; 110mm max, Speed of roller shafts: 90 rpm, Ø roller bearing shaft: 40mm standard, Wheelbase: 80mm min; 135mm max, Work career: 5 min max, Advance: from 0.5mm/s to 3mm/s, main engine: 3 Kw, Electrical power consumed: 3.18 Kw, Tank capacity: 80 L, Weight approx.: 670 Kg

Laminating pressure: 70 Kn, Ø Pieces: 2mm min; 30mm max, Passed: 3mm max, Grooving step: 1.75mm max, Roller width: 50mm max, Ø roller: 73mm min; 110mm max, Speed of roller shafts: 90 rpm, Ø roller bearing shaft: 40mm standard, Wheelbase: 80mm min; 135mm max, Work career: 5 min max, Advance: from 0.5mm/s to 3mm/s, main engine: 3 Kw, Electrical power consumed: 3.18 Kw, Tank capacity: 80 L, Weight approx.: 670 Kg

Laminating pressure: 100 kN, Ø Pieces: 2mm min; 40mm max, Passed: 3.5mm max, Grooving step: 1.75mm max, Roller width: 70mm, Ø roller: 80mm min; 120mm max, Speed of roller shafts: 32 51 95 150 rpm, Ø roller bearing shaft: 40 standard, Wheelbase: 80mm min; 165mm max, Work career: 7 min, Advance: from 0.5mm/s to 6mm/s, Laminating time: from 0.1s to 100s, Break time: from 0.1s to 100s, main engine: 3 Kw, Electrical power consumed: 4.68 Kw, Tank capacity: 80 L, Weight approx.: 750 Kg

Laminating pressure: 220 kN, Ø Pieces: 3mm min; 70mm max, Passed: 6mm max, Grooving step: 2.25mm max, Roller width: 160mm max, Ø roller: 133mm min; 170mm max, Speed of roller shafts: 24 30 38 45 62 72 90 114 rpm, Ø roller bearing shaft: 54mm standard; 69.85 special, Wheelbase: 135mm min; 230mm max, Work career: 15min max, Advance: from 0.5mm/s to 6mm/s, Laminating time: from 0.1s to 100s, Break time: from 0.1s to 100s, main engine: 5.5 Kw, Electrical power consumed: 8.6 Kw, Tank capacity: 130 L, Weight approx.: 2100 Kg

Laminating pressure: 220 kN, Ø Pieces: 3mm min; 70mm max, Passed: 6mm max, Grooving step: 2.25mm max, Roller width: 160mm max, Ø roller: 133mm min; 170mm max, Speed of roller shafts: 24 30 38 45 62 72 90 114 rpm, Ø roller bearing shaft: 54mm standard; 69.85 special, Wheelbase: 135mm min; 230mm max, Work career: 15min max, Advance: from 0.5mm/s to 6mm/s, Laminating time: from 0.1s to 100s, Break time: from 0.1s to 100s, main engine: 5.5 Kw, Electrical power consumed: 8.6 Kw, Tank capacity: 130 L, Weight approx.: 2100 Kg

Laminating pressure: 160 kN, Ø Pieces: 3mm min; 50mm max, Passed: 5.5mm max, Grooving step: 2mm max, Roller width: 100mm max, Ø roller: 133mm min; 165mm max, Speed of roller shafts: 32 40 51 59 81 95 118 150 rpm, Ø roller bearing shaft: 54mm standard; 69.85mm special, Wheelbase: 135mm min; 205mm max, Work career: 15min max, Advance: from 0.5mm/s to 6mm/s, Laminating time: from 0.1s to 100s, Break time: from 0.1s to 100s, Inclination of roller-carrying axes: +/- 5º, main engine: 5.5 Kw, Electrical power consumed: 7 Kw, Tank capacity: 130 L, Weight approx.: 1700 Kg
