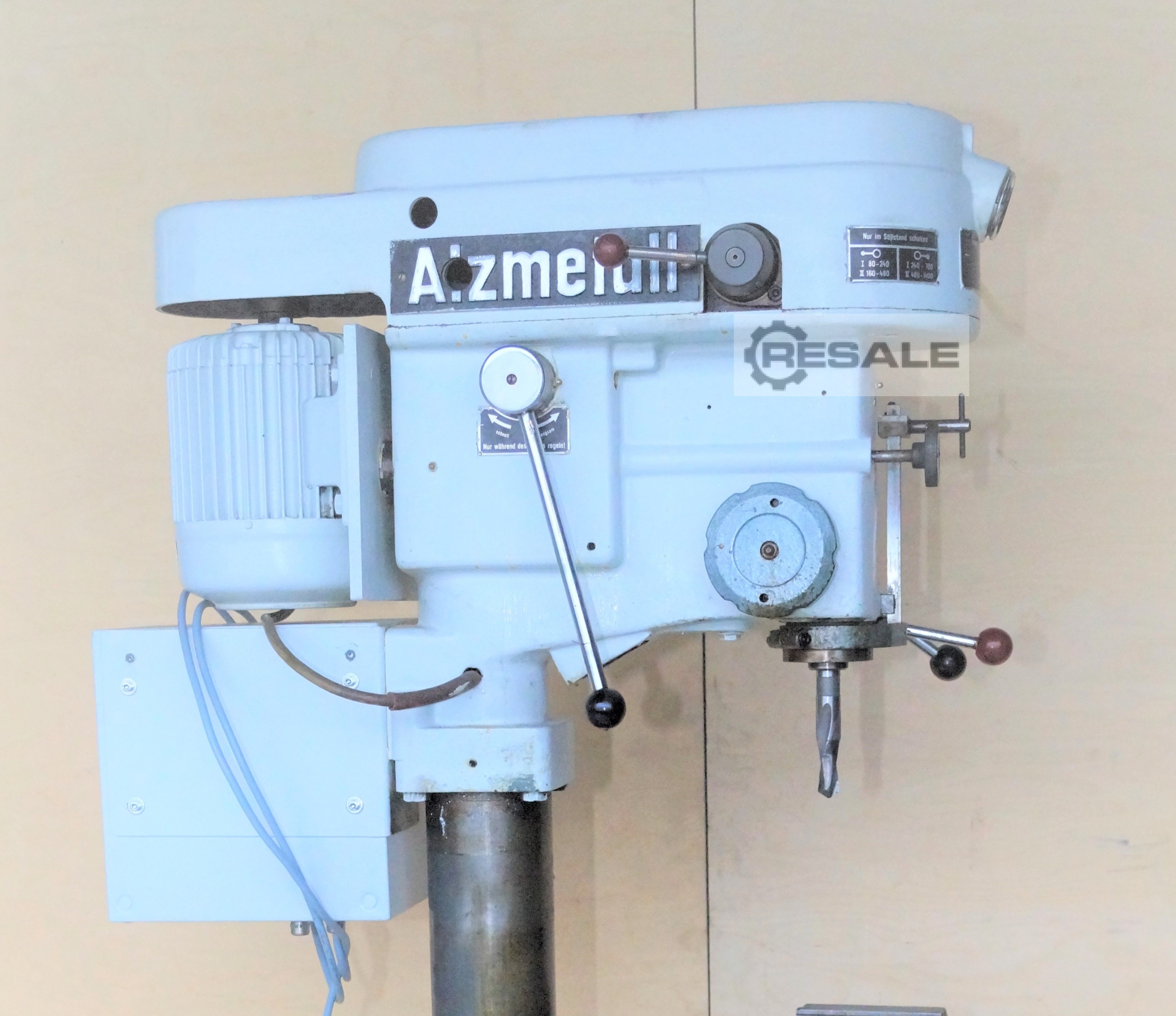

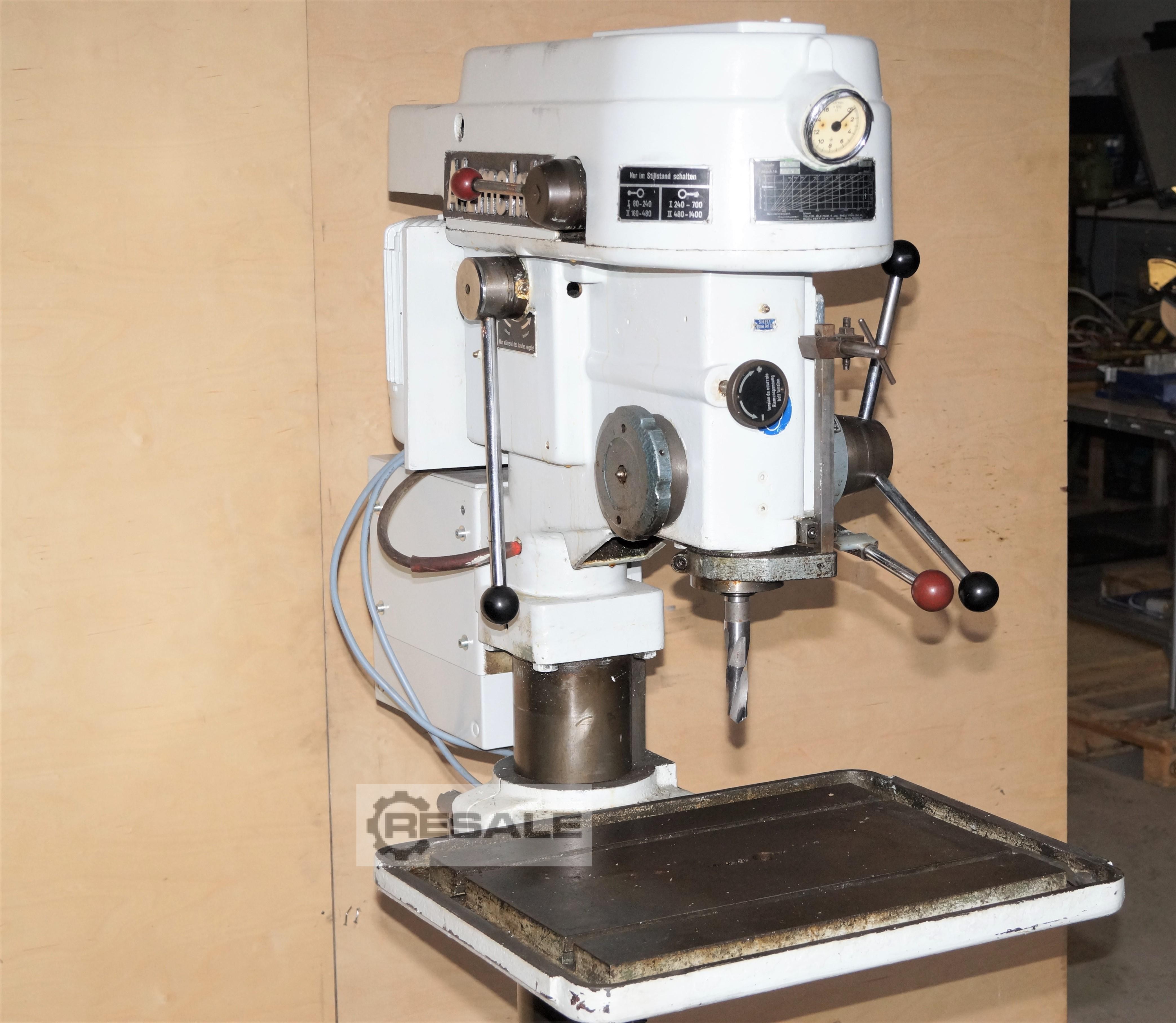

Furadoras de coluna ALZMETALL AB 3 / ESV

Bore capacity in steel (diameter): 40 mm Turning speeds: 80 U/min Column Drill Alzmetall AB 3 / ESV
Drive type: AZ continuously variable transmission with two-stage manual transmission
Speed range (Gear Stage I): 80-240 rpm or 160-480 rpm
Speed range (Gear Stage II): 240–700 rpm or 480–1,400 rpm
Automatic feed: 3 stages (0.1 – 0.2 – 0.3 mm/rev)
Motor power 1.5 KW - 380 Volt

Tool holder: Short spindle MK 3
Spindle stroke (drilling stroke): 160 mm
Projection: 285 mm
Table clamping surface: 500 x 370 mm
Column diameter: 130 mm
Machine weight approx. 400 kg

Drilling capacity in steel (St 60): 28 mm
Drilling capacity in cast iron (GG 20): 35 mm
Drilling capacity in steel (St 60): 40 mm
Tapping in steel (St 60): Up to max. M 22
Threading in cast iron (GG 20): Up to max. M 33

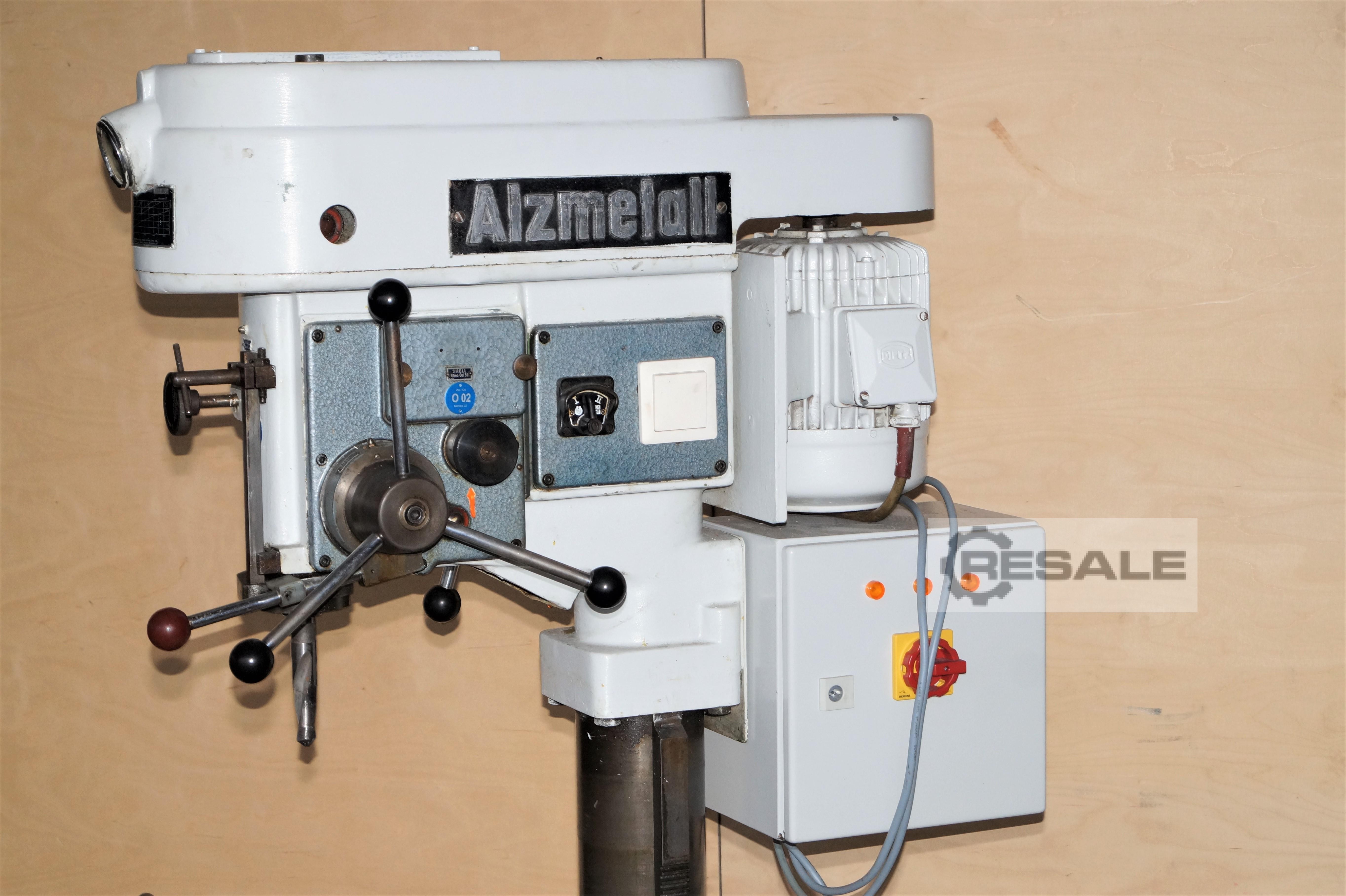

Retrofitted foot switch and control cabinet

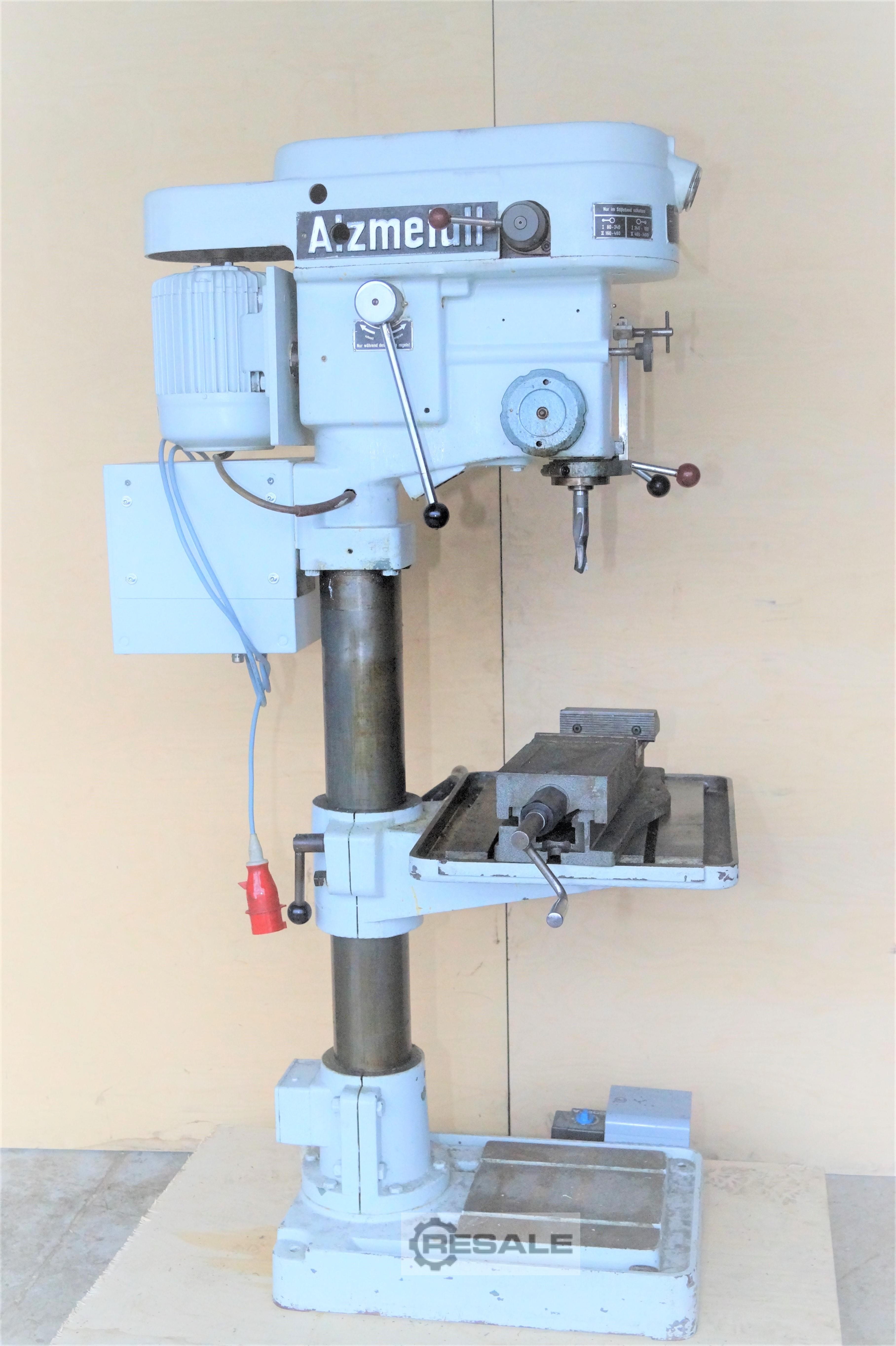

Mechanical-hydraulic machine vice Röhm RB 4
(Jaw width 160 mm - clamping range up to 310 mm)
Retrofitted foot switch and control cabinet

seller offer No. resale 169903522
