Fil automático de sobreposição automática com embalagem retrátil

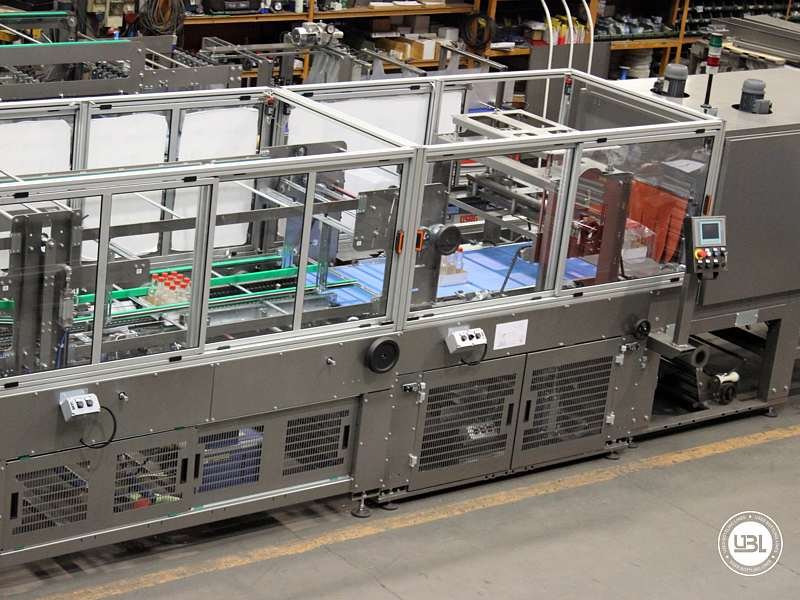

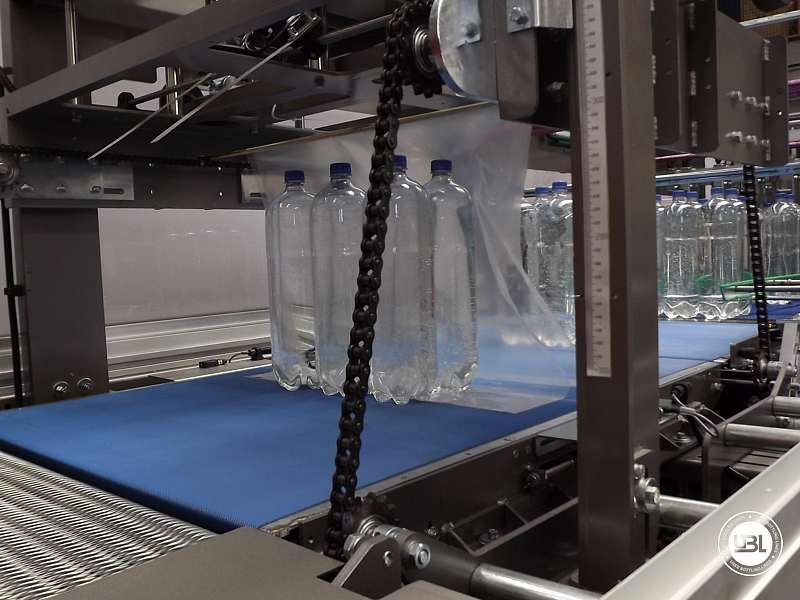

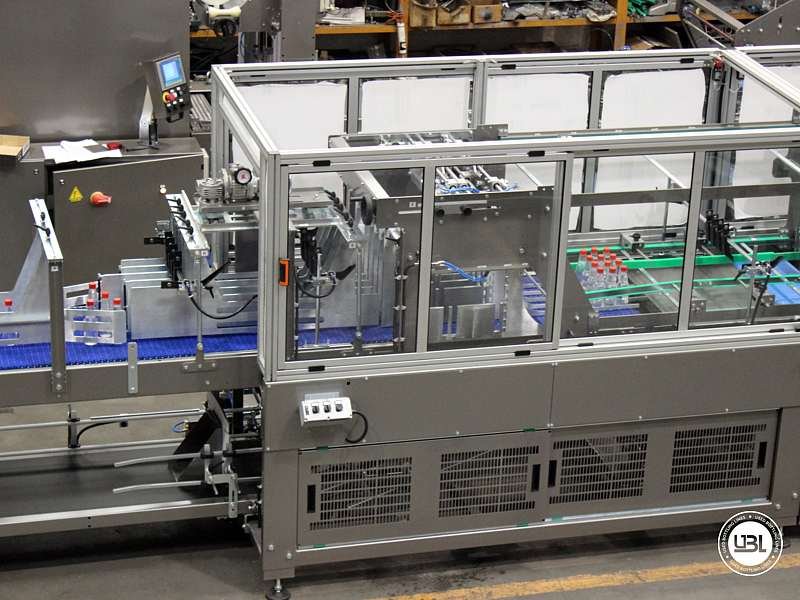

Technical Specifications & Performance Data The Automatic Shrink Wrapper with overlapping film is a fully automatic bundling solution engineered for high-quality industrial packaging in beverage production and other fast-moving consumer goods. Designed for straight-through or 90° infeed layouts and equipped with a welding bar system, it forms tight, stable bundles using shrink film, with the flexibility to run film-only multipacks or film plus flat carton/tray configurations depending on setup. Category: Shrink Wrapper (automatic overlapping film, welding bar) Condition: New Production speed: up to 30 bundles/min (format- and product-dependent) Infeed: Multi-lane conveyor design for stable product grouping Bundle options: Film-only and film with flat carton/tray (configurable) Film handling: Overlapping shrink film with adjustable welding bar widths (on request) Container types: PET, glass, aluminum cans, HDPE and similar rigid containers Product applications: Water, juice, beer, wine, carbonated soft drinks, functional beverages, edible oils Technical dimensions: L 12,500 mm, W 1,700 mm, H 2,200 mm Approx. weight: 4,650 kg Electrical: 50 Hz industrial power supply Documentation: Manuals available Advanced Automation & Control Systems This machine is delivered as a fully automatic system with PLC-based control and operator-friendly HMI for recipe management, diagnostics, and fine adjustment of shrink tunnel temperature and conveyor speeds. Servo or frequency-controlled drives provide smooth acceleration and precise film handling across varying formats. Integrated sensors monitor product flow, film presence, seal integrity, and temperature stability to ensure consistent packaging quality at speed. Comprehensive safety features are included, such as interlocked guards, emergency stop circuits, over-temperature protections, and clearly marked isolation points for maintenance. The 50 Hz electrical design supports stable, repeatable operation in demanding production environments. Production Line Integration Capabilities The wrapper integrates seamlessly upstream with rinsing, filling, capping, and labeling machines, and downstream with case packing, inspection, coding/marking, and palletizing equipment. It is well-suited for both new installations and upgrades of a used bottling line where second hand equipment is being modernized. Format changes are supported through quick-adjust guides and recipe-based settings to accommodate different bottle diameters, heights, and can formats without excessive downtime. Machine Condition & Maintenance History Supplied factory-new, this unit has zero operating hours and is prepared for acceptance and commissioning. Manuals and recommended spare parts lists are included to streamline startup and preventive maintenance planning. The robust construction and accessible guarding simplify routine service tasks and reduce total cost of ownership over the machine lifecycle. Operational Performance & Versatility Built for multi-product flexibility, the system reliably bundles PET bottles, glass bottles, and aluminum cans for beverage production lines handling water, juice, beer, wine, and soft drinks, as well as non-beverage items packaged in rigid containers. The overlapping film technology and controlled shrink tunnel produce tight, attractive multipacks suited to retail logistics and distribution. Key advantages include stable multi-lane infeed grouping, the option to run film-only or combined film with flat carton/tray, and the ability to configure the infeed orientation (straight or 90°) to match existing conveyors, fillers, labelers, and cappers. Installation Requirements & Site Preparation Plan floor space to accommodate the machine’s footprint (12,500 x 1,700 x 2,200 mm) plus suitable service and ventilation clearances for the shrink tunnel and access doors. Provide a level, load-bearing floor for a 4,650 kg machine, power supply at 50 Hz, and a clean compressed air feed for actuators and pneumatic functions. Adequate ventilation/extraction around the tunnel is recommended to manage heat. Film roll loading and pallet staging areas should be considered to support continuous operation. Safety Standards & Compliance Certification The wrapper is supplied with fixed and interlocked guards, e-stops at key access points, and thermal protections for the tunnel. All safety devices are integrated into the control system for monitored stoppages and safe restart procedures. Hygienic, easy-to-clean surfaces and enclosed cabling support application in food and beverage environments. Machines can be configured to meet common industrial safety and hygiene practices applicable to packaging equipment, aligning with the requirements typically found in modern filling, labeling, and capping operations. Whether complementing a modern high-speed line or upgrading sections of a second hand installation, this shrink wrapper delivers reliable industrial packaging performance with the automation, safety
seller offer No. resale N-FA02
