Machining center CNC HOMAG - KUKA DRILLTEQ V-500 - KR 150 R3100 prime

Machining center in vertical design with automatic return
Workpiece dimensions:
Length: 200 to 3050 mm
Width: 50 to 1250 mm
Thickness: 8 to 80 mm
weight max 60 kg
Performance
- 2x vertical drilling unit separately controllable with variable speed. right left
V10/32mm. 2.3 kW. Drill length 70 mm, D= max 35 mm
- 2x horizontal drilling unit, 6 spindles in X direction, variable speed. right left
can be controlled separately. Drill length 70 mm, D= max 20 mm
- 2x horizontal drilling unit, 2 spindles in Y direction, variable speed. right left
can be controlled separately. Drill length 70 mm, D= max 20 mm
- Grooving saw unit X-Y can be swiveled 0°/90°
saw diameter 125 mm, rpm 1500-7500 frequency controlled
- Dowel insertion station
for automatic insertion of dowels on the two transverse workpiece edges
1x left side / 1x right side
glue pump, vibrating guide for dowels 8 x 35/40 mm
- plausibility check X/Y (check workpiece length and width)
- milling unit
HSK 63
10 kW, rpm 1500-24000 frequency controlled

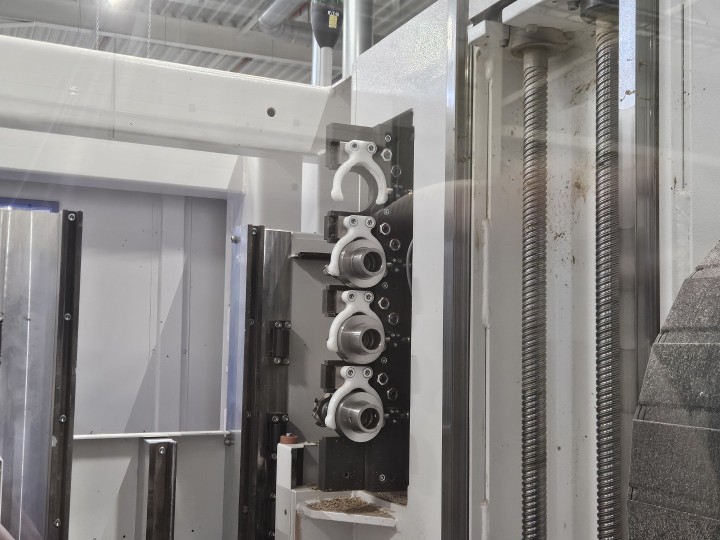

- 4-place tool magazine for HSK 63
- stop cylinder for workpiece positioning

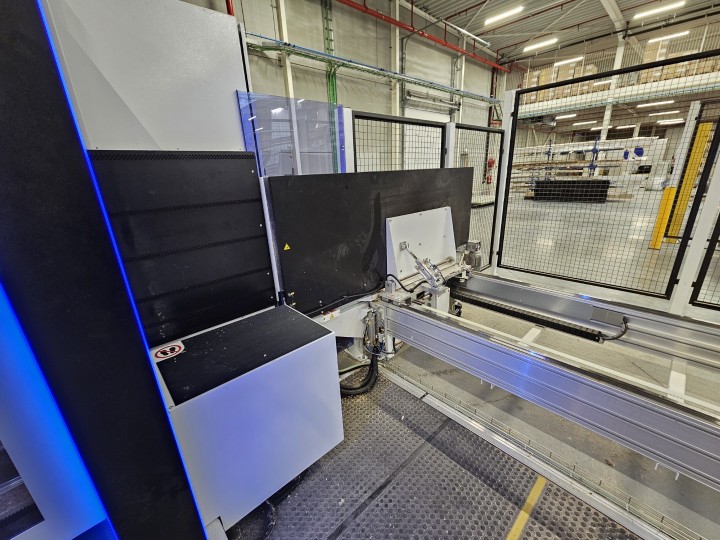

- automatic return system 3050 mm
workpiece length 350-3050 mm
workpiece width 60-1250 mm
workpiece thickness 8-80 mm
speed up to 25 m/min

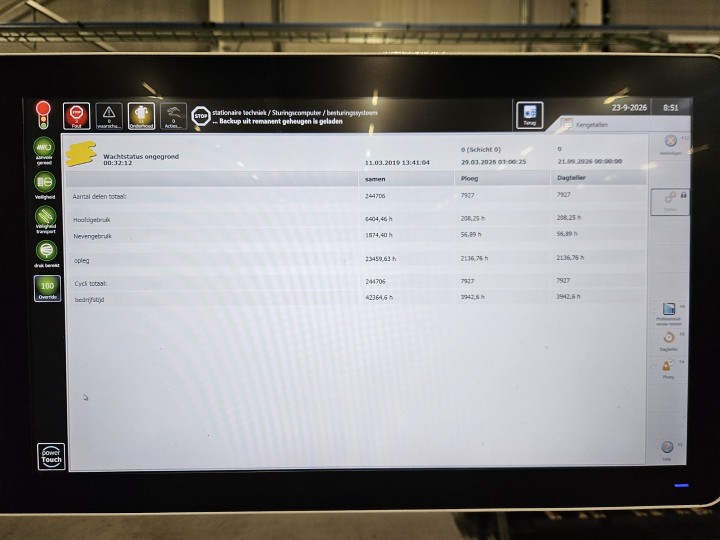

- power control with power touch
- tapio ready
- Woodwop DXF import bassic

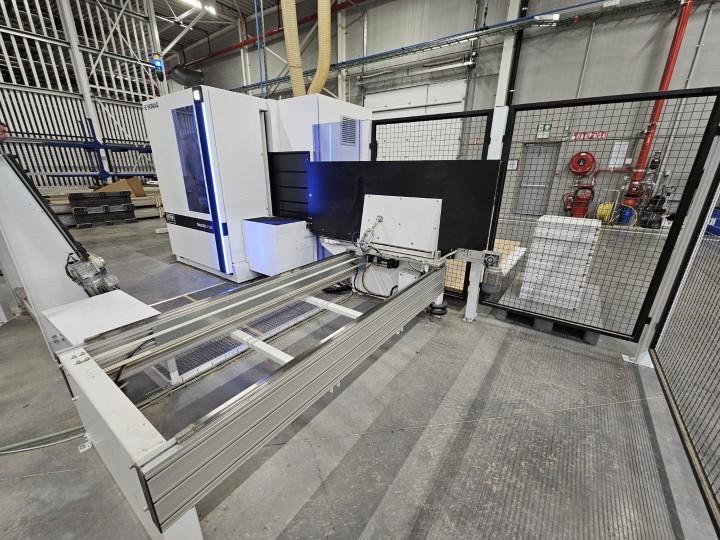

The CNC machine is set up in an autonomous cell.
Material is fed onto a pallet.
The KUKA robot reads the barcode and handles the feeding and removal of boards to and from the CNC machine.
