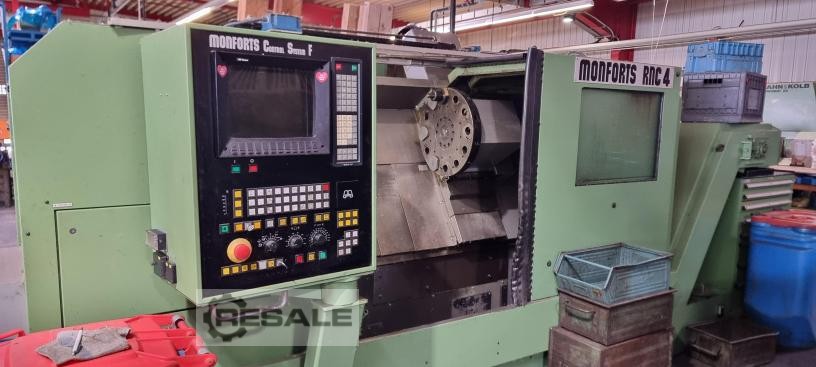

Máquinas rotativas CNC MONFORTS RNC 4

Turning diameter: 250 mm Turning length: 600 mm Turning speeds: 4000 1/min No. 202 Monforts RNC 4 without tailstock
Machine No. 13772 Series No. 11914

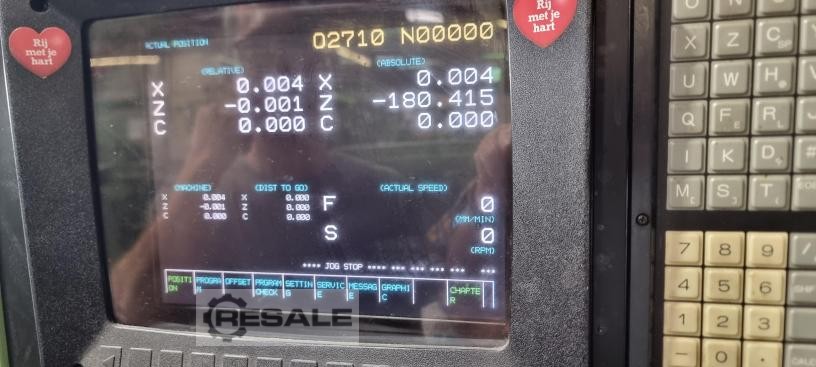

Control GE Fanuc

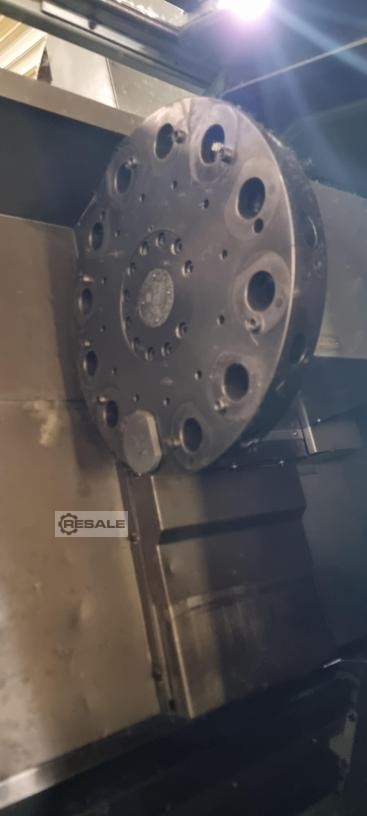

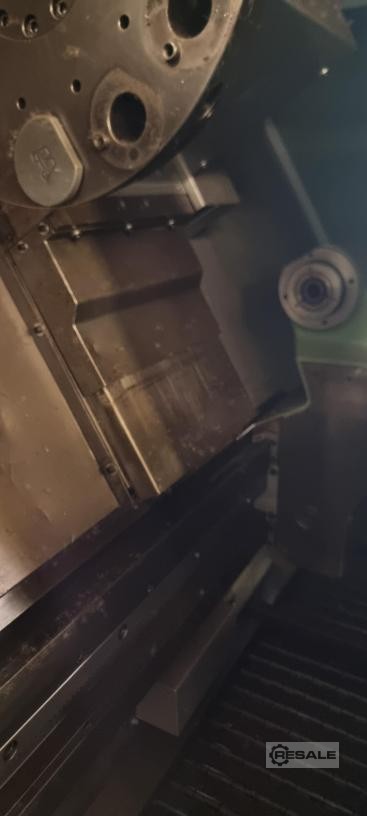

Tool turret: SAUTER turret ø40
• Type 0.5.801.020;
• ID No. 070615;
• Com. No. 14-89.44436/7

without chuck
without tools
Accessories:

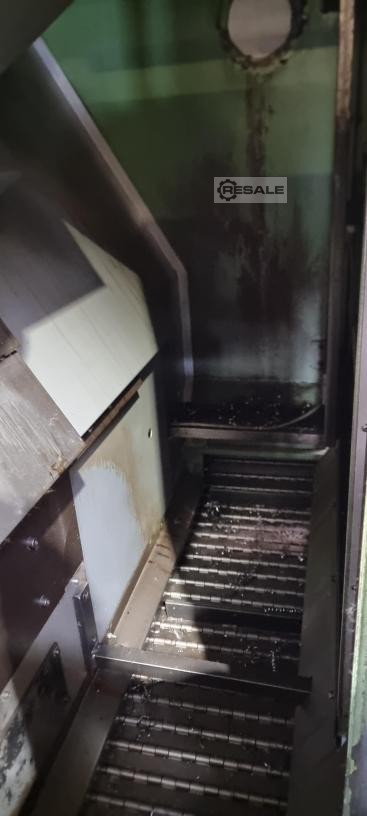

Chip conveyor KS cable tow
YOC 1990
A. No. 3046
-----
201 Monforts RNC 4 with tailstock
Machine No. 137xx
Serial No. 119xx
Steuerung GE Fanuc monforts Control System F
SAUTER Revolver ø 40mm
• Type 0.5.801.020;
• ID No. 070615;
• Com. No. 14-89.44436/7

without chuck. without tools

Accessories:
with tailstock
Chip conveyor KS cable tow
Year 1990; A. No. 3254
-----

Technical data: RNC 4, RNC series
Control: Fanuc 10 T Monforts Control F
Max. turning length 600 mm / 1000mm
Mas. Ø over bed 420 mm
Max. circumferential Ø over radial slides 280 mm
Tool turret stations 12 VDI

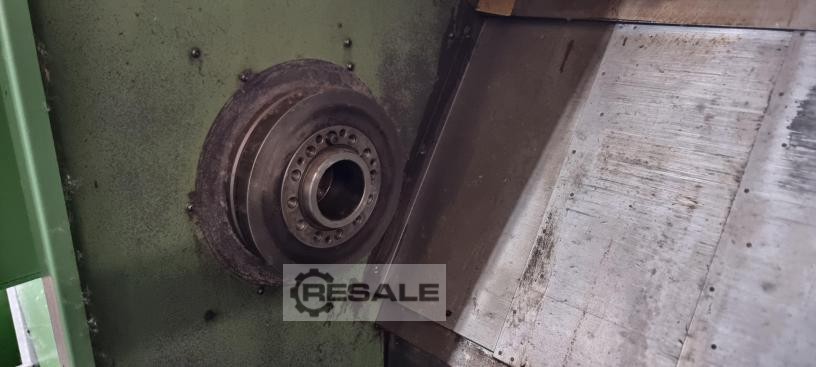

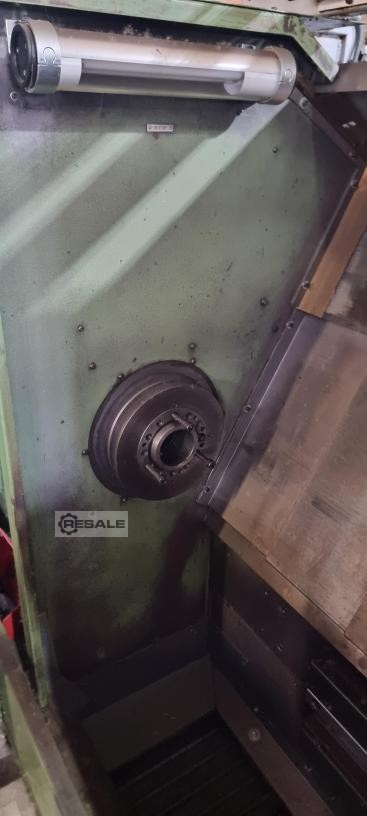

Spindle flange according to DIN 55026 A 6/A 8
Spindle Ø in the front bearing 130 mm
Material passage through the spindle 65 mm
Speed range basic version 5-4000 mіn
Tool turret 12 tool positions:
Total power requirement: 22 kW
Machine weight approx.: 4 t
Space requirement approx.: m

The machines have not produced for a few years,
but were to serve as spare parts carriers.
The batteries for the control system were changed regularly.
Both machines are delivered as a package.


Machine is still energized,
Control boots up without any problems.
seller offer No. resale 202 & 201
