54 AK BEND máquina utilizada para venda

table diameter: 900 mm table load: 1.000 kg Frontal Loading Center (A): 150 mm Side Loading Center (B): 150 mm Rotating speeds: 0,1 - 1,1 UpM T-slots: 6 x M16 Tilt Angle: 90-180-105 ° Tilting Speed: 30 sn min./90° dimensions: 2100x920x1100 mm weight of the machine ca.: 930 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 2100 mm plate thickness: 13 mm pre-bending: 10 mm upper roll diameter: 230 mm lower roll diameter: 210 mm side roll diameter: 190 mm total power requirement: 7,5 kW weight of the machine ca.: 4.750 kg dimensions of the machine ca.: 4150x1400x1300 mm Accessories / equipment: - Conical bending device - induction hardened rolls - digital display for side rollers - Machine made of steel construction - Separate control panel - two speeds - all rollers on ball bearings - Folding and support bearing from the top roller is actuated from the control panel. When the folding bearing is opened, the roller moves automatically upwards. - Conical adjustment of the rollers via control panel - Central rollers are via hydraulic motor and rotary reduction gear driven. (Top and bottom rollers) - Calibration The data for this ad was created with ModulMWS - the software solution of LogoTech oHG ...

sheet width: 3100 mm plate thickness: 16 mm pre-bending: 13 mm upper roll diameter: 330 mm lower roll diameter: 300 mm side roll diameter: 240 mm Control: total power requirement: 11 kW Overall size: 5600x1650x1900 mm weight of the machine ca.: 10.600 kg Accessories / equipment: - Conical bending device - induction hardened rolls - digital display for side rollers - Machine made of steel construction - Separate control panel - two speeds - all rollers on ball bearings - Folding and support bearing from the top roller is actuated from the control panel. When the folding bearing is opened, the roller moves automatically upwards. - Conical adjustment of the rollers via control panel - Central rollers are via hydraulic motor and rotary reduction gear driven. (Top and bottom rollers) - Calibration The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 2100 mm plate thickness: 5 mm pre-bending: 5 mm upper roll diameter: 170 mm min. bending diameter: Ø 255 mm bending speed: 4,5 m/min total power requirement: 4 kW weight of the machine ca.: 2300 kg dimensions of the machine ca.: 3800x1100x1130 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 3100 mm plate thickness: 13,0 mm pre-bending: 10,0 mm diameter of upper rolls: 300 mm side roll diameter: 210 mm diameter of lower rolls: 270 mm total power requirement: 11,0 kW Furnishing: - electro-hydraulic 4-roller bending machine - 2x driven main rollers (upper & lower roller) - with hydraulic conical bending device - Induction hardened rollers - including straightening function for welded pipes - Control unit / display with touch screen function digital position display for the two side rollers - mobile control panel - 2x bending speeds selectable - hydraulic folding bearing - Safety device (safety line with switch unit) - Pressure gauge / pressure indicator for the rollers - CE mark + declaration of conformity - Operation manual The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 3100 mm plate thickness: 6 mm pre-bending: 4 mm upper roll diameter: 210 mm lower roll diameter: 190 mm side roll diameter: 170 mm total power requirement: 7,5 kW Overall size: 5200x1400x1300 mm machine weight ab.: 5.400 kg Accessories / equipment: - Conical bending device - induction hardened rolls - digital display for side rollers - Machine made of steel construction - Separate control panel - two speeds - all rollers on ball bearings - Folding and support bearing from the top roller is actuated from the control panel. When the folding bearing is opened, the roller moves automatically upwards. - Conical adjustment of the rollers via control panel - Central rollers are via hydraulic motor and rotary reduction gear driven. (Top and bottom rollers) - Calibration The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 2100 mm plate thickness: 8 mm pre-bending: 6 mm upper roll diameter: 190 mm lower roll diameter: 170 mm side roll diameter: 150 mm total power requirement: 3 kW weight of the machine ca.: 3.450 kg Machine dimensions approx.: 4040x1380x1255 mm Accessories / equipment: - Conical bending device - induction hardened rolls - digital display for side rollers - Machine made of steel construction - Separate control panel - two speeds - all rollers on ball bearings - Folding and support bearing from the top roller is actuated from the control panel. When the folding bearing is opened, the roller moves automatically upwards. - Conical adjustment of the rollers via control panel - Central rollers are via hydraulic motor and rotary reduction gear driven. (Top and bottom rollers) - Calibration The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 2600 mm plate thickness: 10,0 mm pre-bending: 8,0 mm diameter of upper rolls: 230 mm side roll diameter: 190 mm diameter of lower rolls: 210 mm total power requirement: 7,5 kW weight of the machine ca.: 5.560 kg. range L-W-H: 4.650x1.380x1.300 mm Furnishing: - electro-hydraulic 4-roller bending machine - 2x driven main rollers (upper & lower roller) - with hydraulic conical bending device - Induction hardened rollers - including straightening function for welded pipes - Control unit / display with touch screen function digital position display for the two side rollers - mobile control panel - 2x bending speeds selectable - hydraulic folding bearing - Safety device (safety line with switch unit) - Pressure gauge / pressure indicator for the rollers - CE mark + declaration of conformity - Operation manual The data for this ad was created with ModulMWS - the software solutio ...

sheet width: 3100 mm plate thickness: 25 mm pre-bending: 20 mm upper roll diameter: 390 mm lower roll diameter: 360 mm side roll diameter: 300 mm total power requirement: 18,5 kW weight of the machine ca.: 17.100 kg Machine dimensions approx.: 5800x2100x2000 mm Accessories / equipment: - Conical bending device - induction hardened rolls - digital display for side rollers - Machine made of steel construction - Separate control panel - two speeds - all rollers on ball bearings - Folding and support bearing from the top roller is actuated from the control panel. When the folding bearing is opened, the roller moves automatically upwards. - Conical adjustment of the rollers via control panel - Central rollers are via hydraulic motor and rotary reduction gear driven. (Top and bottom rollers) - Calibration The data for this ad was created with ModulMWS - the software solution of LogoTech oHG. ...

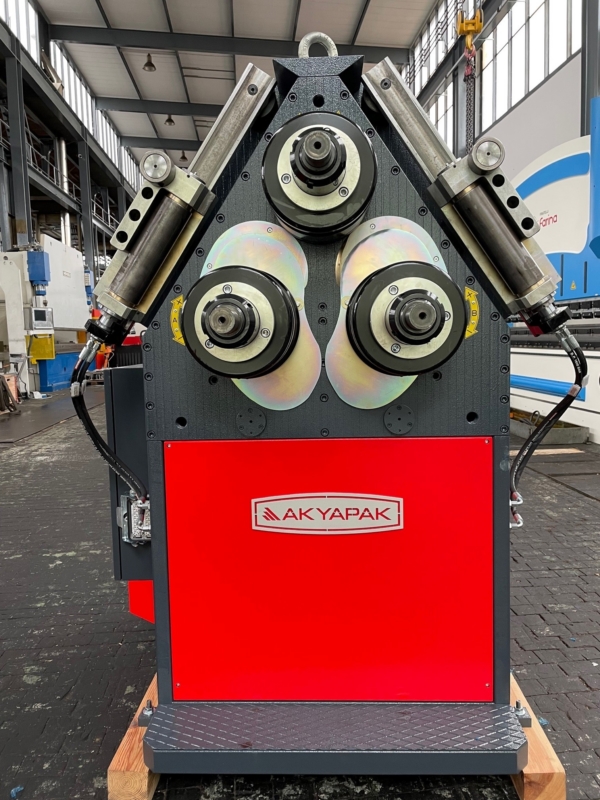

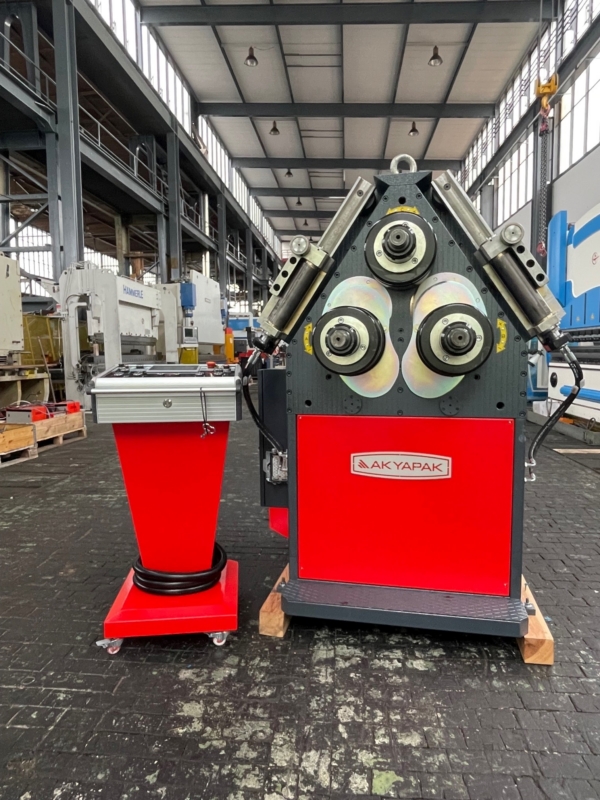

I-beam section - upend: 100 x 20 (d 2100) mm tube diameter max.: 100 x 3 (d 3000) mm L-beam: 80 x 80 x 8 (d 2000) mm square material: 50 x 25 x 2 (d 600) mm bar material - diameter: 60,0 (d 1000) mm I-beam section - flat steel: 120 x 30 (d 600) max. 140 mm tool taper: 80,0 turning speeds: 4,2 U/min weight: 1600 kg dimensions: 1240 x 1375 x 1540 mm Domestic equipments: - Welded steel structure (St-52) - Rollers are driven by 3 separate hydraulic motors - Stepless speed - Special steel gears - Shafts are made of special steel, hardened and ground - Manual lubrication - Guide rollers are hydraulically adjustable - Lower rollers are hydraulically movable up and down - Infinitely adjustable speed of the lower rollers, move after below and above - Digital display for lower rollers - Separate and movable control panel - Horizontal and vertical operation - Production quality certified according  ...

I - beam section - flat steel: 80 x 20 (d 1200) mm I-beam section - upend: 80 x 25 (d 2100) mm L-beam: 50 x 50 x 6 (d 1000) mm bar material - diameter: 40.0 (d 800) mm square material: 60x60x3 ( d 4000 ) mm rectangle: 80x30x3 ( d 6000 ) mm roll surface width: 177x60 (18x5 Nut) mm bar material dia. max.: 70 x 2.0 (d 1600) mm tool adaptor: 60.0 mm turning speeds: 6.4 m/min. oil volume: 80.0 Liter total power requirement: 4.75 kW weight: 1080 kg range L-W-H: 940 x 1260 x 1390 mm Exhibition machine from 2025 with only approx. 2x operating hours Condition as NEW Special price on request Equipment: - electro-hydraulic ring/profile bending machine - hydraulic bottom/side roller adjustment for extra small bending radii - bottom/side roller can be adjusted individually - 3x driven rollers - divided roller segments - digital position display of the bottom/side rollers Display with touchscree ...

weight max. in kg: max. 1000 kg turning speeds: 0,18 - 0,58 U/min height: 976 - 1436 mm inclination: 0 - 115 ° table diameter: 895 mm voltage: 380 V total power requirement: 2,0 kW weight: 685 kg range L-W-H: 2414 x 920 x 1436 mm Exhibition machine from 2024 with only approx. 2x operating hours Condition NEW Special price on request The AK BEND SRH hydraulic welding positioner is ideal for welding, assembly and maintenance work. Positioning is done via a hydraulic rotation and tilting function. Description: - electro-hydraulic turning and tilting function - Fast handling of workpieces - Maximum productivity thanks to optimal working position - Lifting, tilting and turning workpieces in one clamping - Low idle times thanks to turning components - Maximum work performance thanks to comfortable working - Back-friendly working for the user Equipment: - Continuously variable speed adjust ...

: 1050 mm : 5.5 mm : 5.0 mm roll diameter: 130 / 195 mm : 2.2 kW : 1050 kg : 2150 x 900 x 1200 mm - 2 central rollers driven by an electric motor - Swing-out upper beam - Conical bending device - separate control panel - self-braking main motor - CE mark/Declaration of Conformity Special equipment included in the price: - hardened rollers - Motorized rear roller adjustment The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

I-beam section - upend: 100 x 20 (d 2100) mm bar material dia. max.: 100 x 3 (d 3000) mm L-beam: 80x80x8 (d 2000) mm square material: 50 x 25 x 2 (d 600) mm I - beam section - flat steel: 120 x 30 (d 600) max.140b mm bar material - diameter: 60.0 (d 1000) mm tool taper: 80.0 mm oil volume: 100 Liter turning speeds: 4.2 m/min. weight: 1600 kg range L-W-H: 1240 x 1375 x 1540 mm Equipment: - electro-hydraulic ring/profile bending machine - hydraulic bottom/side roller adjustment for extra small bending radii - bottom/side roller can be adjusted individually - 3x driven rollers - divided roller segments - digital position display of the bottom/side rollers Display with touchscreen function - hardened tool holder (42CrMo4) - machine base - 2x hydraulically adjustable side guides - horizontal and vertical work possible - freely movable control panel - pressure gauge / pressure display for th ...

I-beam section - upend: 120 x 25 (d 1600) mm bar material dia. max.: 140 x 3 (d 3000) mm L-beam: 100x100x10 (d 1600) mm square material: 140 x 40 x 3 (d 4000) mm I - beam section - flat steel: 200 x 35 (d 1000) mm bar material - diameter: 70,0 (d 800) mm tool taper: 100,0 mm 0: 315 mm turning speeds: 5,4 m/min. total power requirement: 11,0 kW weight: 2.240 kg range L-W-H: 1500 x 1650 x 2100 mm Furnishing: - electro-hydraulic ring/profile bending machine - Hydraulic lower/side roller adjustment for extra small bending radii - Lower/side roller can be delivered individually - 3x powered rollers - divided roller segments - Digital position display of the bottom/side rollers Display with TouchScree function - hardened tool holder (42CrMo4) - Machine base - 2x hydraulically adjustable side guides - Horizontal and vertical work possible - freely movable control panel - Pressure gauge / pres ...

bending speed: 2.1 m/min Bending capacity - square: 30x30 mm bending capacity - flat iron: 80x15 mm Bending capacity - flat iron on edge: 50x10 mm tube diameter: 1 oder 60x2 mm Shaft diameter - upper: 35 mm Shaft diameter - lower: 30 mm total power requirement: 0,75 kw range L-W-H: 650 x 500 x 1300 mm weight: 170 kg Standard features: - hardened special steel shafts - a set of hardened rollers - Bottom rollers are driven - lateral straightening rollers - Foot pedal - horizontal and vertical working The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 2050 mm plate thickness: 4,5 mm pre-bending: 4,0 mm min. dia.: 210 mm roll diameter: 140 mm weight of the machine ca.: 1530 kg dimensions of the machine ca.: 3220x1200x900 mm Standard features: - Central rollers via electric motor, planetary reduction gear and Gear drive driven - Swivel top roller - Main engine with brake device - Conical bending device - Mobile controller and foot pedal - CE mark / Declaration of Conformity Additional equipment: - motorized rear roller adjustment - Digital display for back roller - induction hardened rolls The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 1600 mm plate thickness: 15,0 mm ST pre-bending: 13,0 mm ST diameter of upper rolls: 230 mm side roll diameter: 210 mm diameter of lower rolls: 190 mm total power requirement: 7,5 kW weight of the machine ca.: 4225 kg. dimensions of the machine ca.: 4000 x 1300 x 1440 mm Furnishing: - electro-hydraulic 4-roller bending machine - 2x driven main rollers (upper & lower roller) - with hydraulic conical bending device - Induction hardened rollers - including straightening function for welded pipes - Control unit / display with touch screen function digital position display for the two side rollers - mobile control panel - 2x bending speeds selectable - hydraulic folding bearing - Safety device (safety line with switch unit) - Pressure gauge / pressure indicator for the rollers - CE mark + declaration of conformity - Operation manual The data for this ad was created with ModulM ...

plate thickness: 2.5 mm throat: 260 mm distance between roll centers: 92.0 mm weight: 295 kg range L-W-H: 1200 x 700 x 1200 mm Exhibition machine from 2021 with only approx. 2x operating hours Condition as NEW Special price on request Equipment: - 3x pairs of beading and flanging rollers included in delivery - robust beading machine with motor-driven rollers - Lower shaft with adjustable stop - for the economical production of a wide variety of bead types - high accuracy thanks to precision-mounted shafts - Clearly arranged switching elements - Base frame equipped with storage compartment - powerful drive motor, even under continuous load - mobile foot switch for clockwise and counterclockwise rotation The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

plate thickness: 4.0 mm throat: 260 mm distance between roll centers: 132 mm stroke: 55.0 OW mm tool adaptor: Ø 35 mm, 12 mm Nut mm total power requirement: 3.0 kW weight of the machine ca.: 450 kg. range L-W-H: 1600 x 900 x 1200 mm Exhibition machine from 2022 with only approx. 2x operating hours Condition as NEW Special price on request Equipment: - 3x pairs of beading and flanging rollers included in delivery - robust beading machine with motor-driven rollers - hydraulic adjustment of the upper roller, with pressure gauge - Lower shaft with adjustable stop - for the economical production of a wide variety of bead types - high accuracy thanks to precision-mounted shafts - Clearly arranged switching elements - Base frame equipped with storage compartment - powerful drive motor, even under continuous load - mobile foot switch for clockwise and counterclockwise rotation The data fo ...

sheet width: 3100 mm plate thickness: 8,0 mm ST pre-bending: 6,0 mm ST diameter of upper rolls: 230 mm side roll diameter: 210 mm diameter of lower rolls: 190 mm total power requirement: 7,5 kW weight of the machine ca.: 6.020 kg. dimensions of the machine ca.: 5142 x 1390 x 1300 mm Furnishing: - electro-hydraulic 4-roller bending machine - 2x driven main rollers (upper & lower roller) - with hydraulic conical bending device - Induction hardened rollers - including straightening function for welded pipes - Control unit / display with touch screen function digital position display for the two side rollers - mobile control panel - 2x bending speeds selectable - hydraulic folding bearing - Safety device (safety line with switch unit) - Pressure gauge / pressure indicator for the rollers - CE mark + declaration of conformity - Operation manual The data for this ad was created with ModulMW ...

sheet width: 1550 mm plate thickness: 4,5 mm pre-bending: 4,0 mm roll length: 1550 mm min. dia.: 190 mm roll diam. toproll: 130 mm weight: 1265 kg dimensions: 2670x1110x1050 mm Domestic equipments: - Central rollers via electric motor, planetary reduction gear and Gear drive driven - Swivel top roller - Main engine with brake device - Conical bending device - Mobile controller and foot pedal - CE mark / Declaration of Conformity Additional equipment: - induction hardened rolls - motorized rear roller adjustment - Digital display for back roller The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

plate thickness: 1,25 mm roll-body distance: 250 mm throat: 260 mm distance between roll centers: 62 mm tool adaptor: 26 mm speed: 6,3 m/min total power requirement: 0,7 kW weight: 170 kg range L-W-H: 1020x600x1500 mm Domestic equipments: - motor driven beading machine - 5 sets of bead rollers - Footswitch - Operating instructions in German - CE mark / Declaration of Conformity The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

plate thickness: 2,5 mm roll-body distance: 260 mm throat: 500 mm distance between roll centers: 92 mm tool adaptor: 35 mm speed: 3,5 m/min total power requirement: 1,5 kW weight of the machine ca.: 295 kg dimensions of the machine ca.: 1200x700x1200 mm Domestic equipments: - motor driven beading machine - 3 sets of bead rollers - Footswitch - Operating instructions in German - CE mark / Declaration of Conformity The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
