Centros de torneado CNC AFM DEFUM TAE 35N HANKA

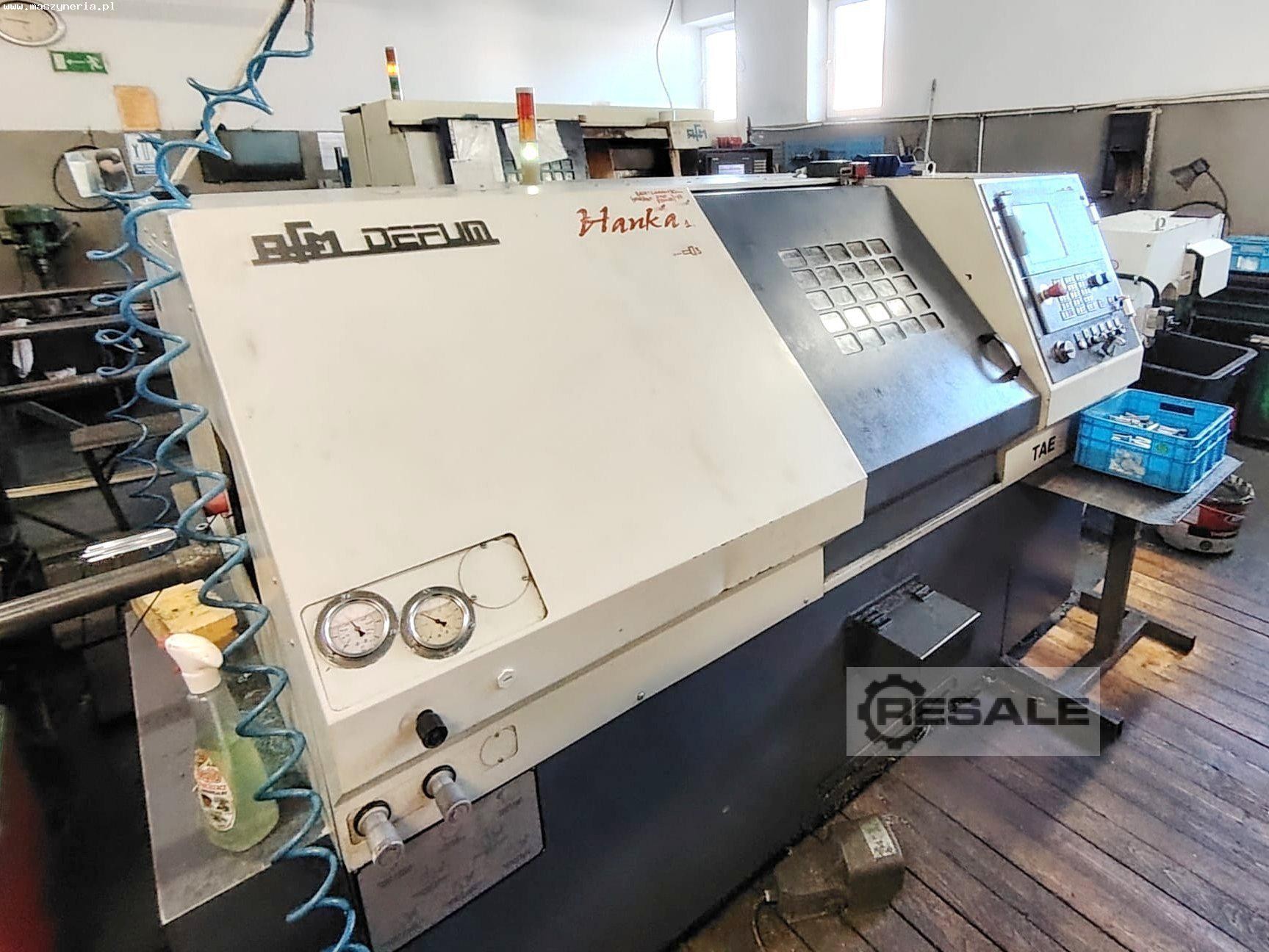

AFM DEFUM TAE 35N HANKA CNC turning center was built by AFM DEFUM S.A. in Poland in 2017. The machine is used for precision machining of workpieces with even the most complex geometries. In addition to standard turning, the technical solutions used also allow, for example, the machining of drunken threads or the staggering of non-circular surfaces.

Workpieces with a maximum diameter of 530 mm and length of 490 mm are fitted bettwen the centres or in the chuck itself. The machining process is performed by means of cutting tools, taken from a 12-position turret. The spindle, thanks to its unique design, significantly increases the geometric stability of the TAE-35N HANKA machine. It is made up of two parts, which enable mutual compensation of thermal deformations, created as a result of the heating of the machine during cutting.

The AFM DEFUM TAE 35N CNC lathe is offered with equipment consisting of, among others, an advanced SIEMENS CNC controller with ShopTurn overlay and a chip conveyor. The total weight of the machine is approximately 3500 kg.

Technical specifications of the AFM DEFUM TAE 35N HANKA lathe
- swing over bed: 530 mm
- swing over cross slide: 300 mm
- maximum turning length (chuck fi 200 mm): 490 mm
- feed in the X/Z axis: 210/540 mm
- rapid traverse in the X,Z axis: 20 m/min
- spindle rotational speed: 5-4000 rpm
- spindle bore: 75 mm
- spindle end: 140H5 mm
- spindle drive power (continuous/momentary M6251405 power): 11/16 kW
- M6251405 maximum spindle torque: 273 Nm
- maximum boring bar diameter: 32 mm
- knife shank cross-section: 20×20 mm
- tool holder: VDI 30
- tool holder diameter: 30 mm
- tool holder drive torque: 9 Nm
- minimum programmable slide feed value: 0.001 mm
- coolant tank capacity: 160 l
- overall dimensions (L x W x H): 2890 x 1540 x 1765 mm
- weight of the AFM DEFUM TAE 35N HANKA: approx. 3500 kg

Equipment of the AFM DEFUM metal lathe

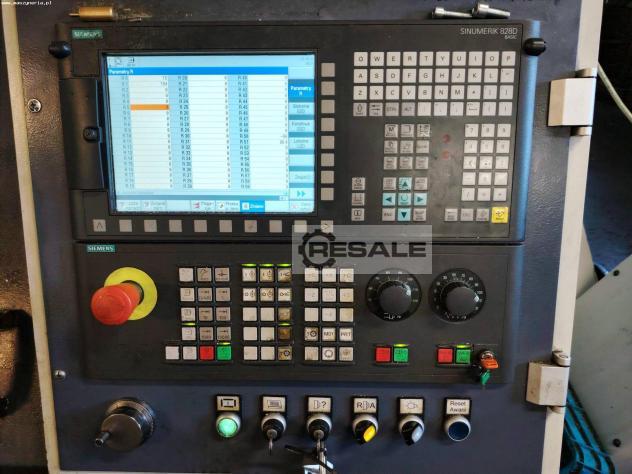

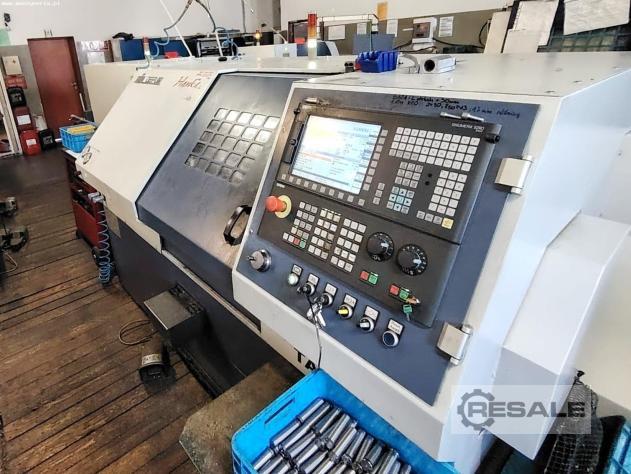

- SIEMENS SINUMERIK 828D CNC controller with ShopTurn overlay
- 12-position turret
- chuck fi 200 mm

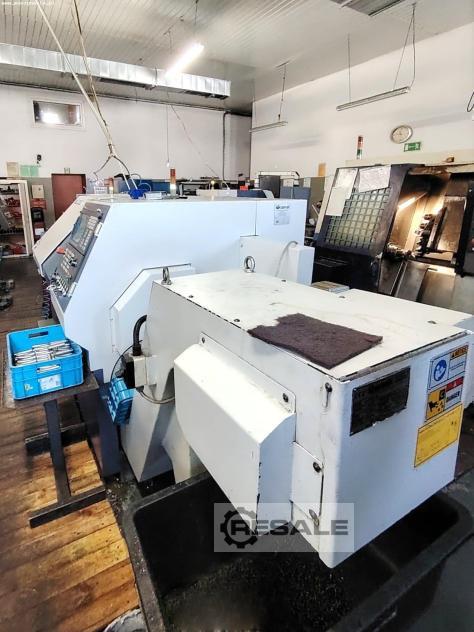

- chip conveyor
- workspace illumination
- foot switch control
seller offer No. resale 168737887
