Tornos CNC BOLEY BE42

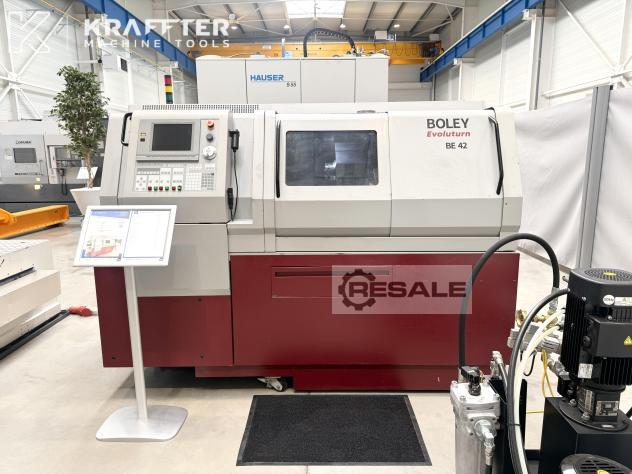

Boley BE-42 CNC Lathe

TECHNICAL FEATURES:

Year: 2002

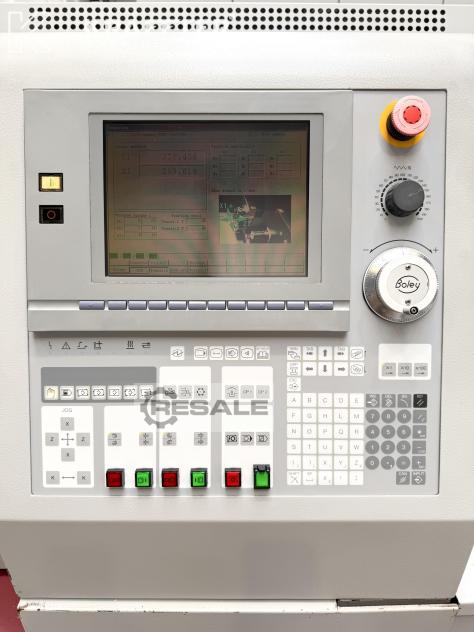

NC Type: MITSUBISHI Meldas 635LCC
Maximum diameter Machinable: 140 [mm]
Z1 axis stroke: 200 [mm]
X1 axis stroke: 170 [mm]
Z2 axis stroke: 395 [mm]
X2 axle stroke: 110 [mm]
Z3 axle stroke: 170 [mm]
X3 axis stroke: 110 [mm]
Brooch: Size 48 DIN 6343
Spindle Bore: 42 [mm]
Minimum speed. Spindle: 80 [rpm]
Maximum speed Spindle: 8000 [rpm]
C-axis indexing accuracy: 0.001 [°]
Spindle power: 7.5 [kW]

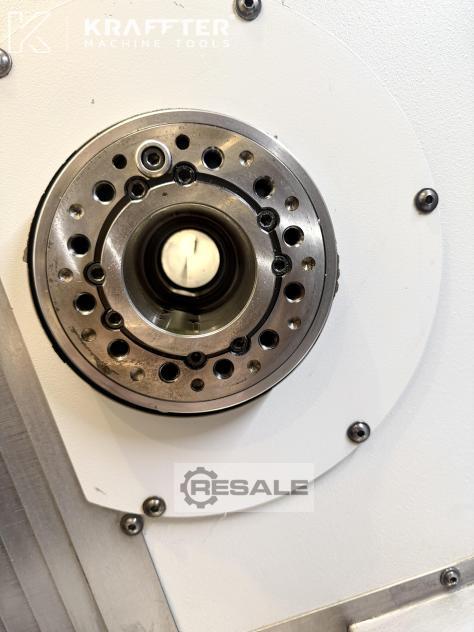

Counter-spindle bore diameter: 42 [mm]
Minimum speed. Spindle: 60 [RPM]
Maximum speed Spindle: 6000 [rpm]
C-axis sub-spindle indexing accuracy: 0.001 [°]
Spindle power: 2.2 [kW]
Toolholder type: VDI 20

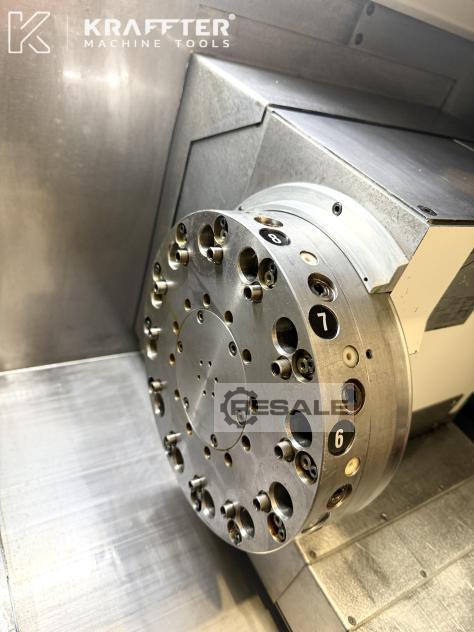

Number of stations - Turret 1 : 12
Number of motorized stations - Turret 1 : 12
Maximum speed Rotating Tools - Turret 1: 4500 [RPM]
Number of stations - Turret 2 : 12
Number of motorized stations - Turret 2: 12
Maximum speed Rotating Tools - Turret 2: 4500 [RPM]
Irrigation tray capacity: 210 [l]
Installed power: 14 [kVA]
Rated Current: 20 [A]
Supply voltage: 400 [V]
RS232 Port: Yes
Dimensions: 2350 x 1590 x 1730 [mm]
Weight: 3300 [Kg]

EQUIPMENT INCLUDED:

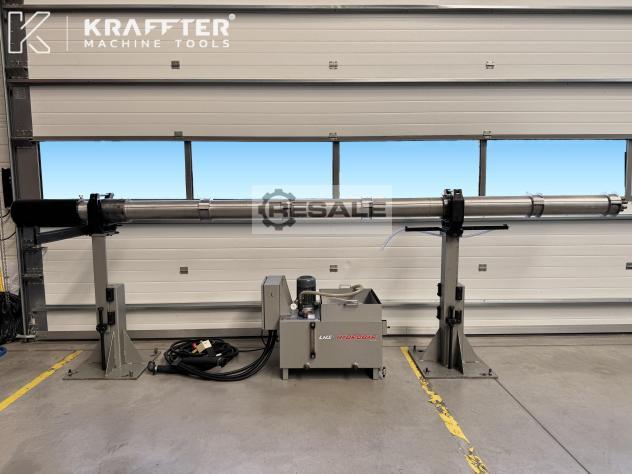

x1 LNS HYDROBAR bar pusher
x1 watering tray
x6 VDI 20 radial rotating tool holders
x5 VDI 20 axial rotating tool holders
x21 VDI 20 Fixed Tool Holders
x1 VDI 20 Parts Catcher Basket
x17 VDI 20 shutter plugs
x28 Clamps
x4 Collet Chucks
x1 3-color status lamp
x1 Manual "Electrical Plans"
x1 Manual "Maintenance Operation"
x1 Operator's Manual

Machine visible under tension for testing at our premises, by appointment.

Price excl. VAT on request, including truck loading.

Possibility of shipping throughout France as well as internationally.

More photos and details on request.

Technical description for information purposes only, without obligation on our part.
