Centros de mecanizado CNC DECKEL-MAHO DMU 50

x-travel: 500 mm
y-travel: 450 mm
z-travel: 400 mm

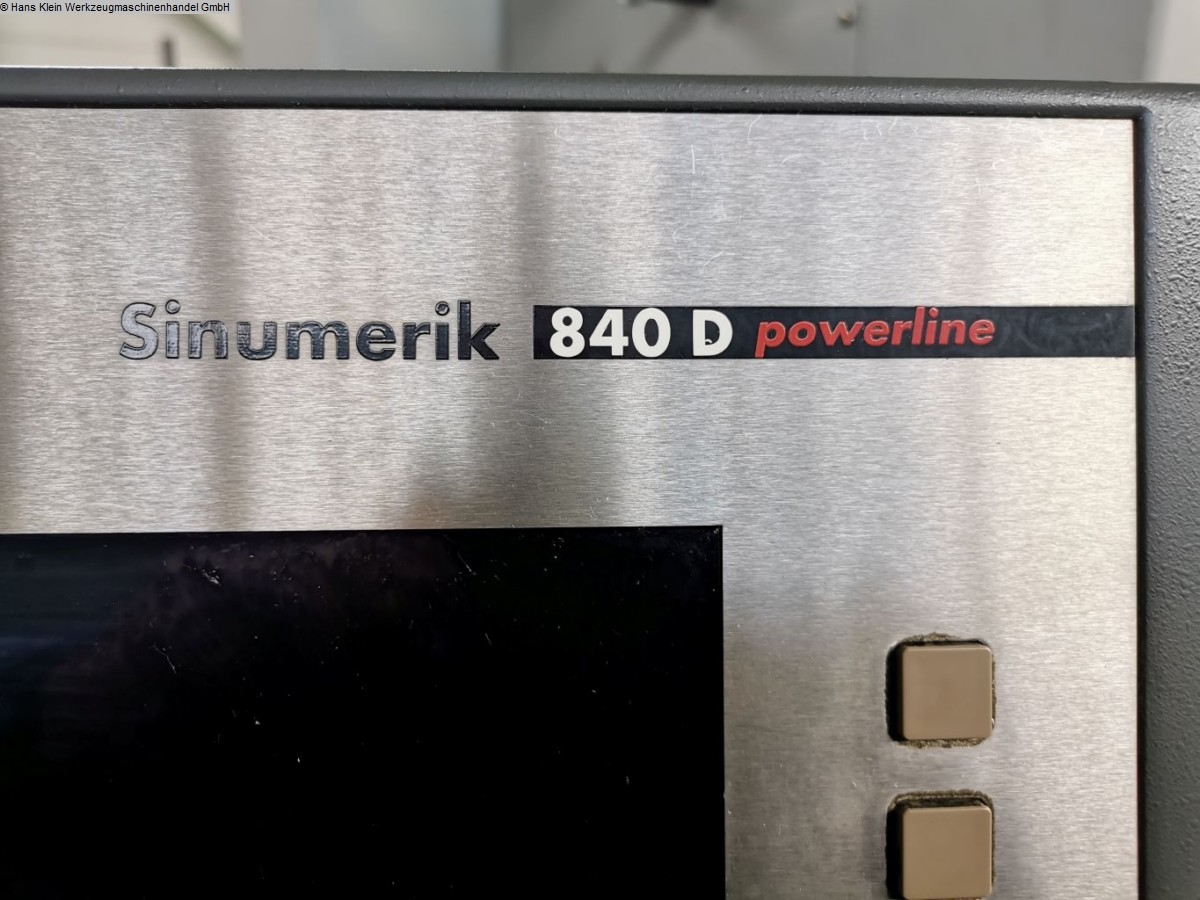

Control: SIEMENS 840 D
control: Powerline Shop Mill
table surface area: ø 630 x 500 mm
table swivelling +/-: 110/5 Grad
spindle taper: SK 40
spindle turning speed - stepless: 20 - 10.000 U/min
spindle drive: 13 kW
max. torque on the spindle: 82 Nm
feed speeds: max. 20.000 mm/min
rapid traverse: 24 m/min
no. of tools in magazin: 30
wotkpiece diameter with 2 vacant positions: max. 130 mm
tool length - max.: 290 mm
weight of tools max.: 6 kg
total power requirement: 17 kVA
weight of the machine ca.: 4,05 t
dimensions of machine L x W x H: 2,21 x 2,12 x 2,15 m
= 5-axis machining center (5 axis simultaneously)

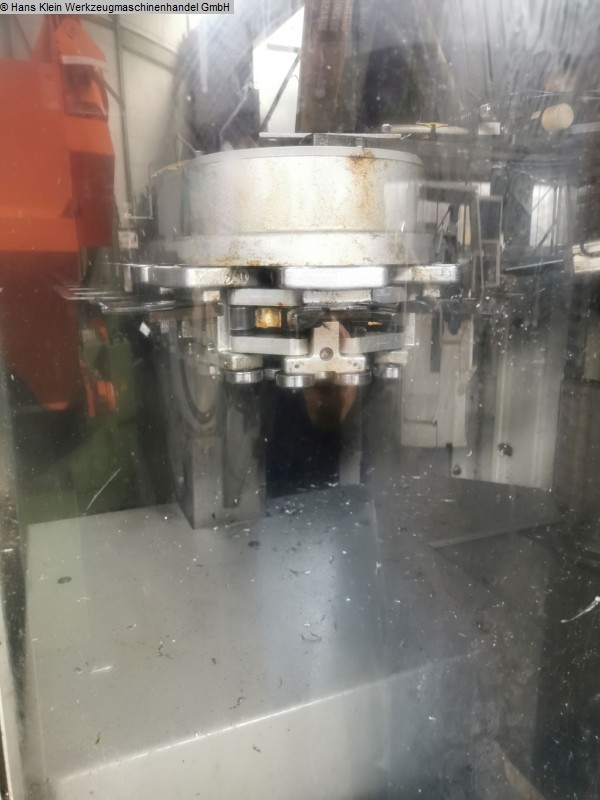

with 2-axis NC swivelling rotary table

- only 9.609 spindle hours -

- the machine was used for sample and prototype production,
3D machine model for kinematic simulation in a CAM programming system
(available in IGES and STEP formats)

Accessories: electron. handwheel, HEIDENHAIN TS 641 touch probe,
coolant
