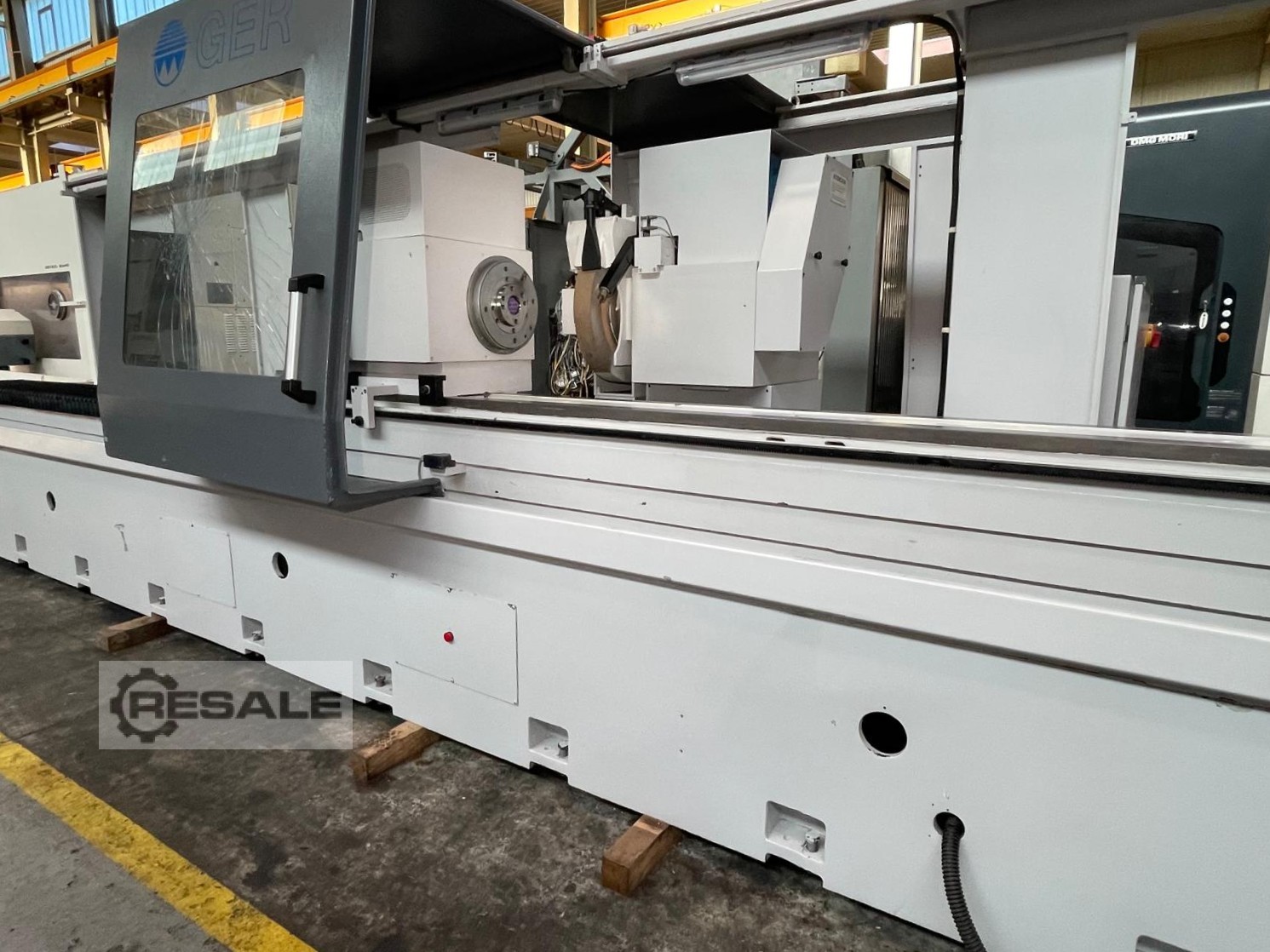

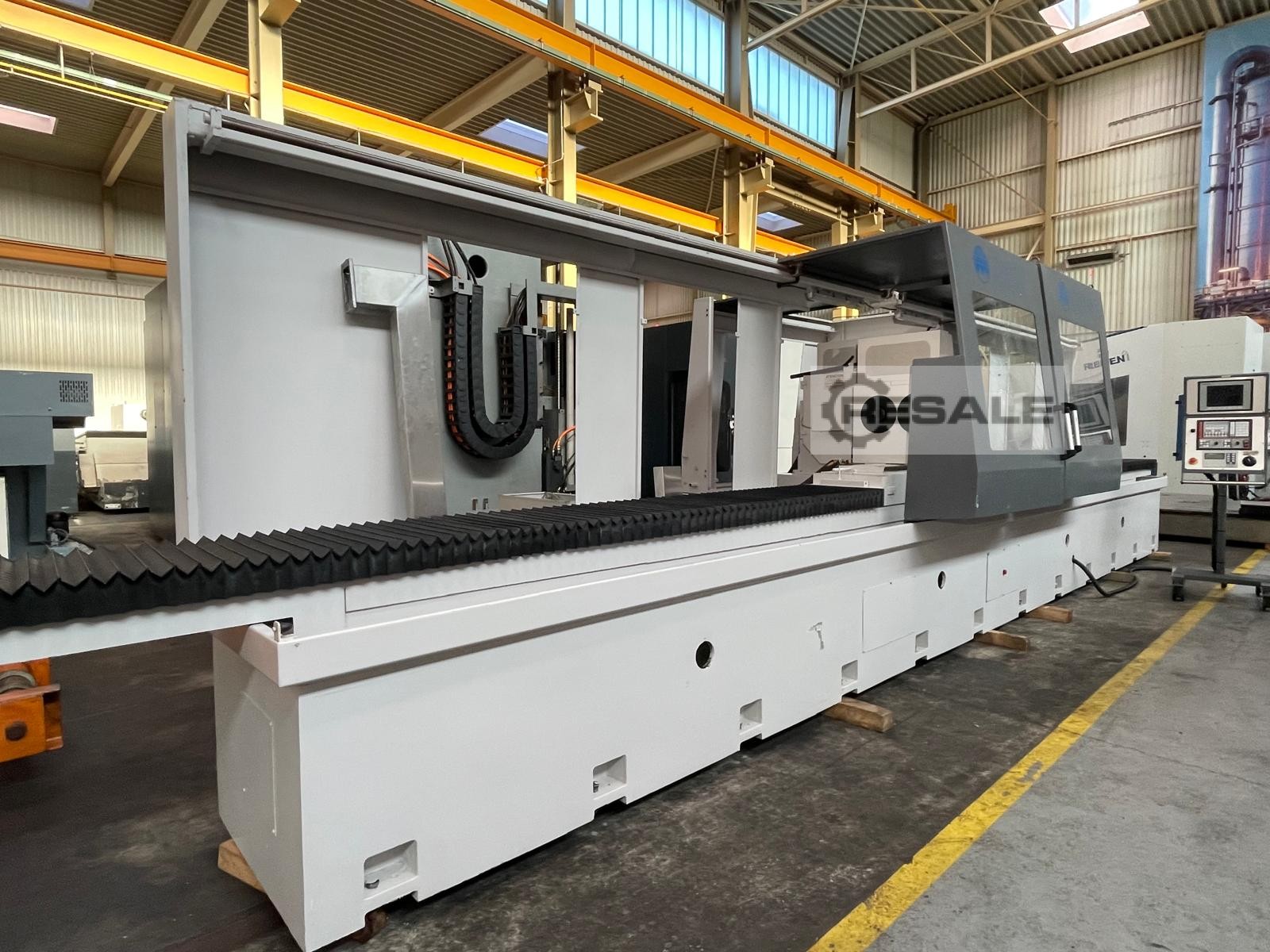

Restificadora cilindrica universal DMG MORI CP-3000 CNC

Year of manufacture: 2013

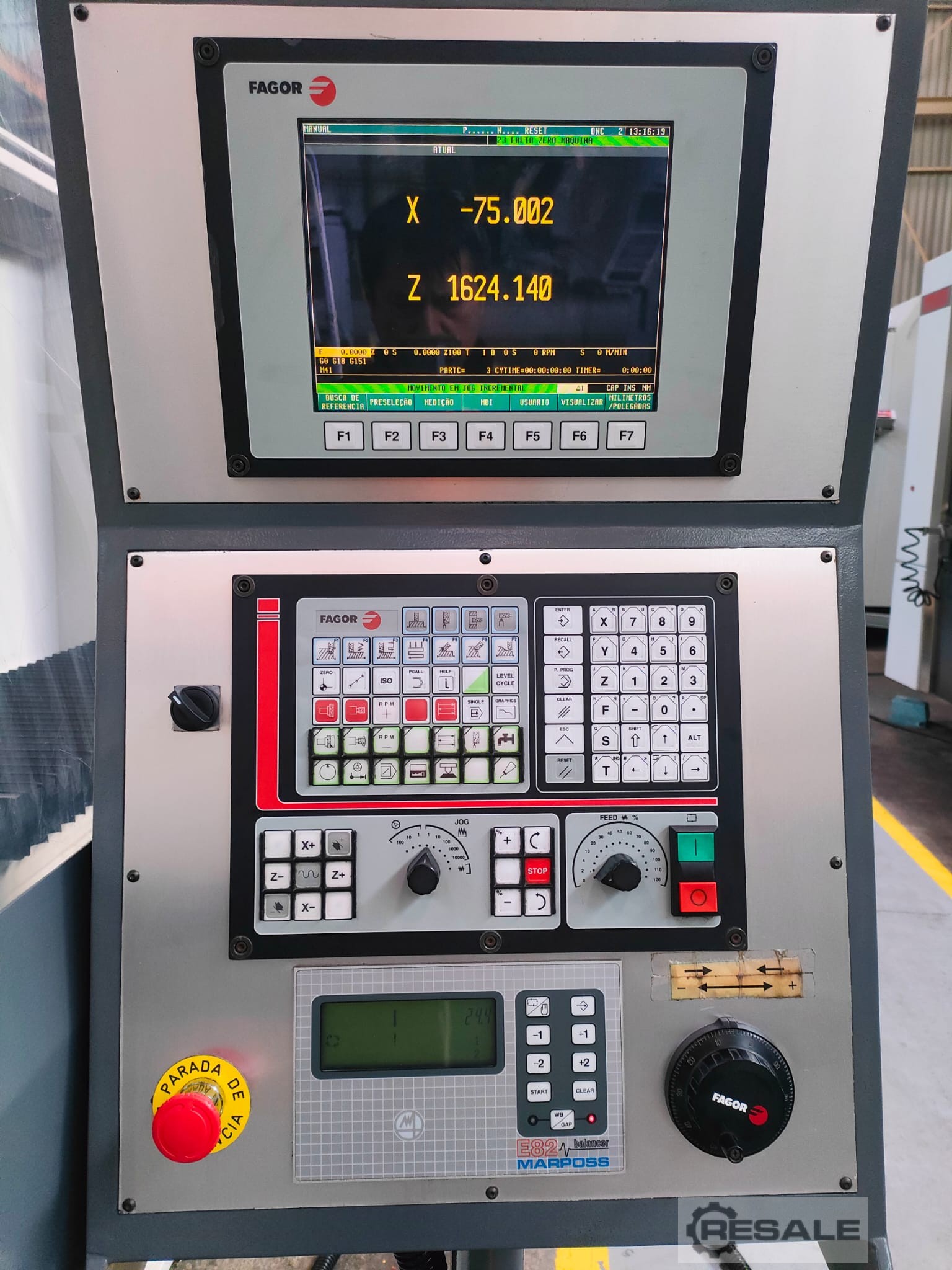

CNC Controller: FAGOR 8055TCO
Capacity
Distance between centers (mm): 3000
Height between centers (mm): 300
Height between centers from the ground (mm): 1200
Grinding diameter (mm): ø 595
Max. workpiece weight between centers (kg): 2000
Max. Workpiece weight with tool (kg): 200

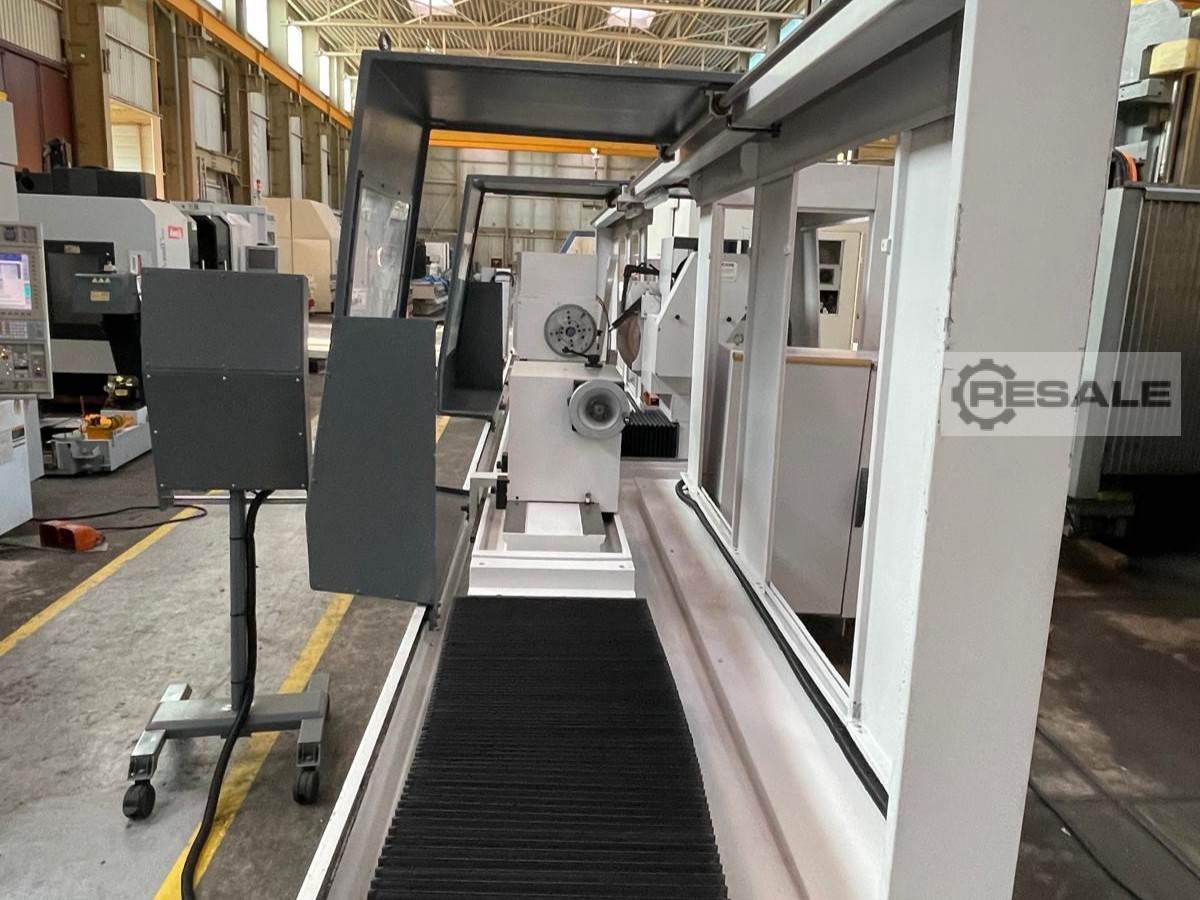

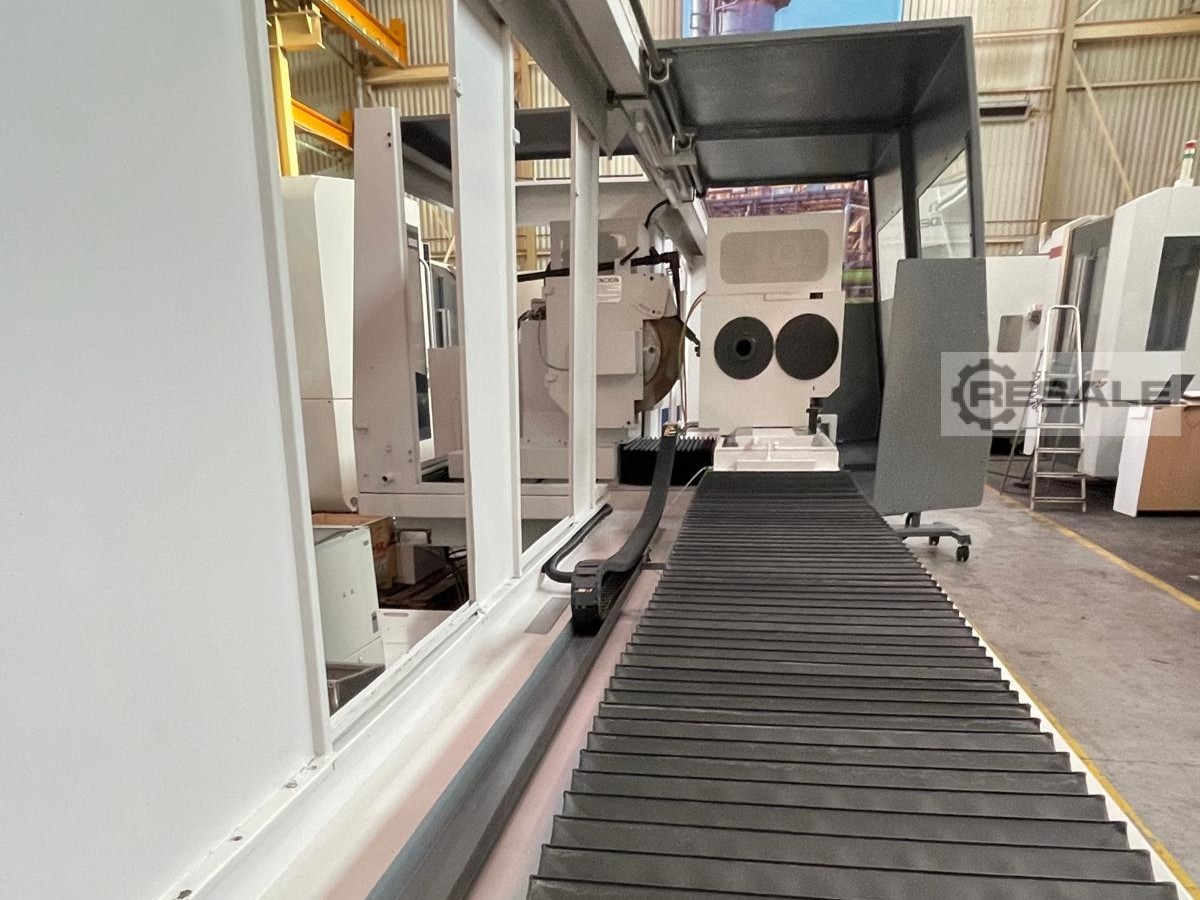

Table (Z-axis)
Maximum travel (mm): 3350
Rotating table plate ±5°
Feed rate (mm/min): 0.01 ÷ 6000
Minimum programmable increment (mm): 0.001°
Grinding carriage (X-axis)
Maximum travel (mm): 500
Feed rate (mm/min): 0.01 ÷ 6000
Minimum programmable increment (mm): 0.001°
Resolution (mm): 0.0005°

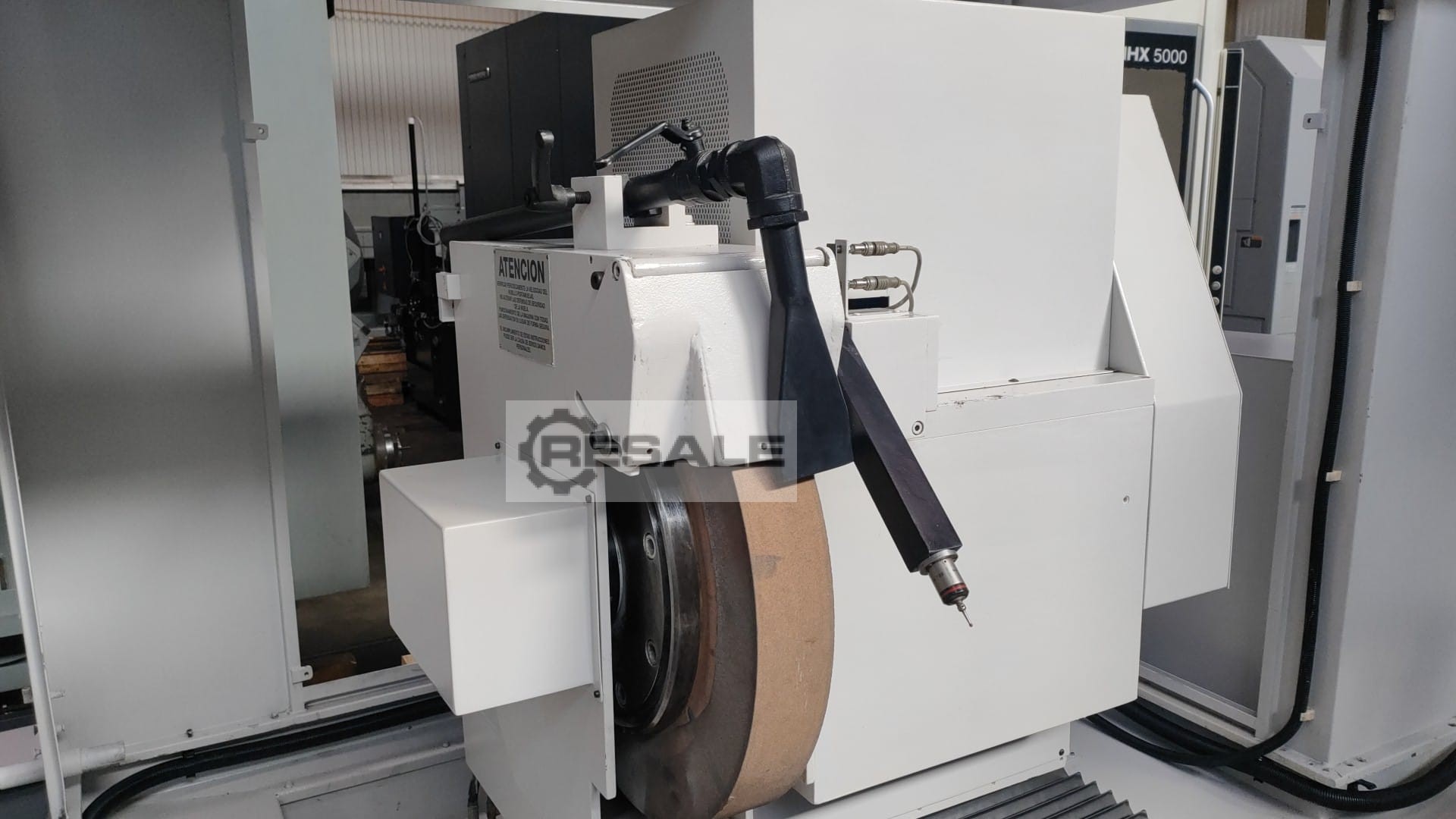

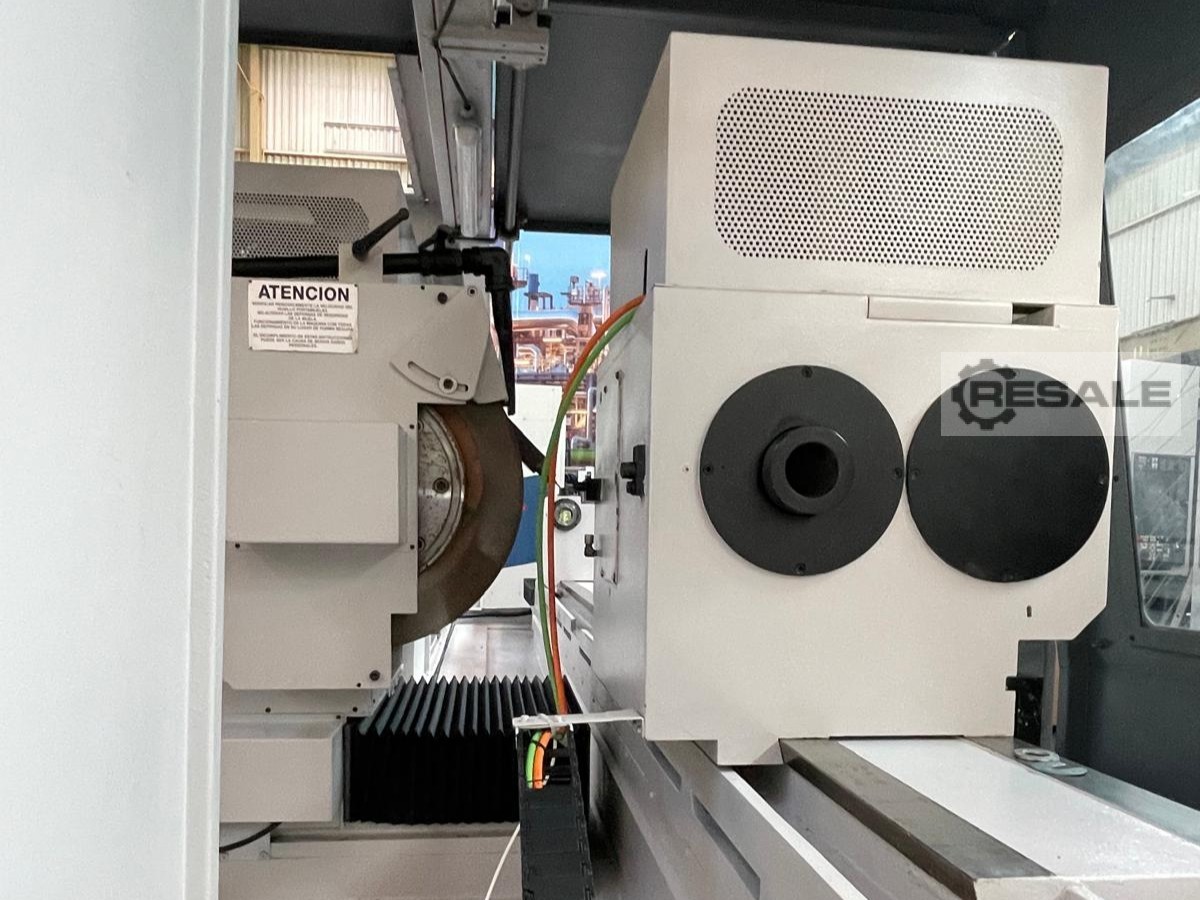

Grinding head
Left grinding wheel diameter (mm): 600
Peripheral speed (m/s): 45
Workpiece head
Spindle speed (rpm): 9 ÷ 250
CM taper: 5
Spindle type: 8"
Tailstock
Type: Manual handwheel
Spindle taper (cm): 6
Maximum spindle travel (mm): 60
Quill diameter (mm): 85
Maximum taper correction (mm): ±0.1
Equipment
Tailstock diamond dresser with diamond holder
Diamond
Grinding wheel guards according to ISO, OSHA, and UNE standards

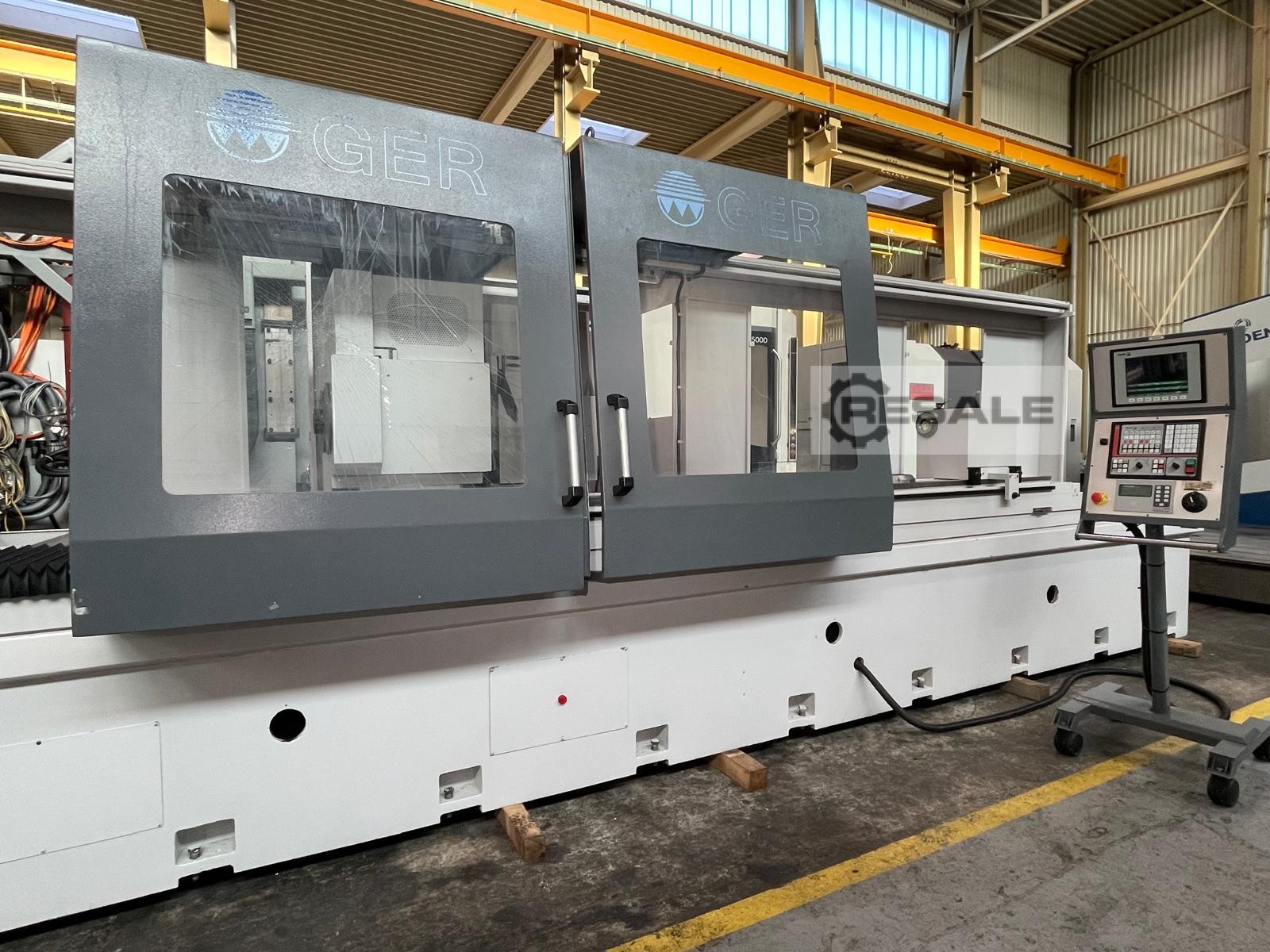

Two-door enclosure
Paper feeder and magnetic separator
Grinding wheel balancing shaft
MARPOSS electrodynamic balancer
Grinding wheel safety sensor
Touch-type axial positioner with T25 probe
Grinding wheel chuck
Driving dog sets
Basic machine dimensions / weight
Length (mm): 9400
Width (mm): 3600
Height (mm): 2000
Weight (kg): 15000
Air or water through spindle center
DXF import function
Spindle 2, workpiece unloader
Working time hours
Under power: 31881
Spindle 1: 8860
Spindle 2: 9774
Rated power kVA: 61
Basic machine dimensions / weight
Length mm: 4200
Width mm: 2600
Height mm: 2586
Weight kg: 12000
seller offer No. resale OTH0182
