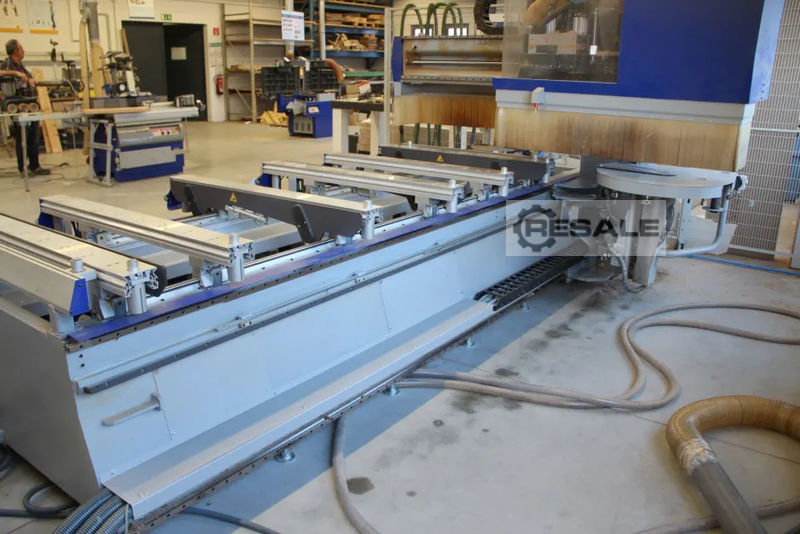

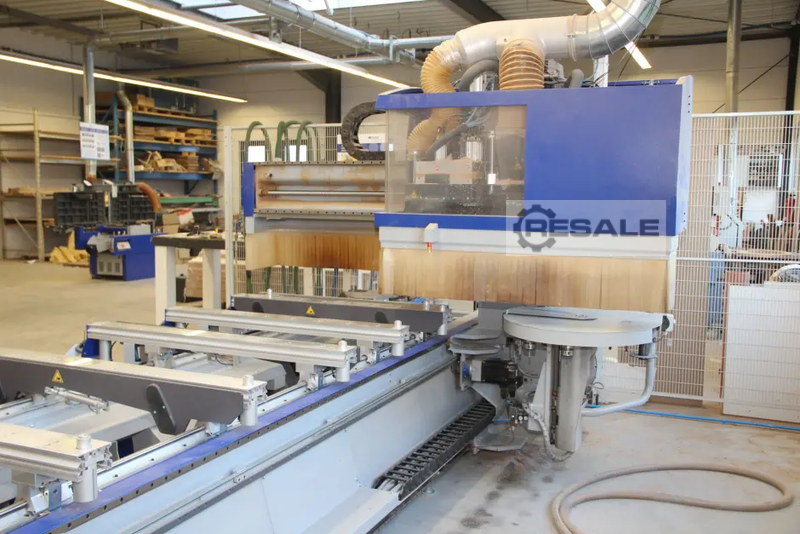

Centros de mecanizado CNC FORMAT 4 PROFIT H 22
máquinas para el procesado de madera / mandrinadoras, centros de mecanizado / Centros de mecanizado CNC
Fabricante: FORMAT 4
Modelo:PROFIT H 22
Tipo de máquina: Centros de mecanizado CNC
Número de artículo: 169369520
Cantidad: 1
Fecha: 21.04.2026
Año de fabricación: 2009
Ubicación:
Alemania
58285 Gevelsberg
Precio: 15,000 EUR
Excellent condition - Fully operational - Loading / Transport
possible!
- total connected load 20 kW
- travel X 3550 mm, Y 1680 mm, Z 275 mm
- travel speed X 80 m/min, Y 80 m/min, Z 20 m/min
- 2 pick-up places for aggregates

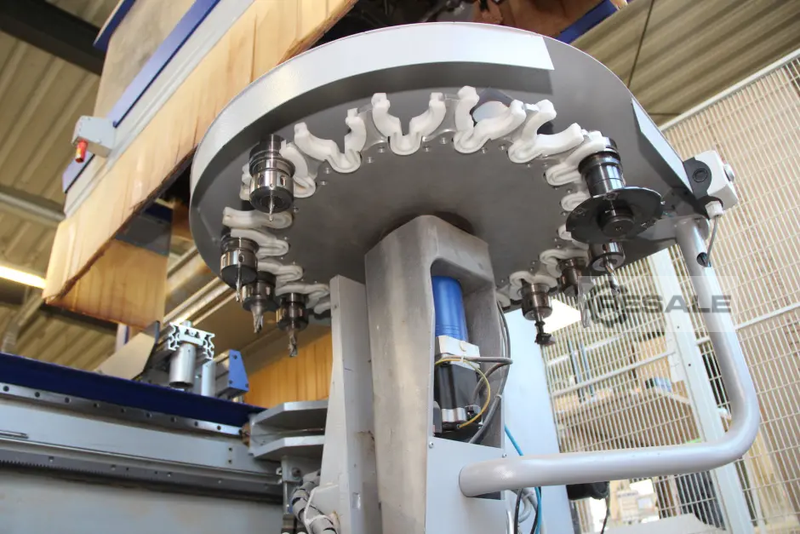

- 18-fold plate changer

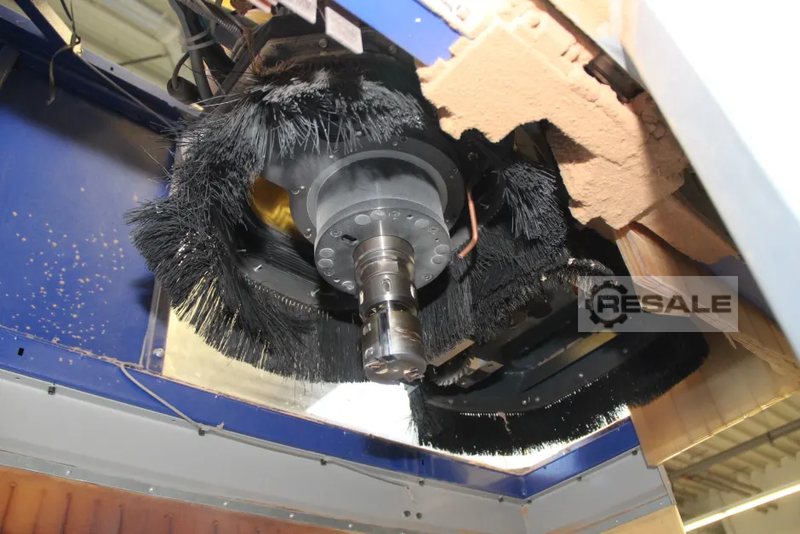

- main milling spindle with C-axis HSK 63 F tool holder
- Milling spindle power 9 kW
- additional heavy boring gear horizontal in Y-axis
- Swivelling Grooving Saw

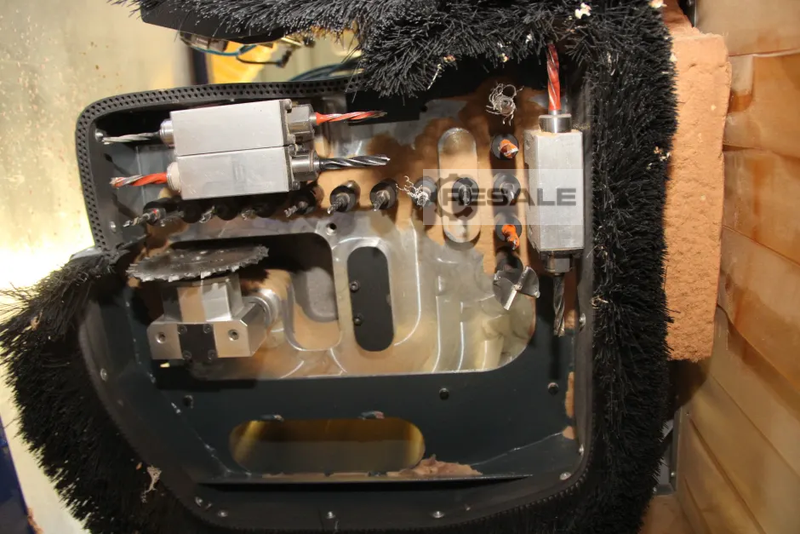

- 5 vertical drilling spindles in Y-axis
- 10 vertical drilling spindles in X-axis
- 2 + 2 horizontal drilling spindles in X-axis
- 1 + 1 horizontal drilling spindles in Y-axis
- safety fence left/right
- 6 consoles depth approx. 1300 mm
- various vacuum clamps
- working area X 3060 mm
- working area Y 1210 mm front fence row
- 1working area 260 mm rear fence row, set 100 mm
- laser positioning for vacuum clamp

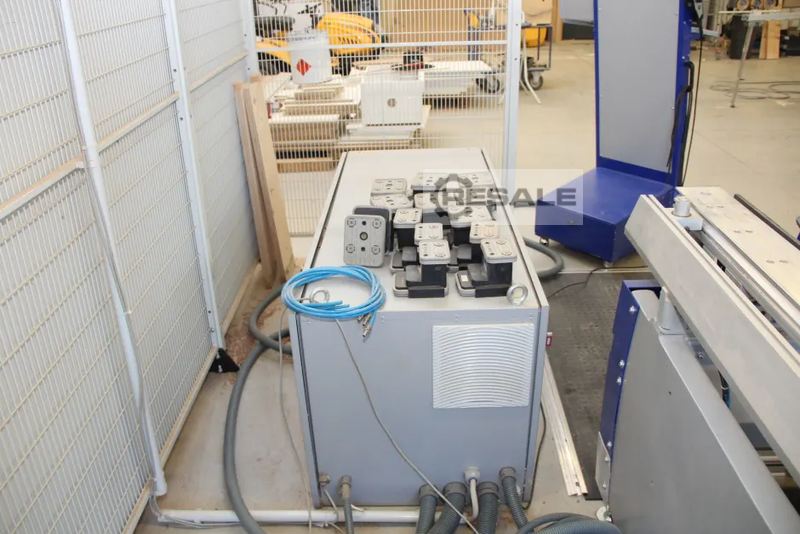

- vacuum pump BECKER PICCHIO 2200
- YOM 2009
- max. vacuum performance 100 m³/h
- Motor 1.8/2.5 kW
- total connected load 20 kW
- travel X 3550 mm, Y 1680 mm, Z 275 mm
- travel speed X 80 m/min, Y 80 m/min, Z 20 m/min
- 2 pick-up places for aggregates
- 18-fold plate changer
- main milling spindle with C-axis HSK 63 F tool holder
- Milling spindle power 9 kW
- additional heavy boring gear horizontal in Y-axis
- Swivelling Grooving Saw
- 5 vertical drilling spindles in Y-axis
- 10 vertical drilling spindles in X-axis
- 2 + 2 horizontal drilling spindles in X-axis
- 1 + 1 horizontal drilling spindles in Y-axis
- safety fence left/right
- 6 consoles depth approx. 1300 mm
- various vacuum clamps
- working area X 3060 mm
- working area Y 1210 mm front fence row
- 1working area 260 mm rear fence row, set 100 mm
- laser positioning for vacuum clamp
- vacuum pump BECKER PICCHIO 2200
- YOM 2009
- max. vacuum performance 100 m³/h
- Motor 1.8/2.5 kW
Comparte esta máquina en Facebook:
Pregunta
Precio: sold FORMAT 4 PROFIT H 22 + similares FORMAT 4-Modelo
| 2009 | FORMAT 4 | H 22 profit | 39915 EUR | [Oct 2017] |
| 2005 | FORMAT 4 | Profit 2 | 38000 EUR | [May 2013] |
| 2013 | FORMAT 4 | Profit H22 | 75000 EUR | [Feb 2015] |
