Tornos CNC GILDEMEISTER NEF 400 V3 Gen 5

turning diameter: 350 mm
turning length: 650 mm
control: 840 D SL ShopTurn Siemens
greates pass round over bed: 385 mm
Swing dia. over traverse guideway: 350 mm
Main spindle::
turning speed range - main spindle: 0 - 4.500 min/-1
power capacity - main spindel: 11,5 / 8 kW
max. Torque: 340 Nm
spindle diameter in front bearing: 130 mm
spindle bore: 87 mm
bar material dia.: max. 65 mm
max. chucking diameter: 250 mm
spindle head: 170 h5
C-Axis:

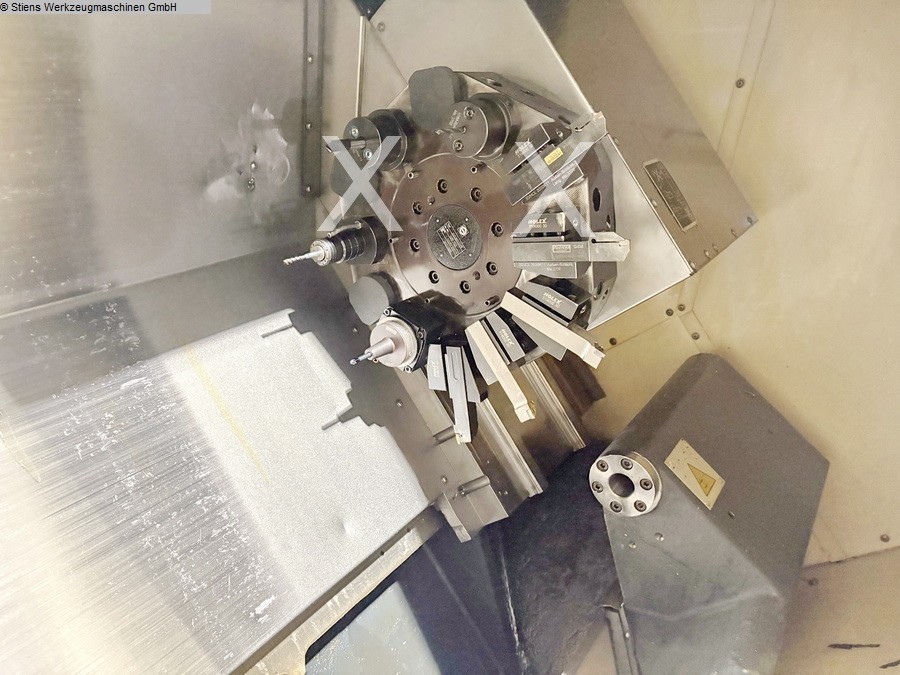

turret::
number of toolpositions: 12 pos.
Shank diameter: DIN 69880: 30 mm
Driven Tool Stations::
Number of driven toolspositions: 6 pos.
Spindle speed - driven tool stations: max. 4.500 min -1
power capacity driven tool-stations: 5,5 kW
axis stroke::
x-axis: 255 mm
z-axis: 800 mm
Tailstock::
tailstock: 680 mm
taper of center: MK 4
clamping capacity: 6,8 kN
feeds::
feed speeds: 0 - 30.000 mm/min
rapid traverse ( X / Y / Z ): 30 / - / 30 m/min
Feed force ( X / Y / Z ): 4,5 / - / 6,2 kN
total power requirement: 28 kW
weight of the machine ca.: 3,3 t
dimensions of the machine ca.: 5,0 x 2,5 x 2,3 m
Documents:
Chip conveyor:
Coolantsystem:
high pressure coolant: 12 bar, 23 l/min
coolant pistol:
hydraulic system:
hollow chuck unit: hydr. 67mm
Tailstock:

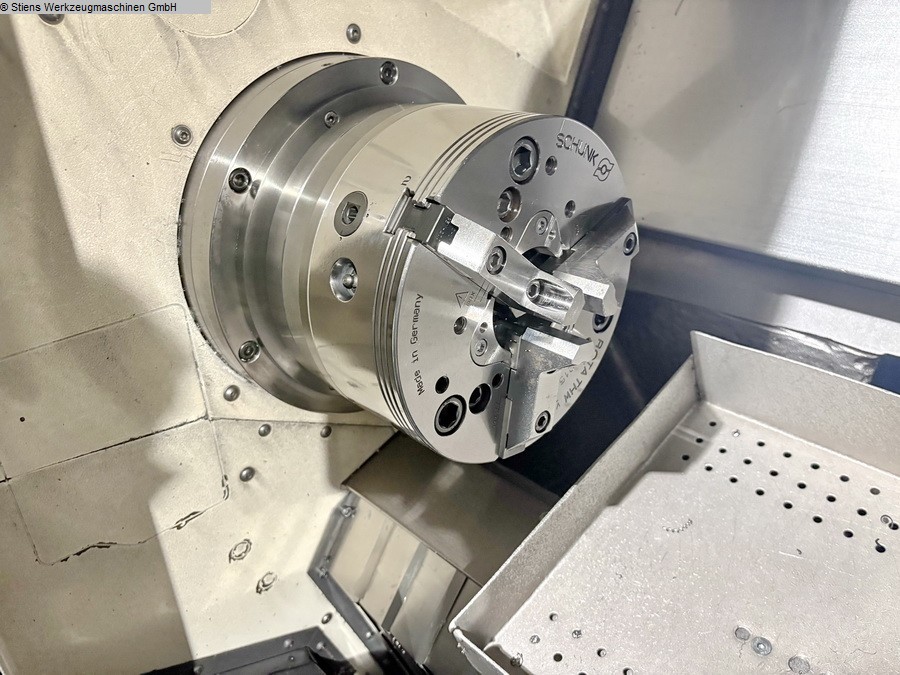

Three Jaw Chuck: Schunk ROTA 215-62
Signal lamp - 4 colour:

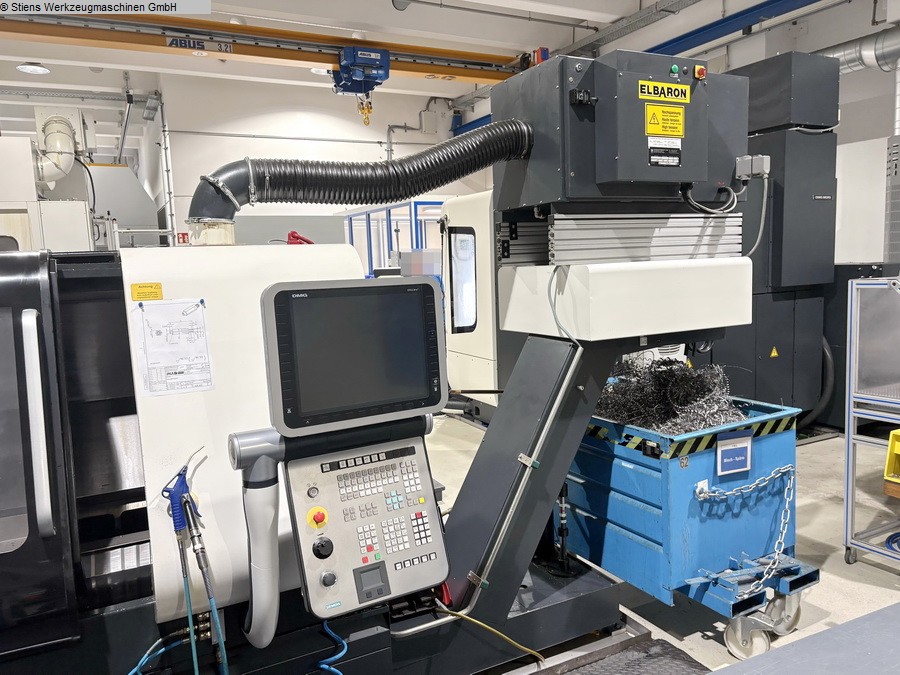

exhaust fan: Elbaron
CNC Universal Lathe
GILDEMEISTER - NEF 400 V3

- C-Axis
- Tool-Drive

- only ca. 8093h Spindle hours

- incl. 1x workbench
- incl. 1x tool cabinet
- incl. 1x cabinet for VDI tool holders
- incl. 8x tool holders
- incl. 4x driven tools (2 radial, 2 axial)
