Bancos de soldadura LEWA Schweissvorrichtung EB42x

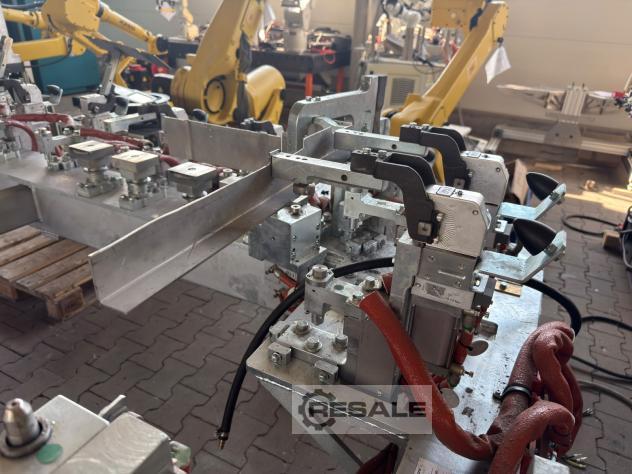

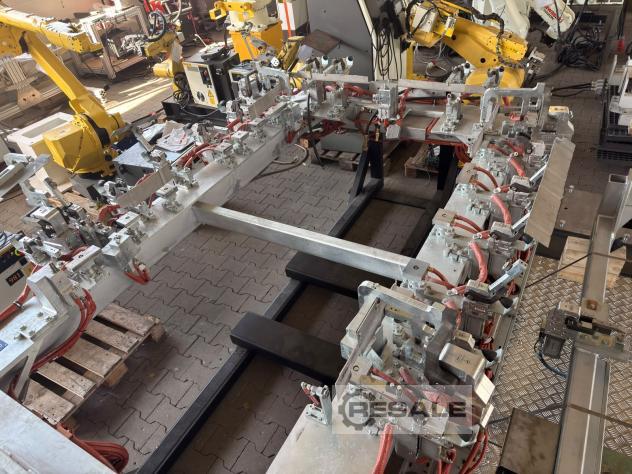

Advanced technological tooling with a dense and symmetrical structure of executive components. Designed for precise positioning and rigid locking of geometrically complex components (e.g. car body sheets) during automated welding or welding processes. The design is characterized by a high degree of repeatability of base points and is fully adapted to be mounted on a welding turntable.



LIST OF COMPONENTS:

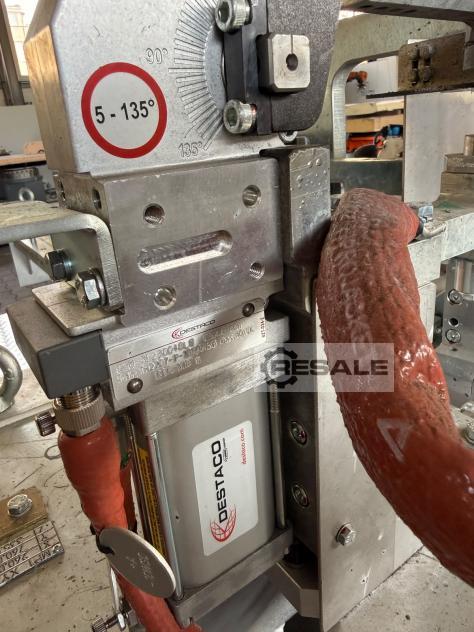

1. DESTACO pneumatic (knee) clamps – 30 pieces. Heavy actuators responsible for mechanical locking of the workpiece.

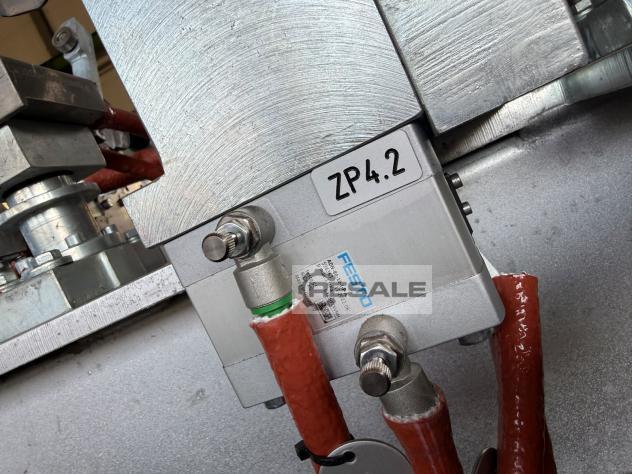

2. FESTO compact pneumatic actuators – 14 pieces. They are used to eject positioning pins or auxiliary locks.

3. Pressure position sensors (inductive/magnetic) – approx. 30 pieces. They monitor the opening and closing states of actuators.

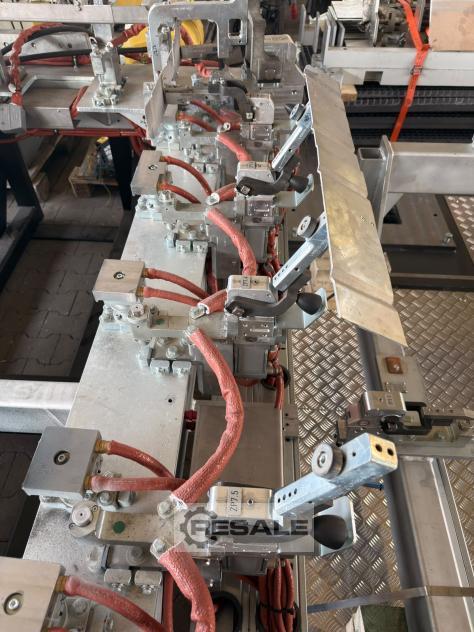

4. Pneumatic installation in thermal shields (Pyrojacket type) – a complete bus system with flexible hoses in thick, red fire-resistant braids protecting against welding spatter.

5. Valve terminals / pneumatic distributor blocks – 2 pieces. They control the sequences of operation of individual pressures.

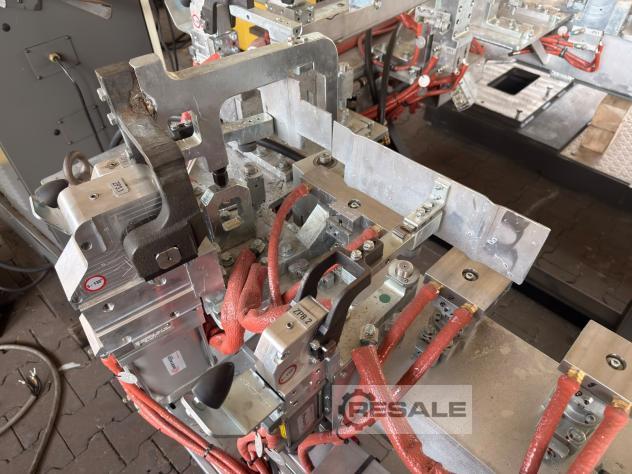

6. Positioning cubes, measuring bases (NC blocks) and pins. Precisely milled support points with engraved technological coordinates.

7. Main structural frame – 1 piece. Rigid, stress-relieved welded structure made of closed profiles, equipped with transport lugs and mounting plates for turntable discs.
seller offer No. resale 170293879
