otras máquinas para el procesado de metales usadas para la venta (11,284)

Product Description - Mobile measuring arm with integrated laser scanner (3D coordinate measuring machine) - Manufacturer: FARO - Model: FARO Edge / Model 14000 - Serial number measuring arm: E06051429518 - Year of construction: 2014 Application: - 3D digitization and 3D modeling - Industrial metrology / quality assurance - Reverse engineering & CAD comparison Technical data: - Measuring range: approx. 1.8 – 2.0 m - Single-point accuracy: ± 0.05 mm - Volumetric accuracy: ± 0.065 mm - Scanning accuracy: approx. 0.08 mm - Combination of tactile measurement and laser scanning - Automatic stylus recognition - One-handed operation Scope of delivery (complete): - FARO measuring arm - FARO handheld laser scanner unit (removable) - Transport case with foam insert - Accessories in the case (as shown) - Additional feet / support elements (as shown) - Handheld scanner (integrated laser s ...

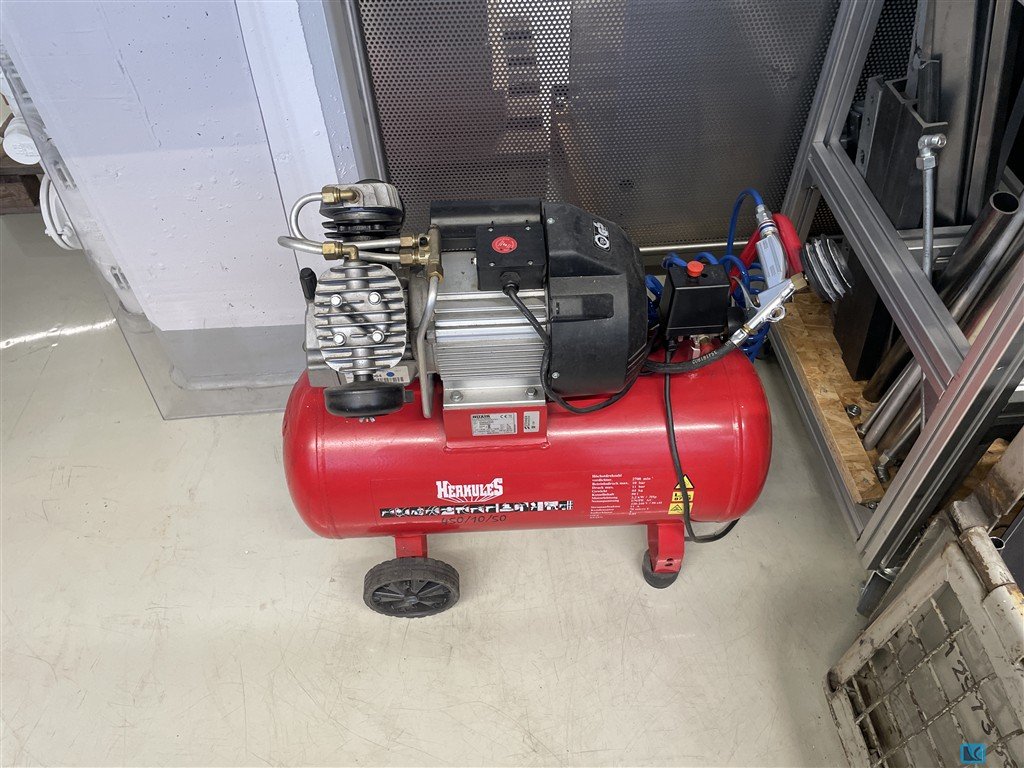

ParameterValueModel NameHerkules 450/10/50TypePiston Air CompressorTank Capacity50 litresMax. Operating Pressure10 bar Motor Power2.2 kW / ~3 HPVoltage230 V AC Frequency50 HzEngine Speed2800 rpmAir Intake Capacity400 L/minAir Delivery (Effective)320 L/min Noise Level95?97 dB Number of Cylinders2 (twin cylinder)LubricationOil-lubricated systemTypical UsesHome workshop, tire inflation, air tools, painting

"Manufacturer: Novotec / Intech EDMType / Name: Copper Threaded Electrodes for Die-sinking EDM M2.5 – M16 (various sizes) – Lotof copper threaded electrodes for die-sinking EDM machines (EDM) of various sizes.The electrodes come mainly from Novotec and Intech EDM and are intended for the EDM of threads (Thread EDM). The inventory includes several sizes from M2.5 to M16, some with flush bore and orbital design. The electrodes are mostly in original packaging or protective tubes and are unused or in stock. The electrodes are sorted by size and are located in storage boxes (M2.5 / M4 / M6 / M8 / M10 / M12 / M16).Copperthreaded electrodes consisting of different sizes: • M2.5 (with flush hole) • M4 x 0.70 orbital • M6 • M8 • M10 orbital • M12 • M16Partly in original packaging (Novotec) or protective tubes.Material: CopperApplication: Threaded EDM / die-sinking EDM (EDM)Type ...

Machine number: 2-0538Compressive force: 28 kNStroke: 12Table dimensions: approx. 200 x 160 mmincl. installed punching tool

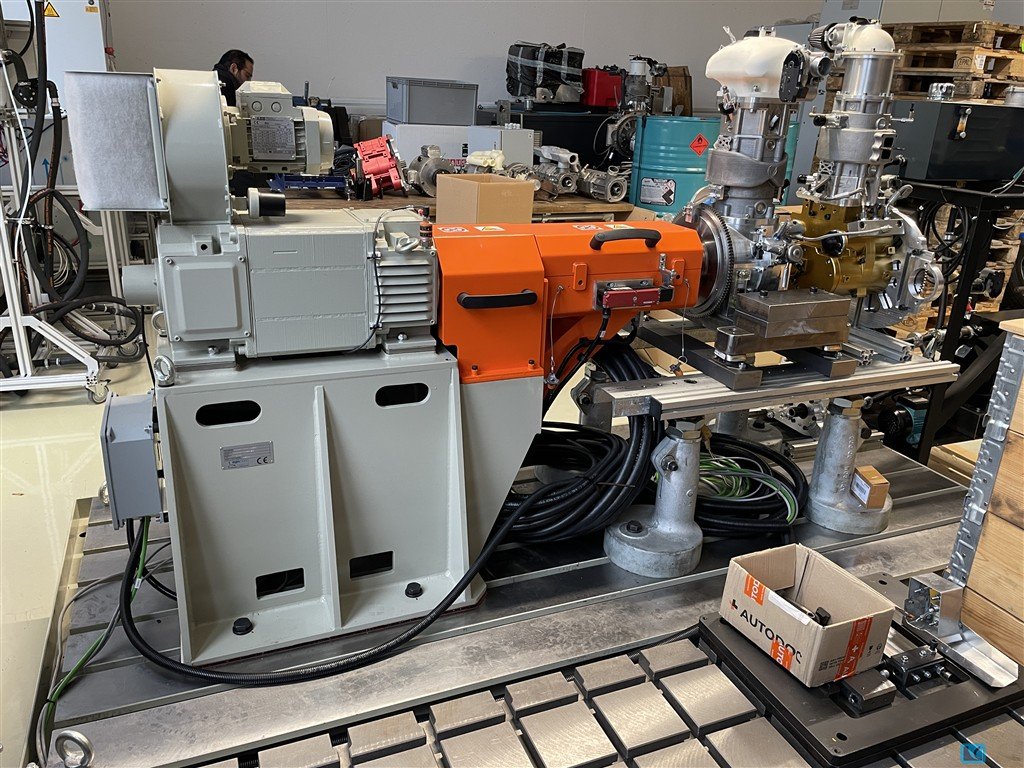

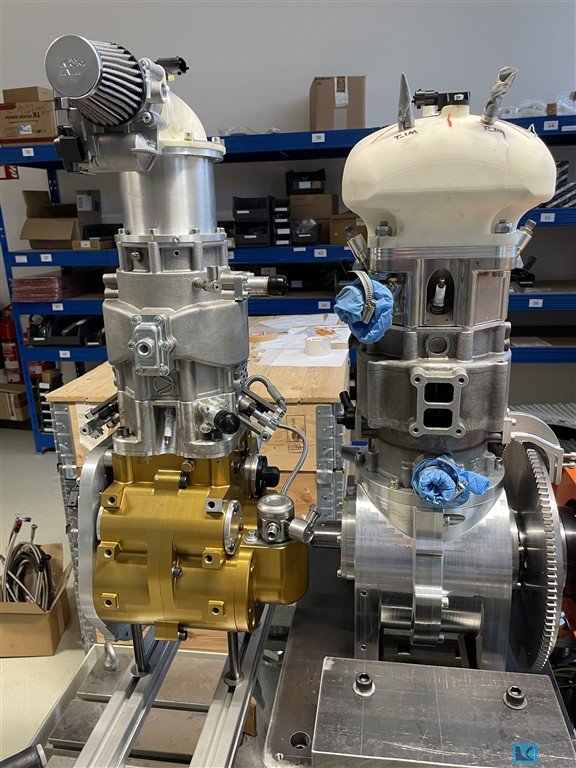

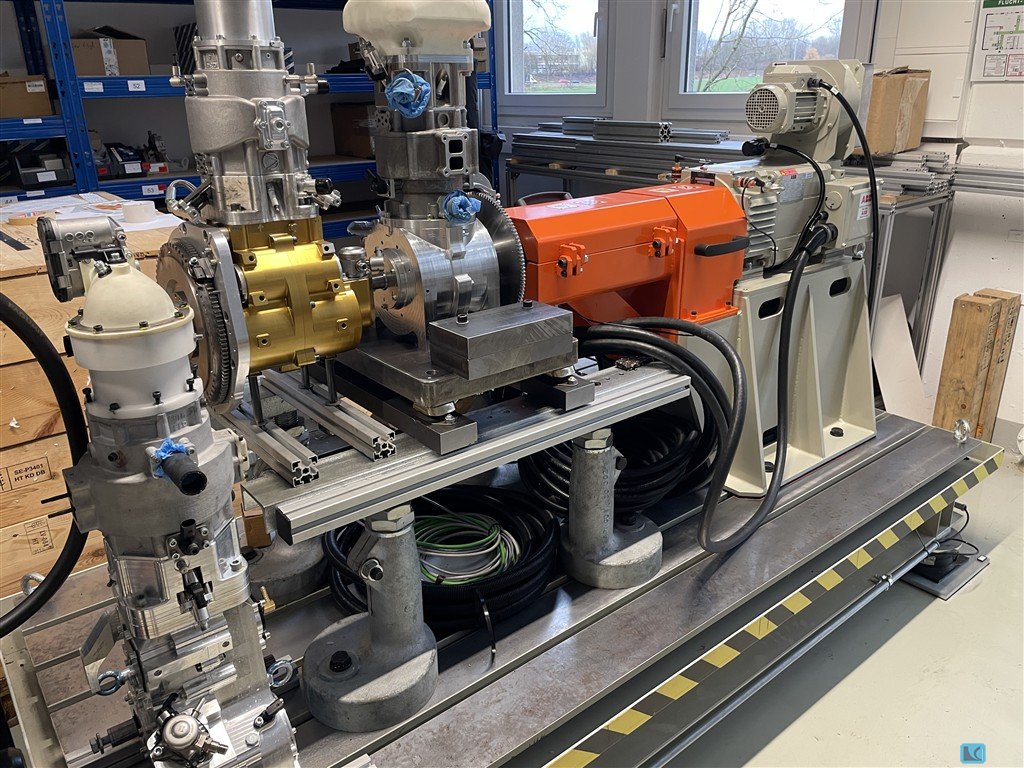

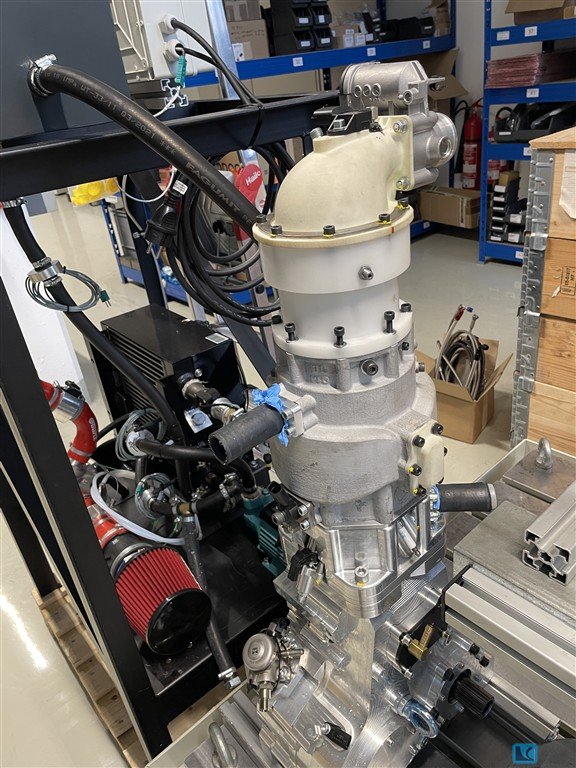

Performance·Max. motor power: 30 kW·Max. engine speed: 10,000 rpm·Rated torque (test bench): > 100 Nm·Max. braking torque: up to 122 Nm·Max. braking power: up to 46 kW (overload)Dynamometer·Type: AC asynchronous dynamometer, frequency-controlled·Voltage: 360 V·Cooling: Forced ventilation (IC06)·Protection class: IP23·Insulation class: F·Speed range: 0 ? 10,000 rpm·Continuous operation: up to 40 kW (depending on speed)·Overload capability: 1 min every 10 minMeasurement System·Torque measurement:oHBM T12HP torque flangeoMeasurement range: 200 NmoAccuracy class: 0.02·Speed measurement:oIncremental encoder, 1024 pulses/revoAccuracy: ±0.01 rpm·Vibration monitoring:oIntegrated vibration sensorMechanical Structure·Slotted base plate with air suspension (Bilz air springs)·Vibration-damped test bench·Motor mounting system:oAdjustable aluminum frameoMax. motor weight: 500 kgoCo ...

Crane scale with power supply and remote control Load capacity in kg 10000 kg Weight 10 kg Dimensions L x W x H 700 x 300 x 300 mm

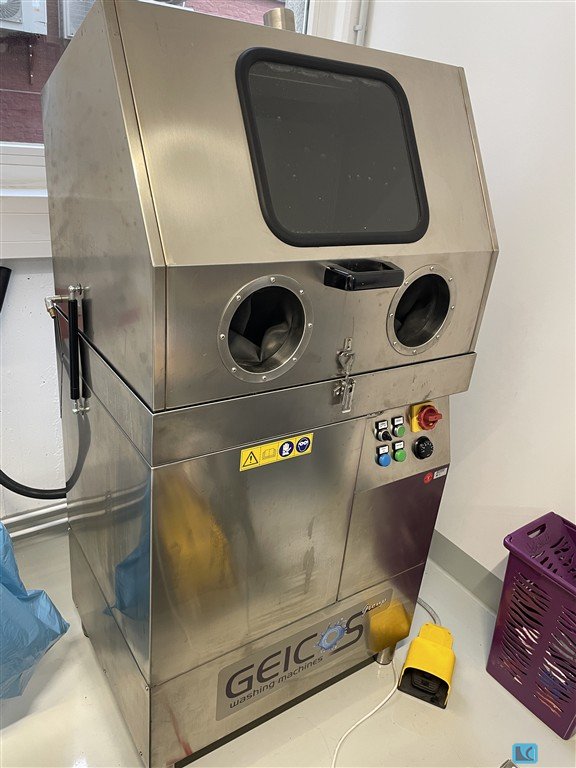

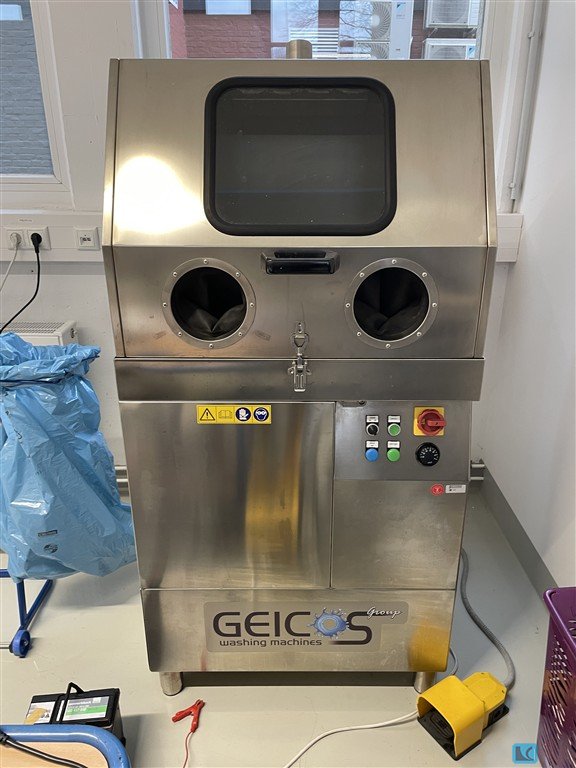

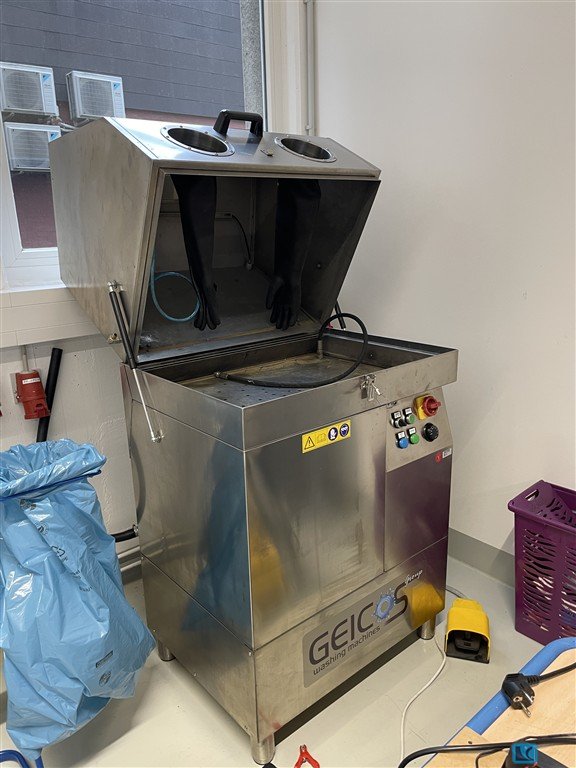

Max. basket weight:50 kgTemperature for washing water:0-60 °CElectrical heating power:2 kWRated power supply:230 VMachine size LxWxH:600x800x1650 mmMachine weight:90 kgDIMENSIONS DxWxH600x800x1650 mmPOWER SUPPLY230 VDETERGENTwaterPUMP POWER1.2 kWTANK CAPACITY100 lLOAD CAPACITY50 kgHEATING ELEMENTS POWER2 kWHEATING TEMPERATURE0-60°WORKTOP DIMENSIONS750x550 mmWEIGHT90 kg

Condition: unchecked Item is sold as is Weight may be ggbfs. Deviate. Machine must be dismantled by the buyer and transported out of the hall area. It cannot be guaranteed that a forklift is on site.

travel -x axis:800/1825 mmtravel -y axis:800/460 mmtravel -z axis:600 mmFeeding X,Y,Z up to:0 - 40/40/40 mm/min.swival range +/-:+10 bis -90 x 360 GradRotary-table:800 x 630 mmnumber of T-slots:5 T-slot - distance:125 mmT-Slots:18 mmcenter hole:30H7X15 mmswival range +/-:90 Gradturning speed:20 m/min.Number of axles:3-7 St.Spindle RPM:12.000 1/minmax. tool weight:10 kgmax. tool length:330 mmdiameter of tools max.:80 mmtool changing time:4 secCNC control with15.1" color flat-screen19" machine control panelPCU 50 with Intel Pentium IIWindows XP10.0 GB hard drive

With footswitch

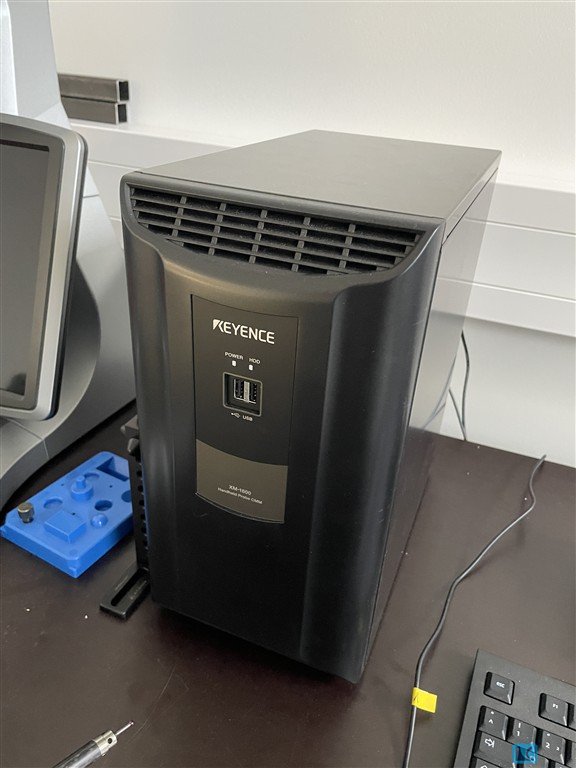

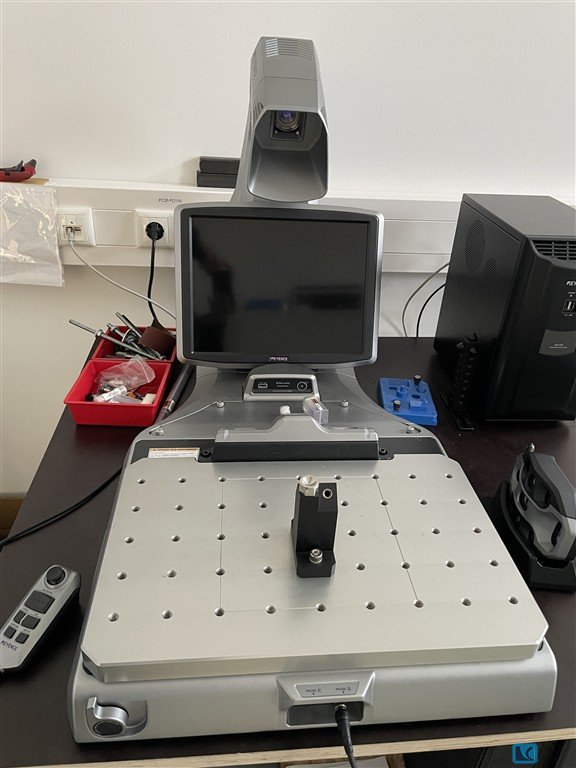

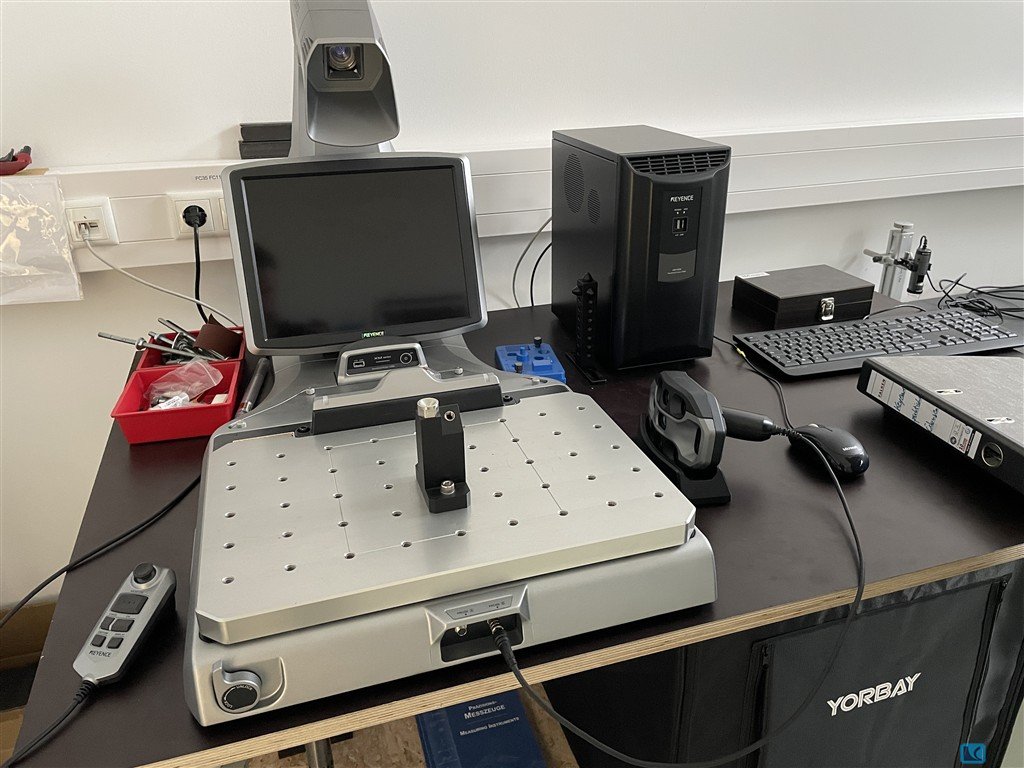

Keyence Digital Measuring Projector ? Model XM-1600General:Digital measuring projector with a high resolution image measurement system and very easy operation. Place the part on the stage and measure by pressing a button. Supports automated measurements of up to 300 dimensions within seconds.Measuring Head / Control Unit:·Sensor: Monochrome CMOS 1 inch, 20 megapixels·Display: 12.1 inch LCD monitor (WXGA 1280 x 800)·Lens: Double telecentric lensMeasuring Field and Measuring Range:·Standard measuring field: approx. 100 mm diameter·Precision mode measuring field: approx. 25 x 25 mmMeasurement Accuracy and Repeatability:·Display resolution: 0.1 micrometer·Repeatability (standard, without stage movement): approx. plus minus 1 micrometer·Precision mode (without stage movement): approx. plus minus 0.5 micrometerStage / Travel Axes:·XY measuring stage: motorized·Z axis: approx. 75 mm,  ...

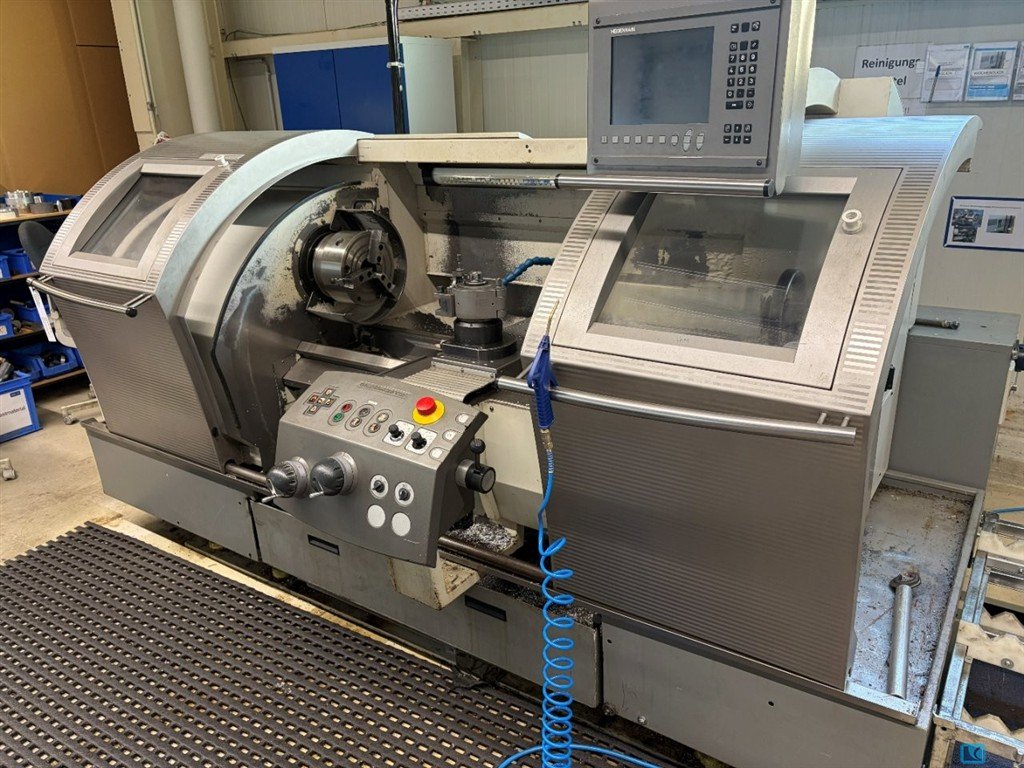

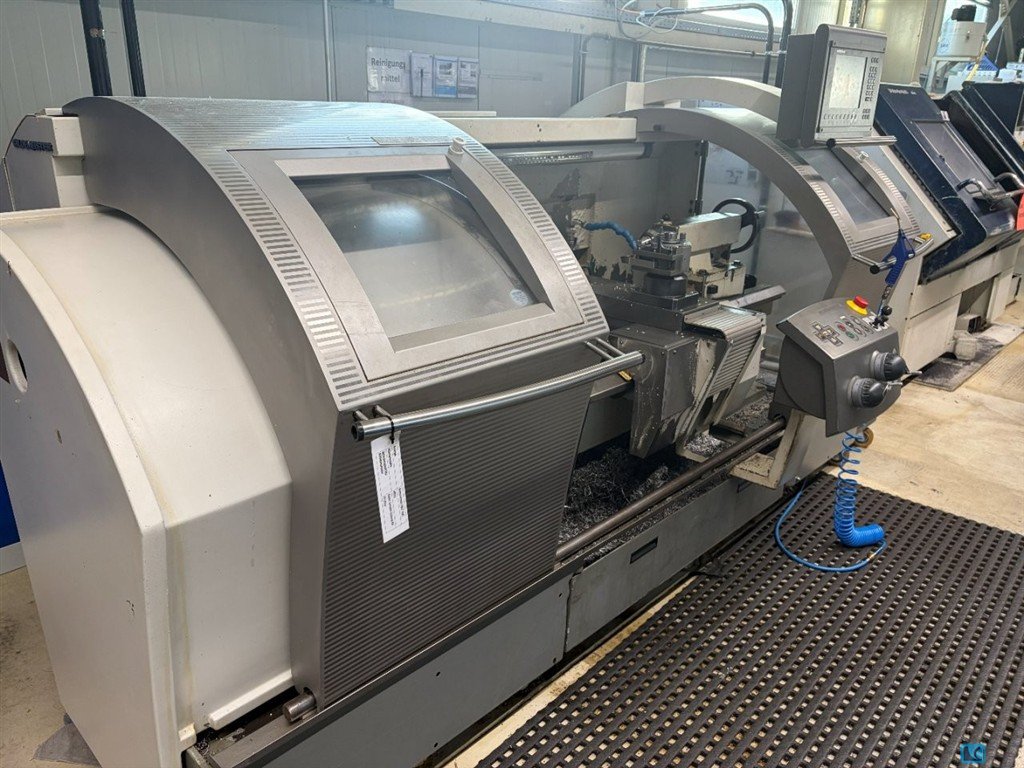

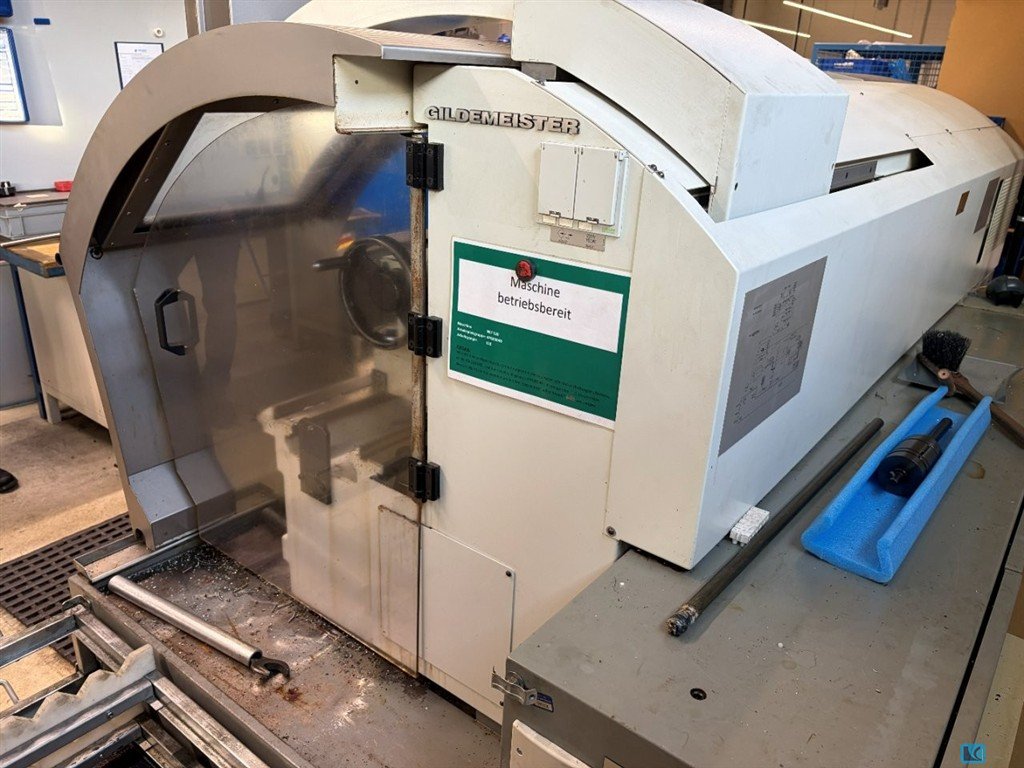

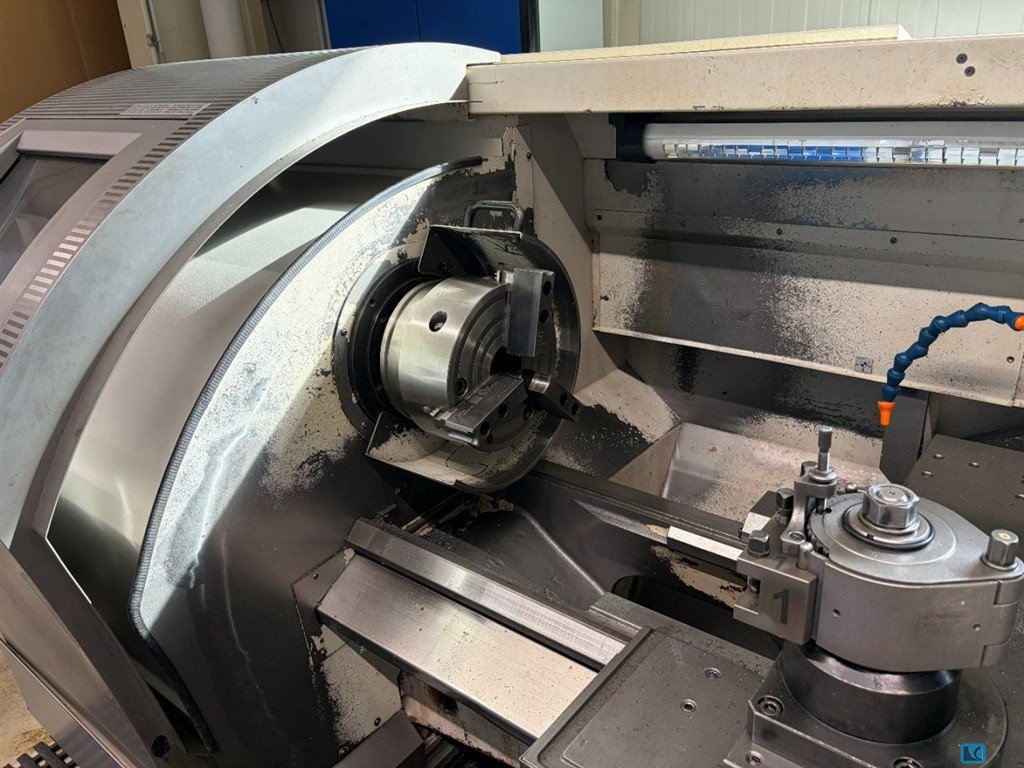

turning diameter:500 mmturning length:1500 mmTechnical Specifications:·Turning diameter over cross slide: 290 mm·Spindle bore: 71 mm·Speed range: 3?2,800 rpm·Rapid traverse speed: 10 / 5 m/min·Feed rate: 1?2,000 mm/min·Total power requirement: 22 kW·Machine weight: approx. 3.2 t·Space requirement: approx. 3.0 × 1.6 × 2.0 m

turning diameter:356 mmturning length:700 mmy-axis:±60 mmspindle drive:18 kWcounterspindle motor:15 kWDirect drive for driven tools:5,5 kWMotor starting torque:640 NmMain spindle mount:A2-8 counter spindle mount:A2-6 Rod passage:80 mmmain spindle speeds::4.000 U/minDrehzahl angetriebene Werkzeuge :6.000 U/minrapid traverse speed:30 m/min auf X- und Z-Achse machine weight ab.:5.800 kg12-station turret, all positions drivenC-axis on both spindlesBelt-driven and infinitely variable drive on all motorsPrismatic guideways on all axesOil cooler for both spindles, manufacturer DaikinAutomatic, dialog-guided programming system MAPPSAutomatic monitoring of tool load and tool wearTwo Renishaw measuring arms for automatic tool measurementInterfaces: USB, PCMCIA card, and RS-232 portInterface for bar feederAutomatic parts catcherDual foot pedal for independent opening and closing of the chucks  ...

Hartner Multi-Step DrillsPrecision reimagined. Efficiency made tangible. Made in Germany.The multi-step drills are the intelligent further development of classic HSS and HSS-E twist drills. Thanks to their innovative step-drill geometry, the drills deliver significantly higher performance, greater precision, and noticeably improved drilling comfort in daily use.What makes the multi-step drill so special? Unlike conventional HSS drills that machine material in a single cutting action, the multi-step drill works in several defined cutting stages. The result is smooth, low-vibration operation with significantly lower force requirements.Additional advantages include optimal chip removal, perfectly round and precise holes, and almost burr-free hole exits. Even when used with hand drills and cordless drills, the special geometry enables controlled drilling without jamming or slipping in the dr ...

Max. 30 nm

x-travel:3500 mmy-travel:2500 mmz-travel:1250 mmbore spindle speeds:2500 U/mintable load:12 tdia. of rotary table:1800 x 2200 mmnumbers of positions in the tool changer:60 Lifting operator platformExternal tool coolingSpindle clamping support

Serial number: 223084max. sheet width: approx. 1000 mmwith mechanical hand lever operation

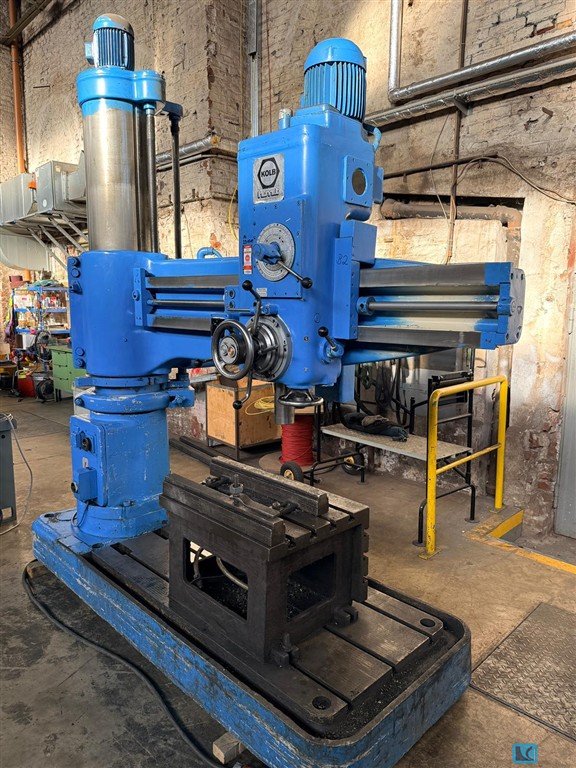

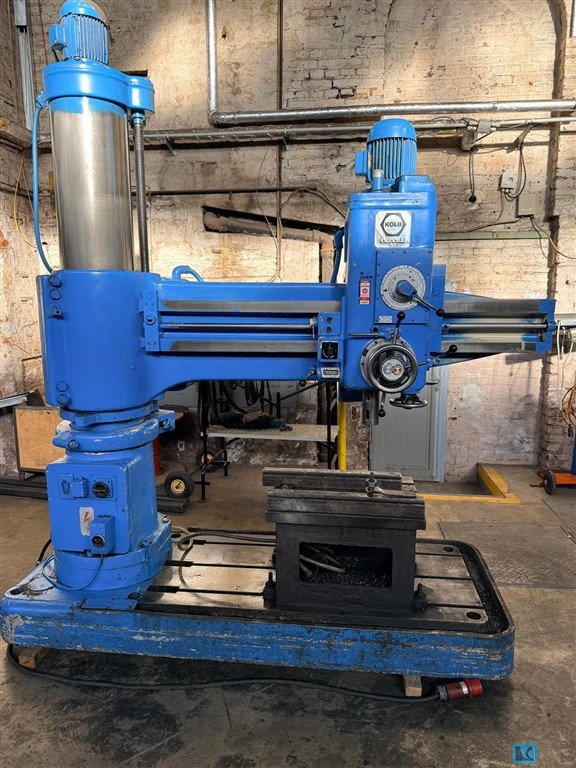

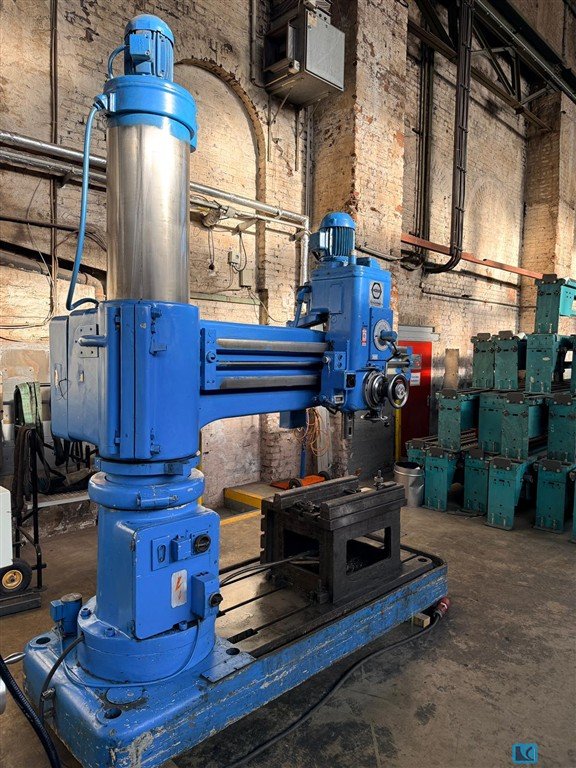

bore capacity in steel (diameter):50-60 mmarm length:1.600 mmweight of the machine ca.:5-7 tspindle taper MT:wahrscheinlich MK5

Condition: unchecked Item is sold as is Weight may be ggbfs. Deviate. Machine must be dismantled by the buyer and transported out of the hall area. It cannot be guaranteed that a forklift is on site.

turning diameter:570 mmturning length:635 mmtravel -x axis:220 mmtravel -z axis:635 mmTorque:240 Nm feed::X: 20m/min; T: 24m/min disc turret:12 fachmain spindle speeds::25-25.000 dimensions of the machine ca.:3210 x 1750 x 1750 mmweight of the machine ca.:5.300 t

Connection: 2.8 kWMachine number: 13/4Cutting length: 1040 mmSheet thickness: 2.5 mm

turning diameter:500 mmturning diameter over bed:500 mmturning dia. over base-slide:290 mmcentre distance:1000 mmcentre height:250 mmz-travel:1350 mmspeeds:10 - 3000 U/min

Up to 40 nm

groove width:40 mmx-travel:1300 mmthroat:- mmy-travel:150 mmz-travel:200 mmtool taper:SK40 spindle speed::350 ? 4000 upm table clamping surface::1300 x 300 mmweight of the machine ca.:3,5 tCoolant systemDimensions: 1600 mm x 1500 mm x 1800 mm (L x W x H)Hydraulic systemPartially overhauled

20SK40 Tool Holder, partly equipped with twist drills, indexable insert drills, milling cutters etc.; see photos for more details

groove width:- mmx-travel:1300 mmthroat:- mmy-travel:150 mmz-travel:150 mmspindle speed::50/6000 uprtool taper:SK 40 numbers of positions in the tool changer:8-fach weight:2.500 kgOperating hours: 2,100 hClamping hydraulicsPendulum operation possible8-position tool changer

Two fine boring/boring tools with ABS interface, KOMET license. 1 × unused / asgood as new 1 × usedConditionUnused tool: as good as new, no signs ofuse Used tool: technically apparently completeScope of delivery2 × ABS boring tools as shownGuide drill mountedIndexable insertsMarking according to toolABS® 80 – License KometType/marking: S5K137141Guide drill: Ø 12 × 62 (information refers to the guide drill only)InsertsManufacturer: H. BilzIndexable inserts: LCEX250604FRZ P5Cutting material range according to packaging: P01–P30

"Steel cabinet with contents – tool holders / grinding mandrels / collets – approx. 670 x 280 x 1020 mmSteel cabinet with extensive contents from workshop inventory.The cabinet is equipped with various grinding mandrels, mounting mandrels, clamping holders, grinding wheels, collets and other accessories. In some cases, the components are stored in polystyrene blocks and labeled (e.g. 5 / 10.0 etc.). Also available: • wooden box SWISSCO Leonberg • various grinding wheels • mounting flanges and spacer rings • collet set (in the wood holder) • further turning and sanding fixtures according to picturesSale is complete with contents, as shown. • Type: steel cabinet, single-door • Dimensions (W x D x H): approx. 670 x 280 x 1020 mm • Colour: grey / blue • Contents: various tool holders, grinding mandrels, collets, grinding wheels • Condition: used"
