Reflow Oven REHM VXP 734

Manufacturer: Rehm

Model: VXP 734

Year of Manufacture: 2010

Type of Machine : Reflow Oven

- Nitrogen capable
- Easy transport with center support

Core System Specifications

- Model: Reflow Soldering System VXP nitro 3500 (Type 734)
- Heating Zone Length: 350 mm
- Heating Layout: Top and bottom heating
- Zone Configuration: 7 pre-heating zones / 3 peak zones / 4 cooling zones
- PCB Width Capacity: 50 mm to 400 mm (65 mm to 400 mm with Center Board Support); configured with an upgrade option to expand transport width up to 460 mm
- Conveyor System: Pin chain conveyor 3 mm (with manual width adjustment via electrical inching operation)
- Color: SF 700 lightbasic

Included Standard Features & Systems

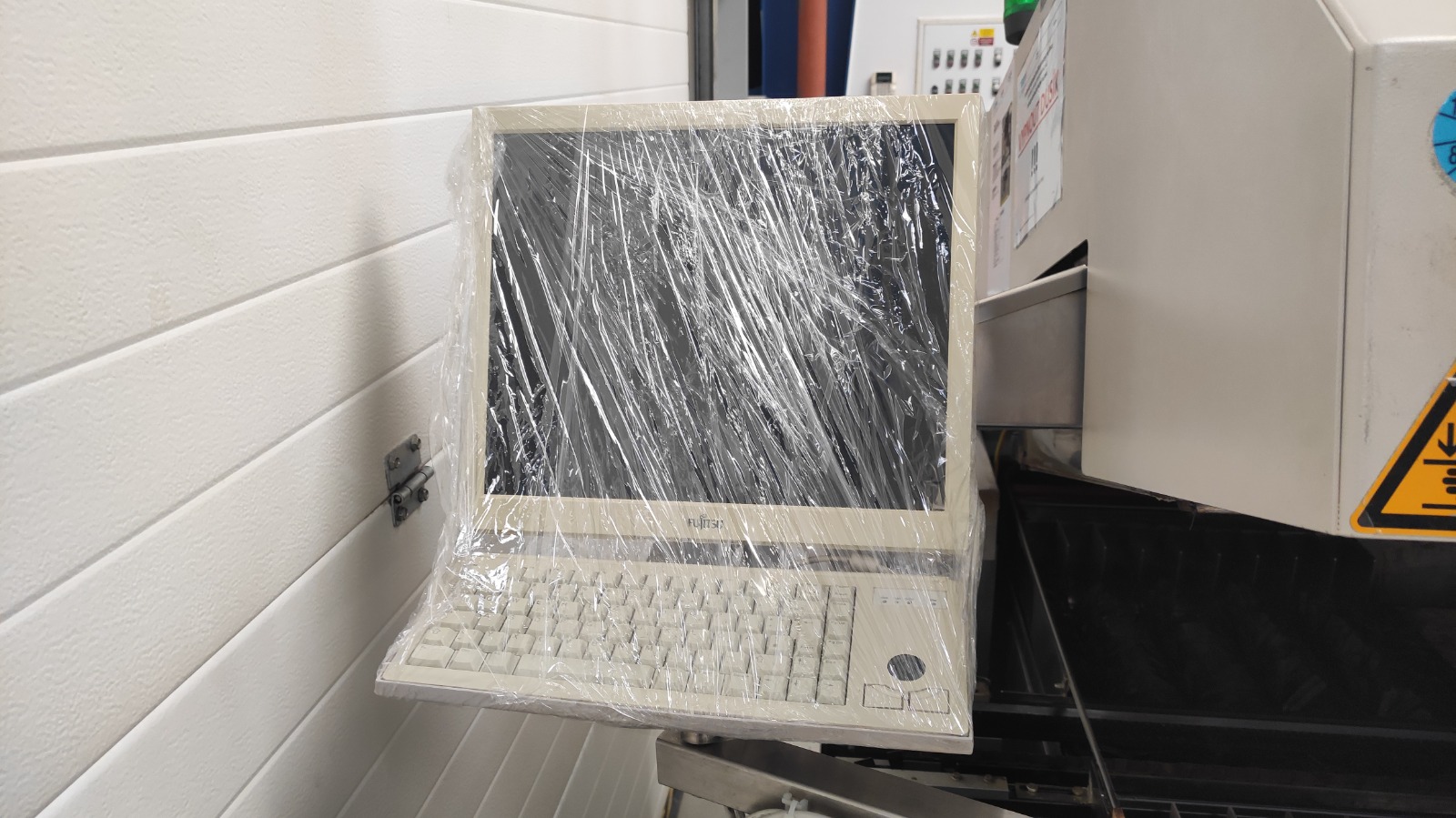

- Control Unit: PC-control featuring a flatscreen monitor and a three-colored signal tower
- Fan Speed Control: Separated for 1x heating top, 1x heating bottom, and 1x cooling section
- Flux Management: Integrated Pyrolytic Fluxmanagement system
- Cooling: Integrated cooling circuit and heat exchanger designed for connection to external facility water supplies

Included Optional Upgrades & Modules

- Center Board Support (CBS): Equipped with a lash chain (including horizontal PC-CBS-Adjustment)
- Conveyor & Product Handling: PC-Width Adjustment
- Interface for Siemens Handling Systems
- Supervision of PCB-Throughput (including visualization)
- Supervision of Conveyor Speed
- Process Monitoring & Automation:
- Supervision of Interior Temperature
- Supervision of Exhaust Air
- Auto-Start-Package
- Automatic Chain Lubrication
- Operating Time Counter
- Product and drawing number management (manages oven parameters via product name/profiles)
- Gas & Environment Controls:
- Nitrogen saving unit
- Quick exhaust system (for shorter change-over times from reflow to curing processes, including an integrated exhaust fan)
-
