166 GILDEMEISTER máquina utilizada para venda

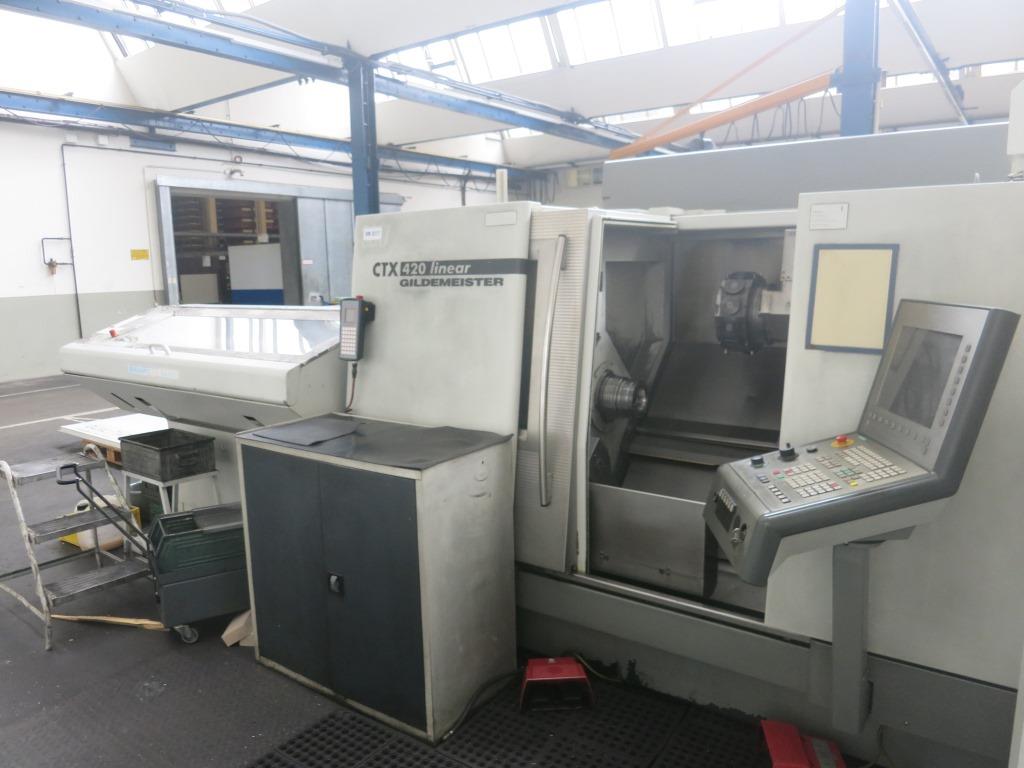

This 3-axis Gildemeister CTX 420 linear was manufactured in 2003. It features a max turning diameter over bed of 680 mm and a chuck diameter of 250 mm, suitable for diverse turning tasks. Equipped with a bar feeder and driven tools, it enhances productivity and precision. If you are looking to get high-quality turning capabilities, consider the Gildemeister CTX 420 linear machine we have for sale. Contact us for more information about this machine.

This 6-axis Gildemeister DMG GILDEMEISTER SPRINT Linear 65 was manufactured in 2006. A robust CNC Lathe with Linear Technology, it features a maximum turning diameter of 65 mm and length of 600 mm. Equipped with Siemens Sinumerik 840D control, three turrets, and Y-axis capabilities, it ensures precision and flexibility. If you are looking to get high-quality turning capabilities consider the Gildemeister DMG GILDEMEISTER SPRINT Linear 65 machine we have for sale. Contact us for more information about this machine.

Comprimento de viragem: 450 mm Diâmetro de rotação 210 mm Com eixo C Diâmetro do eixo 52 mm Número de ferramentas 12 Velocidade do fuso 5000 rpm Comando Heidenhain Plus It

Diâmetro de giro 80 mm Diâmetro da barra 20 mm Velocidade do eixo 10000 rpm Eixos X1, Y1, Z1, X2, Z2 Controlador Fanuc FANUC 160iB Alimentador de barras LNS

turning diameter:500 mm turning length:1000 mm control:MANUAL PLUS Grundig total power requirement:24 kVA weight of the machine ca.:2650 kg dimensions of the machine ca.:2500 x 1750 x 1850 mm swing diameter over face slide:290 mm chuck:Ø max. 260 mm cross movement:260 mm spindle head:DIN 55027 Größe 8 spindle bore diameter:70 mm rapid travel - longitudinal/face:8 /6 m/min spindle speeds::8 - 2800 tailstock travel:180 mm tailstock quill taper MT:5 Documents:vorhanden

turning diameter:500 mm turning length:1000 mm control:MANUAL PLUS Grundig total power requirement:24 kVA weight of the machine ca.:2650 kg dimensions of the machine ca.:2500 x 1750 x 1850 mm swing diameter over face slide:290 mm chuck:Ø max. 260 mm cross movement:260 mm spindle head:DIN 55027 Größe 8 spindle bore diameter:70 mm rapid travel - longitudinal/face:8 /6 m/min spindle speeds::8 - 2800 tailstock travel:180 mm tailstock quill taper MT:5

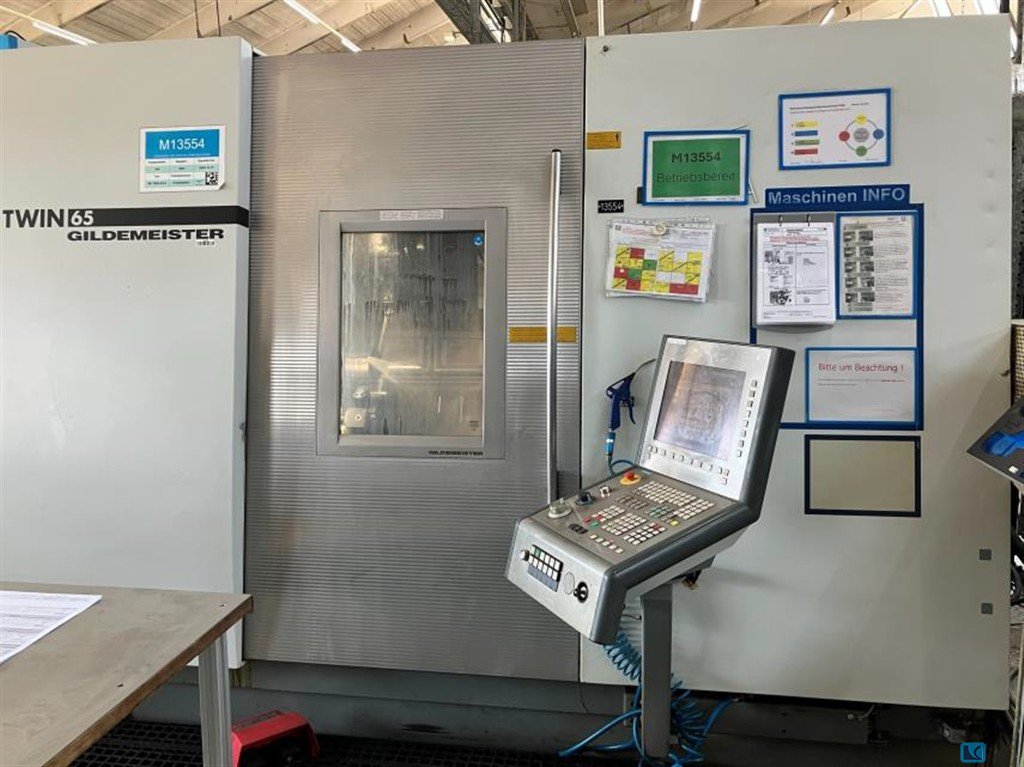

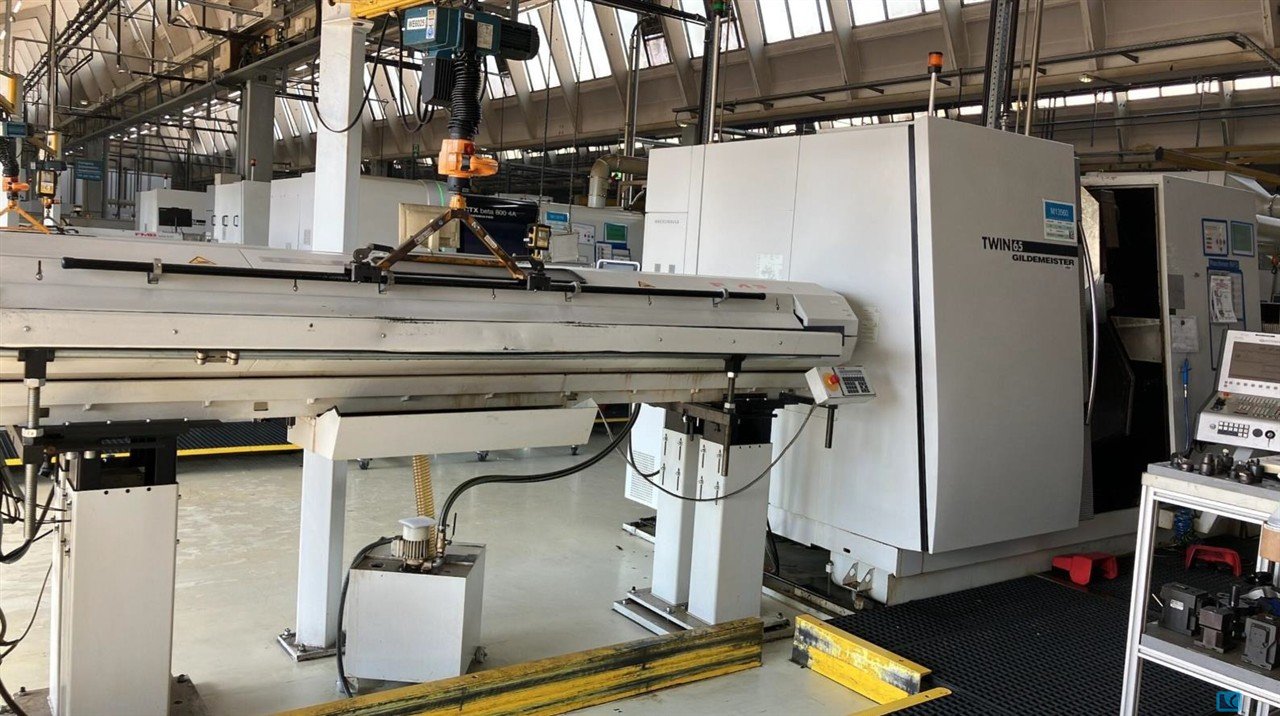

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:640 / 400 mm turning length:1500 mm control:Siemens 840 D Powerline Travel turret No.1 (milling spindle) x/y/z:550 / 180 (±90) / 1585 mm Swivle angle milling spindle (B-axis):±120° interpol. ° Rapid traverse feeds turret 1 (milling head) x/y/z:40/24/60 m/min RPM milling spindle:12000 1/min power capacity - milling spindle:12 / 23 kW Torque of milling spindle:100 Nm Tool magazine for milling spindle (turret 1):120 HSK-A 63 Tool change time tool/tool, milling spindle:1,6 s Spindle 1 RPM:4000 1/min Spindle 1 power:36/ 45 kW Spindle 1 Torque:730 Nm Spindle 1 max. bar diameter:90 Spindle 2 RPM:4000 1/min Spindle 2 power:36 / 45 kW Spindle 2 torque:730 Nm Spindle 2 max. bar diameter:90 c-axis:0,001 ° Travel turret 2 x:225 mm Travel Turret 2 z:1595 mm RPM of rotary tools turret 2:4000 1/min no. of tools in turret 2:12 VDI 40 high-pressure pump:20 bar total power requiremen ...

turning diameter:325 mm turning length:600 mm total power requirement:35 kW spindle drive:25 kW spindle turning speed range:5000 U/min speeds of tool:4500 U/min rapid traverse X-axis:60 m/min diverse toolholders:VDI 40 rapid traverse Z-axis:45 m/min weight of the machine ca.:6,5 t dimensions of the machine ca.:3,5 x 2,5 x 2,1 m Machine with SIEMENS 840 D control power line with shopturn - C and Y-axis, driven tools - bar loader IRCO ILS-RBK - coolant device with coolant throough revolving head - Revolver - counter spindle - chip conveyor - collet clamping - part catcher

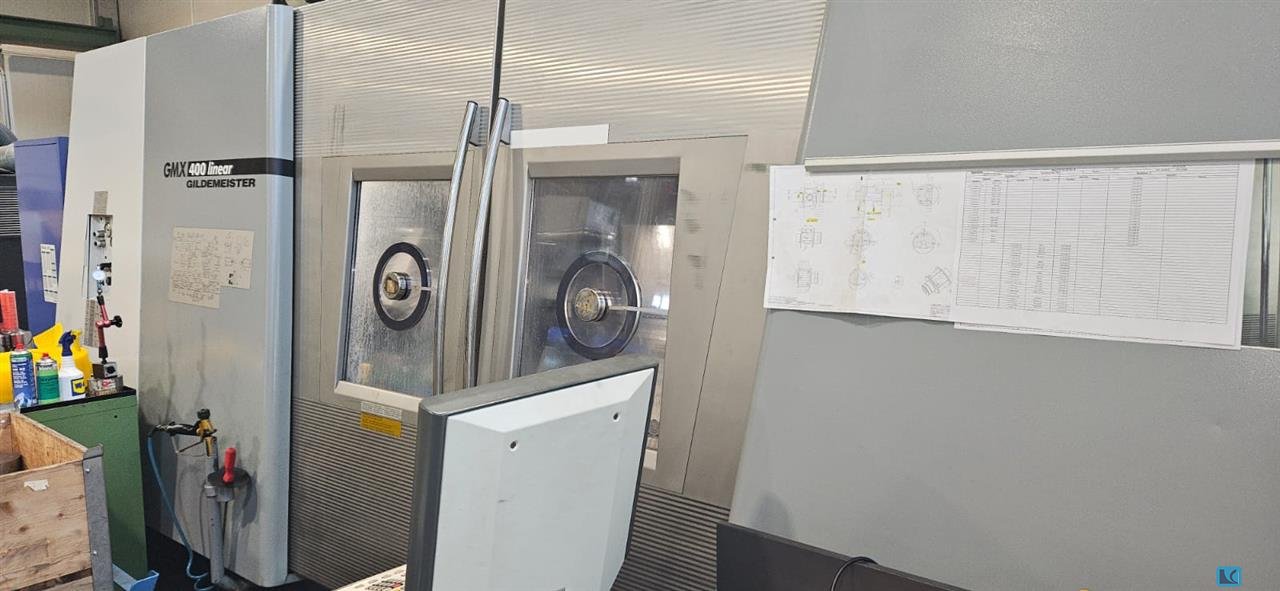

Manufacturer: Gildemeister Model: GMX 400 linear Year of Manufacture: 2007 Total Power Requirement: 100 kVA Voltage: 400 V Machine Weight: 24,000 kg Floor Space Required: 60 m2 Working Range - Centre height: 1,343 mm - Maximum turning diameter: 640 mm - Maximum turning length: 1,930 mm - Maximum turning length over bed: 550 / 180 mm - Slide travel longitudinal X1, X2: 1,585 / 1,400 / 1,500 mm - Slide travel vertical Y: plus/minus 110 mm - B-axis: plus/minus 120 degrees - Maximum circumference: 640 mm - Length of workpiece in crown area: not specified - Maximum workpiece weight: not specified Spindle Specifications - Spindle head flat flange DIN: Flachflansch - Spindle nose diameter front bearing: 220h5 mm - Spindle bore diameter: 107 mm - Spindle nose diameter: 150 mm - Max. chuck bore diameter in front bearing: 250 / 315 / 400 mm (internal taper) - Spindle speed HSP: 3,200 / 4 ...

turning diameter: 410 mm turning length: 800 mm control: Sinumerik 840 D ERGOLine Siemens greates pass round over bed: 700 mm max. turning diameter: 410 mm travel -x axis: 300 mm travel -z axis: 850 mm turning speed range - spindle: max. 4.000 U/min chucking diameter: 260 mm spindle bearing diameter: 130 mm power capacity: 40% ED = 34 kW power capacity: 100 % ED = 25 kW max. Torque: 280 Nm C-Axis: 0,01 ° turret (x-stations): 12 tool taper: DIN 69880 / 40mm driven statition: 6 pos Spindle speed driven tools: ~ 4.000 min -1 power capacity - driven tools: 40% ED = 11,3 kW power capacity - driven tools: 100 % ED = 5,6 kW rapid traverse ( X / Y / Z ): 30 m/min Tailstock:: tailstock adjustment: 800 mm morse taper: MK 5 total power requirement: 65 kVA weight of the machine ca.: 6,2 t dimensions of the machine ca.: 5,5 x 3,0 x 2,5 m Chip conveyor: Tool drive mechanisum: Tailstock: Three Jaw ...

turning diameter: 350 mm turning length: 650 mm control: 840 D SL ShopTurn Siemens greates pass round over bed: 385 mm Swing dia. over traverse guideway: 350 mm Main spindle:: turning speed range - main spindle: 0 - 4.500 min/-1 power capacity - main spindel: 11,5 / 8 kW max. Torque: 340 Nm spindle diameter in front bearing: 130 mm spindle bore: 87 mm bar material dia.: max. 65 mm max. chucking diameter: 250 mm spindle head: 170 h5 C-Axis: turret:: number of toolpositions: 12 pos. Shank diameter: DIN 69880: 30 mm Driven Tool Stations:: Number of driven toolspositions: 6 pos. Spindle speed - driven tool stations: max. 4.500 min -1 power capacity driven tool-stations: 5,5 kW axis stroke:: x-axis: 255 mm z-axis: 800 mm Tailstock:: tailstock: 680 mm taper of center: MK 4 clamping capacity: 6,8 kN feeds:: feed speeds: 0 - 30.000 mm/min rapid traverse ( X / Y / Z ): 30 / - / 30 m/min Fe ...

turning diameter: 100 mm turning length: 320 / 345 mm control: Siemens 840 D swing diameter: 145 mm spindle distance: 580 mm slide I:: slide I - cross travel: (X1) 220 mm slide I - longitudial travel: (Z1) 320 mm y-axis: +/- 30 mm rapid traverse: (X/Y/Z) 30/15/30 m/min slide II:: slide II - cross travel: (X2) 120 mm slide II - longitudial travel: (Z2) 345 mm rapid traverse: (X/Z) 30 m/min Subspindle:: Travel subspindle: (Z3) 380 mm vertical stroke: (X3) 145 mm bar material dia.: max. 36 mm rapid traverse: (X/Z) 20/30 m/min power capacity: (40/100 % ED) 26/21 kW spindle turning speed range: 40 - 7200 U/min total power requirement: 42 kVA weight of the machine ca.: 5,3 t dimensions of the machine ca.: m CNC turning and milling centre with Y-axis, 2 turrets, subspindle and bar feeder. A total of over 44,000 EUR has been invested in necessary repairs and maintenance over the last 5 years  ...

turning diameter: 16 mm spindle passage: 16 mm turning length: 160 mm control: GE FANUC Series 18 i-T spindle turning speed range: 8000 U/min rapid traverse: 30 m/min total power requirement: 2,2 kW weight of the machine ca.: 2,1 t Accessories: bar loader IEMCA, GENIUS 226-32 L, YOM 2002 (for bar dia. 2 - 26 mm and bar lengths 1500 - 3210 mm), chip conveyor, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: max. 400 mm turning length: 600 mm control: 840 D Siemens greates pass round over bed: 500 mm Swing dia. over traverse guideway: 300 mm centre distance: 615 mm Main spindle:: turning speed range - main spindle: 20 - 6.000 min/-1 power capacity - main spindel: 16 kW max. Torque: 155 Nm max. usable bar diameter: 65 mm spindle nose: 140H5 C-Axis: 0,001 ° Subspindel:: Spindle speed range subspindle: 20 - 6.000 min/-1 power capacity - Sub spindle: 7,5 kW max. Torque: 48 Nm spindle diameter in front bearing: 75 mm spindle bore: 37 mm max. usable bar diameter: ( - ) mm spindle nose: 140H5 C-Axis: 0,001 ° turret:: number of toolpositions: 12 pos. Number of driven toolspositions: 12 pos. Spindle speed - driven tools: max. 5.000 min -1 power capacity - driven tools: 3,7 kW max. Torque: 24 Nm tool taper: VDI 30 Tool dimensions with square shank: 20 x 20 mm axis stroke:: x-ax ...

length: 4000 mm width: 1800 mm height: 1800 mm : 5000 x-travel: 600 mm tail stock: ja tool adaptor: VDI 30 weight of the machine ca.: 5,3 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 640 mm turning length: 1.185 mm control: SINUMERIK 840D swing diameter: 640 mm distance of spindle heads: 1500 mm slide I:: X1 / Y1 / Z1 / B slide travel X-axis: 550 mm slide travel Z-axis: 180 mm Z- Travel: 1.185 mm B - axis: 240 ° feed x-axis: 0 - 40.000 mm/min feed y- axis: 1 - 24.000 mm/min Feed z- axis: 1 - 70.000 mm/min feed B-axis: 1 - 20 1/min rapid traverse X/Y/Z: 40 / 24 / 70 m/min feed capacity X/Y/Z: S6: 7,00/11,00/7,50 kN tool taper: HSK 63 turning speed milling-spindle: 10 - 12.000 1/min power capacity at 100 % load: 13,20 kW power capacity at 40 % load: 22,00 kW torque milling spindle: 60 / 100 Nm tool magazin:: no. of workpieces in the magazine: 46 Stück tool length - max.: 350 / 200 mm tool diameter: 80 mm wotkpiece diameter with 2 vacant positions: 120 mm weight of tools max.: 6 / 10 kg slide II:: X2 / Z2 slide travel X-axis: 180 mm Z- Travel: 1.050 ...

turning diameter: 400 mm turning length: 549 mm control: HEIDENHAIN Eltropilot swing over bed: 570 mm travel -x axis: 220 mm travel -z axis: 635 mm main spindle bore: 79 mm main spindle speed: 25 - 5000 U/min main spindle drive: 21 kW max. torque on the spindle: max. 240 Nm : 120 mm c-axis, speed: 100 U/min C-axis: Haltemoment 200 Nm C-axis resolution: < 0,04 ° sub spindle bore: 56 mm sub spindle speed: 25 - 5000 U/min sub spindle drive: 9 kW max. torque on the spindle: max. 72 Nm : 90 mm c-axis, speed: 100 U/min C-axis: Haltemoment 150 Nm C-axis resolution: < 0,04 ° feed power X/Z axis: 3,5 / 7 Nm rapid traverse X-axis: 20 m/min rapid traverse Z-axis: 24 m/min tool turret: 1 x 12 Stationen number of driven tool stations: 12 speed of driven tools: 4.000 U/min total power requirement: 44 kVA weight of the machine ca.: 5,7 t dimensions of machine L x W x H: 3,65 x 2,03 x 2,1 m Accessorie ...

turning diameter: 246 mm turning length: 445 mm control: Fanuc 32 total power requirement: kW weight of the machine ca.: 4250 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 320 mm turning length: . mm control: Siemens type: . CCUO turning diameter over slide rest: . mm cross movement: . mm spindle passage: . mm turning speeds: . U/min transmission ratio: . quill stroke: . mm rapid traverse: . m/min main drive motor: . kW 3-jaw-chuck diameter: . mm total power requirement: . kW weight of the machine ca.: . t dimensions of the machine ca.: . m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appoin ...

turning diameter: . mm turning length: . mm control: . type: . CCUO turning diameter over slide rest: . mm cross movement: . mm spindle passage: . mm turning speeds: . U/min transmission ratio: . quill stroke: . mm rapid traverse: . m/min main drive motor: . kW 3-jaw-chuck diameter: . mm total power requirement: . kW weight of the machine ca.: . t dimensions of the machine ca.: . m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment.  ...

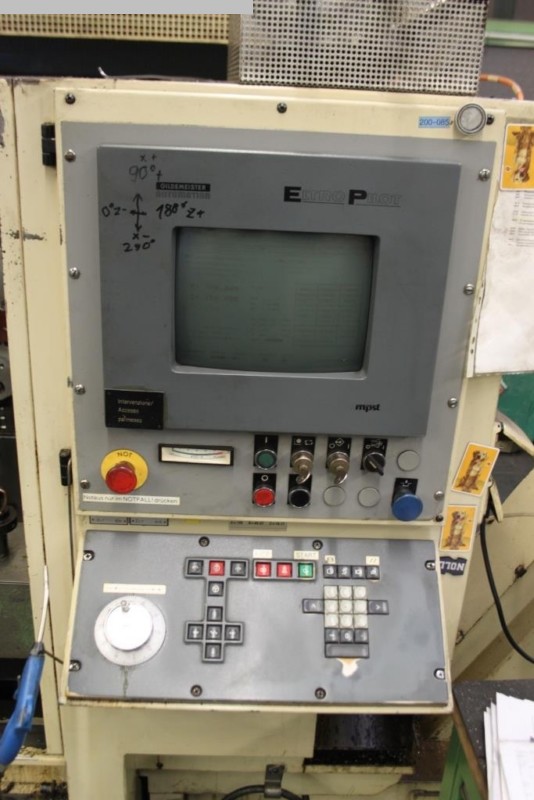

CNC Control, Numeric Control, from GILDEMEISTER GDM 65/2AGILDEMEISTER Type Eltropilot EP20 GD-2ABead 1989Order: 150 299Ser. No.: 0.854.183Power supply: 220 VAC 50 HzRack with 20 module spaces - 11 built-in modulesDimensions W x H x D 480x 260 x 220 mmWeight approx. 7 kgThe control comes from a lathe Gildemeister GDM 42/2A. Further components from the Gildemeister can be found under stock numbers: 60343, 60346, 60347; used

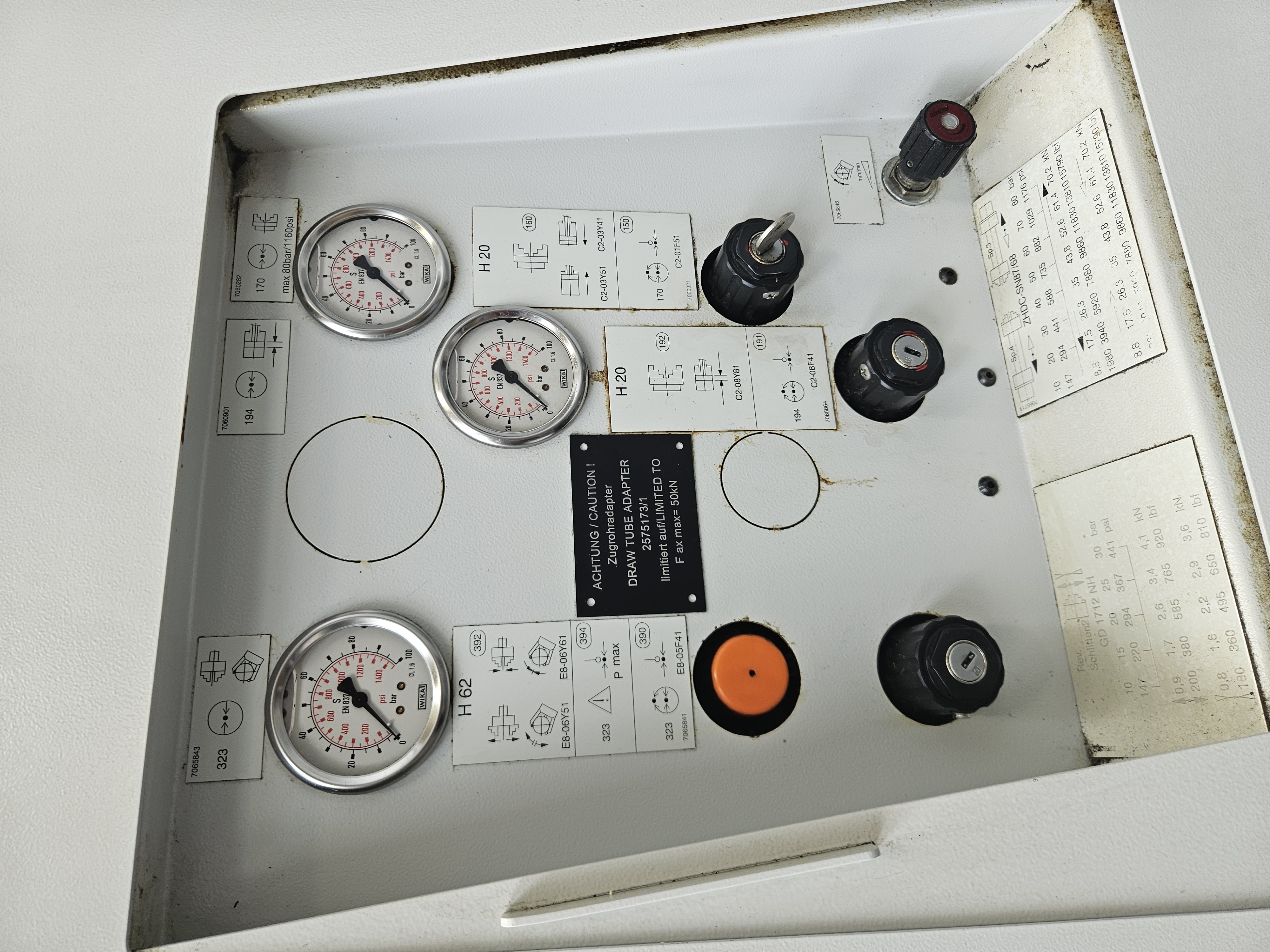

DMG GMX 300 linear year 2008. GMX 300 LINEAR with turning length 1585 mm (tailstock 1500mm) control: Siemens 840D Powerline Hours in picture The DMG GMX 300 Linear is a high-performance machine tool designed for complex turning and milling tasks, often used in industries such as aerospace, automotive, and precision engineering. Here are the key features and specifications for a 2008 model: Key Features: - Type: The GMX 300 Linear is a turn-mill machine, which combines both turning and milling operations in one setup, improving efficiency and reducing setup times. - Linear Motors: Equipped with linear motors for high-speed movements, which provide increased precision, dynamic performance, and reduced wear compared to traditional ball screw systems. - Axes: It usually offers multiple axes (up to 9), enabling simultaneous multi-axis machining for producing complex parts in a single se ...

DMG GMX 300 linear year 2008. GMX 300 LINEAR with turning length 1585 mm (tailstock 1500mm) control: Siemens 840D Powerline Hours in picture The DMG GMX 300 Linear is a high-performance machine tool designed for complex turning and milling tasks, often used in industries such as aerospace, automotive, and precision engineering. Here are the key features and specifications for a 2008 model: Key Features: - Type: The GMX 300 Linear is a turn-mill machine, which combines both turning and milling operations in one setup, improving efficiency and reducing setup times. - Linear Motors: Equipped with linear motors for high-speed movements, which provide increased precision, dynamic performance, and reduced wear compared to traditional ball screw systems. - Axes: It usually offers multiple axes (up to 9), enabling simultaneous multi-axis machining for producing complex parts in a single se ...

Gildemeister sprint 208 + IEMCA Boss 338 HD 2016 Gildemeister Sprint 20/8 CNC Lathe – High-Precision Turning Machine Looking for a high-performance CNC lathe for precision machining? This 2016 Gildemeister Sprint 20/8 is a versatile, reliable, and efficient turning machine that’s perfect for complex part manufacturing. --------------------------------------------------------------- Machine Details: - Manufacturer: Gildemeister (DMG Mori) - Model: Sprint 20/8 - Year of Manufacture: 2016 - Control System: Fanuc 32i-B CNC - Type: Sliding Headstock Automatic Lathe - Condition: Excellent (well-maintained and regularly serviced) --------------------------------------------------------------- Specifications: - Max Bar Diameter: 20 mm - Max Turning Length: 200 mm - Number of Axes: 8 - Main Spindle Speed: Up to 10,000 RPM - Sub-Spindle Speed: Up to 10,000 RPM - Tool Capacity: - 22 Too ...

This Gildemeister Sprint 20-8 was manufactured in 2010. It features a cooling system with a 600l capacity and 50µm filter, alongside a high-pressure pump option of 8 or 20 bar. The machine includes a Bristol B270/E oil mist separator and an IEMCA Boss 332E bar loader for 3m bars. With a chip discharge height of 1,250mm, its designed for efficient operation. Contact us for more information about this machine.

CONTROLS   CNC controls FANUC 160 I BASIC FUNCTIONS   number of spindles: 2   number of c-axes: 2 WORKING RANGE TURNING   turning diameter (max): 42 mm   bar diameter (max): 42 mm MAIN SPINDLE   spindle revolutions (max): 6500 /min COUNTER SPINDLE   spindle revolutions (max): 6500 /min X/Z SLIDE   X-axis travel: 65 mm   Y-axis travel: 350 mm   rapid traverse Z: 30000 mm/min   rapid traverse X: 30000 mm/min   rapid traverse Y: 30000 mm/min X/Z SLIDE   Z-axis travel: 320 mm   X-axis travel: 265 mm   Y-axis travel: 326 mm   rapid traverse Y: 30000 mm/min ELECTRICAL SPECIFICATIONS   mains power supply: 54 kVA   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 4900 mm   space requirements -front/back-: 1630 mm   total height: 1920 mm   total weight approx.: 4400 kg ATTACHMENTS (TURNING)   b ...
