5 LOROCH máquina utilizada para venda

Suitable for unmanned grinding or re-serration and chamfering of HSS and segment sawblades as well as solid carbide saws with ceramic saws and for deep grinding with CBN or diamond grinding wheels., Accessories:, Total enclosure including 400 L coolant system with tank and fine filter,, Device for automatic chamfering of regularly spaced saw blades,, Device for automatic grinding of chip breaker grooves,, Program for standard curved and pointed teeth,, Special program for grinding saws with variable tooth pitch,, CAD program for creating 250 custom tooth shapes,, Automatic saw blade diameter adjustment,, Automatic fire extinguishing system including explosion vent and pressure switch,, Laser measuring system for automatic measurement of saw blade diameter,, Automatic central lubrication,, Oil drip tray,, 2 saw blade holders,, 2 centering rings,, Machine light,, Electrostatic mist extract ...

Suitable for automatically grinding chip breaker grooves in HSS, segmented and TCT circular saws. Accessories: Control system for automatic offset of grinding spindle,, coolant system,, stepless adjustable working rate,, machine light., 1 sawblade mount., Circular saw blade diameter: 165 - 630 mm, Tooth pitch: 3 - 50 mm, Saw blade thickness: 2 - 6 mm, Working speed: continuously adjustable from 24 - 50 z/min., Grinding wheel diameter: 25 and 30 mm, Grinding wheel width: 0.3/0.4 and 0.5 mm, Connected load approx.: 0.4 kW (400 V / 50 Hz), Weight approx.: 210 kg, Dimensions W x D x H approx.: 1020 x 900 x 1620 mm, colour: light grey RAL 7047

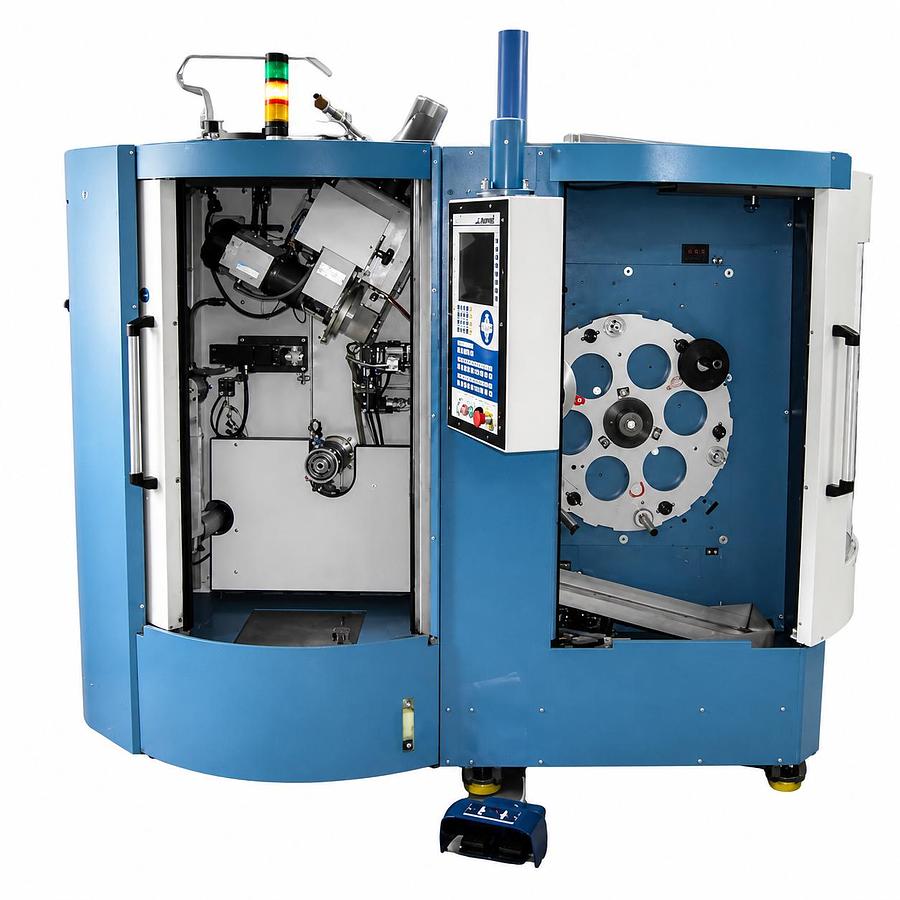

Suitable for automatic grinding or re-serration and chamfering of HSS and segment saw blades as well as solid carbide saws with ceramic grinding wheels and deep grinding with CBN or diamond grinding wheels., Accessories:, Total enclosure,, Sawblade magazine with 3 saw blade stacks each with a stack height of 250 mm (for approx. 35 saw blades each) #9007511,, Device for automatic chamfering of sawblades from Ø 145 mm,, Automatic threading of the grinding wheel,, Automatic fire extinguishing system,, Automatic central lubrication,, Coolant system 400 L with coolant tank with filter system,, Machine lamp,, Oil collecting tray,, 3 sawblade mandrels (loader)., Saw diameter: 40-710mm, Tooth pitch: 1 - 55mm, Number of teeth: 2 - 998, Saw blade thickness: max. 8 mm, Grinding wheel diameter: 200x32mm, Connected load: 10kW (400V / 50Hz), mass: about 3200 kg, Dimensions: L x W x H = 1198 x 1750 x  ...

Máquina de chamfering de lâmina de serra Fabricante: Loroch Tipo: AK Ano de construção: 1991 Para chamfering HSS e serras circulares de segmento

Tipo WLG Feito na Alemanha em 1981 y.
