86 MAHO máquina utilizada para venda

MAHO MH-700 com controlo numérico X, Y Tamanho da mesa: 800x300 Área de trabalho: X-450,Y-250,Z-300 Fita adesiva: MK3 Gama de alimentação: 7-250mm/min Cabeça vertical girando 90 graus Potência: 3KW Dimensões: 1300x1200x1700

x-travel: 1250 mm y-travel: 1000 mm z-travel: 1000 mm taper ISO: 50 Table dimensions: 650 x 1000 mm spindle speeds: 32-1600 voltage: 380 V Control: Philips total power requirement: 7,5 kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 500 mm y-travel: 350 mm z-travel: 375 mm digital readout: AKTIV - Digitalanzeige turning speed range: 63 - 4000 U/min spindle taper ISO: 40 table surface area: 800 360 mm total power requirement: 3 kW weight of the machine ca.: 1,5 t dimensions of the machine ca.: 2 2 2 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 700 mm y-travel: 350 mm z-travel: 450 mm table surface area: 940 x 510 mm spindle taper: SK 40 spindle turning speed range: 32 - 1600 U/min feed - longitudinal/cross: 8 - 400 mm/min feeds vertical: 4 - 200 mm/min total power requirement: 4,5 kW weight of the machine ca.: t dimensions of machine L x W x H: 1,85 x 1,62 x 1,83 m Accessories: vertical head with quill retraction, univ. table, counter bearing, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 400 mm y-travel: 400 mm z-travel: 300 mm rapid traverse: 1,2 m/min feed range: 5 - 500 mm/min creep feed: 1:100 tool taper: ISO 40 stroke: v60 h70 mm table - universal: ca. 620 x 320 mm table vertical adjustable: 350 mm weight of the machine ca.: 1200 kg dimensions: mm Machine was used in a public facility and is in good condition. Machine can be viewed under power by prior appointment The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 500 mm y-travel: 350 mm z-travel: 375 mm turning speed range: 63 - 4000 U/min spindle taper ISO: 40 table surface area: 800 360 mm total power requirement: 3 kW weight of the machine ca.: 1,2 t dimensions of the machine ca.: 2 2 2 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 400 mm y-travel: 210 mm z-travel: 340 mm table-size: 600 x 400 mm spindle turning speed range: 40-2000 U/min spindle taper ISO: 40 quill stroke: 60 mm range L-W-H: 1200x2000x1700 mm digital readout: PHILIPS weight of the machine ca.: 1.4 t Active Digital read out Misc.accessories www.marcels-maschinen.ch The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 400 mm y-travel: 375 mm z-travel: 250 mm table-size: 205 x 800 mm T-slots: 4 x 45 14 H7 speeds: 50 - 3150 U/min tool taper: 40 ISO quill stroke: 50,0 mm Feeds X + Z Axis: 5.0 - 1000 mm/min Feeds Y Axis: 5.0 - 670 mm/min rapid traverse: 2.4 / 1.6 m/min control: Heidenhain total power requirement: 5.1 kW weight: 950 kg range L-W-H: 1860 x 1790 x 1750 mm Machine from a vocational training center In good condition () Equipment: - MAHO universal tool milling/drilling machine - HEIDENHAIN TNC 135 positioning/path control 3-axis manual data input control Programmable by the machine operator Convenient and easy operation - Electric motor-driven feed rates in all axes (X/Z/Y) X and Z axis: 5.0 - 1000 mm/min with rapid traverse of 2.4 m/min Y axis: 5.0 - 670 mm/min with rapid traverse of 1.6 m/min - Tiltable milling head to both sides - Tiltable T-slot universal table - Vertical c ...

x-travel: 300 mm y-travel: 350 mm z-travel: 350 mm taper in main spindle: ISO 40 table surface area: 625 x 380 mm T-slots: 8 Stk. turning speeds: 40.0 - 2.000 U/min transmission ratio: 18 Stk. feed stepless: 0 - 500 mm/min distance spindle nose and table: min 50 / max 400 mm quill stroke: 60.0 mm voltage: 400 V total power requirement: 5.1 kW weight of the machine ca.: 800 kg range L-W-H: 1400 x 1100 x 1700 mm from a training workshop (vocational school) Well maintained () Features: - Robust electric motor universal milling machine - HEIDENHAIN 3-axis digital display - Rotatable universal milling head (right/left = 90°) - Manual milling spindle feed, with lock - Stable T-slot angle/clamping table Swiveling +/- 30 degrees - Axis feed with rapid traverse in X+Z+Y axis Rapid traverse continuously adjustable - Swiveling machine light - Control cabinet, installed on the left - Coolant de ...

x-travel: 400 mm y-travel: 375 mm z-travel: 250 mm table-size: 600 x 300 mm spindle taper ISO: 40 quill stroke: 50 mm spindle turning speed range: 50-400 , 400 - 3150 U/min CNC-control: TNC 135 voltage: 380 V / 50 Hz feeds: X+Z = 5 -1000 mm/min rapid traverse: X+Z = 2,4 m/min feeds: Y = 5 -670 mm/min rapid traverse feeds: Y = 1,6 m/min measuring system resolution capability: 0,005 mm total power requirement: 3,7 kW weight of the machine ca.: 0,9 t dimensions of the machine ca.: 1,9 x 1,8 x 1,70 m • HEIDENHAIN TNC 135 control, The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

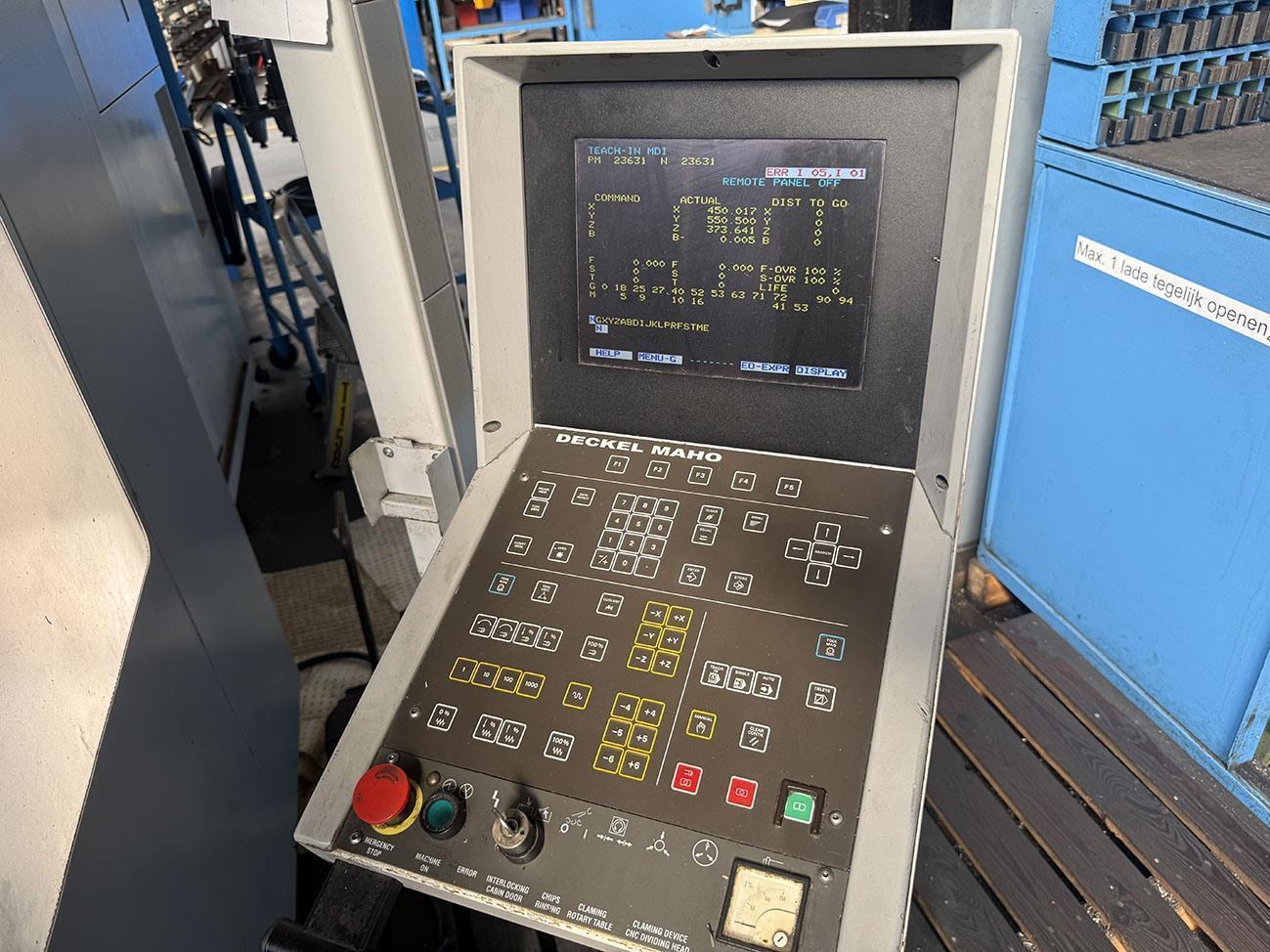

Model: MH 1200 S Manufacturer: MAHO Type of machine : Milling machine Condition : Used Find more here - / Contact us at -

The Maho MH400 is a CNC (Computer Numerical Control) milling machine designed for precision machining of metal and other materials. 1. Machine dimensions: The Maho MH400 has a compact design with dimensions of 3.5m x 2.3m x 2.5m (length x width x height) and a weight of around 4,000 kg. 2. Work envelope: The machine has a work envelope of 400mm x 375mm x 250mm (X,Y,Z) that allows for the machining of a variety of complex parts. 3. Spindle speed: The machine has a maximum spindle speed of 4,000 RPM and can deliver up to 3.0 kW of power. 4. Control system: The Maho MH400 is equipped with a Heidenhain TNC 124 CNC control system that allows for precise control of the machining process. It has a user-friendly interface that allows for easy programming and operation. 5. Tool magazine: The machine has a tool magazine that can store up to 16 tools. It can automatically change tools during t ...

Fresadora de ferramentas Maho, 700C Controlo: Maho 432, Ano de construção 1989, Montagem SK40, Processo: X-700, Y-450, Z-500, pena A máquina já não pode ser visualizada sob energia. Perdeu parâmetros! Também venderia peças sobressalentes, mesa, cabeça de fresagem, acionamentos, controlo, ...

Fresadora de ferramentas Maho, 700C Controlo: Maho 432, Ano de construção 1989, Montagem SK40, Processo: X-700, Y-450, Z-500, pena A máquina já não pode ser visualizada sob energia. Perdeu parâmetros! Também venderia peças sobressalentes, mesa, cabeça de fresagem, acionamentos, controlo, ...

MAHO MH 1000 C Fresadora Vertical CNC Nº de série 11536 Controlo CNC Philips 432 Dimensões da mesa 800 x 1.000 mm Curso cruzado (Y) 600 mm Curso longitudinal (X) 1,000 mm Curso vertical (Z) 800 mm Fuso afunilado ISO 50 P.D.B. Velocidade 20-4000 rpm Alimentação automática 1-4000 Rápido (mm) 10000 Potência 22 Peso: 7,200 kg Com o dispositivo de cópia montado. Muitos acessórios e ferramentas

Máquina de moagem MAHO MH 700 C CNC- 5 eixo CNC- Phillips 432 X/Y/Z- 700/450/500 mm Eixo B CNC Tabela universal 820x480 mm 5º eixo - Cabeça divisória CNC/NC Adaptador de fuso ISO 40 Golpe de pena de eixo 100 mm Tabela universal: -giro do eixo Horizontal X/Z 30 graus -giro do eixo Y vertical 360 graus Fuso acelera infinitamente variável 20-3150 rpm

curso x: 500 mm y-curso: 350 mm z-curso: 380 mm tamanho da mesa: 790x360 mm faixa de velocidade de giro do eixo: 63-4000 U/min cone do eixo ISO: 40 quill curso: 50 mm gama L-W-H: 1600x2000x1850 mm leitura digital: PHILIPS peso da máquina ca.: 1,4 t Ative Digital leitura Diversos acessórios

Novos foles provavelmente Maho 700 versão antiga

Key data: 1000 mm, 560 mm, 800 mm

N.º : 3714 Tipo: MH 1000 C Produtor: MAHO Criado: 1991 Parâmetros: Sistema de controlo: Philips CNC 432 Horário: 62345 h Comprimento da mesa de trabalho: 1150 mm Largura da mesa de trabalho: 800 mm Revista de ferramentas: 24 peças Velocidade mínima do eixo vertical: 20 1/min Velocidade máxima do eixo vertical: 3400 1/min Eixo X do comprimento da alimentação mecânica: 1000 mm Eixo de comprimento de alimentação mecânica Y: 560 mm Eixo de comprimento de alimentação mecânica Z: 800 mm Cone: ISO 50 Peso máximo da ferramenta: 800 kg Peso da máquina: 7,3 t Equipamento: 3 porta-ferramentas

MAHO MH 500 M mantido no topo Disponível imediatamente a partir do local sem acessórios mostrados X-travel 500 mm Y-travel 380 mm Z-travel 350 mm Fuso principal: Gama de velocidades - eixo principal 63 - 4.000 rpm/-1 Potência de transmissão - fuso principal 3 kW Estágios de engrenagem 2 Suporte para ferramentas SK 40 Curso da pena 50 mm Podes rodá-lo. H/V Mesa de trabalho: Área de fixação da mesa 800 x 360 mm Slots T 14H7 - 5 / 63 Carga máxima da mesa 200 kg Alimentações: Velocidade de alimentação 1 - 2.000 mm/min Travessia rápida (X / Y / Z ) 4 / 2 / 4 m/min Necessidade total de potência: 5 kW Peso aproximado da máquina. 1,6 t

Clamping plate with T-slots, plate field, welding table, welding table, pallet changer -comes from a CNC machining center MAHO type MC 600 -Width: 500 mm -Length: 500 mm -Height: 180 mm -with supporting ribs -Groove width: 14 mm -Number: 1 table available Price: per piece -Weight: 200 kg/piece

Clamping plate with T-slots, plate field, welding table, welding table, pallet changer -comes from a CNC machining center MAHO type MCV 600 -Width: 500 mm -Length: 500 mm -with supporting ribs -with Span Index -Weight: 115 kg

CNC control, control panel, control panel, control unit, card slot, control cards, MC3 control, plug-in cards, circuit boards, relay boards -Manufacturer: MAHO, relay board from CNC milling machine MH 800C -Type: 28A2 -IDENT NO.: 27.71 232 -Dimensions: 400/280/H75 mm -Weight: 1.5 kg

CNC control, control panel, control panel, control unit, card slot, control cards, MC3 control, plug-in cards, circuit boards, relay boards -Manufacturer: MAHO, relay board from CNC milling machine MH 800C -Type: 28A1 -IDENT NO.: 27.71 231 -Dimensions: 400/280/H75 mm -Weight: 1.6 kg

Tool changer chain, chain magazine, tool changing system, tool magazine -Manufacturer: MAHO, Tool changer from CNC machining center MAHO MH 800C -for: max. 24 shots -Recording: SK -Dimensions: 1200/410/H480 mm -Town weight: 106 kg

Tool changer chain, chain magazine, tool changing system, tool magazine -comes from a MAHO CNC machining center, type: MC 600 -for: max. 48 recordings -Recording: SK40 -Dimensions: 1630/H450 mm -Empty weight: 325 kg

Clamping plate with T-slots, plate field, welding table, welding table, pallet changer -comes: from a CNC machining center -Width: 440 mm -Length: 400 mm -with: support ribs -with: instep index -Number: 2x plates available -Price: per piece -Weight: 74 kg
