12 OKAMOTO máquina utilizada para venda

grinding length: 600 mm grinding width: max. 320 mm workpiece height: max. 500 mm magnetic clamping plate: 300 x 605 mm horiz. table movement: longitudinal: man. max. 750 mm horizontal table movement: cross: max 340 mm sanding disc diameter: 355 mm table load: max. 420 kg grinding wheel width: 50 mm bore: 127 mm spindle turning speed range: 1500 U/min rapid traverse vertical: 400 mm/min Control: weight of the machine ca.: 2500 kg dimensions of the machine ca.: ca. 2800x2000x1800 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

working area: 225 mm table-size: L:550 mm table-size: B:200 mm sanding disc diameter: 200mm mm magnetic plate size: 500 mm weight of the machine ca.: 1,8 t dimensions of the machine ca.: 2000x1600x2100 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

voltage: 380 V connected load: 7,5 kVA dimensions: 2725 x 1930 x 1773 mm weight of the machine ca.: 2500 kg --> Technical data Main data: --> Table surface: 605 x 300 mm --> Table longitudinal movement max. (manual): 750 mm --> Table transverse movement: 340 mm --> Grinding height between table/new grinding wheel min/max: 22.5 / 322.5 mm --> Standard size of magnetic clamping plate: 600 x 300 mm --> Workpiece weight incl. magnet: 420 kg --> X-axis / longitudinal movement: --> T-slots (number x width): 3 x 17 mm --> Table feed, hydraulic: 0.3 - 25 m/min --> Travel per handwheel revolution: 47 mm --> Y-axis / height movement: --> Automatic vertical feed - coarse in 12 steps: 0.001 - 0.03 mm --> Automatic vertical feed - fine in 8 steps: 0.001 - 0.01 mm --> Distance per handwheel revolution (x1/x10): 0.1 / 1.0 mm --> Graduation on handwheel (x1/x10): 0.001 / 0.1 mm --> Trigger strokes: 0 - ...

A máquina é ideal para fabrico de ferramentas e moldes, construção de equipamentos e trabalhos de retificação precisa em engenharia mecânica. Okamoto destaca-se mundialmente pela maior precisão, fiabilidade e excelentes qualidades de superfície. Dados técnicos Fabricante: Okamoto Tipo: ACC-84DX Tamanho da mesa: 850 × 400 mm Placa de fixação magnética: 800 × 400 mm Curso longitudinal (X): 950 mm Travessia transversal (Y): 440 mm Distância da tabela até à roda de remoagem: aprox. 47,5 – 547,5 mm Peso máximo da peça: 700 kg Tamanho da roda de moagem: 355 × 38 × 127 mm Velocidade da roda de moagem: 1.500 / 1.800 min⁻¹ Motor do fuso: 3,7 / 4,0 kW Peso da máquina: aprox. 4.000 kg Instalações Placa de fixação magnética Ciclo automático de moagem Acionamento hidráulico de mesa Cómoda integrada Dispositivo de refrigeração com filtro de co ...

Grinding diameter: 6mm-150mm, max. grinding stroke: 125mm, swing diameter over table/with cover: 600mm/260mm, travel X/Z: 500mm/170mm, rapid traverse: 10m/min, feed: 10m/min, resolution X/Z: 0.0001mm, workpiece spindle speed: 850rpm. Machine dimensions X/Y/Z: approx. 2550mm/3100mm/1800mm, weight: approx. 2600kg. Documentation available. An on-site inspection is possible. The machine is located in China.

Comprimento de moagem 600 mm Largura de moagem 320 mm Altura máxima da peça 500 mm Movimento longitudinal da mesa 750 mm Movimento transversal da mesa 340 m Diâmetro da roda de moagem 350 mm Largura da roda de moagem 40 mm Velocidades do eixo 1500 rpm Travessia vertical rápida 400 mm/min Potência 3,7 kw Entrega automática Disco magnético Configuração do líquido de arrefecimento Peso 2500 kg

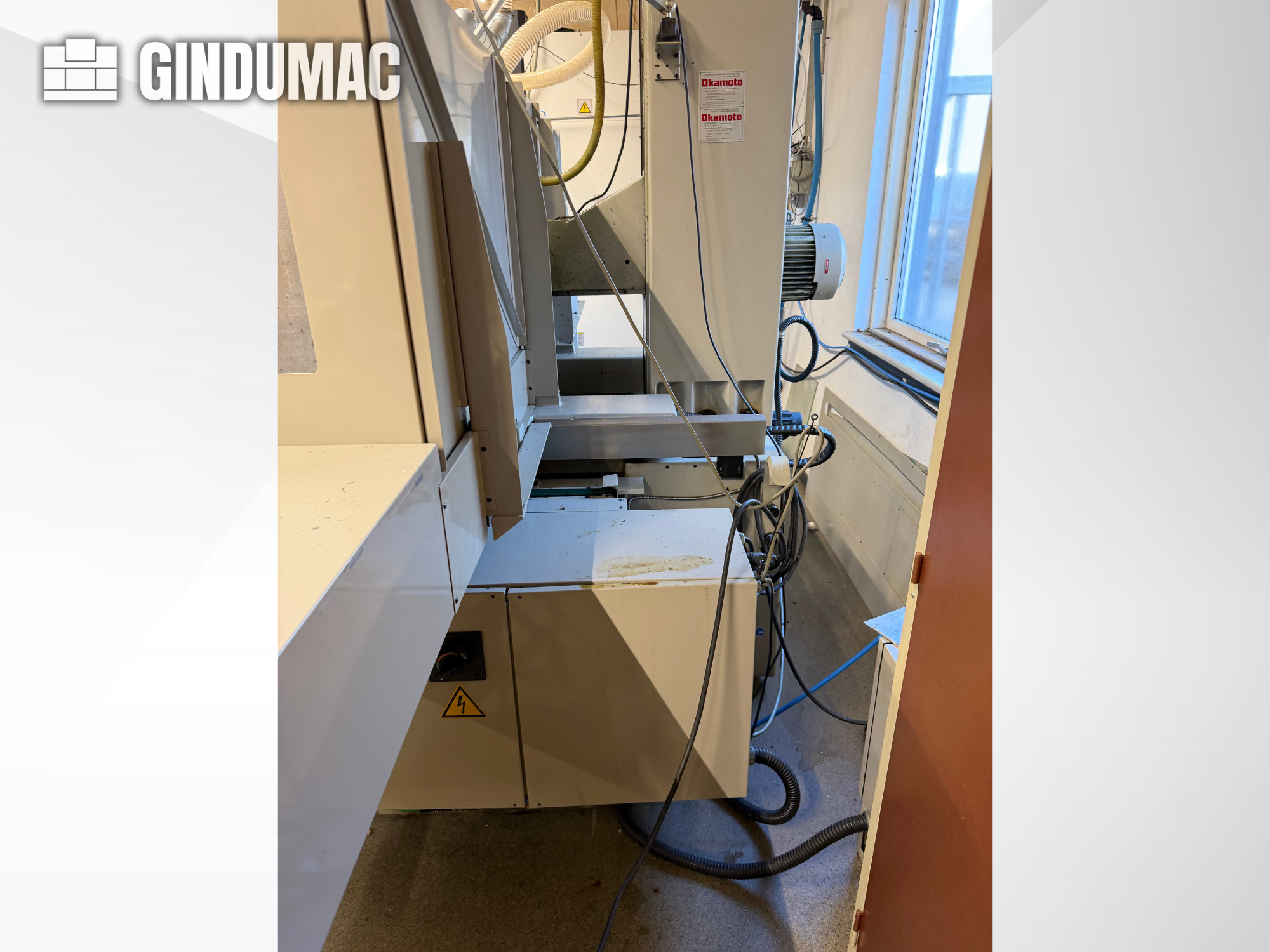

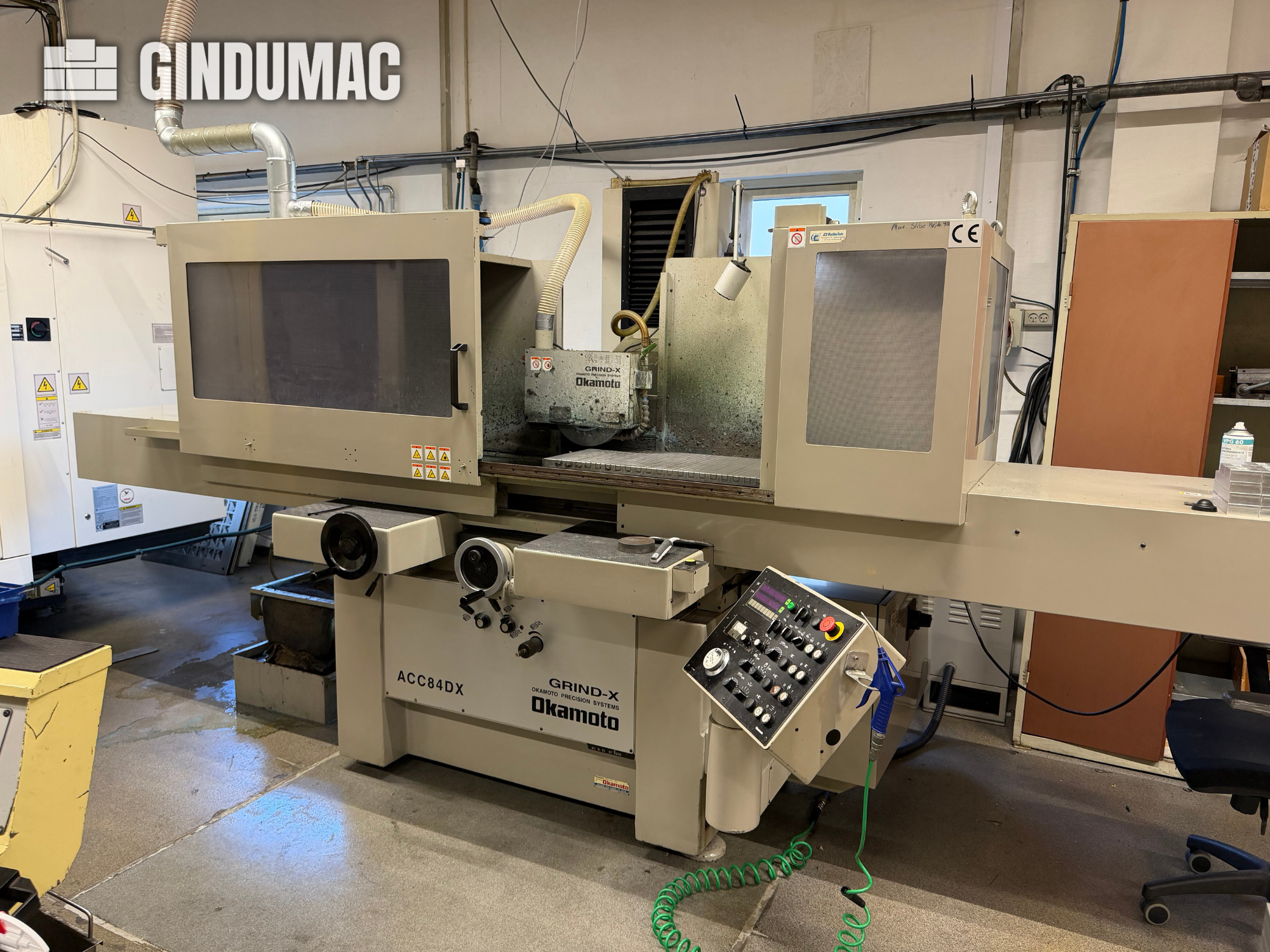

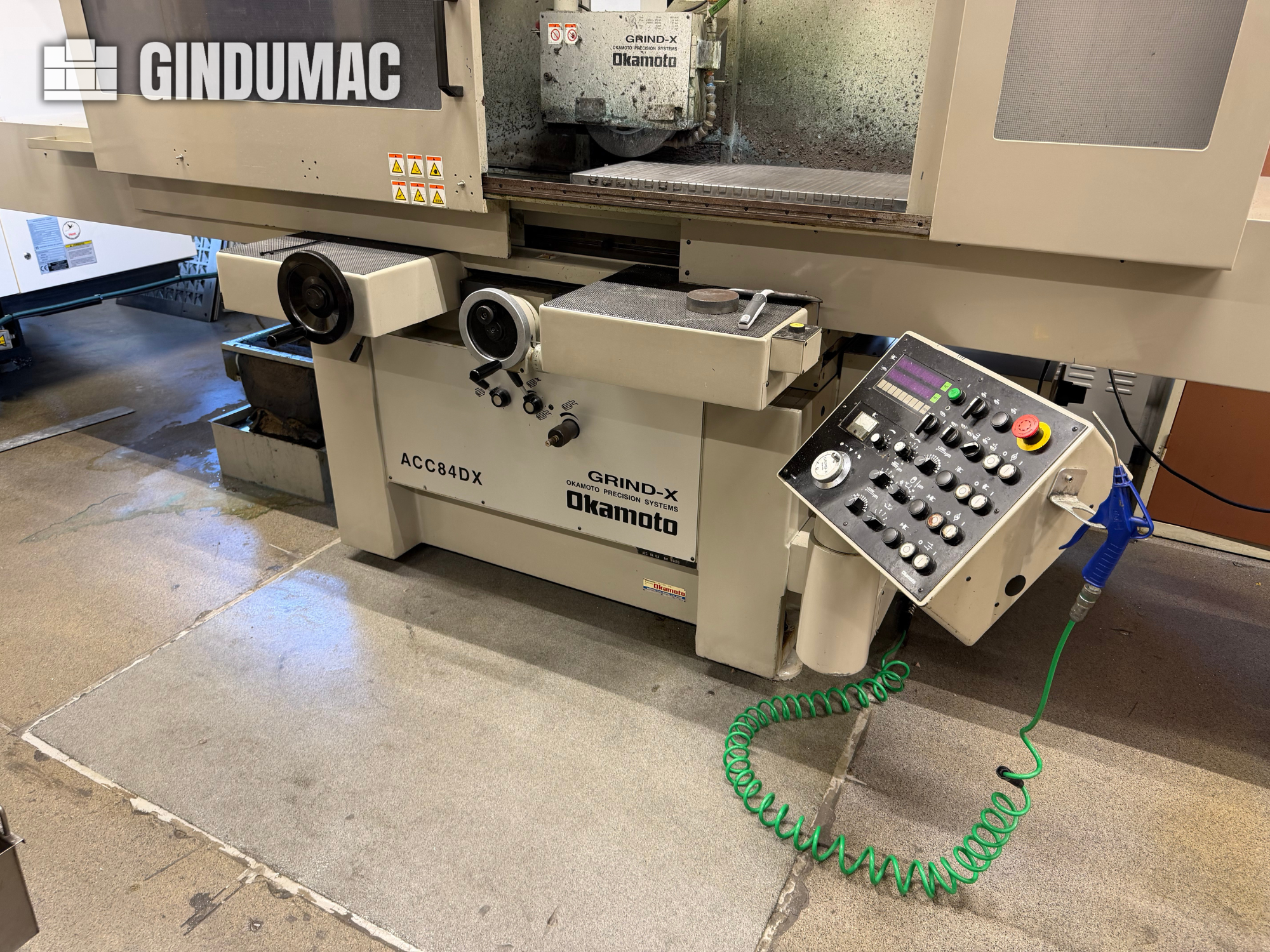

This 3-axis OKAMOTO ACC 84DX surface grinding machine was manufactured in 2013. It features a table size of 800 x 400 mm and a stone diameter of ø355 mm. With its robust design, this machine is ideal for precision grinding applications. If you are looking to get high-quality grinding capabilities, consider the OKAMOTO ACC 84DX machine we have for sale. Contact us for further details.

Cylindrical grinding machine manufactured in 2015. This OKAMOTO OGM 250 UNC III features a maximum machining diameter of 200 mm and a distance between centres of 500 mm. It includes an X-axis travel of 215 mm and a Z-axis travel of 762 mm, providing efficient grinding capabilities. If you are looking to get high-quality grinding capabilities, consider the OKAMOTO OGM 250 UNC III machine we have for sale. Contact us for further details.

This 3-axis OKAMOTO ACC64 DX was manufactured in 2018. It features a table size of 650 × 440 mm and a maximum workpiece weight capacity of 420 kg. The grinding wheel size is Ø305 × 38 × Ø127 mm, with a speed of 1,800 rpm. If you are looking to get high-quality grinding capabilities, consider the OKAMOTO ACC64 DX surface grinding machine we have for sale. Contact us for further details.

This 3-axis OKAMOTO ACC84 DX surface grinding machine was manufactured in 2018. It features a table size of 850 × 400 mm and a maximum workpiece weight of 700 kg. The grinding wheel dimensions are Ø355 × 38 × Ø127 mm, with a grinding wheel speed of 1,800 rpm. If you are looking to get high-quality grinding capabilities, consider the OKAMOTO ACC84 DX machine we have for sale. Contact us for further details.

This 3s OKAMOTO ACC 450 DXA was manufactured in 2001. It features a grindable surface of 450 × 150 mm and a longitudinal travel of 530 mm, making it suitable for various grinding applications. With a maximum load capacity of 120 kg on the table, this machine offers robust performance. Consider the opportunity to buy this OKAMOTO ACC 450 DXA surface grinding machine. Contact us for further details.

MAX DIAM 400, MAX MODUL 8
