103 PEDDINGHAUS maquina usada para la venta

Este cubo tiene 3 superficies de sujeción magnéticas. Dimensiones de cada área: Longitud: 2.000 mm Ancho: 2.000 mm Altura: 2.000 mm

La máquina hidráulica de punzonador PEDDINGHAUS Hydraulic 800 fue fabricada en Alemania por Paul Ferdinand Peddinghaus GmbH. Esta máquina altamente fiable se utiliza para el mecanizado de precisión de barras angulares y planas. Permite perforar agujeros cuadrados y redondos en piezas de acero estructural con un grosor máximo de 25 mm. El procesamiento se realiza con una alta fuerza de presión de hasta 80 toneladas con la ayuda de punzones. El diseño perfectamente equilibrado de la máquina garantiza una excelente estabilidad incluso durante los desafíos más intensos. Todo esto convierte al PEDDINGHAUS Hydraulic 800 en una excelente incorporación a plantas industriales y talleres de cerrajería. El peso total de la máquina es de aproximadamente 1500 kg. Datos técnicos de la máquina de punzonar PEDDINGHAUS Hydraulic 800 Datos generales - Fuerza máxima de presión: 80 t ( ...

plate thickness:4 mm blade length:180 mm weight of the machine ca.:21 kg dimensions of the machine ca.:400 x 100 x 1500 mm

working pressure: 300 bar total power requirement: / kW weight of the machine ca.: 1 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

pressure: 100 t punching cross-cut in cmm: Ø 31 in 25 mm stroke: 10 - 50 mm column arm: 510 mm work height max.: 1100 mm no. of strokes: 14 - 45 Hub/min punch diameter: max. Ø 90.0 mm oil volume: 103 l total power requirement: 7.5 kW weight of the machine ca.: 2400 kg. range L-W-H: 1750 x 1020 x 2050 mm maintained condition () New price without accessories approx. 25.000 euros Special price on request Furnishing: - heavy / robust electro-hydraulic hole punch, with large throat - Punching station with material/sheet metal scraper - stepless stroke adjustment .. 10-50 mm - freely movable foot switch including protective cover - hydraulic low pressure finder for foot switch operation - Crane hanging eye for easy transport - side storage area - Hydraulic unit, integrated - Three-phase motor, 400 volts, 50 Hz - original instruction manual The data for this ad was created with ModulMWS ...

round bar steel: 50 mm square edge steel: 45 mm L-beam: 150 x 14 mm total power requirement: 4 kW weight of the machine ca.: 3,5 t dimensions of the machine ca.: 2,3 x 1 x 2,1 m No. 3418 5-fold combined profile steel shears with flat steel shears PEDDINGHAUS 210 Super 16 pressure capacity 80 to Round steel 50 mm Square steel 45 mm angle steel 150 x 14 mm Punching up to 90 mm diameter 5.5 HP Space requirement 2.30 x 1.0 x 2.1 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

punching pressure: 28.0 t punching cross-cut in cmm: 31 in 7.0 mm ST throat: 250 mm dayligth: 223 mm no. of strokes: 10 - 30 Hub/min oil volume: 32.0 ltr. work height max.: 1033 mm total power requirement: 3.0 kW weight of the machine ca.: 553 kg dimensions of the machine ca.: 730 x 540 x 1530 m Furnishing: - Punch quick-change device up to Ø 31 mm - green series - installed: round punch no. 5 Ø 25.0 mm and round die no. 3 Ø 25.7 mm - Free: LED lighting in the punching area - Swiveling scraper (plates exchangeable) - Various material support tables are available separately - Brace - 2-step foot switch, with double press for grain search function - electrical controls - Stroke length and stroke position continuously adjustable - integrated hydraulic unit with oil filling - Performance specifications apply to a material strength of 450 N/mm² - Main connection cable and plug for 16 amp ...

: 5 weight: 5 t : . The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

round bar steel: 63 mm square edge steel: 55 mm flat steel: 100 x 25 mm : engine: 380 V, 6,3 kW weight: ca. 2.450 kg Please note: The machine is dismantled and ready for loading. It is not possible to show it under power or make a video. Our offer includes already the best pictures. So we don’t have and won’t send additional pictures. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

round bar steel: 45 mm square edge steel: 40 mm L-beam: 120 x 13 mm flat steel: 500 x 12 mm punching pressure: 60 t throat: 510 mm : 500 x 12 oder 400 x 16 mm punch diameter: 27 in 17 mm punch diameter: 39 in 12 mm oil volume: 80 l total power requirement: 7,5 kW weight of the machine ca.: 2,4 t dimensions of the machine ca.: 1,8 x 0,9 x 1,8 m Hydraulic machine with 5 stations so punching, notching, shearing flat iron, angle iron, solid material, punching with hand lever, profile steel side with foot switch. Punching discharge: 510 mm! All performance data refer to a material strength of 450 N / mm². Electric 380 volt The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

volt: 380 V weight: 1,4 t : The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

round bar steel: 34 mm square edge steel: 30 x 30 mm L-beam: 100 x 10 mm flat steel: 100 x 14...160 x 11 mm blade length: 175 mm T-beam: 100 x 10 mm notching: l + T material: 10 mm hole punhing press: pressure: 45 t throat: 305 mm total power requirement: 3 kW weight of the machine ca.: 1,2 t dimensions of the machine ca.: 1,4 x 0,8 x 1,5 m 5-fold combinated profile steel shear incl. flat steel shear profile steel shear bar steel shear notcher hole punch 2 foot switches contact limit stop various punching saddles The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

blade length: oben 211/unten 180 mm plate thickness: max. 6 mm round bar steel: max. 13 mm weight: ca. 19 kg Sturdy shears body of quenched and tempered steel. Moving blade guides free of play (with low friction losses), blades of special tool steel, specially hardened and ground. Lever arm with counterweight spring for protection in the event of accidents, all pivot pins adjustable, all models with steplessly adjustable clamping arm. With compound action. Cuts sheet metals and round steel bar. Colour: Red-brown The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

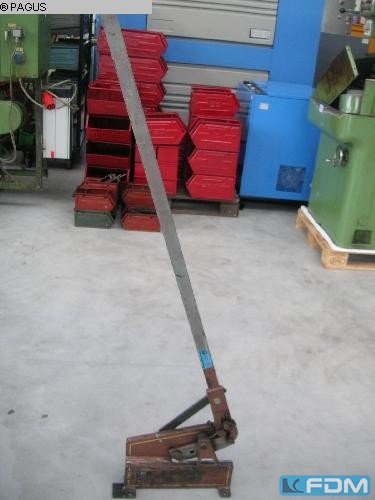

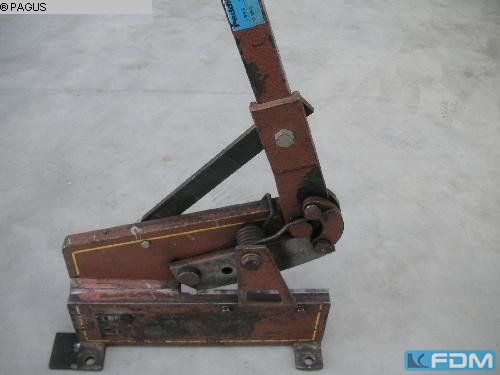

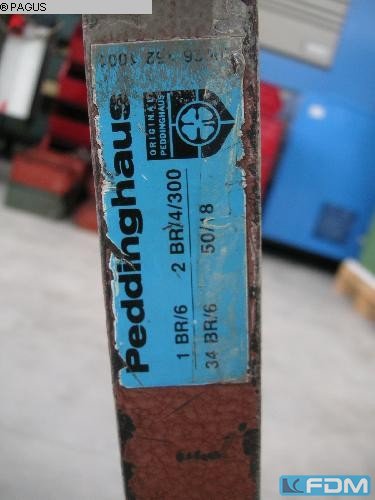

Cizallas de palanca manual Pagus 1 BR/6 Espesor de la hoja: 4 mm Longitud de la cuchilla: 180 mm Dimensiones: 400x100x1500 Año de construcción 1995

Fabricante: Peddinghaus Modelo: FDB 600 Tipo de máquina: Máquina perforadora y ardiente de acero plano Más información aquí - / Póngase en contacto con nosotros en -

Sierra en frío Peddinghaus 960 y línea de perforación de vigas de husillo Peddinghaus TDK 1000/3 Entrada y salida de 18M, Entrada y salida del sistema de arrastre 5M, Sistema de estampado duro, Sistema de operador de software Fagor 1 sierra, taladro y sistema de medición, nadie los compraría a menos que se vendan como una unidad 2 Sistema de alimentación y transferencia 3 Estampador duro Más información aquí - / Póngase en contacto con nosotros en -

Tijeras para reforzar acero o barras máx. 32mm

Ponscapaciteit: 80 ton Diameter x plaatdikte: 31 x 20 mm / diameter 60 x 10 mm / diameter 100 inch 6 mm Keeldiepte: 510 mm Maximale snijdikte in plaat: 500 x 20 mm / 400 x 19 mm Bladlengte: 510 mm Hoekstuk van 90° afgesneden: 150 x 150 x 12 mm Hoek van 45° afgesneden: 100 x 100 x 12 mm Rond op lengte gesneden: 50 + 25 mm Op maat gesneden vierkant: 50 + 30 mm Weight: 3 ton

Keeldiepte: 405 mm slag: 21 mm 55 slagen per minuut Punching pressure: 45 ton Max punching dia: Ø 27 in 13 mm / Ø 39 in 9 mm Power needed: 2,2 kW Length: 1300 mm Depth: 800 mm Height: 2050 mm Weight: 1000 kg

• Número de máquina: 4221875989007 • Fuerza de punzonado máxima: 800kN • Espesor del material máx.: 25 mm • Dispositivo de punzonado máx.: Ø 90 mm • Accesorios según fotos (se venden por separado bajo pedido)

Núm. Inv. : 8405 Tipo: Peddimax n.º 1 Productor: Peddinghaus Creado: 2019 Parámetros: Horario de funcionamiento: 150 h Resistencia: 140 t Presión: 300 bar Equipo: Aletas

Fuerza de punción: 500 kN Carrera: 32 mm Carrera ajustable: 10 - 32 mm Ritmo de ictus: 35/min Dispositivo de punzonamiento normal: 31 Ø en 12 mm con tabla de punzonado: 24 Ø en 16 mm con dispositivo especial de perforación: 58 Ø en 7, 65 Ø en 6, 90 Ø en 4 y 130 Ø en 3 mm Transmisión hidráulica: 380 V, 4 kW Peso: 1400 kg Requisitos de espacio: 1200 x 1100 x 1680 mm ¡La máquina solo tiene 303 horas de funcionamiento!

Oferta 26234 Datos técnicos: - Tijeras de chapa metálica y acero plano, longitud de cuchillo 200 mm corta acero plano de hasta 150 x 15 mm - o hasta 190 x 10 mm - Tijeras de barra de acero perfiladas Cortes - ángulo de acero hasta 100 x 10 mm - Acero redondo de hasta 32 mm - Acero cuadrado de hasta 30 mm - Dispositivo de muesca con muesca triangular - Perforador - fuerza de perforación 500 KN - Carrera de 10 a 28 mm - Proyección 155 mm - Punzones en acero de hasta 27 mm en 14 mm - o hasta 31 mm en 10 mm - Potencia de 400 V / 4 kW - con: - Pedal - E. parada de contacto - Varios punzones con troqueles - Espacio requerido aprox. Ala 650 x Ar, 1750 x D, 960 mm - Peso aprox. 850 kg

round bar steel: - mm square edge steel: - mm L-beam: - mm total power requirement: 7,5 kW weight of the machine ca.: 4,5 t dimensions of the machine ca.: 2,212,35 m div. punches and dies Foot switch Spare blade The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Cutting blades, replacement blades for guillotine shears, replacement cutting edges, cutting knives, shear blades, flat steel blades for profile steel shears, lever shears, sheet metal knives -Manufacturer: Peddinghaus, 3 cutting blades for profile steel shears 210/16 210 Super 16, unused -Zg. No.: 44085 510 00 Cutting length: 260 mm -Hole spacing: 140 mm / 2x M20 see photos -Submission/Price: complete -Dimensions: 280/18/H70 mm -Weight: 2.6 kg/pc.

Die holder, separating tool, punching tool, punch, punch die, punch stamp, gill forming tool, die holder -Stamping tool: die holder -Hole: Ø 45 mm -Bore: Ø 33 mm -Hole spacing: 180 x Ø20 mm -Dimensions: 240/85/H120 mm -Weight: 7.3 kg

Cutting blades, replacement blades for guillotine shears, replacement cutting edges, cutting knives, shear blades, flat steel blades for profile steel shears, lever shears, sheet metal knives -Manufacturer: Peddinghaus, 2 cutting blades for profile steel shears 210/16 -Cutting length: 229 mm -Hole spacing: 140 mm / M18 see photos -Submission/Price: complete -Dimensions: 260/18/H70 mm -Weight: 2.4 kg

Stop, depth stop, length stop for press brake, bending machine, guillotine shear..., electric stop for profile steel shear, contact length stop -Manufacturer: Peddinghaus, electric stop contact length stop for profile steel shears flat steel shears -Stop head, tiltable, swiveling -Hole: Ø 50 mm -Transport dimensions: 440/270/H155 mm -Weight: 6.4 kg
