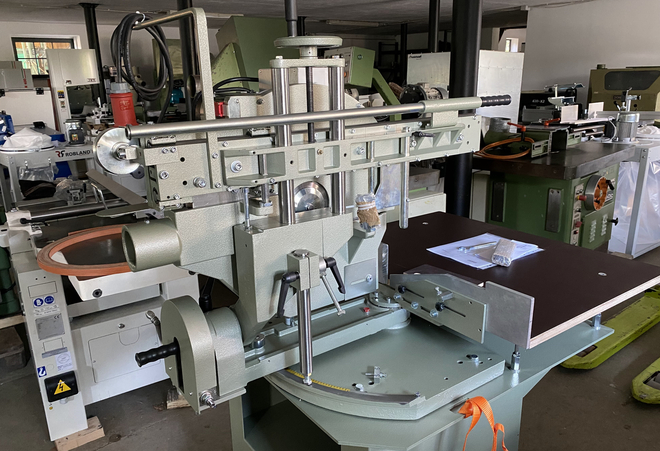

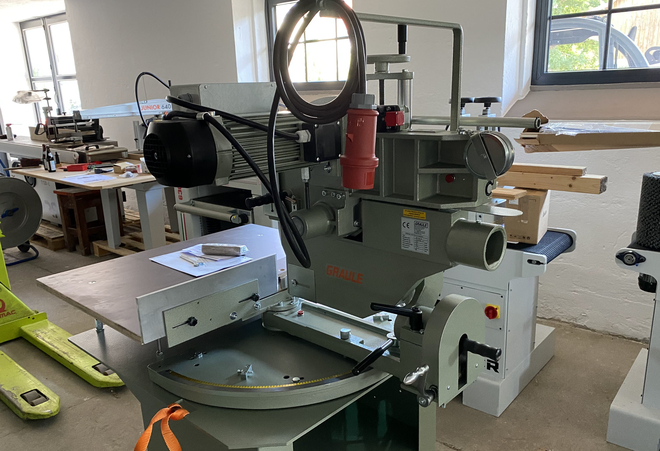

Crosscut and miter saw GRAULE ZS 200 N

cutting hight at 90°: 200 mm;
cutting width: 410 mm;
miter square horizontal: 45° - 90° - 25°;
miter square vertical: 60° - 90° -30°;
roller convoyer/ supporting table: no;
saw blade diameter: 520 mm;
speed: 2800U/min;
motor power: 5 kW;
motor brake: yes;
suction connection: 100mm;
machine length:
machine width:
Gewicht: 300kg;

crosscut and miter saw
Typ ZS 200 N
compact and clear saw to cut large-format cross section

this machine is characterized by following properties:
†clarity by cutting process because saw blade arranged above
†extremely large cutting area  with a compact and stable structure
â€Â powerful 5 kw three-phase motor with automatic star delta start
†fast miter adjustment
- horizontal meter range of 45° †90° †25°
- vertical meter range of ca. 60° †90° †30°
- acute angle below 45° adjustable
†double miter cut
†adjustable fixed stops at 90° und 45°
†intermediate miter adjustable according to the scale
†machine can be connected to suction over the lower saw blade guard
â€Â machine can be moved with a pallet truck
â€Â the machine is also available on a chassis with an integrated roller conveyor
seller offer No. resale 1274
