outras máquinas para trabalhar o metal usadas para venda (10,973)

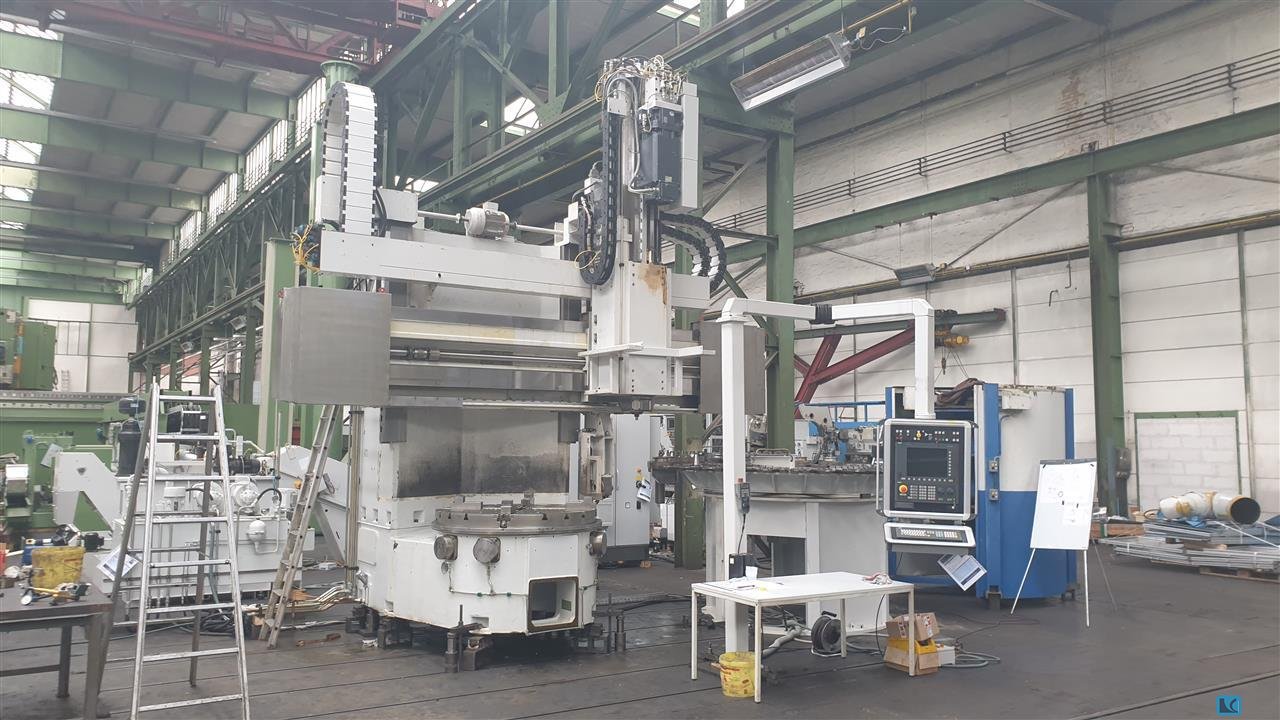

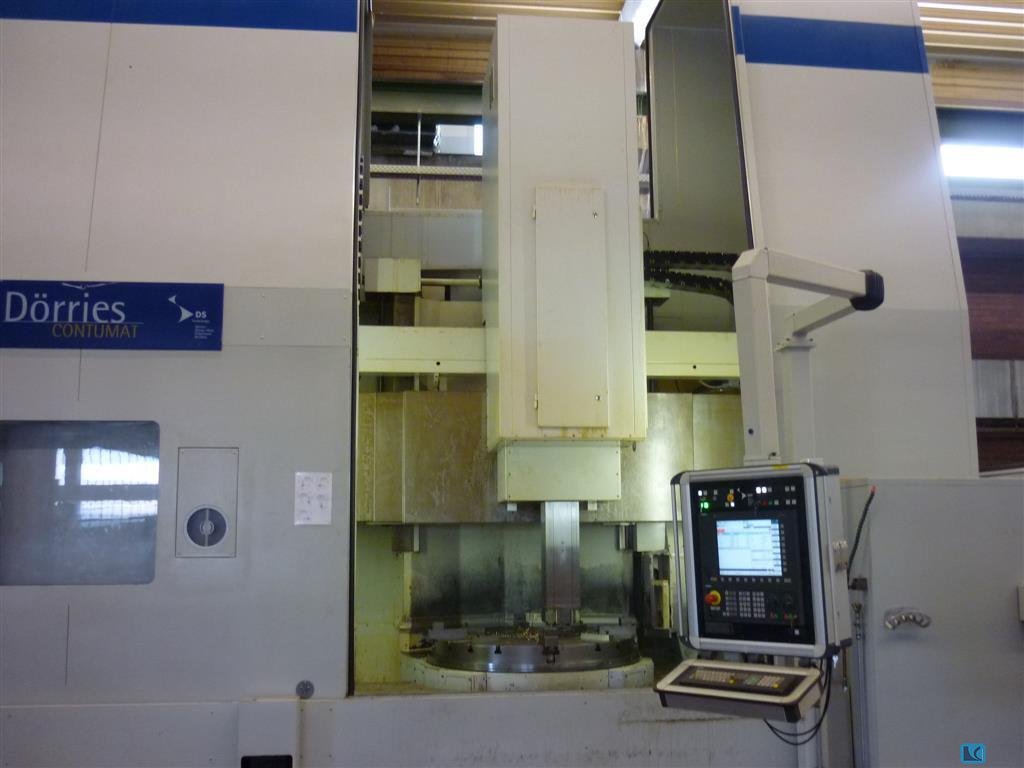

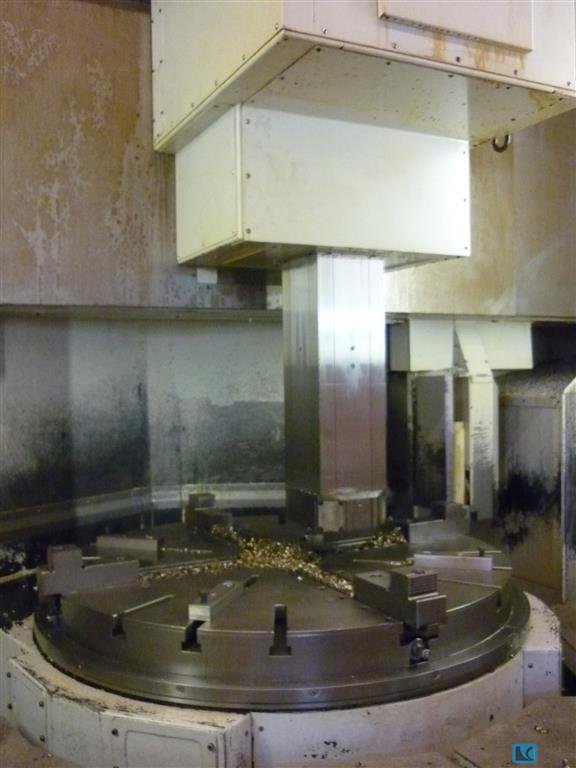

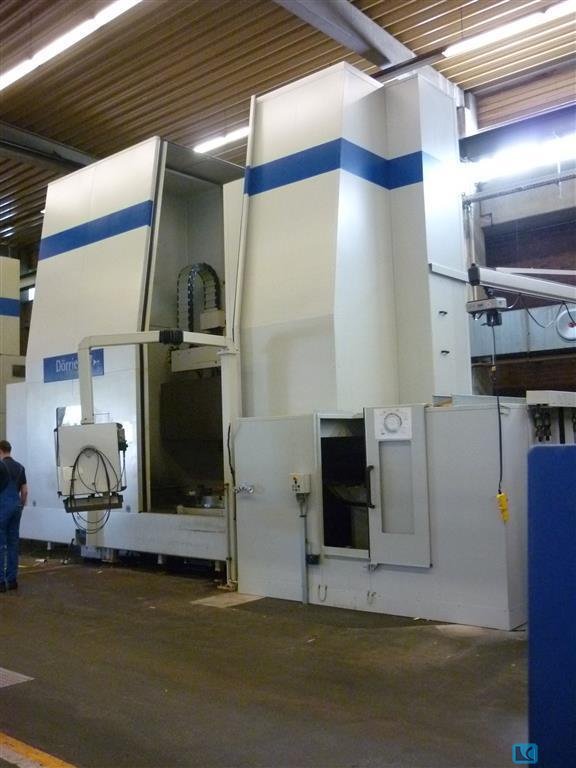

faceplate diameter:1400 mmswing diameter:2000 mmturning height:1500 mmmain drive:80 kWfaceplate speeds from - to:1 - 365 U/minmilling motor:37 kWram head dimension:240 x 240 mmmax. ram stroke:1250 mmtotal power requirement:133 kVAweight of the machine ca.:50 tdimensions of the machine ca.:11 x 5 x 6,4 mMachine was overhauled in 2008 by OEMNew control CNC SIEMENS 840 Dautomatic tool changer 72-pcsC-axis with driven toolsAngle-, straight tool holders with CAPTO holder Coolant deviceChipconveyour

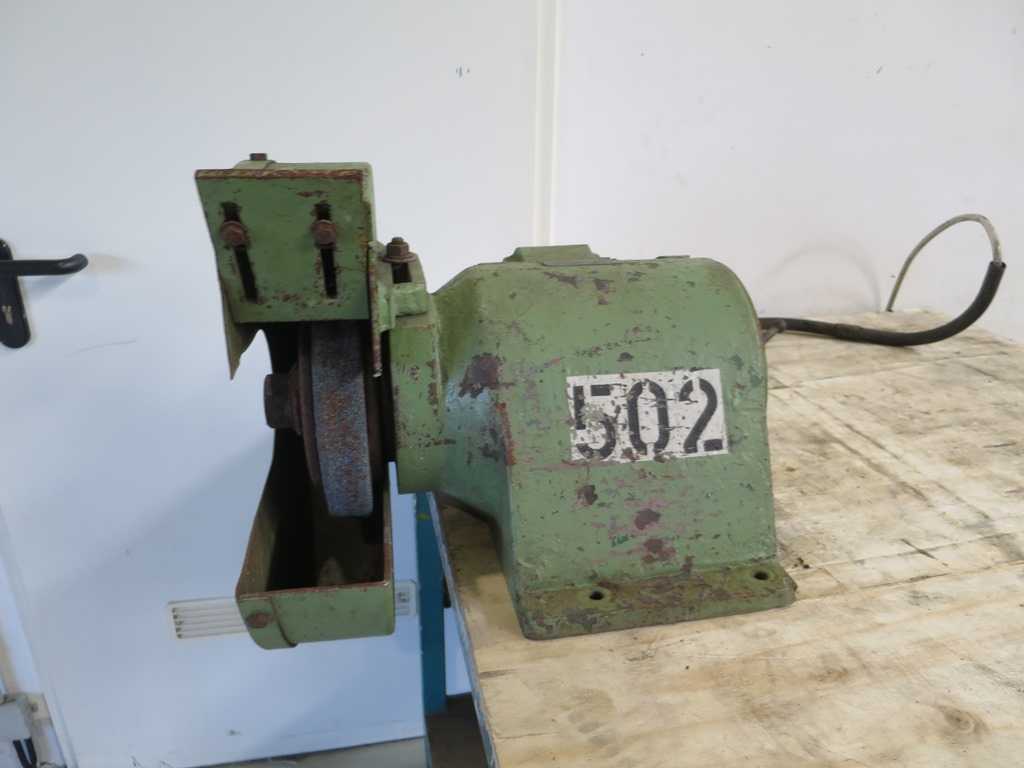

Bench grinder Grinding wheel diameter max. 400mm Speed 1420rpm see pictures Condition: unchecked (6)

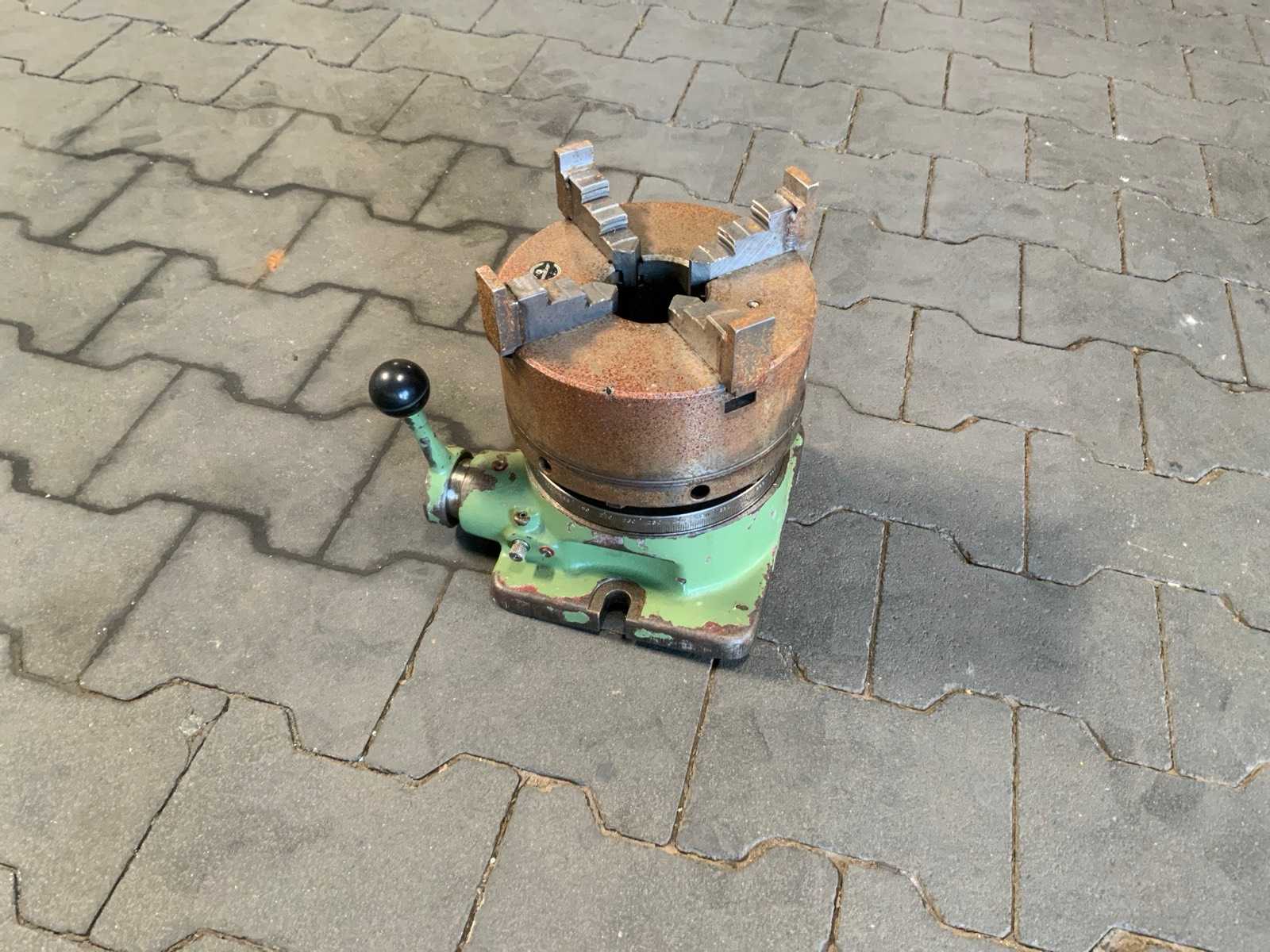

Serial No.: 5792, Divider Walter, with 4-jaw chuck D200 mm

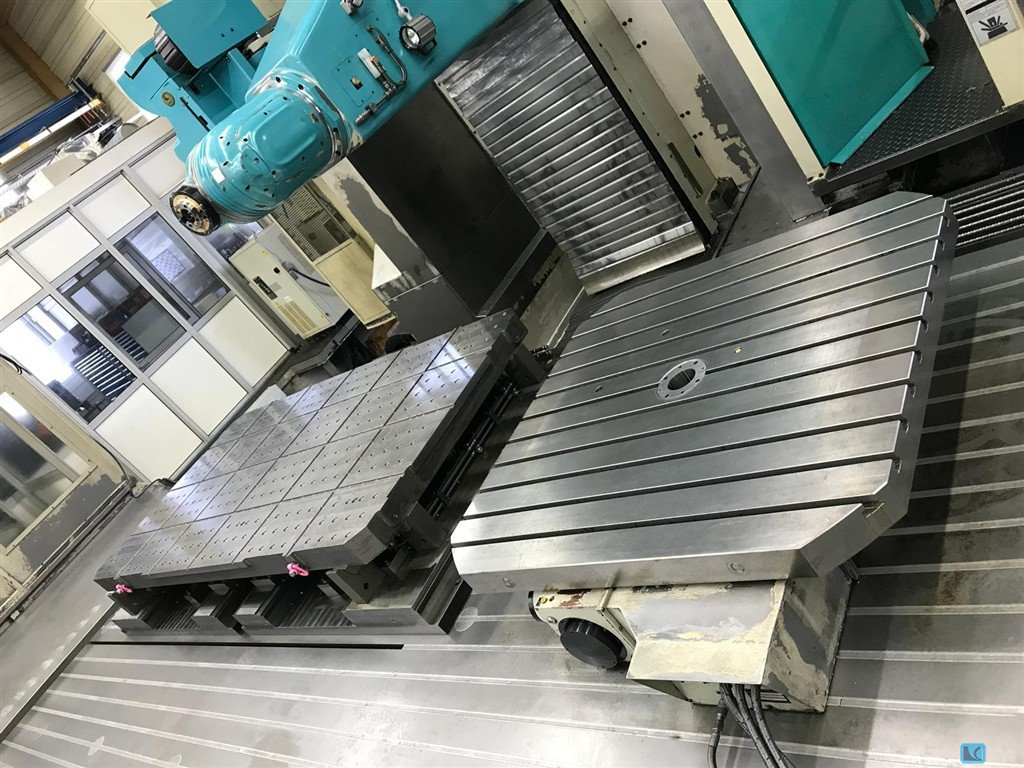

x-travel:6.300 mmy-travel:2.000 mmz-travel:2.700 mmtool taper:ISO 50 surface area:7.000 x 3.000 mmturning speed range:60 - 4.000 U/minpower capacity:22/30 kWfeeds:0 - 10.000 mm/minrapid traverse:20.000 mm/minTool changer:80 max. workpiece weight:8.000 kgPlate clamping area 7,000 x 3,000 mmCNC rotary table 1,500 mmOrthogonal milling headDeep drilling unitIKZPaper belt filterMeasuring probe

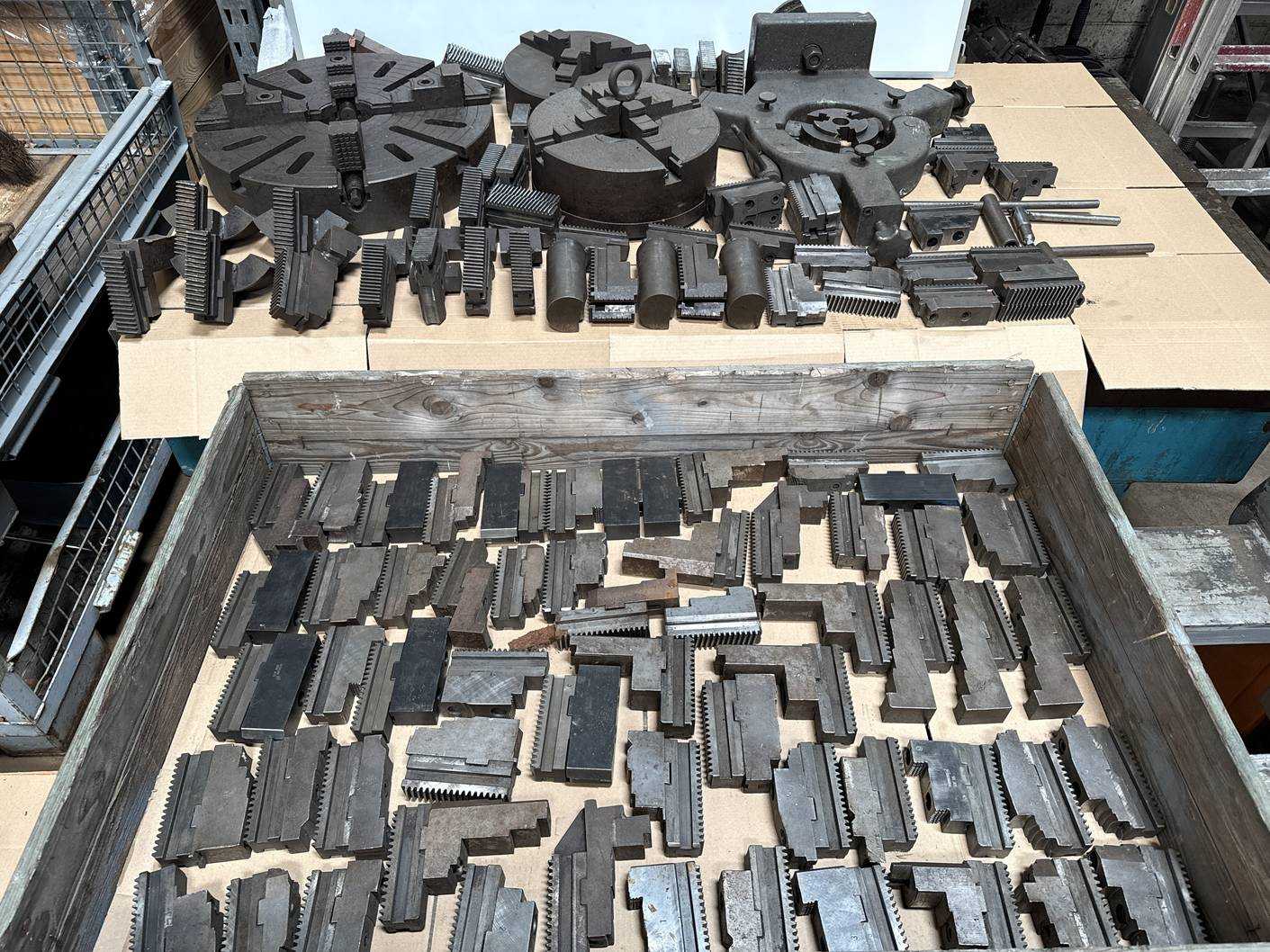

Three/four jaw chucks in different sizes, incl. Large assortment of clamping jaws, see photos for more details

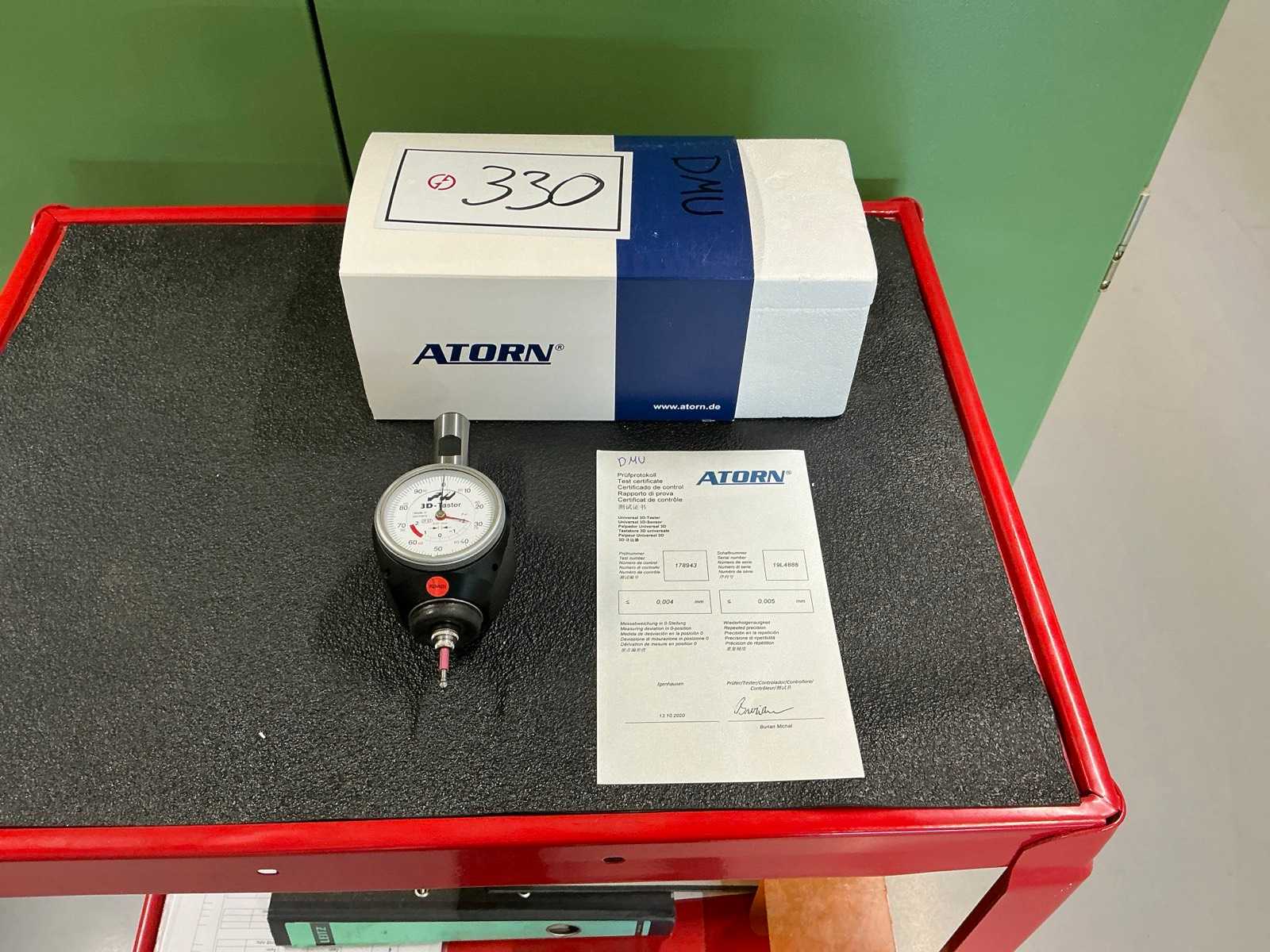

Shank diameter: 20 mm, probe ball diameter: 4 mm, housing diameter: 65 mm, dial diameter: 57 mm, probe length: 33 mm

x-travel:1660 mmy-travel:760 mmz-travel:660 mmweight of the machine ca.:8700 tdimensions of the machine ca.:4.320 x 3.380 mmdistance spindlenose - table min./max.:808 mmdistance work spindle /surface of the table:155 - 815 mmMachine height:2850 mmfloor space required (w/o switchgear cabinet):4.320 x 3.380 mmspindle motor:11 (10 Minuten) /7,5 (30 Minuten)/ 5,5 (Dauerbetrieb) kWtool taper:SK 40 Spindle RPM:40 - 7.000 (Standard ) / 40 - 10.000 ( Option ) 1/minsurface area:2.000 x 760 mmmax. table load:1.000 kgfeeds X-axis:1 - 5.000 mm/minrapid traverse X-axis:24.000 m/minrapid traverse Y-axis:24.000 feeds Y-axis:1 - 5.000 mm/minfeeds Z-axis:1 - 5.000 mm/minrapid traverse Z-axis:20.000 m/min

Base height: 70cmD1: 60cmD2: 80cmPanel thickness: 3cmWeight: 300kg

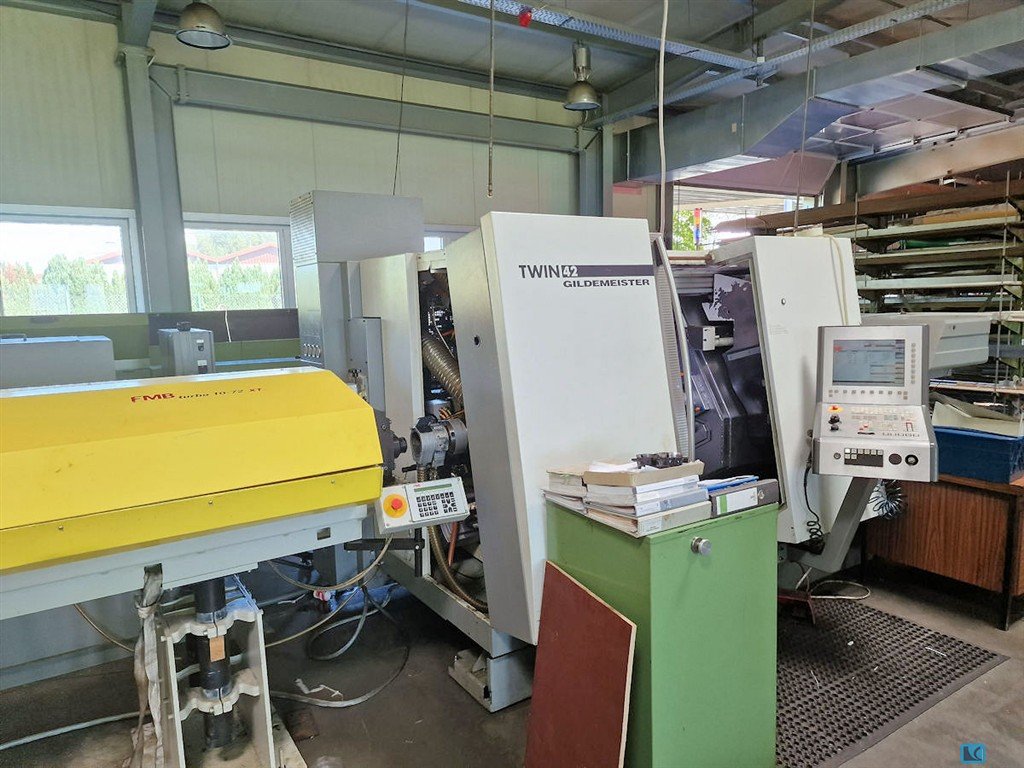

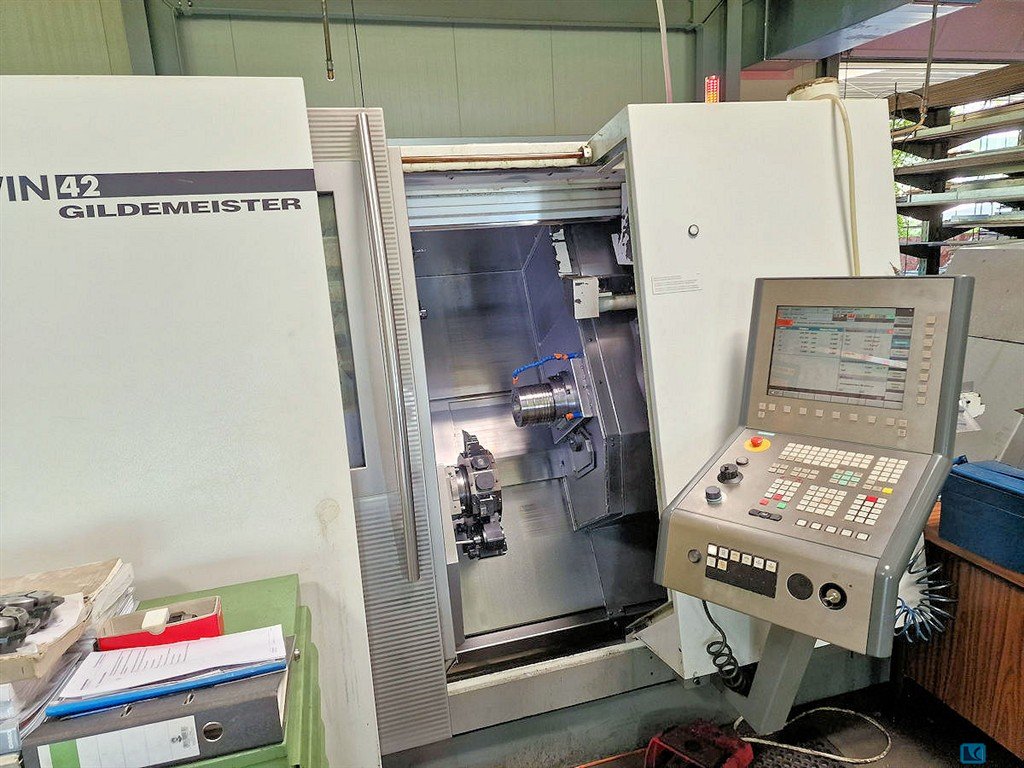

turning diameter:145 mmturning length:210 mmtotal power requirement:40 kWswing diameter:145 mmSpindle bore sp. 1:56 mm Spindle bore sp. 2:56 mm swing diameter over face slide:145 mmgreates pass round over bed:145 mmRPM Main Spindle:7.000 1/minnumber of workpiece supports:12 Shank diameter:25 mmC-axis RPM:2.000 1/minChuck diameter spindle 1:140 mmChuck diameter Spindle 2:140 mmNumber of tools:12 fach St.Tool bore:VDI 25 Shank diameter:25 mmweight of the machine ca.:5.300 kgdimensions of the machine ca.:5.000 x 4.100 x 2.050 mmSlide path flat: X1, X2, X3: 220mm, 120mm ( 145mm )Longitudinal slide travel: Z1, Z2, Z3: 320mm, 345mm, 380mmVertical slide travel Y1: +/- 30mmLongitudinal spindle travel Z3: 380mmClamping tube inner draw tube 46mm diameterSpeed range main drive 1+2 up to 7,000 rpmSpeed of driven tools up to 6,000 rpmMain and counter spindle collet chuck1 axial driven tool1 radial to ...

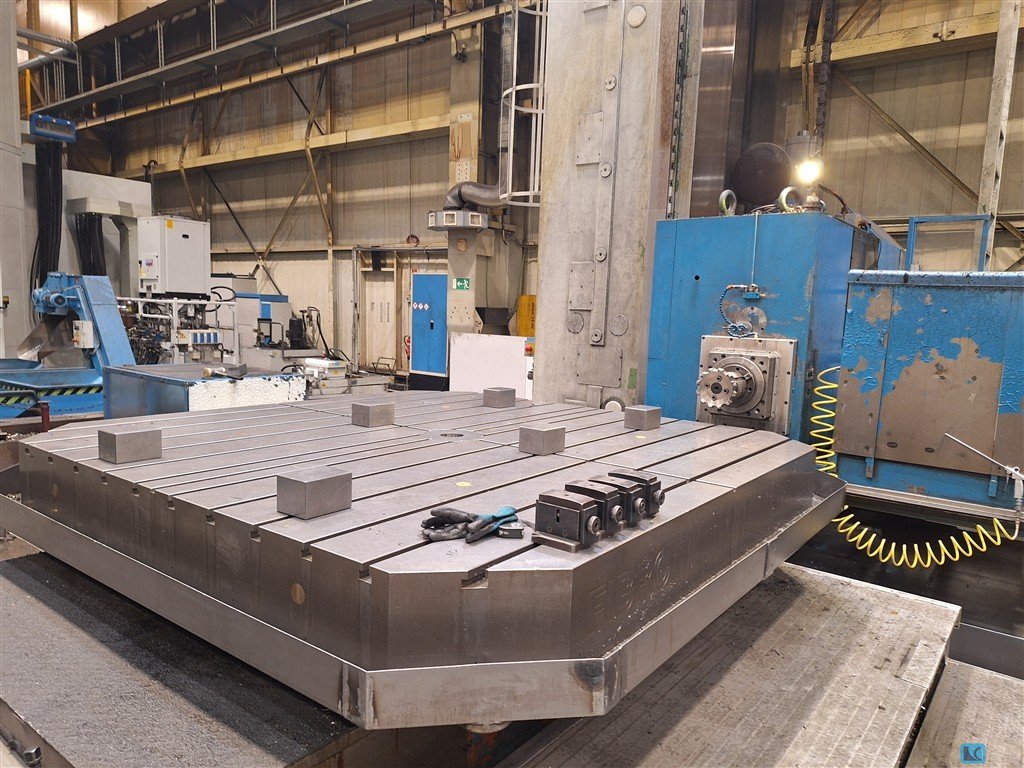

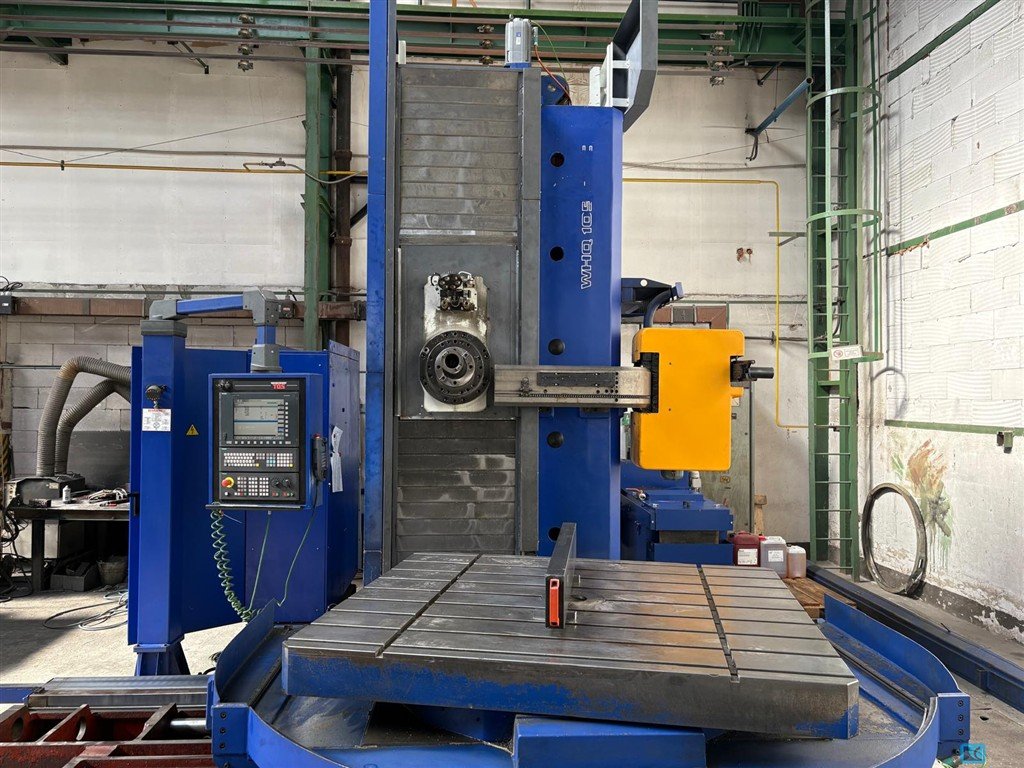

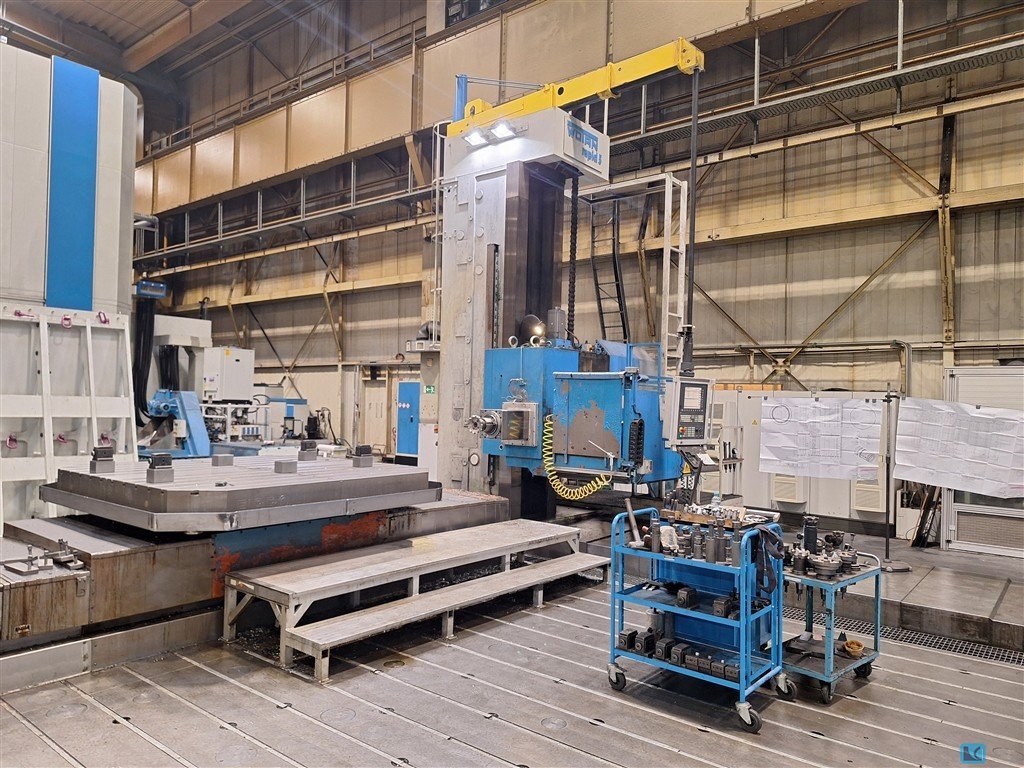

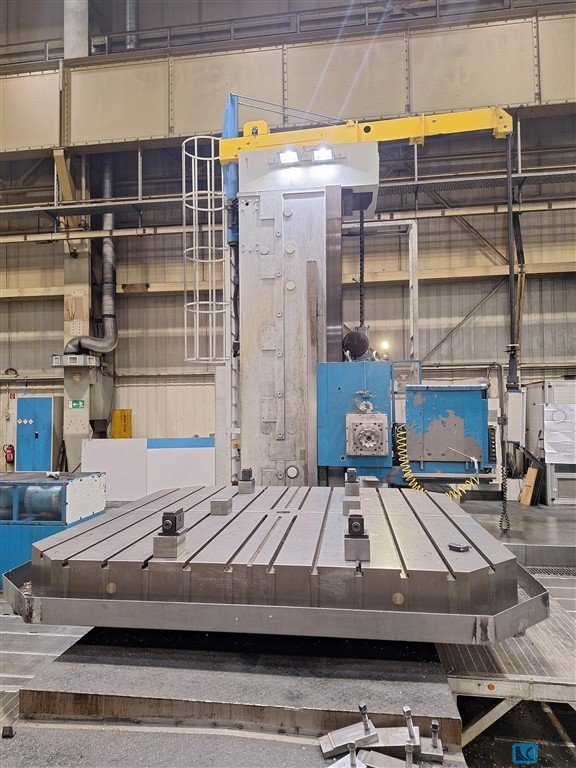

spindle diameter:150 mmx-travel:10000 mmy-travel:2500 mmbore spindle stroke:700 mmSpeed of boring spindles:1,25 - 1250 U/min.ram stroke:700 mmdimension of the ram:340 x 340 mm mmspindle taper ISO:50 rapid traverse:5 m/mintotal power requirement:120 kWweight of the machine ca.:115 tdimensions of the machine ca.:15,1 x 10 x 6,4 mCNC control Siemens 840 Dsl completely modernized 2010FIBRO CNC drilling work table 2500 x 2500 mm50 to. workpiece weightLongitudinal travel 2500 mmAngular milling head 4 x 90°Universal angular milling headPanel area approx. 10000 x 5000 mmChip conveyor and coolant deviceAerostatic guides

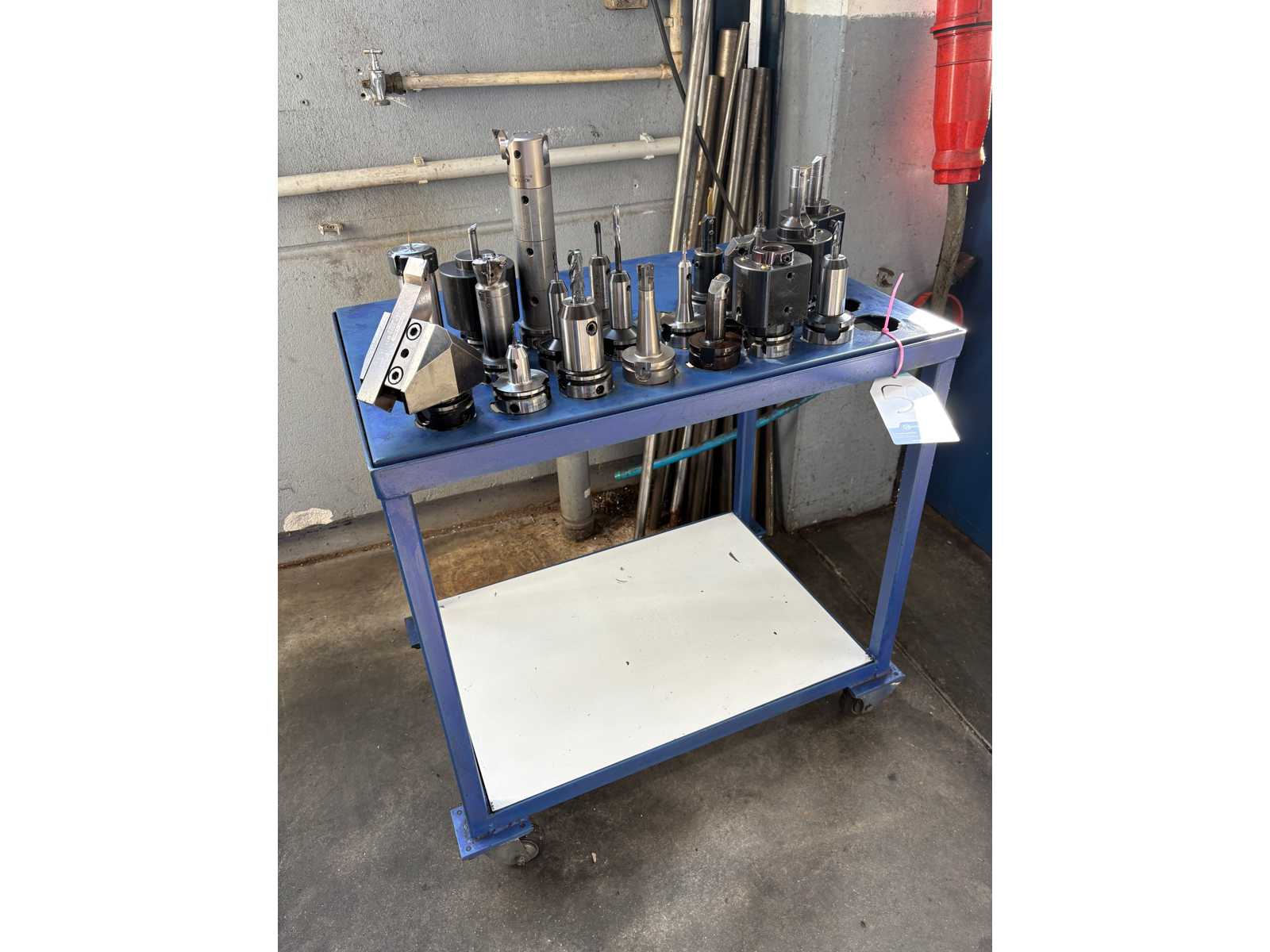

consisting of approx. 20 pieces, some equipped with cutting tools such as reamers, milling cutters, drills and a boring toolincl. tool carrier trolleyReference: Hercegfi - Lot 50 Weight: approx. 120kg

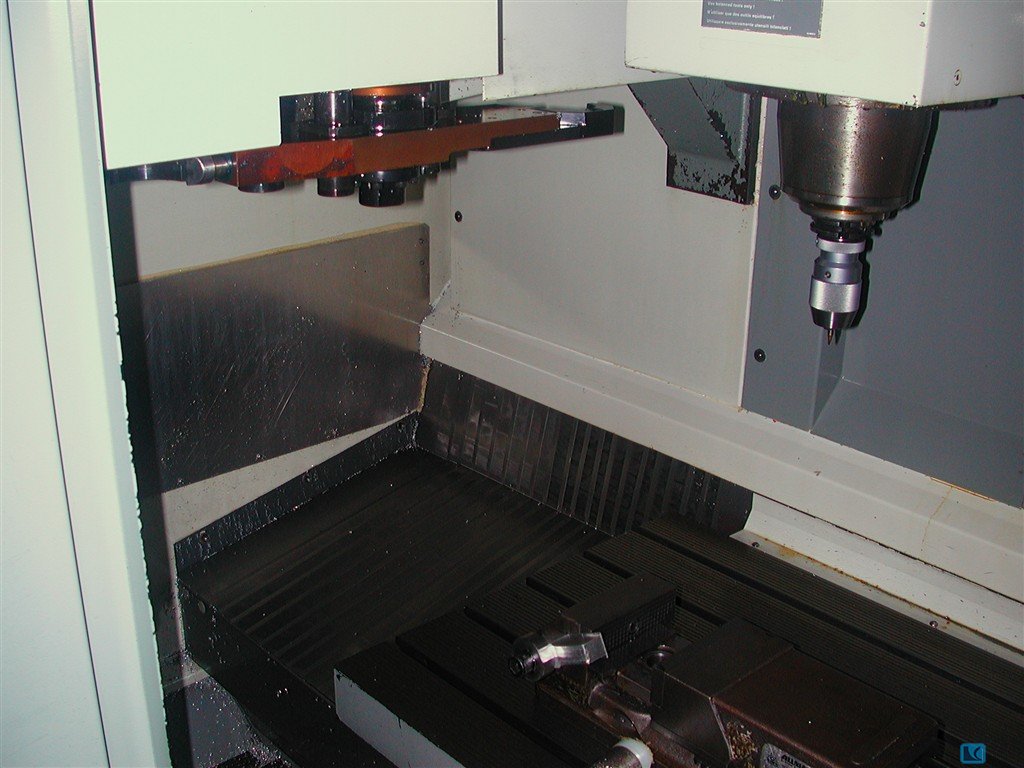

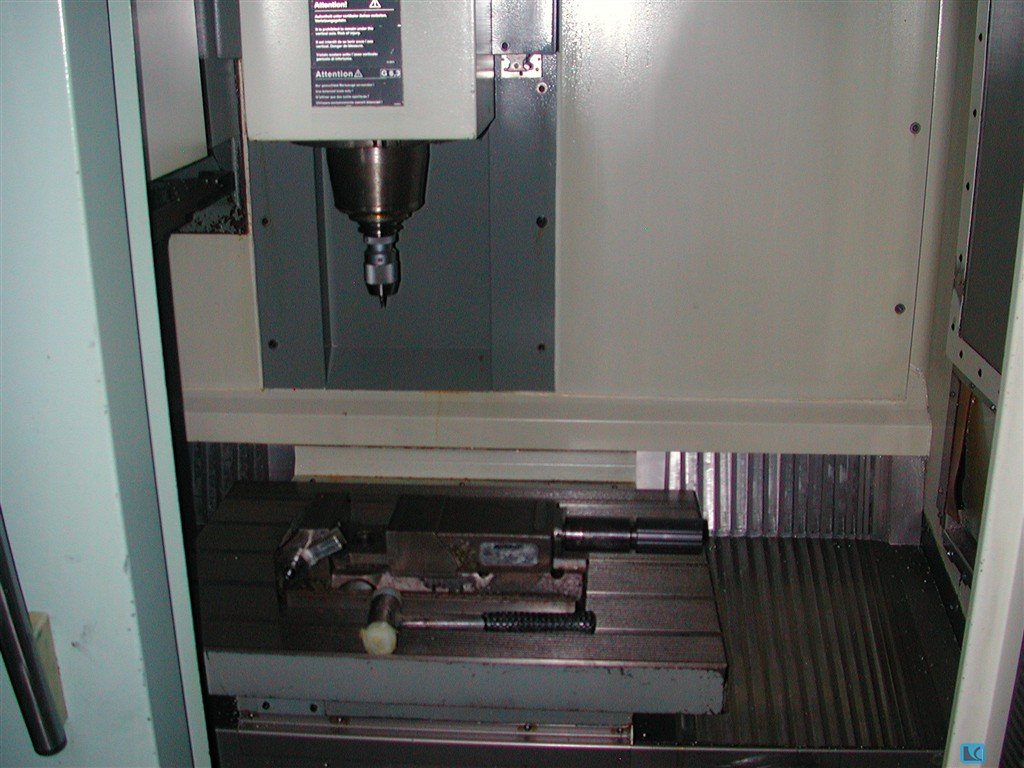

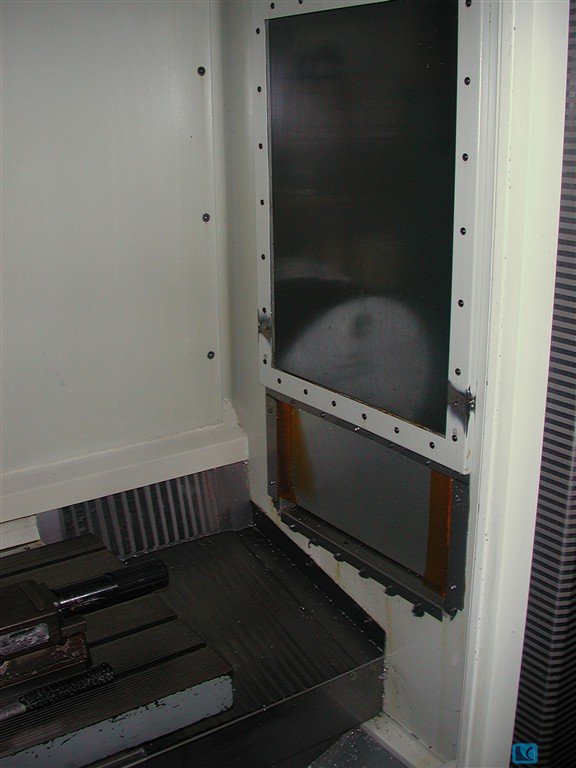

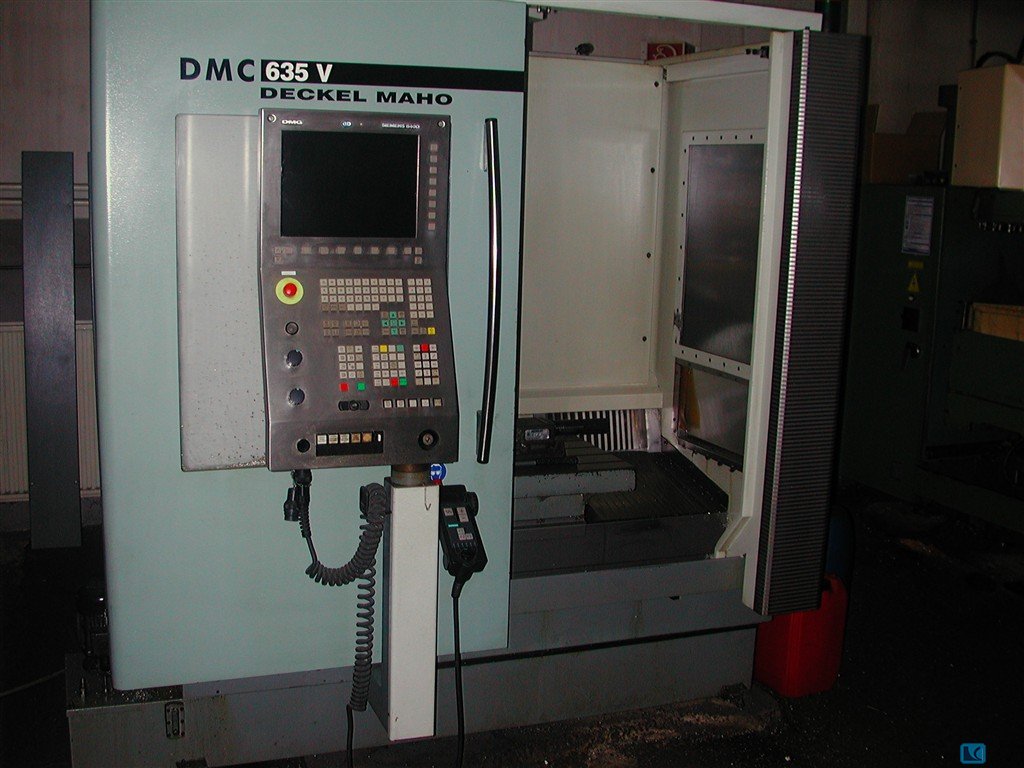

x-travel:635 mmy-travel:510 mmz-travel:460 mmturning speed range:20 - 10.000 U/mintool taper:SK 40 table clamping surface LxW:790 x 560 mmMachine with glass scalesFull safety cabin with sliding doors + interior lightingHeight-adjustable machine shoes 3 pcs.

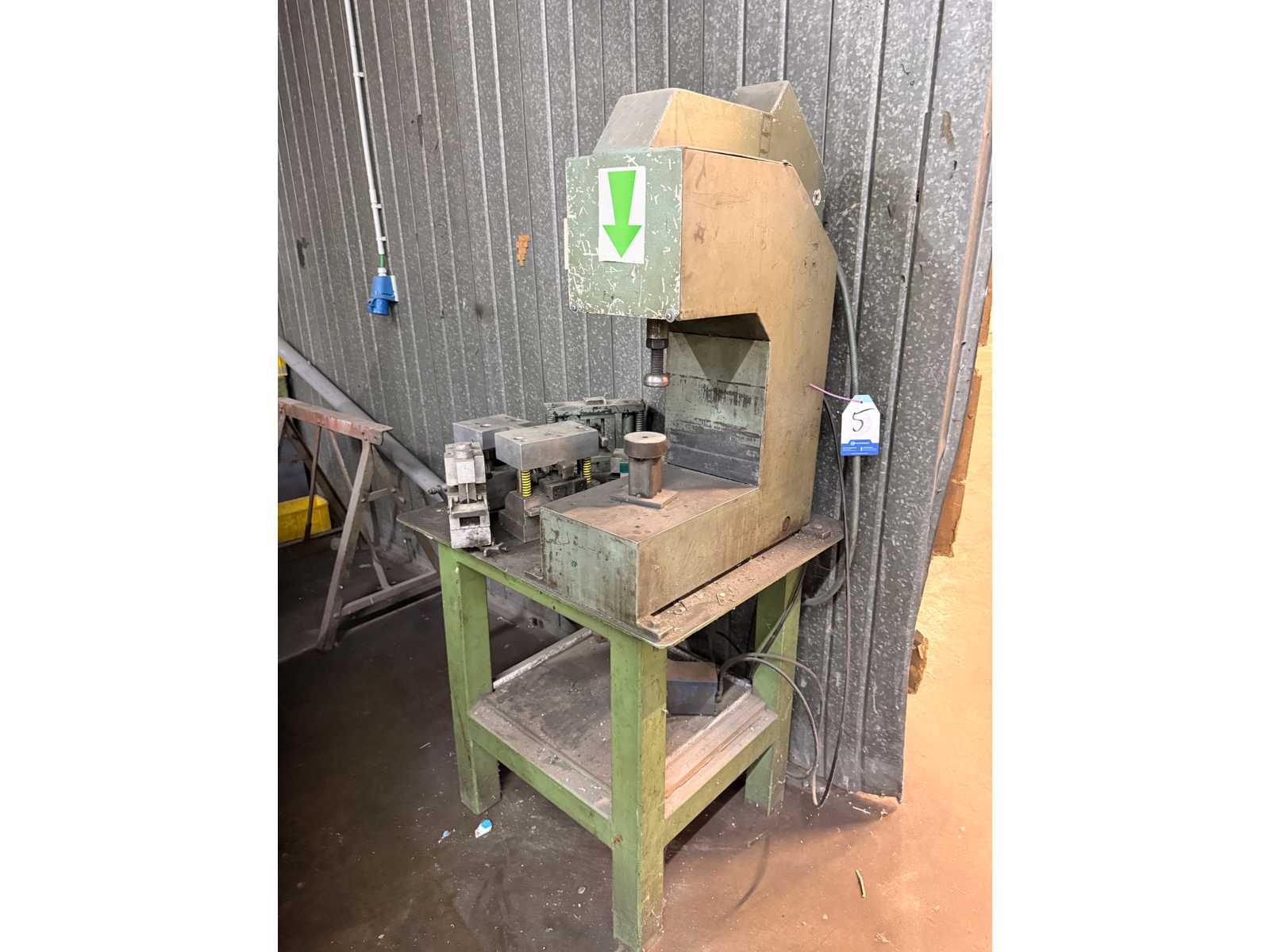

Max. stroke: 50 mmMax. capacity: 4 ton base Tabledimensions: approx. 360 x 245 mmReference: Groven - Lot 5

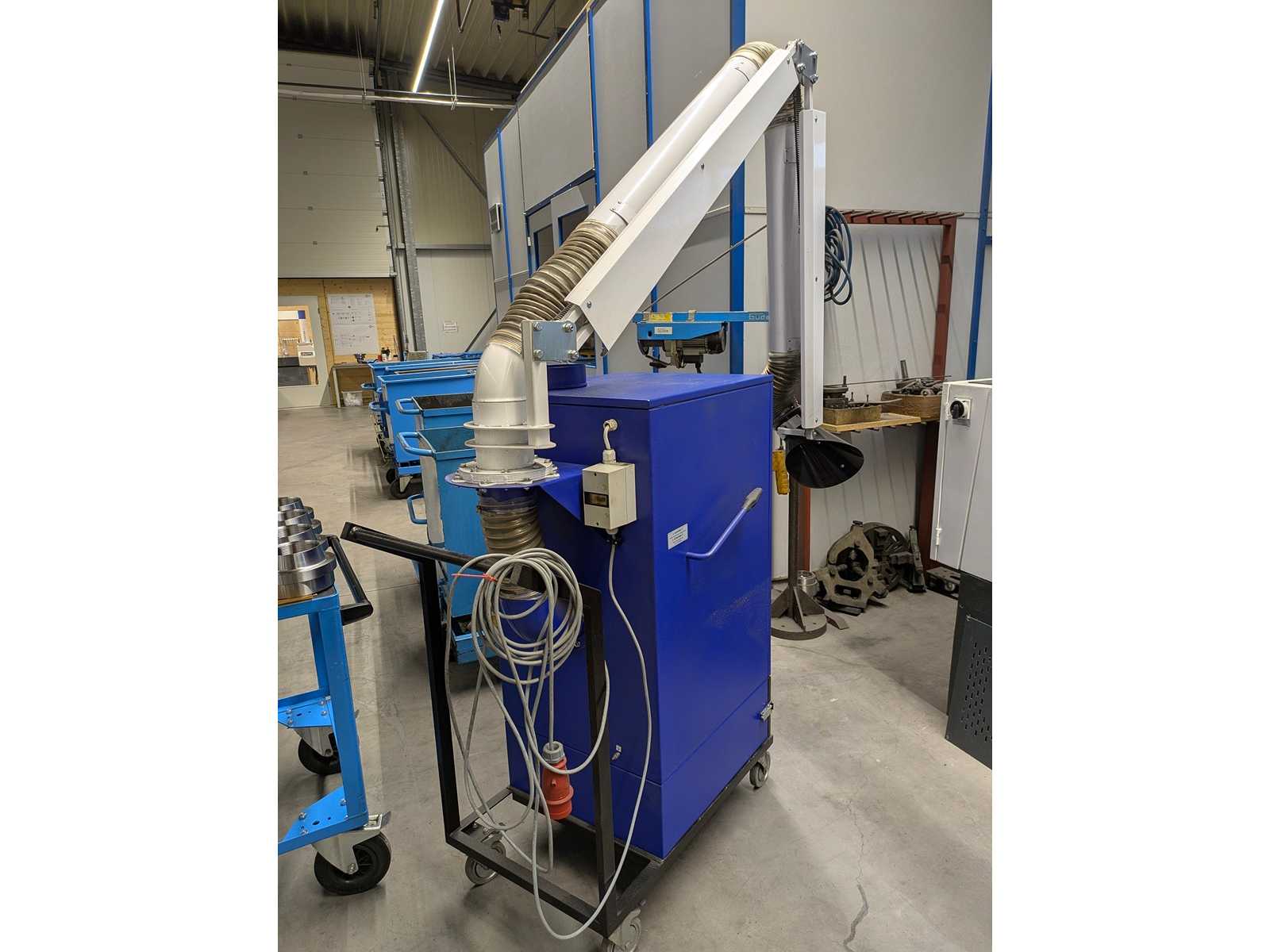

Consisting of: a.o. 1 suction rail, length approx. 11500 mm 2 hoses, length approx. 4800mm each, diameter approx. 100mm each 1 hose, length approx. 4500 mm, diameter approx. 150mm Approx. 18 m of piping

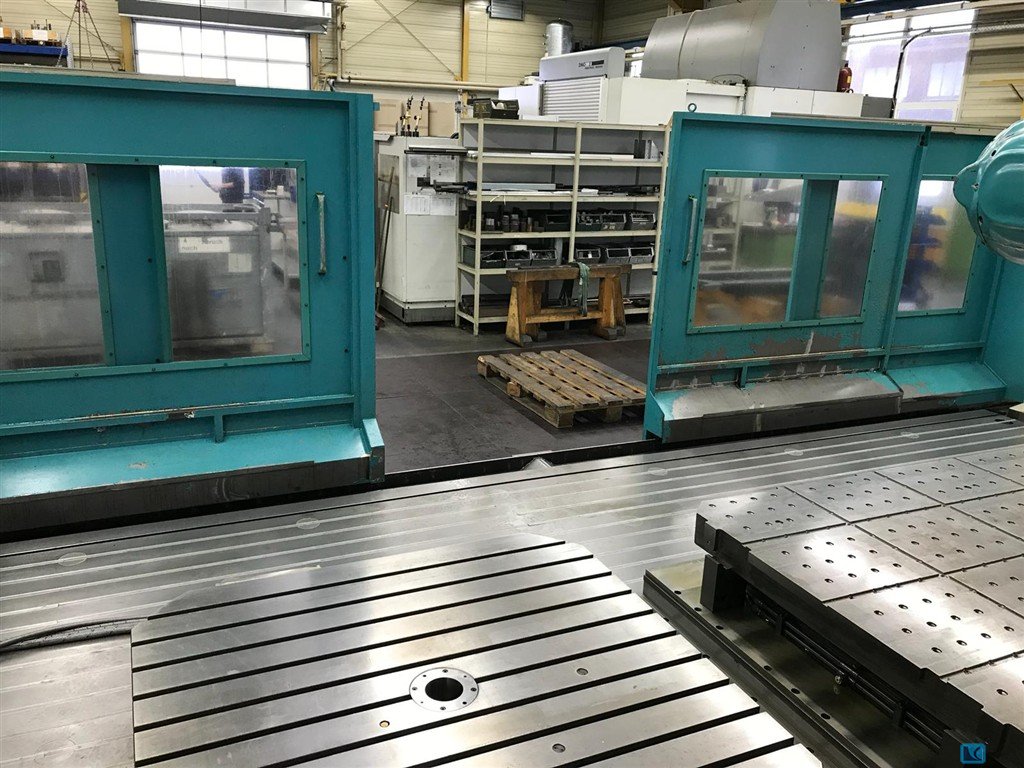

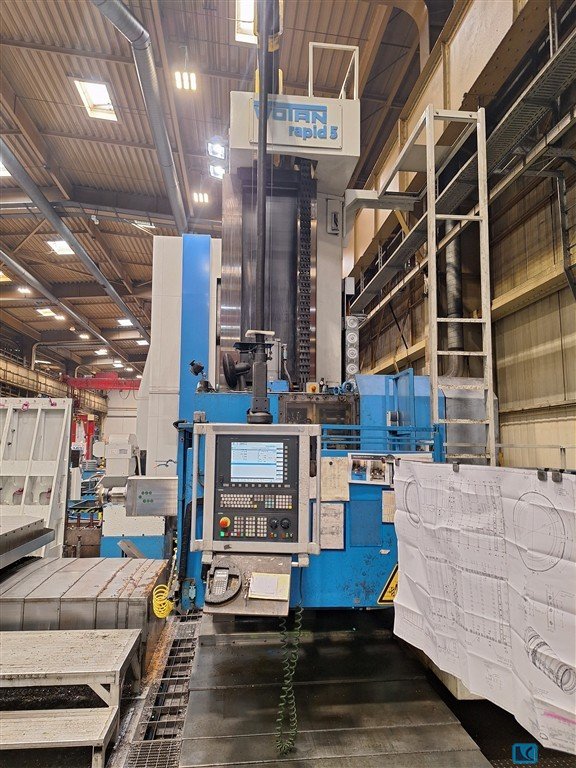

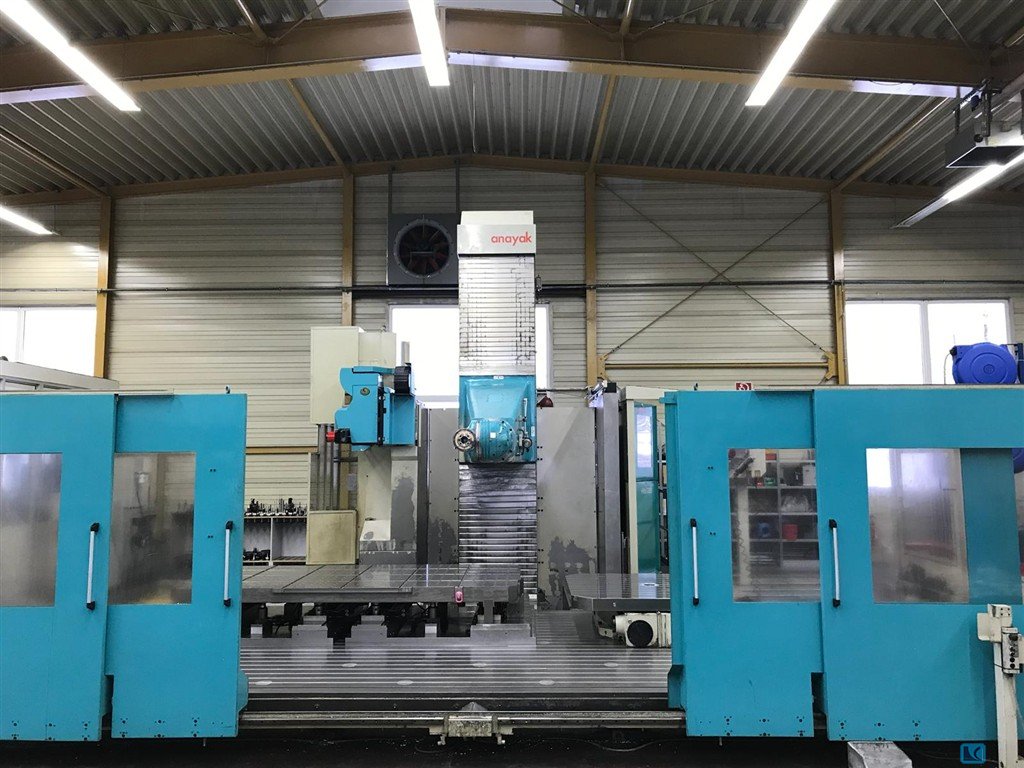

x-travel:6500/13150 mmy-travel:4000 mmz-travel:1250 mmw-axis:2250 mmtable surface area:5500/12150 x 3000 mmmax. workpiece weight:70.000/105.000 kgram head dimension:480 x 510 mmmilling spindle motor:63 kWmax. torque on the spindle:3300 Nmtool taper:DIN 39871 AD ISO 50 milling head speed:6,3 - 4000 U/minfeed speeds:1 - 24000 mm/minw-axis:1 - 6000 mm/mindistance between columns:3500 mmpassage:3000 mmtotal power requirement:120 kWweight of the machine ca.:245 tdimensions of the machine ca.:29,0 x 7,7 x 8,1 mMachine is in nearly new condition and was completely modernized in 2020!With CNC SIEMENS 840 DAutomatic tool magazine for 153 tool positionsAutomatic milling head magazine for 6 milling headsMachining module ? straight ? straight long ?Machining module ? angle standard ? 4000 rpm, 144 x 2.5°, ISO 50Machining module ? narrow angle extended ? 40 kW, 4000 rpm, 1800 Nm, 144 x 2.5°, ISO 50 ...

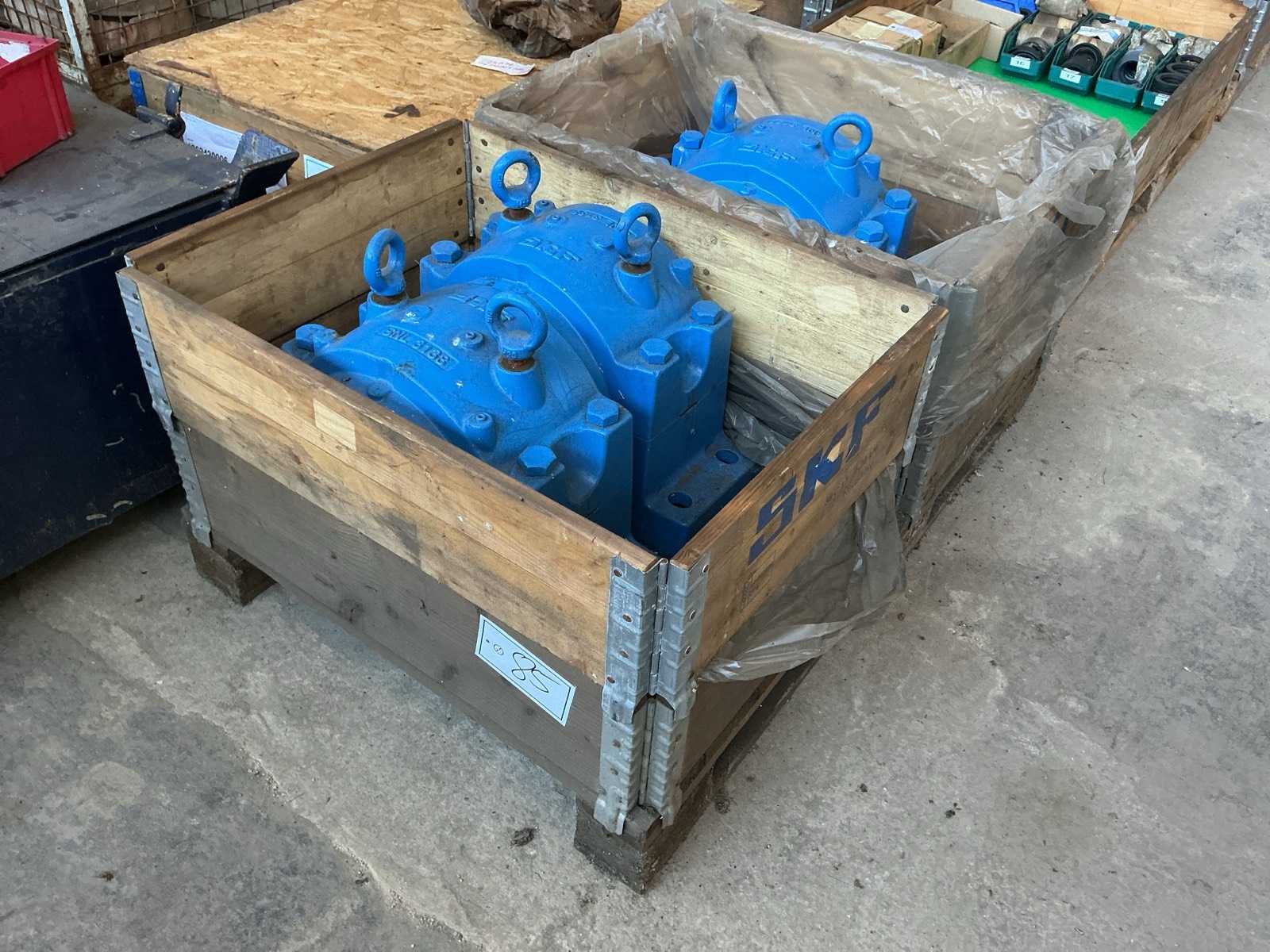

3 SKF pillow block bearings

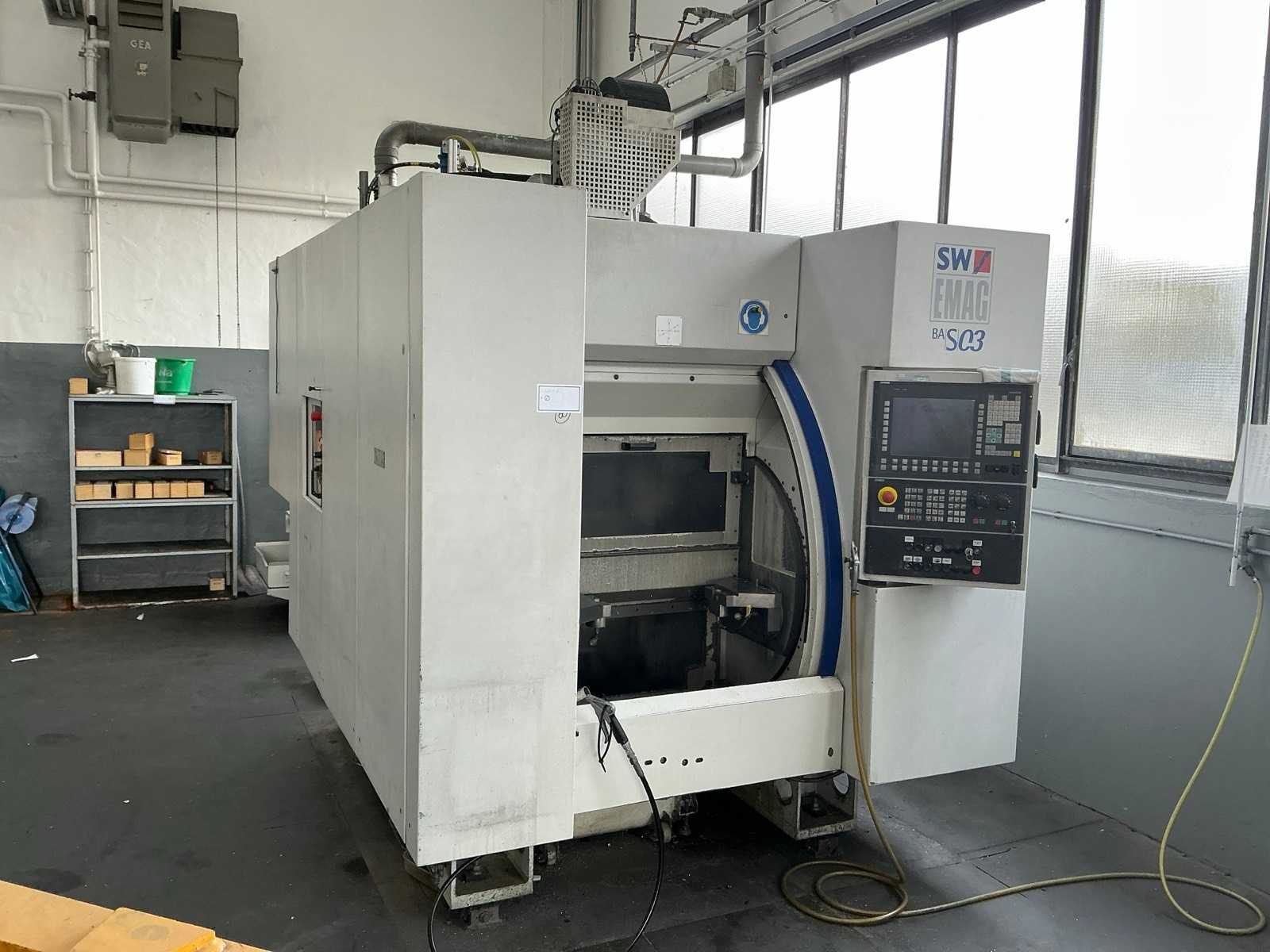

Technical data Note: There was no original machine documentation. To the best of our knowledge, all the following technical data were partially read from the nameplate and taken from publicly accessible online sources. Manufacturer: SW (Swabian Machine Tools) / EMAG Type: BAS 03-12 Year of Make: 2008 Serial Number: 1820031 Machine Type: CNC Universal Machining Center Control: Siemens Sinumerik 840D Powerline Operating voltage: 3/PE 400 V, 50 Hz Rated current: 85 A Fuse: 125 A Pneumatic pressure: 6.0 bar Air consumption: approx. 0.3 Nm³ Machine weight: approx. 8,000 kg Configuration Siemens CNC control Double station / multi-sided machining Automatic tool changer Chip conveyor (KNOLL) Cooling lubricant and filter system (KNOLL) Full fairing Suitable for series production

x-travel:1.100 mmy-travel:900 mmz-travel:1.250 mmtool length:750 mmrapid traverse in x-y-z axis:60 feeding capacity X Axis:17.000 daNfeed capacity Z - max.:17.000 Nspindle taper:SK50 max. workpiece weight:1500 kgrevolutions per minute:10.000 U/minpallet table size:630 x 630 mmtool magazin::165x (bis D=125mm), 21x (bis D=225mm), 8x (bis D=350mm total power requirement:37 kW

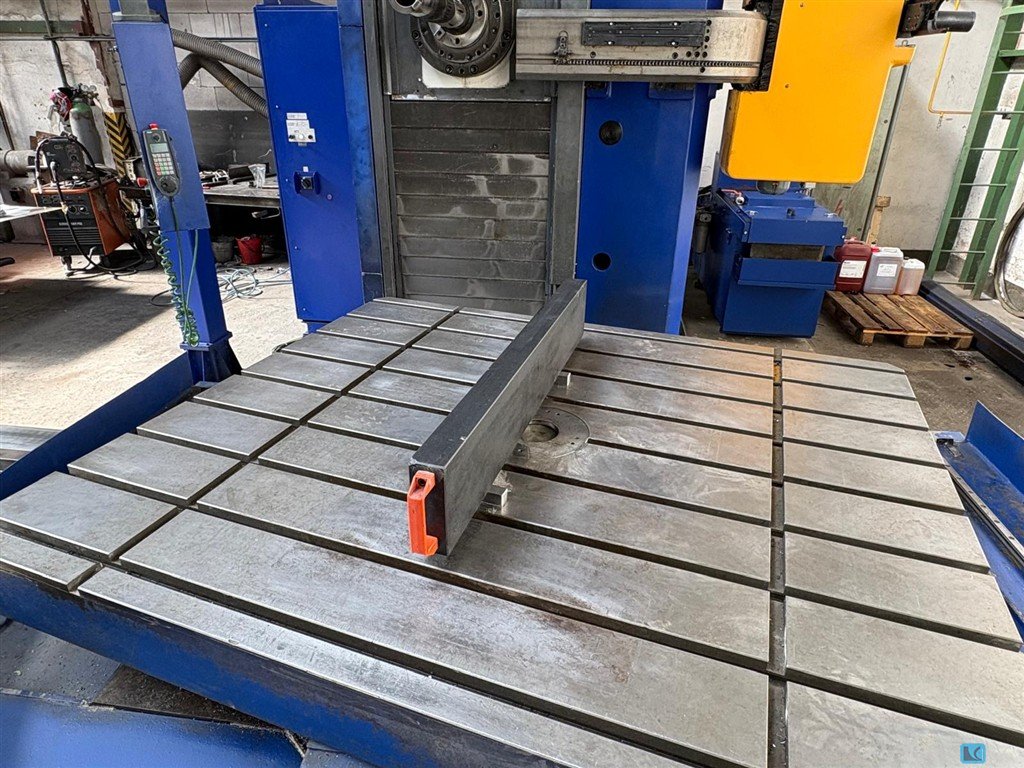

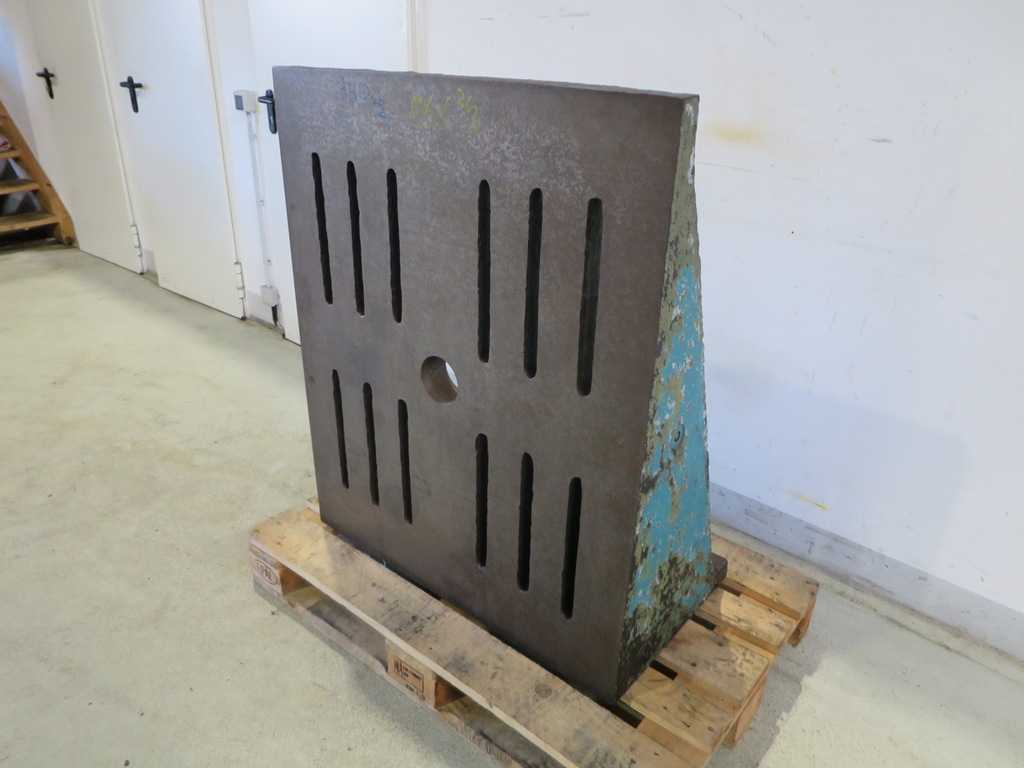

Clamping angle Clamping area each 900 x 11005mm Footprint 900 x 500mm See pictures

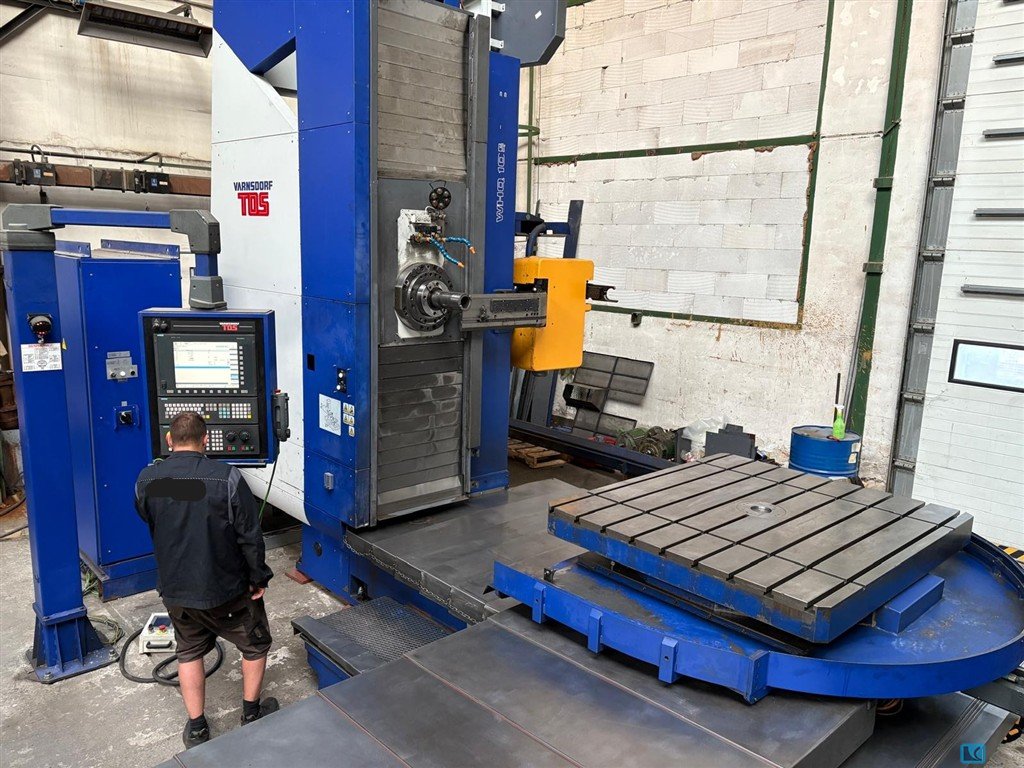

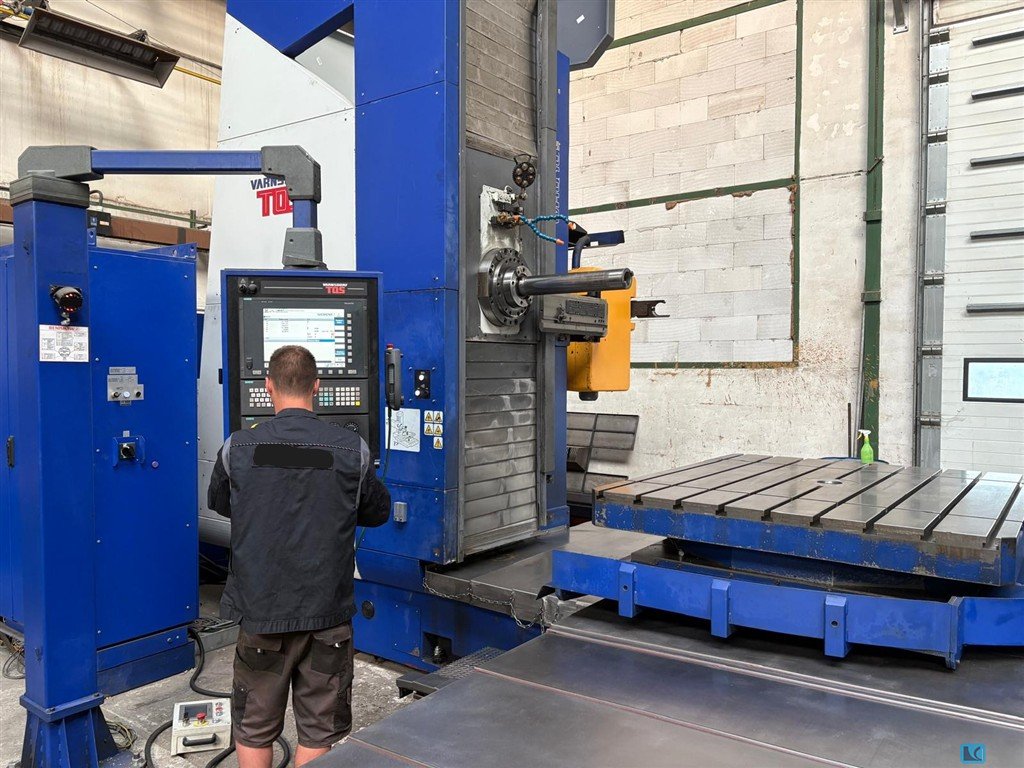

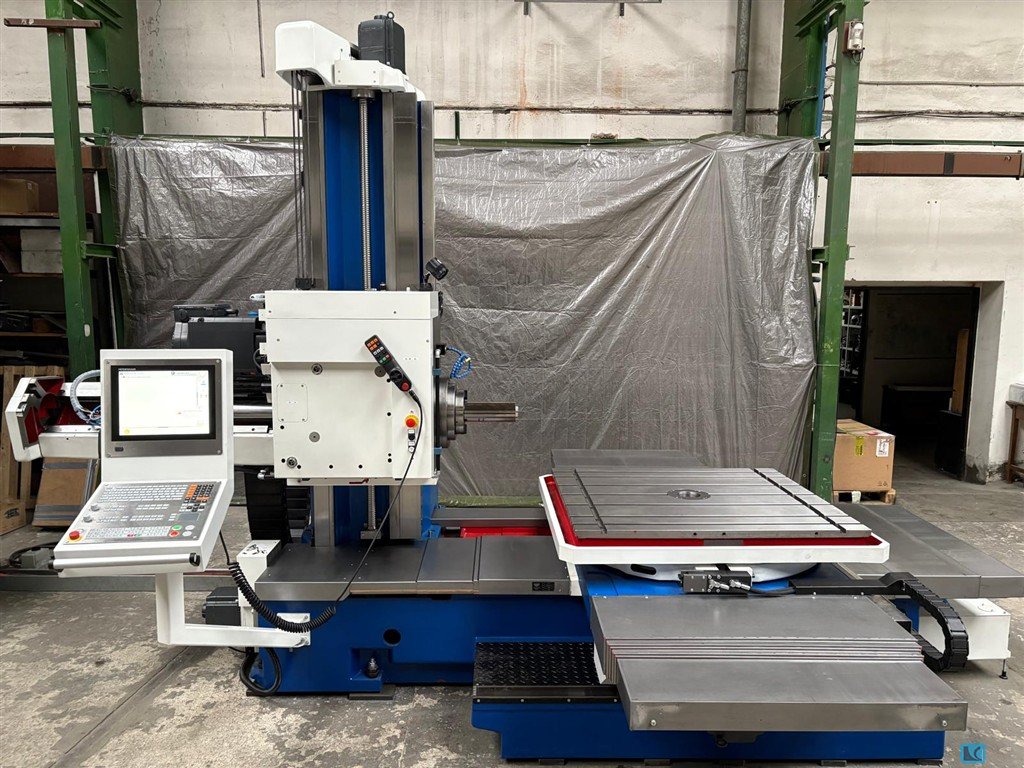

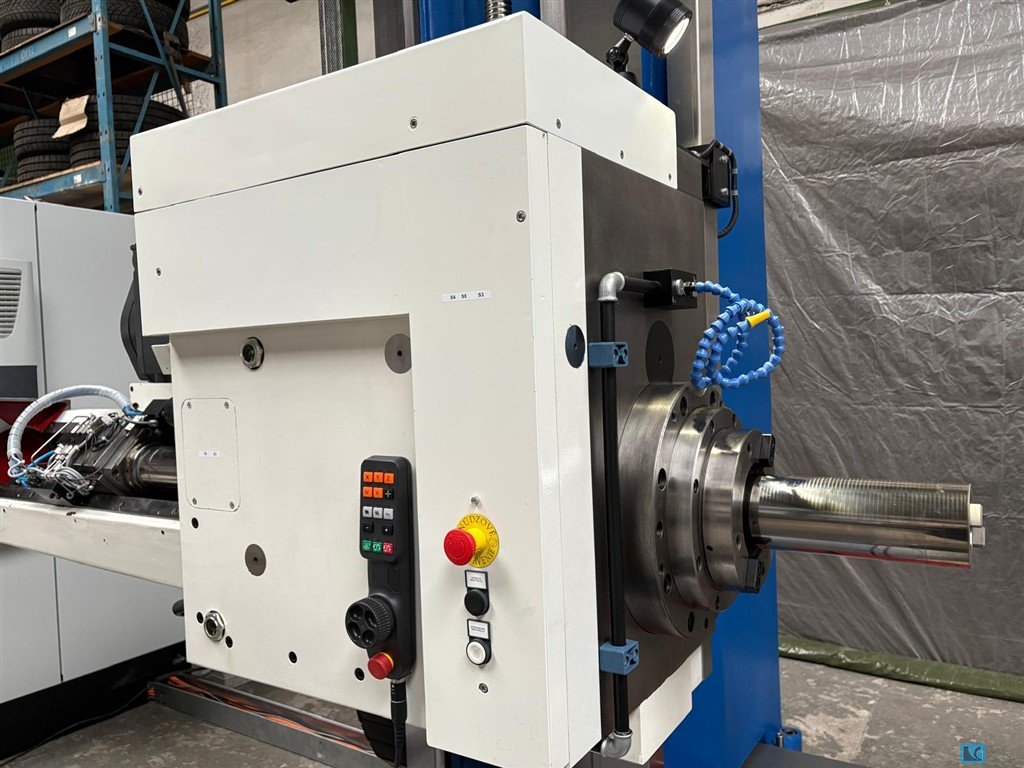

bore capacity in steel (diameter):- mmthroat:- mmbore stroke:- mmx-axis:1.800 mmy-axis:1.600 mmz-axis:1.250 mmw-axis:630 mmmax. table load:5.000 kgtable length:1.400 mmtable width:1.600 mmspindle diameter:105 mmspindle turning speed range:3.300 U/minnumbers of positions in the tool changer:40 internal coolant system feed:40 bar Splash guard around rotary tableChip ConveyorOil cooling unit (chiller)Touch probe Renishaw RMP60Upgrades in 2024 and 2025Retrofit of X and Z axis ball screws at producer ? KSK Kurim CZNew linear scales Heidenhain in X and Z axis including cablingretrofit of Z axis - new Biplast V lining on guideways, hand scraped Biplast lining on Z axisnew TOS Varnsdorf parts for tool clamping and automatic tool changer armOverhaul of X, Z and Y axis feed motors at authorized Siemens service (new bearings and sensor)New Siemens hand wheel

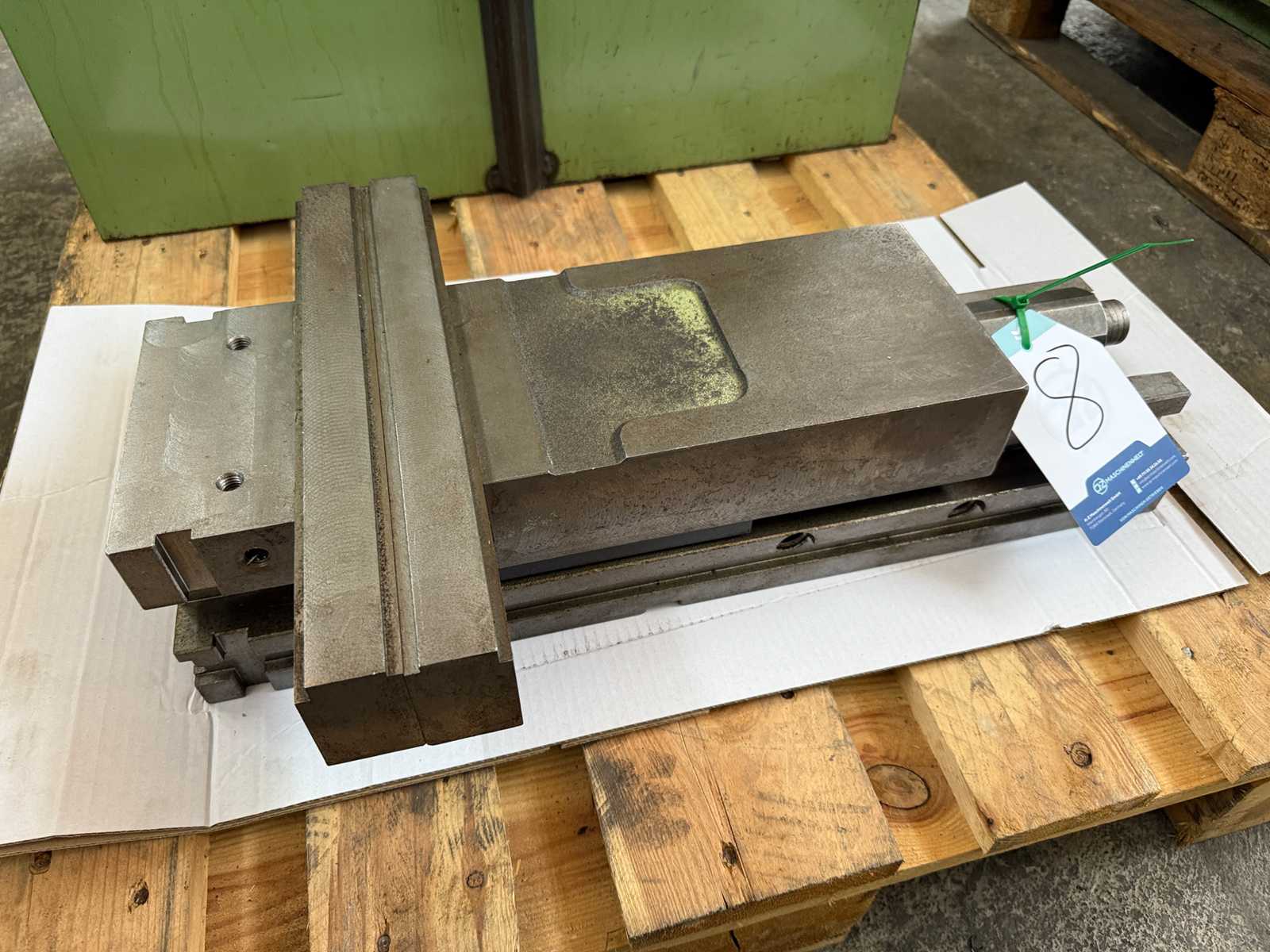

Jaw width: 160 mmReference: L.Schaible - Lot 8

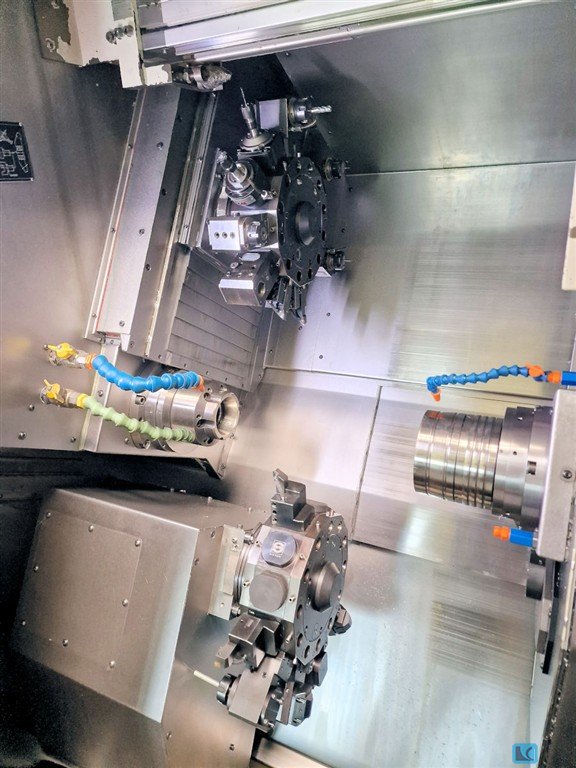

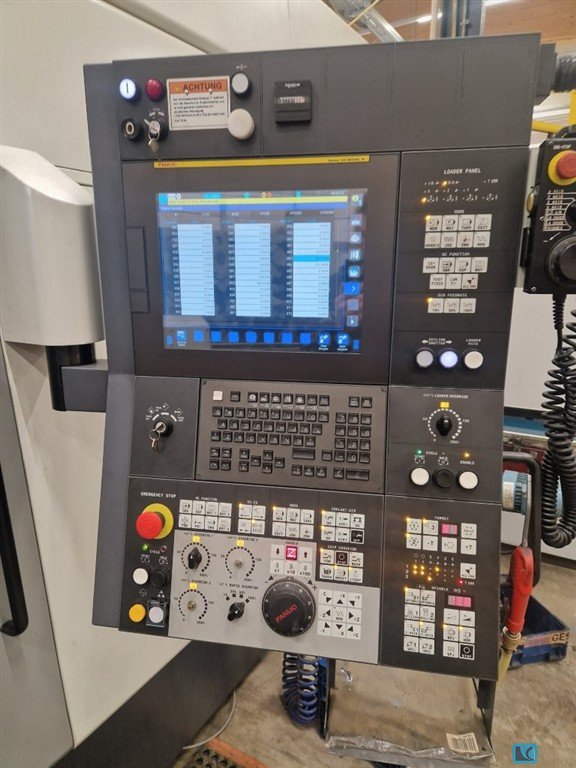

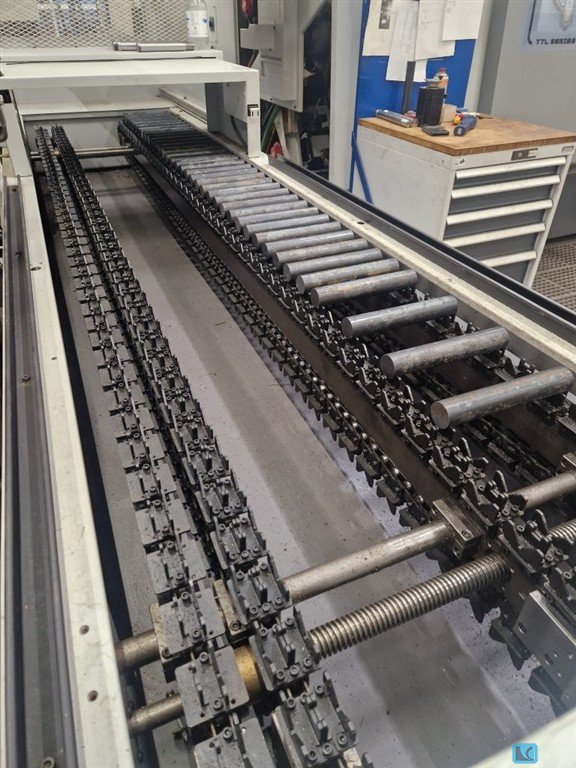

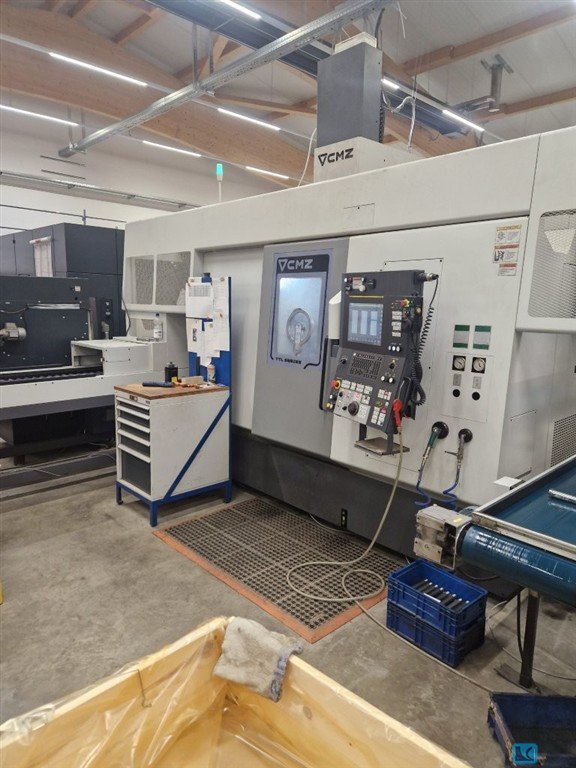

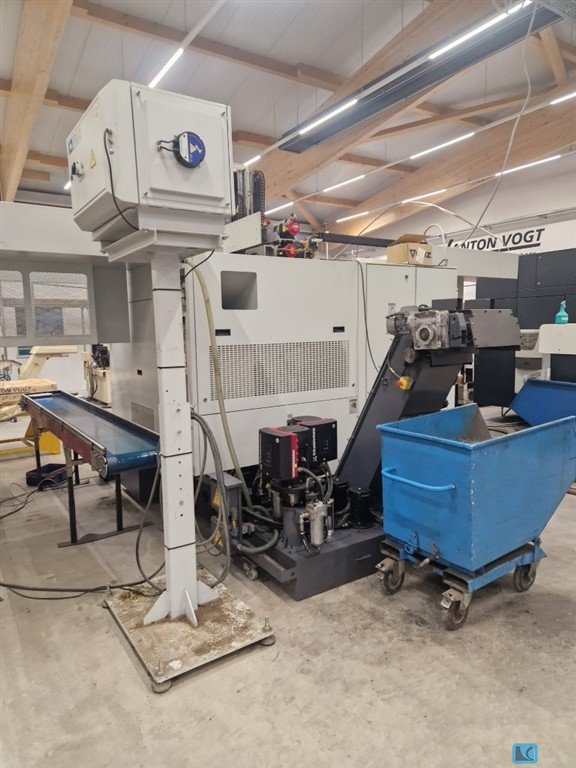

turning diameter:220 mmturning length:- mmcontrol:- distance between milling spindels:800 mmspindle speed max.:12.000 U/mindaylight:66 mmmachine weight ab.:11 ttotal power requirement:90 kVAFanuc controlTwo turretsTwo spindlesSpindle bore 66 mm on both spindlesTwo Y-axesParts gripperHainbuch chuck on both spindlesTailstock functionChip conveyorTool eyeShort bar loaderTool holder package

turning diameter:570 mmturning length:- mmcontrol:- Diameter of rotation above the bed slide:360 mmMaximum width:2.000 mmrevolutions per minute:max. 2500 U/min:11 kWmax. longitudinal feed:7,5 m/minmax. transverse feed:7,5 m/minrapid traverse longitudinal:12 m/minrapid traverse cross:15 m/minPinole diameter:95 mmPinolenhub:220 mmPinolen intake: MK 5 weight of the machine ca.:2,97 tdimensions of the machine ca.:3,8m x 1,3m x 2m mTechnical description:- Tool turret - automatic - 8-fold (see also options) - CAPTO Revolver Disc- Machine bed - made of perlite casting GG-26- high stiffness due to strong ribbing- Bed slides - guideways hardened and ground- automatic lubrication of the bed rail- Reitstock - manual- Quick clamp- Operator station - two movable handwheels on the operator panel- a movable handwheel- Control - "Siemens 828 D" CNC control- Siemens "Comfort" (including Shopturn and re ...

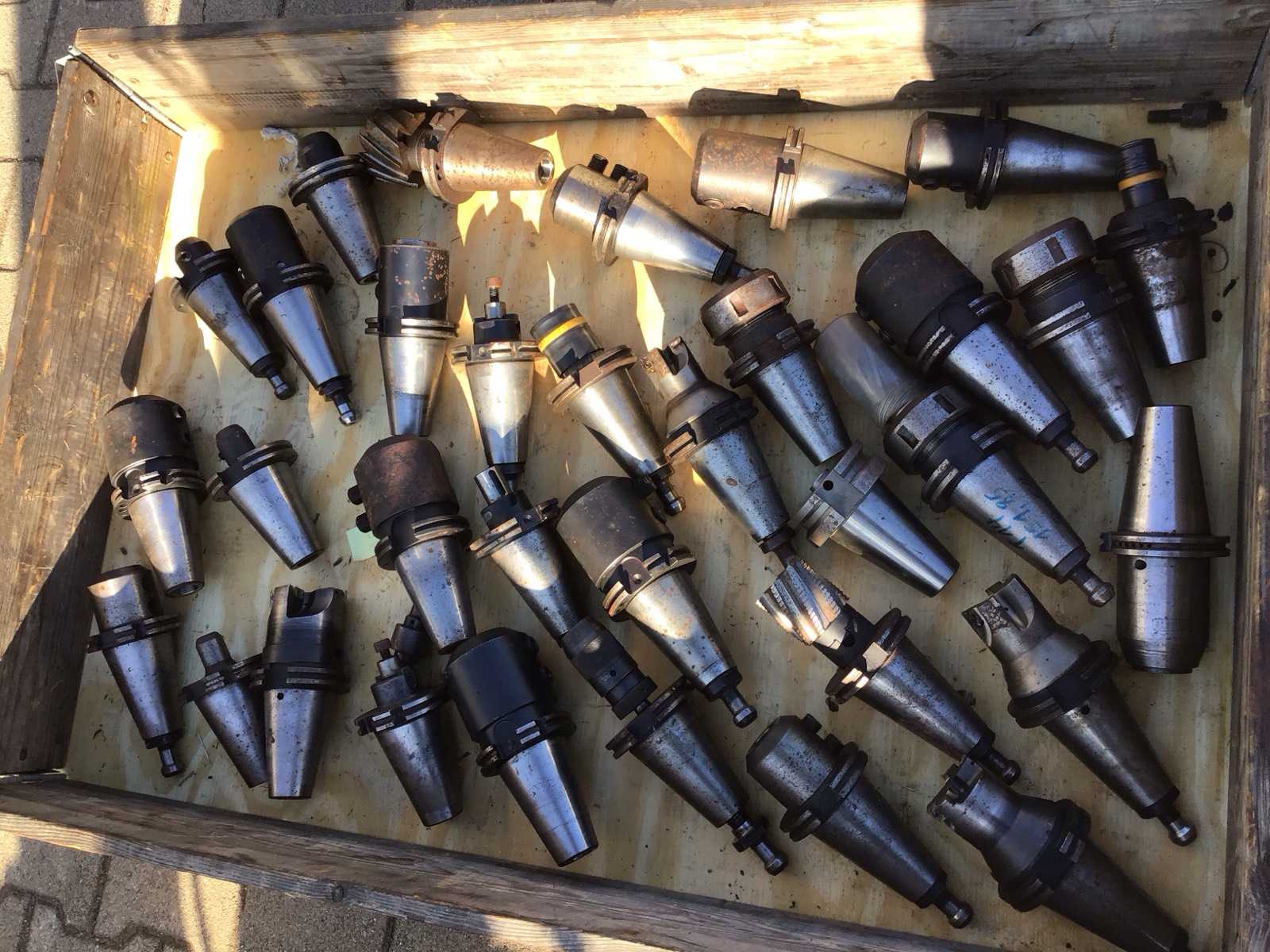

Various SK50 mounts Partly with tools. Loading onto truck with EURO pallet

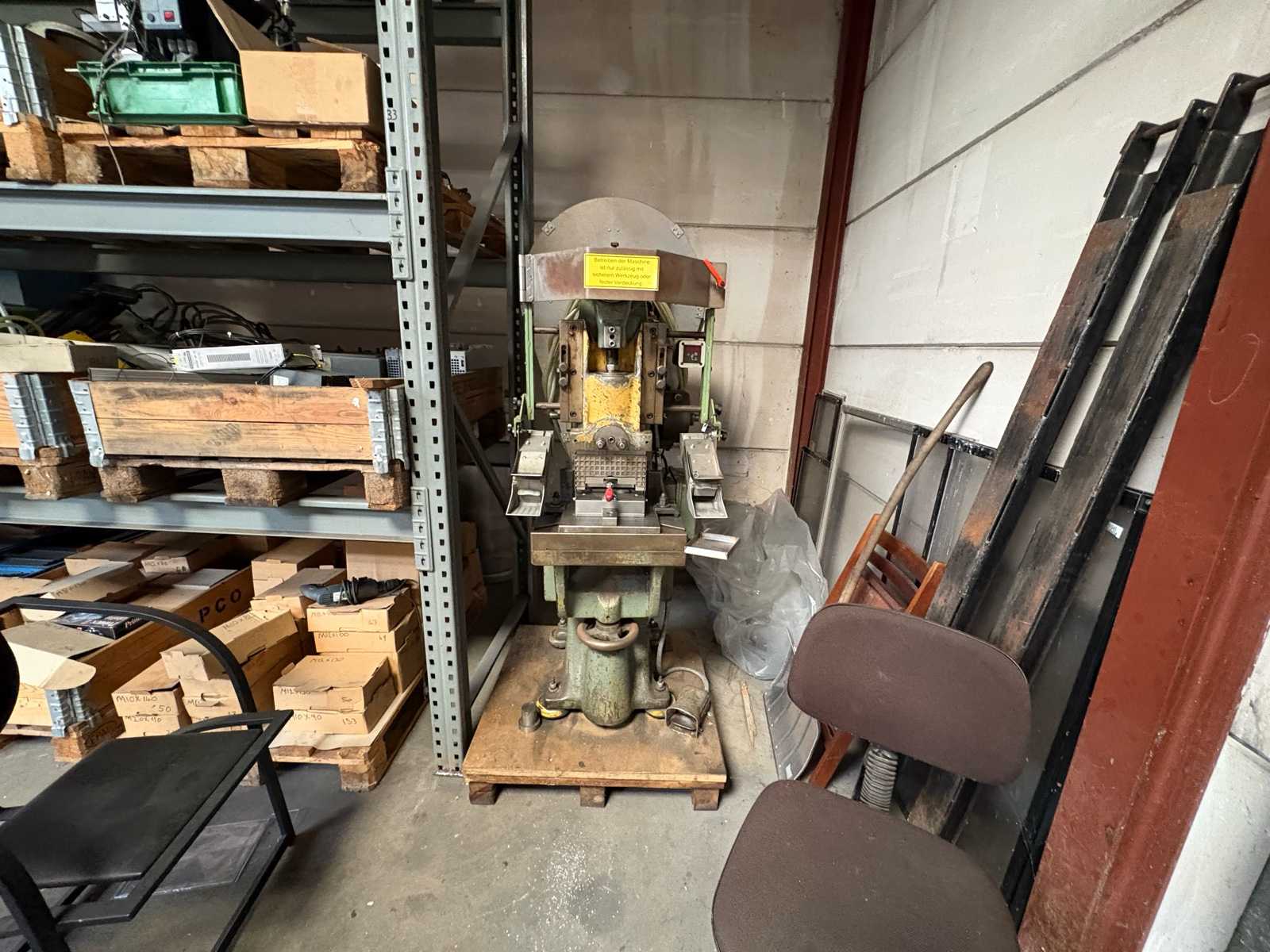

EB Eccentric Press Type 12/1 Manufacturer: E. Beutler AG Maschinenfabrik, Willisau (Switzerland) Mechanical eccentric press in compact industrial design Adjustable stroke available Table with stops and guides Protective cover mounted Suitable for stamping, punching and forming work Robust cast construction According to the previous owner, the machine is functional before storage Current functional status unchecked Traces of use according to age and use present Loading possible for an extra charge and by prior appointment

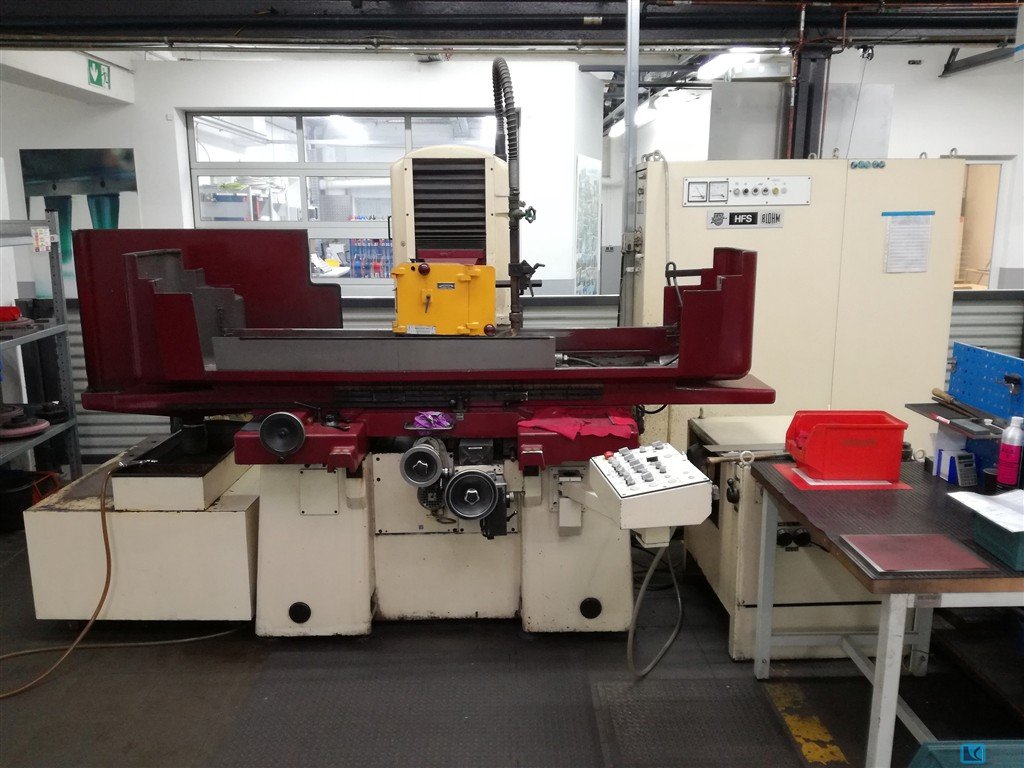

grinding length:900 mmgrinding width:400 mmworkpiece height:450/530 mmtable clamping surface LxW:1.320 x 300 mmmagnetic plate size:880 mm x 280 mm mmFinimaticCreep speedAdd-on for DiaformRectifier systemCoolant deviceInfinitely variable grinding clamping drive

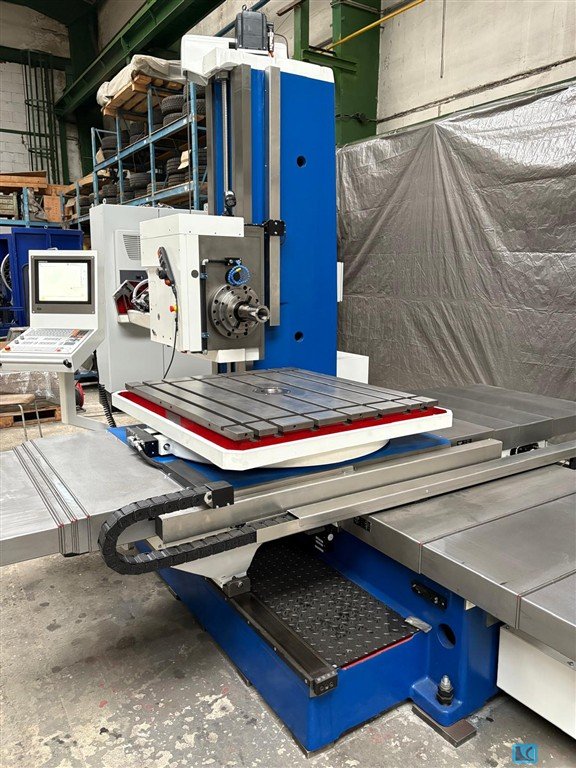

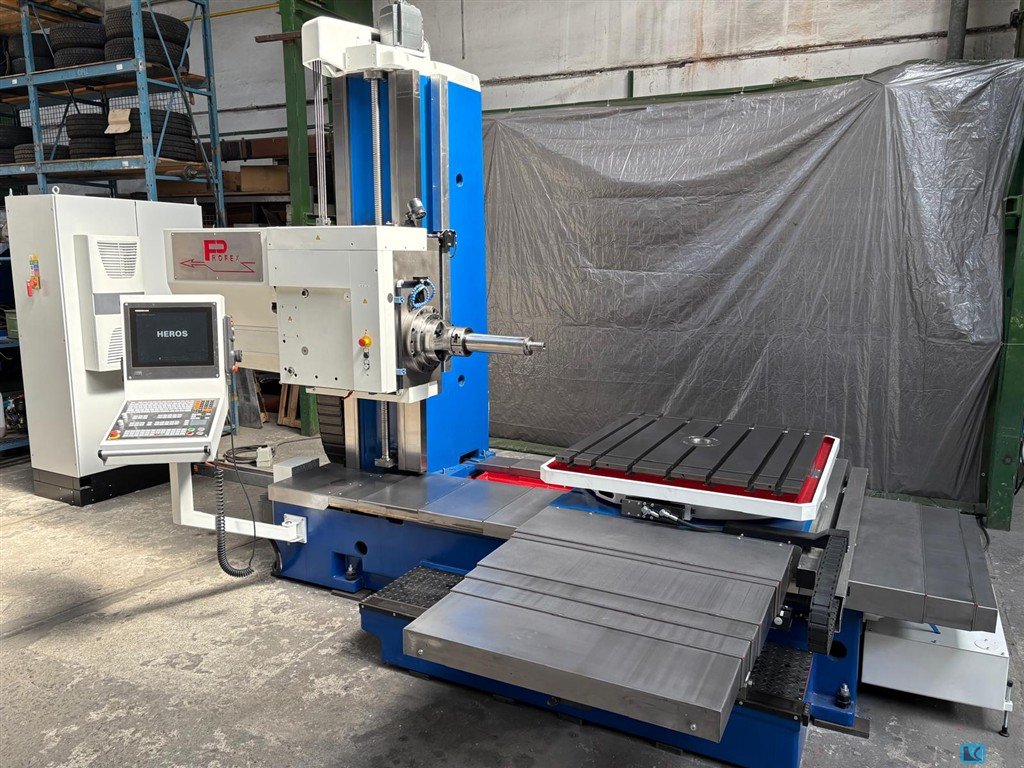

spindle diameter:100 mmx-travel:1250 mmy-travel:1100 mmz-travel:950 mmspindle turning speed range:2500 U/minRotary-table:1100 x 1000 mmtable surface area:1000 x 1100 mmtool clamping:69871 DIN spindle stroke:630 mmspindle taper:SK50 total power requirement:22/34 kWmax. workpiece weight:3000 kgweight of the machine ca.:13000 kg
