Schneidlinie Autotrimm PACE / Cutting Line Autotri POLAR 137XT-AT PACE

Schneidlinie Autotrimm PACE / Cutting Line Autotrimm Polar 137XT-AT PACE

Cutting system of performance class "PACE" raise the efficiency by up to 100 percent compared to a conventional CuttingSystem
The workflow: A loading lift takes the material to be cut onto the optimal working height for the operator who puts it on the automatic jogger. After jogging is completed, the Autotrans gripper system transports the material onto the rear table of the high-speed cutter.
On the rear table, the Autoturn turning gripper moves the material in an automated way. After cutting is completed, the POLAR Transomat E unit automatically stacks the reams on pallets while cutting can be continued.

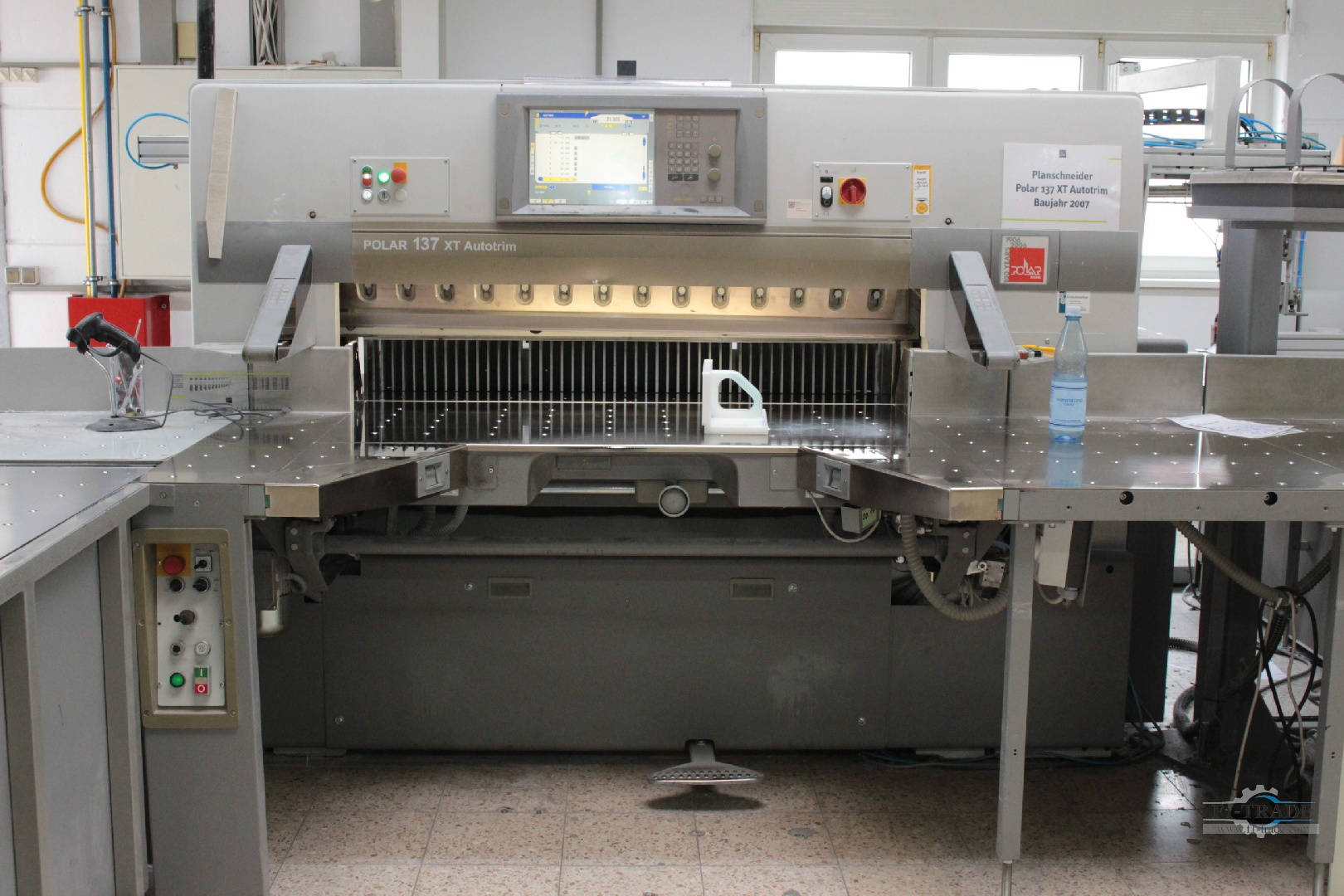

Schneidlinie Autotrimm PACE / Cutting Line Autotrimm Polar 137XT-AT PACE

Year 2007 - Serial-No. 7641622
Schnittbreite / Cutting width max. 1370mm
Autotrimm
Programm - Duisplay / Program - Display
Lufttisch - Chromtisch / Light guard - chrome table
große-Luft-Seitentische / large airbed side tables
Lichtschranke / Light guards
Ersatzmesser / Spare knives
CE-Zeichen-Zulassung / CE Certificate
Elektr. Anschluss / Power supply 3 Phase 380V - 10A

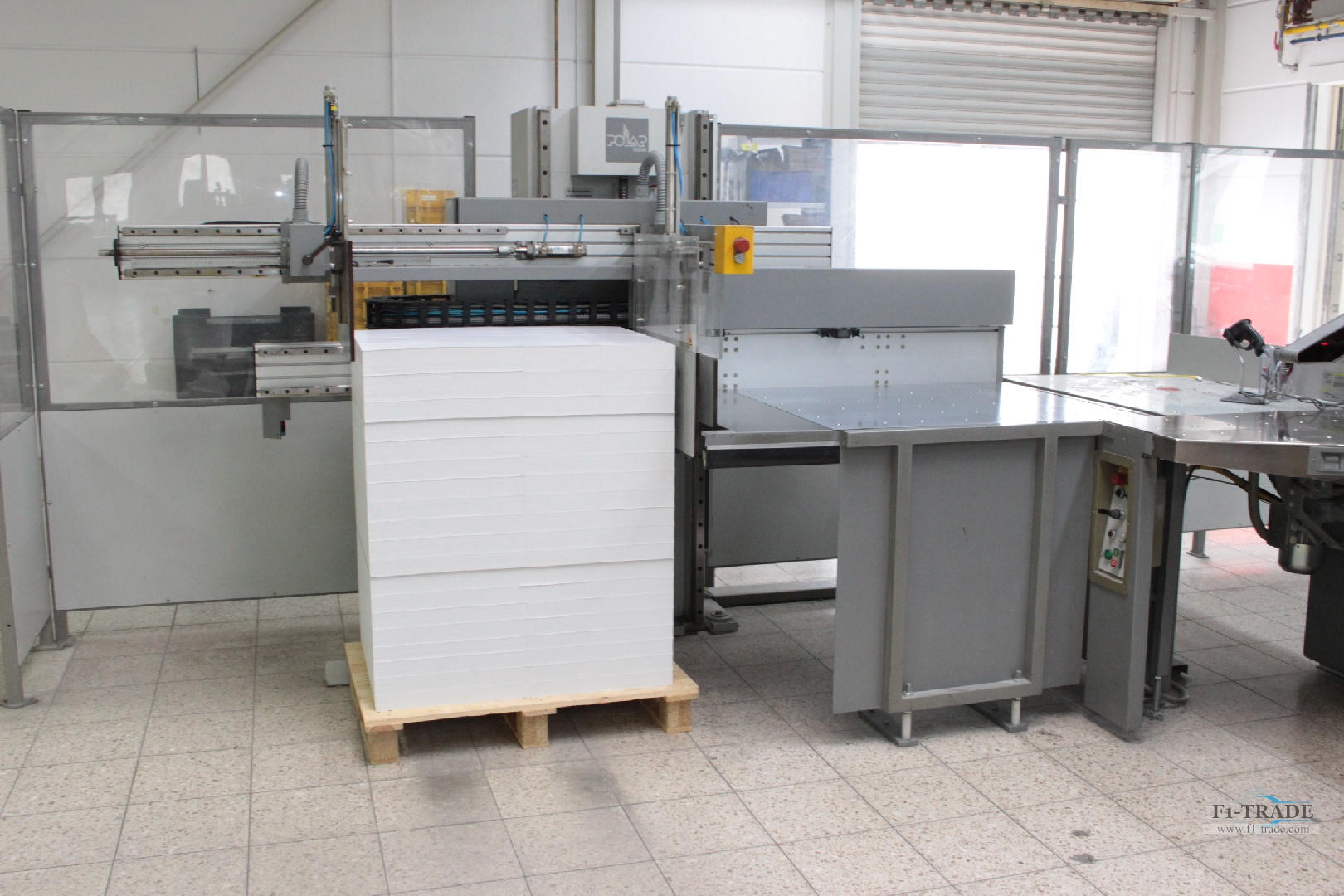

Stapellift / Stack Lift Polar LW 1000-4
Baujahr / Year 2007 - Serial-No. 7672488
Palettengröße / Pallet size max. 800 x 1.200mm
Wannengröße / Size of platform 840 x 1.270mm
Hub / Stroke max. 850mm
Tragkraft / Carrying capacity max. 1.000kg

Rüttelautomat Luftausstreichwalze / Automatic Jogger air-removing roller Polar RAH-4
Entladung zur Hintertischbeschickung / unloading for rear-table feeding
Baujahr / Year 2006 - Serial-No. 7684102
Tischgröße / Size of table 900 x 1.150mm
Ausschiebeformat / Pusher size max.max. 750 x 1.140mm
Lagenhöhe / Height of ream min. 30mm - max. 140mm

Stapelregal / Piling-board shelf Polar STR-1000-4
Baujahr / Year 2007 - Serial-No. 7775003
Format min. 420 × 570mm - max. 750 × 1.140mm
Größe Regalboden / Size of shelf board 900 × 1.170mm
Lagenhöhe / Height of ream min. 30mm - max. 140mm
Tragkraft / Carrying capacity max. 600kg
Anzahl Pufferplätze / Number of buffer spaces 5

Greifer G / Gripper G
Baujahr / Year 2007 - Serial-No. 77F2006

Ablader / Unloader Polar TR 130ER-4-
Einsatzbereich / Application for Size min. 400 x 400mm - max. 780 x 1.120mm
Nutzengröße / Label size min. 105 - 148mm
Lagenhöhe / Height of ream min. 40mm - max. 165mm
Stapelhöhe / Pile height max 1.300mm
Tragkraft / Carrying capacity max. 200kg
seller offer No. resale 26078
