Stritzel steam generator STRIETZEL PS400-60

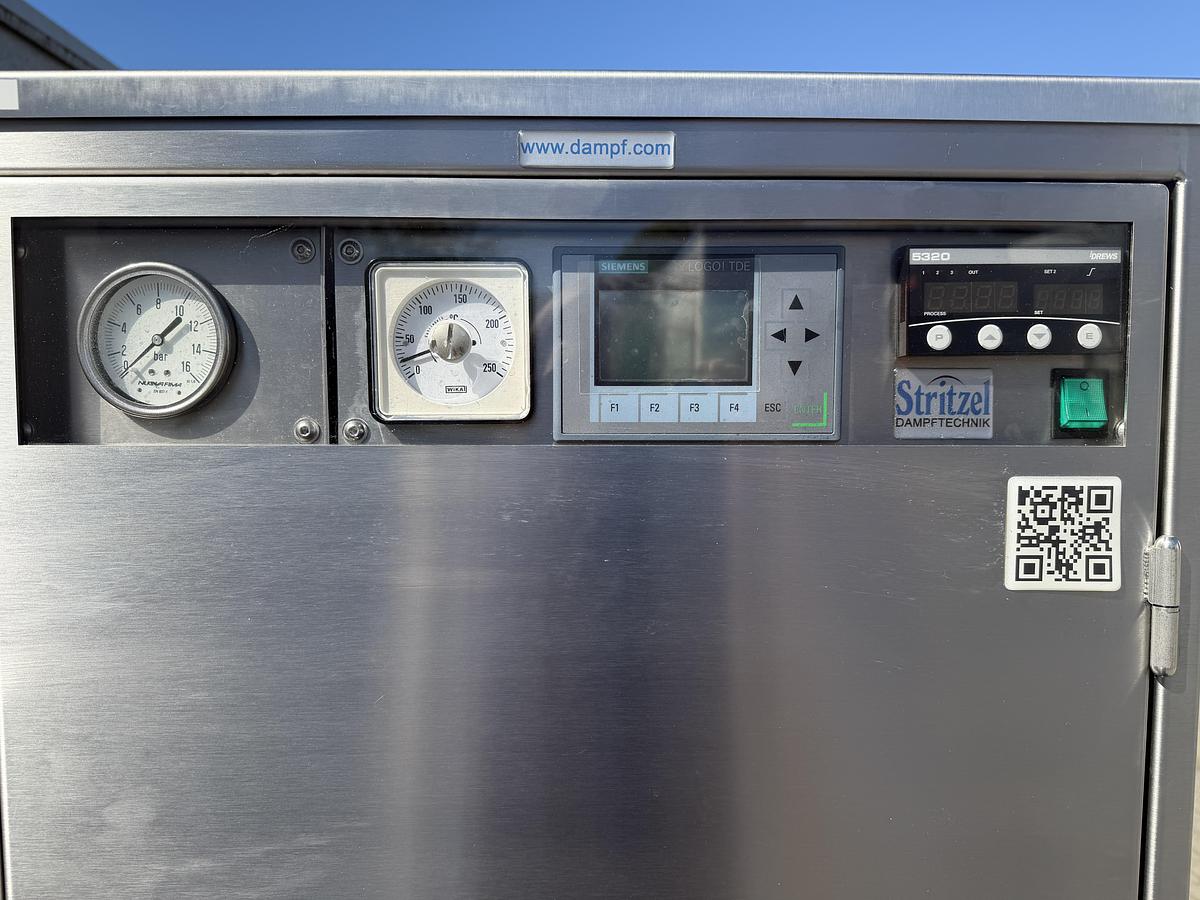

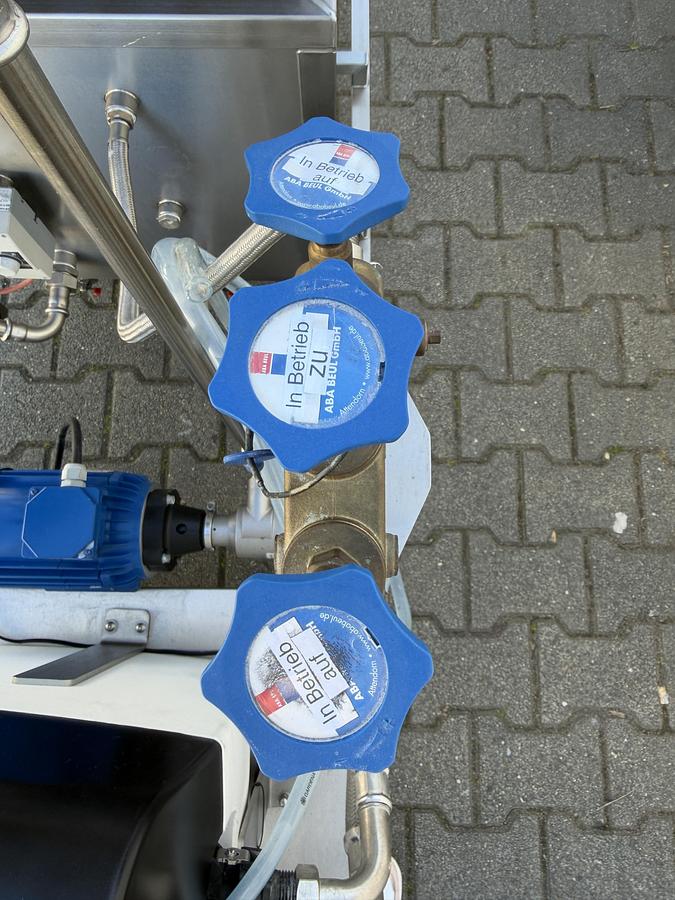

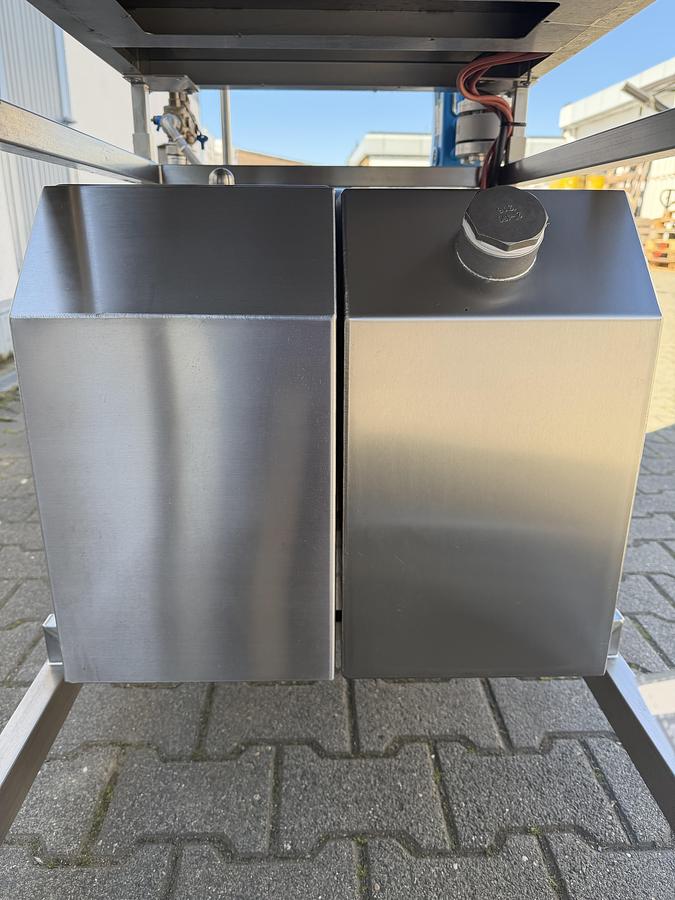

Steam generator PS400-60, electric heated stainless steel steam generator year of manufacture 2022, Factory inspection with the manufacturer 2026, 400 V / 60 kW / 50 Hz, 2-stage switchable (30 + 30 kW), max. operating pressure: 5 bar, adjustable operating pressure: 0 - 4 bar, max. steam amount: max. 84 kg/h (calculated value under optimal conditions), on a mobile frame, 1. Mechanical construction, The pot body is made of stainless steel 1.4571 and electrically welded. In, Kettle bodies are heating elements screwed in. The kettle body is located in a, Stainless steel housing and is clad with thermal insulation. In the stainless steel housing, the control cabinet is also located here. fittings (e.g.: steam outlet, water inlet,, etc.) lie outside the housing, 2. Functionality, Feedwater is pushed into the steam boiler by a water inlet valve. Is, when the intended water level is reached, the heating elements can be switched on., The heating control, the feedwater supply and the monitoring of the, Safety devices operate in conjunction with pressure control and the PLC, Fully automatic. The operator can set the desired working pressure. The, supplied water is heated and evaporates. When the set pressure is reached, no longer heated. If the steam pressure drops (e.g., due to steam extraction),, reheated again. If an error occurs the heating control, shut down and the error displayed to the operator in plain text. Only when the error, if it is repaired and the corresponding message has been acknowledged, the steam generator can be restarted, Operate., Steam extraction via ball valve R 3/4, Housing, frame, vessel and fittings made of stainless steel, Safety device according to TRD, switchboard according to, VDE wired, water inlet controlled by the steam generator, controlled,, fully automatic operation,, automatic standby switching under low, Steam outlet,, SIEMENS LOGO! PLC control,”}{, SIEMENS function display,, Microprocessor - regulation for the steam pressure,, switchable display pressure/temperature,, EU-type approval according to 2014/68/EU,, CE mark, Dimensions base unit without fittings: L x W x H approx. 1000 x, 560 x 972 mm, Stritzel steam generator are according to current, Pressure Equipment Directive 2014/68/EU manufactured and have, a valid type examination certificate with yearly, recurring inspection according to module C2. This, Inspections are conducted in-house on selected devices, performed and are thus valid for all Stritzel, Steam boiler., For customers this means that no, additional TÜV approvals must be obtained., Note: Without annual inspection according to Module C2, loses the type-approval if it loses its validity, therefore, always check the current certificates, prove. We are happy to advise you on this., Stainless steel console - mobile - or - stationary - incl., Stainless steel piping, Stainless steel version with 4 ball-bearing swivel casters, or adjustable supports, about 150 mm high, Capture of your steam station with all accessories, Feed water vessel PS030 made of stainless steel, including, Stainless steel float valve,, Rotary vane pump with piston ring seal, for hot water operation up to max. 90 °C,, Pump housing: STAINLESS STEEL, The pump is controlled by the steam generator and, supplied., Condensate and sludge separator PS050 made of, stainless steel, with water inlet valve and temperature control, automatic deaeration incl. electric, operated stainless steel ball valve, Double demineralization system Pallas, including mounting for console and everything required, Connection materials., Fleck 9100 SXT flow control UPFLOW, GFK pressure tanks with monodisperse resin, Flapper valve plastic, Plastic bypass with Yoke 1 brass with, Intersection, max. input pressure 6 bar, Dimensions: L x W x H: approx. 2,000 x 700 x 1,750 mm
seller offer No. resale H 60079377
