máquinas de corte e de denteamento usadas para venda (215)

max. wheel diameter:210 mmtotal power requirement:60 kWweight of the machine ca.:8 tdimensions of the machine ca.:2,85 x 2,60 x 1,80 mgrinding slide feed:700 mmgrinding slide feeds:1-15.000 m/minmax. workpiece weight:150 kgcentre height:260 mmgrinding wheel diameter:240 mm

rotor dia:30-500 mmhobbing length:500-1000 mmtotal power requirement:80 kWweight of the machine ca.:15 tdimensions of the machine ca.:3,6 x 2,5 x 3,0 mmax. module:8 Max. module Et milling = 12 Max. module hobbing = 12 Max. axial travel = 110 to 1100mm Max. cutter speed = 300rpm Max. cutter displacement tangential = -350 to -55mm Max. table speed = 100rpm Table drive: torque motor Filter system: chip conveyor is for magnetic materials, belt filter is for all suspended matter that floats in the oil Including milling mandrel

max. wheel diameter:180 mmmax. module:7 hob turning speeds:200-2000 U/minmin. number of teeth:4 excluding conveyor belt

hobbing length: 1750 mmmilling width: 260 mmmax. module: 10 table size incl. water gutter: 460 x 2100 mmtable clamping surface:: 250 x 1850 mmcutter width - max.: 100 mmfeed of the milling slide, stepless: 0 - 500 mm/min.rapid traverse feeds: 3000 mm/minmilling head -swivable +/-: 30 °Rotation speed range of milling head, in 9 steps: 29 - 178 rpmMilling head swivable 2 sides helical gearcutting: 30 °total power requirement: 4 kWweight of the machine ca.: 4 tdimensions of the machine ca.: 4 x 1,85 x 1,85 mMilling length 1750 mmMilling width 260 mmModule - max. 10Table dimensions incl. water channel 460 x 2100 mmTable clamping surface: 250 x 1850 mmMilling cutter width - max. 100 mmFeed of the milling carriage, infinitely variable 0 - 500 mm/min.Rapid traverse 3000 mm/minMilling head - tiltable + / - 30 °Speed range of the milling spindle, in 9 steps 29 - 178 rpmMilling head swivels on  ...

max. wheel diameter: 1000 mmgear width: 200 mmmax. module: 10 min. module: 0,5 max. dia. of teeth cutting: 1000 mmmin. dia. of teeth cutting: 75 mmtable diameter: 1000 mmboring diameter: 400 mmspindle stroke: 0 - 230 mmstroke position adjustment: 250 mmdistance between table / ram: 480 / 730 mmdia. of shaper cutter: 8 Zolltaper: Morse 5 tool taper: 1 3/4 Zolltotal power requirement: ca. 20 kWweight of the machine ca.: 11 tStandard version- Chip conveyor- Two additional tables with diameters of 850 mm and 1,500 mm- Several cutting tools- Set of interchangeable gears- Program for cutting in 1-2-3-4 passes/cycles- Program for spiral cutting- Several holders and clamps for workpiecesThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

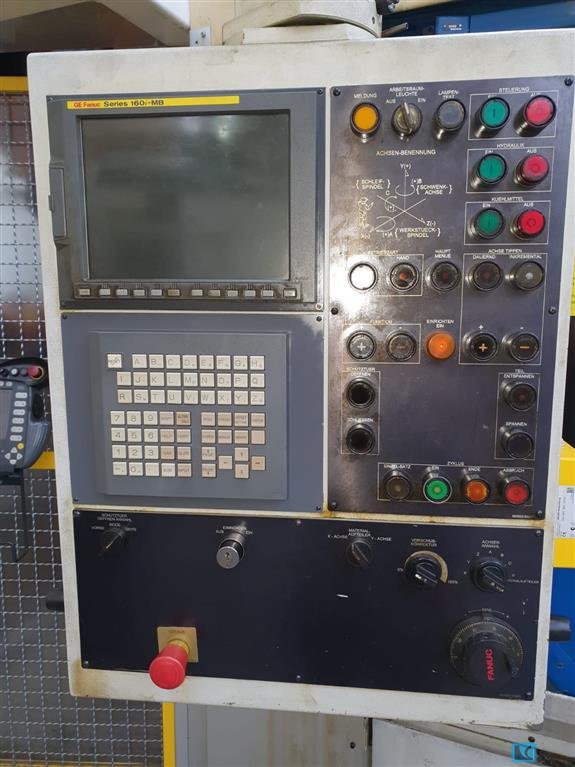

ratio of transmission: 10:1 min. number of teeth: 3 max. number of teeth: 200 range of tooth size: 20 mmdiameter of tools min: 69,85 mmtooth width max.: 58 mmdiameter of tools max.: 230 mmx-axis: 325 mmy-axis: 350 mmz-axis: 470 mmwork piece table - Ø: 212,71 mmb-axis: + 90,1 / - 1 °Control: 160 i - MB FANUCtotal power requirement: 75 kWweight of the machine ca.: 10.000 Kgdimensions of the machine ca.: 6,10 x 4,40 x 3,30 mWAGURIWith EWAB robot cell (KUKA robot)without coolant filter systemFire extinguishing system without CO2 bottlesCooling oil return with various pumps / collecting basinsThreading device A1/B2 axes with measuring probeClamping device for a pinion shaftExternal spindle oil coolerExtraction system pinion shaftThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

ratio of transmission: 10:1 min. number of teeth: 3 max. number of teeth: 200 range of tooth size: 20 mmtooth width max.: 58 mmdiameter of tools min: 69,85 mmdiameter of tools max.: 230 mmx-axis: 325 mmy-axis: 350 mmz-axis: 470 mmwork piece table - Ø: 212,71 mmb-axis: + 90,1 / - 1 °Control: SIN 840 D SIEMENStotal power requirement: 75 kWweight of the machine ca.: 10.000 Kgdimensions of the machine ca.: 6,10 x 4,40 x 3,30 mWAGURIwith EWAB load cell built in 2012(Linear loader)no coolant filter system available The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 180 mmgear width: ca. 220 mmmax. module: 3 / 5 mmControl: Siemens 840D sl max. radial velocity: 5000 mm/minmax. workpiece diameter: 180 mmtable rotation speed: 800 U/mintable diameter: 145 mmaxial travel: 250 mm mmback rest:: axial travel: 300 mmclamping force max.: 13 kNmilling head:: swivelable +/-: 45 °drive capacity: 23 kWturning speeds: 6000 U/mindiameter of tools max.: 90 mmtool clamping length max.: 211 mmmodule hobbing max.: 3 module profile milling max.: 5 tangential speed max.: 7500 mm/minweight of the machine ca.: 9,5 tdimensions of the machine ca.: 4,5 x 3,5 x 2,7 mEquipment / Accessories:- The machine is equipped for dry milling.- workpiece magazine- parallel gripper: - workpiece weight form-fit max. 15 kg - workpiece length max. 400 mmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

hobbing length: 1750 mmmilling width: 260 mmmax. module: 10 mmtable size incl. water gutter: 460 x 2100 mmtable clamping surface:: 250 x 1850 mmcutter width - max.: 100 mmfeed of the milling slide, stepless: 0 - 500 mm/min.rapid traverse feeds: 3000 mm/minmilling head -swivable +/-: 30 °Rotation speed range of milling head, in 9 steps: 29 - 178 rpmMilling head swivable 2 sides helical gearcutting: 30 °total power requirement: kWweight of the machine ca.: 4 tdimensions of the machine ca.: 4 x 1,85 x 1,85 mEquipment/accessories- 7 vices- change wheels - Clamping devices- DocumentationThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: mmgear width: mmmax. module: 0min. module: 0total power requirement: kWweight of the machine ca.: trequired space: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: mmgear width: mmmax. module: 0min. module: 0total power requirement: kWweight of the machine ca.: trequired space: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: mmgear width: mmmax. module: 0min. module: 0total power requirement: kWweight of the machine ca.: trequired space: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 3000 mmgear width: 500 mmmax. module: 25 / 40 spindle turning speed range: 250 U/minfeed speeds: max. 4000 mm/minfaceplate diameter: 2000 mmtable bore diameter: 700 mmtable turning speeds: 51 U/minpower capacity - milling spindle: 53 kWdrive motor for milling spindle: - kWaxial adjustment: 1200 mmmilling head swivable ca.: +/- 45 °control: Siemens 840D total power requirement: - kWweight of the machine ca.: 55 t- CNC Control Siemens 840D- Internal Hob Head IFK- External Hob HeadThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 1250 mmgear width: 600 mmmax. module: 16 min. module: 2 tooth width: 490 mmZahnschrägungswinkel max.: 45 °shifting: 200 mmmax. number of teeth: 12 diameter of hob: 240 mmcutter length max.: 280 mmtable diameter: 1020 mmmilling spindle speeds (infinitely variable): 28 - 200 U/minpower capacity: 25 kWweight of the machine ca.: 16,2 tdimensions of the machine ca.: 4,5 x 4,6 x 2,7 mequipped with:- universal hob head- change gearsmachine has been partly overhauled (electrical and machnical) and is now with programmable, digital InfeedThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 2500 mmgear width: 750 mmmax. module: 18 / 22 min. module: table diameter: 1800 mmmin. number of teeth: 12 table hole: 300 mmhob turning speeds: 20 - 100 U/mintable load: 10 tmilling cutter dia. x width: 250 x 340 mmshifting: 150 mmfeeds - tangential: 0,25 - 3 mm/minfeeds - radial: 0,07 - 1,5 mm/minfeeds - longitudinal: 0,55 - 3,5 mm/minmilling feeds: 13,4 - 80 (Einzelteilen) mm/mintotal power requirement: ca. 30 kWweight of the machine ca.: 28 t- change gears, arbors, toolings, clamping plots- universal hob head- swiveling outer steady - single indexing deviceparty overhauled in 2023The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: workpiece length - max.: mmmax. module: 0total power requirement: kWweight of the machine ca.: trequired space: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 400 mmgear width: 250 mmmax. module: 8 min. module: 0,2 dist. between centers: 640 mmspindle turning speed range: 4010 U/minnumber of teeth: 5 - 999 max.helical angle: +/- 45 °root circle diameter: 10 mmslide stroke: Z-Achse 300 mmworkpiece weight: 300 kgclamping length max.: 700 mmclamping length min.: 60 mmpressure angle: 14 - 30 °Control: Siemens 840D spindle motor: 10 kWtotal power requirement: - kWweight of the machine ca.: 16 tdimensions of the machine ca.: 3,3 x 2,7 x 2,5 mGear grinding machine designed for small and large series productionwith:- Siemens Sinumerik 840 D CNC control- Tailstock- Balancing device- Oil mist extraction- Complete cladding- Double Spindle Dresser- Hoffmann filter system, type HSF 150The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: mmgear width: mmmax. module: 3 min. module: internal dia. - max.: mminternal dia. - min.: mm: CNC workpiece length - max.: 130 mmcontrol: Siemens 840 D total power requirement: 20 kWweight of the machine ca.: 8 tdimensions of the machine ca.: 3 x 3 x 3 mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 300 mmmax. module: 8 min. module: 0,7 Control: SINUMERIK 840 D min/max. pitch cone angle: - 90 / + 90 °workpiece spindle - bore: 127 mmgrinding wheel diameter: 50 - 230 mmspindle speeds (infinitely variable): 7.500 U/minwork piece spindle speed: 700 U/mintotal power requirement: 146 kWweight of the machine ca.: 21 tdimensions of the machine ca.: 9,5 x 3,6 x 3,1 mMeasuring probefor tooth gap(integrated on the grinding head)External grinding spindle cooling systemELBARON oil mist extraction (integrated in the machine)Hoffmann coolant filter systemWas used for the serial production of spiral-toothed ring gearsNo clamping devicesNo grinding wheels / grinding wheel flangesNo dressing wheelsThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

ratio of transmission: 10:1 min. number of teeth: 3 max. number of teeth: 200 range of tooth size: 20 mmtooth width max.: 58 mmspindle speeds (infinitely variable): 6000 U/minwork piece spindle speed: 1200 U/mindiameter of tools max.: 230 mmdiameter of tools min: 69,85 mmx-axis: 325 mmy-axis: 350 mmz-axis: 470 mmb-axis: + 90,1 / - 1 °work piece table - Ø: 212,71 mmControl: SIN 840 D SIEMENStotal power requirement: 75 kWweight of the machine ca.: 10.000 Kgdimensions of the machine ca.: 6,10 x 4,40 x 3,30 mInternal probe Renishaw LP2 (axis X2,Y2)Hoffmann coolant filter system HSF 100SE/K (built in 2008)Tank capacity 2500LVT oil mist filter systemThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 1400 mmgear width: 400 mmmax. module: 25 min. module: 1 total power requirement: - kWweight of the machine ca.: 7,0 tdimensions of the machine ca.: 3,0 x 1,2 x 3,2 mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 1000 mmgear width: 180 mmmax. module: 7 min. module: 0,5 min. ram stroke: 16 mmmax. ram stroke: 180 mmtable hole: 160 mmtotal power requirement: 4 kWweight of the machine ca.: 5,2 tdimensions of the machine ca.: - mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 2500 mmgear width: 980 mmmax. module: 34 min. module: 2 grinding stroke stepless adjustable: 1000 mmroot circle dia. min.: 180 mmnumber of teeth: frei wählbar max.helical angle: 0 - 35 °grinding slide stroke: 20 / 200 U/mmgrinding wheel peripheral speeds:: 35 / 45 m/sgrinding wheel diameter: 340 / 435 mmgrinding motor: 22 kWpressure angle: 12,5 - 30 °table diameter: 1300 mmtable load capacity: 10000 kptable bore diameter: 300 mmdepth of hole: 300 mmroll feed: 0 - 1000 m/mintable diameter: 1300 mmworkpiece weight: 10000 kgclamping length: 2760 mmclamping height: 420 - 590 mmtable bore diameter: 280 mmdepth of hole: 300 mmControl: BWO H+K CNC 785 total power requirement: 79 kVAweight of the machine ca.: 40 tdimensions of the machine ca.: 7,3 x 7,9 x 4,5 m- 10 axis CNC control BWO H+K CNC 785 (2nd Generation from 2009)- integrated measurement system on the machine  ...

max. dia. of teeth cutting: 2000 mmworkpiece dia.: 2700 mmmax. module: 22 mmRing thickness for internal gearing max.: 500 Control: Siemens 840D table diameter: 1500 mmtable hole: 500 mmTable rpm: 3,5 1/mintable load: 200 kNStroke length: 30-330 mmno. of strokes doubel-strokes per min.: 10 - 200 1/min.axis distance: 70 ... 1220 mmmax. radial velocity: 3000 mm/minweight of the machine ca.: 38000 kgEquipment/ accessories:- Intermediate plate between head and column: Center distance modified min. 0 mm max. 1500mm- column increased for axial stroke 1200 mm max. - Shaping head drive power 30 kW- spindle diameter 160mm- max. tool diameter 300mm- max. cutter wheel speed 10 1/min- Cutting speed 5 ... 45m/min- max. lateral offset 50mm- coolant device coolant tank capacity 2500 l- documentationThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 400 mmgear width: mmmax. module: Control: total power requirement: kWweight of the machine ca.: 4 tdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 360 mmgear width: 180 mmmax. module: 7 min. module: 0,5 Control: Reishauer 0: max. 180 mmtooth width: max. 180 mmmin. number of teeth: 10 max. number of teeth: 600 max.helical angle: 45 °max. workpiece weight: 60,0 kggrinding wheel width: 84 / 104 mmgrinding wheel diameter: 280 / 350 mmSpindle Speed: 1.100 - 1.900 min/-1grinding spindle turning speeds at profiling: 52 - 95 min/-1total power requirement: 24 kVAweight of the machine ca.: 5,0 tdimensions of the machine ca.: 5,0 x 8,0 x 3,0 m- CNC Control Reishauer- CNC Dressing Unit- Exhauster- CoolantThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 600 mmgear width: 0 mmmax. module: 16 (25) min. module: 1 center distance betw. workpiece-tool min/max.: 40 - 590 mmdiameter of hob: 290 mmcutter length max.: 470 mmtangential adjustment: 450 mmmilling head -swivable +/-: 45 °milling head speed: 15 - 380 U/mintable rotation speed: 50 U/minmilling spindle drive: 37 kWtable diameter: mmtable load: 3750 kgfeeds: 2000 mm/minControl: Siemens 840D total power requirement: 115 kVAweight of the machine ca.: 31 tdimensions of the machine ca.: m- 6-axis CNC control Siemens Sinumerik 840 D- complete covering- counter stay- Coolant Unit- Chip ConveyorThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 750 mmgear width: 215 mmmax. module: 10 (25) min. module: 1 max. ram stroke: 225 mmnumber of teeth: 6 - 300 max.helical angle: 60 °no. of strokes: 32,2 - 200 Hub/minworkpiece weight: 800 kgtotal power requirement: 10,5 kWweight of the machine ca.: 6 tEquipped with:1 internal ramming device, type: JV 75 with approx. 10 ramming wheels1 set of interchangeable wheels1 rotary flap for helical planing combs, type: DS 451 hydraulic control unit with clamping unit recessed in the rotary table2 mechanical clamping devices with bayonet lock13 workpiece holders in various dimensions325 (!) planing combs for straight and helical teeth (some new)14 single-tooth tools with holders1 MAAG tooth pitch measuring device for external teeth, type: TMA1 MAAG tooth pitch measuring device for internal teeth, type: TMIThe data for this ad was created with ModulMWS - the software solution of ...

max. wheel diameter: 450 mmgear width: 120 mmmax. module: 6 min. module: 1 min. wheel diameter: 20 mmtooth helical angle min/max: 15 - 60 °number of teeth: 6 - 250 table diameter: 360 mmtable load capacity: 400 kpstroke of ram - solid: 0 - 145 mmstroke position adjustment: 200 mmnumber of strokes per dividing: 9 - 80 no. of strokes: 37,5 - 235 Stücktotal power requirement: 9 kWweight of the machine ca.: 3,7 tset of change gearsApproximately 30 planer combs, clamping fixtures The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 250 mmgear width: 242 mmmax. module: 4 min. module: 0,5 table diameter: 250 mmtable bore diameter: 68 mmmilling cutter dia. x width: 130 x 130 mmspindle stroke - max.: 110 mmmin. number of teeth: 6 center distance betw. workpiece-tool min/max.: 10 - 210 mmmilling spindle speeds (infinitely variable): 80 - 500 U/minfeeds axial: 0,32 - 4 mm/WUradial feed: 0,05 - 1,6 mm/WUfeeds - tangential: 0,16 - 2 mm/WUControl: LAUER PCS table diameter: 250 mmtable hole: 62 mmmilling cutter dia. x width: 130 x 130 mmtotal power requirement: 16 kVaweight of the machine ca.: 3,6 tdimensions of the machine ca.: 2,8 x 2,4 x 1,9 mMachine ideal for electrical retrofittingEquipped with:- LAUER PCS NC control- Siemens Simatic S5 PLC- Loading device/magazine for workpiece size max. 140 mm Ø- Shifting- 2-cut cycleThe data for this ad was created with ModulMWS - the software solution of LogoTe ...
