The Klingelnberg PSR 500 U worm gear testing machine was designed as a universal machine for the flexible testing of worm gears and is used by manufacturers of gear and gear technologies for the process of single-flank rolling testing for worm gear sets EFWP. Technical data Max. worm wheel diameter: 500 mm Max. spindle length: 500 mm Max. spindle diameter: 200 mm Center distance: 0 ... 400 mm Max. measuring speed: 60 rpm Braking torque: 2.5 Nm Max. worm wheel weight: 150 kg Max. spindle weight: 50 kg Table diameter: 300 mm Machine weight: 800 kg Dimensions: 1500 x 1500 x 1600 mm The following parameters can be measured here: • Single-flank deviations Fi', fi', fl', fk' • Crossing, concentricity, roundness (option) • Carrying pattern with digital camera • Pitch deviation • FFT analysis, spectrum Picture shows the machine in its current ACTUAL condit ...

Machine : Gear Hob 1 set of gear hobs 20 pcs. Angle of engagement 20 degrees Module : M1 - M6, Set all sizes Additional: M 1 2x M 3 M 1.25 M 3.25 M 1.5 2 x M 3.5 M 1.75 M 3.75 M 2 M 4 M 2.25 M 4.5 M 2.5 M 5 M 2.75 M 5.5 M 6 Gear hobs : M 1 , 20 degrees , φ 70x50, 80% M 1.5 20 degrees, φ 54x56, 90%, M 2 20 degrees, φ 72x72 90% M 2.5 20 degrees, φ 60x65, 80% M 4 20 degrees, φ 90x78, 80% M 2.5 20 degrees φ 78x190, 30% M 1.6 30 degrees, φ 85x130, 90% M 1.5875, 30, φ 82x120, 90% Other tools : See photo

max. wheel diameter:200 mmgear width:250 mmmax. module:3 min. module:0,5 total power requirement:45 kWweight of the machine ca.:8,5 tdimensions of the machine ca.:4,4 x 2,4 x 2,7 mMachine out of prototype productionWithout automation

grinding wheel diameter:400 mmtotal power requirement:3 kWweight of the machine ca.:1,5 tdimensions of the machine ca.:1,5 x 1,4 x 1,3 mDressing Grinder for gears REISHAUER AMmax. width of grinding wheel 104 mmmax. dia. of grinding wheel 400 mmmax. module 7min. module 0,5pressure angle 10 - 30 °grinding worm dia. 270 - 400 mmwidth of grinding worm 62/84/104 mmgrinding worm turning speeds: at profiling 18/35/70 U/minelectrics - voltage/frequency 380 / 50 V/Hzlong. movement of crowning device 156 mm

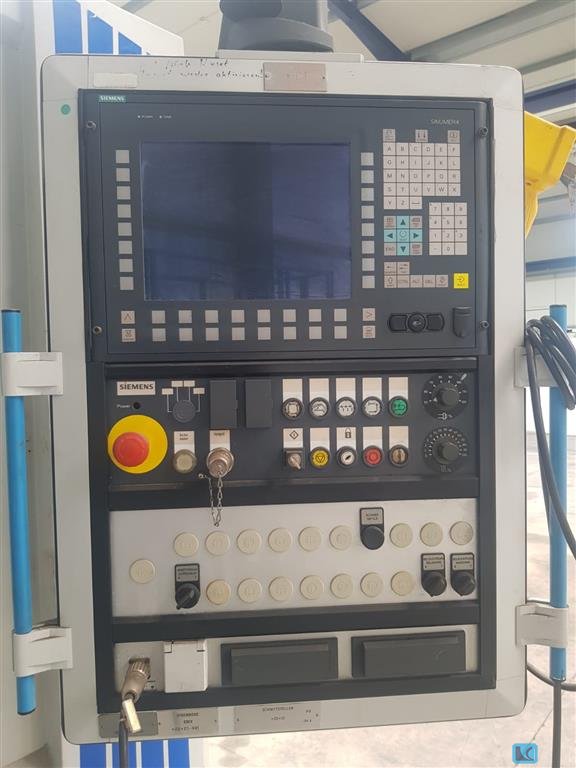

control:siemens 1P 6SL 3054--0CE01-1AA0 Documents:vorhanden

weight of the machine ca.:8 tdimensions of the machine ca.:2,95 x 1,6 x 2,36 mchucking diameter:250 mmswing diameter:265 mmx-travel:170 mmz-travel:200 mmspindle turning speed range:1.500 U/minspindle bearing diameter:100 mmPick-up machine

weight:22 t

max. wheel diameter:200 mmgear width:250 mmmax. module:3 min. module:0,5 total power requirement:45 kWweight of the machine ca.:6,5 tdimensions of the machine ca.:4,4 x 2,4 x 2,7 mMachine out of prototype productionWithout automation

max. wheel diameter:40-200 mmtotal power requirement:31,3 kWweight of the machine ca.:4 tdimensions of the machine ca.:1,8 x 2,2 x 1,8 m

max. wheel diameter:150 mmgear width: mmmax. module:3,5 min. module:1,25 total power requirement: kWweight of the machine ca.:6,5 tdimensions of the machine ca.:2,35 x 2,10 x 2,35 mWidth of teeth:45 mmboring diameter:100 mmsurface area:1300 x 300 mm

max. wheel diameter:150 mmgear width: mmmax. module:3,5 min. module:1,25 total power requirement: kWweight of the machine ca.:6,5 tdimensions of the machine ca.:2,35 x 2,10 x 2,35 mWidth of teeth:45 mmboring diameter:100 mmsurface area:1300 x 300 mm

Dressing diameter: Planing width: min. module: for Reishauer RZ150

max. wheel diameter:275 mmgear width:55 mmmax. module:6,5 min. module:1,5 Face Hobbing-Continious ProcessContinuous process: The workpiece and tool (usually Spiron) rotate at the same time, and all teeth are created in one operation at the same time. Knife head has several knife groups (not arranged in a circle) Parallel tooth Conical tooth tip surface Single Item procedure: The workpiece is stationary and the tool (usually Arcon) rotates and cuts a tooth by immersing the tool. Once a tooth is cut, the tool moves out of the tooth again, the workpiece divides by one tooth width and the next tooth is cut until all teeth are finished. Knife head has arranged all knives in a circular path. Conical tooth height Parallel tooth head surfaceC28 can do both, wheel + pinion. However, a C28 must be ?prepared? for the individual part procedure. I.e. direct measuring system + part gear brake, workpie ...

max. wheel diameter:275 mmgear width:55 mmmax. module:6,5 min. module:1,5 Face Hobbing-Continious ProcessContinuous process: The workpiece and tool (usually Spiron) rotate at the same time, and all teeth are created in one operation at the same time. Knife head has several knife groups (not arranged in a circle) Parallel tooth Conical tooth tip surface Single Item procedure: The workpiece is stationary and the tool (usually Arcon) rotates and cuts a tooth by immersing the tool. Once a tooth is cut, the tool moves out of the tooth again, the workpiece divides by one tooth width and the next tooth is cut until all teeth are finished. Knife head has arranged all knives in a circular path. Conical tooth height Parallel tooth head surfaceC28 can do both, wheel + pinion. However, a C28 must be ?prepared? for the individual part procedure. I.e. direct measuring system + part gear brake, workpie ...

max. wheel diameter:50 mmgear width:20 mmmax. module:4 mmmin. module:0,1 mmtotal power requirement:12,5 kWweight of the machine ca.:4000 kgdimensions of the machine ca.:2,2 x 2,5 x 2,3 mworkpiece length - max.:300 mm

weight of the machine ca.:4 t

total power requirement:413 kWInduction hardening machine Rotary table Eldec: Z (servo drive 750 mm Y (electromechanical) 300 mmX (electromechanical) 200 mmMaximum part diameter 600 mmMaximum workpiece weight 500 kg High frequency generator type HFG 200 Medium frequency generator type MFG 30

max. wheel diameter:260 mmgear width:320 mmmax. module:5 weight of the machine ca.:21 tdimensions of the machine ca.:8,71 x 5,97 x 3,49 mno. of teeth:1...999 max. helix angle:+45/-45 °pitch min.:0,1 mmpitch max.:1000 mmX-axis:345 mmy-axis:250 mmZ-axis:320 mmb-axis:360 °c-axis:360 °Coolant is not available. It was central and there is only a booster pump without filtering. For loading system there is a 2-axes robot with workpiece conveyor.

max. wheel diameter:280 mmmax. module:7 weight of the machine ca.:13 ttable turning speeds:100 U/mintable diameter:250 mmmin. number of teeth:4 hob turning speeds:1500 U/minmax. hob diameter:160 cutter length max.:230 mmMachine in good condition.Available 01.08.2024

max. wheel diameter:200 mmgear width:60 mmmax. module:7 weight of the machine ca.:15 ttable diameter:180 mmtable turning speeds:100 U/minhob turning speeds:750 U/minMachine in good condition, without feed, without automationAvailable 24.08.2024

max. wheel diameter:900 mmmax. module:10 weight of the machine ca.:8200 kos.hob dia. - max.:190 mmcutter length max.:320 mmmilling spindle speeds (infinitely variable):13-80 U/minworkpiece length - max.:750 mmmax. workpiece diameter:150 mmCounter holder milling mandrel is missing

max. wheel diameter:280 mmmax. module:5 min. module:1 min. number of teeth:7 toolpiece turning speed range:4.000...10.000 U/mintool length:210 mmCBN
