presses used for sale

pressure: 12 tdistance between columns: / mmdayligth: / mmtotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

pressure: 160 tstroke: / mmstroke: / mmtable-size: / mmtotal power requirement: 18,5 kWweight of the machine ca.: 13,5 tdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 10 Wochen ab Auftrags : Türkei : 80100 €: 1513.89 €: 60 to: 350 mm: 550?850 mm: 600?1000 mm: 600 mm: 100 mm/s: 10 mm/s: 165 mm/s: 11 kW: 1950 mm: 1900 mm: 2850 mm: 5350 kg: 170 bar: 24 to: 150 mm: 100 mm: 156 bar: 65 mm/sec.: 470?650 mmlight curtaincushionmanual and automatic workingmanual stroke adjustment by camshaft switchmaintenance free self lubricating 4-fold ram guidingpolster plate with T-slotsaccording to ",CE", rulesThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 12 - 14 Wochen ab Auf : Türkei : 94120 €: 1778.87 €: 175 to: 4050 mm: Y1 / Y2 / X Achse : 265 mm: 3600 mm: 450 mm: 530 mm: hydraulisch : 160 mm/s: 10 mm/s: 140 mm/s: 500 mm/s: 350 mm/s: 250 mm: 900 mm: 104 mm: 250 l: 18.5 kW: 5250 mm: 1700 mm: 2850 mm: 12780 kg3 axes (Y1, Y2,X)CNC control DT-15- 2D grafic display 15",- intuitive touch-screen control (simple drawing of the bending outline with your finger)- user friendly programming in dialogue form- automatic calculation of the bending sequence- automatic calculation of the blank sheet size- graphic product and tool memory- correction possibility- USB interfaces for backup and programm transportation- PC software, generating programms on the PC and transfer to the machine by USBservo motorized back gauge on linear guides and ball screwsback gauge finger blocks on double linear guidesCNC crowning tableupper tool 1010  ...

: neu : ca. 12 Wochen ab Auftrags : Türkei : 21500 €: 412.8 €: 150 to: fix : 300 mm: 610 mm: 1520 mm: 9 mm/s: 5 mm/s: 10 mm/s: 600x1520 mm: 100 mm: 190 mm: 2630 mm: 1000 mm: 2470 mm: 3200 kg2 guidingsupper plate with T-slotstable plate with T-Slotsmanometerrapid down move with automtic changeto working speedpiston stops in every positionmanuel and 2 hand workingtable height adjustableaccording to CE regulationsuser manual in GERMAN and ENGLISHThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 4 Monate ab Auftragse : Italien : 70000 €: 1323 €: 300 to: fix : 500 mm: 1500 mm: 20 mm/s: 2 mm/s: 2800 mm: 1500 mm: 3200 mm: 6000 kgtable with integrated cylinder to lift the workpiececontrol by levers as well as control panel (2- hand)regulable maximum pressureManometeraccording to CE regulations user manual in GERMAN and ENGLISH(sample photo)The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 4 Monate ab Auftragse : Italien : 107000 €: 2022.3 €: 200 to: 500 mm: 3.000 x 2.550 mm: 800 mm: 20 mm/s: 2 mm/s: 3550 mm: 3000 mm: 2600 mm: 8500 kg: horizontal verschiebbar : 2550 mm: 1900 mm: 2000 mmhorizontal movable cylinderhydraulicaly movable standcontrol by levers as well as control panelaccording to CE regulations user manual in GERMAN and ENGLISHOPTIONS:Work table, welded to the base frame, with holes on the surfaceControl panel on the swivel arm (push buttons for press movement, solenoid valves, Siemens CPU)Radio control panel (push buttons for press movement, solenoid valves, Siemens CPU)Siemens control with touchscreenLifting cylinders in the table (6, 8 or 10 pcs.)No-rotation shaft for the piston2 speeds for stand movement and cylinderOil cooler and decompression valveThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 14 - 16 Wochen ab Auf : Türkei : 202100 €: 3869.08 €: 320 to: 6050 mm: Y1 / Y2 / X und R Achse : 365 mm: 5100 mm: 450 mm: 630 mm: hydraulisch : 160 mm/s: 10 mm/s: 160 mm/s: 650 mm: 500 mm/s: 250 mm: 1100 mm: 154 mm: 160 l: 2 x 11 kW: 7500 mm: 1910 mm: 3350 mm: 29000 kg1 SERVO MOTOR AND PUMP PER CYLINDER4 axes (Y1, Y2,X andR)CNC control SKY 22- intuitive touch-screen control (simple drawing of the bending outline with your finger) 21,5 in full HD- with 2D and 3D working screen- direct programming of the bending angle- user friendly programming in dialogue form optionally in 2D or 3D mode- 2D and 3D simulation of the bending sequence- automatic tool selection in 3D mode- automatic calculation of the blank sheet size- bending order calculation- graphic product and tool memory- correction possibility- USB and Ethernet interfaces for import, backup and programm transportation ...

: neu : ca. 10 Wochen ab Auftrags : Türkei : 112800 €: 2131.92 €: 220 to: 3050 mm: Y1 / Y2 / X und R Achse : 265 mm: 2600 mm: 410 mm: 530 mm: hydraulisch : 200 mm/s: 12 mm/s: 180 mm/s: 650 mm: 500 mm/s: 250 mm: 900 mm: 104 mm: 11 kW: 4250 mm: 1770 mm: 2900 mm: 12250 kg1 SERVO MOTOR AND PUMP PER CYLINDERStandard accessories:4 axes (Y1, Y2,X andR)CNC control SKY 22- intuitive touch-screen control (simple drawing of the bending outline with your finger) 21,5 in full HD- with 2D and 3D working screen- direct programming of the bending angle- user friendly programming in dialogue form optionally in 2D or 3D mode- 2D and 3D simulation of the bending sequence- automatic tool selection in 3D mode- automatic calculation of the blank sheet size- bending order calculation- graphic product and tool memory- correction possibility- USB and Ethernet interfaces for import, backup and programm trans ...

PRESS DESIGN  drive system: eccentric / crank   openings in uprights: yes   number of slide actions: 1 PRESS FORCES  total force (nominal): 100 toSLIDE  stroke: 125 mm  stroke rate (max.): 70 /minTOOL ASSEMBLY DIMENSIONS  shut height (stroke down, adjustment up), BDC: 325 mm

PRESS DESIGN  drive system: eccentric / crank   openings in uprights: yes   number of slide actions: 1   table cushion: no PRESS FORCES  total force (nominal): 160 to

PRESS DESIGN  drive system: hydraulic   openings in uprights: no   number of slide actions: 1   table cushion: yes PRESS FORCES  total force (nominal): 200 toPRESS TABLE  table surface (left-right): 1000 mmTOOL ASSEMBLY DIMENSIONS  distance table - slide max.: 1540 mmDIMENSIONS / WEIGHTS  space requirements -left/right-: 1700 mm  space requirements -front/back-: 2300 mm  total height: 6500 mm  height above floor level: 5000 mm  height under floor level: 1500 mmATTACHMENTS (PRESSES)  light barrier: yes   2-hand engagement: yes

Press capacity: 63 ton Throat depth: 360 mm Stroke: 500 mm Daylight: 800 mm Table surface area : 750 x 560 mm Slide area: 630 x 400 Working speed: 60 mm / sec Return speed: 380 mm / sec Electrical connected load: 12,6 kW Dimensions L x W x H: 1.200 x 1.950 x 2.800 mm Weight of machine approx.: 4,3 ton

Pressure total: 140 ton Stroke: 800 mm Daylight: 1.004 mm Free frontal opening L-R: 2.060 mm Table surface area : 2.000 x 520 mm Slide area: 2.040 x 520 mm Working speed: 4 -20 mm / sec Rapid travel: 135 mm / sec Return speed: 120 mm / sec Weight of machine approx.: 14 ton Height over floor approx.: 4.810 mm Oil volume: 700 l

Press capacity: 50 ton Throat depth: 265 mm Stroke: 250 mm Daylight: 400 mm Table surface area : 700 x 450 mm Slide area: 550 x 300 mm Table height over floor: 850 mm Approach speed: 32 mm / sec Working speed: 6,3 mm / sec Return speed: 42 mm / sec Required power: 4 kW Dimensions L x W x H: 1290 x 1160 x 2085 mm Weight of machine approx.: 1,75 ton

Press capacity: 125 ton Ram stroke adjustable: 30 - 120 mm Slide adjustment: 100 mm Shut height (stroke down, adjustment up): 450 mm Free frontal opening L-R: 1.290 mm Free lateral opening F-B: 450 mm Table surface area : 1.250 x 800 mm Slide area: 1.250 x 650 mm Hole in table: 1.050 x 260 mm Number of strokes: 30 - 220 s.p.m. Table height over floor: 1.200 mm Required power: 39 kW Height over floor approx.: 3.800 mm Dimensions L x W x H: 3.500 x 2.200 x 3.800 mm Weight of machine approx.: 21,5 ton

Press capacity: 45 ton Ram stroke adjustable: 20 - 80 mm Slide adjustment: 50 mm Shut height (stroke down, adjustment up): 300 mm Free frontal opening L-R: 710 mm Table surface area : 700 x 450 mm Slide area: 700 x 360 mm Hole in table: 600 x 100 mm Number of strokes: 80 - 400 s.p.m. Required power: 10 kW Height over floor approx.: 2900 mm Weight of machine approx.: 7,2 ton Control: Siemens S7

Press capacity: 80 ton Ram stroke adjustable: 4 -60 mm Slide adjustment: 0 - 80 mm Shut height (stroke down, adjustment up): 310 mm Free frontal opening L-R: 800 mm Table height over floor: 1150 mm Table surface area : 780 x 640 mm Slide area: 800 x 460 mm Hole in table: 690 x 170 mm Number of strokes: 30 - 300 s.p.m. Required power: 21 kW Height over floor approx.: 2900 mm Weight of machine approx.: 12 ton Control: Siemens S5

Press capacity: 45 ton Ram stroke adjustable: 10 - 40 mm Slide adjustment: 50 mm Shut height (stroke down, adjustment up): 220 - 300 mm Free frontal opening L-R: 560 mm Table surface area : 550 x 450 mm Slide area: 550 x 360 mm Hole in table: 450 x 100 mm Number of strokes: 100 - 500 s.p.m. Required power: 7,5 kW Weight of machine approx.: 6,2 ton

Press capacity: 35 ton Ram stroke adjustable: 6 - 50 mm Slide adjustment: 50 mm Shut height (stroke down, adjustment up): 250 mm Free frontal opening L-R: 430 mm Table surface area : 410 x 410 mm Slide area: 307 x 187 mm Hole in table: 170 x 110 mm Number of strokes: 60 - 300 s.p.m. Weight of machine approx.: 2,4 ton

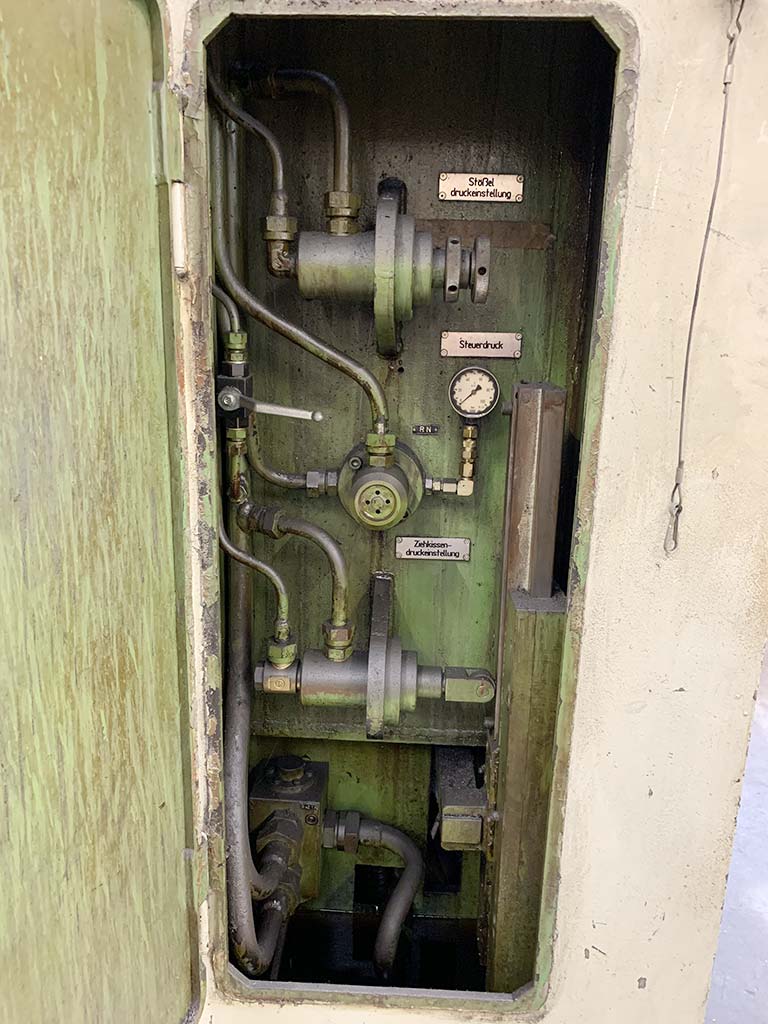

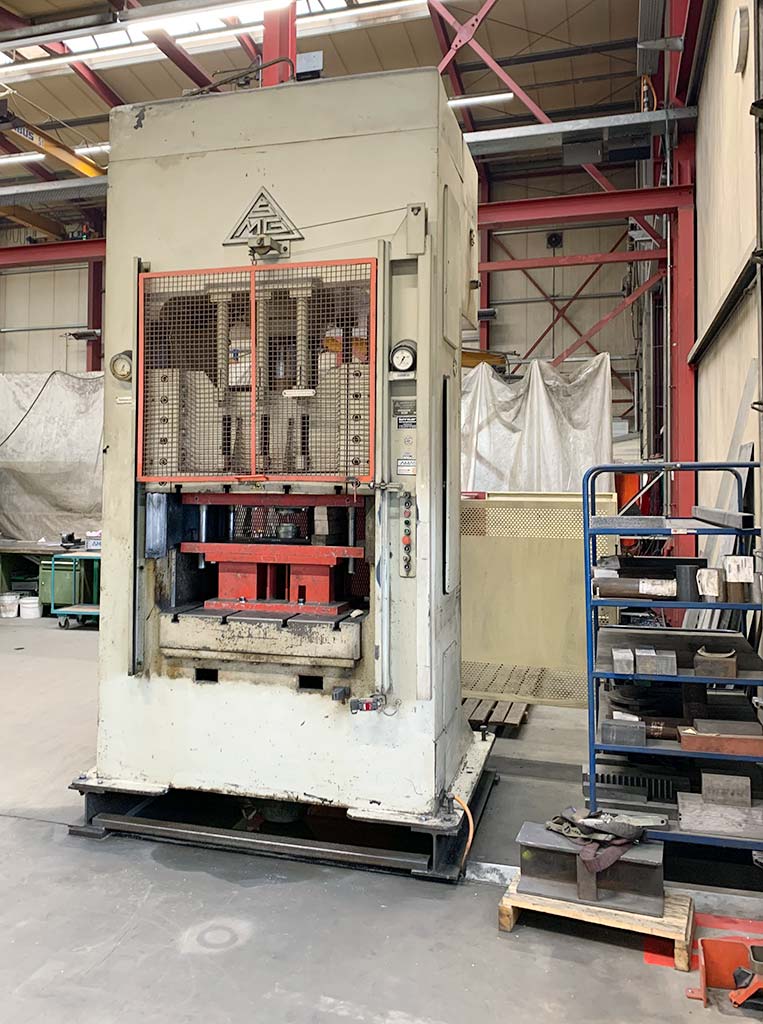

Several fineblanking presses Schmid Rapperswil Switzerland are available. 1) Schmid HSR 800, year of manufacture: 1999, pressing force: 8000kN, ring tooth force: 4000kN, counterforce: 1600kN, hydraulic oil capacity: 2300l, max. operating pressure: 250bar. 2) Schmid HSR 500, year of manufacture: 1999, pressing force: 500t. 3) Schmid HSR 400, year of manufacture: 2007, pressing force: 400t. 4) Schmid HSR 500, year of manufacture: 1997, pressing force: 500t. 5) Schmid HSR 400, year of manufacture: 2005, pressing force: 400t. Documentation available. On-site inspection possible. Individual or package sale possible.

A CNC sheet bending machine Amada is available. Working width: 4000mm, pressing force: 2200kN, stroke: 350mm, axes: 8. Machine dimensions X/Y/Z: approx. 5600mm/2650mm/3300mm, weight: approx. 18000kg, control: Amada. An on-site inspection is possible.

Compressive force: 75 t Large working width: 2500 mm Clear stand width: 2160 mm Stand projection: 400 mm Max. installation height without tools: 300 mm Stroke: 100 mm Working speed approx.: 7.5 mm/s Hydraulic drive: 380 V, 5.5 kW Weight: 3.8 t Space requirement: 2550 x 1555 x 2020 mm

nominal force:315 tstroke:300 mmno. of strokes:36 /mindistance between columns:540 mmdistance table/ram, max. stroke up, adjustment up:750 mmtable surface area:530 x 630 mmblow die to die:630 tAllowed max. force:500 tram surface:450 x 560 mmspindle diameter:180 mmpower capacity:18,0 kWweight:13,0 tDimensions (WxDxH):2,5 x 2,0 x 4,0 m

pressure:100 tdistance between columns:1060 mmstroke:700 mmdistance table/ram, max. stroke up, adjustment up:1250 mmtable surface area:1000 x 700 mmpressure of drawing cushion in table:40 tstroke of drawing cushion in table:200 mmdie cushion area:Ø 250 mmtable height over floor:950 mmside window:580 x 750 mmram surface:1000 x 700 mmoil volume:700 lpower requirement:47,0 kWweight:13,0 tDimensions (WxDxH):2,2 x 1,8 x 5,0 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 depth stop:mechanical; motoric adjustable ram interlocking:SITEMA

pressure:160 tdistance between columns:2050/1900 mmstroke:15 - 170 mmno. of strokes:15 - 40 /mindistance table/ram, max. stroke up, adjustment up:690 mmtable surface area:1600 x 800 mmside window:800 mmram surface:1620 x 700 mmram adjustment:140 mmpower requirement:15,0 kWweight:24,0 tDimensions (WxDxH):3,3 x 2,3 x 5,3 mheight over floor:4,8 mheight beneath floor:0,5 mclutch:pneumatic ram adjustment:motoric ram counterbalance:pneumatic

pressure:500 tstroke:40 - 160 mmno. of strokes:32 / 48 /mindistance between columns:1620 mmdistance table/ram, max. stroke up, adjustment up:660 mmtable surface area:1600 x 1300 mmtable height over floor:750 mmcolumn travel -side:400 x 430 mmram surface:1400 x 1200 mmram adjustment:120 mmpressure of drawing cushion in table:60 tstroke of drawing cushion in table:100 mmdrawing cushion surface in table:1300 x 810 mmmaterial width of feeder:1000 mmmaterial thickness of feeder:- 6,0 mmfeed length:350 mmheight beneath floor:0,3 mpower requirement:44,0 / 66,0 kWweight:56,0 tDimensions (WxDxH):3,55 x 2,55 x 5,1/5,8 mheight beneath floor without drawing cushion:0,3 mheight beneath floor with drawing cushion:1,0 mclutch-/ brake combination:pneumatic; Desch overload protection in ram:mechanical ram counterbalance:pneumatic ram adjustment:motoric drawing cushion in table:pneumatic Mechanical pincer ...

pressure:500 tstroke:40 - 160 mmno. of strokes:32 / 48 /mindistance between columns:1620 mmdistance table/ram, max. stroke up, adjustment up:660 mmtable surface area:1600 x 1300 mmtable height over floor:750 mmcolumn travel -side:400 x 430 mmram surface:1400 x 1200 mmram adjustment:120 mmmaterial width of feeder:1000 mmmaterial thickness of feeder:- 6,0 mmfeed length:350 mmpower requirement:44,0 / 66,0 kWweight:56,0 tDimensions (WxDxH):3,55 x 2,55 x 5,1/5,8 mheight beneath floor:0,3 mpneumatic clutch-brake combination:Desch Mechanical pincers feed:Obru, BVK 3.10.3

pressure:500 tstroke:40 - 160 mmno. of strokes:32 / 48 /mindistance between columns:1620 mmdistance table/ram, max. stroke up, adjustment up:660 mmtable surface area:1600 x 1300 mmtable height over floor:750 mmcolumn travel -side:400 x 430 mmram surface:1400 x 1200 mmram adjustment:120 mmpressure of drawing cushion in table:60 tstroke of drawing cushion in table:100 mmdrawing cushion surface in table:1300 x 810 mmmaterial width of feeder:1000 mmmaterial thickness of feeder:- 6,0 mmfeed length:350 mmpower requirement:44,0 / 66,0 kWweight:56,0 tDimensions (WxDxH):3,55 x 2,55 x 5,1/5,8 mheight beneath floor without drawing cushion:0,3 mheight beneath floor with drawing cushion:1,0 mpneumatic clutch-brake combination:Desch drawing cushion in table:pneumatic Mechanical pincers feed:Obru, BVK 3.10.3

pressure:6,3 tthroat:300 mmstroke:300 mmdistance table/ram, max. stroke up, adjustment up:800 mmtable surface area:450 x 400 mmhole in the table:80 mmtable height over floor:700 mmram surface:50 mmoil volume:90 lpower requirement:5,5 kWweight:1,35 tdimensions (WxDxH):1,8 x 2,0 x 2,7 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 depth stop:mechanical
