refrigeration engineering used for sale (776)

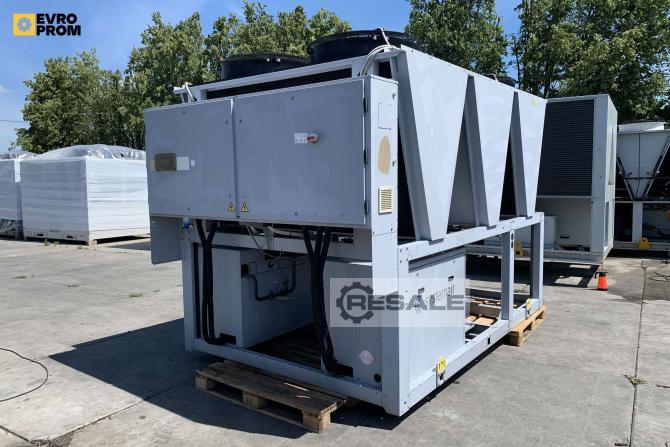

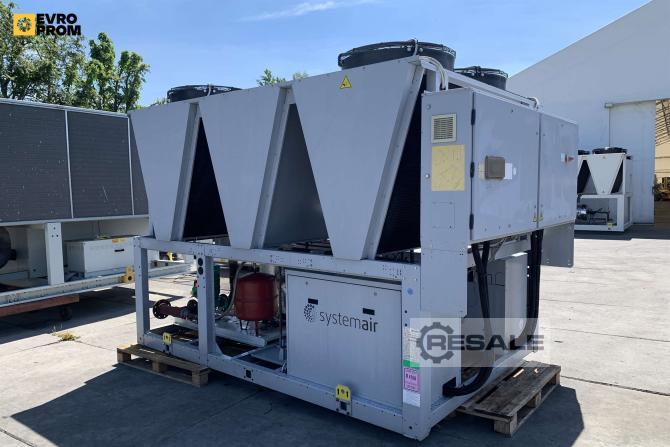

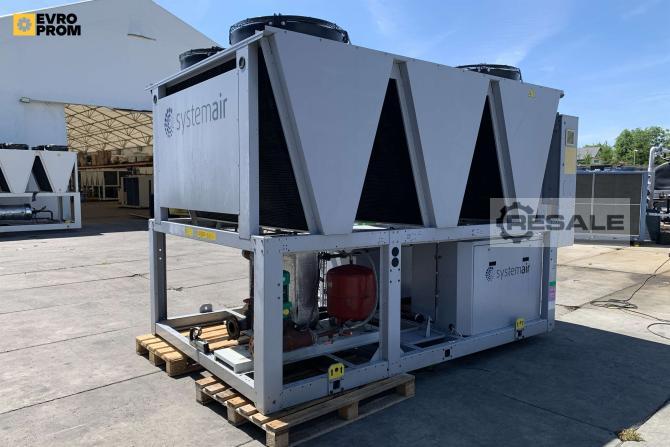

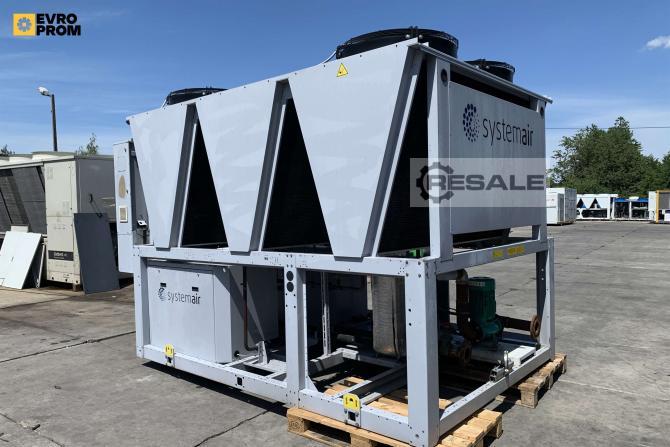

AIRCOOLED CHILLER SYSTEMAIR SYSCROLL 240 AIR CO E COAT 238.1 KW Cooling capacity: 238.1 kW / 67.7 tons (12/7 — 35°C) Year of manufacture: 2017 Options: Hydraulic module. Refrigerant circuit: 2 pcs. Heat exchanger: Plate Condenser: Microchannel, Aluminum Compressors: 1 pcs. Bitzer GSD80385VAB4-2 (scroll) + 2 pcs. Bitzer GSD80295VAB4-2 (scroll) Type of refrigerant: R410A Number of fans: 4 pcs. Hydraulic module: 1 pcs. water pump Wilo IPL65/130(136)-5.5/2-ERCD, expansion vessel. Dimensions: 3.54x2.18x2.5 m Weight: 1786 kg Working hours: 321/627/618 h. Condition: Good

used refrigerator K+T, model EU KU 650 CNS, checked through, works perfectly, 5 shelves, approx. 65 cm deep, 60 cm wide, in stainless steel, Ser. no. 12036010733, temperature +2 to +8 °C, refrigerant R134a (300 g), 220/230 V, 50/60 Hz, 1.8 A, weight (net): 117 kg

used flake ice machine Maja SA 85 S, industrial flake ice machine, checked through, works perfectly, 85 kg flake ice in 24 h, machine no. 34306, Refrigerant R404A, 0.53 kW, 3.9 A, 230 V, 50 Hz, 25 bar, Filling weight: 0.7 kg

Process chiller / chiller air-cooled, Type: TAEevo Tech 081 P3-20 – 22.5 kW Refrigeration Machines, MTA S.p.A. Chiller, chiller, chiller TAEevo Tech 081 P3-20 are air-cooled compact water chillers that are suitable for outdoor installation (-20°C to +46°C). Including crank tray heating, phase monitoring, buffer tank 140 ltr. , built-in P3 Circulation pump and winter control (condenser pressure control down to -20°C). Cold water outlet temperatures from -10°C to +30°C are adjustable. Cooling capacity kW 22.5 Cold water temp. Exit/Entry (°C): 7 / 12 Volume flow (m³/h) 3.82 Available pump pressure (bar) 2.69 Ambient temperature (°C) 32, Refrigerant R 410A, Electrical data: Voltage V 400, frequency Hz 50, phases Ph 3, Max. power consumption (kW) 12.04 Max. current (A) 20.2 Starting Current Circuit (A) 114.77 Protection class: IP54 Dimensions: Length (m ...

Process Air Cooler/Chiller/Chiller Air Cooled, Type: TAEevo Tech 101 P3 – 27.5 kW Refrigeration Machines, MTA S.p.A. TAEevo Tech 101 P3 are air-cooled compact water chillers suitable for outdoor installation (-5°C to +46°C). Including crank pan heating, phase monitoring, buffer tank 255 ltr. and built-in P3 pump. Optional equipment: open AD kit Cold water outlet temperatures from -10°C to +30°C are adjustable. Cooling capacity kW 27.5 Cold water temp. Exit/Entry (°C): 7 / 12 Volume flow (m³/h) 2.54 Available pump pressure (bar) 2.54 Ambient temperature (°C) 32, Refrigerant R 410A, Electrical data: Voltage V 400, frequency Hz 50, phases Ph 3, Max. power consumption (kW) 14 Max. current (A) 25 Starting Current Circuit (A) 123 Protection class: IP54 Dimensions: Length (mm) 1862, Width (mm) 761, Height (mm) 1437, Weight (kg) 637 Connection Rp 1"1/2  ...

Process chiller / chiller air-cooled, Type: TAEevo Tech 802 P3 MTA S.p.A. TAEevo Tech 802 P3 are air-cooled compact water chillers suitable for outdoor installation (from -5°C to +46°C). Including crank pan heating, phase monitoring, electronic injection valves, buffer tank 678 ltr. and built-in P3 circulation pump. Cooling capacity kW 159 Cold water temp. Exit/Entry (°C): 7 / 12 Volume flow (m³/h) 27.1 Available pump pressure (bar) 3.13 Ambient Temperature (°C) 32 Refrigerant R 410A, Electrical data: Voltage V 400, frequency Hz 50, phases Ph 3, Max. power consumption (kW) 79.48 Max. Current (A) 142.2 Starting Current Circuit (A) 286.2 Protection class: IP54 Dimensions: Length (mm) 3535, Width (mm) 1250, Height (mm) 2151, Weight (kg) 2192 Connection Rp 3" Serial No.: 2200389185 Year of construction 2022 Condition: Optical 2, Technically ok (used)  ...

Including:, Goedhart BV evaporator, Type: LLK.s 411m², Year of construction: 2010, Capacity: 135 dm³, Refrigerant: NH3, Working pressure: 22 bar, Test pressure: 32 bar, Weight: 770 kg, Belt width nett: 940 mm, Tiers: 3, Belt length: 5800 mm, Power: 3 x 380V, 50Hz, 0.37kW, Dimensions: 7200 x 1400 x 2900 mm, Weight: 2850 kg

AIRCOOLED CHILLER CLIMAVENETA FOCS SL BT 1702 300 KW Cooling capacity: 300.0 kW / 85.3 tons (12/7 — 35°C) Year of manufacture: 2016 Refrigerant circuit: 2 pcs. Heat exchanger: Shell and tube Condenser: Copper / Aluminum Compressors: 2 pcs. Bitzer CSH7583-80CVY-40p (screw) Type of refrigerant: R134a Number of fans: 4 pcs. Dimensions: 2.7x2.36x2.45 m Weight: 3700 kg Working hours: 29474/19896 h. Condition: Good

NH3 refrigeration system for cooling glycol and brewing water, consisting of the following components: - NH3 separator brewing water 890 l (T0 = -0.5°C) - NH3 separator glycol 647 l (T0 = -6 °C) - 3 x piston compressors (Bitzer type W4GA) - 2 x brewing water pumps - Plate heat exchanger as brewing water cooler Q0 = 200 kW - Evaporation condenser - Water tank approx. 470 hl - Glycol tank 80 hl + 2 x glycol pump - Plate heat exchanger as glycol cooler Q0 = 100 kW - High pressure collecting vessel 830 l - Danfoss frequency inverter type VLT HVAC, Additional title: NH3 Cooling plant, Cooling capacity Q0 brew water: 200 kW, Cooling capacity Q0 glycol: 100 kW, Evapotation temperature t0 brew water cooling: 0 °C, Evaporation temperature t0 glycol cooling: -6 °C, Current: 185 A / 250 A, Features: 2 x NH3 separators (t0 = -0.5 °C; t0 = -6 °C); 3 x piston compressors; 2 x brewing water pumps ...

() is equipped with an insulated - and is ideal for industrial cooling processes. It has two powerful fans and integrated piping and controls. The coolant is glycol, and the refrigerant used is R-410A. The system offers a cooling capacity of 14 kW at an . () . (). The 5.5 kW electric motor operates at 380–415 V, 50 Hz, and 20 A current consumption. This compact unit enables efficient, reliable cooling in industrial processes. Our team at VBW Asset Trade will be happy to answer your questions., Additional title: externally mounted cooling unit with glycol buffer storage tank, Cooling capacity: 14 kW, Pressure compressed: 4,2 bar, Pressure relaxed: 1,9 bar, Gross volume glycol buffer tank: 400 l, Power: 5,5 kW, Current: 20 A, Voltage: 380-415 V, Frequency: 50 Hz, Features: Cooling unit with 2 fans, glycol storage tank, piping, control system

Ice water generator for cooling supply of wort cooler (2nd stage), fermentation cellar (= 100 hl capacity), storage cellar (= 320 hl capacity) and pressure tanks (= 260 hl capacity) in a microbrewery with 20 hl output., Additional title: ice water generator, Cooling capacitry: 14 kW, Power: 6,2 kW, Length: 1600 mm, Width: 1600 mm, Height: 1800 mm, Position: free standing, Base construction: cylindrical tank with refrigeration unit on top, on square tube frame with domes, Features: insulated stainless steel tank with side cover, semi-hermetic reciprocating piston compressor, copper tube coil exchanger, control box, cooling water pump

NH3 refrigeration system. Refrigeration system includes the following: - Compressor 1, GEA Grasso type OS3 - Compressor 2, GEA Grasso type OS3 - NH3 separator - Air condenser - Heat exchanger for energy recovery with pump - 2 x ice water pumps - Brewing water pump - 2 water coolers - Expansion tank with control cabinet for NH3 separator and compressors 1 and 2, with SIMATIC MULTI PANEL touch control, Additional title: refrigerant ammonia, Brew water flow: 5 m³/h 2 bar, Ice water flow: 15 m³/h 2 bar, Refrigerant capacity: 85 kg Ammonia, Compressor capacity: 145 m³/h, Power: Q0: 2 x 119 kW, Operation / Control: Siemens S7, Features: 2 x compressors: 145 m³/h, 26 kW with Frequency Converter, 37 kW nominal output; ammonia separator mounted on frame, with brewing water-cooler and ice water-cooler; air condenser on frame 3 x 2.95 kW; heat-exchanger for recovery with pump; 2 x ice water pum ...

Volume-dependent dual system, Additional title: Separator, condenser and control cabinet from 2010, Features: 1 NH3-separator, 2 cooling compressors, 1 evaporative condensor, 1 control cabinet

Dry Cooler Güntner GFHV FD 080.2MF/12E-54 109 KW Cooling capacity: 109.0 kW (40/35 - 25°C) Year of manufacture: 2024 Fluid flow: 18.92 m³/h Air flow: 37756 m³/h Number of fans: 2 pcs. (EC-fans) Volume: 49 dm³ External surface: 272.4 m² Dimensions: 3.4 x 1.15 x 2 m. Weight: 450 kg. Condition: Good

Aircooled chiller CLIMAVENETA I BX 015T 15.5 KW Cooling capacity: 15.5 kW / 4.41 tons (12/7 — 35°C) Year of manufacture: 2018 Options: Hydraulic module Refrigerant circuit: 1 pcs. Heat exchanger: Plate Condenser: Copper / Aluminum Compressors: 1 pcs. Mitsubishi DNB36FAEMT (scroll, inverter) Type of refrigerant: R410а Number of fans: 2 pcs. (Frequency inverter) Hydraulic module: 1 pcs. water pump Wilo Yonos PARA HF 25/10 (inverter), expansion vessel. Dimensions: 0.9x0.37x0.94 m. Weight: 140 kg. Working hours: 0 h. Condition: New

A double-sided trolley cooling system Werner & Pfleiderer for bread production is available. Refrigerant: R404A, refrigerant type: HFC, minimum temperature: -25°C, design temperature low pressure/high pressure: -45°C/50°C, design pressure low pressure/high pressure: 16bar/28bar, internal dimensions X/Y/Z: 1800mm/1200mm/1900mm. Machine dimensions X/Y/Z: approx. 2750mm/2200mm/3150mm. Baguette target temperature/cooling time: -20°C/28min, bread roll target temperature/cooling time: -20°C/14min, pretzel target temperature: -14°C. Documentation available. An on-site inspection is possible.

Evaporator Guntner -Type: S-GHN 071B/27-E -Cooling capacity: 39.7 kW at DT8, 31.5 kW at DT7 -Fin spinning: 7 mm -Fans: 2 x 710 mm -Dimensions: 3530 x 850 x 1150 mm -Electric defrost -Refrigerant: Freon -Volume: 54 L -Weight: 317 kg -Quantity in stock: 2 -Reference number: CH 606 -Condition: Used in very good condition, evaporator 100% tight under nitrogen, fans working, ready to work

Evaporator Guntner -Type: S-GHN 071.2H/27-EHS50.E -Cooling capacity: 50 kW at DT8, 40.2 kW at DT7 -Fin spinning: 7 mm -Fans: 2 x 710 mm -Dimensions: 3500 x 1060 x 970 mm -Electric defrost -Refrigerant: Freon -Volume: 71.5 L -Weight: 387 kg -Quantity in stock: 4 -Reference number: CH 605 -Condition: Used in very good condition, evaporator 100% tight under nitrogen, fans working, ready to work

Equipment: Insulation,Manufacturer: Schwarz Apparate- und Behälterbau,Condition: used,Remarks: 3 feet made of V2A with plastic rollers 2 crane eyelets,Type plate: Yes,Year of construction: 2002,Insulation: available,Volume sheath space: 216,Max. permissible Operating temperature sheath chamber: 80,Volume pipe space: 1,000,Max. permissible Operating temperature raw space: 80,Diameter outside: 520,Total height: 1,950

Equipment: Insulation,Manufacturer: Schwarz Apparate- und Behälterbau,Condition: Used,Remarks: A recooler has no nameplate. The recoolers have different connections.,Replacement area: 4.8,Type plate: Yes,Year of construction: 1995,Insulation: available,Volume jacket space: 210,Volume pipe space: 60

-Flake ice machine - Manufacturer: Funk GmbH - Type: FG160 - Ice capacity 24/h : 120 - 160 kg - Mains voltage: 230 volts - Nominal consumption: 0.95 kW - Refrigerant: 449A

AIRCOOLED CHILLER/HEAT PUMP EMICON PAE HT 1202 HE S KC 127.4/145.6 KW Cooling capacity: 127.4 kW / 36.2 tons (12/7 — 35°C) Heating capacity: 145.6 kW / 41.4 tons (30/35 — 7°C) Hydraulic module: 1 pcs. water pump (LOWARA CEA370/3/D), expansion vessel, buffer tank Year of manufacture: 2022 Refrigerant circuit: 2 pcs. Heat exchanger: Plate Options: Heat pump, hydraulic module Condenser: Copper-aluminum Type of refrigerant: R410a Compressors: 4 pcs. Copeland ZH132K1P-TWD-477 (scroll) Number of fans: 3 psc. Dimensions: 4.85 x 1.2 x 2 m. Weight: 1565 kg. Condition: Never used, new

WATERCOOLED CHILLER/HEAT PUMP DAIKIN EWHQ120G 95/130 kW Cooling capacity: 95 kW - 27 ton (12/7°C — 35°C) Heating capacity: 130 kW - 36.9 ton (40/45°C - 7°C) Year of manufacture: 2019 Refrigerant circuit: 1 pcs. Heat exchanger: Plate Options: Heat pump Type of refrigerant: R410A Compressors: 2 pcs. Copeland(scroll) Dimensions: 2,432 х 0,928 х 1,066 m. Weight: 729 kg. Working hours: 11437 / 4712 h. Condition: Excellent

Aircooled chiller Climaveneta FOCS-CA/SL 873 kW Cooling capacity: 873 kW (12/7 — 35°C) Year of manufacture: 2009 Heat exchanger: Shell and tube Refrigerant circuit: 2 pcs. Type of refrigerant: R134a Compressors: 2 pcs. Bitzer (screw) Number of fans: 12 pcs. Dimensions: 9.40 x 2.26 x 2.43 m Weight: 9 880 kg. Working hours: 30717/30184 h. Condition: Exellent

AIRCOOLED CHILLER TRANE 32,3 KW Cooling capacity: 32,3 / 9,2 tons kW (12/7 — 35°C) Year of manufacture: 2014 Refrigerant circuit: 1 pcs. Type of refrigerant: R-407C Compressors: 1 pcs. Danfoss (scroll) Heat exchanger: Plate Hydraulic module: water pump, buffer tank, expansion vessel Number of fans: 1 pcs. Dimensions: 1.06 x 1.25 x 1.80 m Weight: 394 kg Condition: good

Aircooled chiller/Heat pump YORK YMPA0160PE50 159 kW/160 kW Cooling capacity: 159 kW / 45.21 tons (12/7 — 35°C) Heating capacity: 160 kW / 45.5 tons (40/45 —7°C) Year of manufacture: 2022 Options: Heat pump Refrigerant circuit: 3 pcs. Heat exchanger: 2 pcs. Plate Condenser: Copper / Aluminum Compressors: 4 pcs. COPELAND ZP143KCE-TFD-423 (scroll) + 1 pcs. HITACHI DC80PHDG-D1J2 (scroll, inverter) Type of refrigerant: R410a Number of fans: 3 pcs. (EC-fans) Dimensions: 3.05x2.24x2.5 m. Weight: 2071 kg. Working hours: 0/0/0/0/0 h. Condition: New

Aircooled chiller/Heat pump YORK YCPB 420 364 kW/406 kW Cooling capacity: 364 kW / 103.5 tons (12/7 — 35°C) Heating capacity: 406 kW / 115.44 tons (40/45 —7°C) Year of manufacture: 2023 Options: Heat pump. Economizer. Refrigerant circuit: 2 pcs. Heat exchanger: Plate Condenser: Copper / Aluminum Compressors: 2 pcs. Danfoss PSH105A4EPA (scroll) + 2 pcs. Danfoss PSH065A4EPA (scroll) Type of refrigerant: R454B Number of fans: 7 pcs. (Frequency inverter) Dimensions: 4.45x2.25x2.42 m. Weight: 3100 kg. Working hours: 107/80/98/58 h. Condition: Outlet

I am selling a shocker - shocker ELEKTROLUX RBC 201. Functional. Price negotiable.

Aircooled chiller YORK YGT550HE 535.3 KW Cooling capacity: 535.3 kW / 152.2 tons (12/7 — 35°C) Year of manufacture: 2024 Options: Leak detector Refrigerant circuit: 2 pcs. Heat exchanger: Shell and tube Condenser: Microchannel, Aluminum Compressors: 1 pcs. Bitzer CSH9663-160Y-40D (screw, inverter) + 1 pcs. Bitzer CSH9663-160Y-40D (screw) Type of refrigerant: R1234ze Number of fans: 10 pcs. (EC-fans) Dimensions: 6.2x2.16x2.66 m. Weight: 6297kg. Working hours: 0/0 h. Condition: New

Watercooled chiller CARRIER 30HXC130 A0671 PE 449 kW Cooling capacity: 449 kW / 127.67 tons (12/7 - 30/35°C) Year of manufacture: 2014 Refrigerant circuit: 2 pcs. Heat exchanger: Shell and tube Compressors: 1 pcs. Carlyle 06NW2209S7NC.A00 (screw) + 1 pcs. Carlyle 06NW2250S7NC.A00 (screw) Type of refrigerant: R134a Dimensions: 3.28x0.98x1.82 m. Weight: 2474 kg. Working hours: 3280/760 h. Condition: Good
