metal working machines used for sale (34,714)

used SW BA W04-22 Horizontal Numerically Controlled Machining Centres. SW Swabian Machine Tools BA W04-22 Double-spindle 5-axis machining center GENERAL Project No.: 906018 Quantity: 1 pcs. Manufacturer: SW Schwäbische Werkzeugmaschinen Type: BA W04-22 Control: Siemens 840 D solutionline Year of Make: 2017 Condition: Used machine Approx. (hrs): 40252 Spindle Approx (Hrs): 18554 Layers Machine Approx (Hrs): 2-3 Layers DESCRIPTION MILLING Travel in X 400 mm Travel in Y 500 (775) mm Travel in Z 425 mm Max. rapid traverse speed in X/Y/Z 100/100/100 m/min Max. acceleration in X/Y/Z 13/12/23 m/s2 Feed force in X/Y/Z 10000/10000/2x5000 N Direct displacement measurement system X/Y/Z/A(U)/C1(C2)/W1(W2) Linear Actuator Two independent Z-axes Tool holder HSK-A 63 Max. speed milling spindle 17500 1/min Max. power at ED 10-40/100% 35/26 kW Max. torque at ED 10 ...

used IEMCA MASTER 880/33 P Bar Loaders. previously attached to Gildemeister TWIN 65 max. bar length 3,300 mm Material Slide Length XLL max. slide outlet 1,670 mm (with shortest intermediate tube) Capacity: Multi-surface magazine 4x400 mm (1600 mm contact surface) incl. guide channels Ø 46 + 66 mm

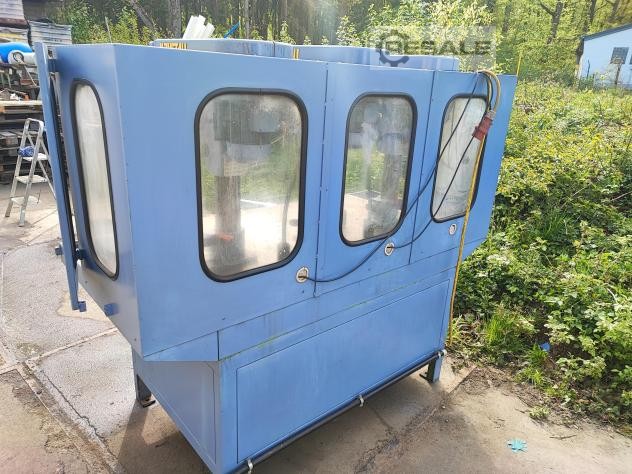

used STEIMEL PERMOLEX POLAR K51 Centrifuges. Drum Ø 500 mm Drum height 388 mm Wall thickness 10 mm Speed 980 1/min 2021 new chip drum

used Stierli-Bieger Rotator 1000 - 12 to Welding Turning Device. Welding Turning Device Manufacturer: Stierli-Bieger Type: Rotator 1000 Year of Make: 2009 Turning Ø max.: Insertion width: 1,000 mm Lifting capacity (per rotator pair): 12 tons Weight: 3,200 kg Stand Spacing: Standard 15 meters (coupled via a connecting cable), however, the distance is freely selectable, as the stands are mobile.

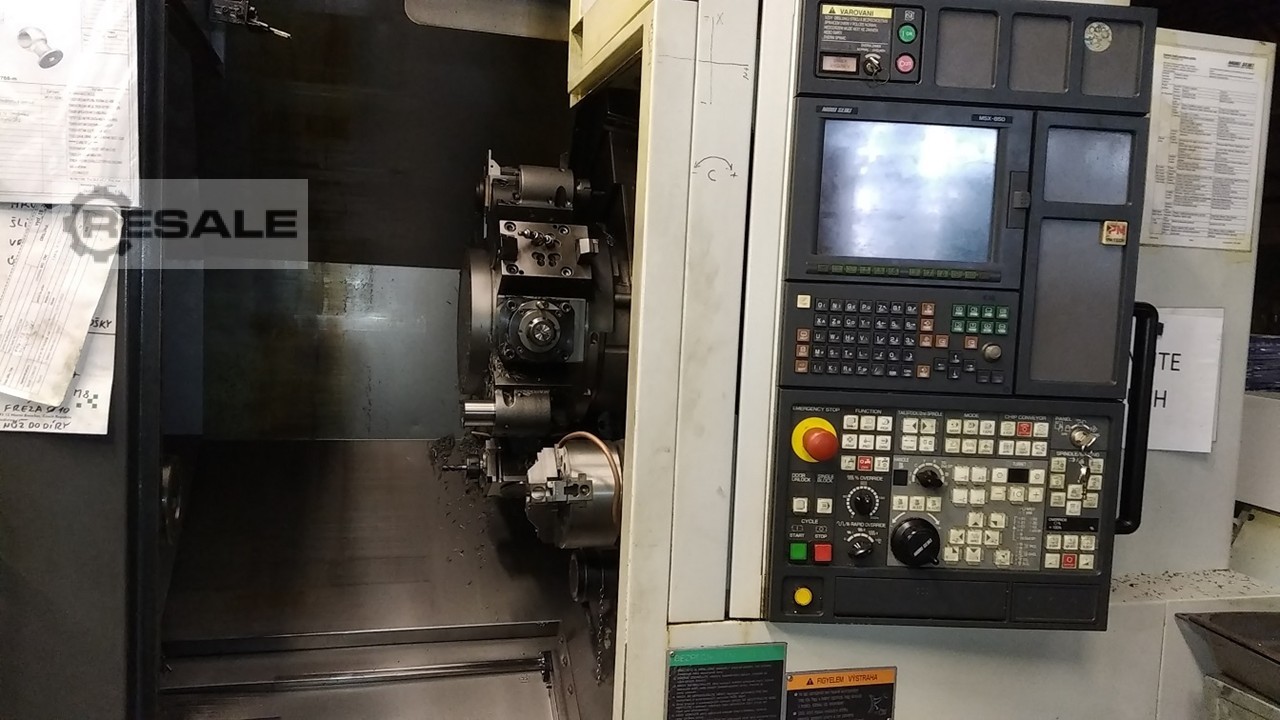

used Okuma LB 3000 EX MC 500 CNC Turning Machines. CNC lathe Okuma LB 3000 EX MC 500 Control: OSP-P200L Year of Make: 2008 Internal machine no. 69 Turning length: 500 mm Turning diameter: 340 mm Swing diameter over bed 530 mm Speed: 4,200 rpm Tool turret 12 places (driven) C-axis 0.001 degrees Equipment: - One touch IGF - Chip conveyors - Touchsetter - 3-jaw chuck Kitagawa B-210 - NC tailstock

used EMCO TopLoad 10-65. Bar diameter 10 – 65 mm Max. rod length 3,000 mm Multi-lane material support

used UNITECH GX 1000. Control Siemens Sinumerik 828D Travel X/Y/Z: 1020 x 560 x 510 mm Spindle speed 8000 min-1 Tool magazine for 24 Wkzg. SK 40 IKZ Chip conveyor

used Michael DECKEL. Radius grinding device for DECKEL S11 grinding machine – ISOG ref: 2601X00

Key data: 298 mm, 572 mm, 4000 1/min

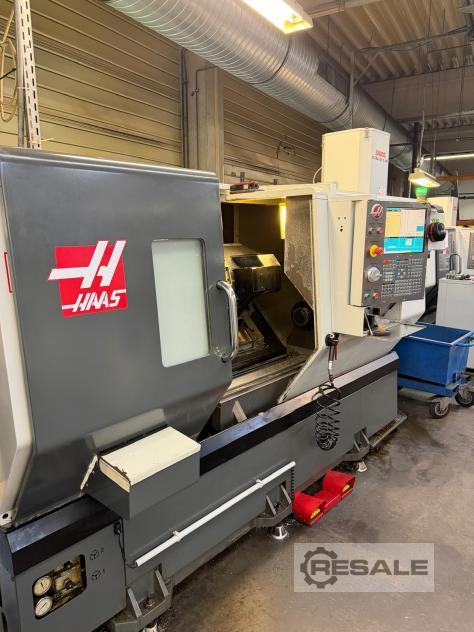

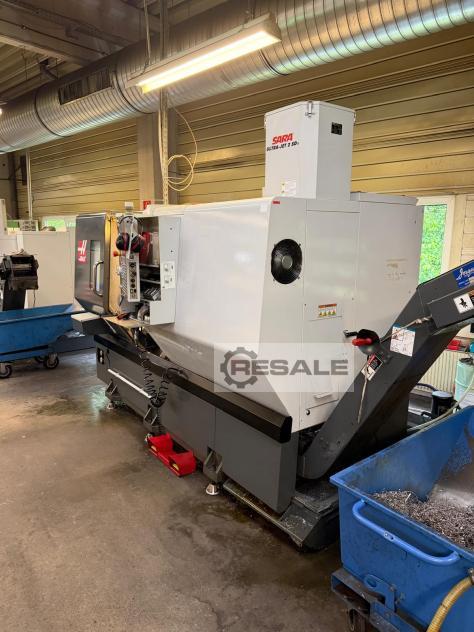

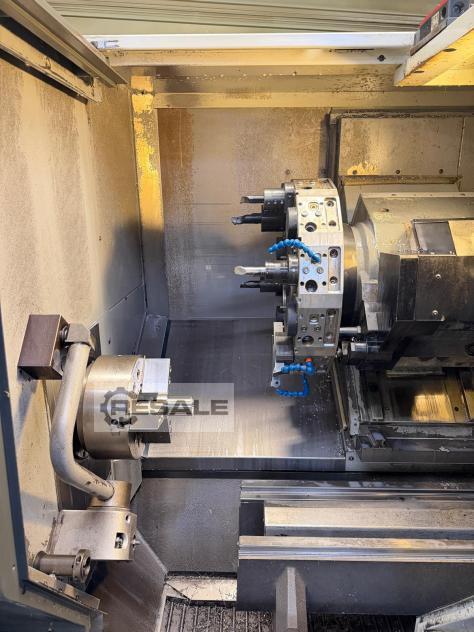

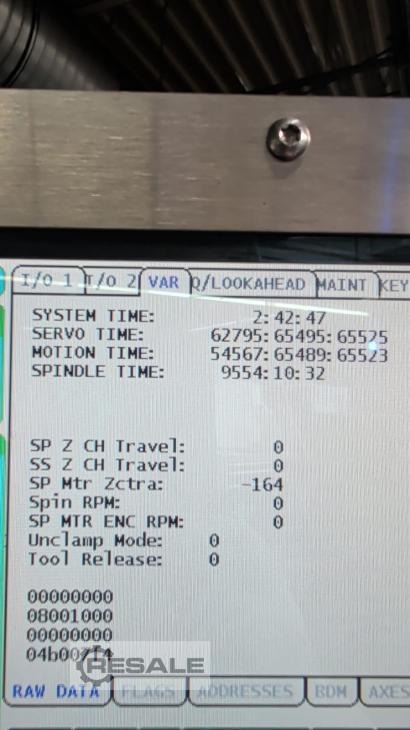

used HAAS ST 20Y. Inv. Num. : 9320 Type: ST 20Y Producer: HAAS Created: 2022 Parameters: Switch-on hours: 1565 h Operating hours: 236 h Max. turning length: 572 mm Maximum turning diameter: 298 mm Grinding diameter: 533 mm Maximum length of travel in the X-axis: 213 mm Maximum length of travel in the Y-axis: 51 mm Maximum feed in the Z-axis: 572 mm Maximum spindle speed: 4000 1/min Maximum main spindle power: 14.9 kW Max. rod diameter: 64 mm Lathe chuck diameter: 210 mm Spindle bore: 88.9 mm Weight: 4754 kg

Key data: 80 t, 2600 mm

used Ermak CNC HAP 2680. Inv. Num. : 9319 Type: CNC HAP 2680 Producer: Ermak Created: 2006 Parameters: Control system: CYBELEC Compressive force: 80 t Maximum bending length: 2600 mm Machine height: 2750 mm Machine length: 3750 mm Machine width: 1950 mm Machine weight: 6000 kg

used TRUMPF Trulaser 3030. Trumpf trulaser 3030

used WALDRICH COBURG 10m EL Planing machine. X-Axis 10,000 mm Y-Axis 1,500 mm Clearance height 1,850 mm Table dimension 10,200 x 1,500 mm Dimension L=22.67m, W=3.97m, H=3.95m Weight appr. 58,000 kg

used RSA + BOUS + CORAL NC-V 2000 Rowamat RL 200. RSA NC-V 2000 Deburring Machine + Pipe Washer + Coral Filter Complete industrial tube processing and post-treatment line The plant consists of three high-quality industrial components: 1. RSA RASAPLAN NC-V 2000 – High-performance deburring machine Function: Automatically processes workpiece lengths up to max. 2,000 mm. 2. BOUS (CeBeCo) Rowamat RL 200 – Continuous pipe washing system Function: Extremely robust and durable stainless steel welded construction. Accessories: 3. CORAL IperJet DF4 – Cartridge Filter Extraction System Power: 4 horizontal high-performance filter cartridges with fully automatic Jet-Pulse compressed air cleaning (very low-maintenance). Function: Reliably extracts brush dust, sanding residues or fumes from the car wash. The RSA Rasaplan NC-V2000 is a fully automatic, high-perform ...

Key data: 700 mm, 420 mm, 380 mm

used DMG MROI MILLTAP 700. Control: SIEMENS 840 D solutionline Switch-on hours: 12,400 h Spindle hours: 2,850 h Table surface: 840 x 420 mm Max. table load: 300 kg Tool holder: BBT 30 Tool Magazine: 25 Slots Spindle speed: 20-24,000 1/min Chip to chip time: 1.7s Chip container Software package: - Job Shop - Siemens Mdynamics Dimensions LxWxH: 2340 x 1650 x 2500 mm Weight: 4,100 kg

used SMW 250 kg. Offer 25346 Technical data: - Load capacity 250 kg - Jaw chuck diameter 250 mm - mot. Rotational movement left + right - Rotary movement infinitely adjustable - Height center cheek chuck approx. 900 mm - E. footswitch - 3 jaw chuck 250 mm - Mobile undercarriage - Space requirement approx. W 800 x H 1200 x D 1400 mm - Weight approx. 350 kg

used Fondarex Modular Mobile 750/40 Vacuum device. Vacuum device Fondarex Modular Mobile 750/40, built in 2022, S/N 600.103

used ROLL RSB 0060-028-0540-03. Cleaning system ROLL RSB 0060-028-0540-03, year of construction 2017, S/N K05385, aqueous cleaning agent, cleaning cell, 2 rinsing cells, drying cell, circulating belt (vacuum pump missing)

used Erfurt Pressen Erfurt 3. Stage Press / Eccentric Press Erfurt Pressen Erfurt 3, Maintenance No. 156, press force 320 t, year of construction approx. 1980, with 15 press punches, electronic transfer line, conversion by PBK, system consisting of double unwinding reel PBK, straightener PBK, feed, blank cut (Machine is partially dismantled after defect, without tools)

used Doppel- Auf u. Abwickel Haspel. Offer 25475 Man. Double unwinding & uncoiling reel Technical data: - Coil weight left + right up to approx. 1 t - Coil width up to approx. 300 mm - Coil inner diameter of approx. 380 to 500 mm - Coil outer diameter up to approx. 1250 mm - Mandrel height approx. 750 mm - Space requirement approx. W 1250 x D 900 x H 1300 mm - Weight approx. 200 kg

used Matheus Mounting fixture. Assembly device Matheus, machine no. 2330587, built in 2020, with Kuka Agilus-2 Series industrial robot (KR 10 R900-2/SEL), built in 2021, S/N 1028605, dead weight 57 kg, sorting pot / spiral conveyor and housing

used ZPF Therm ST-G3 T 10 CHHTETWWK Melting furnace. Melting furnace ZPF Therm ST-G3 T 10 CHHTETWWK, built in 2012, loading weight 9,000 kg, with loading lift (No. ZPF Therm 2), plus processing platform, 2 slag storage tanks, preheating chamber for aluminium ZPF VWK5.2, built in 2012, heated by waste heat, with chimney

Key data: 600 mm, 600 mm, 600 mm

used SW BA600-2. Horizontal, two-spindle machining center in 4th axis design with swivel beam. Swivel beam 0/ 180 ° Tool holder HSK 100 Spindle speed range up to 10,000 1/min Power 2 x 38 KW Tool magazine 2 x 40 tool positions Spindle spacing 600 mm CNC Control 840D Chip conveyor Coolant system central

used Zeiss Duramax. 3D coordinate measuring machine Zeiss Duramax, built in 2021, S/N 188721, with base cabinet

Key data: 400 mm, 250 mm

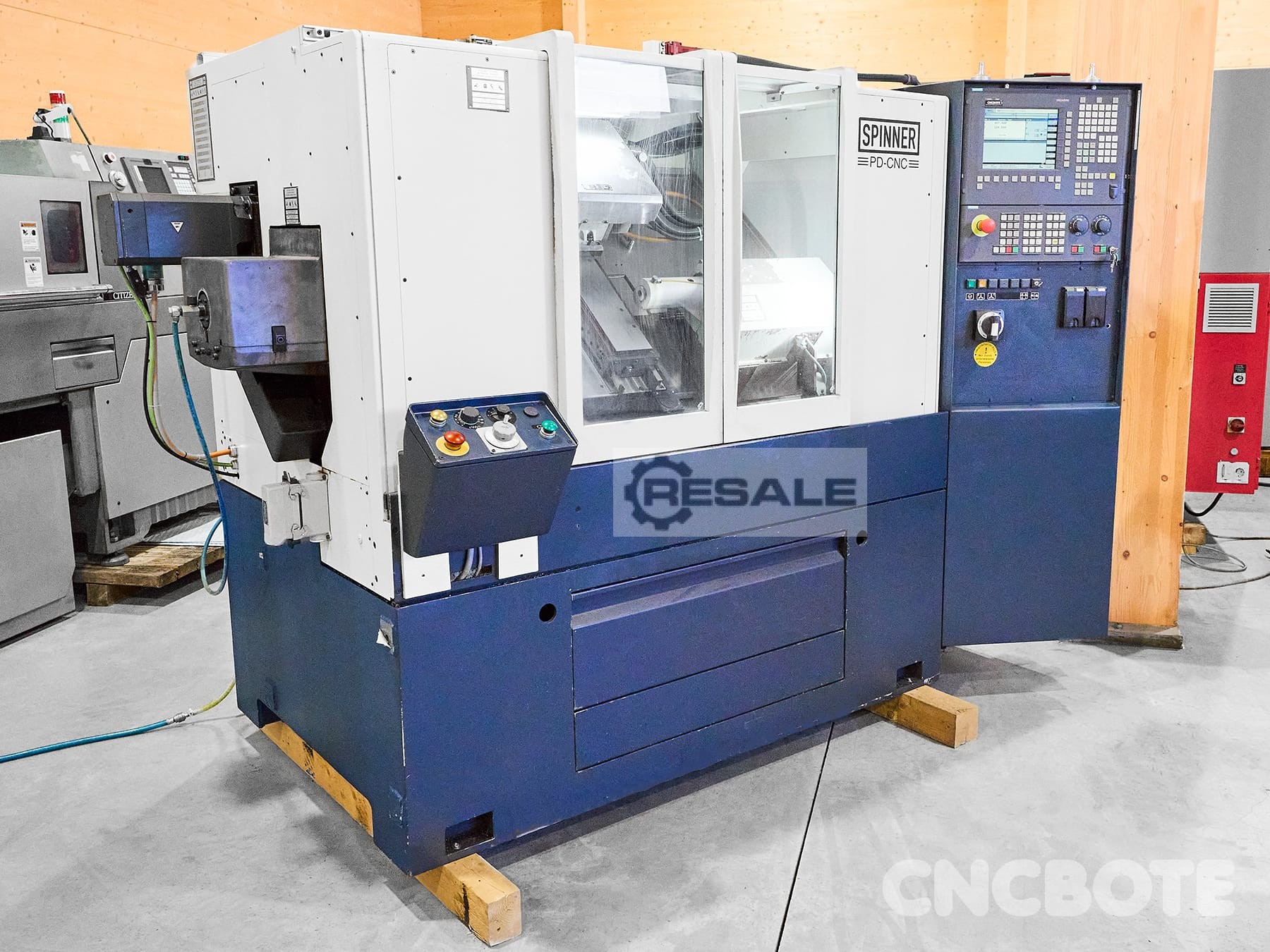

used Spinner TTC300-52 SMMCY Dreh-Fräszentr. This machine is sold on behalf of the customer. Technical data: Manufacturer: Spinner Type: TC300-52 SMMCY Year of Make: 2010 Control: Siemens 840D SL Travel: X1 180 mm X2 110 mm Z 450 mm Y +40/-40 mm Turning length: 400 mm Turning diameter: 250/200 mm Swing diameter: 400 mm Working Spindle 1 Speed: 5,000 rpm Torque: 96/121 Nm Power: 15/19 kW Bar Passage: 52 mm Working spindle 2 Speed: 7,000 rpm Torque: 38 Nm Power: 6 kW Tool turret 1 and 2 Number of stations: 12x Recording: VDI 25 Max. speed AGW: 6,000 rpm Power: 8/2.6 kW Dimensions and weight Dimensions: 2,200 x 2,000 x 2,000 mm Weight: approx. 4,600 kg Condition Condition: Used Other equipment and accessories included: Parts Conveyor Belt High Pressure Pump Chip conveyor Interface for bar feeders 3-jaw chuck on sub-spindle and main spindle

used Roll RSB 0060-030-0794-05 Parts washing system. Parts washer Roll RSB 0060-030-0794-05, built in 2019, S/N K05494, aqueous detergent, with cleaning department, 2 rinsing departments

used StrikoWestofen MH II-T 6000/3500 G-eg Melting and holding furnace. Melting and holding furnace StrikoWestofen MH II-T 6000/3500 G-eg, built in 2021, heating capacity 2,600 kW, capacity 6,000 kg, melting capacity 3,500 kg/h, max. melting pool temperature 760°C, max. furnace room temperature 1,050°C, height approx. 8,043 mm, with Striko K2000E feeder, built in 2021, with elevator for transport boxes

used RBC Robotics Portal system. RBC Robotics gantry system, built in 2022, for linking and automating manufacturing processes, consisting of bridge construction, height approx. 3,000 mm, length approx. 20,000 mm, width approx. 1,500 mm, with 5 KUKA Cybertech-2 Series industrial robots, with pick-up and transfer stations for production parts

used B 2000 x T 700 mm. Offer 26117 Technical data: - Worktop approx. W 2000 x D 700 mm - Worktop thickness approx. 45 mm - Working height approx. 850 mm - 2 pcs. Roller bearing drawers - Pull-out of the drawers approx. 80 % - Drawer dimensions approx. W 500 x D 500 x H 150 mm - 2 cupboards with doors - Space requirement approx. W 2000 x D 700 x H 850 mm - Weight approx. 100 kg

used SLCR LCS130151 Laser paint stripping system. Laser paint stripping system SLCR LCS130151, built in 2021, with 2 loading stations, industrial robot ABB IRB 2600 and compressor cooling system Termotek

used SW BA312. Friction Stir Welding Machine SW BA312, Year of Build 2022, Machine No. 2320024, with tool holder HSK 63

used BÜHLER GKU Evolution 84 Compact Die casting cell. Die-casting cell, consisting of Die casting machine BÜHLER GKU Evolution 84 Compact, year of construction 2018, S/N 70093121, with pre-melting furnace Meltec AVDF, 1,200 kg, year of construction 2018, extraction hood KMA Ultravent 2, pre-spraying device Gerlieva, Automation consisting of robot Kuka, trimming press Reis SEP10-30-3S, built in 2018, immersion bath, discharge belt (internal DGM 48)

used Peddinghaus Peddimaster 60/100. Combined hole punching, profile steel shears, notching machine, sheet metal cutting machine Manufacturer: Peddinghaus Type Peddimaster 60/100 Cuts: Round steel 45 mm Square steel 40 mm Angle steel 120 x 13 mm Flat steel 500 x 12 mm Projection 510 mm Cutting area 500 x 12 or 400 x 16 mm Punching diameter 27 in 17 mm Punching diameter 39 in 12 mm Machine weight approx. 2,400kg

used SW BA322. Double-spindle machining center SW BA322, SW BA322, year of construction 2020, machine no. 2330587, tool holder HSK 63, 64 mm tool changer, with minimum quantity lubrication (servo motor loading door missing)

used FRECH DAK 1600 Die casting machine. Die-casting cell, consisting of Die casting machine FRECH DAK 1600, year of construction 2015, S/N K01600M160750, nominal locking force 16,800 kN, machine weight 75,000 kg, with pre-spraying device Gerlieva, exhaust hood KMA Ultravent, pre-melting furnace Striko W1700SL Protos 3, year of construction 2015, automation consisting of handling robot Kuka, milling robot Kuka, deburring press Reis, chip extraction, immersion tank, discharge belts, temperature control system ONI Ryhtemper (internal DGM 43)

Key data: 315 t, 310 mm, 250 mm

used Sack + Kiesselbach EP 315. Condition used Press capacity 315 t Stroke 250 mm Daylight 310 mm Table size (left to right) 320 mm Table size (front to back) 385 mm Table height 1250 mm Speed at max. press force 7.5 mm/sec Pressure speed at f max. 0.3 mm/sec Return speed 24 mm/sec Oil quantity 390 l Driving power 380 V/ 50 Hz/ 2.2 kW Dimensions 1950 x 800 x 2000 mm Height of machine above floor 2000 mm Total weight 2.4 t Mode of operation oil hydraulic Calibrating presses Description Contact the seller for more information Interested in this machine?

used MORI SEIKI GV-503/5ax. Vertical Machining Center MORI SEIKI GV-503/5ax x-travel 610 mm y-travel 765 mm z-travel 460 mm pallet table size 550 x 550 mm taper BT 40

used E D E L – CYPORT CP 3015/07. Vertical machining center EDEL-CYPORT CP 3015/07, 5 axis Travel:X =3000mm Y =1500mm Z =1000mm Z =1200mm

used Trumpf TruMatic 7000. Punching Laser Machine Trumpf TruMatic 7000 Year of construction 2010 Rexroth IndraMotion MTX Controller Laser type: TruFlow 4000 Laser power: 4000 W Working Area:: Punching operation without repositioning: X 3,050 mm Punching operation: Y 1,550 mm Laser operation: X 3,050 mm Laser operation: Y 1,550 mm Combined operation: X 2,500 mm Combined operation: Y 1,550 mm Sheet thickness: max. 8 mm Workpiece weight: max. 280 kg Punching force: 220 kN X-axis speed: max. 100 m/min. Y-axis speed: max. 60 m/min. Simultaneous speed: max. 116 m/min. Maximum stroke rate:: Punching (E = 1 mm): max. 1,200 1/min. High Light: max. 3,000 1/min. Tools:: MultiTool tool change time: 0.3 sec. Number of tools/clamps: 21 /4 pieces Parts removal:: Workpiece size at the part removal flap (punching operation): 500 x 500 mm Workpie ...

used DOOSAN Puma GT 2600LM. The machine is in good technical condition; testing is possible by prior arrangement. 400 operating hours; condition comparable to a new machine. The lathe comes with accessories and is ready for immediate operation. Equipment: driven tools, chip conveyor, 20-bar high-pressure pump, 250mm hydraulic chuck, 12-station turret, modern FANUC i-Series CNC control, sets of soft jaws, bar feeder, regular maintenance history, and documentation.

used Sturm / KUKA + Yaskawa Beschichtungs + Roboter. Sturm Coating System Description: For sale is a used coating plant from the manufacturer Sturm, formerly used at the Mercedes-Benz plant in Hamburg for the machining of rear axle beams. Technical data & scope of delivery: Manufacturer: Sturm (plant) / KUKA & Yaskawa (robot) Year of construction main plant: 2019 Former operation: 3-shift (age-appropriate condition) Plant components: Aggregates, dryer and cooling zone, paint booth, loading and unloading station Included robots / peripherals: Several replacement KUKA robots (models KR 210L 150-2 / KR 210 2, model years 2006–2012) Related Robot Control Cabinets 2x Yaskawa Robot EPX 2900 1x Thermal aftertreatment / exhaust air purification system (VeniaKab / RNV) Condition notes: Control technology: According to plant maintenance, it is state-of-the-art Electrics  ...
