Vertical Bandsaws used for sale (37)

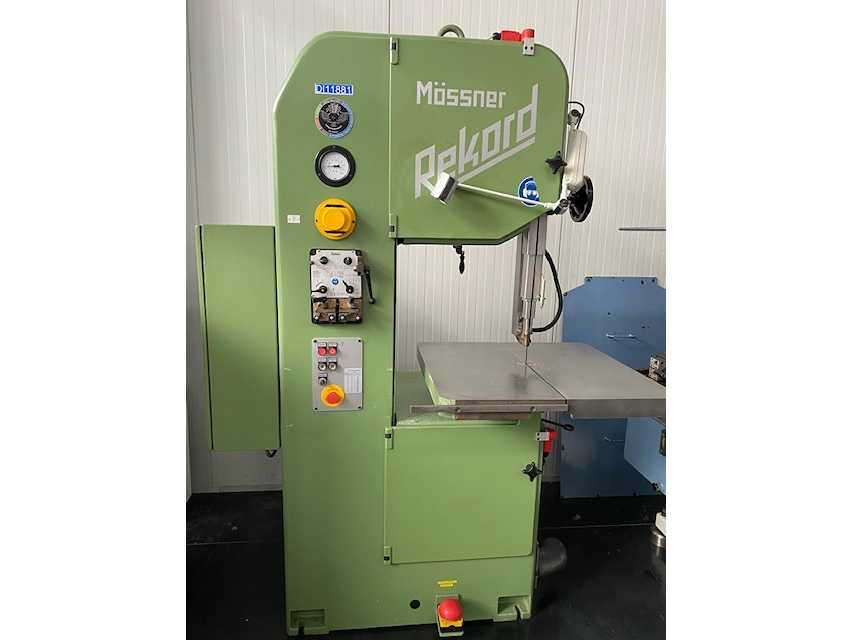

Mössner Rekord SSF 801 Band Saw Machine The most powerful Mössner band saw, it is used when maximum performance is required. The absolute flagship among high-performance vertical band saws This machine stands for maximum precision, extremely smooth running and uncompromising durability in continuous industrial use. Basic equipment of the band saw Band saw stand in stable cast iron construction Cutting speeds adjustable via frequency converter and three-phase motor with potentiometer, 2-speed manual transmission or cutting speeds infinitely adjustable with flange bearing and frequency converter Manual belt tensioning device with hydraulic display Tiltable work table – up to 30° on the right, up to 15° on the left Replaceable aluminum wheels with hard rubber lining Upper impeller adjustable Safety door switches on the impeller doors Paintwork: RAL 7035 light g ...

Provided roller conveyor/infeed conveyor and longitudinal stop. Auction-ID: A1-48474-94

Saw blade length 3450 - 3640 mm Cutting height max. 325 mm Projection/cutting width 405 mm Table size 615 x 615 mm With saw blade welder Ideal BS0/16 with band shears and whetstone Angle-adjustable machine table Cutting speed 16 - 2200 m/min Very neat condition

Auction-ID: A1-49309-132

Key data: 400 mm

gebr. V. Bandsäge Fabr. Bauer (with only about 50 operating hours) incl. welding device for the saw blades Saw blade rollers diameter 400 mm Saw blade length 3000 mm Table size 520 x 470 mm Dimensions: 600 x 700 x 1800 mm Weight approx. 280 kg

Technical data Type: BS 40 Design: vertical metal band saw machine Saw blade length: 3,140–3,360 mm Strip welding device: IDEAL BSO/16 Strip welding device connection voltage: 220-235 V Line frequency of the strip welding device: 50-60 Hz Strip welding device power: 2 kVA Configuration With metallic work table, manually height-adjustable saw blade guide, integrated IDEAL saw blade welding device and grinding device for saw blades. Remarks The machine comes from a plant closure, was actively used in production until the end and was electrified. Auction-ID: A7-49302-17

V. Bandsäge, Fabr. Elektra Beckum, Type BAS 315/4 Year of Make: 1994 Projection 315 mm Saw blade length: 2240mm Voltage: 220V Cutting depth: 170mm Accessories: saw blades, length stop, angle adjustment for mitre cuts

Auction-ID: A7-49302-36

Fuho Type 1408 Metal Band Saw Vertical band saw Passage width 350mm Saw blade device Motor 1kW 400V 50Hz Scissors for saw blades Table can be swivelled transversely and longitudinally Saw blade guide at the top and bottom Band length 2362mm G&2996-M40GH

VERTICAL BAND SAWING MACHINE Inv. No. 12.895Z1 Make MÖSSNER Model SSF520 Wheel diameter 520 mm Table dimensions 750 x 800 mm Throad dept 510 mm Passage under upper guide 380 mm Cutting speeds Variables 18-160/240-2280 m/min Motor power 5.5 KW Net weight 1000 kg Max. thickness for fusion cutting 15 mm Including: Coolant Mushroom shaped emergency stop Auction-ID: A1-49027-30

SPECIFICATION KB-45 Cutting capacity 455mm Maximum working height 255mm Table 600 x 500 mm Inclination: 4 ways up to 15° Saw blade length 3490mm Saw blade width 3-16mm Bsjuxvmq0O3 Saw blade speed 25-115m/min Butt welder capacity 3-16mm Engine Size: 1HP Weight 285 Kgs Height 2020mm Width 1100mm Depth 660mm STANDARD FEATURES Circuit breaker Single-phase / 3-phase supply Built-in saw blade and tire cleaning brush Saw blade welding machine, blade shears and grinding machine Nuttisch Low-voltage halogen lamp Mitre protection for oblique cuts Quick-gap stop for straight cuts

Provided roller conveyor/feed conveyor, length approximately: 3600 mm, \"MEP\" Digital longitudinal stop, \"Anma\" deburring machine, various accessories Auction-ID: A1-48474-23

Offer 24157 Specifications: - Roll diameter 420 mm - Projection 400 mm - Max. passage height 325 mm - Table size 600 x 600 mm - Table tiltable left / right 10° / 45 ° - Table height from the floor approx. 1030 mm - Saw blade length 3450 - 3640 mm - Bandwidth max. 25 mm - Stepless belt speed 15 - 1500 m/min - Drive 400 V / 1.5 kW - Weight approx. 500 kg - Space requirement approx. W 800 x H 1850 x D 1000 mm - with: - Saw blade welder IDEAL -Lighting

Tilting worktop 600×600 mm Cutting height 240 mm Variable blade speed Integrated blade welding unit Dimensions: 975x748x1850 mm Weight: 350 kg Auction-ID: A7-49136-7

Specifications: Cutting width 500 mm Table size 800 x 820 mm Travel approx. 350 mm Cutting height under guide approx. 400 mm Belt length 4000 mm Infinitely variable speeds approx. Gearbox stage 1 15 – 80 m/min Gearbox Stage 2 75 - 305 m/min Gearbox Stage 3 207 - 944 m/min

workpiece height: 670 mm |throat: 785 mmroll diameter: 800 mmcutting speed: 26- 2000 m/mindimensions of saw-band: 6500 mmpower requirement: 11 kWtable-size: 900 x 900 mmrange L-W-H: 2,24 x 1,1 x 2,9 mmweight of the machine ca.: 2,3 tMachine from a university. Very good conditionEquipment:- welding station- grinding stonesThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Cutting width: 520 mm Cutting height: 310 mm Working height: 1000 mm Cutting speed level 1: 25 - 85 m/min Cutting speed level 2: 120 - 500 m/min Cord edge: 3880 mm Saw band width: 3 - 16 mm Table size: 600 x 500 mm Table swivel range (in 4 directions): 15° Motor power: 1.5 kW Blade welding device: 2.4 kVA Machine dimensions (L x D x H): 1300 x 760 x 2140 mm Weight approx.: 500 kg Equipment: - Band saw blade - Stepless cutting speed - Reduction gearbox - Belt welding device with annealing unit - Machine light -Scissors - Grinding station - Chip brush - Blow-out device - LED digital display (to indicate the cutting speed) - Table with stop groove - Angle stop - Parallel fence

roll diameter: ? mmthroat: 280 mmworkpiece height: ? mmtotal power requirement: ? kWweight of the machine ca.: tdimensions of the machine ca.: mNo. 3849Vertical bandsaw THIEL Thiel 17Table 500 x 590Clearance approx. 280 mmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Cutting width: 355 mm Cutting height: 230 mm Working height: 960 mm Table size: 500 x 400 mm Stepless cutting speed: 20 - 90 m/min Band saw blade length: 2840 mm Band saw width: 3 - 16 mm Tilting and tiltable table in 4 directions: 15° Motor power: 0.75 kW Weight, approx.: 250 kg Scope of delivery: - Band saw blade - Stepless cutting speed - Belt welding device with annealing unit - Machine light -Scissors - Grinding station - Chip brush - Blow-out device - LED digital display (to indicate the cutting speed) - Table with stop groove - Parallel fence -CE

roll diameter: 800 mmthroat: 765 mmworkpiece height: ? mmtotal power requirement: ? kWweight of the machine ca.: 0,9 tdimensions of the machine ca.: 2 x 1 x 2,6 mNo. 1548Vertical band saw KÖLLE BG-80Working area: Table, tiltable 1200 x 800Passage saw blade machine stand 765 mmIDEAL saw blade welding and grinding deviceRoller diameter 800 mm.Space requirement approx. 2 x 1 x 2.6 mWeight approx. 900 kgmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Cutting width: 1010 mm Cutting height: 340 mm Working height: 1000 mm Table size: 600 x 500 mm Stepless cutting speed: 1st gear: 20-85 m/min 2nd gear: 120 - 500 m/min Band saw blade length: 4540 mm Band saw width: 3 - 16 mm Tilting and tiltable table in 4 directions: 15° Motor power: 1.5 kW Weight, approx.: 800 kg Equipment: - Band saw blade - Stepless cutting speed - Belt welding device - Band saw blade in adjustable precision guides - All-round tiltable tiltable (not applicable to machines with table feed due to design) - Belt scissors - Sanding unit - Chip brush - Eye bolt for moving the machine - Machine light - LED speed indicator - Blow-out device -CE

cutting diameter: 450 mmsaw band length: 4150 x 34 x 1.1 mmcapacity 90 degrees: flat: 450 x 480 mmcapacity 45 degrees: flat: LI 450 x 310 mmcapacity 45 degrees: flat: RE 450 x 290 mmband speed: 35 + 70 m/minwork height max.: 930 mmtotal power requirement: 2.35 kWvoltage: 400 Vweight: 950 kgrange L-W-H: 2150 x 1150 x 2115 mm well-maintained condition () current new price incl. accessories ~ 50.000 Euro special price on requestEquipment:- electro-hydraulic vertical mitre bandsaw- with large cutting range and small footprint- Robust material support table- electro-hydraulic mitre adjustment left right Only the saw frame swivels, everything else remains fixed incl. ELGO digital value display- electro-hydraulic material clamping- electro-hydraulic infeed from the saw frame Infinitely adjustable (cutting pressure control)- Operating instructions Special accessories included :- approx. 3.000 mm ...

Projection: 610 mm Installation height: 340 mm Working height: 1015 mm Table size: 600 x 500 mm Table size additional table: 220 x 500 mm Band saw blade length: 3970 mm Cutting speed, infinitely variable: 20 - 85 / 120 - 500 m/min Band saw width: 3 - 16 mm Table tiltable, 4 directions: 15° Main engine power: 1.5 kW Connected load band welder: 2.4 kVA Weight, approx.: 700 kg Equipment: - Stepless cutting speed - Belt welding device - Band saw blade in adjustable precision guides - All-round tiltable tiltable (not applicable to machines with table feed due to design) - Belt scissors - Sanding unit - Chip brush - Eye bolt for moving the machine - Machine light . LED speed indicator - Blow-out device -CE

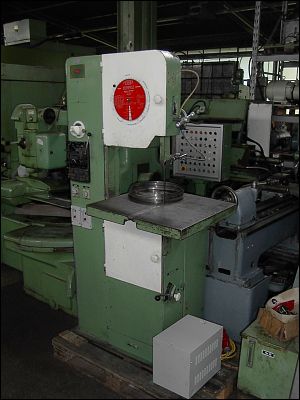

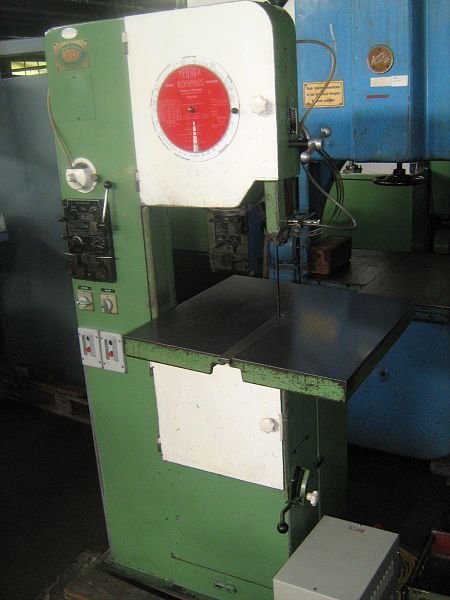

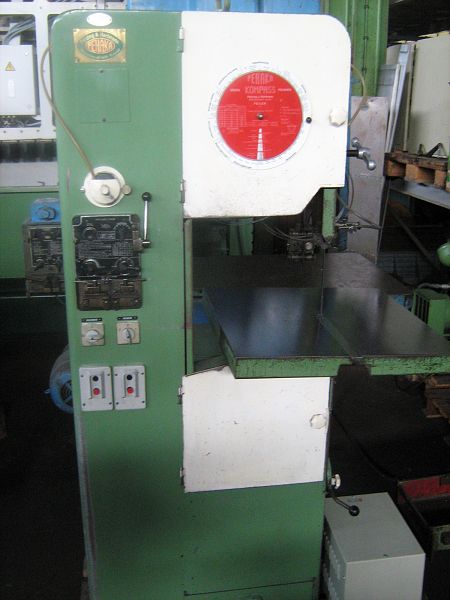

roll diameter: 400 mmthroat: 375 mmworkpiece height: ? mmtotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mNo. 1291Vertical band saw PEHAKA USM-4Working range: Passage 375Swivelling table top 600 x 600 mm,Saw blade dimensions: 2900-3040 x 3-12mmCutting range from 3-180 m/min,Chip blowing deviceIdeal saw blade welding and grinding deviceThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

specifications: - Roll diameter 420 mm - Projection 410 mm - maximum passage height 265 mm - Table size 600 x 600 mm - Table li. + re. swivel each 15 / 30 ° - Table height from the floor 1020 mm - Saw blade length 3150 - 3260 mm - Sawing bandwidth 3 - 16 mm - 8 Cutting speeds approx. 18 - 562 m/min - Drive 400 V / 1.1 / 1.7 kW - Weight approx. 650 kg - Space required approx. W 900 x H 1900 x D 1000 mm - E. foot button

roll diameter: - mmthroat: 1000 mmworkpiece height: 350 mmtotal power requirement: 3 kWweight of the machine ca.: 1,5 tdimensions of the machine ca.: 2 x 1 x 2 mNo. 4428Horizontal band saw SAMUR S-1000 VCutting height 350 mmCutting speed 20-800 mmBlade length : 4,550 mm.Blade width : 4 to 15 mm.Infinitely variable cutting speed : 23-711 m / minElektromot r380 VTable dimensions: 610 x 610 mm Table extension leftWelding deviceThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Used Vertical band saw, make MÖSSNER, good, electrically connected Model SSF/500 Masch.-No. 11502 Built in 1963 Technical data: Cut: - 3 gear stages + Vario gearbox 15 - 940 m/min - Fast response 2350 m/min Support table B x T approx. 700 x 600 mm Discharge approx. 480 mm Cutting height max. approx. 360 mm Space requirement , W x T x H approx. 1.1 x 0.8 m Weight estimated approx. 1 to Facilities: Rubbering of both rollers is in good condition IDEAL Tape Welding Machine Table tilted

roll diameter: 320 mmthroat: 310 mmworkpiece height: 230 mmtable-size: 505 x 505 mmcutting speed: 12 - 375 m/minturning speeds: 39 - 1230 U/minsaw band length: 2460 - 2620 mmvoltage: 400 Vtotal power requirement: 1,3 kWweight of the machine ca.: 420 kgdimensions of the machine ca.: 0,80 x 0,80 x 1,65 mwelding equipment: IDEAL air blow equipment: - serial-no.: 22600-77/14- with stepless feed- welding equipment IDEAL- grinding wheel- machine lampThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Cutting speed:-3 gearbox stages + Variogetriebe 15-940 m / min -Overdrive 2350 m / min Plate B x T CA 700 x 600 mm RADIUS approx. 480 mm Cutting height Max approx. 360 mm Space requirements, B x T x H approx. 1.1 x 0.8 m estimated approx. weight 1 to Equipment:-rubber of the two rollers is in good condition -IDEAL band sealer - table Tiltable

cutting diameter: 320 mmsaw band length: 3400 x 27 x 0.9 mmcapacity 90 degrees: flat: 320 x 400 mmcapacity 45 degrees: flat: LI 320 x 280 mmcapacity 45 degrees: flat: RE 320 x 260 mmcapacity 60 degrees: flat: RE 320 x 140 mmband speed: 35 + 70 m/minwork height max.: 930 mmvoltage: 400 Vtotal power requirement: 2.67 kWweight: 950 + 250 kgrange L-W-H: - mm well-maintained condition () current new price incl. accessories ~ 40.000 Euro special price on request- in checked conditions - machinevideo - https://www.youtube.com/watch?v=AHgMDxAcpgEEquipment:- electro-hydraulic vertical mitre bandsaw- with large cutting range and small footprint- Robust material support table- miter cuts are carried out fully automatically electro-hydraulic miter adjustment left right- Up to 99 cutting programs- Central operation of all machine functions from the front- Loading also possible from above- Precise pos ...

roll diameter: 420 mmthroat: 405 mmworkpiece height: 380 mmcutting speed: 16 - 2200 m/mintable surface area: 615 x 615 mmsaw band length: 3450/3650x6-20x0,9 mmwork height max.: 955 mmvoltage: 380 Vtotal power requirement: 3.0 kWweight of the machine ca.: 470 kgdimensions of the machine ca.: 1250 x 1000 x 2100 mm From a training workshop Good condition ()Features:- Robust, vertical band saw machine- Frequency-controlled, infinitely variable belt drive- Belt guide height adjustment with hand wheel- IDEAL belt welding system, with shears and grinding motor- Swivel table 15°/45°- Machine base- Swiveling machine lampThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

roll diameter: 420 mmthroat: 400 mmworkpiece height: 285 mmcutting speed: 15 - 1400 m/mintable surface area: 500 x 500 mmsaw band length: 3200-3400x6-20x0,9 mmwork height max.: 955 mmvoltage: 380 Vtotal power requirement: 1.5 kWweight of the machine ca.: 470 kgdimensions of the machine ca.: 950 x 750 x 1820 mmFurnishing:- robust, vertical - band saw machine- Frequency-controlled, infinitely variable belt drive- Belt guide height adjustment with hand wheel- IDEAL strip welding machine model BSO, with shears and grinding motor- swiveling table 15°/45°- Machine baseThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

roll diameter: 420 mmthroat: 410 mmsaw band length: 3150 - 3260 mmsaw band width: 3-16 weight: ca. 600 kgThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

roll diameter: 500 mmthroat: B485/H350 mmtable-size: 700x600 mmcutting speed: 15-940 m/minweight of the machine ca.: 0,9 tdimensions of the machine ca.: 1200x800x2100 mmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

roll diameter: 400 mmthroat: 390 mmworkpiece height: 240 mmsaw band length: 2980 mmtable surface area: 500x600 mmweight of the machine ca.: 350 kgdimensions of the machine ca.: 650x1100x1700 mmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

roll diameter: 420 mmthroat: 410 mmsaw band length: 3150 - 3260 mmsaw band width: 3-16 weight: ca. 600 kgThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

roll diameter: 483 mmcutting range: Vert. 508 / Hor. 457 mmCutting length: 356 mmweight of the machine ca.: 2.3 tdimensions of the machine ca.: 3.05 x 2.05 x 2.5 mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
