Double Column Pulling Presses used for sale (5)

300 t , Stand distance 1.800 , with rope passage , Installation height 1.000 , Table 1.800 x 1.000 , Ram 1.800 x 1.000 , Hub 600 , Rapid traverse to + From 414 mm/sec. , ram speed 10 - 50 mm/sec. , retraction force 380 kN , table cushion 800 kN , 90 kW , Weight 43.000 kg , ground-level installation

pressure: 500 tdistance between columns: 1220 mmmax. ram stroke: 600 mmdistance table/ram, max. stroke up, adjustment up: 1000 mmtable surface area: 1600 x 1200 mmdie-cushion pressure inside the table: 320 tstroke of drawing cushion in table: 150 mmdrawing cushion surface in table: 750 x 812 mmdie-cushion pressure in pusher: 180 tstroke of drawing cushion in pusher: 100 mmdrawing cushion surface in pusher: 750 x 625 mmram surface: 1600 x 1200 mmtable height over floor: 800 mmfeed down: 665 mm/secfeed up: 530 mm/secworking feed: 34 - 100 mm/secquantity of oil: 2000 lpower capacity: 180 kWweight: 40 tdimensions of the machine ca.: 3,2 x 2,4 x 7,5 mby using oil-hydraulic drive, hydraulic and electric controlUVV, die cushion in bed and slide, adjustable drawing speed, punching limit with damping plunger lock, electric cabinetOur list price is WITHOUT starting the machine,just as it isThe da ...

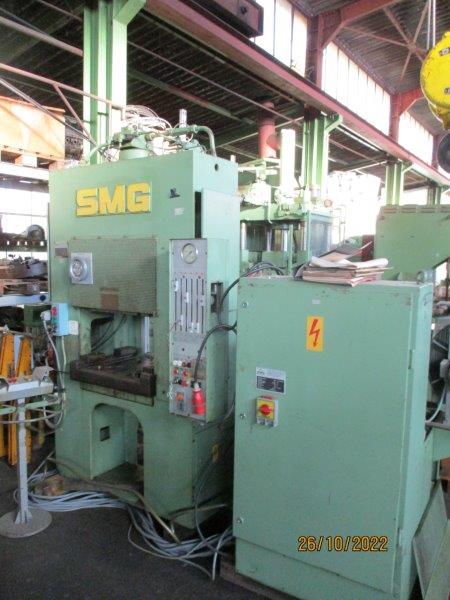

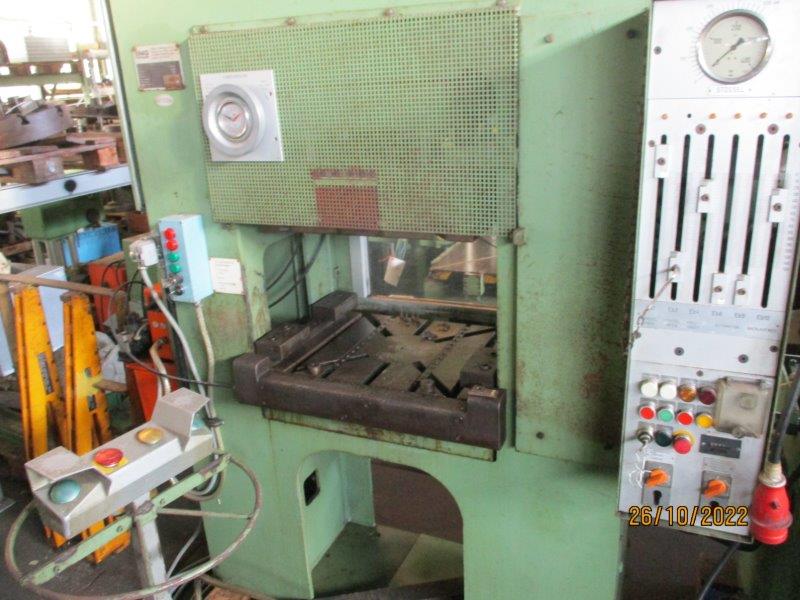

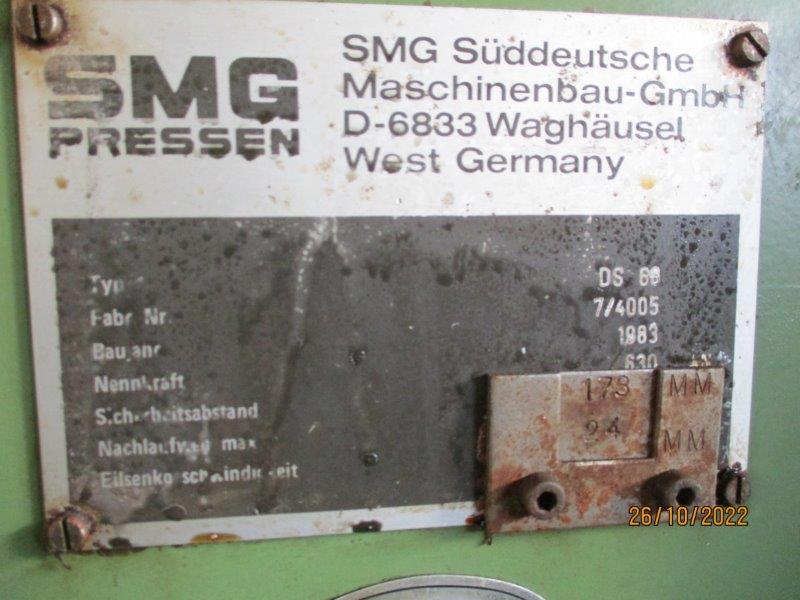

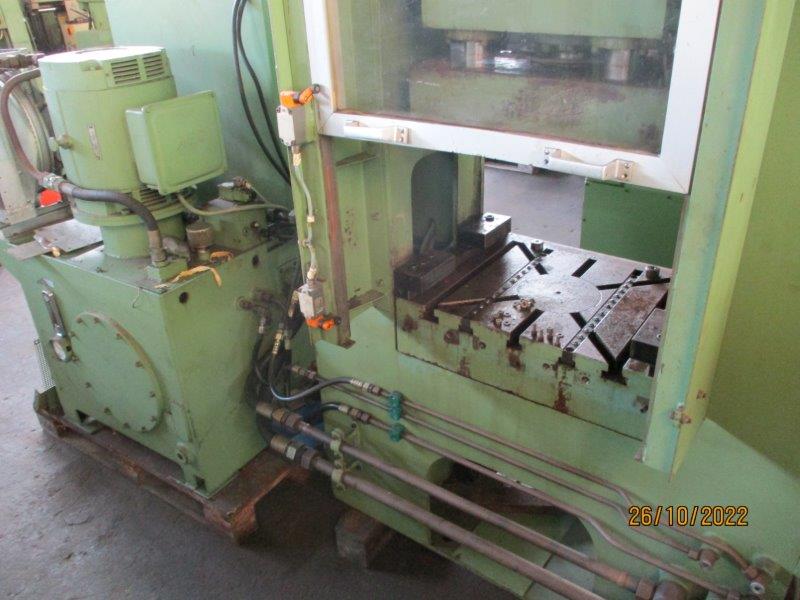

pressure: 63 tdistance between columns: 680 mmstroke: 150 mmtotal power requirement: 15 kWweight of the machine ca.: 7 tdimensions of the machine ca.: 3 x 3 x 3 mNo. 0214ydraulic high-speed double-column press SMG DS 63Clearance between the uprights 680 mm,max. distance between table top and ram 385 mm,Ejector force 15kN, largest ram stroke 150 mm.Working area: Table surface 660 x 460Drive: 15 kW pressing force 630 kN, retraction force 51 kNThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

pressure: 40 tdistance between columns: 600 mmstroke: 150 mmtable surface area: 600x410 mmram surface: 220x130 mmtable height: 850 mmweight of the machine ca.: 2,5 tThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

pressure: 160 tdistance between columns: 850 mmstroke: 150 mmtable surface area: 850x650 mmtotal power requirement: kWweight of the machine ca.: 7 tdimensions of the machine ca.: 2,5 x 2,5 x 3 mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
