presses used for sale (1,820)

pressure: 315 tstroke: 20-150 mmram stroke - adjustable min/max: 20 - 150 mmtable-size: 1780 x 1250 mmram surface: 1500 x 1000 mmtotal power requirement: 75 kWweight of the machine ca.: 46 t- Installation height with max. stroke at bottom adjustment at top 500 mm- Passageway in the table : 1200 x 300 mm- Milling in the table : 1300 x 400 x 80 mm- Infinitely variable stroke rate : 20 120 Hübe minThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

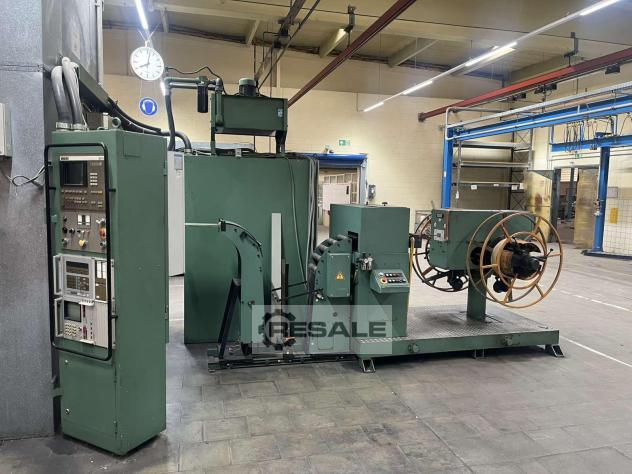

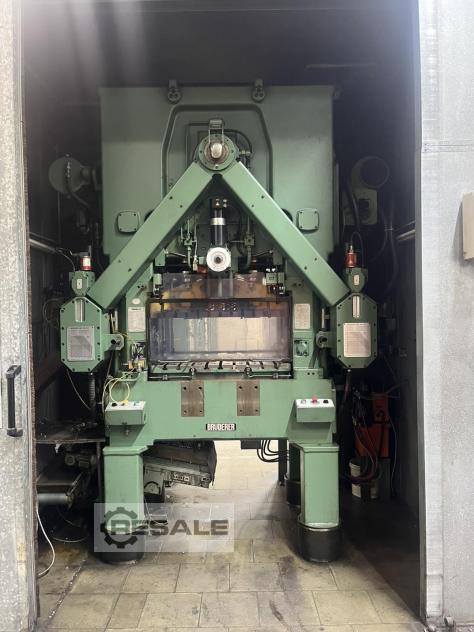

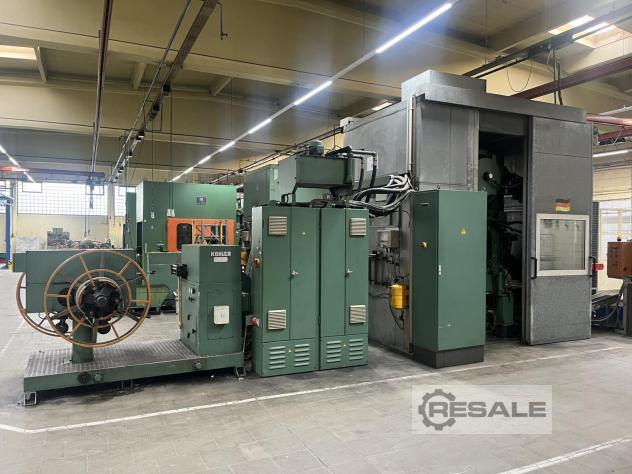

Configuration 2 x BRUDERER BBV 202/120 DOUBLE strip feeder KOHLER leveling machine 100.180/2.500.2M, year of construction 1992 Unwinding reel / coil reel Soundproof cabin Conveyor belt for part removal Lifting and sorting device for containers Roller conveyors and stacking racks Technical documentation available Complete BRUDERER high-performance punching line consisting of a precision punching machine BSTA 50 EL, BRUDERER strip feeder BBV 202/120, KOHLER leveling machine, unwinding reel, soundproof cabin, and discharge and conveying equipment. The system is designed for the efficient processing of strip material in high-speed punching operations. Extensive technical documentation is available. Technical Specifications Stroke Power 500 kN (50T) Table area: 940 x 580 mm Tool length max. 950 mm Operating hours 49637 Strip width: Max. 202 mm Machine dimensions: 3100 x 2700 x 1800 m ...

pressure:15 tthroat:250 mmstroke:95 mmno. of strokes:0 - 60 /mindistance table/ram, max. stroke up, adjustment up:300 mmtable surface area:440 x 300 mmhole in the table:45 mmtable height over floor:780 mmtable adjustable:100 mmram surface:100 mmweight:1,1 tdimensions (WxDxH):0,7 x 1,2 x 1,7 m

pressure:5 tthroat:150 mmstroke:40 mmno. of strokes:0 - 80 /mindistance table/ram, max. stroke up, adjustment up:260 mmtable surface area:340 x 270 mmhole in the table:45 mmtable height over floor:780 mmtable adjustable:120 mmram surface:60 mmweight:0,3 tdimensions (WxDxH):0,4 x 0,8 x 1,4 m

Pressure:080 tthroat:300 mmstroke:8 - 100 mmno. of strokes:60 /mindistance table/ram, max. stroke up, adjustment up:440 mmtable surface area:720 x 600 mmhole in the table:300 x 175 mmtable height over floor:860 mmram surface:400 x 270 mmram adjustment:60 mmpower requirement:7,5 kWweight:6,0 tdimensions (WxDxH):1,3 x 2,2 x 3,05 mGerman Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 clutch-/ brake combination:hydraulic, Ortlinghaus overload protection in ram:hydraulic ram adjustment:motoric ram counterbalance:pneumatic

pressure:160 tdistance between columns:1380 mmstroke:300 mmdistance table/ram, max. stroke up, adjustment up:500 mmtable surface area:1250 x 850 mmpressure of drawing cushion in table:80 tstroke of drawing cushion in table:150 mmdie cushion area:450 x 450 mmtable height over floor:900 mmside window:250 x 400 mmram surface:1350 x 850 mmspeed down:400 mm/sspeed up:350 mm/sworking speed:50 mm/soil volume:1850 lpower requirement:58,0 + 11,0 kWweight:24,1 tdimensions (WxDxH):2,85 x 2,15 x 4,6 mGerman Safety: permitted for manual loading:CE-sign die cushion / ejector in table:hydraulic depth stop:motoric adjustable

pressure:075 tthroat:230 mmstroke:6 - 100 mmno. of strokes:105 /mindistance table/ram, max. stroke up, adjustment up:354 mmtable surface area:700 x 420 mmhole in the table:250 mmtable height over floor:800 mmpassage to the back:310 mmram surface:264 x 270 mmram adjustment:60 mmpower requirement:5,5 kWweight:3,6 tdimensions (WxDxH):1,2 x 1,6 x 2,3 mGerman Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1

pressure:150 tthroat:350 mmstroke:6 - 122 mmno. of strokes:45 /mindistance table/ram, max. stroke up, adjustment up:440 mmtable surface area:820 x 600 mmhole in the table:330 mmtable height over floor:820 mmram surface:500 x 350 mmram adjustment:75 mmpower requirement:10,0 kWweight:7,3 tdimensions (WxDxH):1,6 x 2,2 x 2,9 m

pressure:150 tthroat:350 mmstroke:6 - 122 mmno. of strokes:45 /mindistance table/ram, max. stroke up, adjustment up:440 mmtable surface area:820 x 600 mmhole in the table:350 mmtable height over floor:800 mmram surface:500 x 350 mmram adjustment:75 mmpower requirement:10,0 kWweight:7,1 tdimensions (WxDxH):1,5 x 2,1 x 2,9 m

pressure:40 tdistance between columns:495 mmstroke:150 mmdistance table/ram, max. stroke up, adjustment up:300 mmtable surface area:490 x 400 mmhole in the table:50 mmtable height over floor:950 mmside window:155 mmram surface:150 mmspeed down:480 mm/sspeed up:480 mm/sworking speed:20 mm/soil volume:115 lpower requirement:7,5 kWweight:2,2 tdimensions (WxDxH):1,35 x 1,1 x 2,2 mdepth stop:mechanisch foundation pit:nicht erforderlich

Pressure:200 tdistance between columns:1910 mmstroke:600 mmdistance table/ram, max. stroke up, adjustment up:800 mmtable surface area:1900 x 1150 mmpressure of drawing cushion in table:80 tstroke of drawing cushion in table:300 mmdie cushion area:1500 x 950 mmtable height over floor:800 mmside window:1000 mmram surface:1900 x 1100 mmreturn capacity:36 tspeed down:400 mm/sspeed up:170 mm/sworking speed:30,5 mm/soil volume:1500 lheight over floor:4,85 mheight beneath floor:2,6 mpower requirement:45,0 kWweight:38,0 tdimensions (WxDxH):3,05 x 2,8 x 5,55 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 drawing cushion in table:hydraulic

pressure:300 tdistance between columns:1220 mmstroke:1000 mmdistance table/ram, max. stroke up, adjustment up:1200 mmtable surface area:1200 x 1000 mmpressure of drawing cushion in table:115 tstroke of drawing cushion in table:400 mmdie cushion area:1100 x 860 mmtable height over floor:900 mmside window:550 x 1000 mmram surface:1200 x 1030 mmspeed down:400 mm/sspeed up:350 mm/sworking speed:12 - 31 mm/soil volume:1080 lpower requirement:36,0 + 19,0 kWweight:22,0 tdimensions (WxDxH):2,5 x 2,5 x 6,3 mheight over floor:5,4 mheight beneath floor:0,9 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 light guard:Sick hydraulic safety block and pump:Fabrikat Rexroth

pressure:100 tthroat:375 mmstroke:20 - 125 mmno. of strokes:30 - 80 /mindistance table/ram, max. stroke up, adjustment up:515 mmtable surface area:900 x 635 mmhole in the table:280 mmtable height over floor:800 mmpassage to the back:570 mmram surface:700 x 450 mmram adjustment:80 mmpower requirement:15,0 kWweight:8,0 tdimensions (WxDxH):1,5 x 2,4 x 3,5 mGerman Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 clutch:pneumatic overload protection in ram:hydraulic ram adjustment:motoric ram counterbalance:pneumatic

pressure:400 tthroat:520 mmstroke:20 - 200 mmno. of strokes:30 /mindistance table/ram, max. stroke up, adjustment up:680 mmtable surface area:1600 x 1000 mmtable height over floor:715 mmpassage to the back:1000 mmram surface:1300 x 800 mmram adjustment:130 mmpower requirement:38,0 kWweight:41,0 tdimensions (WxDxH):2,1 x 2,6 x 4,2 mGerman Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 clutch-/ brake combination:pneumatic, Ortlinghaus overload protection in ram:hydraulic ram adjustment:motoric ram counterbalance:pneumatic

pressure:25 tthroat:400 mmstroke:1000 mmdistance table/ram, max. stroke up, adjustment up:1100 mmtable surface area:620 x 620 mmHole in the table:80 mmtable height over floor:650 mmram surface:110 mmspeed down:300 mm/sspeed up:500 mm/sworking speed:14 - 85 mm/soil volume:400 lpower requirement:6,0 kWweight:3,8 tdimensions (WxDxH):1,5 x 2,1 x 3,9 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2

pressure:40 tdistance between columns:500 mmstroke:150 mmdistance table/ram, max. stroke up, adjustment up:300 mmtable surface area:480 x 400 mmhole in the table:50 mmtable height over floor:950 mmside window:150 mmram surface:150 mmspeed down:480 mm/sspeed up:480 mm/sworking speed:20 mm/soil volume:160 lpower requirement:7,5 kWweight:2,6 tdimensions (WxDxH):1,1 x 1,4 x 2,4 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 light guard:Sick depth stop:mechanical foundation pit:not necessary

pressure:400 tstroke:280 mmno. of strokes:56 Hub/mindistance table/ram, max. stroke up, adjustment up:680 mmtable surface area:560 x 750 mmallowed max. force:600 tblow die to die:800 tspindle diameter:200 mmram surface:560 x 560 mmheight over floor:4,1 mpower requirement:37,0 kWweight:12,0 tdimensions (WxDxH):2,2 x 2,0 x 4,25 m

pressure:150 tthroat:520 mmstroke:30 - 200 mmno. of strokes:15 - 60 /mindistance table/ram, max. stroke up, adjustment up:650 mmtable surface area:1600 x 1000 mmhole in the table:1040 x 140 mmtable height over floor:1000 mmpassage to the back:1000 mmram surface:1400 x 800 mmram adjustment:120 mmpower requirement:20,0 kWweight:27,5 tdimensions (WxDxH):2,3 x 2,75 x 4,5 mclutch-/ brake combination:pneumatic; Ortlinghaus overload protection in ram:hydraulic ram counterbalance:pneumatic ram adjustment:semi-automatic Option: NEW electrical controls:Siemens S7-1500 F

pressure:25 tthroat:355 mmstroke:500 mmdistance table/ram, max. stroke up, adjustment up:800 mmtable surface area:500 x 500 mmhole in the table:180 mmtable height over floor:700 mmram surface:250 x 250 mmpower requirement:7,5 kWweight:2,1 tdimensions (WxDxH):1,45 x 0,9 x 2,55 m

pressure:125 tthroat:340 mmstroke:20 - 160 mmno. of strokes:55 /mindistance table/ram, max. stroke up, adjustment up:480 mmtable surface area:1000 x 660 mmtable height over floor:730 mmram surface:600 x 300 mmram adjustment:75 mmpower requirement:8,5 kWweight:7,8 tdimensions (WxDxH):1,4 x 2,8 x 2,7 mGerman Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 clutch:pneumatic overload protection in ram:mechanical

pressure:160 tthroat:500 mmstroke:200 mmdistance table/ram, max. stroke up, adjustment up:500 mmtable surface area:1140 x 980 mmhole in the table:180 mmtable height over floor:860 mmram surface:1000 x 800 mmoil volume:1000 lpower requirement:50,0 kWweight:18,0 tdimensions (WxDxH):1,3 x 2,6 x 3,4 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 depth stop:mechanical cutting impact cushioning:hydraulic

pressure:200 tdistance between columns:1100 mmstroke:600 mmdistance table/ram, max. stroke up, adjustment up:1100 mmtable surface area:1000 x 1000 mmpressure of drawing cushion in table:63 tstroke of drawing cushion in table:250 mmdie cushion area:800 x 750 mmtable height over floor:800 mmram surface:1000 x 1000 mmSpeed down:400 mm/sspeed up:250 mm/sworking speed:22 - 56 mm/spower requirement:45,0 kWweight:24,0 tdimensions (WxDxH):2,4 x 1,5 x 5,9 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 drawing cushion in table:hydraulic

pressure:6,3 tthroat:210 mmstroke:200 mmdistance table/ram, max. stroke up, adjustment up:300 mmtable surface area:380 x 350 mmhole in the table:100 mmtable height over floor:1050 mmram surface:45 mmpower requirement:4,0 kWweight:0,8 tdimensions (WxDxH):0,8 x 1,2 x 2,6 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2

pressure:035 tthroat:240 mmstroke:4 - 70 mmno. of strokes:120 /mindistance table/ram, max. stroke up, adjustment up:400 mmtable surface area:580 x 440 mmhole in the table:200 x 170 mmtable height over floor:670 - 820 mmtable adjustable:150 mmram surface:300 x 175 mmram adjustment:50 mmpower requirement:3,0 kWweight:2,3 tdimensions (WxDxH):1,2 x 1,4 x 2,1 mGerman Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 clutch-/ brake combination:hydraulic overload protection in ram:mechanical

pressure:080 tthroat:300 mmstroke:7 - 100 mmno. of strokes:120 /mindistance table/ram, max. stroke up, adjustment up:450 mmtable surface area:720 x 600 mmhole in the table:300 x 120 mmtable height over floor:850 mmram surface:400 x 275 mmram adjustment:60 mmpower requirement:5,5 kWweight:6,5 tdimensions (WxDxH):1,2 x 2,0 x 2,9 mGerman Safety: permitted for manual loading:CE-sign light guard:Sick clutch:hydraulic overload protection in ram:hydraulic ram adjustment:motoric stroke adjustment:automatic

pressure:160 tthroat:690 mmstroke:8 - 180 mmno. of strokes:50 /mindistance table/ram, max. stroke up, adjustment up:500 mmtable surface area:1300 x 1000 mmhole in the table:400 / 120 mmtable height over floor:850 mmpassage to the back:900 mmram surface:1000 x 700 mmram adjustment:130 mmpower requirement:11,0 kWweight:19,0 tdimensions (WxDxH):2,4 x 2,8 x 3,4 mGerman Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 clutch:pneumatic ram adjustment:motoric ram counterbalance:pneumatic

pressure:63 tthroat:325 mmstroke:560 mmdistance table/ram, max. stroke up, adjustment up:700 mmtable surface area:640 x 640 mmpressure of drawing cushion in table:25 tstroke of drawing cushion in table:200 mmdie cushion area:450 x 450 mmtable height over floor:800 mmram surface:560 x 560 mmoil volume:450 lpower requirement:15,0 kWweight:7,0 tdimensions (WxDxH):1,2 x 2,0 x 3,1 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 drawing cushion in table:hydraulic

pressure:100 tthroat:320 mmstroke:160 mmdistance table/ram, max. stroke up, adjustment up:480 mmtable surface area:630 x 550 mmhole in the table:200 mmtable height over floor:860 mmram surface:560 x 450 mmoil volume:500 lpower requirement:30,5 kWweight:6,4 tdimensions (WxDxH):1,6 x 2,0 x 2,9 mGerman Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 cutting impact cushioning:hydraulic depth stop:mechanical

pressure:160 tthroat:480 mmstroke fix:fix 180 mmno. of strokes:25 - 70 /mindistance table/ram, max. stroke up, adjustment up:650 mmtable surface area:1100 x 900 mmHole in the table:450 mmtable height over floor:900 mmpassage to the back:700 mmram surface:900 x 600 mmram adjustment:144 mmpower requirement:30,75 kWweight:15,3 tdimensions (WxDxH):2,0 x 2,4 x 3,75 mGerman Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 clutch-/ brake combination:pneumatic, Desch overload protection in ram:hydraulic ram counterbalance:pneumatic
