14 NEFF used machine for sale

For sale are several screw jacks from the manufacturer NEFF Gewindetriebe GmbH, type C3-RF-6-T30x6, in various designs. These are new or unused components. Basic technical data (slightly different depending on the model): - Type: C3-RF-6-T30x6 - Size: C3 - Ratio: i = 6:1 - Stroke: 300 mm - Installation position: vertically upwards - Spindle type: rotating spindle - Trapezoidal lead screw: TGS-R-30x6-RH - Operating torque: approx. 6.1 Nm / Starting torque: approx. 8.5 Nm - Total lengths: 450 mm or 496 mm depending on the model - Special designs: Models with bellows and adapter available - Spindle nut: Bronze, Ø 60 mm Hint: There are several variants available. Details on the execution can be requested individually.

Force of pressure: 63 t table size: 610 x 800 mm throat depth: 350 mm stroke: 200 mm Electr. Supply: 380 V, 15 kW space: 1800 x 920 x 2440 mm weight: 3940 kg

Pressure 6.3 to. ub 450 mm, extension 200 mm, pushing speed 3.5 m/min, installation height 700 mm, table size 360 x 320 mm, table height 750 mm, total power 2kW, weight. 900 kg

pressure:6,3 t throat:210 mm stroke:200 mm distance table/ram, max. stroke up, adjustment up:300 mm table surface area:380 x 350 mm hole in the table:100 mm table height over floor:1050 mm ram surface:45 mm power requirement:4,0 kW weight:0,8 t dimensions (WxDxH):0,8 x 1,2 x 2,6 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2

Pressure:40 t throat:330 mm stroke:250 mm distance table/ram, max. stroke up, adjustment up:450 mm table surface area:800 x 500 mm hole in the table:100 mm table height over floor:900 mm ram surface:100 mm Speed down:406 mm/s Speed up:393 mm/s Working speed:14 mm/s oil volume:350 l power requirement:7,5 kW weight:4,6 t dimensions (WxDxH):1,3 x 2,3 x 3,4 m German Safety: permitted for manual loading:CE-sign depth stop:mechanical

pressure:6,3 t throat:300 mm stroke:300 mm distance table/ram, max. stroke up, adjustment up:800 mm table surface area:450 x 400 mm hole in the table:80 mm table height over floor:700 mm ram surface:50 mm oil volume:90 l power requirement:5,5 kW weight:1,35 t dimensions (WxDxH):1,8 x 2,0 x 2,7 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 depth stop:mechanical

pressure:60 t distance between columns:650 mm stroke:220 mm distance table/ram, max. stroke up, adjustment up:410 mm table surface area:600 x 525 mm pressure of drawing cushion in table:5 t stroke of drawing cushion in table:80 mm table height over floor:900 mm side window:200 mm ram surface:560 x 490 mm dimensions (WxDxH):1,9 x 1,3 x 2,7 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 light guard:Sick FGS 600 drawing cushion in table:hydraulic foundation pit:not necessary

pressure:60 t distance between columns:650 mm stroke:220 mm distance table/ram, max. stroke up, adjustment up:410 mm table surface area:600 x 525 mm hole in the table:110 mm table height over floor:900 mm side window:200 mm ram surface:560 x 490 mm power requirement:15,0 kW dimensions (WxDxH):1,9 x 1,3 x 2,7 m foundation pit:not necessary

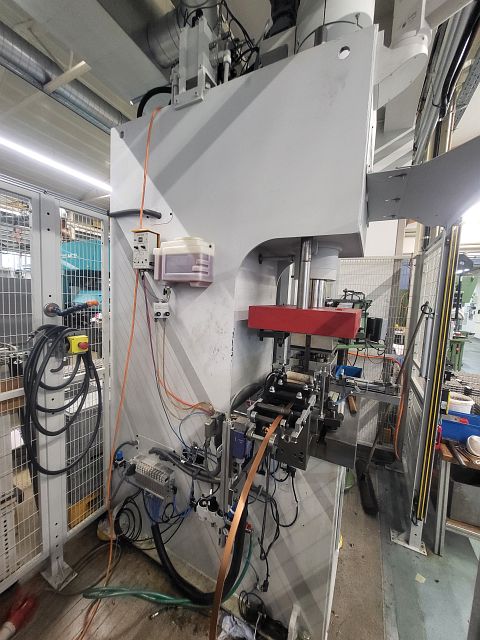

CONTROLS   electronic controls PRESS DESIGN   drive system: hydraulic   frame design: C-frame, single sided   number of suspensions: 1   number of slide actions: 1 PRESS FORCES   total force (nominal): 25 to PRESS TABLE   table surface (left-right): 645 mm   table surface (front-back): 535 mm SLIDE   slide force: 25 to   table surface (left-right): 500 mm   table surface (front-back): 430 mm   stroke: 400 mm SLIDE (HYDR. PRESS)   return force: 4 to TOOL ASSEMBLY DIMENSIONS   shut height (stroke down, adjustment up), BDC: 500 mm STRIP-FEEDER   feeder type: grip feeder   sheet width max.: 76 mm   sheet thickness max.: 3 mm ELECTRICAL SPECIFICATIONS   total power consumption: 7.5 kW   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   total weight approx.: 4000 kg Machine in like-new condition (lightly used) Optional with convey ...

CONTROLS   electronic controls PRESS DESIGN   drive system: hydraulic   frame design: 4 column   number of suspensions: 1   slide ejectors / cushion: yes   table cushion: yes PRESS FORCES   total force (nominal): 200 to PRESS TABLE   table surface (left-right): 1330 mm   table surface (front-back): 1150 mm   height above floor level: 850 mm   opening in bed (diameter): 250 mm SLIDE   slide force: 200 to   table surface (left-right): 1200 mm   table surface (front-back): 1200 mm   stroke: 800 mm SLIDE (HYDR. PRESS)   approximation velocity max.: 300 mm/s   working velocity min.: 30 mm/s   return velocity max.: 400 mm/s   return force: 200 to SLIDE EJECTOR / CUSHION   working principle: hydraulical   nominal force: 30 to   stroke: 130 mm DIE CUSHION (TABLE CUSHION)   cushion force: 30 to   stroke: 850 mm ELECTRICAL SPECIFICATIONS   mains  ...

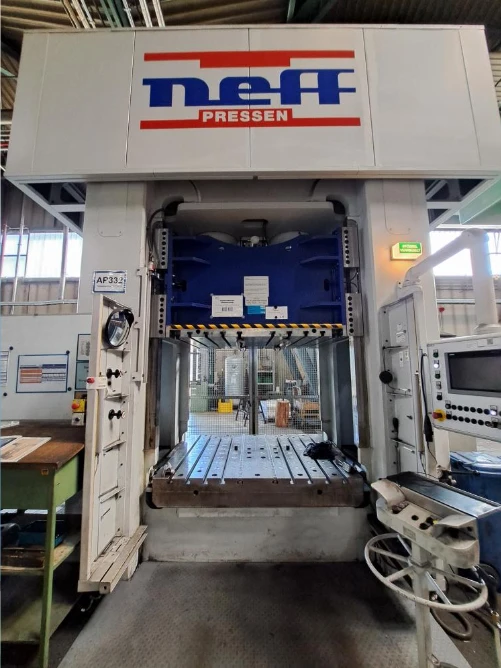

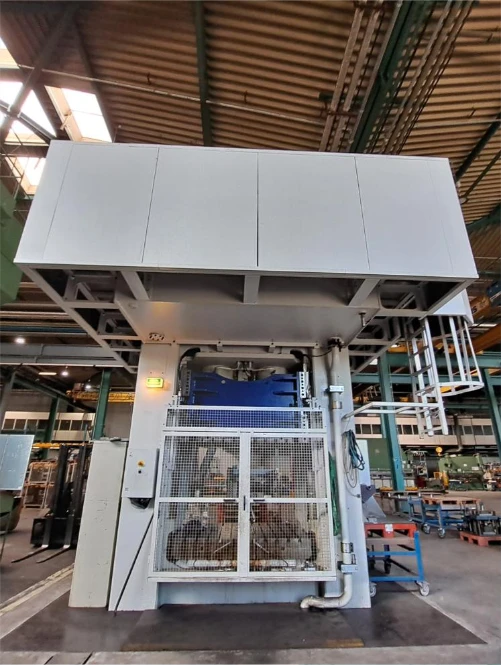

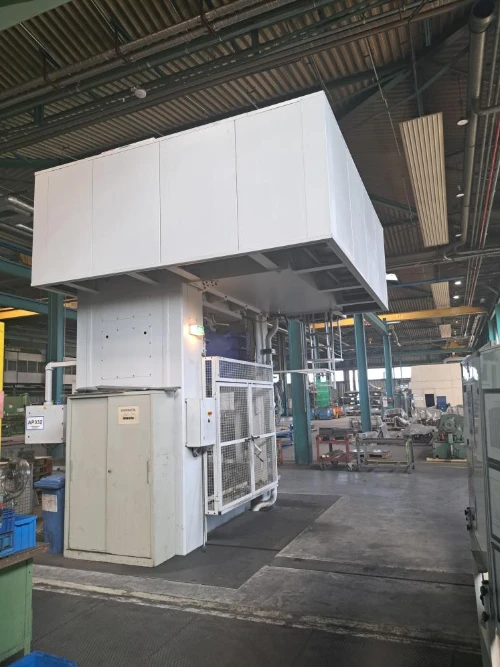

Manufacturer: Neff Model: DZP630 Type of machine: Press Year of manufacture: 2020 Press force: 630 t Counter press force: 250 t Opening max: 1200 mm Press movement max: 800 mm Counter movement max: 250 mm Counter press area: 1500 x 1200 mm Press area: 1800 x 1500 mm Counter press pins diameter: 38 mm Operating Hours : 5,935 hours since February 2020 Find more here - .ucymachines/ Contact us at - sales@ucymachines

CONTROLS   PLC SIEMENS S7 300 PRESS DESIGN   drive system: hydraulic PRESS FORCES   total force (nominal): 800 to PRESS TABLE   table surface (left-right): 2600 mm   table surface (front-back): 2000 mm   height above floor level: 540 mm SLIDE   stroke: 900 mm SLIDE (HYDR. PRESS)   approximation velocity max.: 460 mm/s   working velocity min.: 25 mm/s   working velocity max.: 44 mm/s   return velocity max.: 460 mm/s TOOL ASSEMBLY DIMENSIONS   shut height (stroke down, adjustment up), BDC: 1700 mm ELECTRICAL SPECIFICATIONS   total power consumption: 180 kW DIMENSIONS / WEIGHTS   total weight approx.: 95000 kg ATTACHMENTS (PRESSES)   press automation: yes   gripper transfer system: yes   acc. to actual accident protection regulation: yes   European CE standards: yes Complete hot forming line consisting of: Hydraulic press NEFF 800 to. Ruhstrat furnac ...

Manufacturer: NEFF Model: 4SP 160 Year of Manufacture: 2011 Operating Hours: 25 aprox Type of Machine: Hydraulic Press Weight: 7000 kg Condition: Used Control System: Siemens S7 (PLC) Technical Specifications - Press Force: 1600 kN (adjustable from 160–1600 kN) - Return Force: Approx. 160 kN - Stroke (Hub): 500 mm - Table Size (W x D): 2000 x 800 mm - Ram Size (W x D): 2000 x 800 mm - Clear Height (Ram Up): 700 mm - Max. Daylight (Open Height): 2850 mm - Table Height Above Floor: 800 mm - Clearance Between Columns (W x D): 1600 x 410 mm - Installation Space (W x D x H): 2000 x 800 x 700 mm Electrical System - Operating Voltage: 400V AC - Control Voltage: 24V DC - Valve Voltage: 24V DC - Frequency: 50 Hz - Voltage Fluctuation Tolerance: ±5% - Max. Ambient Temp: 35°C Find more here - .ucymachines/ Contact us at - sales@ucymachines
