Hydraulic Shear used for sale (144)

Key data: 1250 mm, 4 mm

Max. cutting length: 1250 mm Max. sheet thickness: 4 mm steel Controlled backgauge Side stop and table extensions Cutting length limitation Cut edge lighting Light barrier to protect the rear area Knife sharpened Weight approx. 2800 kg

: neu : ca. 12 - 14 Wochen ab Auf : Türkei : 94900 €: 1793.61 €: 4100 mm: 13 mm: 8 mm: 350 mm: 8 1/min: 1.75 °: 18 : 62 to: 1000 mm: 200 mm/s: 30 kW: 330 l: 3 Stk.: 818 mm: 550 mm: 4520 mm: 5350 mm: 2250 mm: 3650 mm: 2250 mm: 16300 kgSwing cut constructionNC-preselection system D-touch 7 with touch screen for back gauge, cutting length, quantity, USB portMotorized back gauge 1000 mm on ball screws, folding upwardsClear control panel mounted on moveablearmHydraulic hold down pistons are arrangedclose to the cutting edgeFoot switchCentral, manual blade gap adjustmentCutting line illuminationBroad table with ballsPiece counterSingle and continous stokeFold up finger guard 1.000 mm1 squaring arm 1. 500 mm with scale,T-slot and tilting cam2 supporting arms 1.000 mm with T-slotSimple replacement and grinding of thebladesVariable adjustable cuttinglength for economic processingLower blade ...

LARA SHEAR CDCH-1400 (year 2018) With a tow table. Hydraulic shear designed for the cross-cutting of strip and management of sheet metal surplus in coil feeding lines. It is supplied together with a feed table, allowing a comfortable and safe evacuation of the cut material and maintaining a clean and continuous production process. Robust equipment, of heavy industrial construction, especially suitable as auxiliary equipment in cutting, stamping or coil feeding lines. Work materials -Carbon steel -Stainless steel -Aluminum and light alloys Main technical data - Maximum working width: up to 1,400 mm -Drive type: hydraulic -Working pressure: 4–6 bar (pneumatic control system) -Power supply: 400 V / 50 Hz  

: neu : ca. 12 - 14 Wochen ab Auf : Türkei : 145000 €: 2740.5 €: 6080 mm: 6 mm: 4 mm: 350 mm: 10 1/min: 0.5 - 2 °: 29 : 20 to: 1000 mm: 200 mm/s: 22 kW: 200 l: 5 Stk.: 900 mm: 630 mm: 6370 mm: 7300 mm: 2150 mm: 3400 mm: 2750 mm: 25500 kglinear guidedCNC touch screen D-touch 7back gauge,cutting angle,cutting gap,cutting length, quantityUSB portCNC controlled cutting gap adjustment by the table (patented)oil coolermanual central lubricationcutting line illuminationfoldable ball screws for back gaugeballs in tablefoldable finger protection, 1.000 mmside lay with T-slot, tilting cam and scale5 support arms wit T-slotsoilfillinglight barrier on the back of the machineuser manual in GERMAN and ENGLISHPRICE FCA TURKEY(sample photo)The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Guillotine shears Manufacturer: LVD Type: MVSB 62/8 Year of Make: 1993 Max. working length: 6,200 mm Sheet thickness: 8 mm Weight approx.: 13.000 kg

: neu : ca. 12 - 14 Wochen ab Auf : Türkei : 193000 €: 3647.7 €: 6080 mm: 13 mm: 10 mm: 350 mm: 10 1/min: 0.5 - 2.5 °: 29 : 58 to: 1000 mm: 200 mm/s: 37 kW: 400 l: 6 Stk.: 950 mm: 650 mm: 6375 mm: 7400 mm: 2200 mm: 3700 mm: 2900 mm: 33820 kglinear guidedCNC touch screen D-touch 7back gauge,cutting angle,cutting gap,cutting length, quantityUSB portcutting line illuminationfoldable ball screws for back gaugeballs in tablefoldable finger protection, 1.000 mmside lay with T-slot, tilting cam and scale6 support arms wit T-slotsoilfillinglight barrier on the back of the machineuser manual in GERMAN and ENGLISHPRICE FCA TURKEY(sample photo)The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Scissors

: neu : ca. 12 - 14 Wochen ab Auf : Türkei : 92100 €: 1740.69 €: 3100 mm: 16 mm: 10 mm: 350 mm: 10 1/min: 2 °: 14 : 61 to: 1000 mm: 200 mm/s: 37 kW: 410 l: 2 Stk.: 818 mm: 550 mm: 3580 mm: 4550 mm: 2250 mm: 3825 mm: 2250 mm: 15000 kgSwing cut constructionNC-preselection system D-touch 7 with touch screen for back gauge, cutting length, quantity, USB portMotorized back gauge 1000 mm on ball screws, folding upwardsClear control panel mounted on moveablearmHydraulic hold down pistons are arrangedclose to the cutting edgeFoot switchCentral, manual blade gap adjustmentCutting line illuminationBroad table with ballsPiece counterSingle and continous stokeFold up finger guard 1.000 mm1 squaring arm 1. 500 mm with scale,T-slot and tilting cam2 supporting arms 1.000 mm with T-slotSimple replacement and grinding of thebladesVariable adjustable cuttinglength for economic processingLower blade  ...

Scissors

: neu : ca. 4 Monate ab Auftragse : 1030 mm: 10 mm: 6 mm: 10 1/min: 3 °: 7 : 5000 mm: 11 kW: 100 l: 900 mm: 1550 mm: 1150 mm: 1600 mm: 1900 kghydr. drive unit, completely integrated in the machine bodyoverload safety, hydraulic and electricaladjusting of the cutting angleadjusting of the cutting gapblank holder pressure, adjustablesupport arm with angle stop and scale up to 600 mm4 rotating knives for VA steelmovable pedal switch with solenoid valvesMotorised backgaugeCentral lubricationexchangeable machine table supportsection area lightingThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Scissors

: neu : ca. 4 Monate ab Auftragse : 1530 mm: 12 mm: 9 mm: 8 1/min: 3 °: 8 : 500 mm: 15 kW: 180 l: 950 mm: 2200 mm: 1200 mm: 1800 mm: 3400 kghydr. drive unit, completely integrated in the machine bodyoverload safety, hydraulic and electricaladjusting of the cutting angleadjusting of the cutting gapblank holder pressure, adjustablesupport arm with angle stop and scale up to 600 mm4 rotating knives for VA steelmovable pedal switch with solenoid valvesMotorised backgaugeCentral lubricationexchangeable machine table supportsection area lightingThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Scissors

: neu : ca. 4 Monate ab Auftragse : 1280 mm: 16 mm: 12 mm: 8 1/min: 3 °: 7 : 500 mm: 22.5 kW: 250 l: 950 mm: 2100 mm: 1400 mm: 2000 mm: 5000 kghydr. drive unit, completely integrated in the machine bodyoverload safety, hydraulic and electricaladjusting of the cutting angleadjusting of the cutting gapblank holder pressure, adjustablesupport arm with angle stop and scale up to 600 mm4 rotating knives for VA steelmovable pedal switch with solenoid valvesMotorised backgaugeCentral lubricationexchangeable machine table supportsection area lightingThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 3 mm, 10 mm, 1 mm

Guillotine shears from a company liquidation Worked as a cutting center with automatic stacking device make Theis Control cabinet , built in 2015 new Front support arms 1,000 mm Service regularly performed according to plan 3,000 x 10 mm

: neu : ca. 4 Monate ab Auftragse : 1530 mm: 16 mm: 12 mm: 7 1/min: 3 °: 8 : 500 mm: 22.5 kW: 250 l: 950 mm: 2350 mm: 1400 mm: 2000 mm: 5200 kghydr. drive unit, completely integrated in the machine bodyoverload safety, hydraulic and electricaladjusting of the cutting angleadjusting of the cutting gapblank holder pressure, adjustablesupport arm with angle stop and scale up to 600 mm4 rotating knives for VA steelmovable pedal switch with solenoid valvesMotorised backgaugeCentral lubricationexchangeable machine table supportsection area lightingThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Technical data: - Max. cutting width 2080 mm - Max. cutting capacity at 45 Kp/mm² 6 mm - Column projection 150 mm - Automatic cutting angle adjustment 0.3 - 2 ° - automatic. Cutting gap adjustment - Number of hold-downs 10 pcs - Stroke rate up to 22 1/min - Front angle stop approx. - 2 pcs. front support arms approx. - mot. Back gauge with positioning control up to 1000 mm - Rear space protection with light barrier - Cut line illumination - Working height 860 mm - E - Footswitch - Drive 400 V / 11 kW - Space requirement approx. W 3150 x H 2150 x D 2300 mm - Weight approx. 4.8 t

: neu : ca. 12 Wochen ab Auftrags : 1030 mm: 8 mm: 5 mm: 14 1/min: 3 °: 7 : 500 mm: 7.5 kW: 100 l: 900 mm: 1550 mm: 1150 mm: 1600 mm: 1800 kghydr. drive unit, completely integrated in the machine bodyoverload safety, hydraulic and electricaladjusting of the cutting angleadjusting of the cutting gapblank holder pressure, adjustablesupport arm with angle stop and scale up to 600 mm4 rotating knives for VA steelmovable pedal switch with solenoid valvesMotorised backgaugeCentral lubricationexchangeable machine table supportsection area lightingThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 2540 mm, 6 mm

Max. cutting length: 2540 mm Max. sheet thickness: 6 mm steel Motorized adjustable back gauge (2 speeds) up to 1000 mm with display Side stop and table extensions Cutting length limitation Cut edge lighting Weight approx. 5500 kg

: neu : 2025 : 090132 : prompt, Zwischenverkauf v : Türkei : 47500 €: 798.38 €: 1 : 41800 €: 3100 mm: 6 mm: 4 mm: 50 mm: 15 1/min: 1.5 °: 16 : 14 to: 1000 mm: 200 mm/s: 15 kW: 200 l: 2 Stk.: 865 mm: 500 mm: 3515 mm: 4110 mm: 2200 mm: 3700 mm: 2100 mm: 7300 kgSwing cut constructionNC-preselection system D-touch 7 with touch screen for back gauge, cutting length, quantity, USB portMotorized back gauge 1000 mm on ball screws, folding upwardsClear control panel mounted on moveablearmHydraulic hold down pistons are arrangedclose to the cutting edgeFoot switchCentral, manual blade gap adjustmentCutting line illuminationBroad table with ballsPiece counterSingle and continous stokeFold up finger guard 1.000 mm1 squaring arm 1. 500 mm with scale,T-slot and tilting cam2 supporting arms 1.000 mm with T-slotSimple replacement and grinding of thebladesVariable adjustable cuttinglength for eco ...

Key data: 3140 mm, 1 mm

new Schechtl motorized guillotine shears, with the following equipment: - within the EU: 32 amp connection plug with 5 m cable - 1 pair of steel scissor knives (single-edged) - Manual depth stop 0-750 mm with pneumatically operated tilting table, Laying down to the front - Support plates with 10 mm graduation and tape measure - Footswitch - Three-sided safety cage around the depth stop - Compressed air must be available: min. 6 bar, max. 10 bar - approx. 50 l/min - Cut-gap illumination - Electronic position display - Contact stroke counter tico 731.3 - Sheet metal stacking trolley light max, load capacity 300 kg Working length 3140 mm 20 Sheet thickness steel 1.5 mm 30 Sheet thickness Alu 2.25 mm 40 Blechdicke VA/Sheet thickness stainless 1,0 mm 50 Maschinennummer/Machine number MT 13952 Working length: 3140 mm Sheet thickness steel: 1.5 mm Sheet thickness alumi ...

: neu : ca. 4 Monate ab Auftragse : 1280 mm: 12 mm: 9 mm: 9 1/min: 3 °: 7 : 500 mm: 15 kW: 180 l: 950 mm: 1950 mm: 1200 mm: 1800 mm: 3200 kghydr. drive unit, completely integrated in the machine bodyoverload safety, hydraulic and electricaladjusting of the cutting angleadjusting of the cutting gapblank holder pressure, adjustablesupport arm with angle stop and scale up to 600 mm4 rotating knives for VA steelmovable pedal switch with solenoid valvesMotorised backgaugeCentral lubricationexchangeable machine table supportsection area lightingThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Hydraulic guillotine shears 6 × 2500 mm

sheet width: 1050 mmplate thickness: 4.0 mmthickness at Niro-steel: 3.0 mmdistance between columns: 1200 mmblade length: 1150 mmno. of strokes: 46 - 69 Hub/mincutting angle: 1.30 °Control: konv. oil volume: 100 ltr.total power requirement: 5.68 kWweight: 1100 kg From a maintenance workshop In good condition ()Features:- Robust electro-hydraulic sheet metal shear- Electric motor-driven backgauge Backlash-free ball screw for backgauge Travel speed 100 mm/sec- Electric cutting length limiter Cutting length limiter to increase the stroke rate per minute- Manual cutting gap adjustment (lateral adjustment)- Front support table with recessed grips- Front finger/interference guard- 1x side stop with T-slot and millimeter scale- 2x front support arms- 1x freely movable foot switch- Operating instructions (PDF)The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 4100 mm, 6 mm

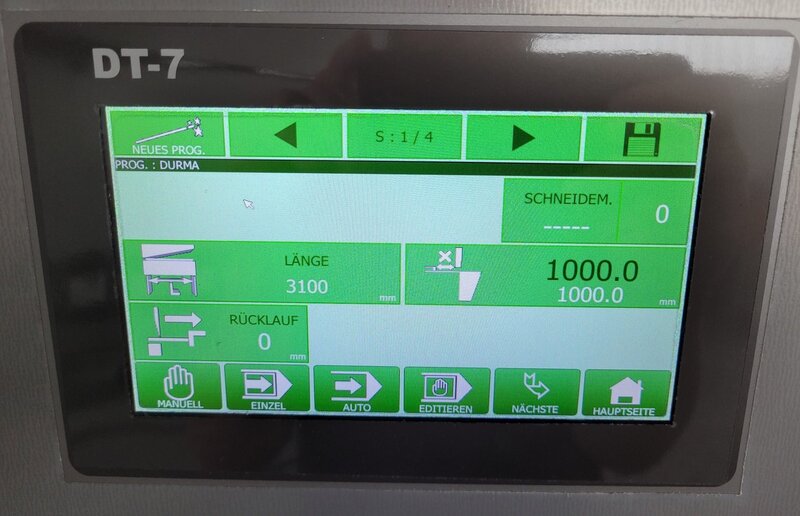

Capacity: 4000 x 6 mm. Stroke 120 mm. DURMA DT-7 Control. Serial No. 608922260. Dimensions: 5230 x 3600 mm. Height 2150 mm. Weight 11460 Kg

sheet width: 4050 mmplate thickness: 8 mmdistance between columns: mmtotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 3000 mm, 10 mm

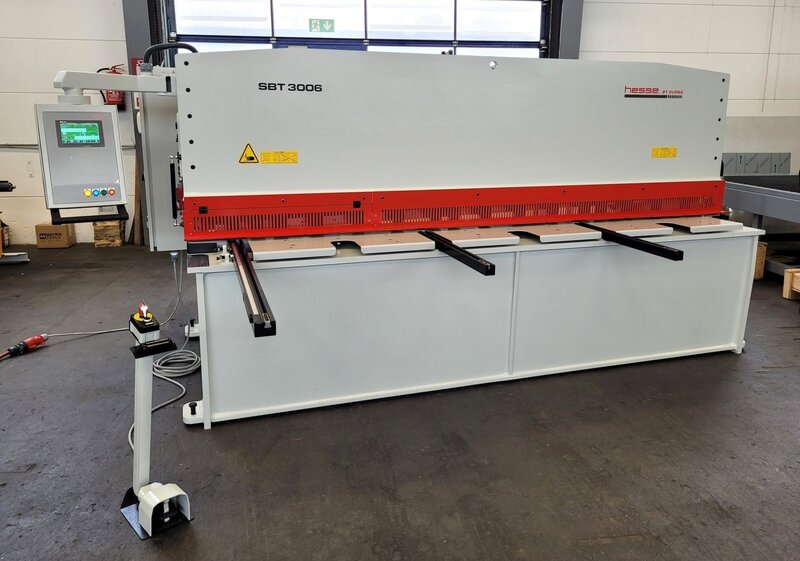

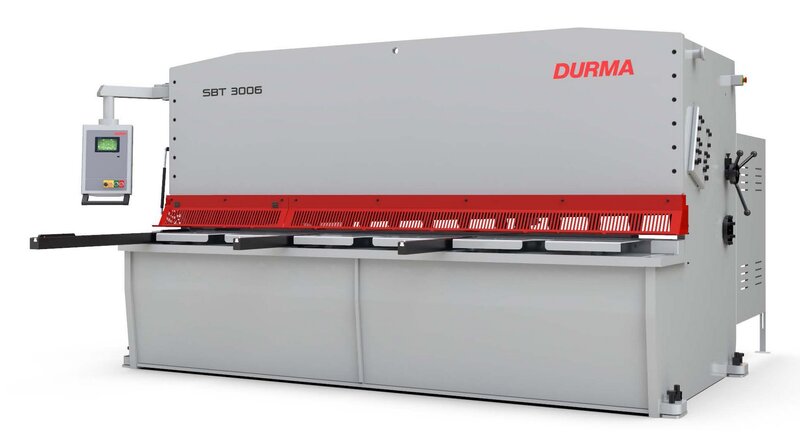

Hydraulic guillotine shears - ordering machine (delivery time approx. 10-14 weeks) - incl. foot switch, touch screen, rear installation room with light barrier monitoring, cutting gap automatic/electric, cutting angle automatic/electric, hydraulic hold-down device, mot. Back gauge up to 1000 mm depth -Similar to illustrations- Hydraulic plate shear - order machine (delivery time approx. 10-14 weeks) - incl. foot switch, touchscreen, rear set-up area with light barrier monitoring, automatic/electrical cutting gap, automatic/electrical cutting angle, hydraulic hold-down, mot. backgauge up to 1000 mm -images similar-

sheet width: 3190 mmplate thickness: 6 mmdistance between columns: 3250 mmcutting angle: 1,2 °no. of strokes: 32-75 Hub/mincolumn arm: 100 mmback stop - adjustable: 5-1000 mmtable height: 800 mmoil volume: 150 ltotal power requirement: 15 kWweight of the machine ca.: 6200 kgEquipment:- electro-hydraulic guillotine shear type swing cut”- RAS MULTICUT-ECO 2000” CNC control unit movable, from the front 3 axes control unit with up to 900 program lines Sheet holding device for thin sheet cutting can be switched on Including piece and cycle counter Operating modes selectable- CNC electro-motorized back gauge ... Travel range 5-1000 mm Traversing speed ... 180 mm/sec.- Front support plates with ball rollers- central motorized cutting gap quick adjustment- 1x RAS extra long side stop- 2x RAS extra long support arms- 1x free-moving foot switch- 1x RAS pneumatic sheet holding device for thin  ...

Key data: 3000 mm, 13 mm, 1000 mm

Description of the used machine • Angle stop • Support arms • Controlled backgauge 1000mm Hfoboh Dm H Ioqxim Iqjb • Swing cut shears • Light barrier for rear space protection • Secure finger protection thanks to grilles • Foot switch with emergency stop switch and safety line • Rotatable knives • Touchscreen control Used, well-preserved guillotine shears Durma SBT 3013 Swing-cut shear with sheet metal fixation via hydraulic hold-down holders. Make: Durmazlar Model No.: SBT 3013 Year of Make: 2009 Technical data: Sheet width 3100 mm Max. sheet thickness 13 mm (400 N/mm2) Connected load 30.0 KW Cutting angle° 1.45° Weight approx. 8000 KG Table width 600 mm Table height 845 mm Number of hold-downs 16 Space requirement (LxWxH) approx. L 4.25 x W 3.85 (plus VAT) support arms) x H 2.2 m Adjustable back gauge 1000 mm Year of construction 2009 ...

sheet width: 3100 mmplate thickness: 6.35 mmthickness at Niro-steel: 4.00 mmcutting angle: 0.5 - 2.5 °cutting gap adjustment: 0.05 - 0.8 mmno. of strokes: 12 - 50 Hub/minback stop - adjustable: 1000 mmControl: DELEM DAC 360 oil volume: 120 ltr.engine output: 9.5 kWweight: 7000 kg.range L-W-H: 3950 x 1950 x 1680 mm well-maintained condition () equipped with new DELEM control unitEquipment:- electro-hydraulic, guided plate shear- DELEM CNC control unit type DAC 360 front control panel, swiveling front left- Electro-hydraulic cutting angle adjustment- Electro-hydraulic cutting gap adjustment- electro-motorized backgauge, with ball screws- 1x extra-long side fence with T-slot mm scaleThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Offer 25493 Specifications: - Cutting length 3050 mm - Cutting thickness at 400 N/mm², strength 13 mm - Cutting thickness at 400 N/mm², strength up to 1000 mm, length 15 mm - Cutting angle 0.5 - 3 ° - Number of sheet hold-downs 18 pcs - Stroke rate 10 - 23 min -Mot. Back gauge up to 1000 mm - Rear area protection with light barrier - Front angle stop 1000 mm - HSLX version: - CNC control HACO SC 5 controller when entering the sheet thickness in mm -Auto. Cutting angle adjustment according to sheet thickness - Cutting length limitation -Auto. Positioning of the backgauge (8 programs – 80 sets) with - Digital display and autom. Backgauge retraction - Possibility of mot. Adjustment of the backgauge by 2 push buttons - Drive 400 V / 22 kW - E - Footswitch - Space requirement without support arms approx. W 4200 x H 2250 x D 2200 mm - ...

: neu : ca. 4 Monate ab Auftragse : 1030 mm: 6 mm: 4 mm: 14 1/min: 3 °: 7 : 500 mm: 5.5 kW: 100 l: 900 mm: 1550 mm: 1150 mm: 1600 mm: 1700 kghydr. drive unit, completely integrated in the machine bodyoverload safety, hydraulic and electricaladjusting of the cutting angleadjusting of the cutting gapblank holder pressure, adjustablesupport arm with angle stop and scale up to 600 mm4 rotating knives for VA steelmovable pedal switch with solenoid valvesMotorised backgaugeCentral lubricationexchangeable machine table supportsection area lightingThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Offer 25500 Specifications: - Cutting length 3050 mm - Cutting thickness at 400 N/mm², strength 13 mm - Cutting thickness at 400 N/mm², strength up to 1000 mm, length 15 mm - Cutting angle 0.5 - 3 ° - Number of sheet hold-downs 18 pcs - Stroke rate 10 - 23 min -Mot. Back gauge up to 1000 mm - Rear area protection with light barrier - Front angle stop 1000 mm - HSLX version: - CNC control HACO SC 5 controller when entering the sheet thickness in mm -Auto. Cutting angle adjustment according to sheet thickness - Cutting length limitation -Auto. Positioning of the backgauge (8 programs – 80 sets) with - Digital display and autom. Backgauge retraction - Possibility of mot. Adjustment of the backgauge by 2 push buttons - Drive 400 V / 22 kW - E - Footswitch - Space requirement without support arms approx. W 4200 x H 2250 x D 2200 mm - ...

: neu : ca. 10 Wochen ab Auftrags : Türkei : 51600 €: 975.24 €: 3080 mm: 6 mm: 4 mm: 350 mm: 20 1/min: 0.5 - 2 °: 16 : 20 to: 1000 mm: 200 mm/s: 11 kW: 125 l: 3 Stk.: 820 mm: 494 mm: 3280 mm: 4100 mm: 2050 mm: 3650 mm: 1950 mm: 7980 kglinear guidedCNC touch screen D-touch 7back gauge,cutting angle,cutting gap,cutting length, quantityUSB portcutting line illuminationfoldable ball screws for back gaugeballs in tablefoldable finger protection, 1.000 mmside lay with T-slot, tilting cam and scale3 support arms wit T-slotsoilfillinglight barrier on the back of the machineuser manual in GERMAN and ENGLISHThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 3080 mm, 6 mm

max. sheet thickness steel (450N/mm²) 6.5 mm max. cutting width 3080 mm Machine weight 5600 kg Very good, ready-to-use condition

sheet width: 3050 mmplate thickness: 10.0 mmthickness at Niro-steel: 6.0 - 8.0 mmdown holder: 13 Stückdistance between columns: 3070 mmcutting angle: 1.0 - 4.0 °no. of strokes: ~ 22 Hub/minControl: ELGO P8511 oil volume: 240 lvoltage: 400 Vtotal power requirement: 15.0 kWweight: 8000 kgrange L-W-H: 3550 x 2350 x 1900 mm good condition () from a maintenance workshopEquipment:- NC electro-hydraulic guillotine shears- heavy / stable welded construction (machine body)- NC ELGO digital control unit P8511- NC electro-motorized backgauge on ball screws- electro-hydraulic cutting angle adjustment Front analog cutting angle display- 1x stable side fence, with T-slot and mm scale- 3x stable support arms, with T-slot and mm scale- Ball castors in the work table incl. recessed grips- Front finger guard - can be folded up at the front- 1x freely movable foot switch- 2x front emergency stop button-  ...

Max. cutting length: 3050 mm Max. sheet thickness: 6 mm steel Controlled backgauge up to 1000 mm Side stop and table extensions Cut edge lighting Hydraulic shear angle adjustment Knife sharpened Weight approx. 6500 kg

sheet width: 3060 mmplate thickness: 6,0 mmdistance between columns: 3060 mm: max. 730 mmcutting angle adjustment: ja °cutting gap adjustment: ja mmconnected load: 11,0 kWweight of the machine ca.: 5,1 tdimensions of the machine ca.: 4,0 x 260 x 2,55 mHydraulic guillotine shear with- ELGO control for backgauge- Cutting gap adjustment- Cutting length adjustment- Cutting line illumination- Side gauge- 2 support bracketsThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Offer 25376 Specifications: - Max. cutting width 3050 mm - Max. cutting capacity at 45 Kp/mm² 13 mm - Hydr. Cutting angle adjustment - Number of hold-downs 13 pcs - Front angle stop - 4 pieces of front support arms -Mot. Positioning-controlled backgauge 10 - 1000 mm - Cut line illumination - Rear space protection with side grilles + light barrier - E - Footswitch - Drive 400 V / 20 kW - Space requirement approx. W 4350 x H 2100 x D 2200 mm - Weight approx. 8.5 t

sheet width: 2500 mmplate thickness: 4 mmweight of the machine ca.: 5.000 kgdimensions of the machine ca.: 3000 x 2000 x 1700 mmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Offer 25328 Specifications: - Max. cutting width 3200 mm - Max. cutting capacity at 45 Kp/mm² 12 mm - Stand projection 175 mm - Cutting angle 1.48 ° -one. Cutting gap adjustment - Number of hold-downs 13 pcs - Stroke rate up to 10 1/min - Front angle stop approx. 1100 mm - 2 pcs. front support arms approx. 1100 mm -Mot. Back gauge with positioning control up to 1000 mm - Rear space protection with light barrier - Cut line illumination - Working height 860 mm - E - Footswitch - Drive 400 V / 19.5 kW - Space requirement approx. W 4150 x H 2150 x D 2300 mm - Weight approx. 8.5 t

sheet width: 3050 mmplate thickness: 6,0 mmdistance between columns: 3000 mmcutting angle: 0,5 - 3 °no. of strokes: 9 / 14 Hub/mindown holder: 18 total power requirement: 10 kWweight of the machine ca.: 4800 kgdimensions of the machine ca.: 3750 x 1600 x 1650 mmFeatures:- Hydraulic / slide-guided sheet metal guillotine shears- Electric backgauge 10-750 mm- Electric cutting angle adjustment- Manual cutting gap adjustment- 1x side stop- Front finger guard- Foot switchThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

gebr. hydr. Guillotine shears, Fabr. LVD, Type MVN 25 / 4, built in 1984 Capacity 2500 x 4 mm with backgauge with documentation Other accessories: - Conveyor table - Lift table

sheet width: 3060 mmplate thickness: 6.0 mmthickness at Niro-steel: 4.0 mmdistance between columns: 3100 mmdown holder: 16 Stückno. of strokes: max. 10 - 15 Hub/minoil volume: 160 ltr.cutting angle: 1.6 °back stop - adjustable: 6.0 - 750 mmControl: ELGO P9521 total power requirement: 18.5 kWweight: 6300 kgrange L-W-H: 3900 x 2300 x 1630 mmFeatures:- Robust electro-hydraulic swing beam shear- ELGO digital display model P9521, for electric backgauge Backgauge travel X = 750 mm Backgauge-free ball screw drive Travel speed 100 mm/s- 1x stable side stop With T-slot, flip-stop, and millimeter scale- 2x stable front support arms- Electric cutting length limiter Cutting length limiter to increase the stroke rate/min.- Manual cutting gap adjustment Centrally operated on the right side stand- Front support plates- Front finger/interference guard- Inching operation with push buttons on the left c ...

Key data: 3100 mm, 16 mm

- Year of construction 2001 Specifications - Cutting length: 3100 mm - Capacity: 16 mm - Stroke: 170 mm - Stroke rate: 10 /min - Oil tank: 410 l - Engine power: 37 kW - Operating voltage: 400 V - Rated current: 72 A - Rated current main fuse: 100 A - Dimensions WxHxD: 3750 x 2400 x 3425 mm - Weight: 13800 kg

sheet width: 3050 mmplate thickness: 10 mmcontrol: Elgo 87 P2 : 11 - 31 Hub/mincutting angle adjustment: 1 - 4 °Number of hold downs: 16 Stück: 900 kg: 11 kWtable width: 700 mmtable height: 800 mmrange L-W-H: 4000 x 2220 x 1830 mmweight: 6300 kgThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 3190 mm, 6 mm

Note: Machine is currently still being revised, the illustrations were made before the Revision. Sheet width: 3190 mm Sheet thickness steel: 6.3 mm Colour: grey Total power requirement: 18.5 kW Machine weight: 6800 kg Dimensions: 3830 x 3820 mm with cutting gap adjustment Stroke rates per minute: 30 - 50 strokes/min Angle stop: 1500 mm Throat: 5 - 1000 (1500) mm

sheet width: 3050 mmplate thickness: 6 mmrear stop: 1000 mmcutting angle: 0,5 - 3 °down holder: 18 Stkno. of strokes: 9-17 Hub/mintotal power requirement: 7,5 kWdimensions of the machine ca.: 3800 x 2000 x 1600 mmweight: 4500 kgEquipment:- electric backgauge- electric cutting angle adjustment- manual cutting gap adjustment- SP 9 control unit- Safety guard behind the machine incl. light barrier- front finger guard- 1x side stop- operating instructionsThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Max. cutting length: 3100 mm Max. sheet thickness: 6 mm at 490 N/mm² Motorized backgauge with digital display Manual cutting gap adjustment Cutting length variably adjustable Cut edge lighting New knives

sheet width: 3100 mmplate thickness: 6 mmrear stop: 1000 mmcutting angle: 1,2 °down holder: 14 Stkno. of strokes: 18 Hub/minoil volume: 150 ltotal power requirement: 11 kWdimensions of the machine ca.: 3900 x 1900 x 1600 mmweight: 5500 kgEquipment:- Hydraulic swing cut shears- ELGO control system- Electric backgauge 1000 mm- Manual cutting gap adjustment- Cutting length limitation- Ball rollers in the table- 2x front support arms- 1x front side stop with scale- Front finger guard, hinged- Rear safety device (protective grille + light barrier)- Foot switch- Operating instructionsThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
