outras máquinas para trabalhar o metal usadas para venda (11,439)

on baseReference: Groven - Lot 21

Universal Milling Machine - Digital display - hydr. Tool Clamps - Central lubrication - Coolant system - Machine light - Machine feet - Counter bearings - Chip tray x-travel 400 mm y-travel 320 mm z-travel 440 mm Table size 80 x 325 mm Spindle holder ISO Sk 40 Spindle speeds: 63 - 3150 rpm Quill stroke 60 mm Total power requirement kW Machine weight approx. 1.5 t Dimensions L x W x H 1.8 x 1.8 x 1.9 m

Elotherm P1F die-sinking EDM machine, built in 1999, with CNC control and digital control panel. Machine with large working basin (basin size approx. 1900 × 1300 × 500 mm), control panel with integrated keyboard, screen and additional hand control unit (Elotrace). Extensive peripheral system with external filter technology: Franken Filtertechnik KG Type RF 70 Built in 1999 Volume 250 l Permissible operating overpressure 6 bar Permissible operating temperature 60 °C. Multi-stage filter unit, pump system and piping available. Integrated CO₂ extinguishing system with appropriate safety devices. Visible used condition with signs of wear due to age and duration. The system was in productive use in tool and mould making. Operating hours: 70,779.0h

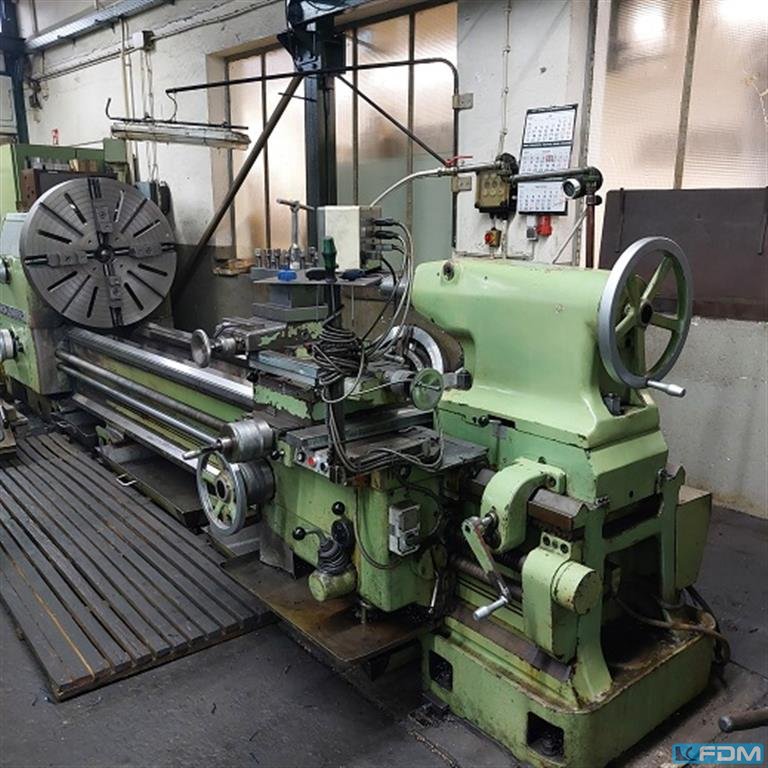

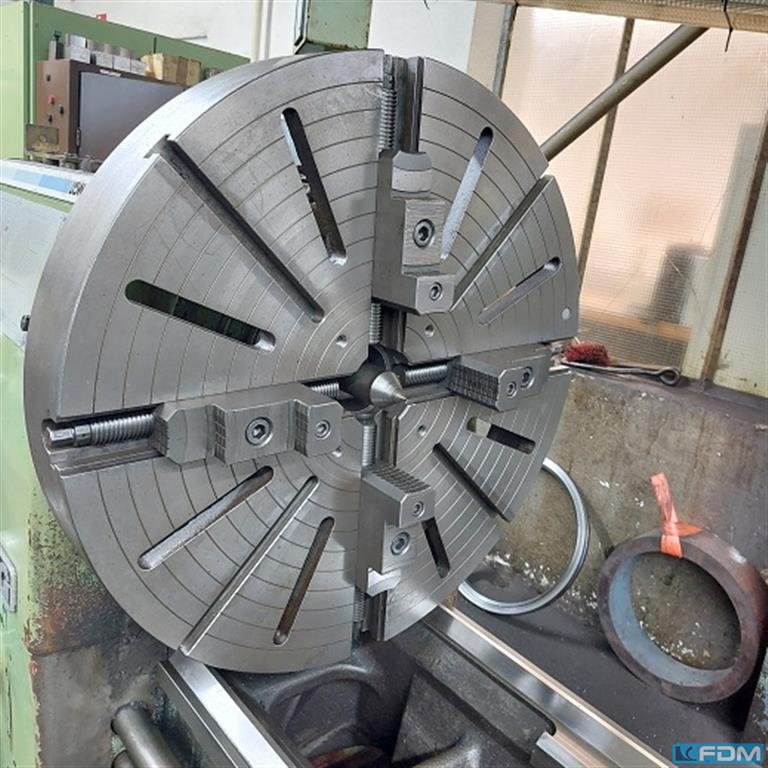

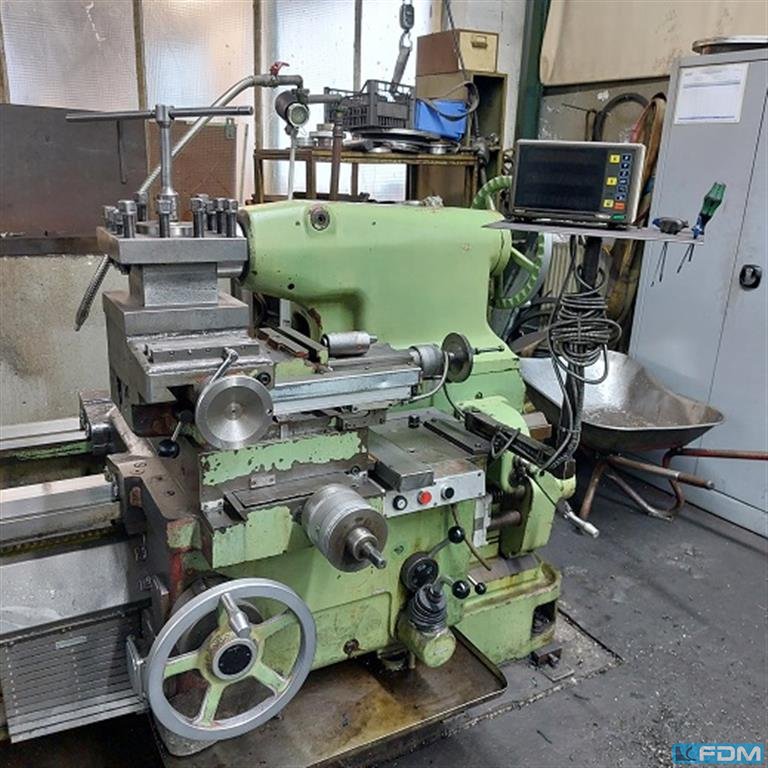

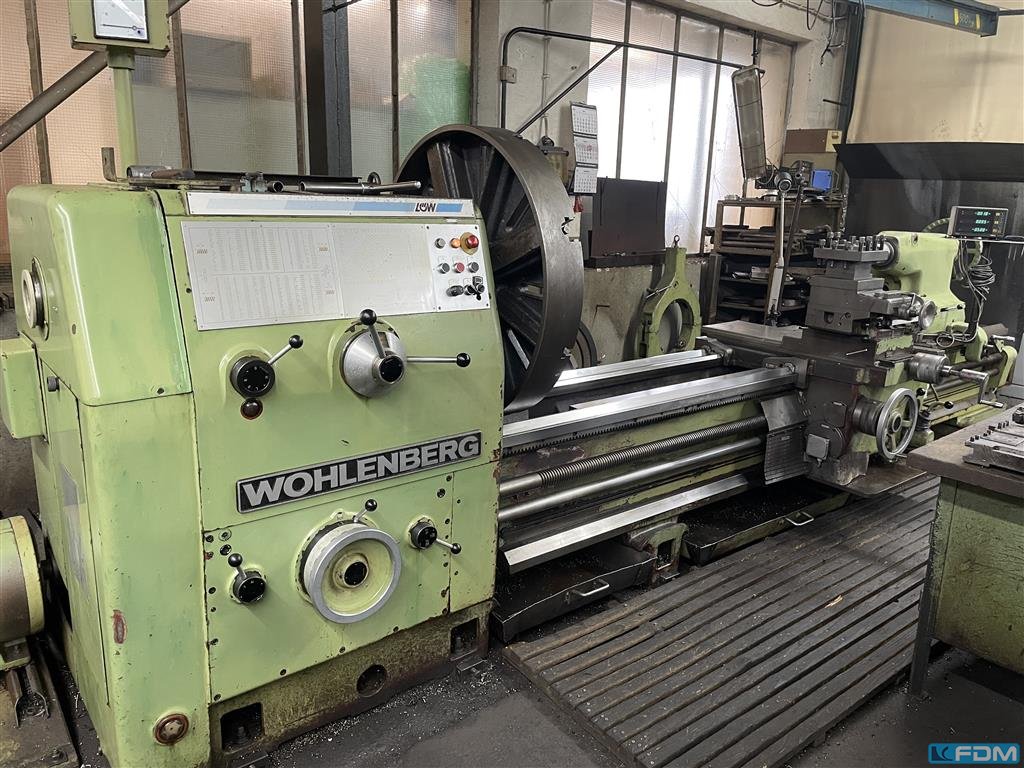

turning diameter over bed:1000 mmturning diameter over slide rest:750 mmturning length:3000 mmweight of the machine ca.:12 tdimensions of the machine ca.:6x2,5x1,8 mspindle bore:110 mmturning speed range:900 U/minYear:1986 Equipment:- Coolant device- 1 static steady rest- 1 rotating steady rest- Faceplate 1.000 mm- Digital display- Rapid traverse

Fully automatic hydropneumatic machine · Mitre left/right · Head oblique cuts up to 45° (Schifter) a. b. · Pneumatic double clamping device · Pneumatic vertical clamping device · Integrated coolant spraying device MPS Control: · Saving the start / end of the cut · Display of current consumption, number of pieces, cutting time... · Adjustable water cooling · Cutting pressure regulator Saw blade diameter 350 mm Cutting range at 90 degrees: around 120 mm Cutting range at 90 degrees: square 110 mm Cutting range at 90 degrees: flat 200x88 mm Cutting range at 45 degrees: around 115 mm Cutting range at 45 degrees: square 110 mm Cutting range at 45 degrees: square 150x80 mm Total power requirement 1.5/1.8 kW Machine weight approx. 0.59 t Dimensions L x W x H 1.9 x 1.4 x 1.8 m

2 machine vices, as good as new and unused Jaw width: 150 mm Jaw height: 50 mm Clamping distance: 300 mm incl. ring wrench, clamping claws, stop and slot nuts Transport dimensions: 800 x 600 x 400 mm, approx. 75 kg

Hydr. Notching machine - Footswitch - 2 pcs sheet metal stop Sheet thickness 3 mm Knife length 250 mm Angle adjustable from - to fixed 90 degrees Table surface 900 x 790 mm Machine weight approx. 0.65 t Dimensions L x W x H 1.2 x 0.9 x 1.1 m Condition: unchecked (6)

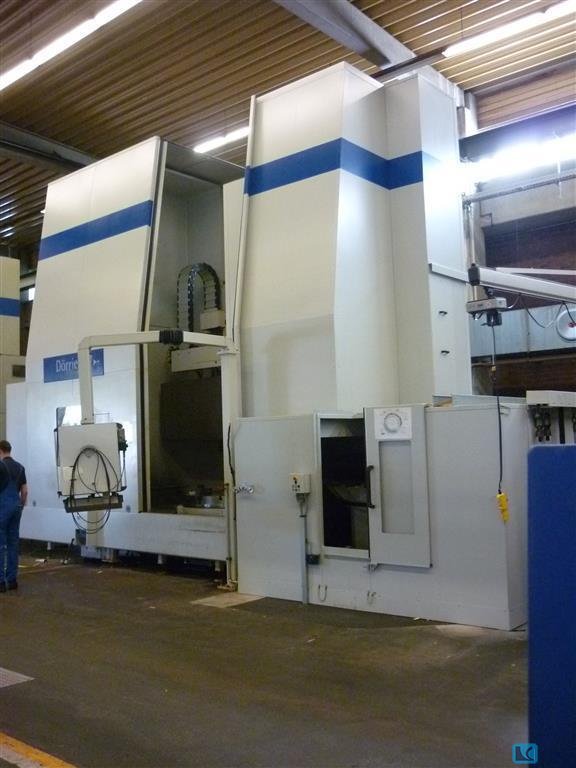

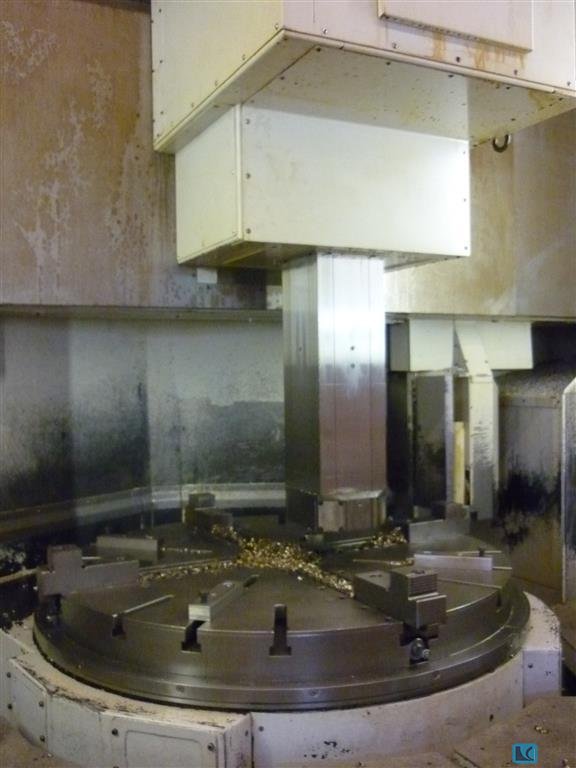

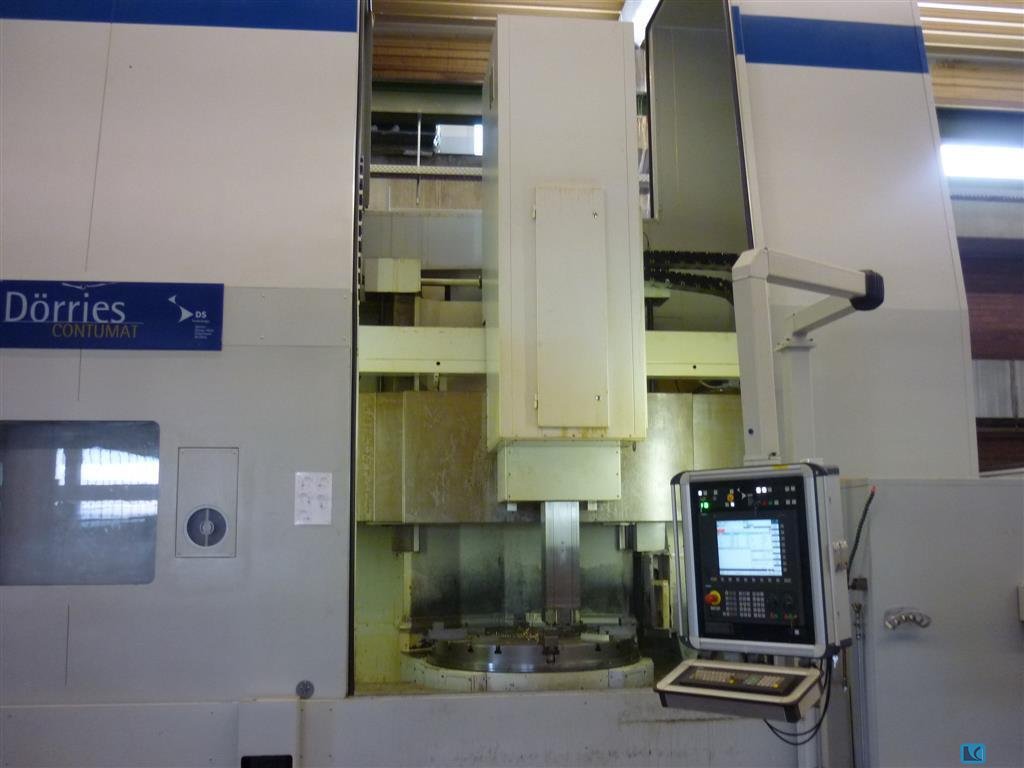

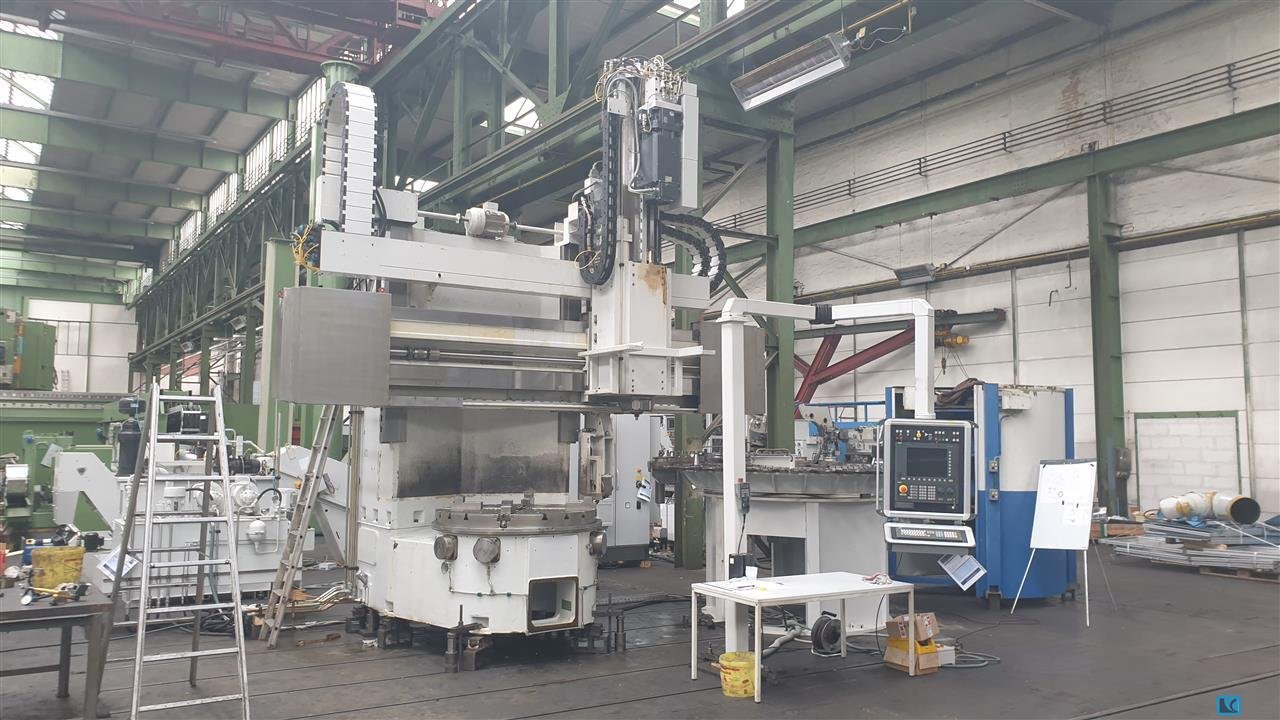

faceplate diameter:1400 mmswing diameter:2000 mmturning height:1500 mmmain drive:80 kWfaceplate speeds from - to:1 - 365 U/minmilling motor:37 kWram head dimension:240 x 240 mmmax. ram stroke:1250 mmtotal power requirement:133 kVAweight of the machine ca.:50 tdimensions of the machine ca.:11 x 5 x 6,4 mMachine was overhauled in 2008 by OEMNew control CNC SIEMENS 840 Dautomatic tool changer 72-pcsC-axis with driven toolsAngle-, straight tool holders with CAPTO holder Coolant deviceChipconveyour

x-travel:6.300 mmy-travel:2.000 mmz-travel:2.700 mmtool taper:ISO 50 surface area:7.000 x 3.000 mmturning speed range:60 - 4.000 U/minpower capacity:22/30 kWfeeds:0 - 10.000 mm/minrapid traverse:20.000 mm/minTool changer:80 max. workpiece weight:8.000 kgPlate clamping area 7,000 x 3,000 mmCNC rotary table 1,500 mmOrthogonal milling headDeep drilling unitIKZPaper belt filterMeasuring probe

3 x Wohlhaupter 1 x Case Accessories for Wohlhaupter

x-travel:1660 mmy-travel:760 mmz-travel:660 mmweight of the machine ca.:8700 tdimensions of the machine ca.:4.320 x 3.380 mmdistance spindlenose - table min./max.:808 mmdistance work spindle /surface of the table:155 - 815 mmMachine height:2850 mmfloor space required (w/o switchgear cabinet):4.320 x 3.380 mmspindle motor:11 (10 Minuten) /7,5 (30 Minuten)/ 5,5 (Dauerbetrieb) kWtool taper:SK 40 Spindle RPM:40 - 7.000 (Standard ) / 40 - 10.000 ( Option ) 1/minsurface area:2.000 x 760 mmmax. table load:1.000 kgfeeds X-axis:1 - 5.000 mm/minrapid traverse X-axis:24.000 m/minrapid traverse Y-axis:24.000 feeds Y-axis:1 - 5.000 mm/minfeeds Z-axis:1 - 5.000 mm/minrapid traverse Z-axis:20.000 m/min

Rock-solid band saw - Double mitre cuts up to 60° on the right, up to 45° on the left - AutoCut - Vise with quick-release device - Belt tension control - Electr. Automatic cooling - Material stop max 600mm Cutting diameter 250 mm Saw blade length 3150 x 27 x 0.9 mm Table height 750 mm Cutting width 170 x 310 mm Cutting speed 25 - 90 m/min Cutting capacity at 60° around 130 mm Cutting capacity at 60° square 130 mm Cutting capacity at 45° Round 205 mm Cutting capacity at 45° square 205 mm Connection voltage 400 volts Total power requirement 1.5 kW Machine weight approx. 0.5 t Dimensions L x W x H 0.95 x 1.16 x 1.98 m Condition: never used / new (5)

turning diameter:145 mmturning length:210 mmtotal power requirement:40 kWswing diameter:145 mmSpindle bore sp. 1:56 mm Spindle bore sp. 2:56 mm swing diameter over face slide:145 mmgreates pass round over bed:145 mmRPM Main Spindle:7.000 1/minnumber of workpiece supports:12 Shank diameter:25 mmC-axis RPM:2.000 1/minChuck diameter spindle 1:140 mmChuck diameter Spindle 2:140 mmNumber of tools:12 fach St.Tool bore:VDI 25 Shank diameter:25 mmweight of the machine ca.:5.300 kgdimensions of the machine ca.:5.000 x 4.100 x 2.050 mmSlide path flat: X1, X2, X3: 220mm, 120mm ( 145mm )Longitudinal slide travel: Z1, Z2, Z3: 320mm, 345mm, 380mmVertical slide travel Y1: +/- 30mmLongitudinal spindle travel Z3: 380mmClamping tube inner draw tube 46mm diameterSpeed range main drive 1+2 up to 7,000 rpmSpeed of driven tools up to 6,000 rpmMain and counter spindle collet chuck1 axial driven tool1 radial to ...

30 pieces of clamping heads type BZI & BZIG, various clamping heads ø 12-64 mm Transport dimensions: 800 x 600 x 400 mm, approx. 60 kg

Internal dimensions: 700 x 500 x 400 mmOperating voltage: 220 VFrequency: 50 HzReference: Schönichen - Lot 89

spindle diameter:150 mmx-travel:10000 mmy-travel:2500 mmbore spindle stroke:700 mmSpeed of boring spindles:1,25 - 1250 U/min.ram stroke:700 mmdimension of the ram:340 x 340 mm mmspindle taper ISO:50 rapid traverse:5 m/mintotal power requirement:120 kWweight of the machine ca.:115 tdimensions of the machine ca.:15,1 x 10 x 6,4 mCNC control Siemens 840 Dsl completely modernized 2010FIBRO CNC drilling work table 2500 x 2500 mm50 to. workpiece weightLongitudinal travel 2500 mmAngular milling head 4 x 90°Universal angular milling headPanel area approx. 10000 x 5000 mmChip conveyor and coolant deviceAerostatic guides

Pressure 20 t Stroke 200 mm Table size 550 x 550 mm Working speed: 10 mm/sec. Working height 940 mm Tool height max. 200 mm Total power requirement 2.2 kW Bending capacity 200 x 10 mm Weight 650 kg Dimensions 1.1 x 0.6 x 1.22 m Condition: never used / new (5)

Thickness: 0,50Total weight: 750 Kg, Total sqm: 187,50

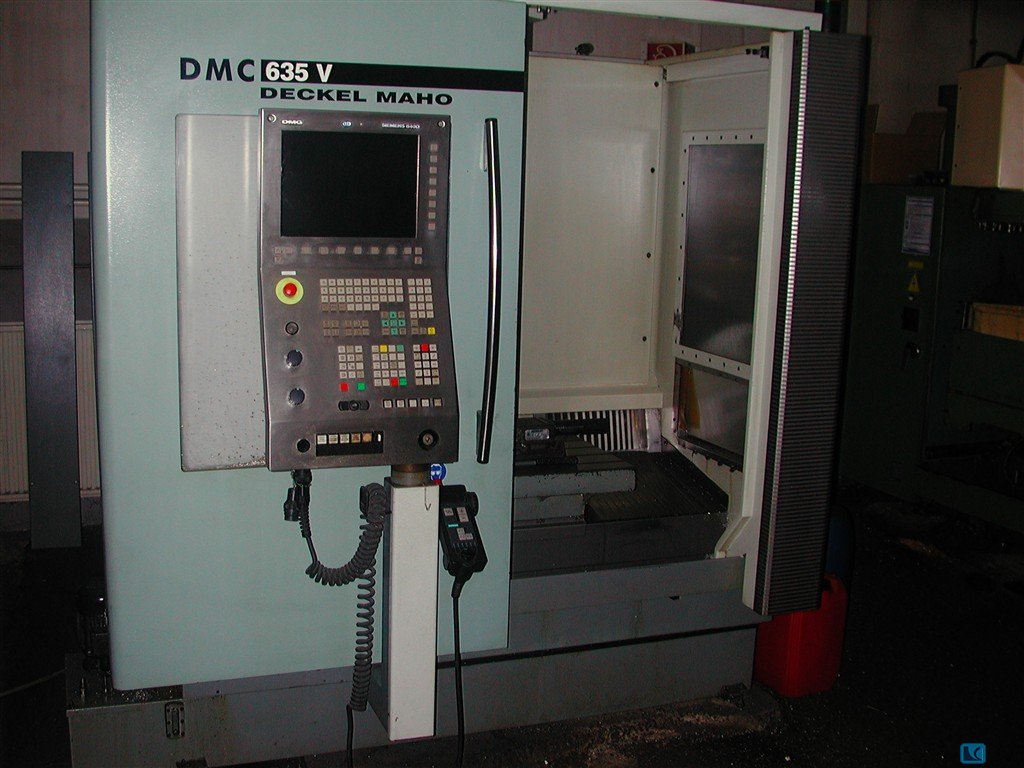

x-travel:635 mmy-travel:510 mmz-travel:460 mmturning speed range:20 - 10.000 U/mintool taper:SK 40 table clamping surface LxW:790 x 560 mmMachine with glass scalesFull safety cabin with sliding doors + interior lightingHeight-adjustable machine shoes 3 pcs.

Profile steel shears with - 1 foot trigger - Support tables - Rectangular notches - Hole punch incl. tools Round steel 32 mm Square steel 30 mm Angle steel 80 x 80 x 8 mm Cutting capacity flat steel 80 x 13 mm Punching force 36 t Projection 170 mm Working stroke 28 mm Working height 980 mm Material thickness 28 x 13 mm Hole diameter in sheet thickness 25x10 / 30x8 mm Machine weight approx. 0.8 t Space requirement approx. 1.2 x 0.8 x 1.9 m Condition: unchecked (6)

x-travel:6500/13150 mmy-travel:4000 mmz-travel:1250 mmw-axis:2250 mmtable surface area:5500/12150 x 3000 mmmax. workpiece weight:70.000/105.000 kgram head dimension:480 x 510 mmmilling spindle motor:63 kWmax. torque on the spindle:3300 Nmtool taper:DIN 39871 AD ISO 50 milling head speed:6,3 - 4000 U/minfeed speeds:1 - 24000 mm/minw-axis:1 - 6000 mm/mindistance between columns:3500 mmpassage:3000 mmtotal power requirement:120 kWweight of the machine ca.:245 tdimensions of the machine ca.:29,0 x 7,7 x 8,1 mMachine is in nearly new condition and was completely modernized in 2020!With CNC SIEMENS 840 DAutomatic tool magazine for 153 tool positionsAutomatic milling head magazine for 6 milling headsMachining module ? straight ? straight long ?Machining module ? angle standard ? 4000 rpm, 144 x 2.5°, ISO 50Machining module ? narrow angle extended ? 40 kW, 4000 rpm, 1800 Nm, 144 x 2.5°, ISO 50 ...

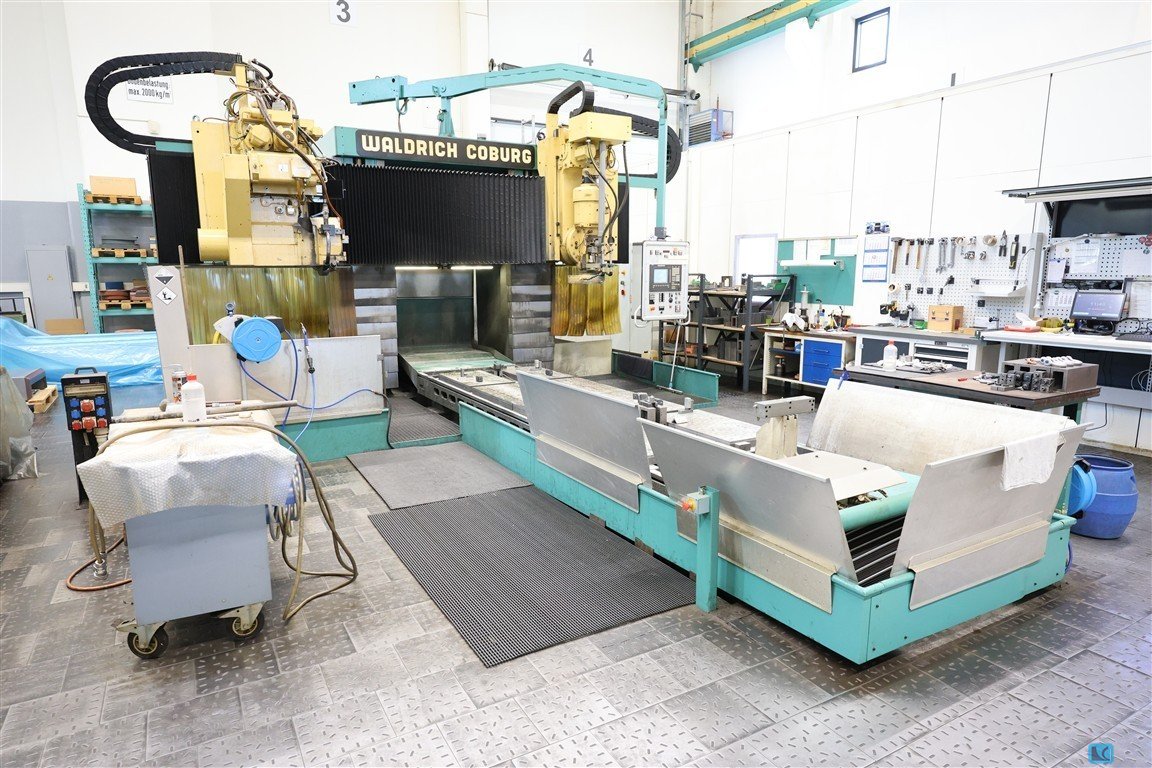

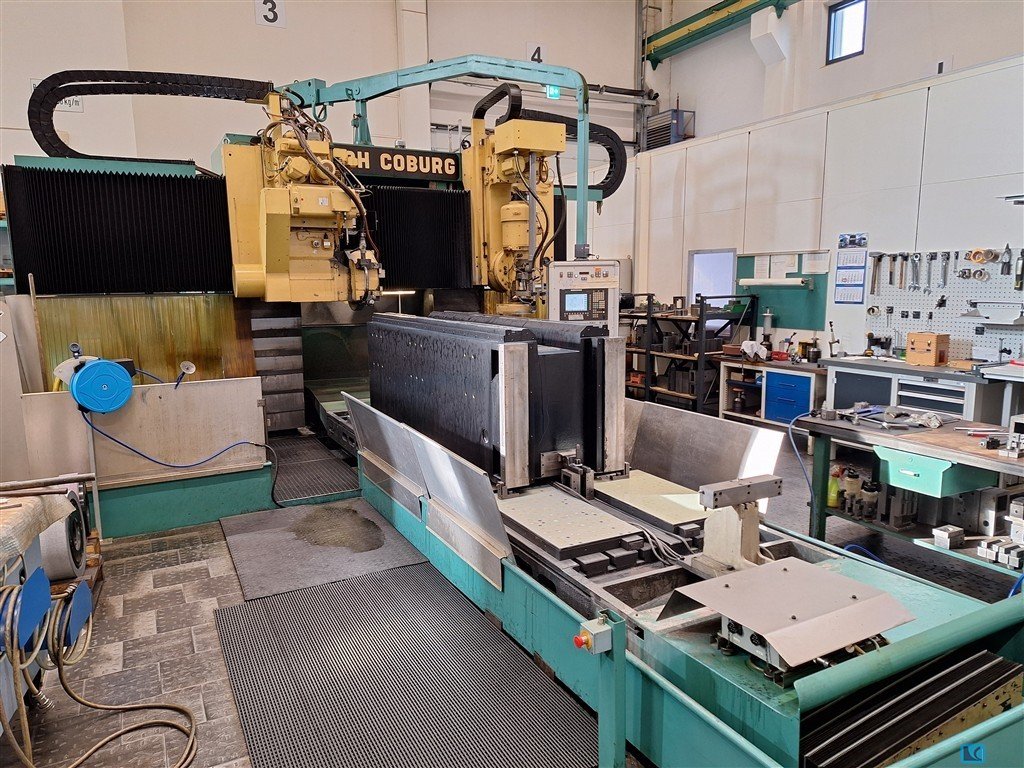

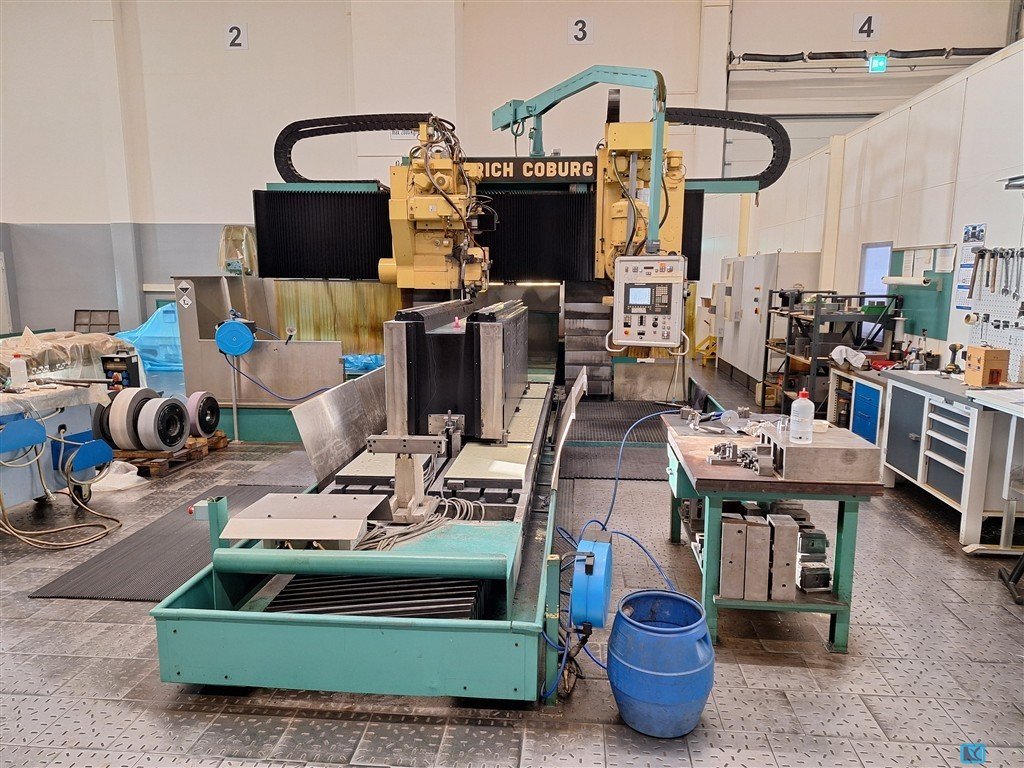

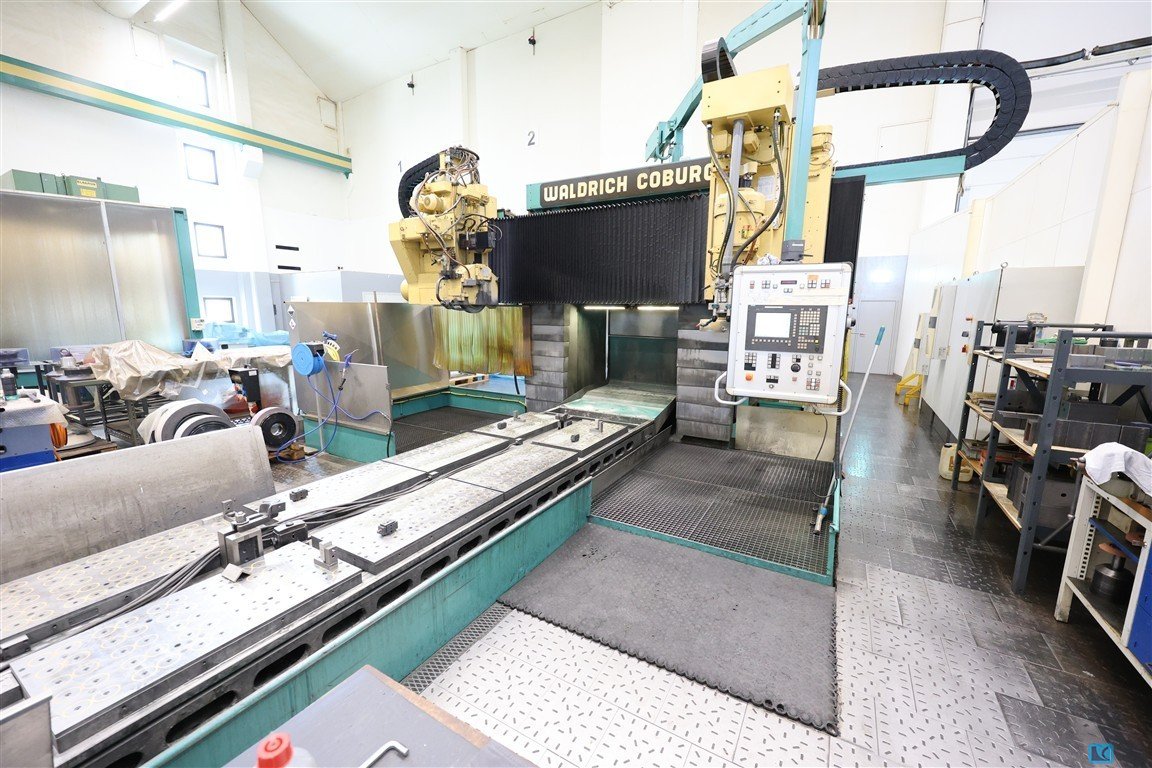

grinding length:4000 mmgrinding width:1450 mmworkpiece height:1250 mmtotal power requirement:40 kWdimensions of the machine ca.:12,3 x 6 x 4,8 mdistance between columns:1460 mmtable surface area:4000 x 1250 mmmax. workpiece weight:11.000 kgcross rail adjustment:1250 mmMachine is in very good condition for highest precision!With CNC control SIEMENS 840 D1 universal grinding support, 7.5 kW, swivelling grinding spindle ±110°Peripheral grinding wheel dimensions Ø 500 x 60 mmVertical adjustment 350 mm, with dressing device1 peripheral grinding support, 22.5 kWGrinding wheel dimensions Ø 600 x 100 mmVertical adjustment 150 mm, with dressing deviceWith 6 magnetic plates arranged on the tableVarious grinding wheel holders

Dimensions of the container: 950 x 400 mm

Jaw width: 160 mmReference: Osthoff - Lot 38

Welding turntable with - Quick-release chuck 65mm - Footswitch - Tilting/swivelling by hand - Speed infinitely adjustable Table diameter 180 mm Table load horizontal 10 Kg Table load vertical 5 Kg Chuck diameter 65 mm Speed 2 - 20 infinitely variable Swivel range 90 degrees Tilt adjustment: manual/mechanical manual Connection voltage 230 V Machine weight approx. 18 kg Space requirements approx. 300 x 300 x 300 m Condition: never used / new (5)

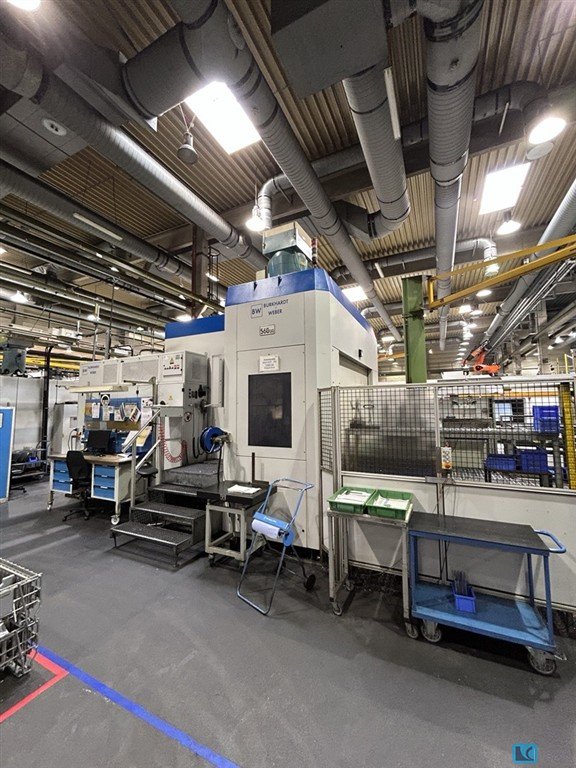

x-travel:1.100 mmy-travel:900 mmz-travel:1.250 mmtool length:750 mmrapid traverse in x-y-z axis:60 feeding capacity X Axis:17.000 daNfeed capacity Z - max.:17.000 Nspindle taper:SK50 max. workpiece weight:1500 kgrevolutions per minute:10.000 U/minpallet table size:630 x 630 mmtool magazin::165x (bis D=125mm), 21x (bis D=225mm), 8x (bis D=350mm total power requirement:37 kW

As a spare parts carrier, defective.

Assorted lot of 12 Kennametal KM32 modular quick-change tool holders for CNC lathes.
