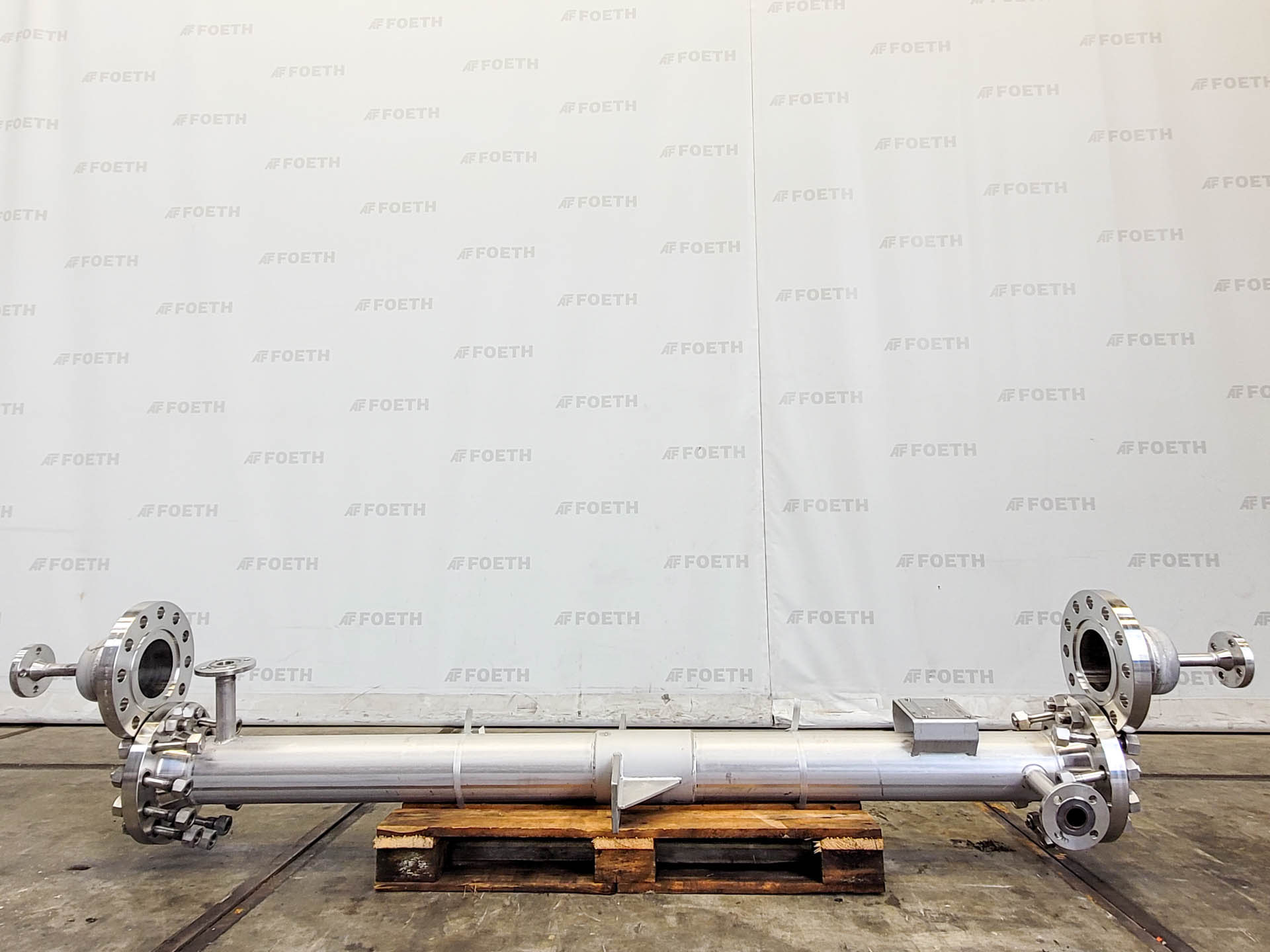

2 SCHRADER 100 bar - shell and tube heat exchanger máquinas usadas

* General * SKU338T909 * MakeSchrader apparatebau GMBH * TypeW 513 * LocationBarneveld * Pressure * Vacuum possiblecheck * Working pressure shell10 Bar * Vacuum possible shellcheck * Working pressure tubes100 Bar * Tubular vacuum possiblecheck * Main Features * Shell (Material)Stainless steel * Tube (Material)Stainless steel * Surface2.75 m2 * Specified Features - Shell and tube heat exchanger * MaterialStainless steel * Heat exchangercheck * Verticalcheck * Notified bodyTUV * Heating surface2,75 m² * Tube capacity24 Ltr. * Number of tubes:14 * Tube diameter25 mm * Tube length2500 mm * Wall thickness tubes1,6 mm * Max. temperature140 °C * Shell capacity34 Ltr. * Shell diameter168 mm * Shell length2500 mm * Wall thickness shell4 mm * Max. temperature140 °C * Shell connectionsDN 40 (2x) * Cover connectionsDN 25 (2x) * Information * No.2179 * Year of construction1996 * Floorspace0,5x0,5  ...
