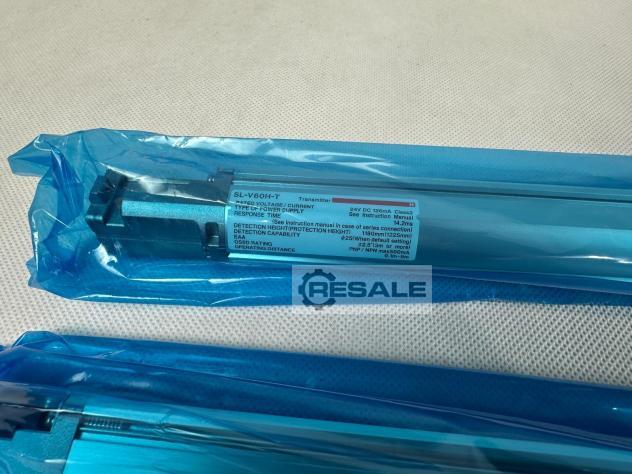

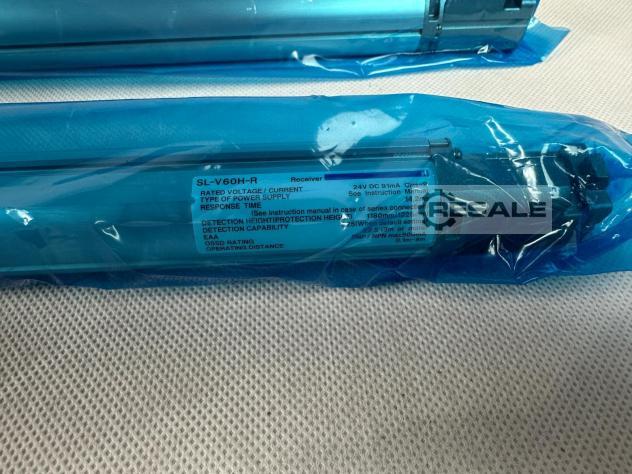

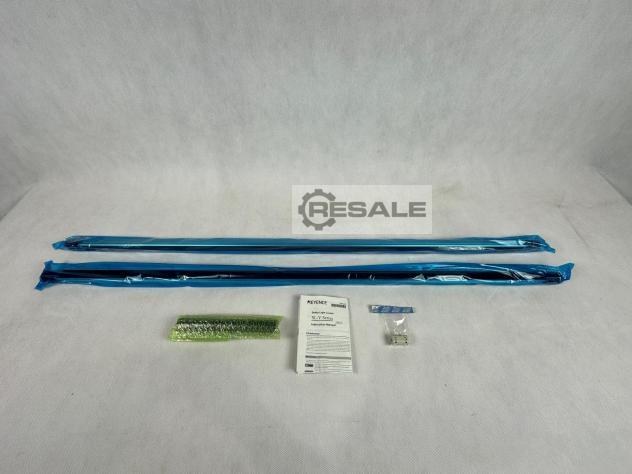

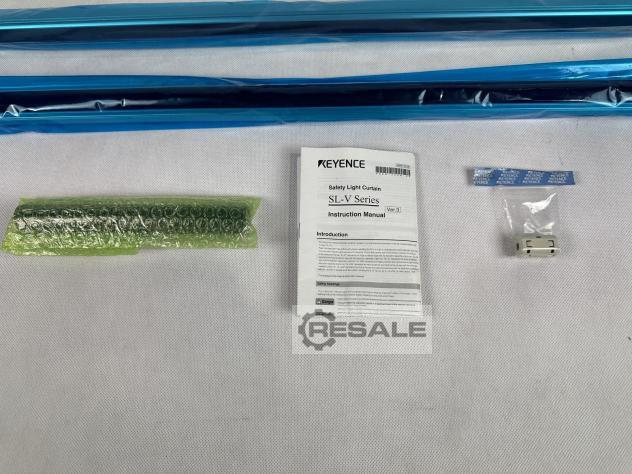

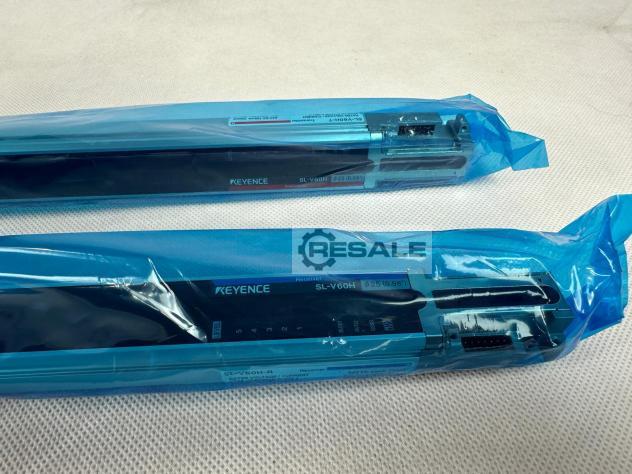

Sicherheitslichtvorhang KEYENCE SL-V60H

The Keyence SL-V60H security light curtain is a modern solution for securing the lower zone in various industrial applications. Equipped with detection functions, it provides reliable protection and enhances the safety of operations. The product is characterized by a solid construction and precise workmanship, which makes it ideal for demanding conditions.

Model: SL-V60H

Detection Capacity: ø25mm

Distance between beam axes/lens diameter: 20 mm/ø5 mm

Effective Beam Angle: Max. ±2.5° (when the operating range is 3 m or more)

Working Distance: 0.1 to 9 m

Response time (ms):

ON→OFF
14,21
OFF →ON.
54,21

Light Source: Infrared LED (850nm)

Operating Mode: Turns on when there is no interference in the detection zone (except when the muting function is used)

Output: 2 outputs for PNP and NPN. It can be changed with a jumper cable.

Max. Load current: 500mA2

Residual Voltage During Operation: Max. 2.5 V (with 7 m cable)

Leakage Current: Max. 100 μA3

Max. Capacitive load: 2.2 μF (at 100 Ω load resistance)

Load Wire Resistance: Max. 2,5 Ω4

Non-security output:

AUX
Output with automatic PNP/NPN switching function, max. 50 mA.
Interlock Erasure Readiness Output
Alarm output
Exit Not Blocked/Blocked
Output status information 1, 2
Muting Lamp Output: Incandescent Lamp (24V DC, 1-7W) LED Lamp (Load Current: 10-300mA)5 can be connected.

Input:

EDM input
Short-circuit current 10 mA
Waiting Input
Short-circuit current 2.5 mA
Zeroing input
Input Muting 1, 2
Override Input

Protection circuit: Current protection, short circuit protection for each output, surge protection for each output

Confirmed standards:

EMC | EMS
IEC61496-1, EN61496-1, UL61496-1
EMC
EMI
EN55011 Class A, FCC Part 15B Class A

Safety:

IEC61496-1, EN61496-1, UL61496-1 (Type 4 ESPE)
IEC61496-2, UL61496-2, EN61496-2 (Type 4 AOPD)
IEC61508 (SIL3), EN61508 (SIL3), IEC62061 (SIL3), EN ISO13849-1: 2015 (Category 4, PLe)
UL508
UL1998
