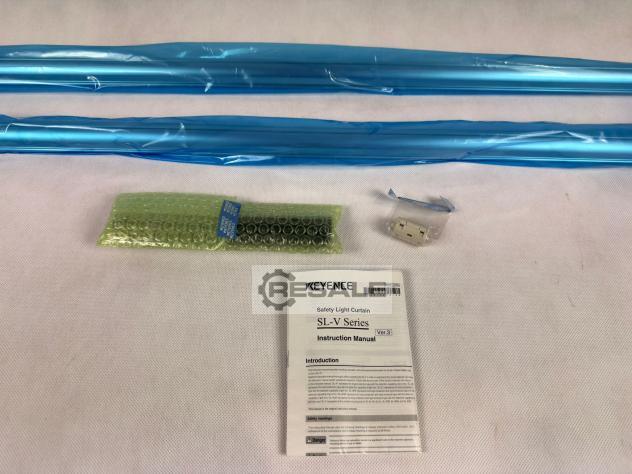

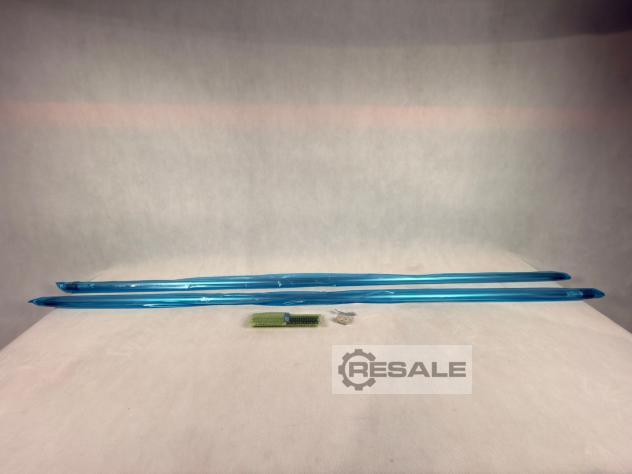

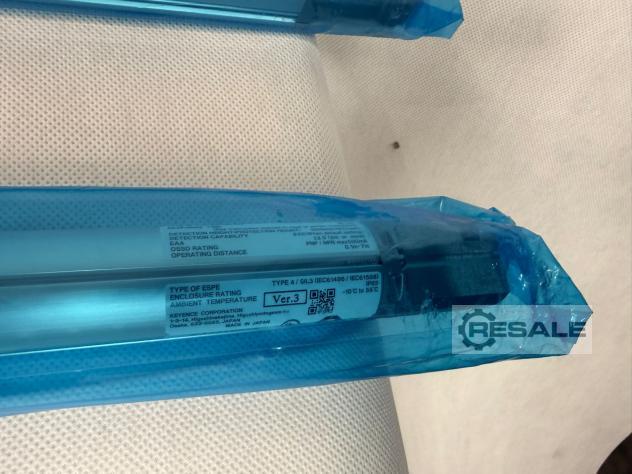

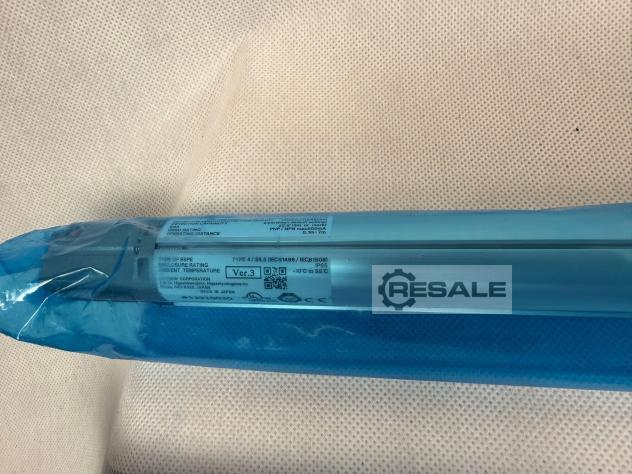

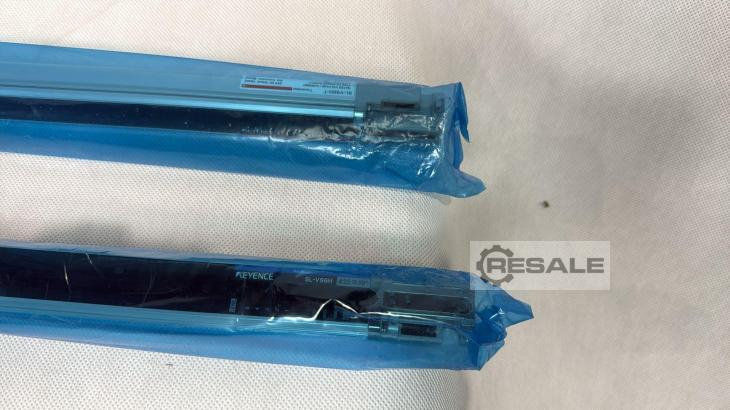

Sicherheitslichtvorhang KEYENCE SL-V96H
diverso / diverso
Fabricante: KEYENCE
Modelo:SL-V96H
Tipo de máquina: Sicherheitslichtvorhang
Número de artículo: 169442987
Cantidad: 1
Fecha: 04.05.2026
Año de fabricación: máquina nueva
Ubicación:
Polonia
Precio: 2,500 EUR
Máquina en stock:Sí
Keyence SL-V96H - Security Light Curtain
Model: SL-V96H
Detection Capacity: ø25mm
Distance between beam axes/lens diameter: 20 mm/ø5 mm
Effective Beam Angle: Max. ±2.5° (when the operating range is 3 m or more)
Working Distance: 0.1 to 7m
Response time (ms)
ON→OFF
19,11
OFF →ON.
59,11
Light Source: Infrared LED (850nm)
Operating Mode: Turns on when there is no interference in the detection zone (except when the muting function is used)
OSSD output
Output: 2 outputs for PNP and NPN. It can be changed with a jumper cable.
Max. Load current: 500mA2
Residual Voltage During Operation: Max. 2.5 V (with 7 m cable)
Leakage Current: Max. 100 μA3
Max. Capacitive load: 2.2 μF (at 100 Ω load resistance)
Load Wire Resistance: Max. 2,5 Ω4
Non-security output:
AUX
Output with automatic PNP/NPN switching function, max. 50 mA.
Interlock Erasure Readiness Output
Alarm output
Exit Not Blocked/Blocked
Output status information 1, 2
Muting Lamp Output: Incandescent Lamp (24 V DC, 1 - 7 W) LED Lamp (Load Current: 10 - 300 mA)5 can be connected
Model: SL-V96H
Detection Capacity: ø25mm
Distance between beam axes/lens diameter: 20 mm/ø5 mm
Effective Beam Angle: Max. ±2.5° (when the operating range is 3 m or more)
Working Distance: 0.1 to 7m
Response time (ms)
ON→OFF
19,11
OFF →ON.
59,11
Light Source: Infrared LED (850nm)
Operating Mode: Turns on when there is no interference in the detection zone (except when the muting function is used)
OSSD output
Output: 2 outputs for PNP and NPN. It can be changed with a jumper cable.
Max. Load current: 500mA2
Residual Voltage During Operation: Max. 2.5 V (with 7 m cable)
Leakage Current: Max. 100 μA3
Max. Capacitive load: 2.2 μF (at 100 Ω load resistance)
Load Wire Resistance: Max. 2,5 Ω4
Non-security output:
AUX
Output with automatic PNP/NPN switching function, max. 50 mA.
Interlock Erasure Readiness Output
Alarm output
Exit Not Blocked/Blocked
Output status information 1, 2
Muting Lamp Output: Incandescent Lamp (24 V DC, 1 - 7 W) LED Lamp (Load Current: 10 - 300 mA)5 can be connected
