máquinas talladoras de engranaje usadas para la venta (209)

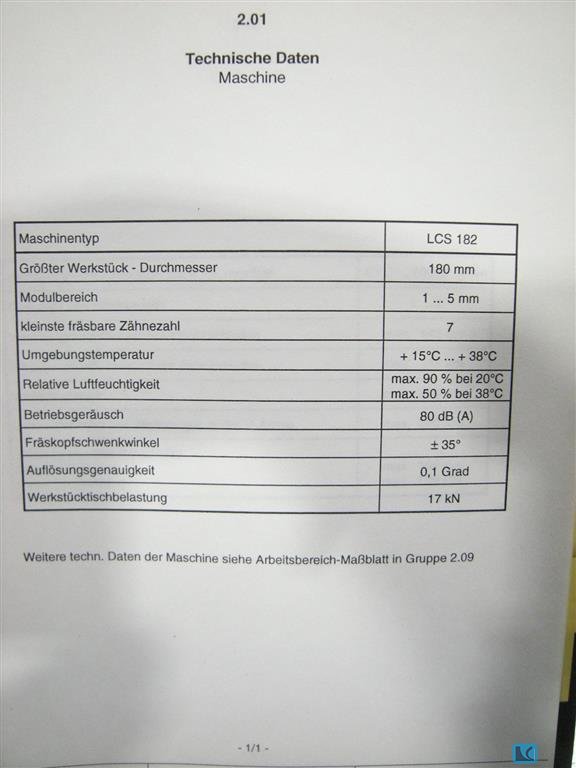

max. wheel diameter:180 mmmax. module:5 min. module:1 weight of the machine ca.:14 tdimensions of the machine ca.:4,5 x 2,84 x 2,8 mmin. number of teeth:7 toolpiece turning speed range:4000-10000 U/mintool length:210 mmWith tail stockNo dressing deviceOnly CBN

max. wheel diameter:180 mmgear width: mmmax. module:4 total power requirement:14 kWweight of the machine ca.:8 tslide travel axial ( Z-axis ):300 mmwork piece - max.:490-640 mm

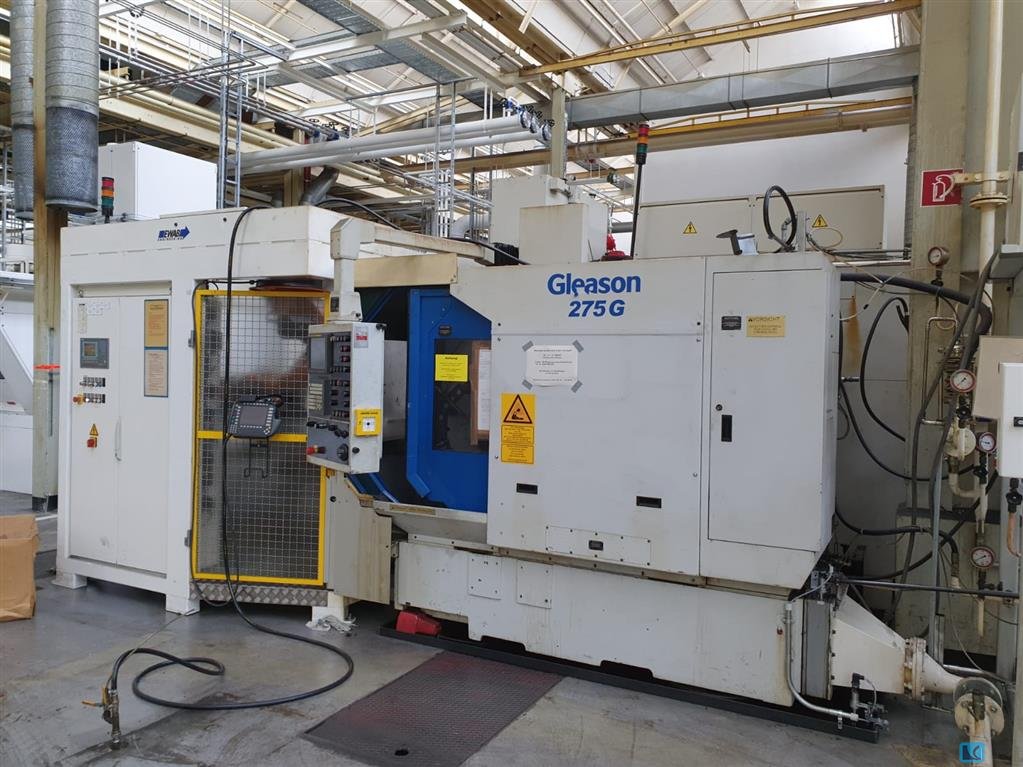

max. wheel diameter:275 mmgear width:58 mmmax. module:8 min. module:0,5 weight of the machine ca.:10 tmax. number of teeth:200 min. number of teeth:5

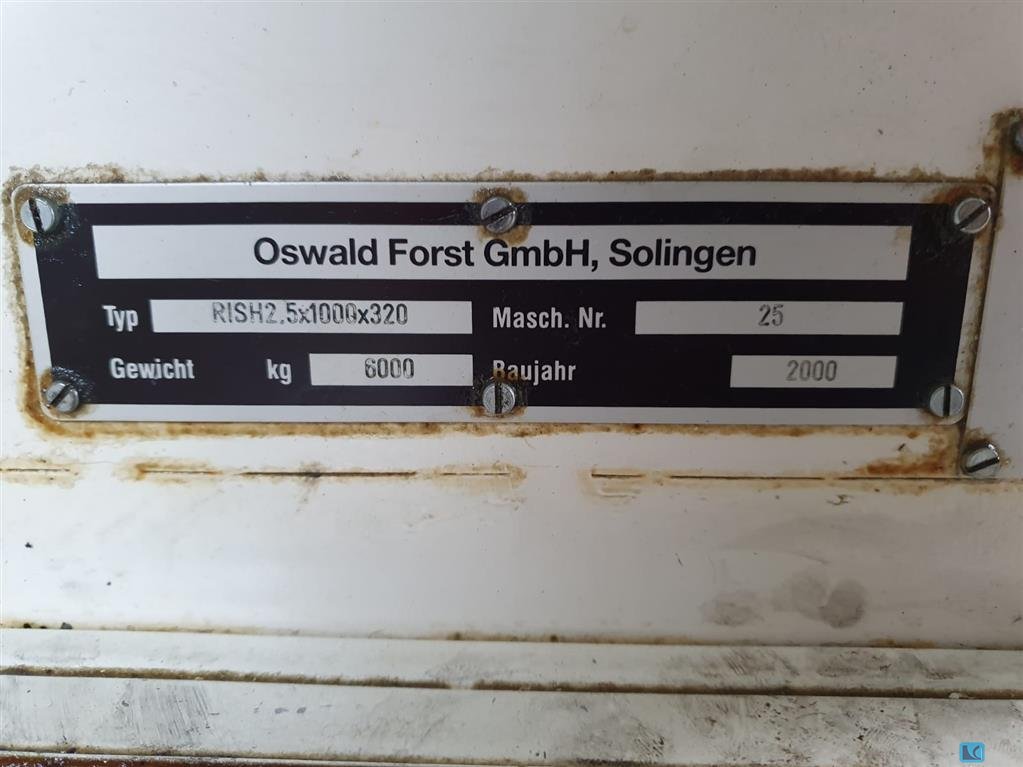

pulling force - max.:2,5 tmax. ram stroke:1000 mmmax. workpiece diameter:40 mmBroaching speed:60 m/min.return speed:20 m/min.total power requirement:24 kWweight of the machine ca.:6 tdimensions of the machine ca.:1,7 x 2,4 x 4,77 mclamping plate:320 mmIt is a hydraulic machine.

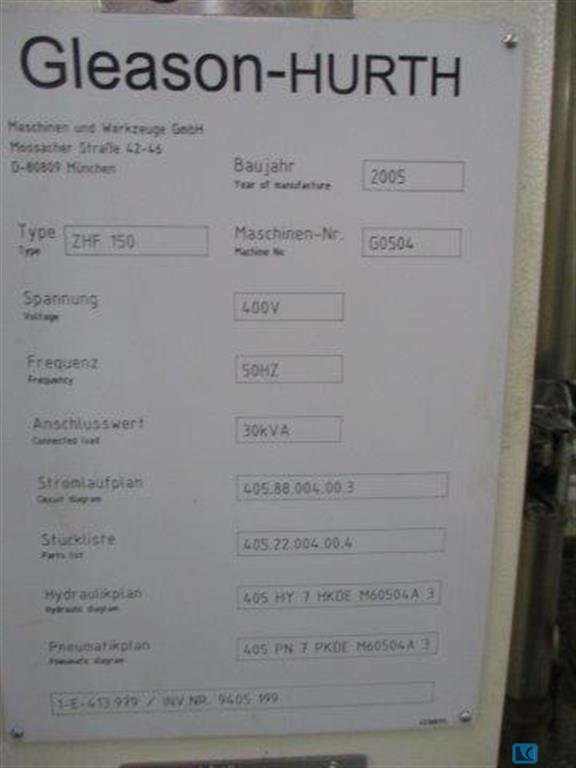

workpiece diameter:63,5 mmcentre distance:350 mmhoning length max.: mmtotal power requirement: kWweight of the machine ca.:6 tdimensions of the machine ca.:2,70x2,30x2,60 mTechnical data G0504working spaceLength of the clamping surface mm 1550Number of T-slots mm 2Width of the T-slots mm 18Distance between T-slots mm 180Center height (tailstocks) mm 350Swivel range of the fine wheel head (U-axis) degrees + 30 / -30Center distance - tailstock / fine wheel min./max. mm 120/225Input resolution (all NC axes) mm / degrees 0.001Delivery slideMovement range (= Z-axis travel) mm 105Input resolution mm 0.001toolOutside diameter min./max. mm 225/275Hole diameter mm 160Width mm 60workpieceOutside diameter min./max. mm 40-150Module min./max. mm 1.25-4.0Tooth width max. Mm 45weightWeight of the machine approx. Kg 5500Operating fluid requirements Cooling lubricant recommendation, see chap. 8thHydraul ...

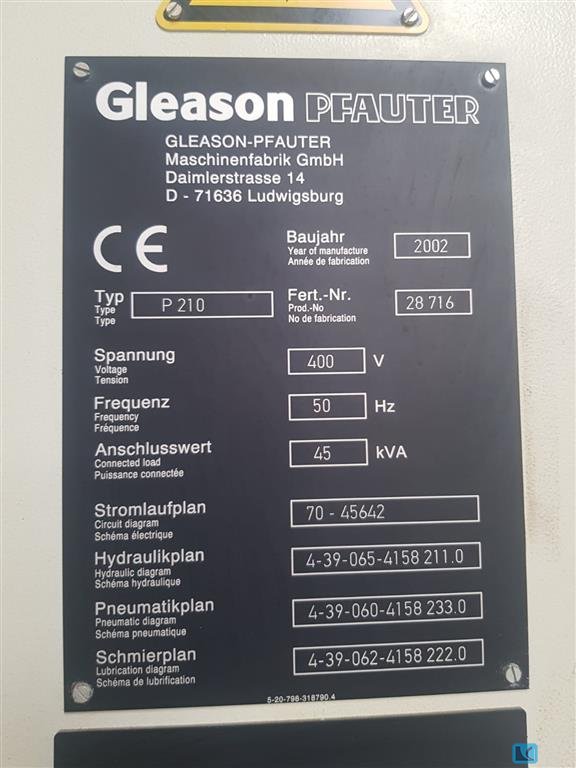

max. wheel diameter:200 mmgear width:250 mmmax. module:3 min. module:0,5 total power requirement:45 kWweight of the machine ca.:8,5 tdimensions of the machine ca.:4,4 x 2,4 x 2,7 mMachine out of prototype productionWithout automation

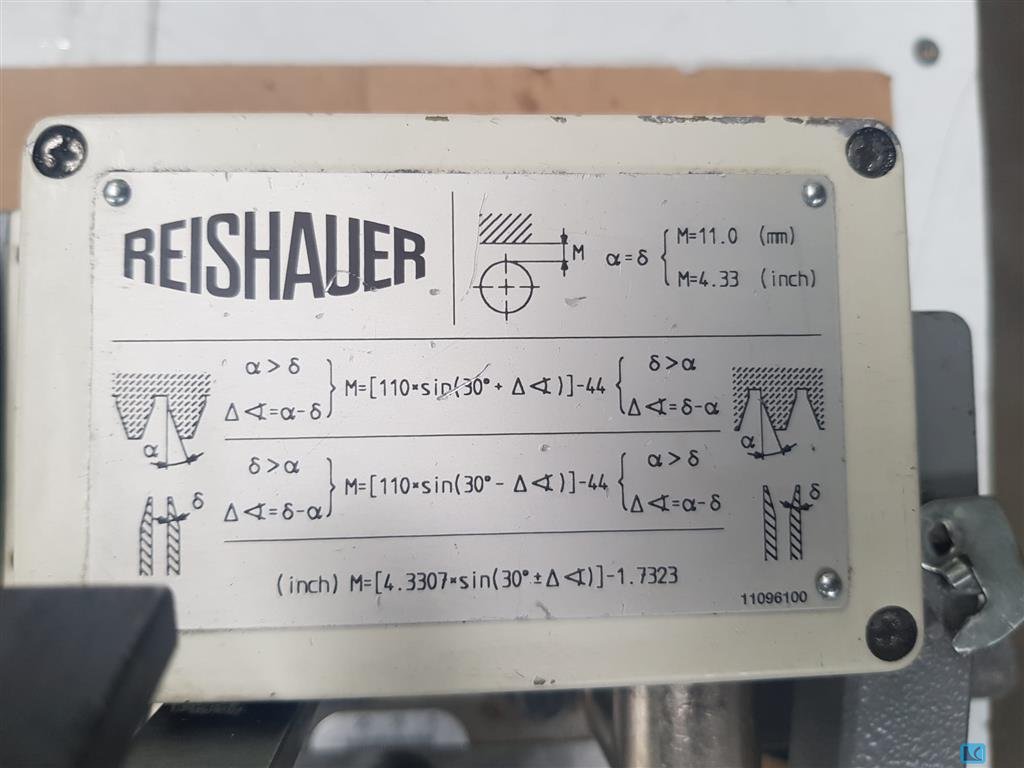

grinding wheel diameter:400 mmtotal power requirement:3 kWweight of the machine ca.:1,5 tdimensions of the machine ca.:1,5 x 1,4 x 1,3 mDressing Grinder for gears REISHAUER AMmax. width of grinding wheel 104 mmmax. dia. of grinding wheel 400 mmmax. module 7min. module 0,5pressure angle 10 - 30 °grinding worm dia. 270 - 400 mmwidth of grinding worm 62/84/104 mmgrinding worm turning speeds: at profiling 18/35/70 U/minelectrics - voltage/frequency 380 / 50 V/Hzlong. movement of crowning device 156 mm

weight of the machine ca.:8 tdimensions of the machine ca.:2,95 x 1,6 x 2,36 mchucking diameter:250 mmswing diameter:265 mmx-travel:170 mmz-travel:200 mmspindle turning speed range:1.500 U/minspindle bearing diameter:100 mmPick-up machine

weight:22 t

max. wheel diameter:200 mmgear width:250 mmmax. module:3 min. module:0,5 total power requirement:45 kWweight of the machine ca.:6,5 tdimensions of the machine ca.:4,4 x 2,4 x 2,7 mMachine out of prototype productionWithout automation

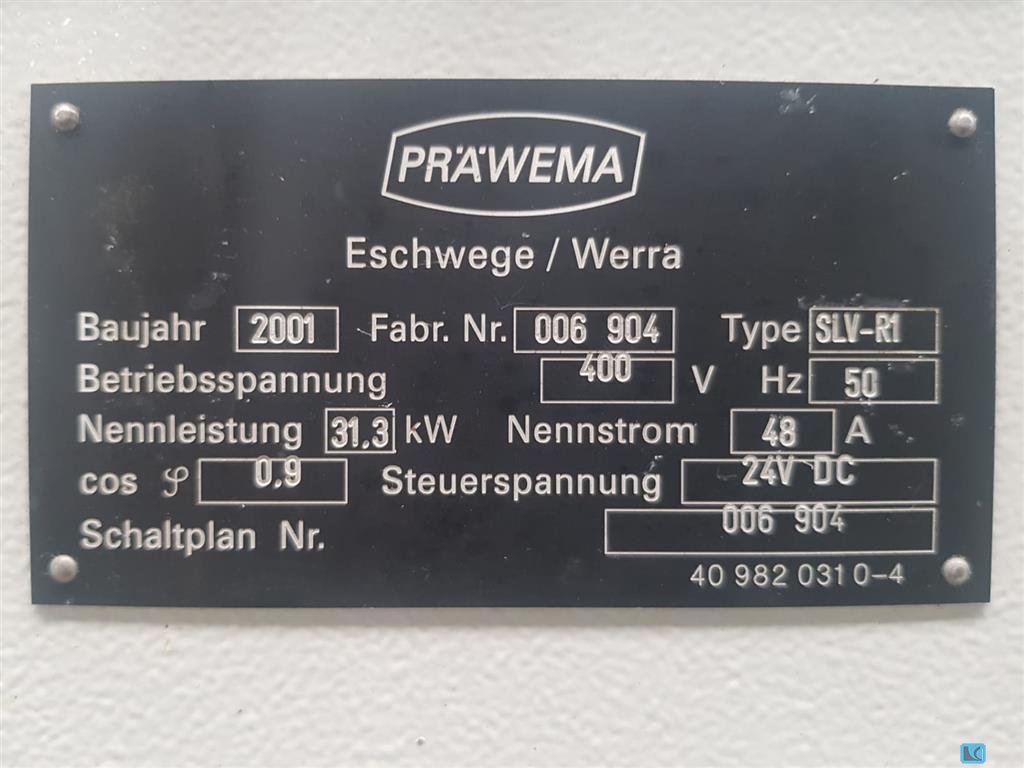

max. wheel diameter:40-200 mmtotal power requirement:31,3 kWweight of the machine ca.:4 tdimensions of the machine ca.:1,8 x 2,2 x 1,8 m

max. wheel diameter:150 mmgear width: mmmax. module:3,5 min. module:1,25 total power requirement: kWweight of the machine ca.:6,5 tdimensions of the machine ca.:2,35 x 2,10 x 2,35 mWidth of teeth:45 mmboring diameter:100 mmsurface area:1300 x 300 mm

max. wheel diameter:150 mmgear width: mmmax. module:3,5 min. module:1,25 total power requirement: kWweight of the machine ca.:6,5 tdimensions of the machine ca.:2,35 x 2,10 x 2,35 mWidth of teeth:45 mmboring diameter:100 mmsurface area:1300 x 300 mm

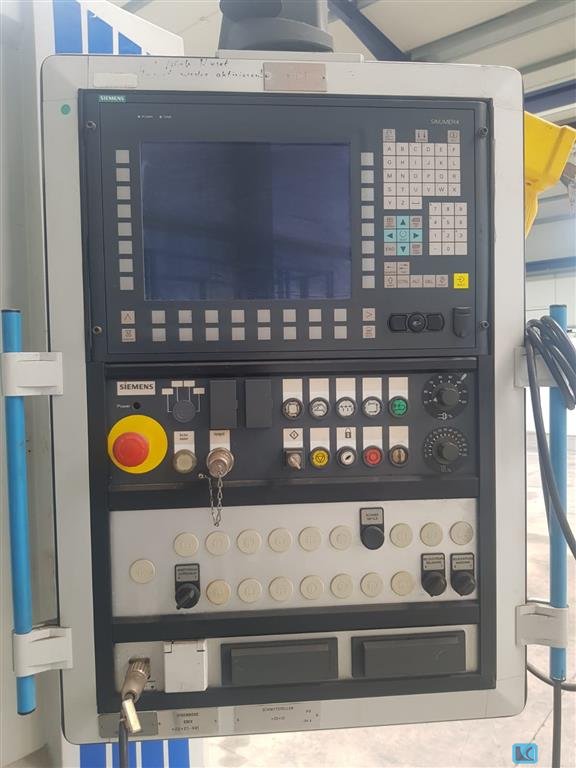

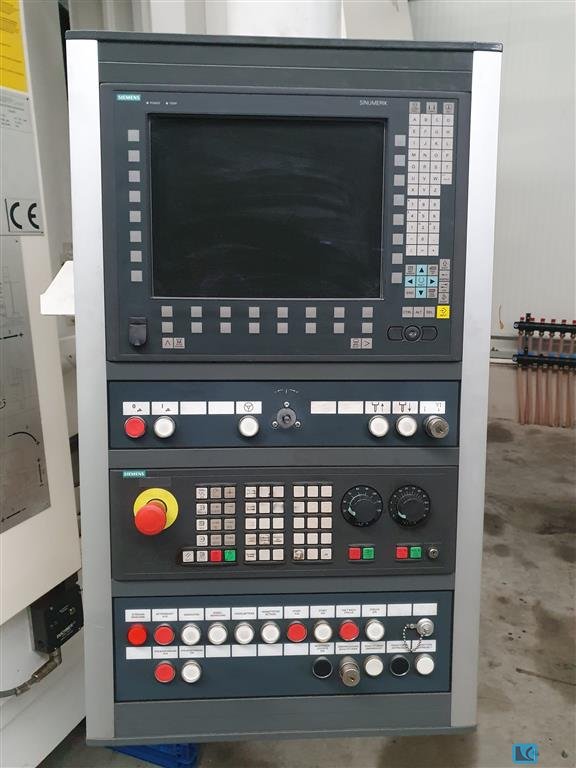

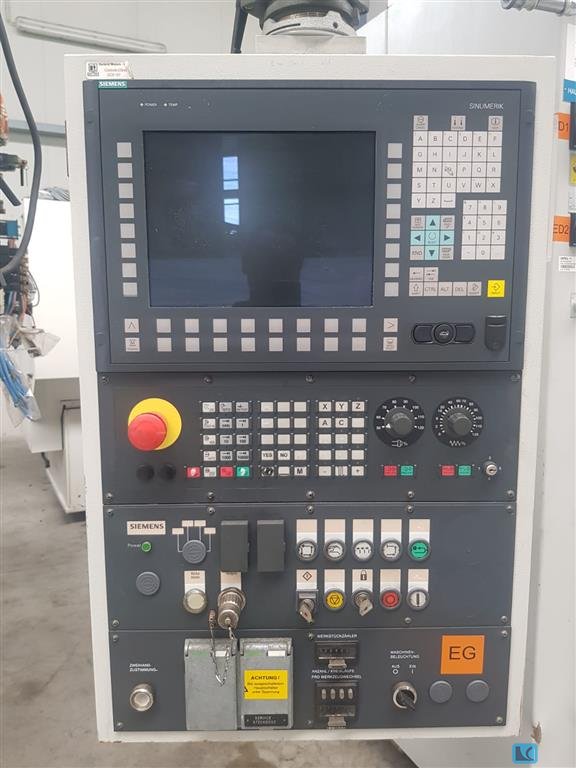

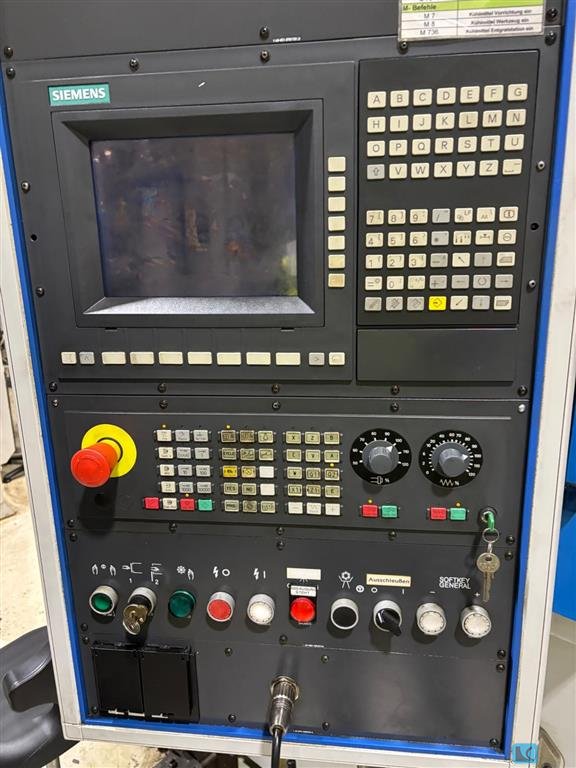

control:siemens 1P 6SL 3054--0CE01-1AA0 Documents:vorhanden

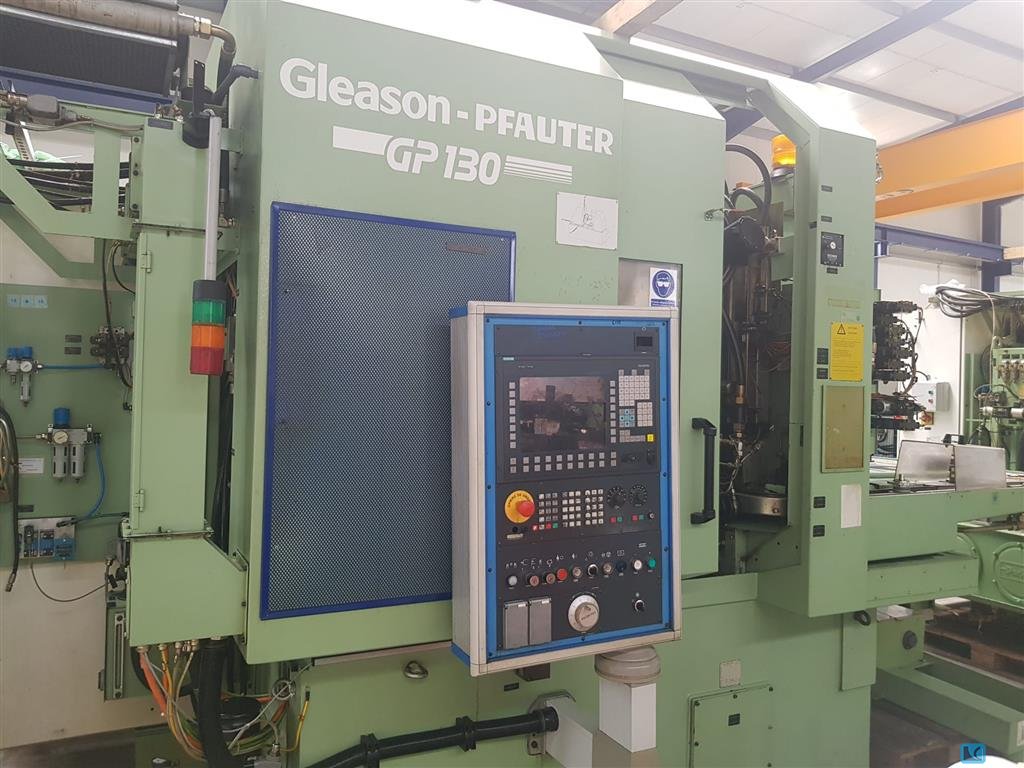

max. wheel diameter:130 mmgear width:170 mmmax. module:3 min. module:0,5 total power requirement:48 kVAweight of the machine ca.:9 tdimensions of the machine ca.:7,64 x 3,14 x 3,25 mFor technical data, see PDF-File enclosed

Dressing diameter: Planing width: min. module: for Reishauer RZ150

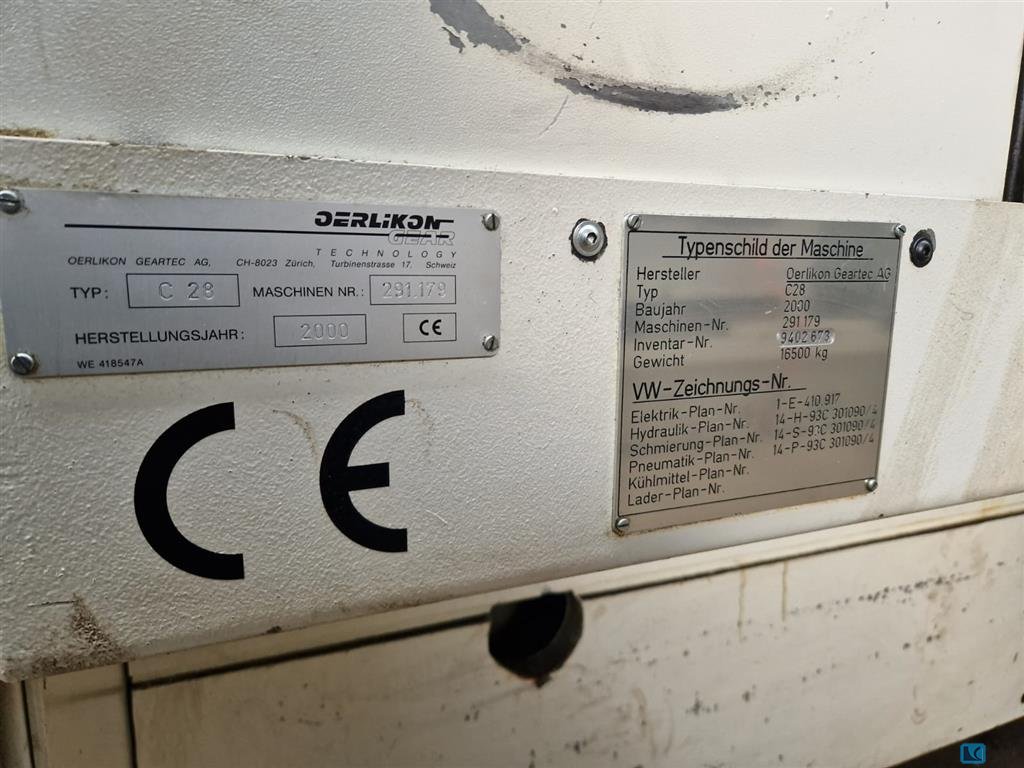

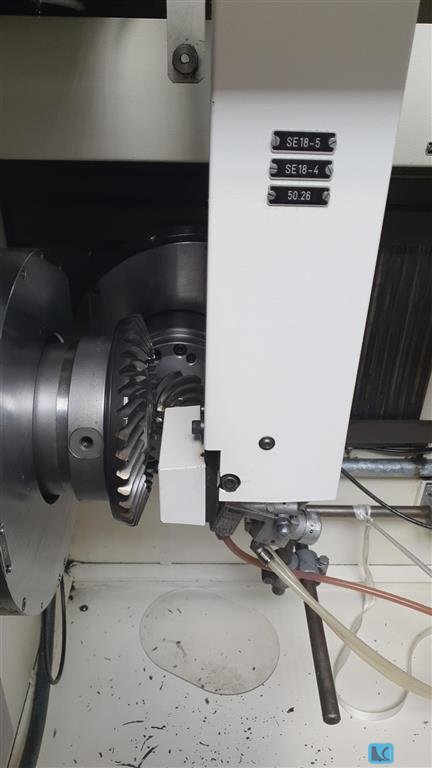

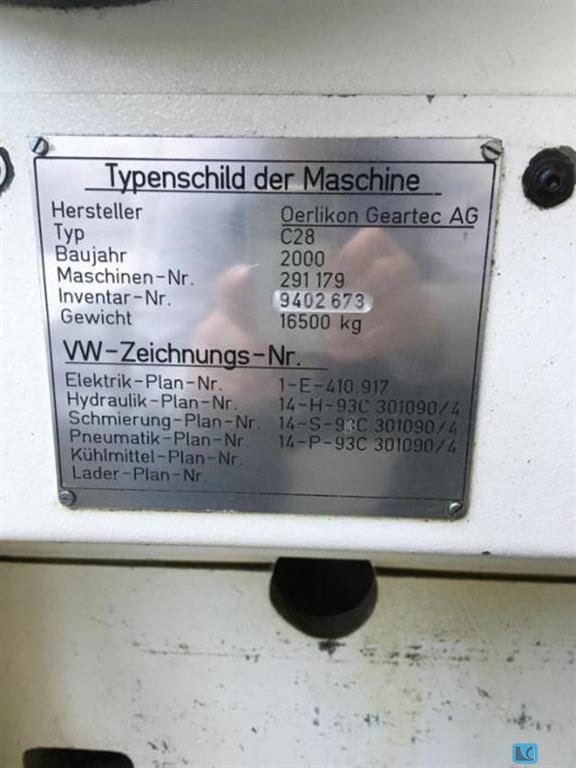

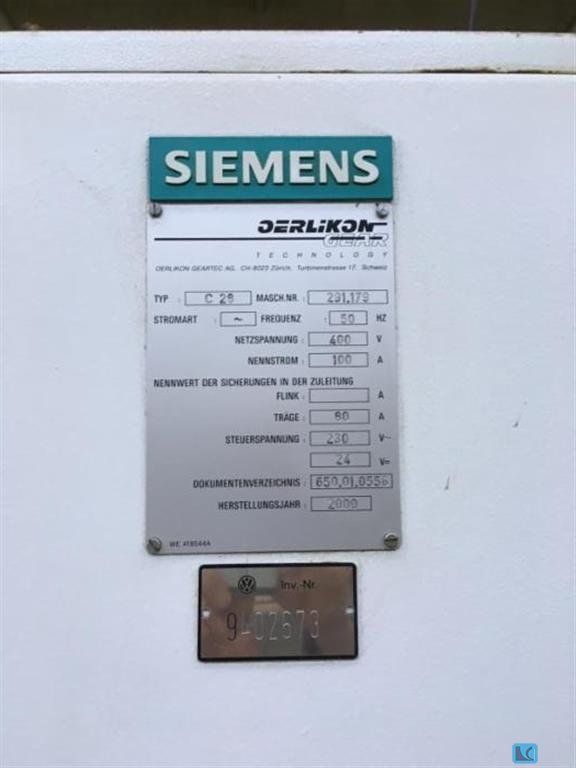

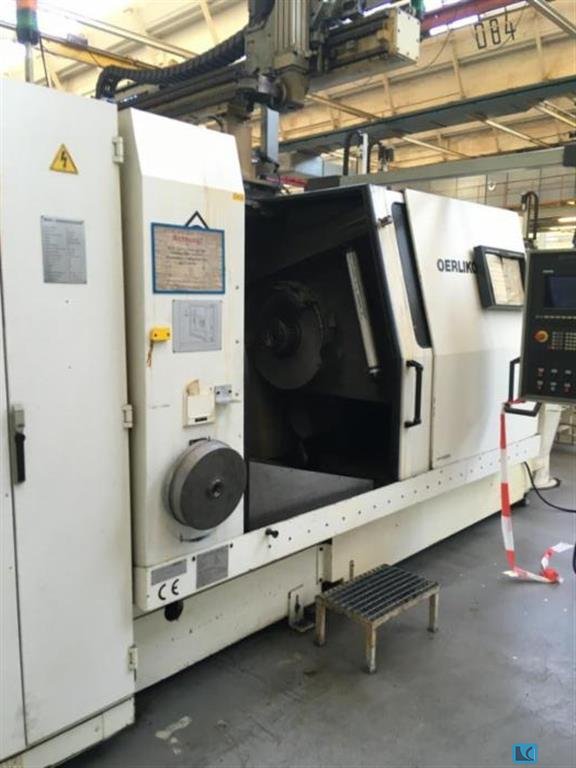

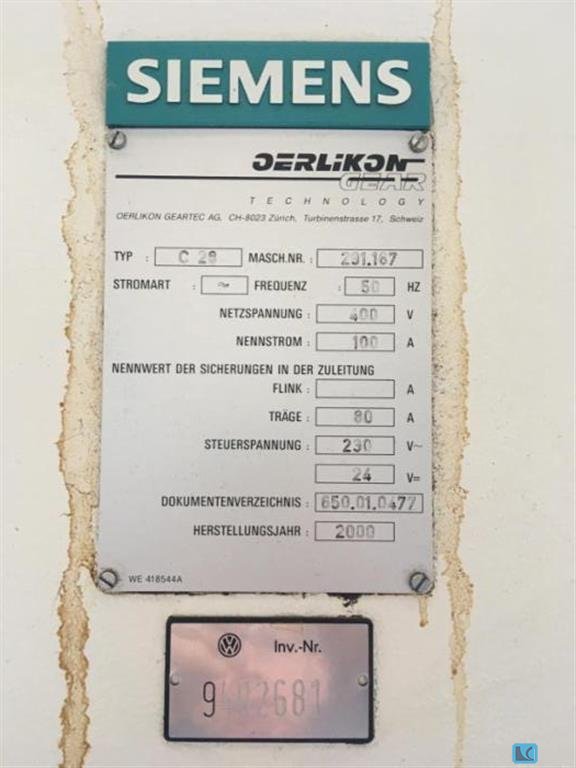

max. wheel diameter:275 mmgear width:55 mmmax. module:6,5 min. module:1,5 Face Hobbing-Continious ProcessContinuous process: The workpiece and tool (usually Spiron) rotate at the same time, and all teeth are created in one operation at the same time. Knife head has several knife groups (not arranged in a circle) Parallel tooth Conical tooth tip surface Single Item procedure: The workpiece is stationary and the tool (usually Arcon) rotates and cuts a tooth by immersing the tool. Once a tooth is cut, the tool moves out of the tooth again, the workpiece divides by one tooth width and the next tooth is cut until all teeth are finished. Knife head has arranged all knives in a circular path. Conical tooth height Parallel tooth head surfaceC28 can do both, wheel + pinion. However, a C28 must be ?prepared? for the individual part procedure. I.e. direct measuring system + part gear brake, workpie ...

max. wheel diameter:275 mmgear width:55 mmmax. module:6,5 min. module:1,5 Face Hobbing-Continious ProcessContinuous process: The workpiece and tool (usually Spiron) rotate at the same time, and all teeth are created in one operation at the same time. Knife head has several knife groups (not arranged in a circle) Parallel tooth Conical tooth tip surface Single Item procedure: The workpiece is stationary and the tool (usually Arcon) rotates and cuts a tooth by immersing the tool. Once a tooth is cut, the tool moves out of the tooth again, the workpiece divides by one tooth width and the next tooth is cut until all teeth are finished. Knife head has arranged all knives in a circular path. Conical tooth height Parallel tooth head surfaceC28 can do both, wheel + pinion. However, a C28 must be ?prepared? for the individual part procedure. I.e. direct measuring system + part gear brake, workpie ...

max. wheel diameter:50 mmgear width:20 mmmax. module:4 mmmin. module:0,1 mmtotal power requirement:12,5 kWweight of the machine ca.:4000 kgdimensions of the machine ca.:2,2 x 2,5 x 2,3 mworkpiece length - max.:300 mm

weight of the machine ca.:4 t

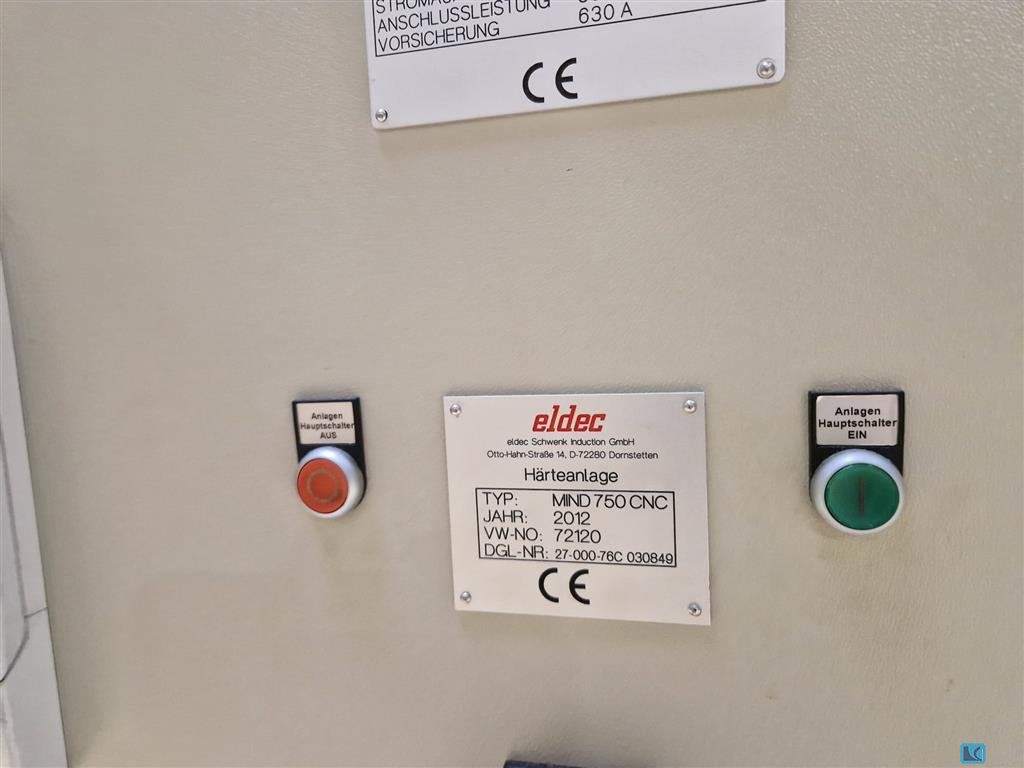

total power requirement:413 kWInduction hardening machine Rotary table Eldec: Z (servo drive 750 mm Y (electromechanical) 300 mmX (electromechanical) 200 mmMaximum part diameter 600 mmMaximum workpiece weight 500 kg High frequency generator type HFG 200 Medium frequency generator type MFG 30

max. wheel diameter:260 mmgear width:320 mmmax. module:5 weight of the machine ca.:21 tdimensions of the machine ca.:8,71 x 5,97 x 3,49 mno. of teeth:1...999 max. helix angle:+45/-45 °pitch min.:0,1 mmpitch max.:1000 mmX-axis:345 mmy-axis:250 mmZ-axis:320 mmb-axis:360 °c-axis:360 °Coolant is not available. It was central and there is only a booster pump without filtering. For loading system there is a 2-axes robot with workpiece conveyor.

max. wheel diameter:280 mmmax. module:7 weight of the machine ca.:13 ttable turning speeds:100 U/mintable diameter:250 mmmin. number of teeth:4 hob turning speeds:1500 U/minmax. hob diameter:160 cutter length max.:230 mmMachine in good condition.Available 01.08.2024

max. wheel diameter:200 mmgear width:60 mmmax. module:7 weight of the machine ca.:15 ttable diameter:180 mmtable turning speeds:100 U/minhob turning speeds:750 U/minMachine in good condition, without feed, without automationAvailable 24.08.2024

max. wheel diameter:900 mmmax. module:10 weight of the machine ca.:8200 kos.hob dia. - max.:190 mmcutter length max.:320 mmmilling spindle speeds (infinitely variable):13-80 U/minworkpiece length - max.:750 mmmax. workpiece diameter:150 mmCounter holder milling mandrel is missing

max. wheel diameter:280 mmmax. module:5 min. module:1 min. number of teeth:7 toolpiece turning speed range:4.000...10.000 U/mintool length:210 mmCBN

max. wheel diameter:200 mmgear width:50 mmmax. module:6 table diameter:168,14 mmboring diameter:65,532 mmweight of the machine ca.:11 ttable turning speeds:0-1.000 U/minlength of stroke min./max.:0-70 mmno. of strokes:180-1.800 StückThis machine can be used to make tandler gears. However, for helical gearing, a helical guide is also required.

max. wheel diameter:300 mmgear width:110 mmmax. module:6 weight of the machine ca.:10,5 t
